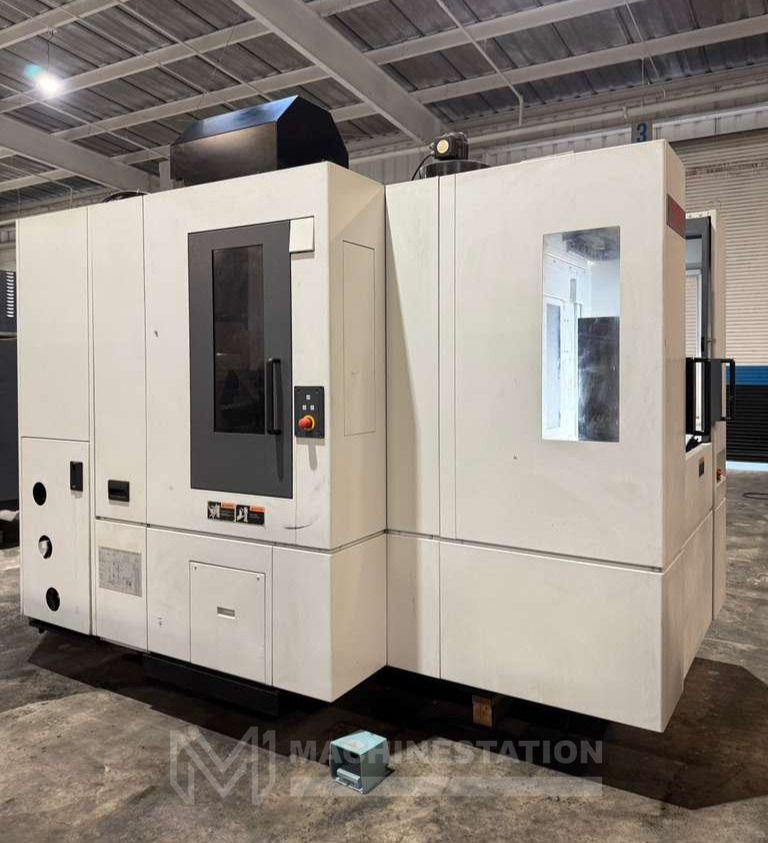

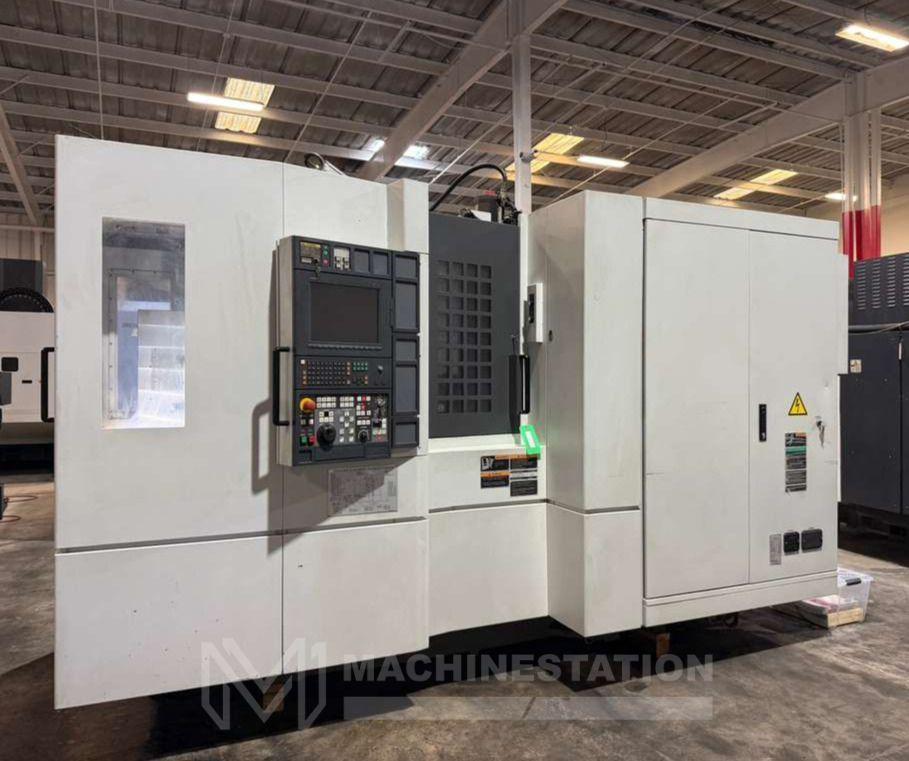

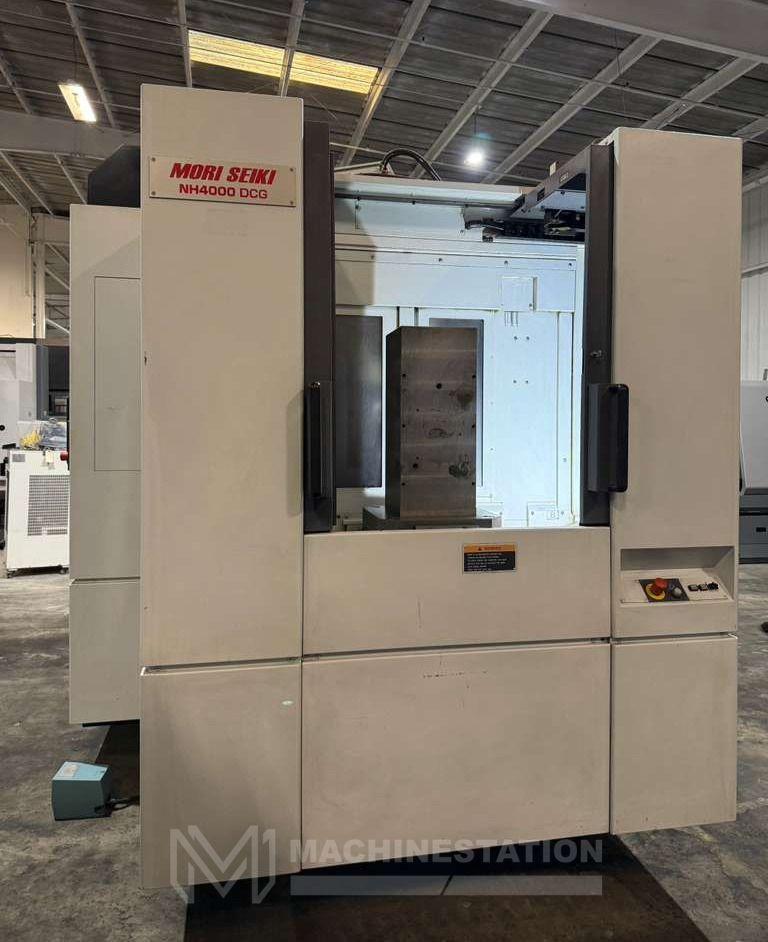

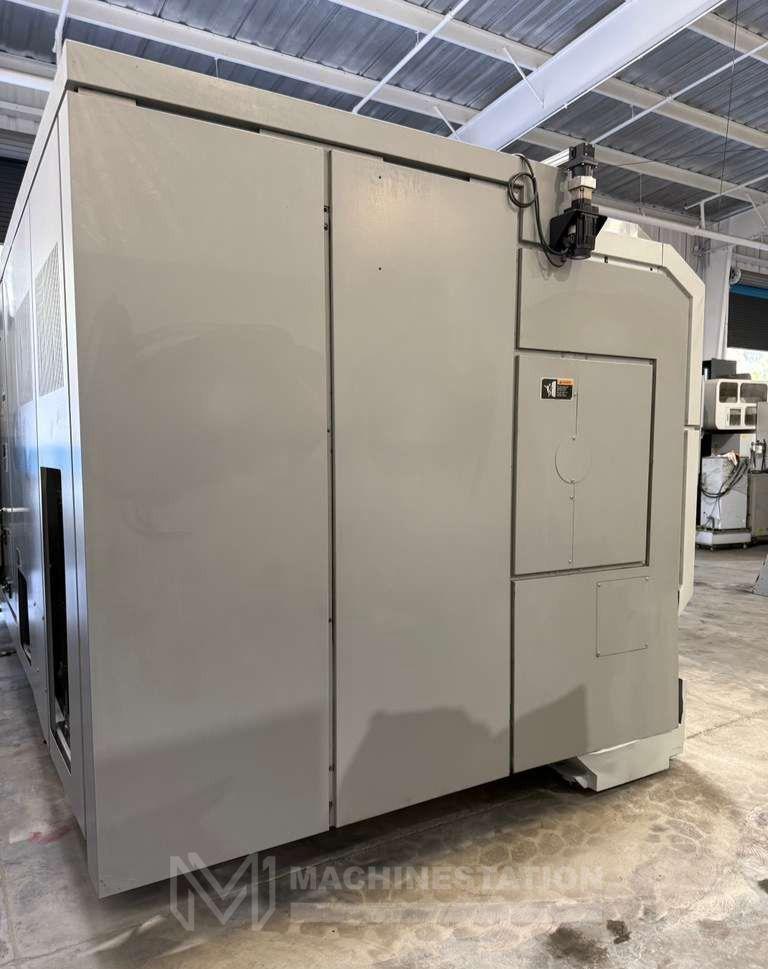

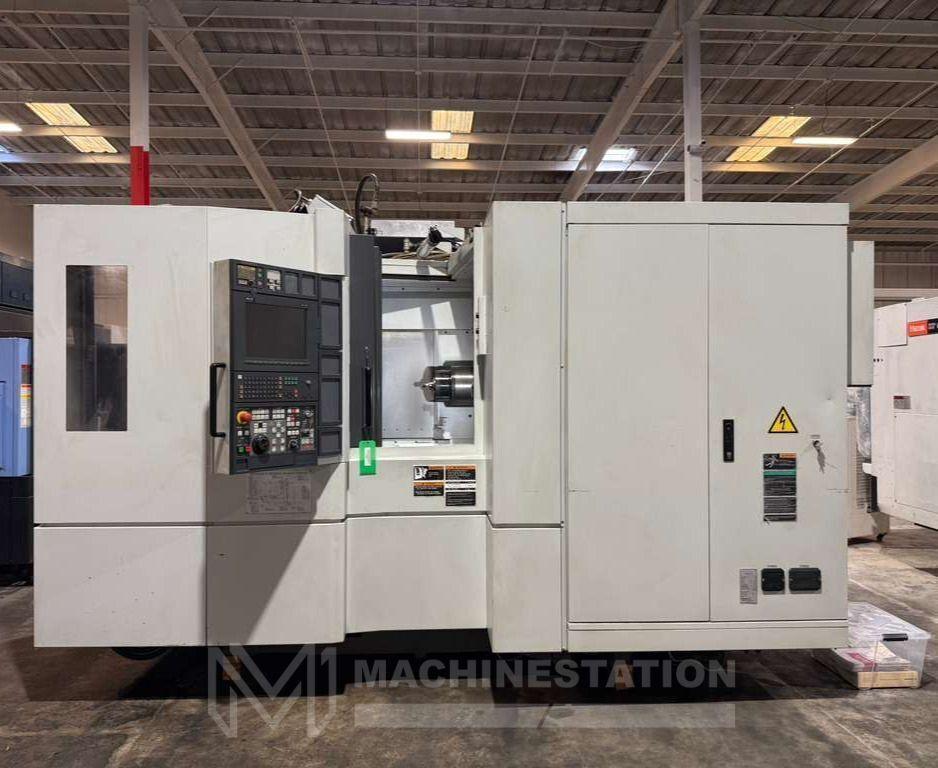

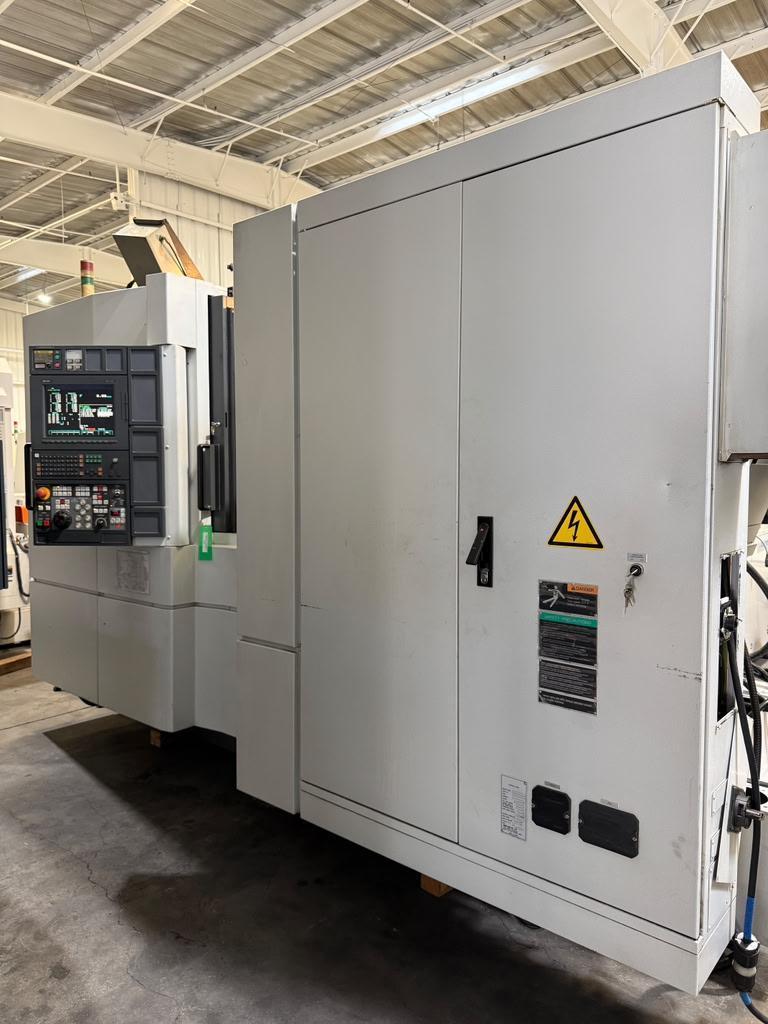

Mori Seiki NH4000 DCG Horizontal Machining Center – Mill

Brand
DMG MORI
Category
Machining Centers
Type
Horizontal Machining Centers
Model
Mori Seiki NH4000 DCG
Stock #
113605
Year
2008
Condition
Not specified

Location

Not specified

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Make: Mori Seiki
Model: NH4000 DCG
Year: 2008
Condition: Used – Good
Features:

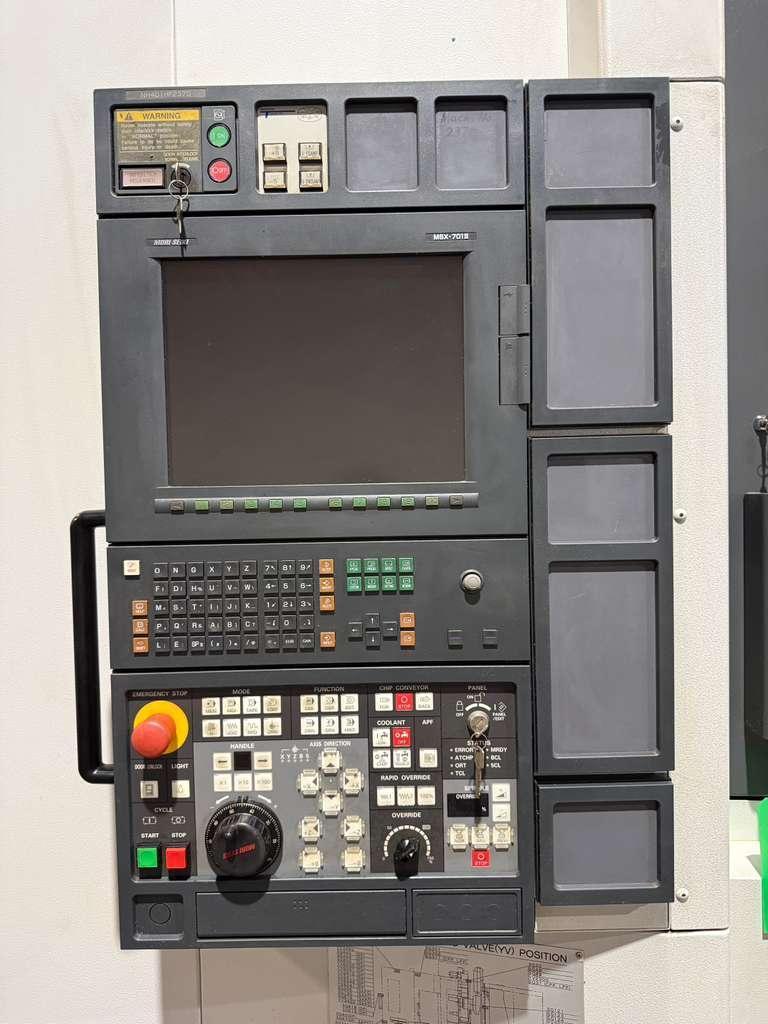

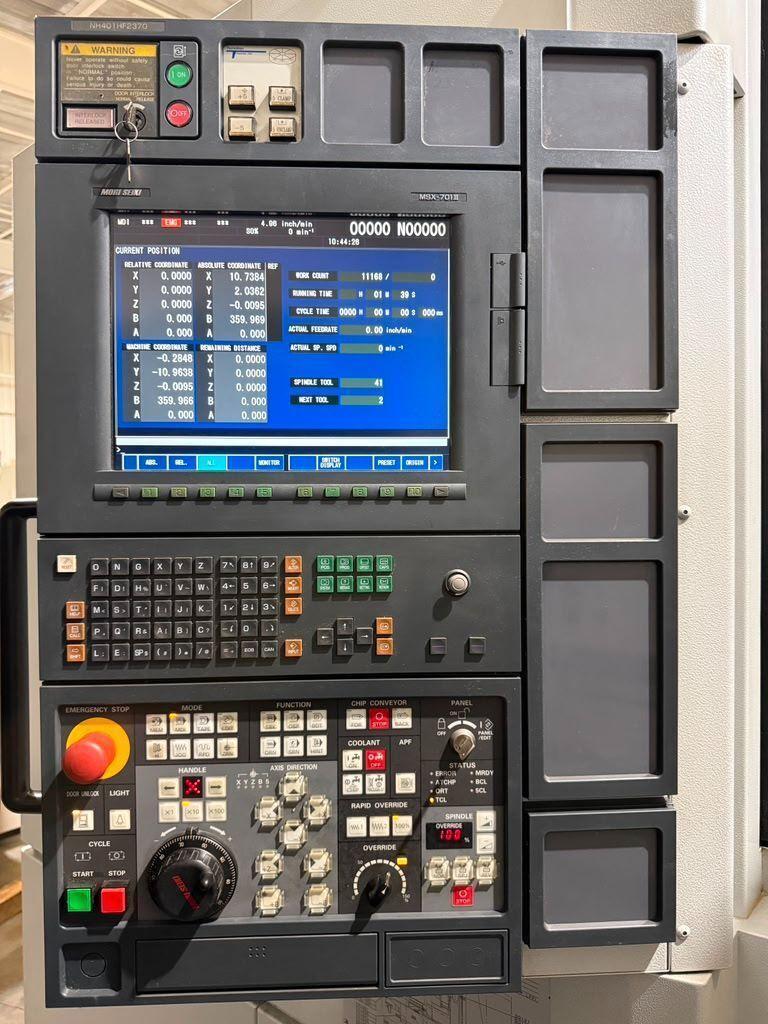

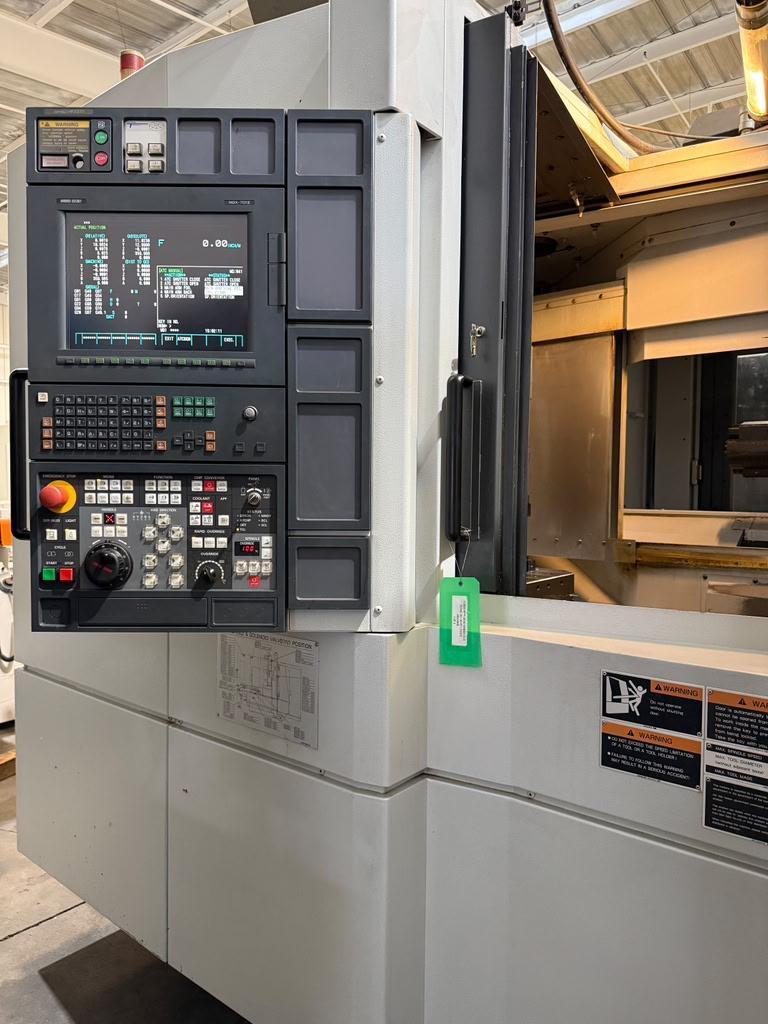

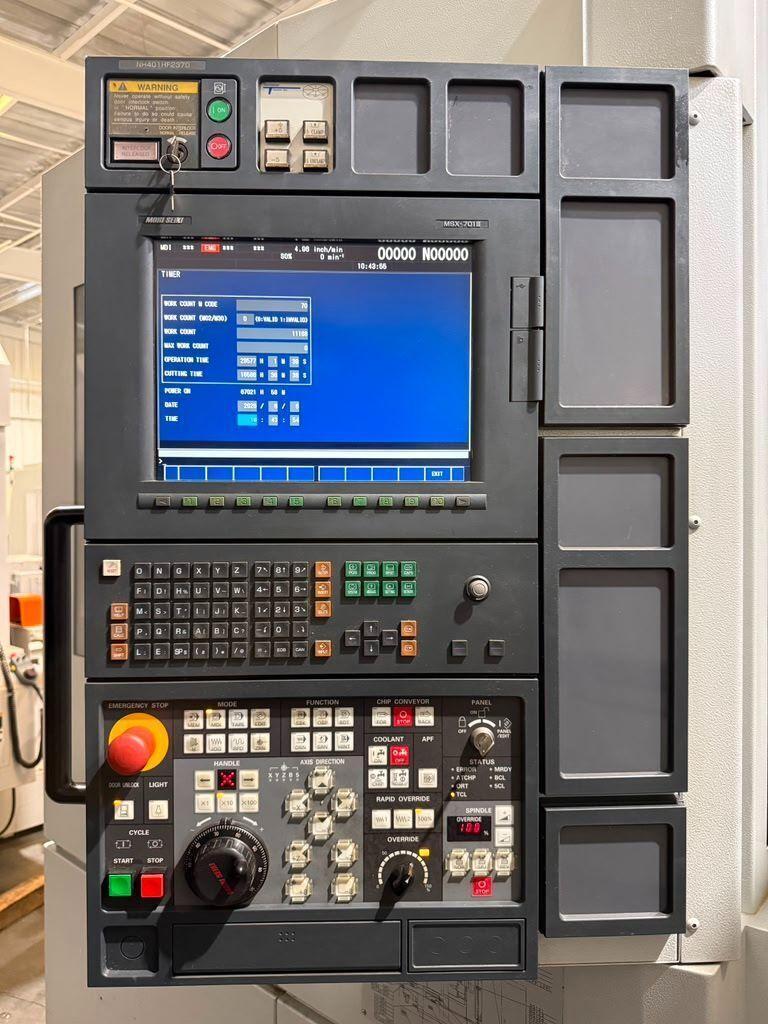

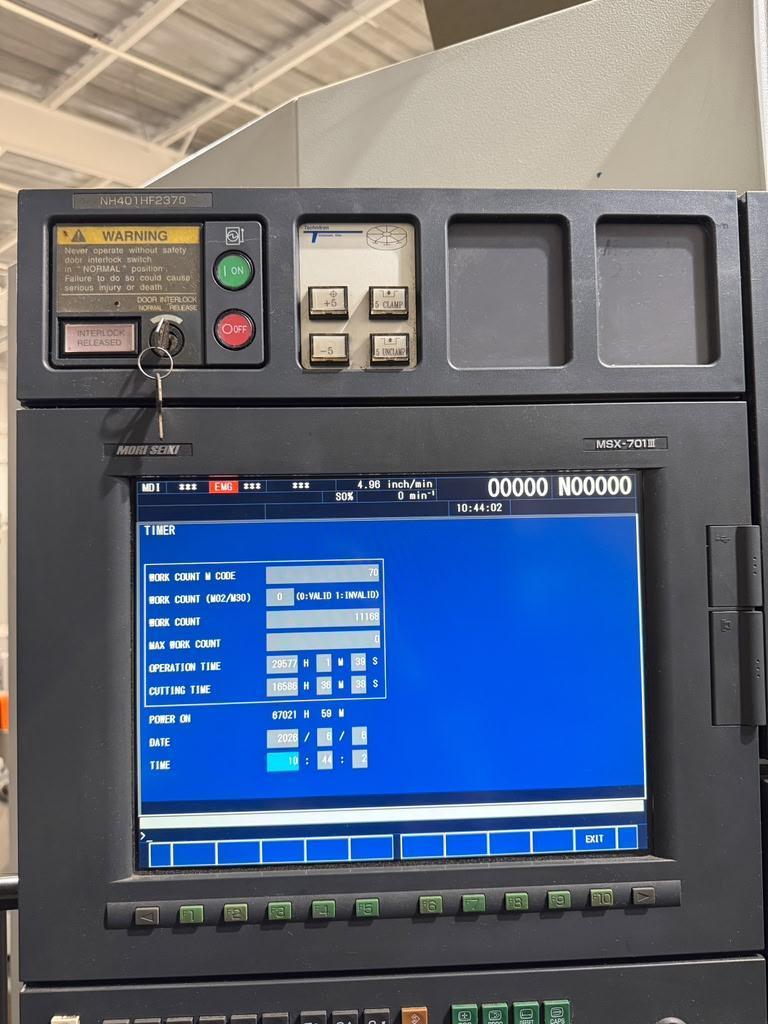

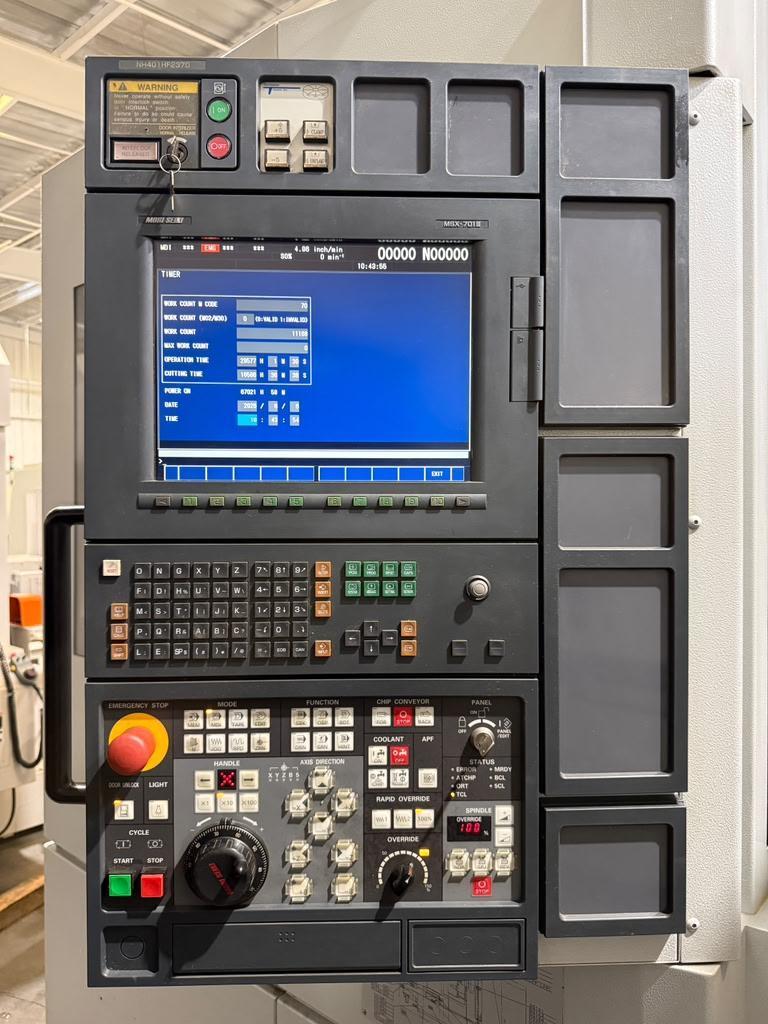

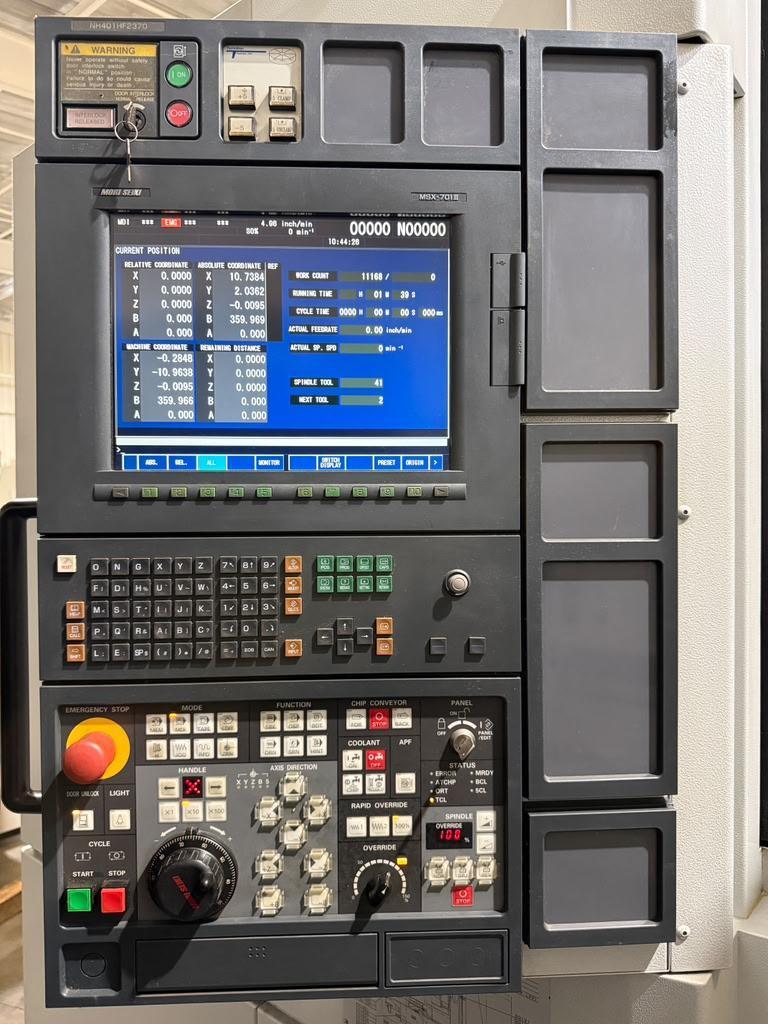

Mori Seiki MSX-701III (Fanuc) CNC Control

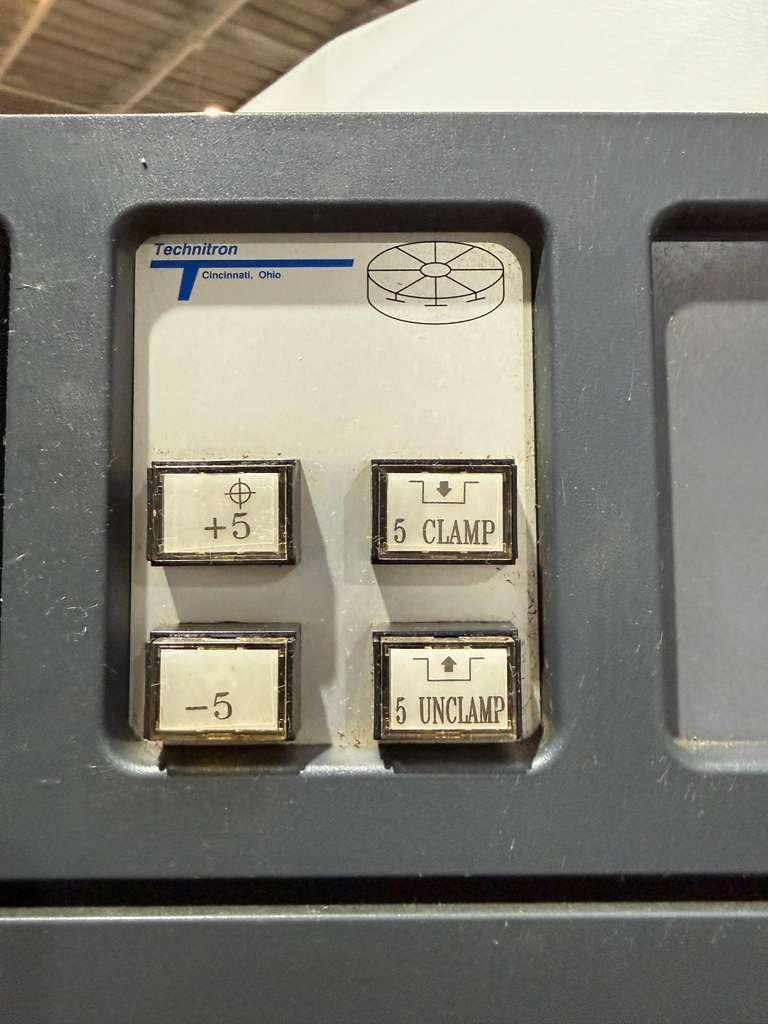

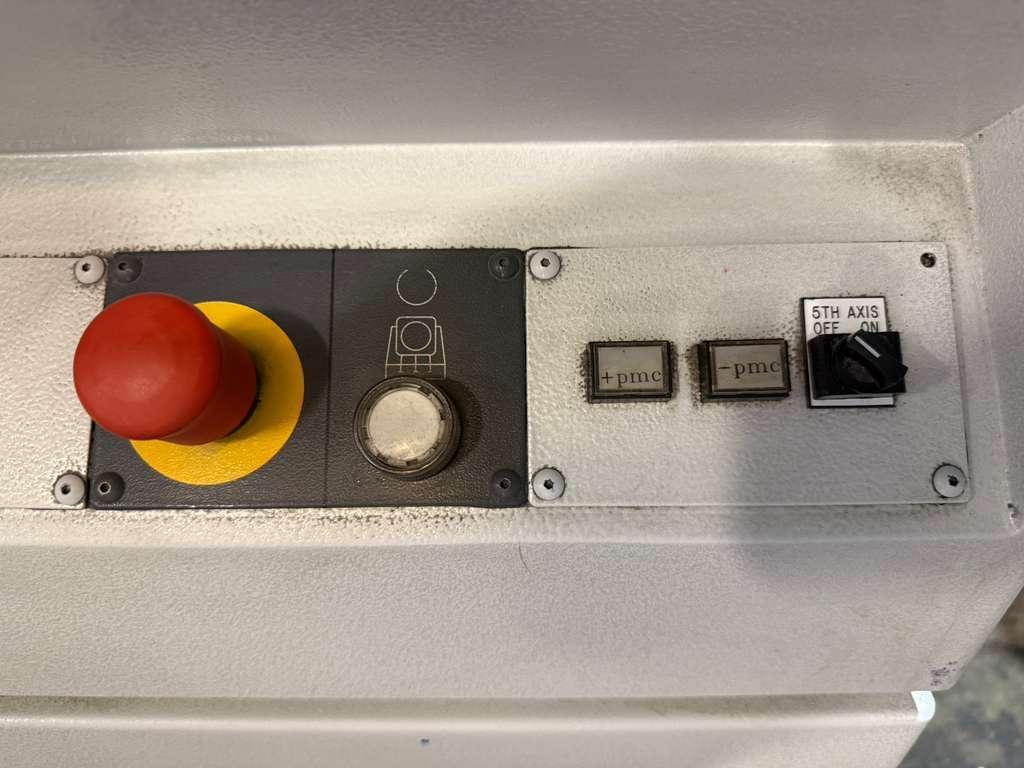

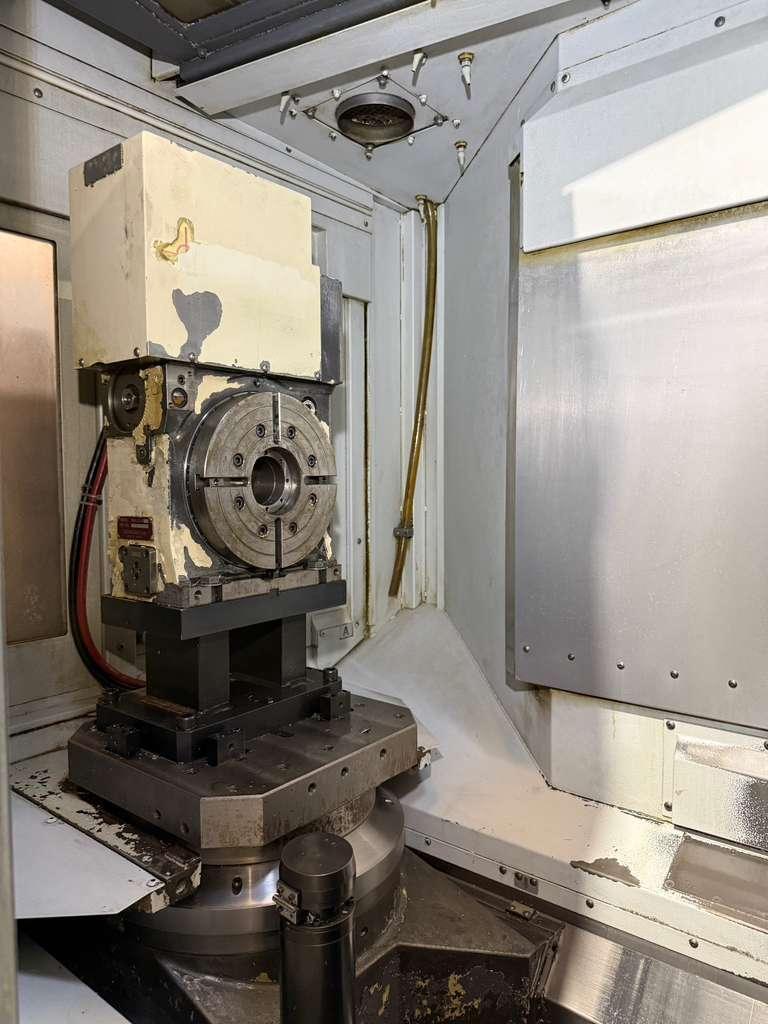

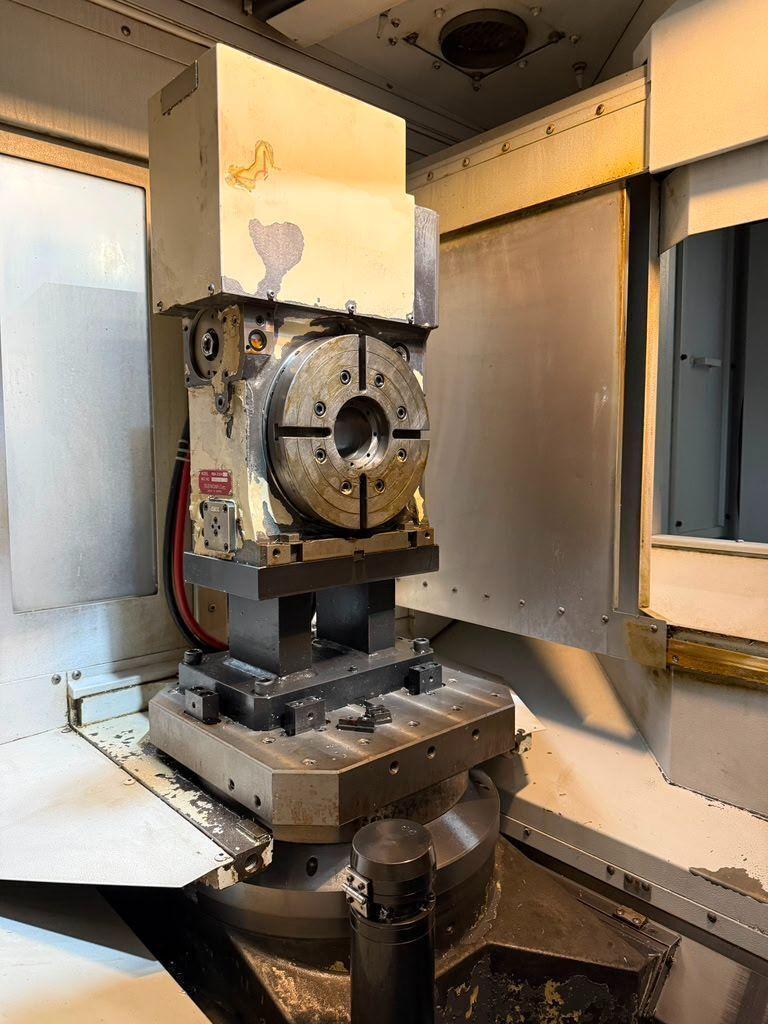

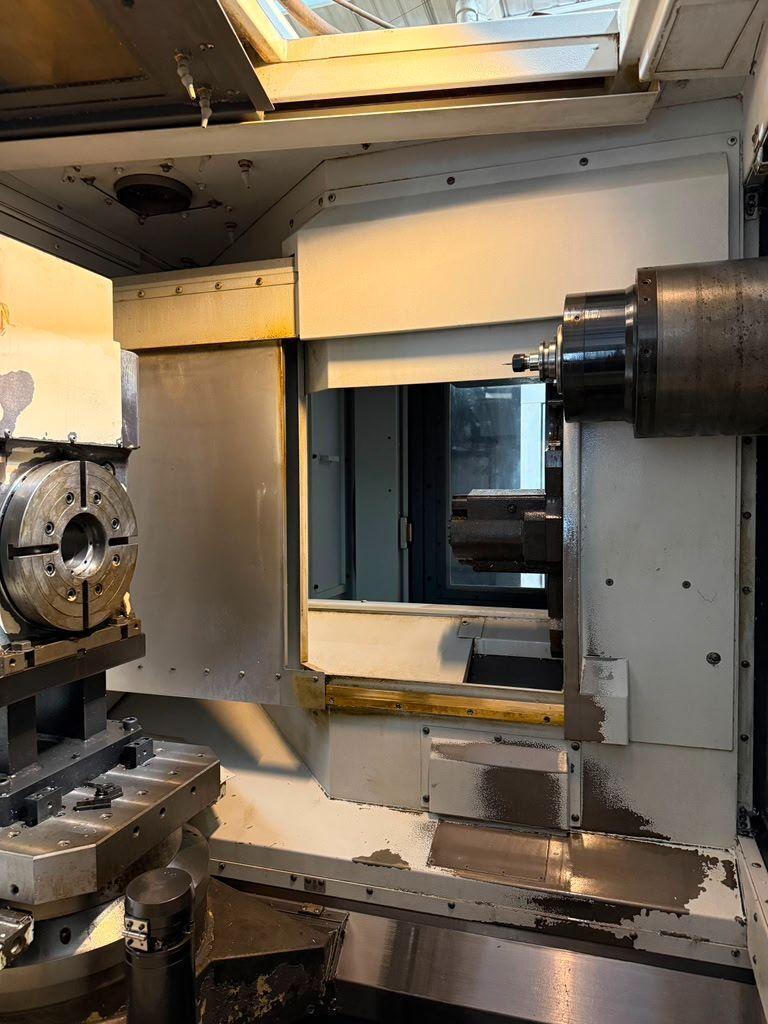

Tsudakoma RBA 250K 5th Axis Rotary Table Installed on Table

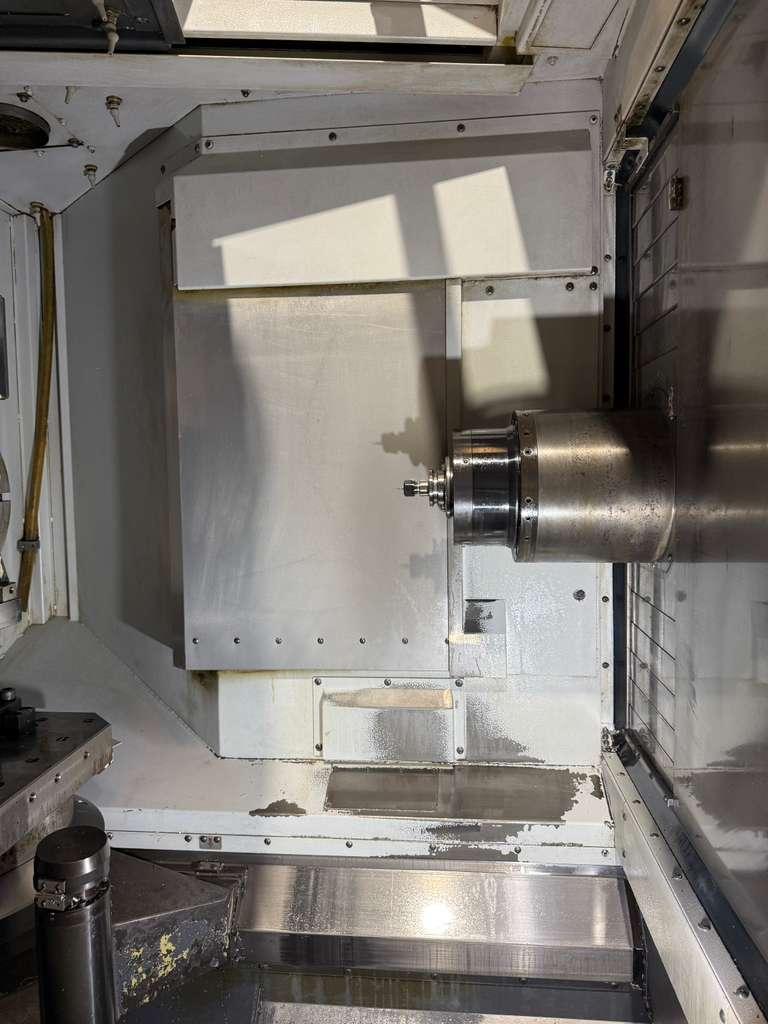

14,000 RPM High Precision Spindle
Twin Pallet Changer

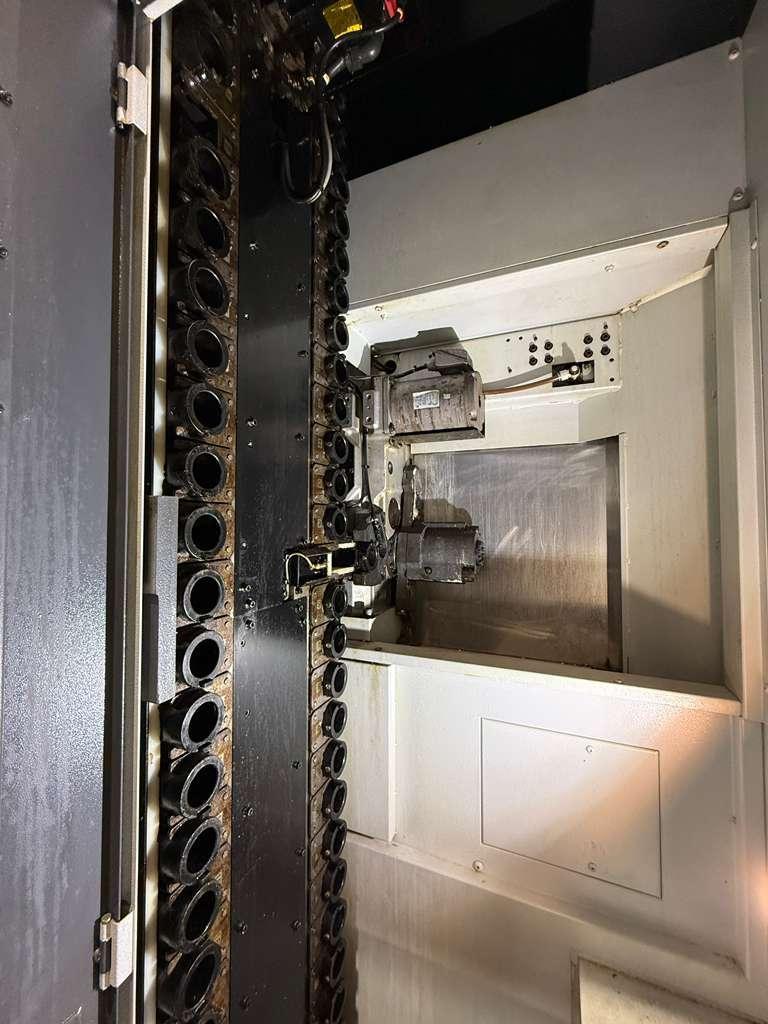

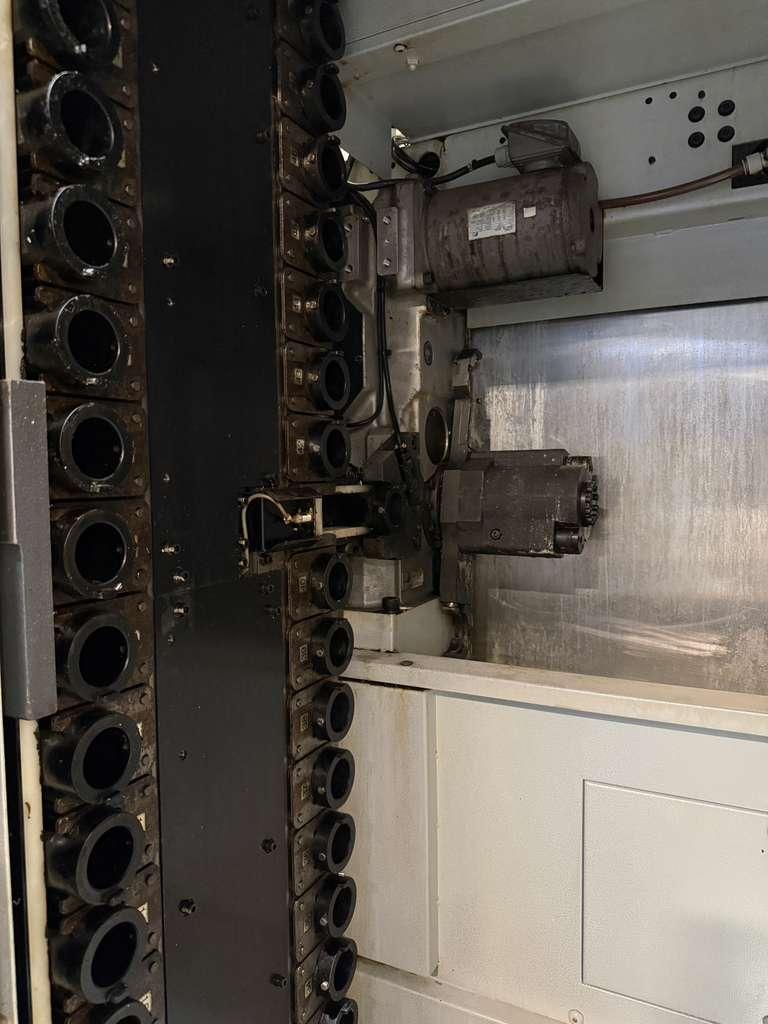

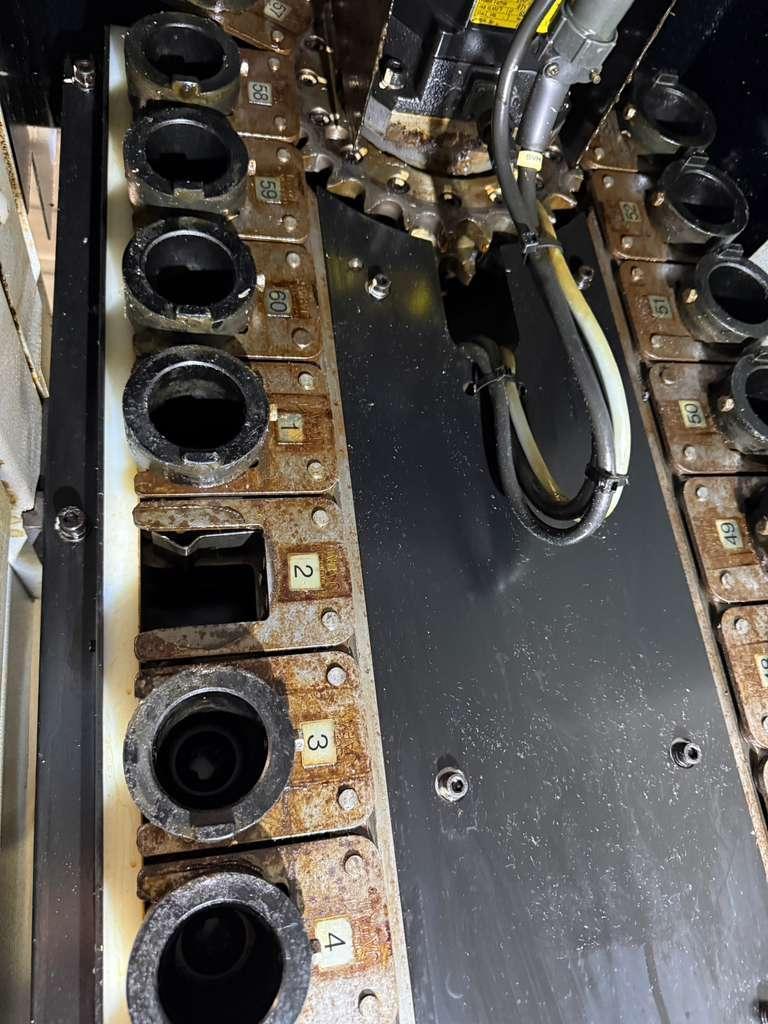

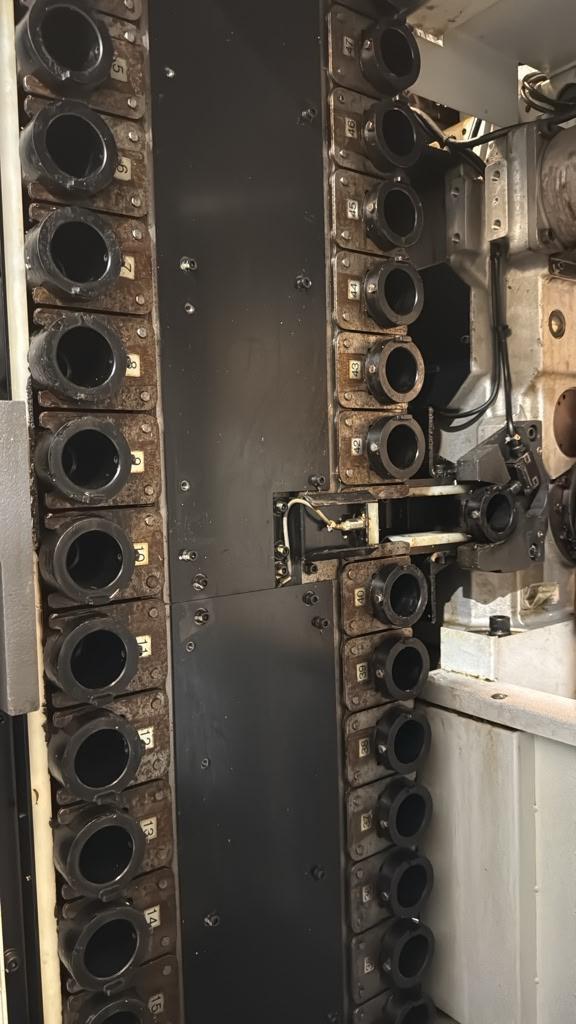

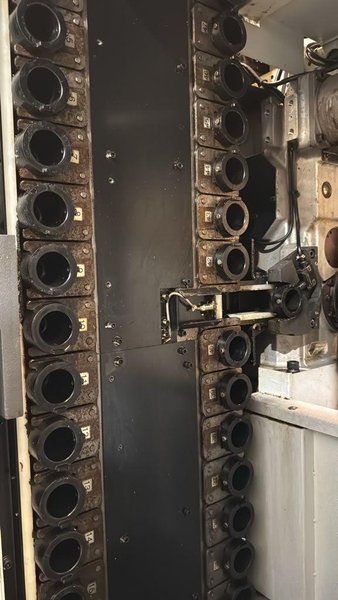

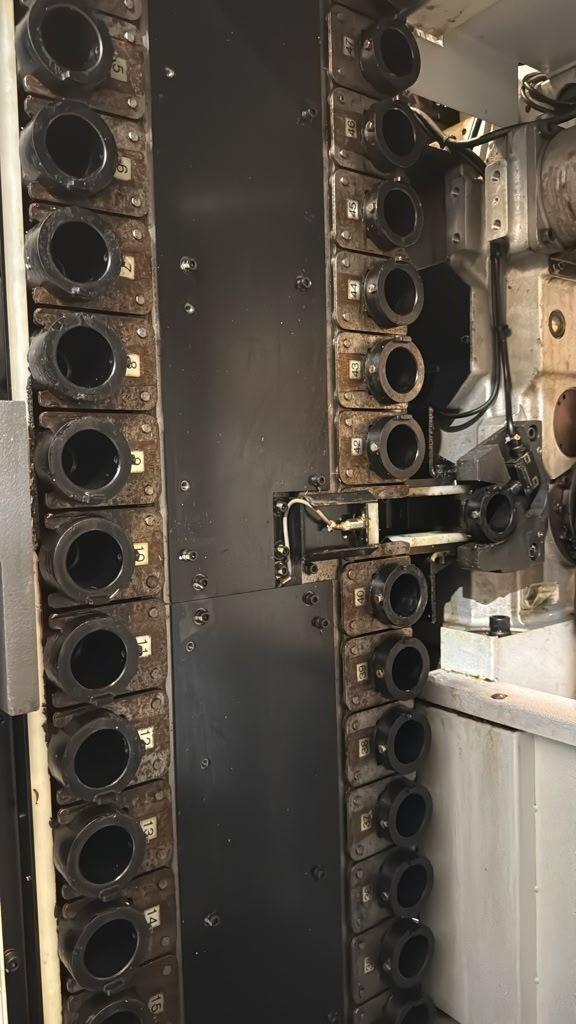

60 Station Automatic Tool Changer
Through Spindle Coolant
Pallet Seat Detection
Spindle Orientation
Rigid Tapping
Fast Rapid Traverse Rate
Spindle Chiller Unit
Coolant System
Chip Conveyor

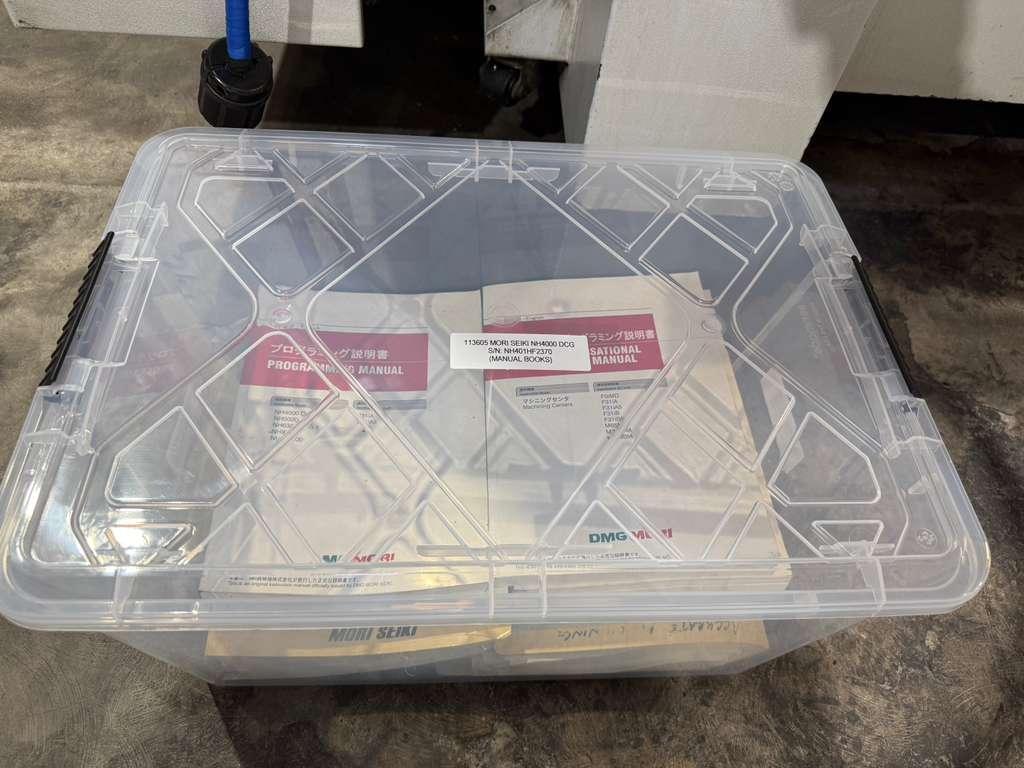

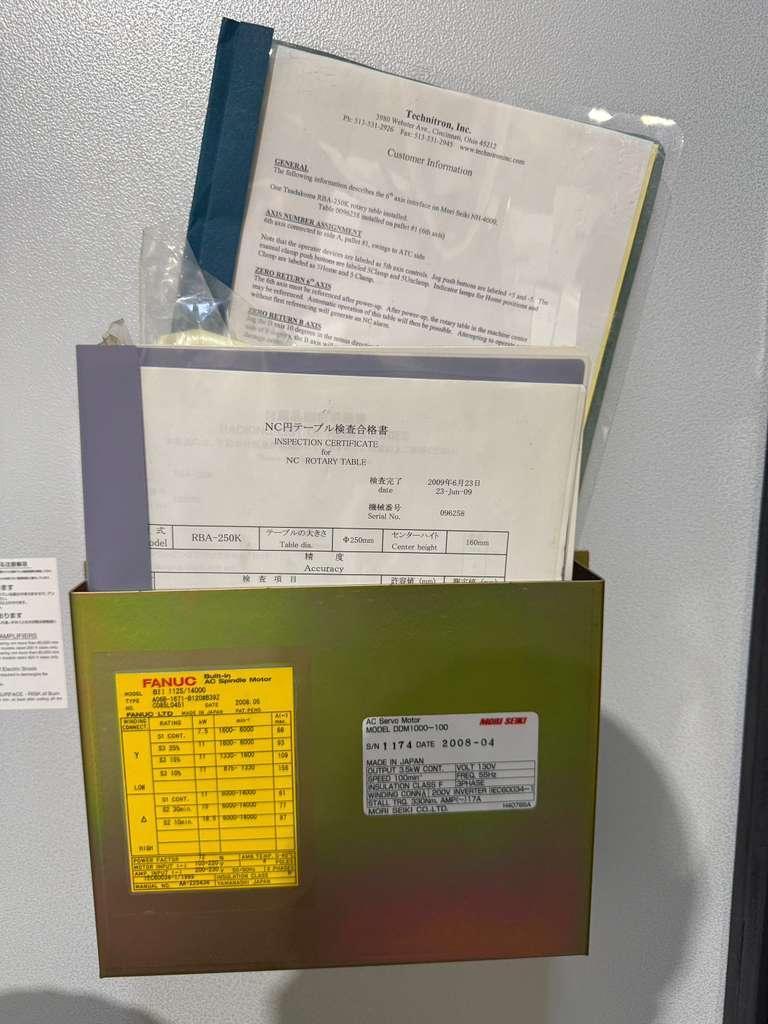

Books & Manuals
Travels:
X Axis: 22.0″
Y Axis: 22.0″
Z Axis: 24.8″
Distance From Pallet Surface to Spindle Center: 3.1″ – 25.2″
Table:
Length: 15.7″
Width: 15.7″
Max Weight on Table: 880 lbs
Max Workpiece Swing Diameter: 24.8″
Max Workpiece Height: 35.4″
Index Time: 8 seconds 90°

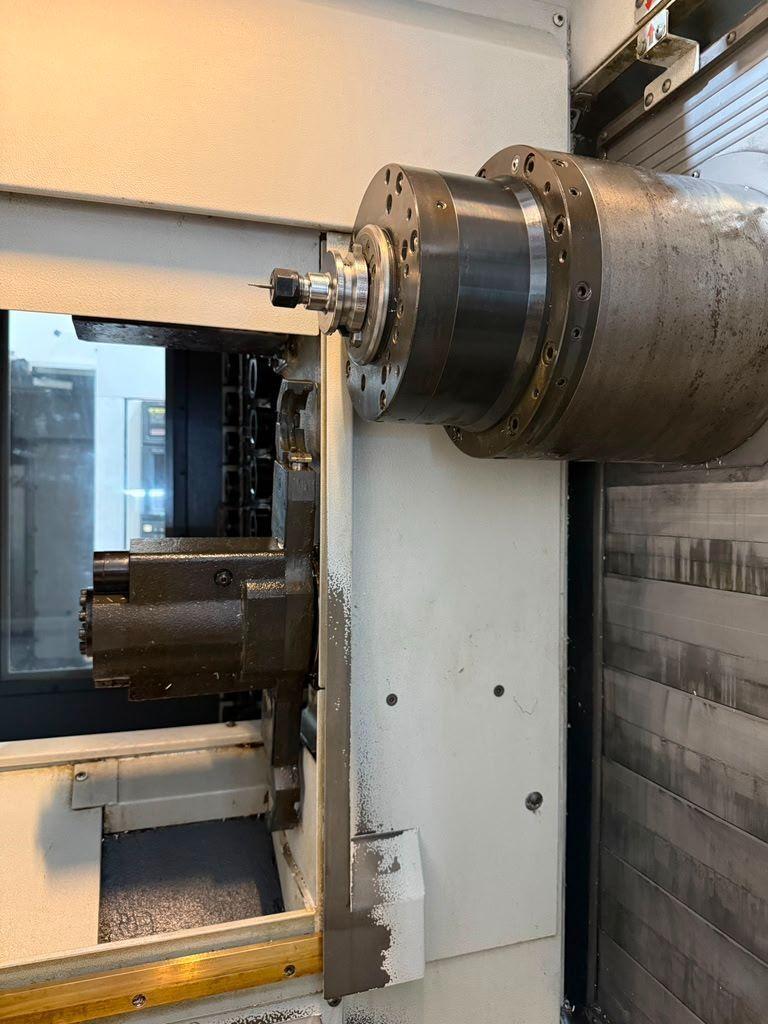

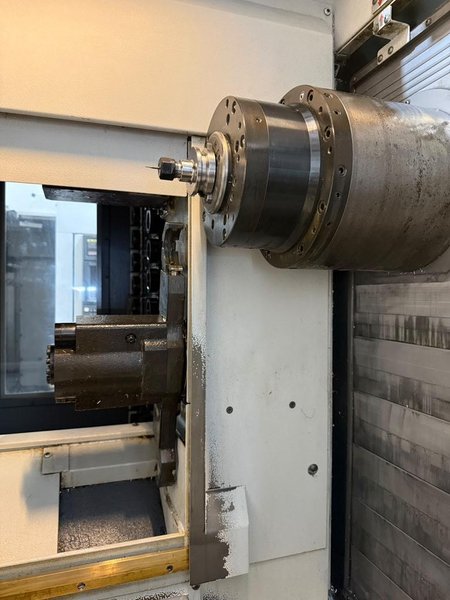

Spindle:
Taper Size: BT-40
Max. Speed: 14,000 RPM
Spidle Motor Power: 30 HP
Feed rates:
Rapid Traverse Rate X,Y,Z Axis : 1968 Inch Per Minute
Cutting Feedrate X,Y,Z Axis : 1968 Inch Per Minute
Tool changer:
Capacity: 60 Tools
Max Tool Diameter (without adjacent tools): 5.11″
Max Tool Diameter (with adjacent tools): 2.70″
Max Tool Length: 15.7″
Max Tool Weight: 17.6 lbs.
Tool to Tool Change Time: 0.9 Second
General:
Air Required: 90 psi, 4 scfm
Power: 40 kva / 220v / 3-Phase
Overall Dimensions: 157.6″ X 94.4″ x 106.7″ High
Weight: 21,605 lbs. Approx.

Tags:DMG, DMG MORI, DMG Mori Seiki
