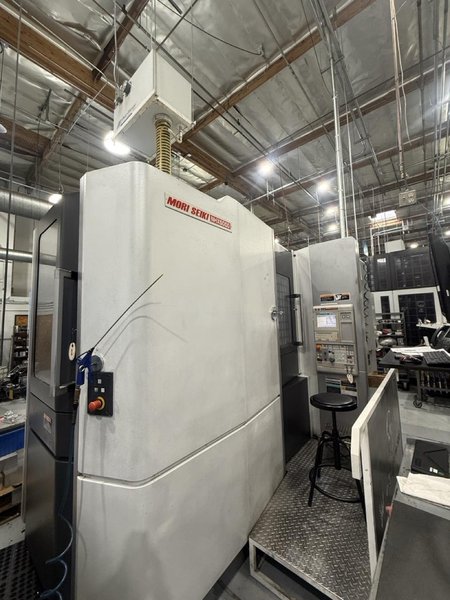

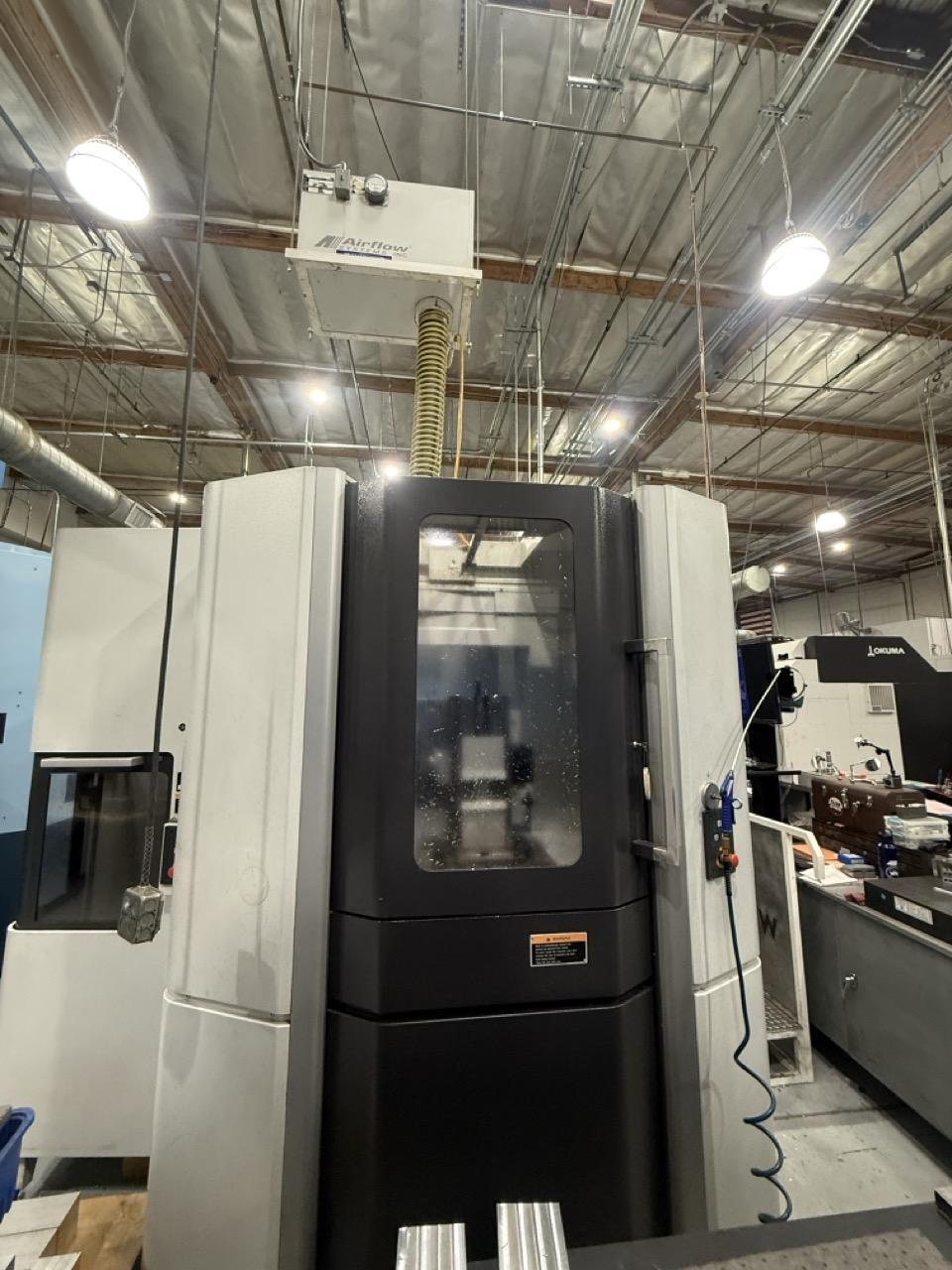

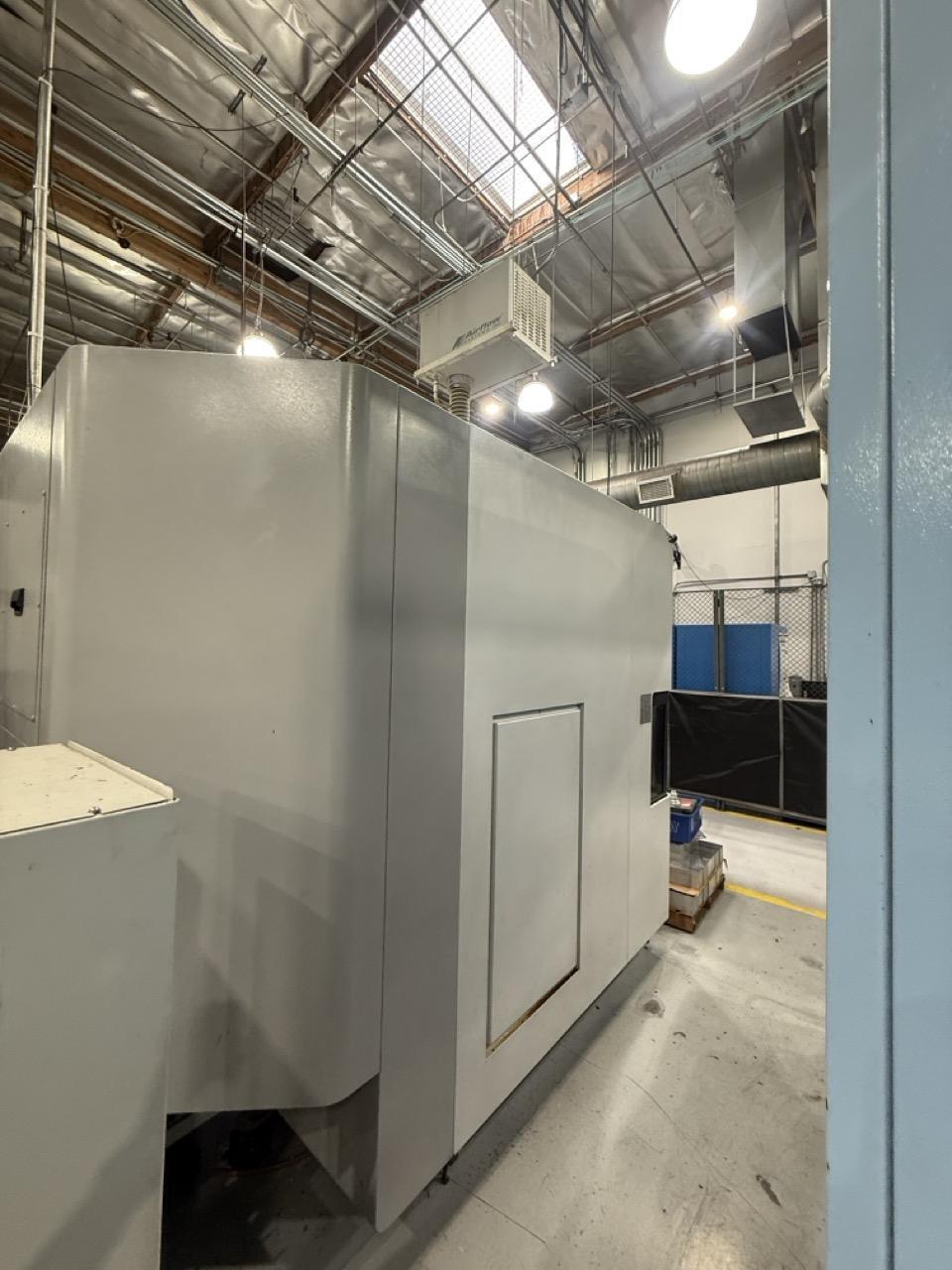

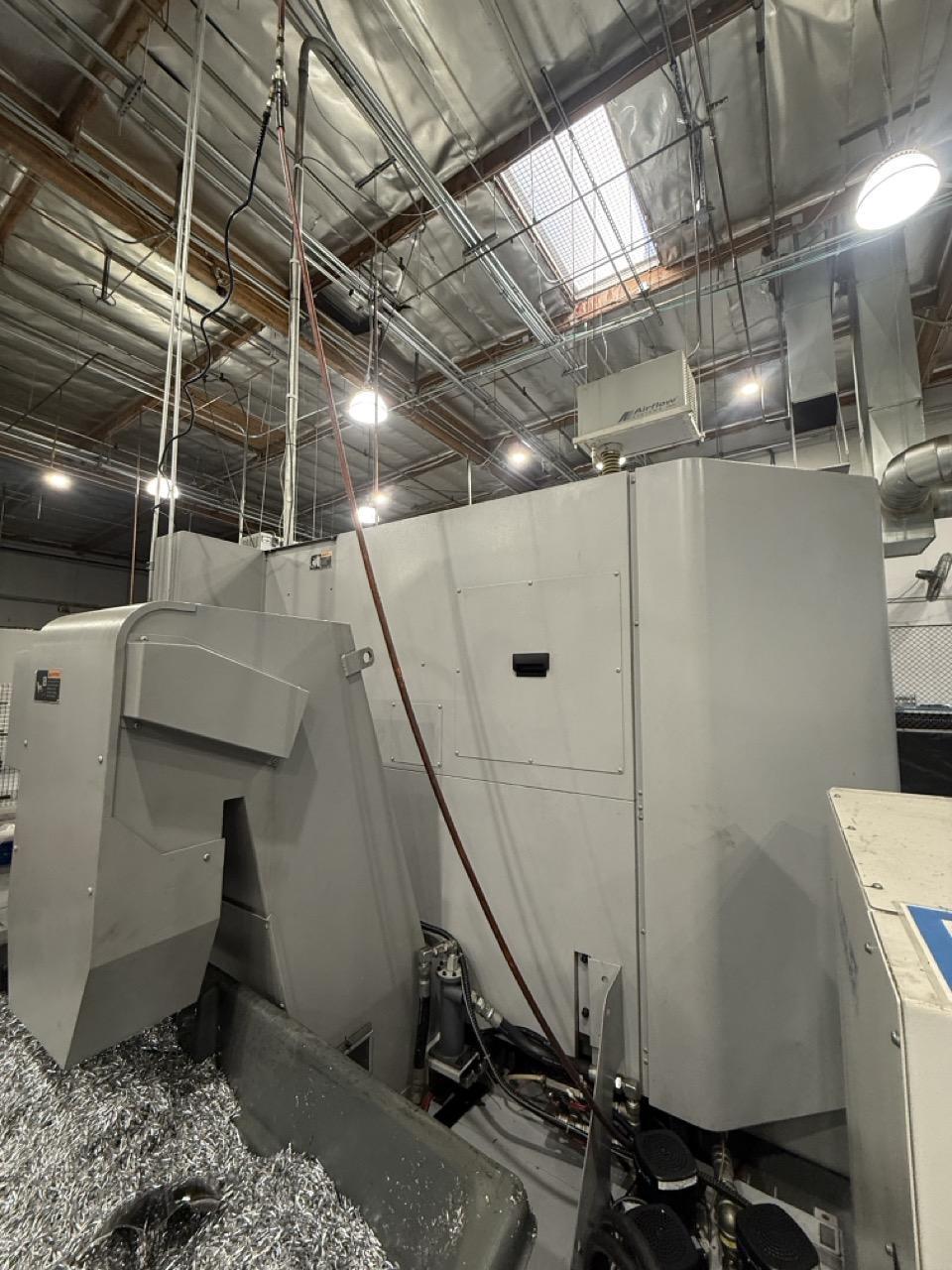

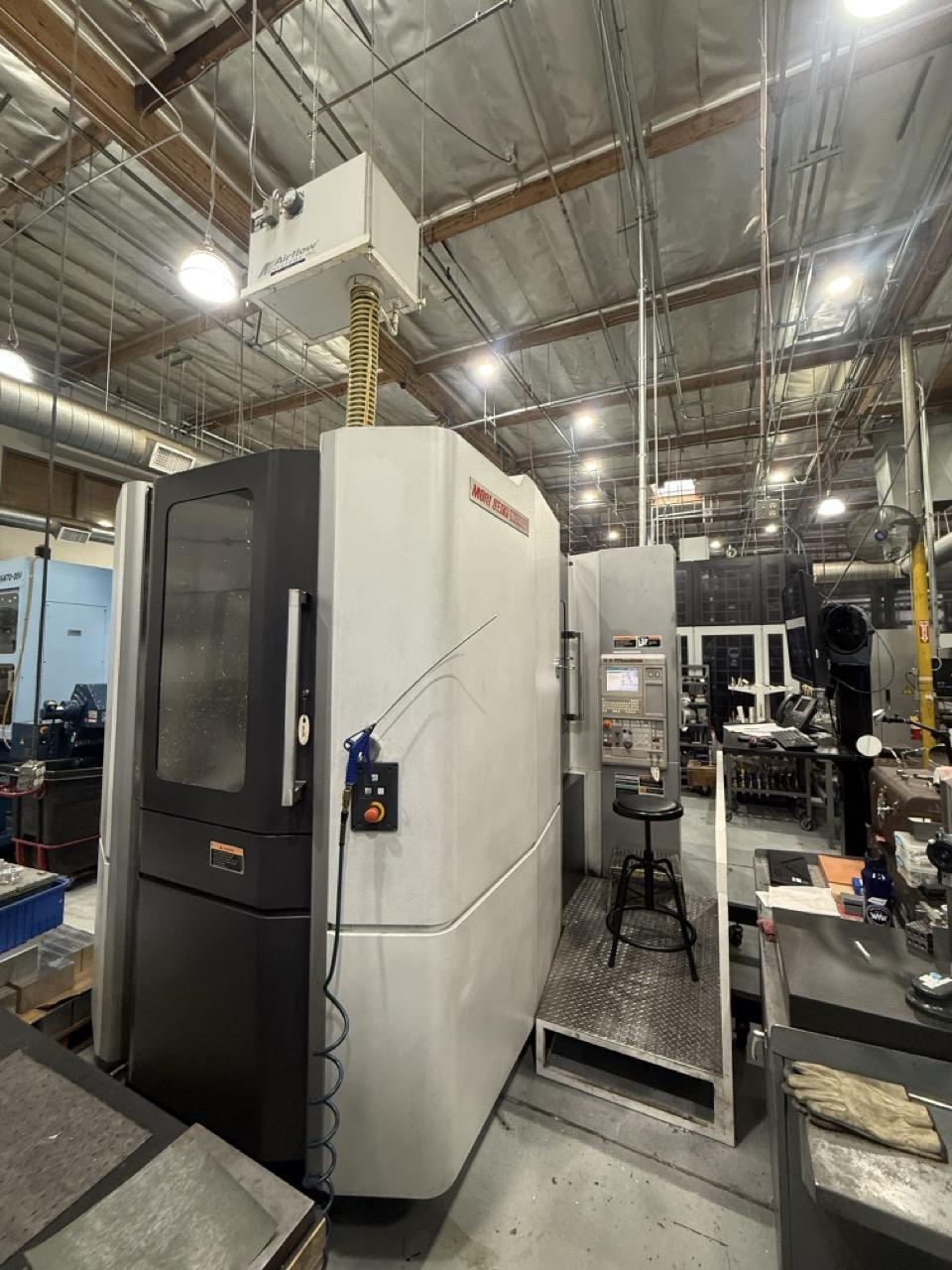

DMG Mori Seiki NHX5000 HMC, 2012 – Full 4th Axis, TSC, 60 Station ATC

Pallet Size: 19.7″ x 19.7″ (500 mm x 500 mm) Maximum Table Load / Workpiece Weight: 1,100 lbs X‑Axis Travel: 28.7″ Y‑Axis Travel: 28.7″ Z‑Axis Travel: 34.6″ Spindle Power: 30 HP Spindle Speed: 12,000 RPM Spindle Taper: 40 Taper Tool Capacity: 60 Stations Machine Weight: 24,500 LBS

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With:

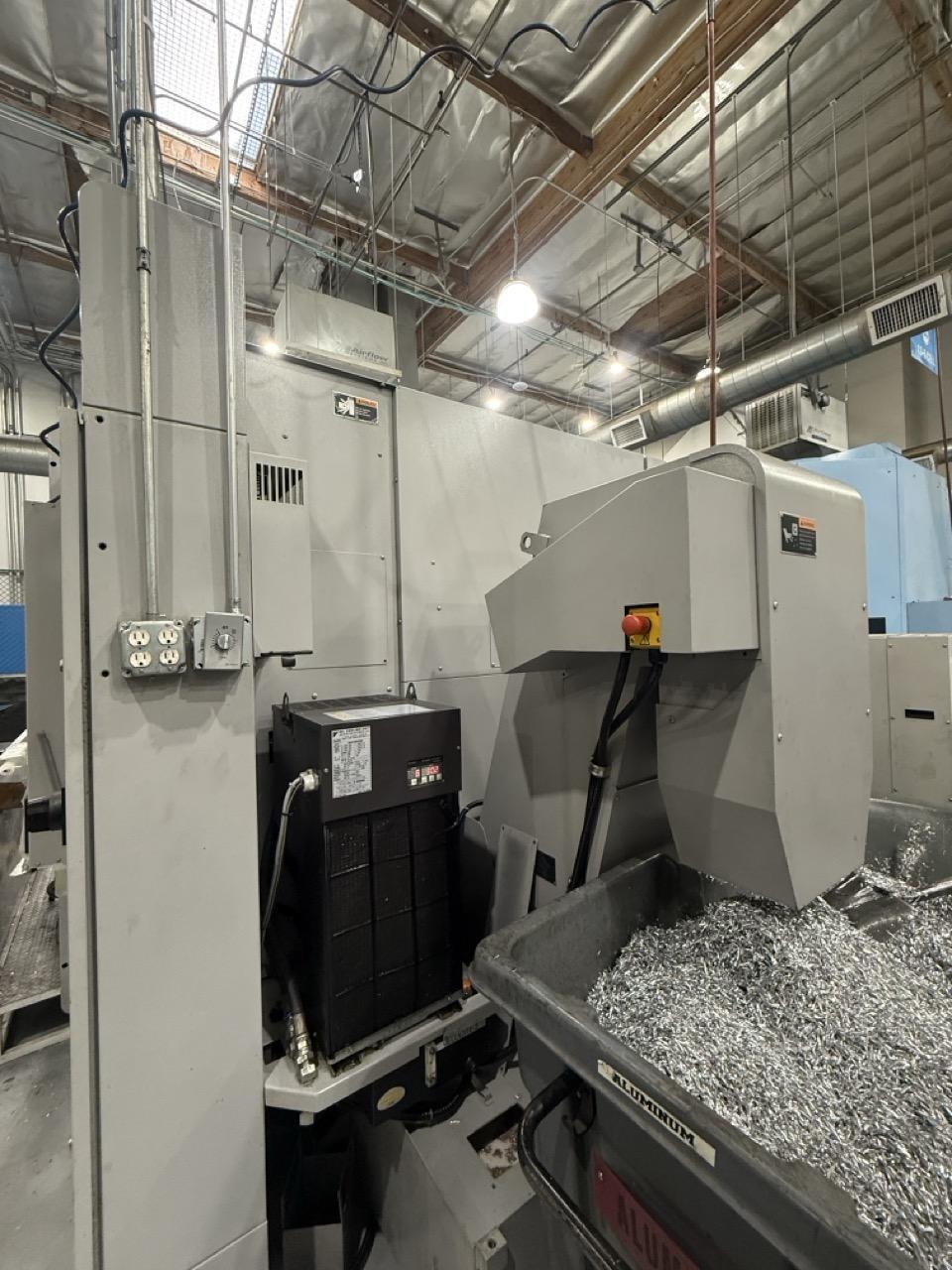

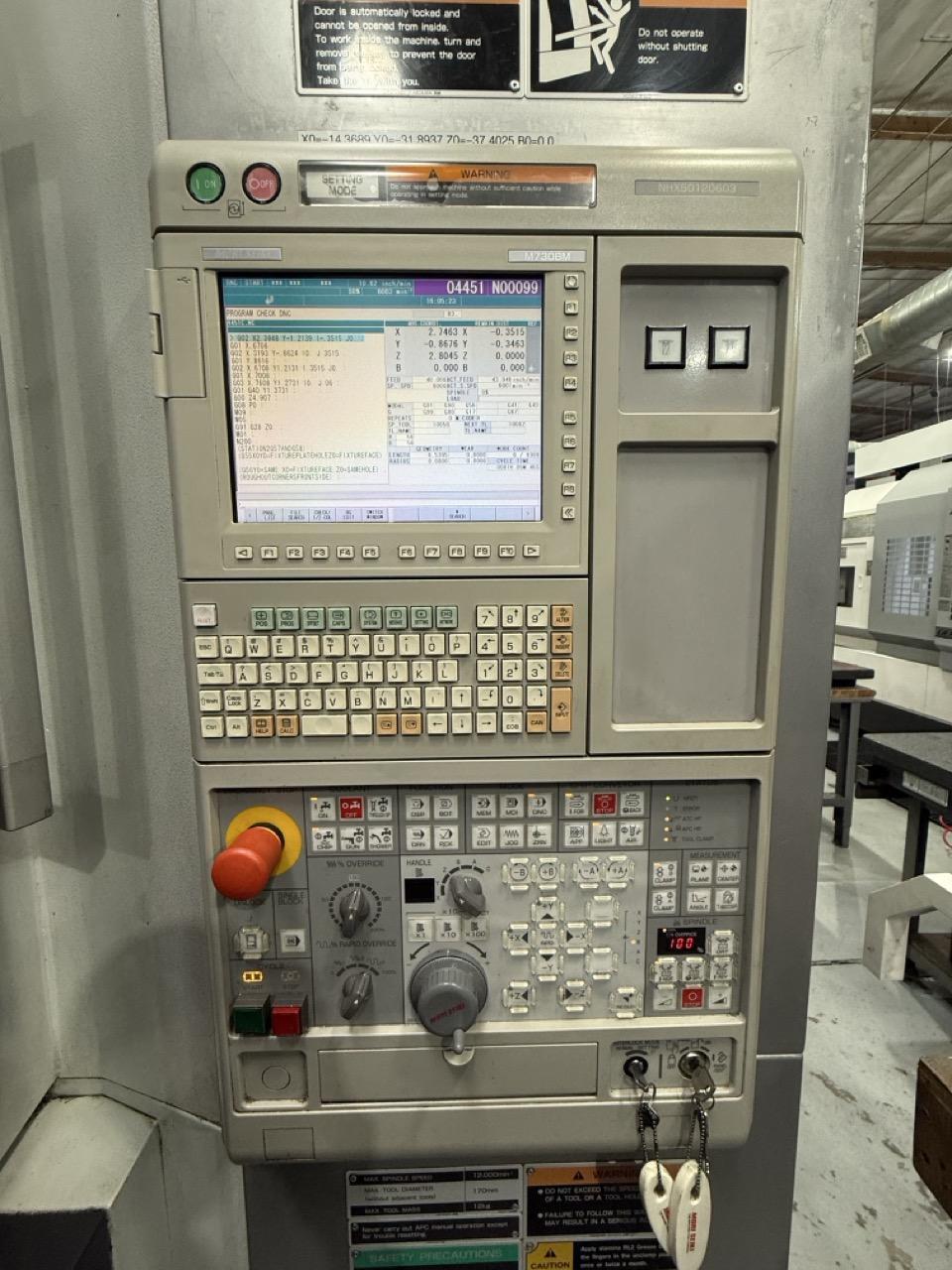

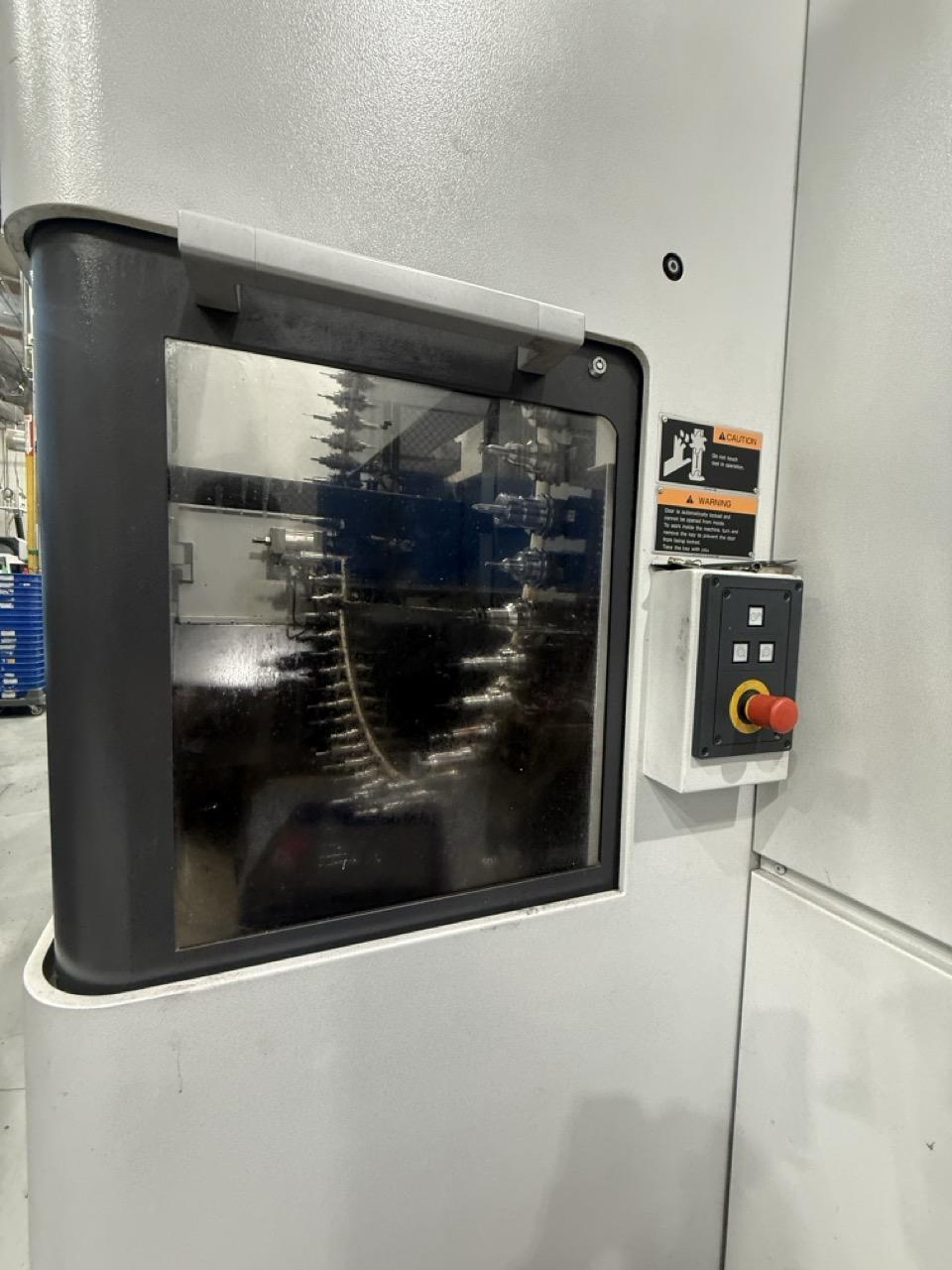

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Mori M730BM Control High‑output spindle 30/18.5 kW, 12,000 min‑1 (BT40) Full 4th Axis Rotary Table Pallet seating confirmation Through‑spindle coolant system (7.0 Mpa) Oil cooler specification (spindle cooling) Tool storage capacity – 60 tools BT40 Cooljet 70‑36F High Pressure System, 8gpm, 1000psi Chip Conveyor Direct scale feedback for X, Y, & Z Axes

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
