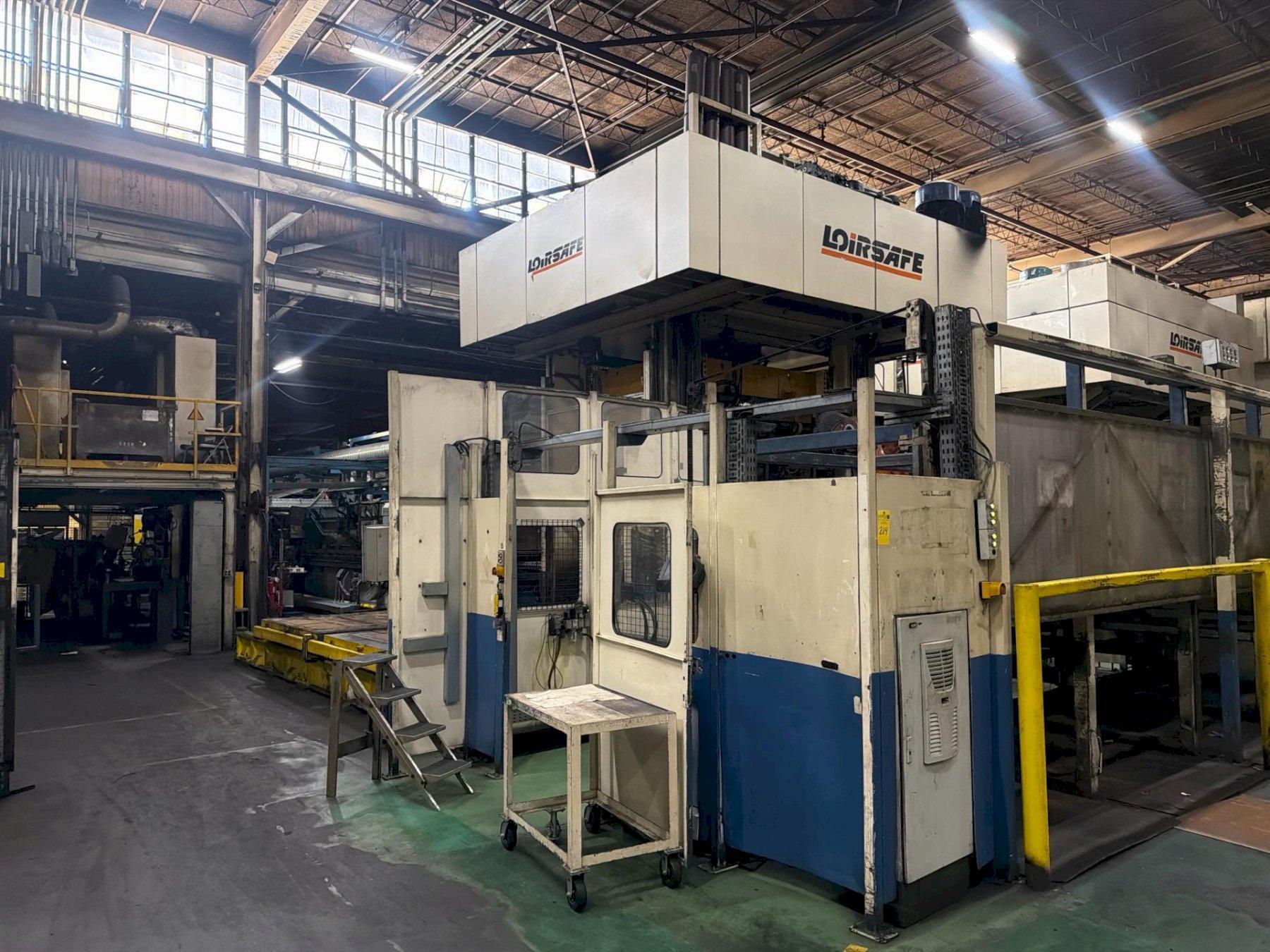

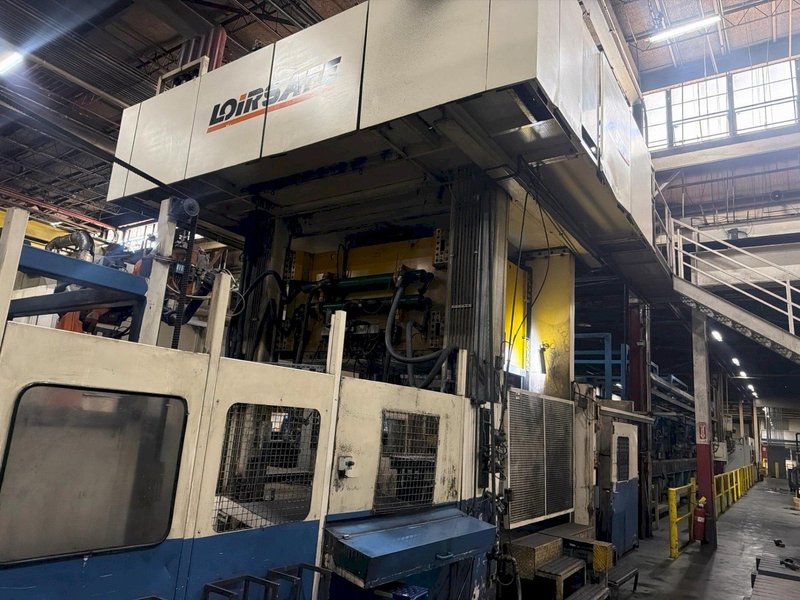

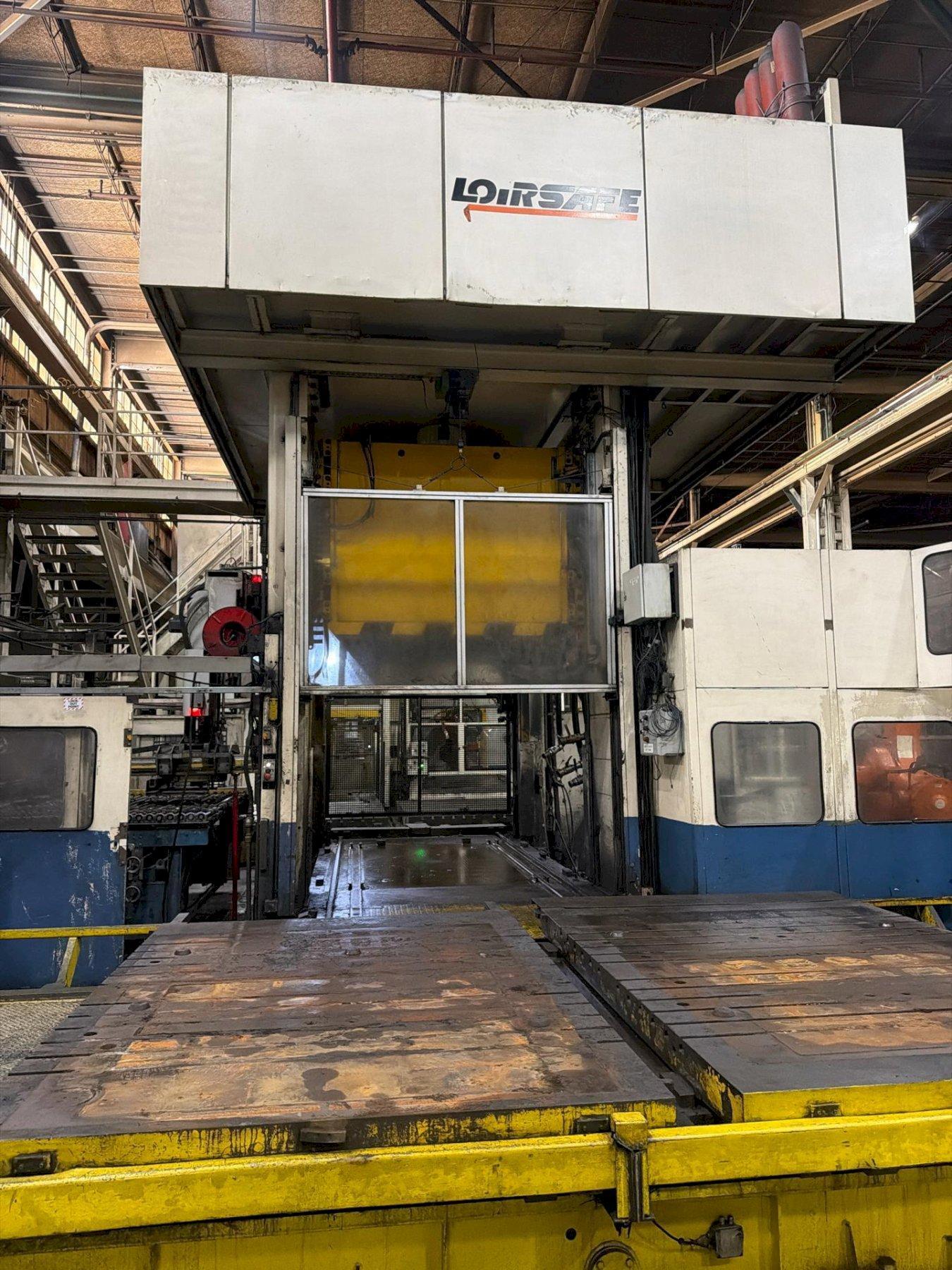

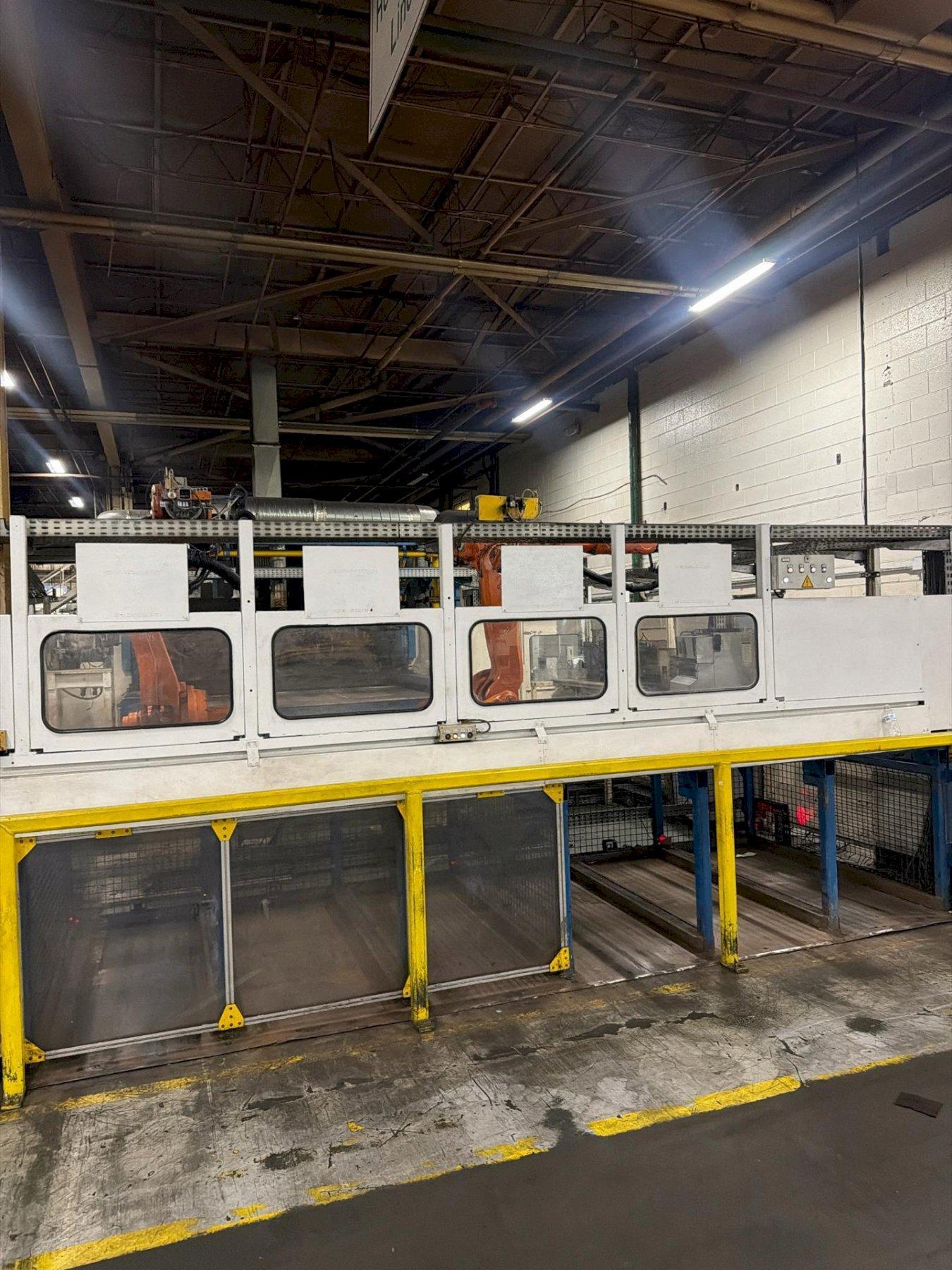

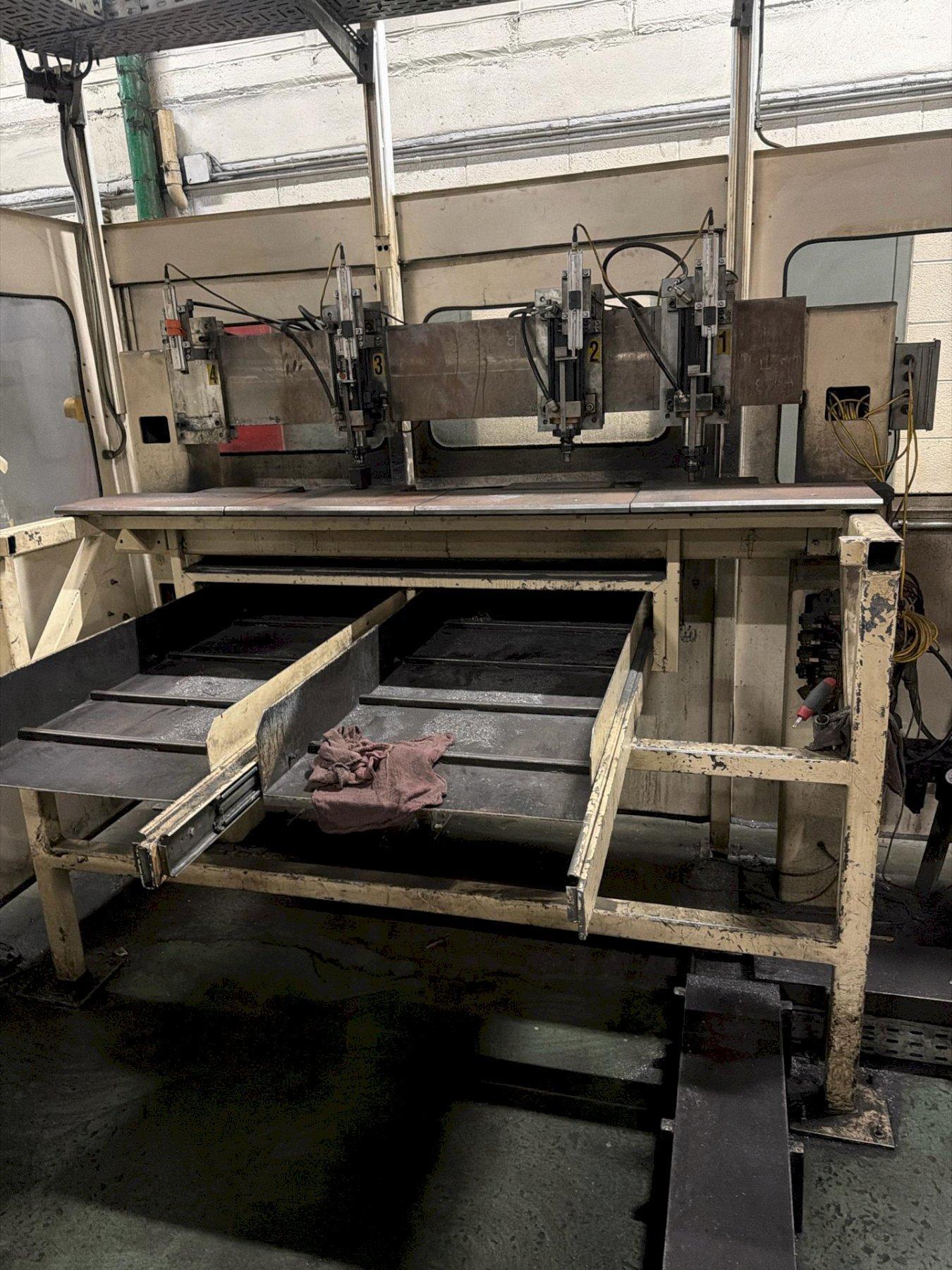

630 TON LOIRE SAFE HOT STAMPING HYDRAULIC PRESS LINE W/ ROLLER HEARTH FURNACE

PRESS MANUFACTURER – LOIRE SAFE

YEAR – 2007

MODEL NUMBER – ESSM-630/28-20/19-9

MFG NUMBER – 15961

TYPE – HOT STAMPING HYDRAULIC PRESS

PRESS FORCE – 630 – 6300 KN (630 TON)

NUMBER OF TOTAL CYLINDERS – 3 (1 SINGLE ACTION & 2 DOUBLE ACTION)

MAX WORKING PRESSURE – 251

DAYLIGHT BETWEEN TABLE & RAM – 1000MM MIN. - 1900MM MAX.

RAM STROKE – 900MM

DIMENSIONS OF RAM – 2800MM L-R X 2000MM F-B

FRONTAL OPENING BETWEEN UPRIGHTS – 2800MM

LATERAL OPENING BETWEEN UPRIGHTS – 2200MM

PRESS HEIGHT ABOVE FLOOR – 7300MM

GUIDES

NUMBER OF RAM GUIDES – 8

TYPE OF GUIDE – FLAT GUIDES

GUIDE HEIGHT – 1500MM

MAXIMUM ADMISSABLE ECCENTRIC LOAD – 800 KN L-R/M X 500 KN F-B/M

SPEED

APPROACH SPEED – 500MM/SEC.

RETURN SPEED – 420MM/SEC.

SLOW RETURN SPEED FOR TOOLING WITH NITROGEN CYLINDERS – 200MM/SEC.

MOTORS – 90 KW X 2

TOOLING/DIE DIMENSIONS

MAX. TOOL SIZE – 2800MM X 2000MM

MAX. TOOL WEIGHT – 26,000 KG

MAX. UPPER HALF TOOL WEIGHT – 12,000 KG

MAX. TOOL HEIGHT – 1000M

MAX. LOWER HALF TOOL HEIGHT – 600MM

BOLSTERS

NUMBER OF BOLSTERS– 2

TYPE OF TABLES – SIDE MOVING BOLSTERS IN T-TRACK

LEFT TO RIGHT – 2800MM

FRONT TO BACK – 2000MM

TABLE OF HEIGHT ABOVE FLOOR – 600MM

NUMBER OF SLOTS – 28

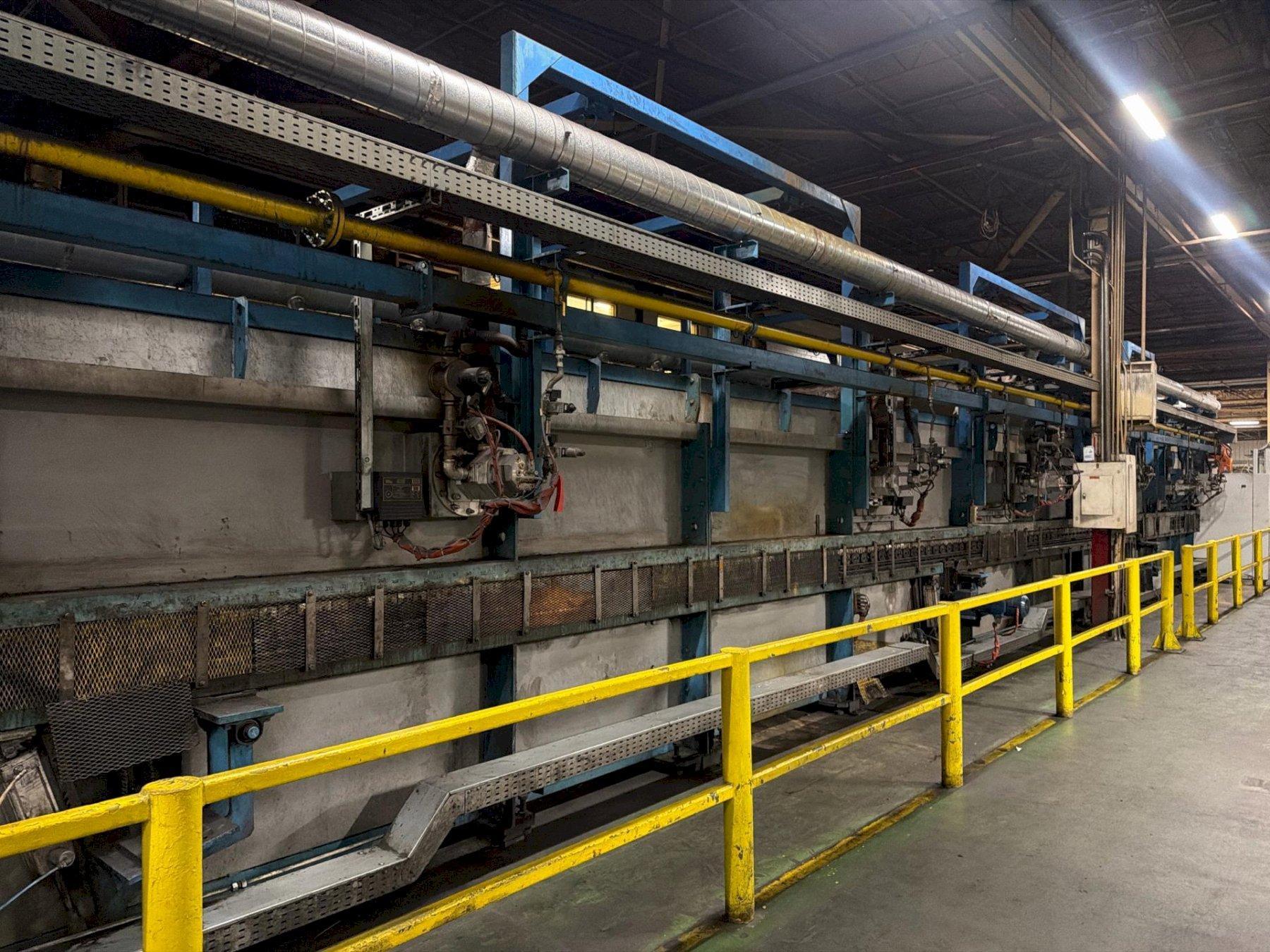

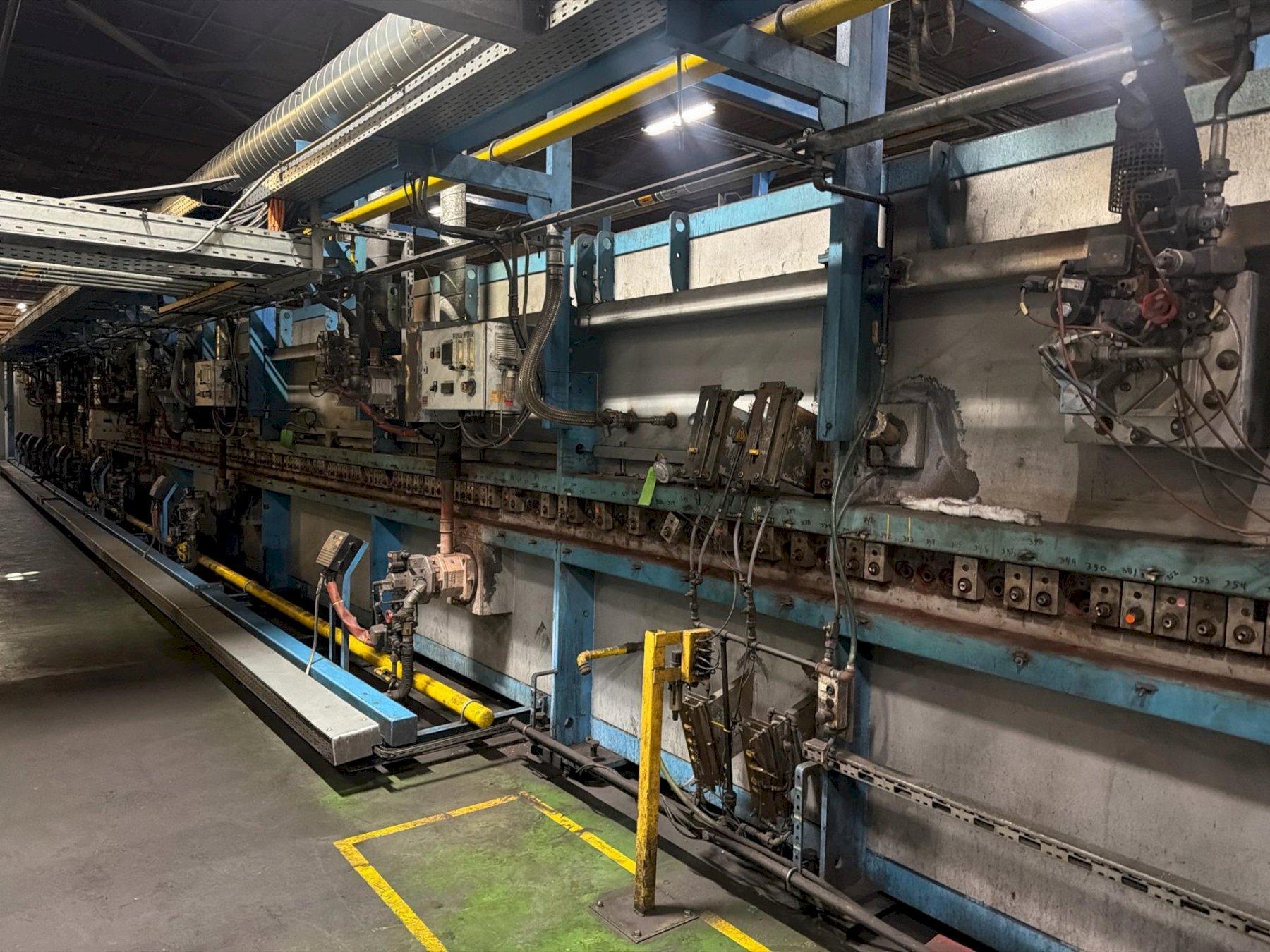

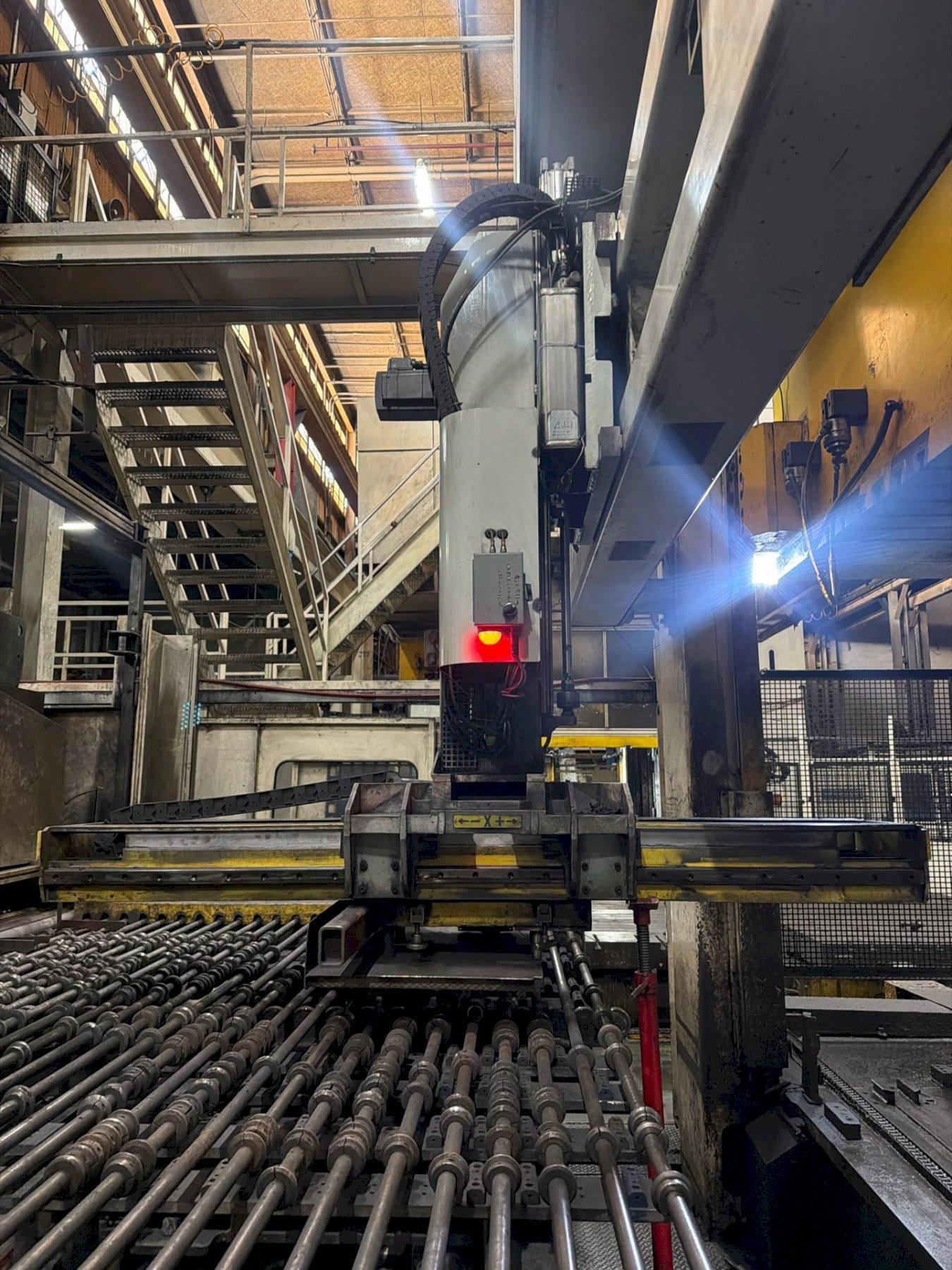

ELINO ROLLER HEARTH FURNACE

SERIAL NUMBER - 4002001

MAXIMUM DEPARATURE – 950 DEGREES CELCIUS

ATMOSPHERE – NATURAL GAS

HEATING ZONES – 7

DIAMETER OF ROLLS – 60MM

PITCH OF ROLLS – 75MM

INSIDE FURNACE DIMENSIONS (APPROXIMATELY)

                LENGTH – 24,000MM

                WIDTH – 2500MM

CONVEYOR SPEED – 1000MM/SEC.

OUTSIDE FURNACE DIMENSIONS (APPROXIMATELY)

                LENGTH – 29,900MM

                WIDTH – 5,100MM

                HEIGHT – 3,700MM

WEIGHT – 50 TON

HEATING SYSTEM – NUMBER OF BURNERS -SHILOH

VOLTAGE – 480 V, 3 PH, 60 CYCLE

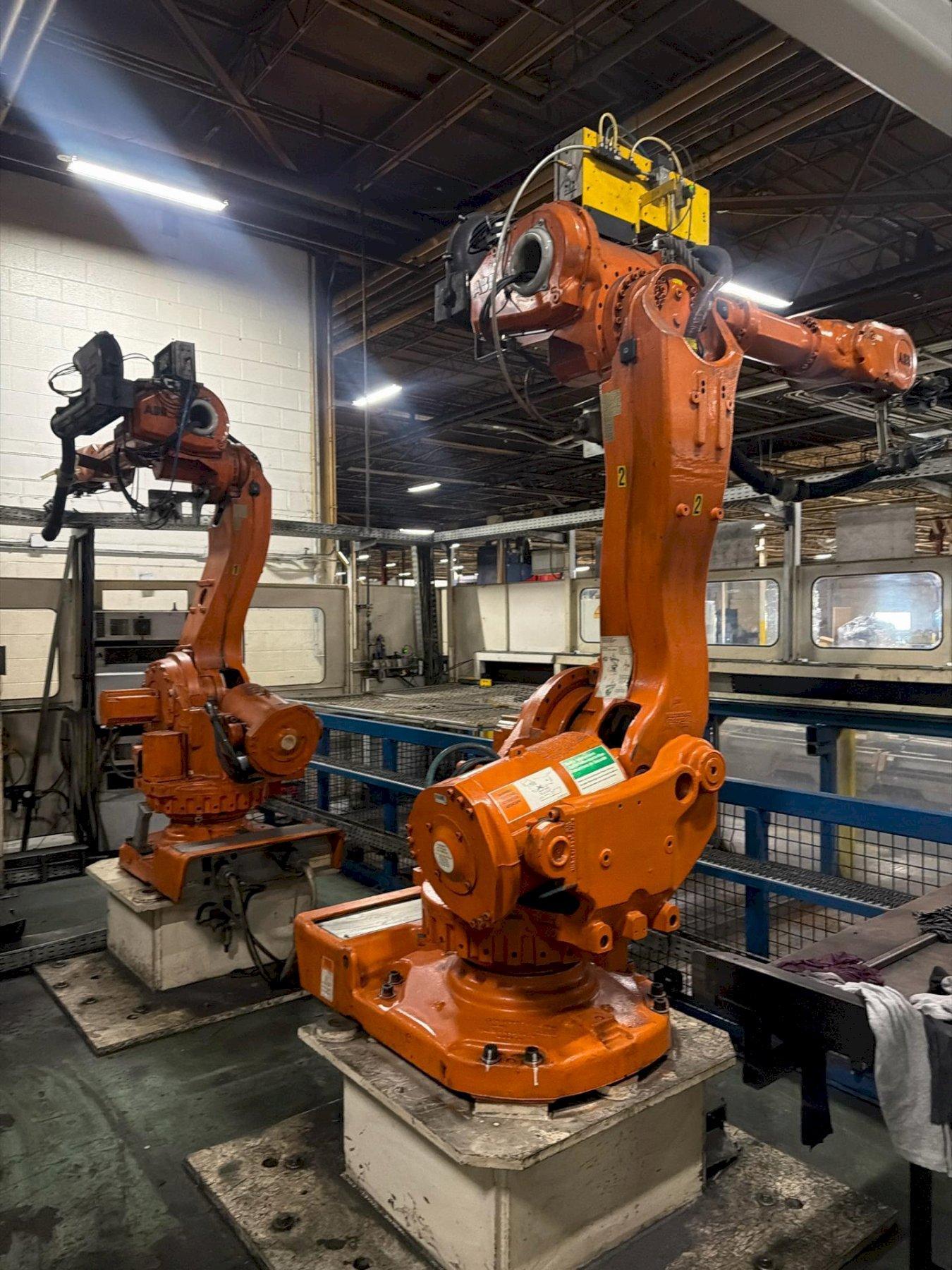

ROBOTS – QTY 3

ABB LOAD LH – 6650/3.2-125 W/ IRC 5 CONTROL
