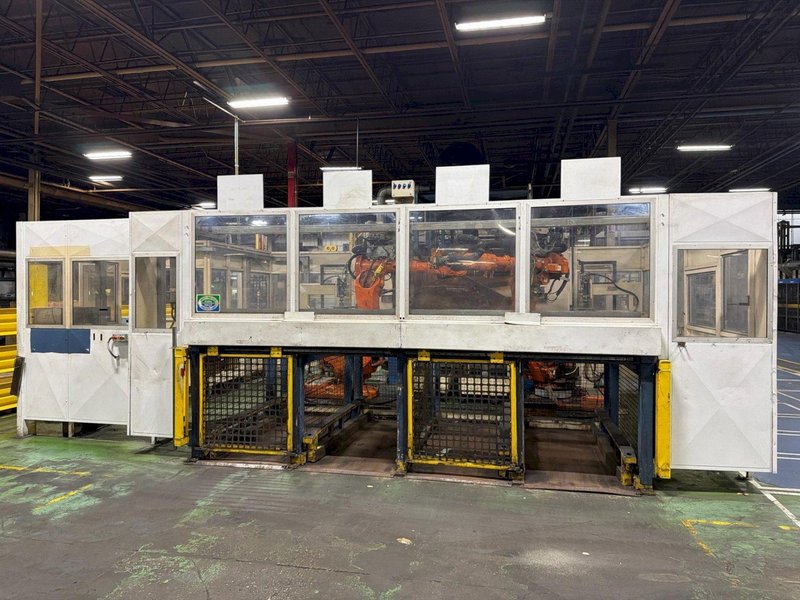

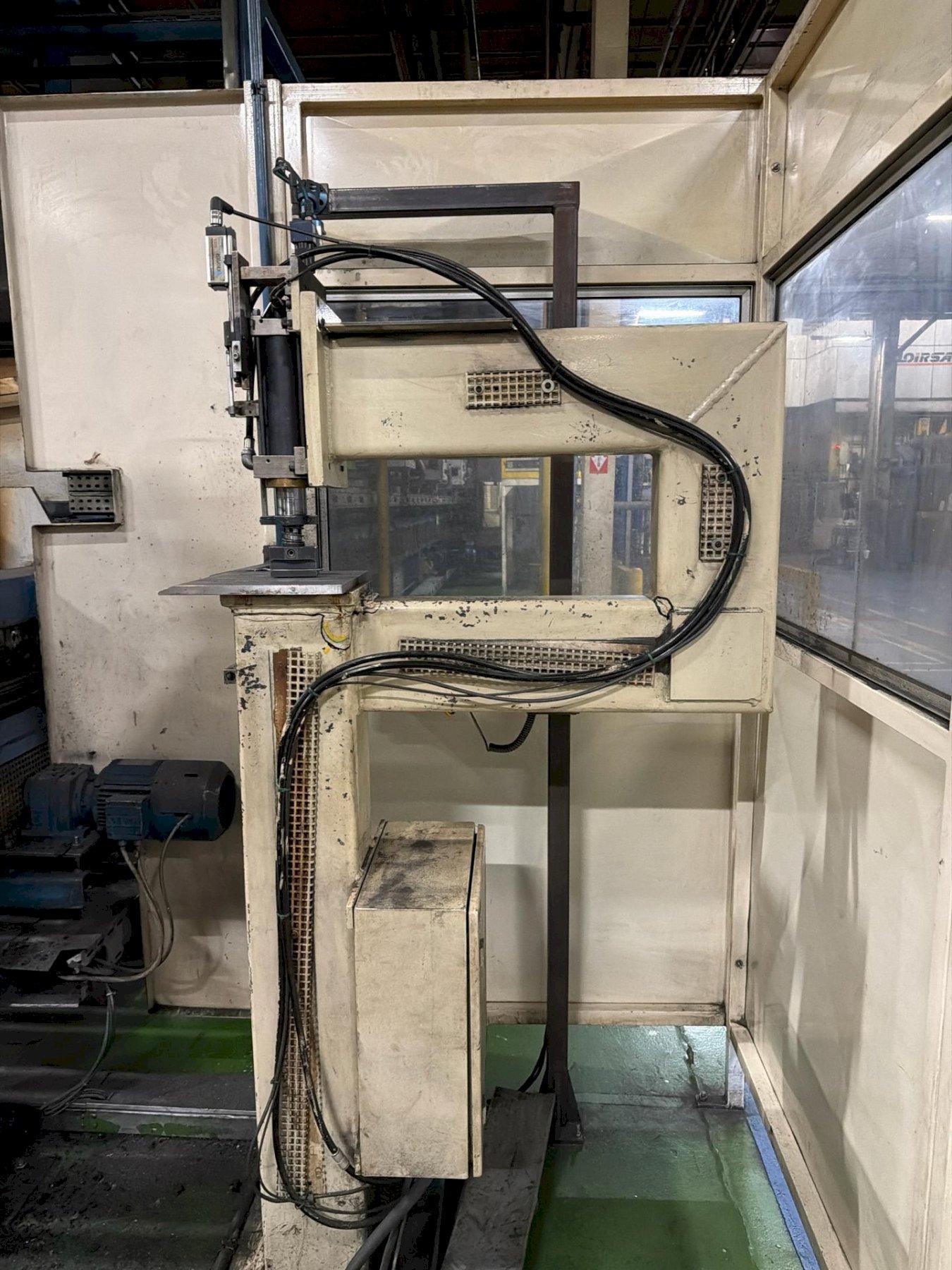

DUAL 315 TON AP&T HOT STAMPING HYD. PRESS LINE W/ SCHWARTZ ROLLER HEARTH FURNACE
Brand
Not specified
Category
Type
Model
Not specified
Stock #
117241
Year
2005
Condition
Not specified
Location
Not specified
|

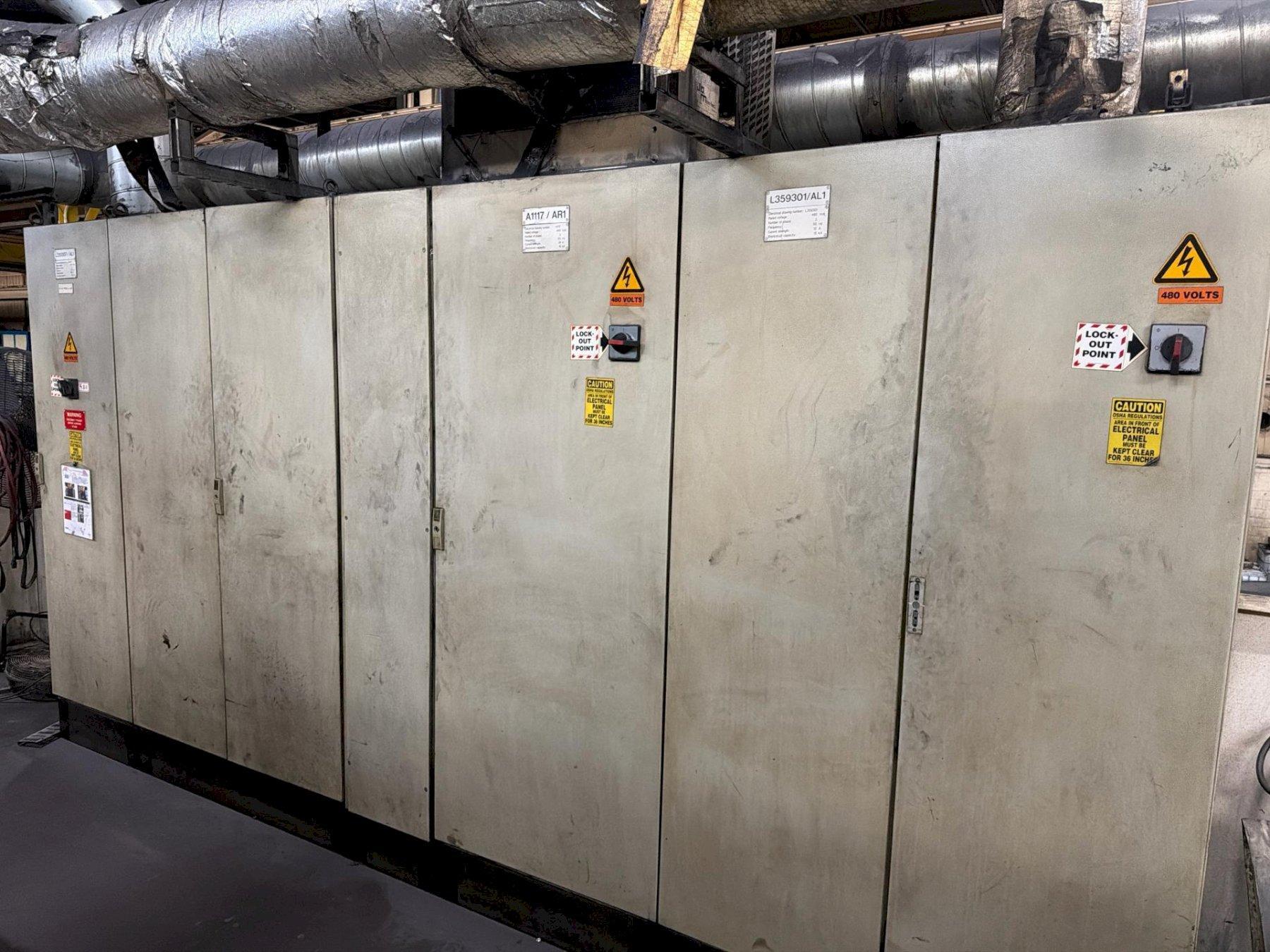

DUAL 315 TON AP&T HOT STAMPING HYDRAULIC PRESS LINE W/ SCHWARTZ ROLLER HEARTH
FURNACE

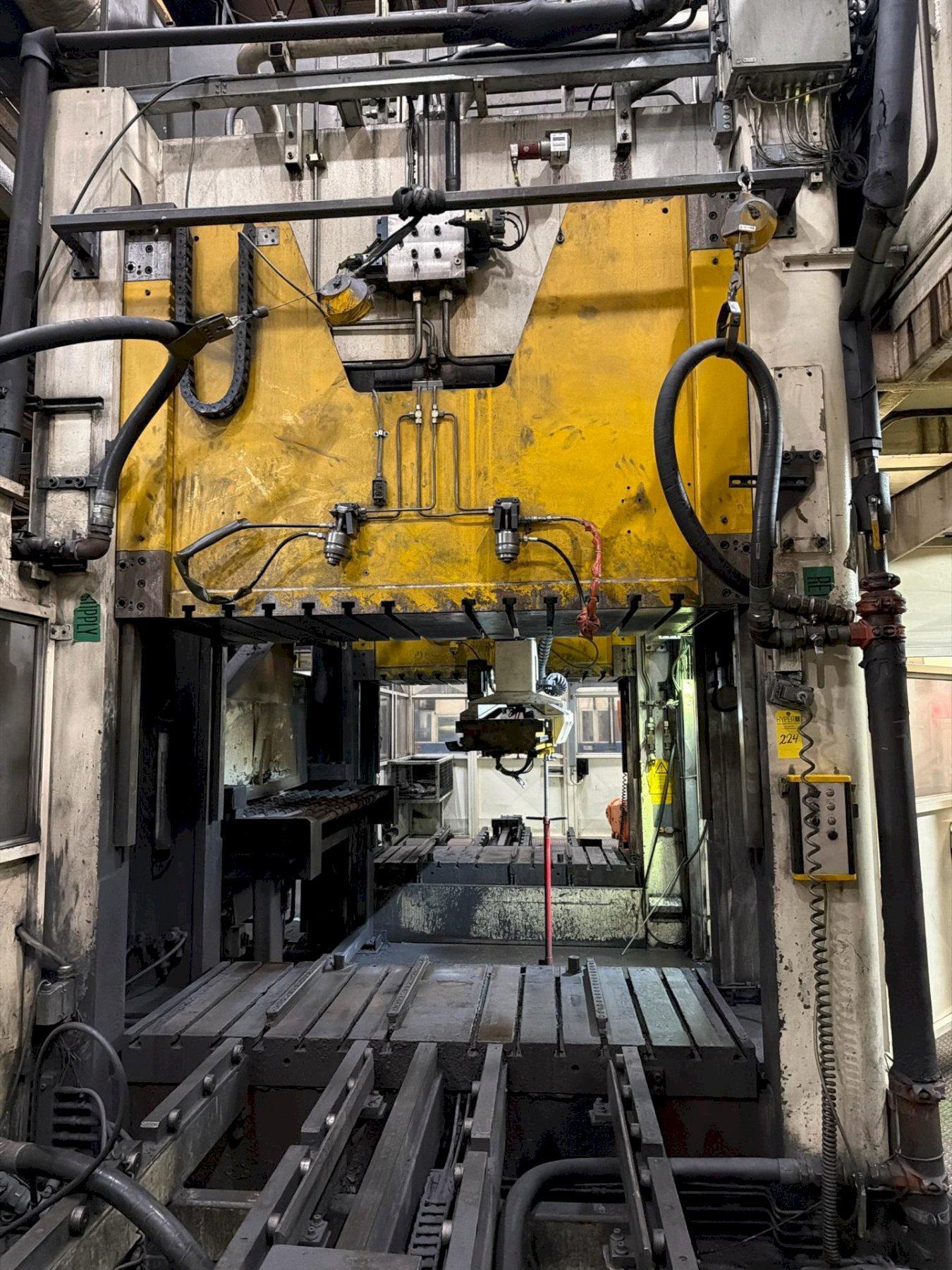

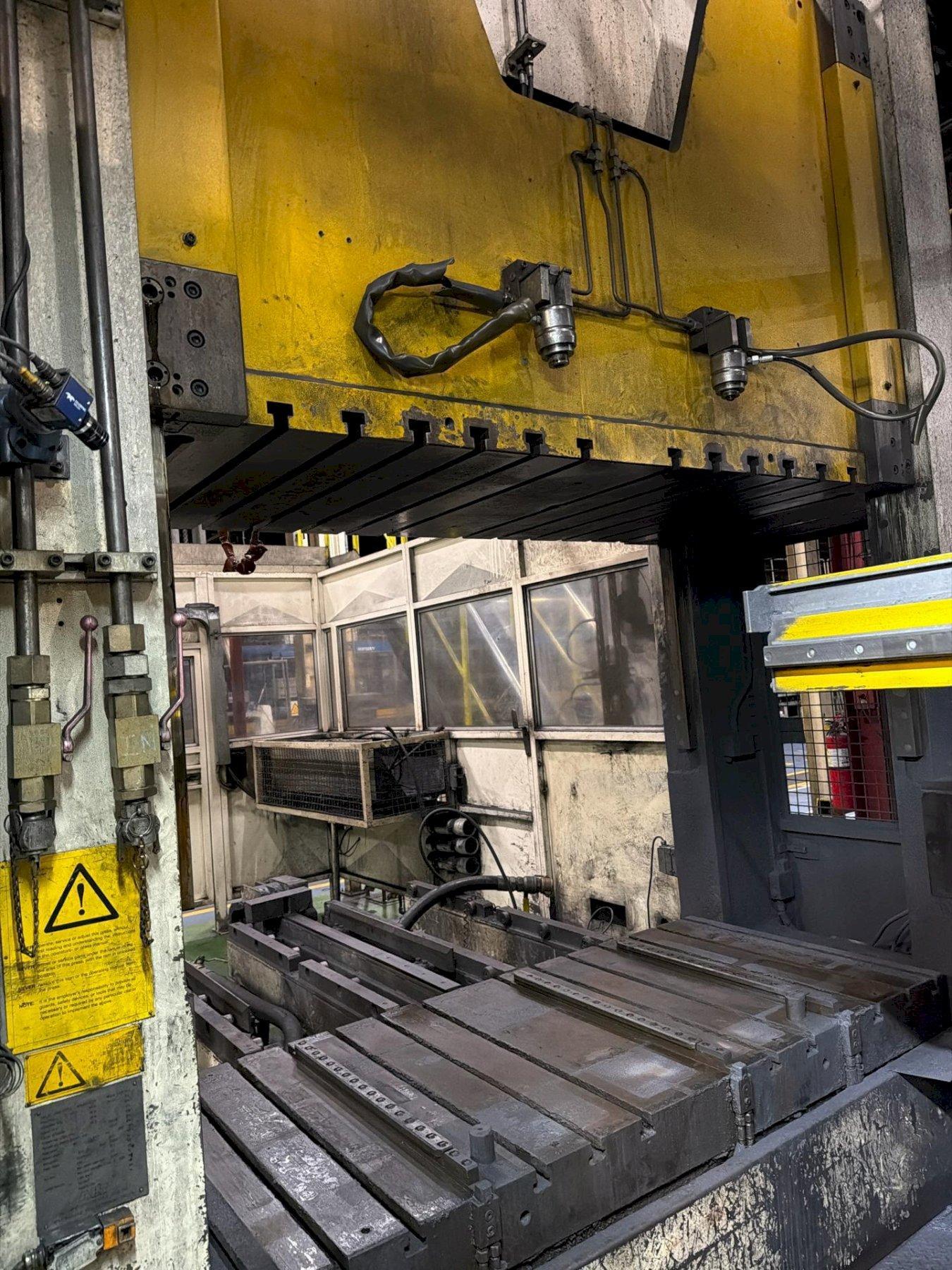

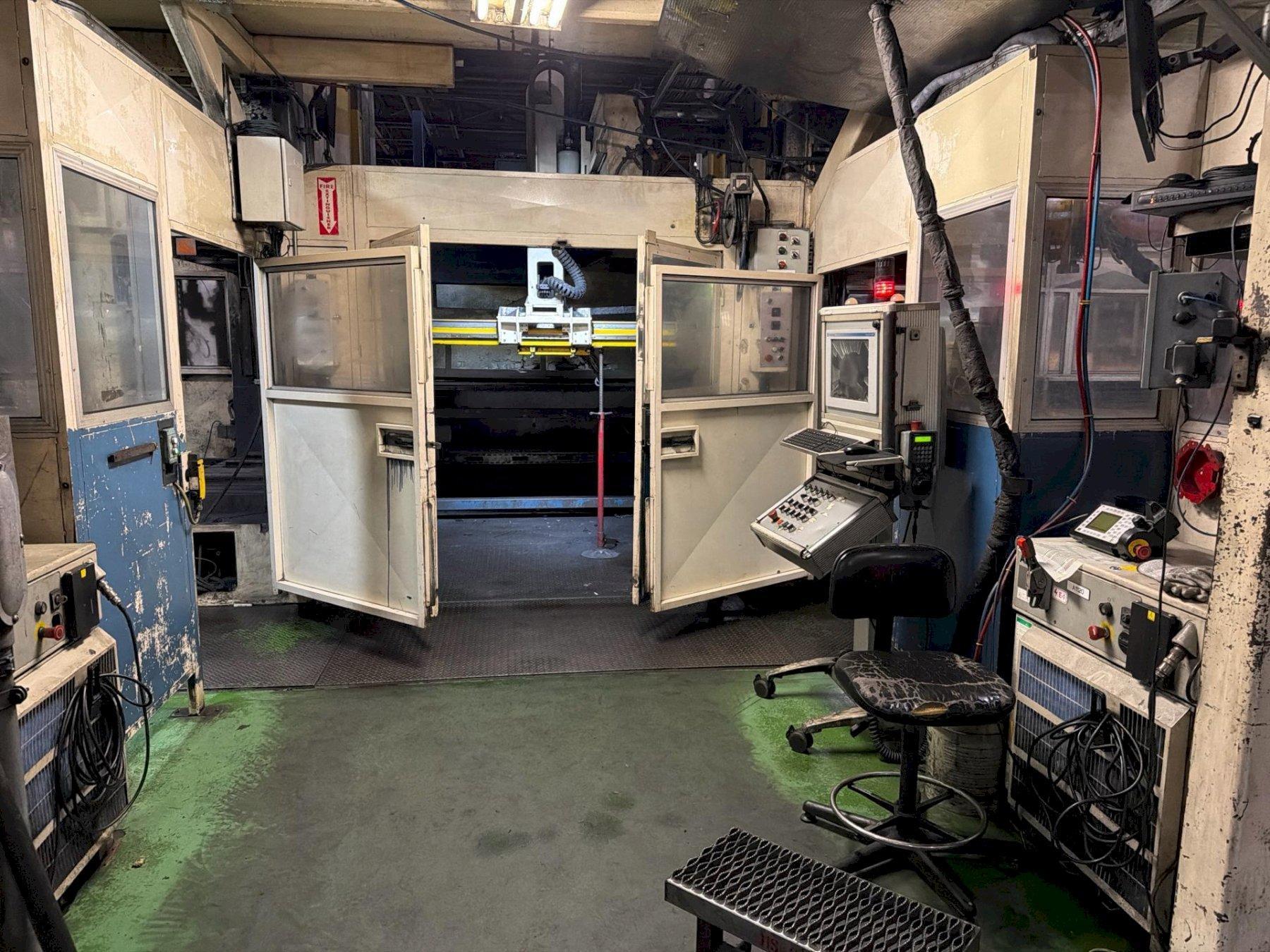

PRESS LINE CONFIGURATION - ROLLER HEARTH FURNACE OPPOSING (L-R) 315 TON AP&T
HOT STAMPING HYDRAULIC PRESSES

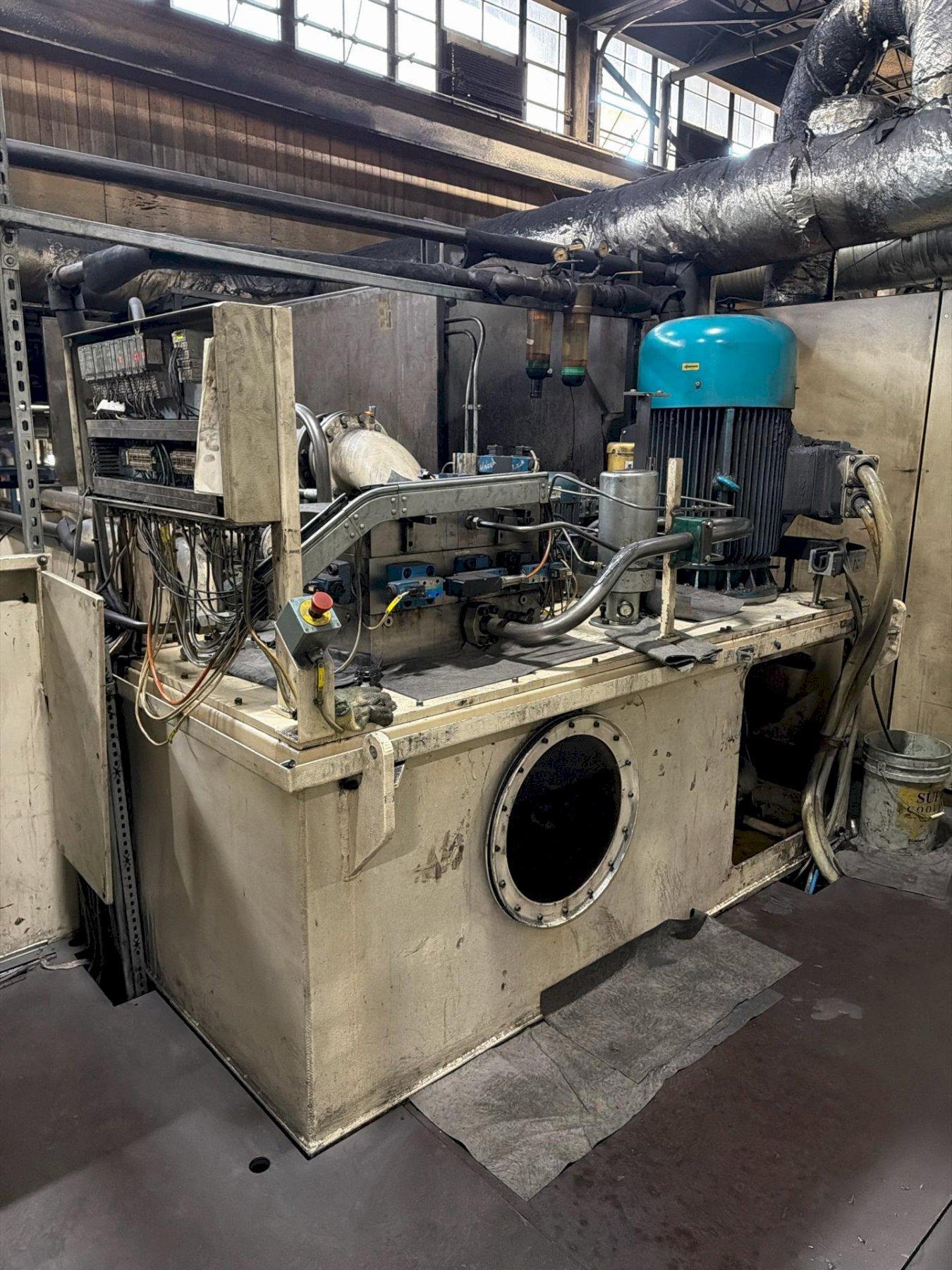

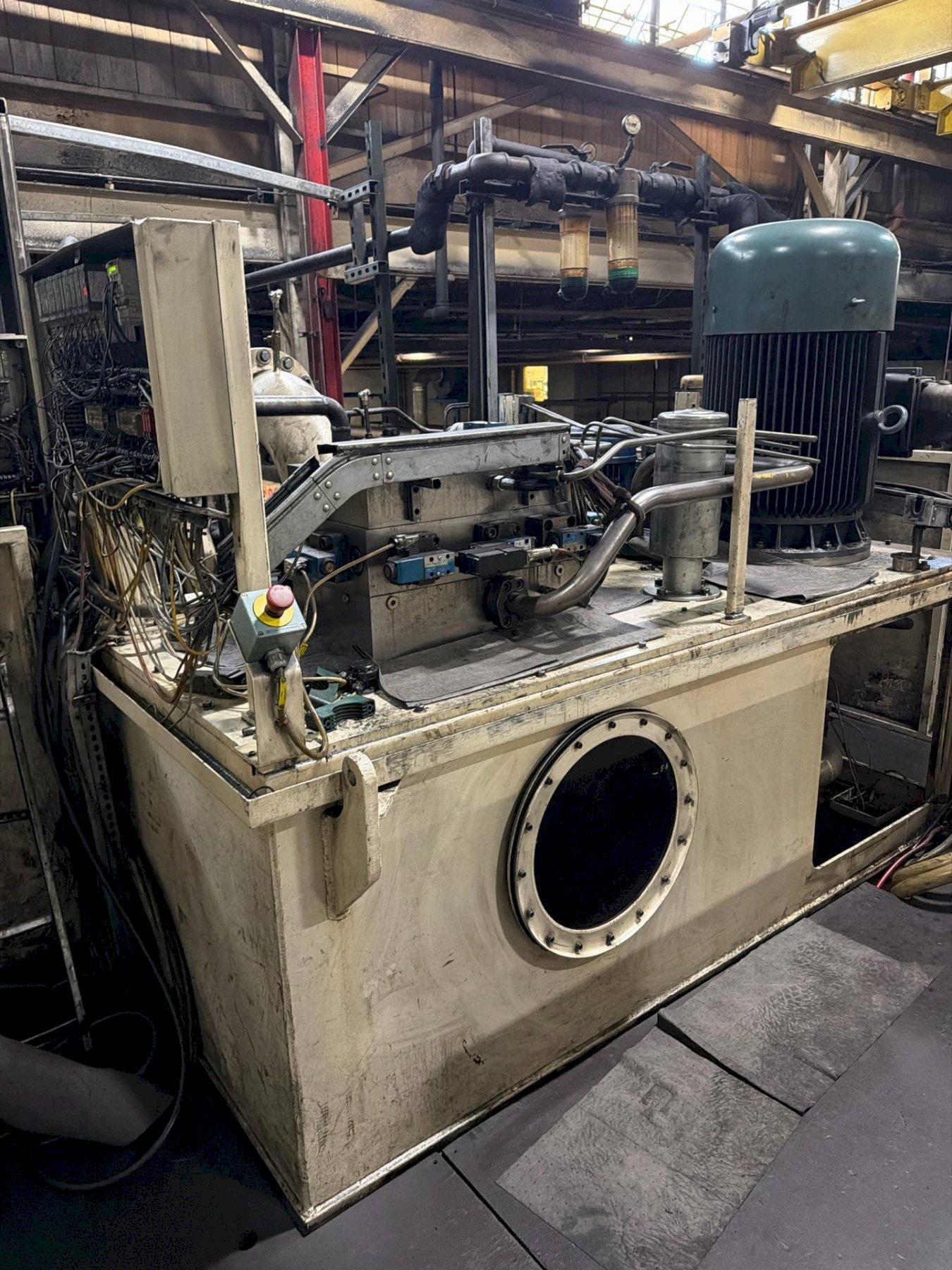

PRESS MANUFACTURER - AP&T
YEAR - 2005
MODEL NUMBER - ZL-3150-22/10
MFG NUMBER - P10893-1 & P10893-2
TYPE - HOT STAMPING PRESS
CAPABILITY - DRAWING, COINING, STAMPING, & FORMING
PRESS FORCE - 3150 KN (315 TON)
PRESSURE ADJUSTMENT SAFETY VALVE - 34000 KPA
PRESSURE ADJUSTMENT COUNTER PRESSURE VALVE - 11300 KPA
PRESS SPEED - 34MM/S MIN - 280MM/S MAX
CLOSING SPEED - 600MM/S
RAM STROKE - 800MM
POWER SUPPLY INTERMITTENT - 133 KW
POWER SUPPLY RMS - 102KW
MAX WEIGHT OF UPPER TOOL - 5000 KG
MAX OUT DIMENSION OF TOOL - 2200MM X 1000MM
STOPPING SPEED - 241 MS (PRESS #1) & 195 MS (PRESS #2)
BED - 28MM T-SLOTTS
APPROXIMATE PRESS WEIGHT - 57,500

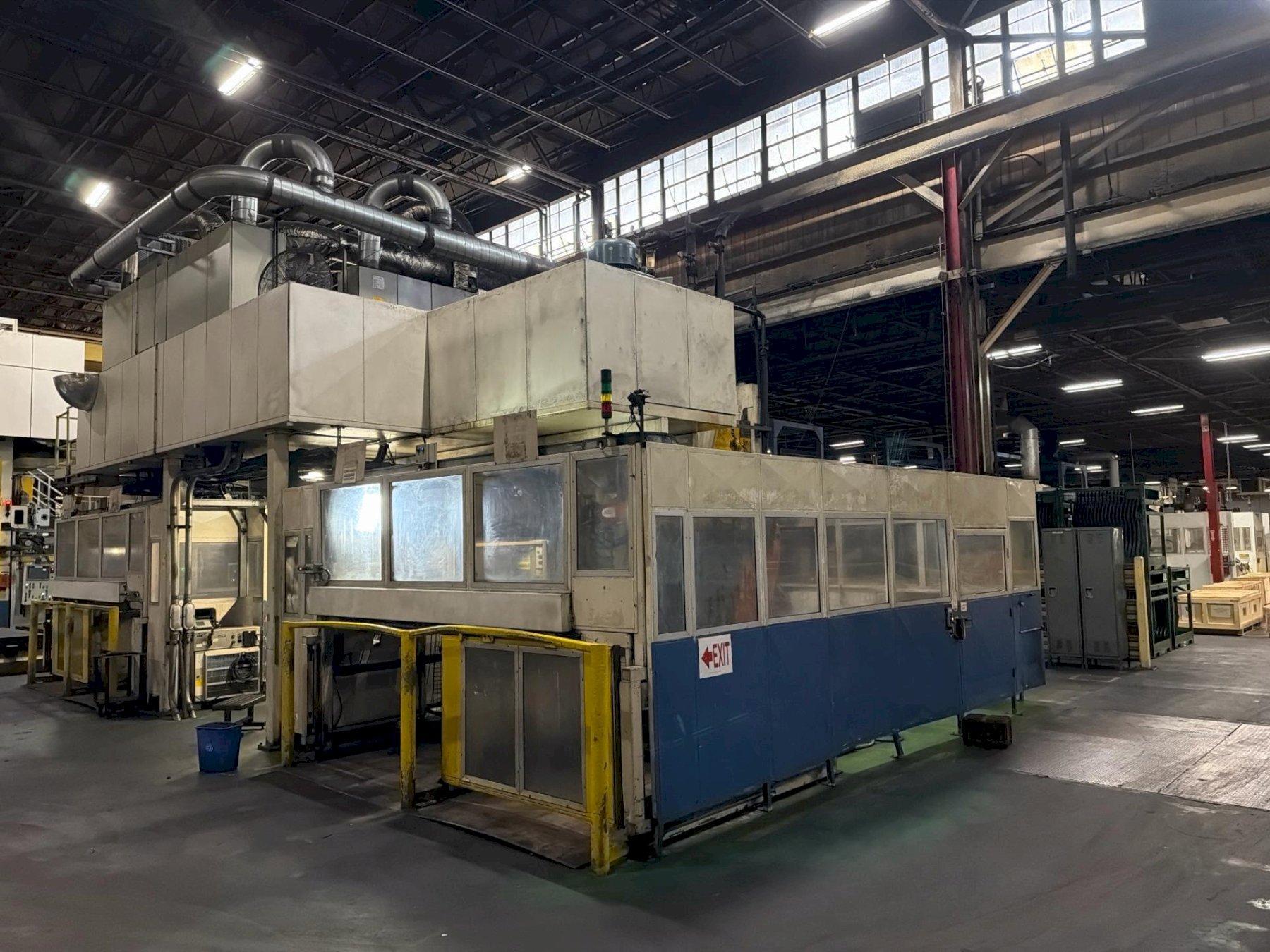

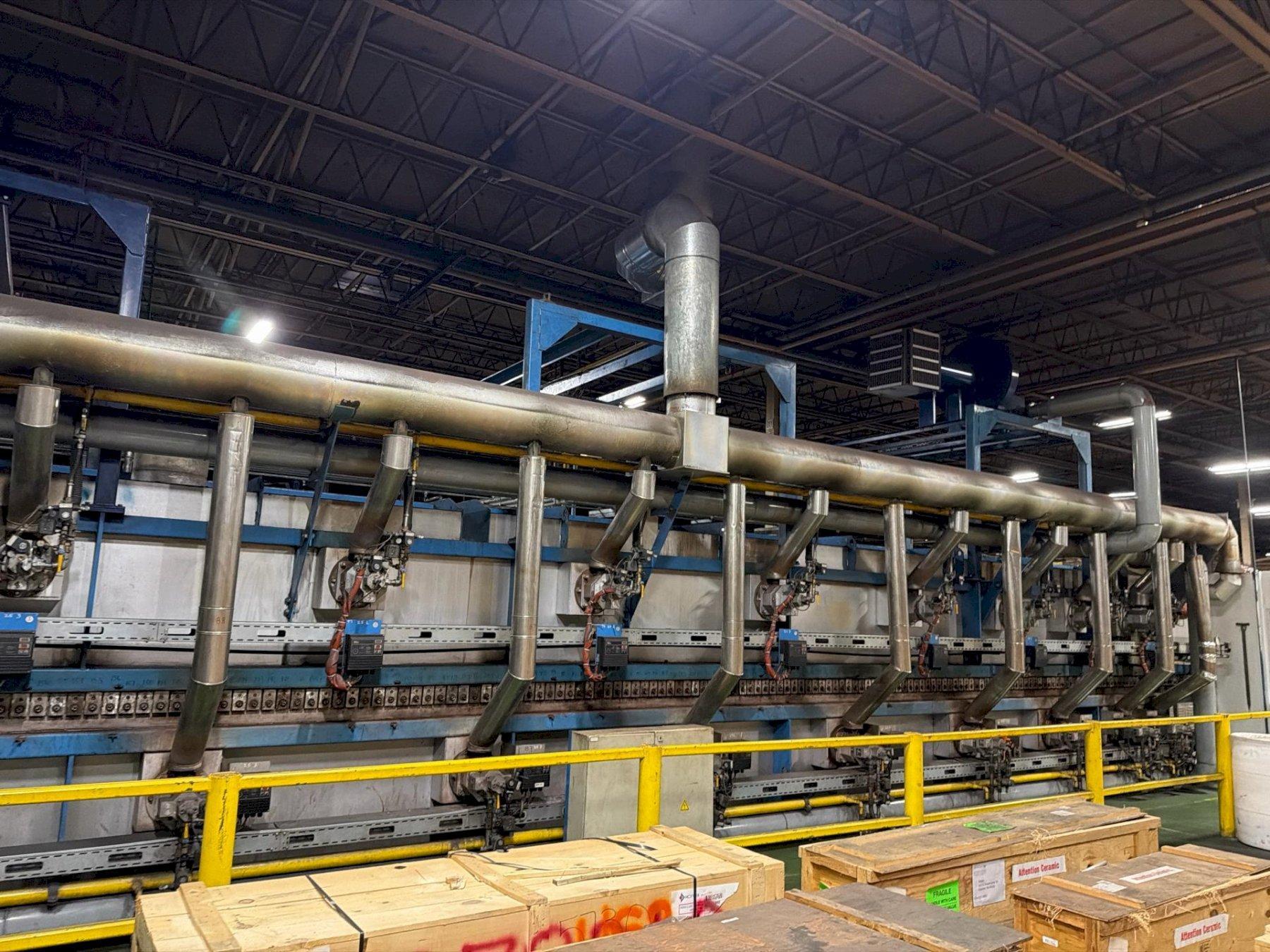

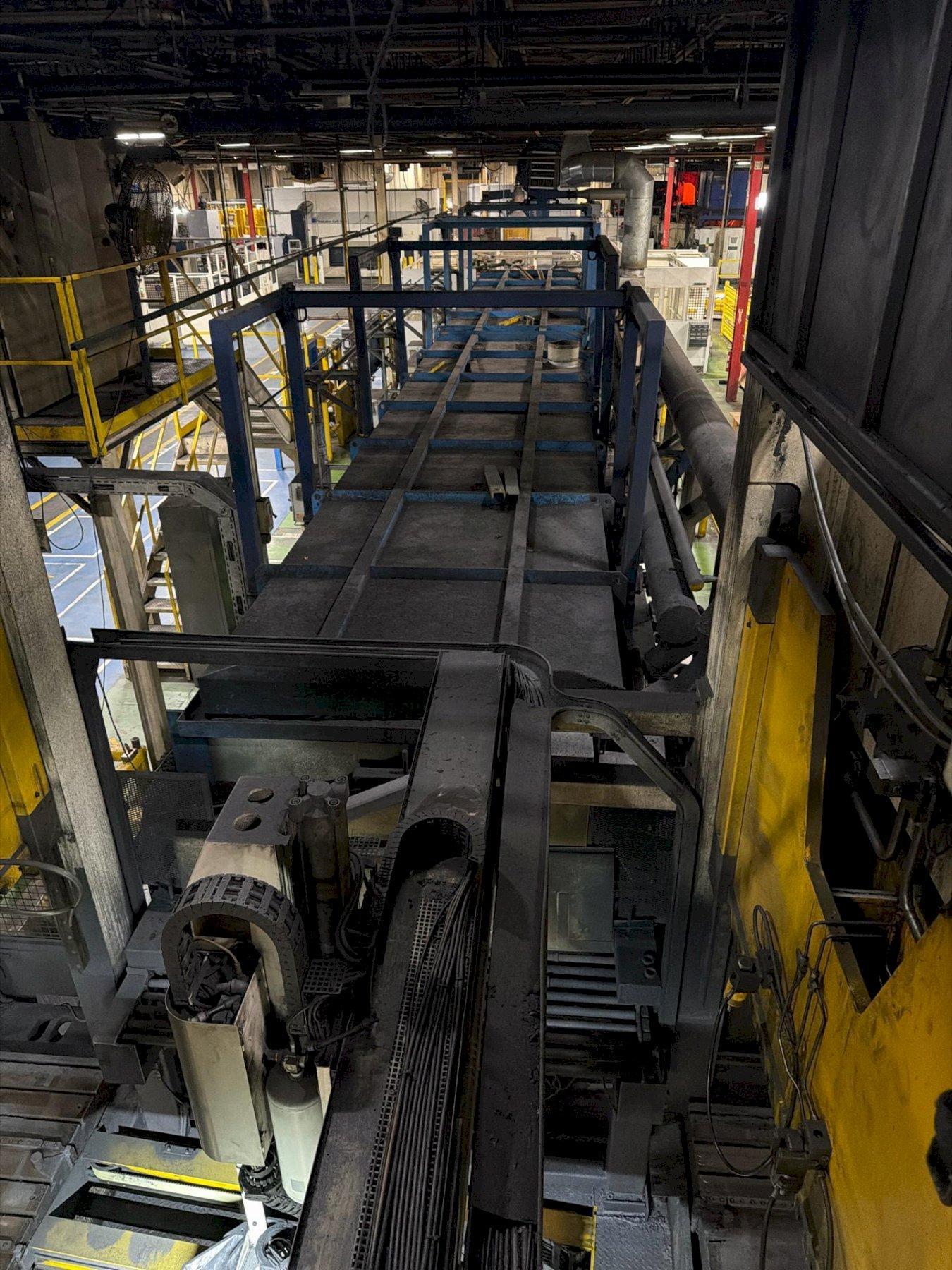

SCHWARTZ ROLLER HEARTH FURNACE
SERIAL NUMBER - GA-1594
MAXIMUM DEPARATURE - 950 DEGREES CELCIUS
ATMOSPHERE - NITROGEN/NATURAL GAS
HEATING ZONES - 8
TOTAL BURNERS - 25
FURANCE TEMPERATURE CONTROL - 8 ZONES
ROLLE TYPE (IN FURNACE) - HOLLOW CERAMIC TYPE
ROLLER TYPE (TRANSFER SECTION) -SOLID CERAMIC TYPE
APPROXIMATE NUMBER OF ROLLERS - 270
DIAMETER OF ROLLS - 60MM
PITCH OF ROLLS - 80MM
INSIDE FURNACE DIMENSIONS (APPROXIMATELY)
LENGTH - 19328MM (GAS FIRED SECTION)
WIDTH - 1600MM
HEIGHT - 130MM
OUTSIDE FURNACE DIMENSIONS (APPROXIMATELY)
LENGTH - 21640MM
WIDTH - 3,880MM
HEIGHT - 3,9880MM
HEATING SYSTEM - 25 BURNERS
GAS BURNER 1x - 62 KW
GAS BURNER 10x - 46 KW
GAS BURNER 11x - 38 KW
GAS BURNER 3x - 20 KW
VOLTAGE - 480 V, 3 PH, 60 CYCLE

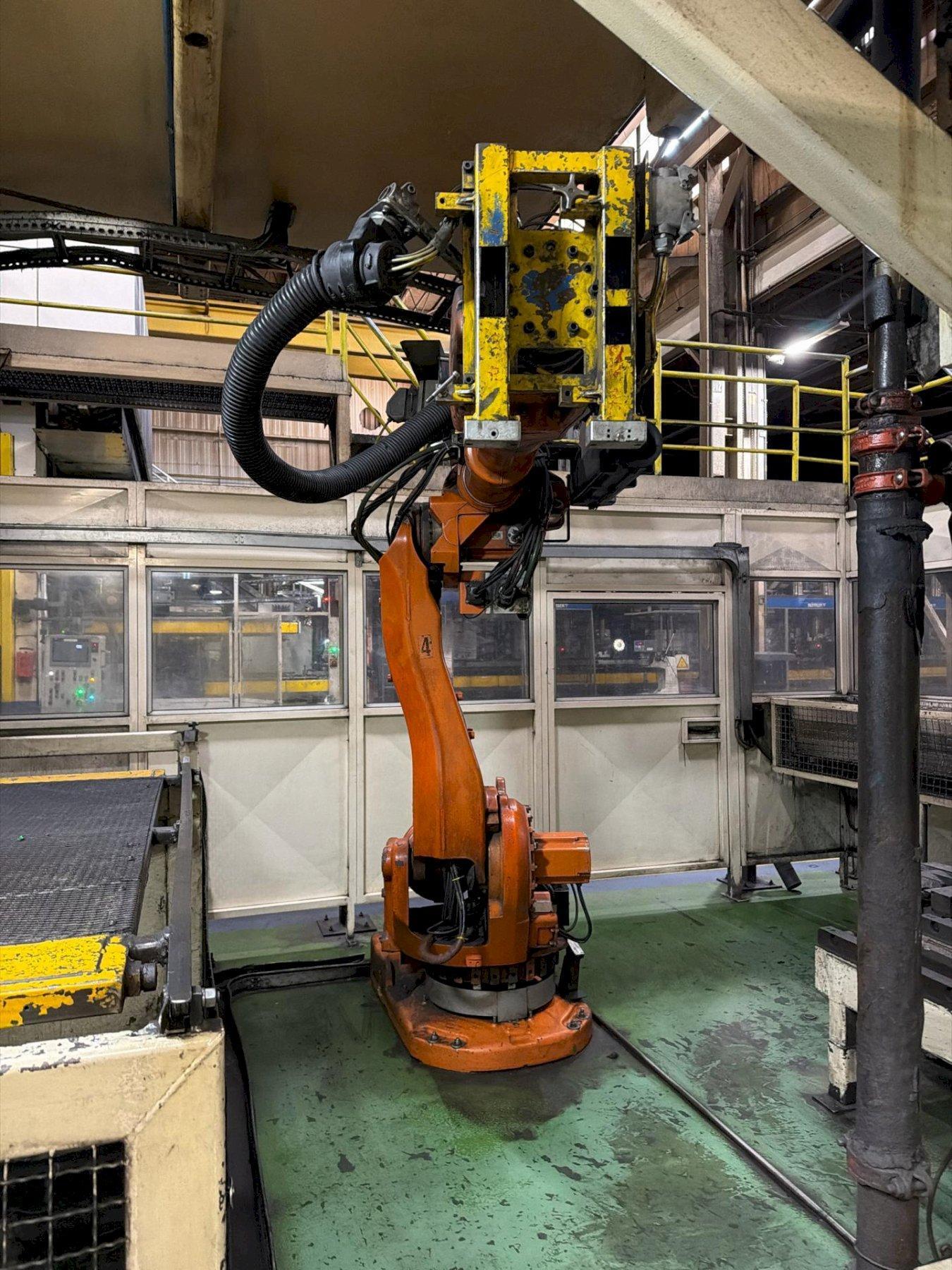

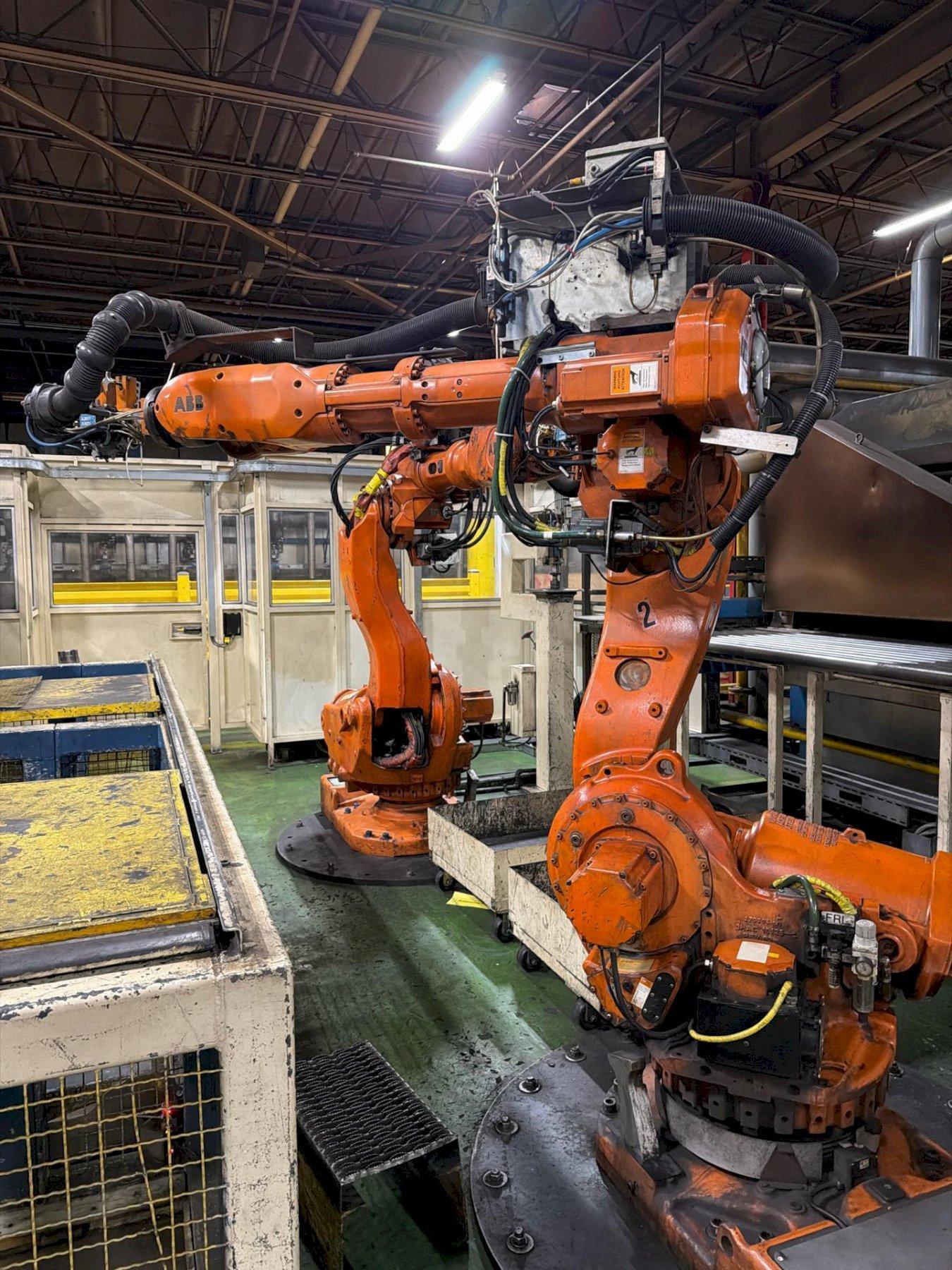

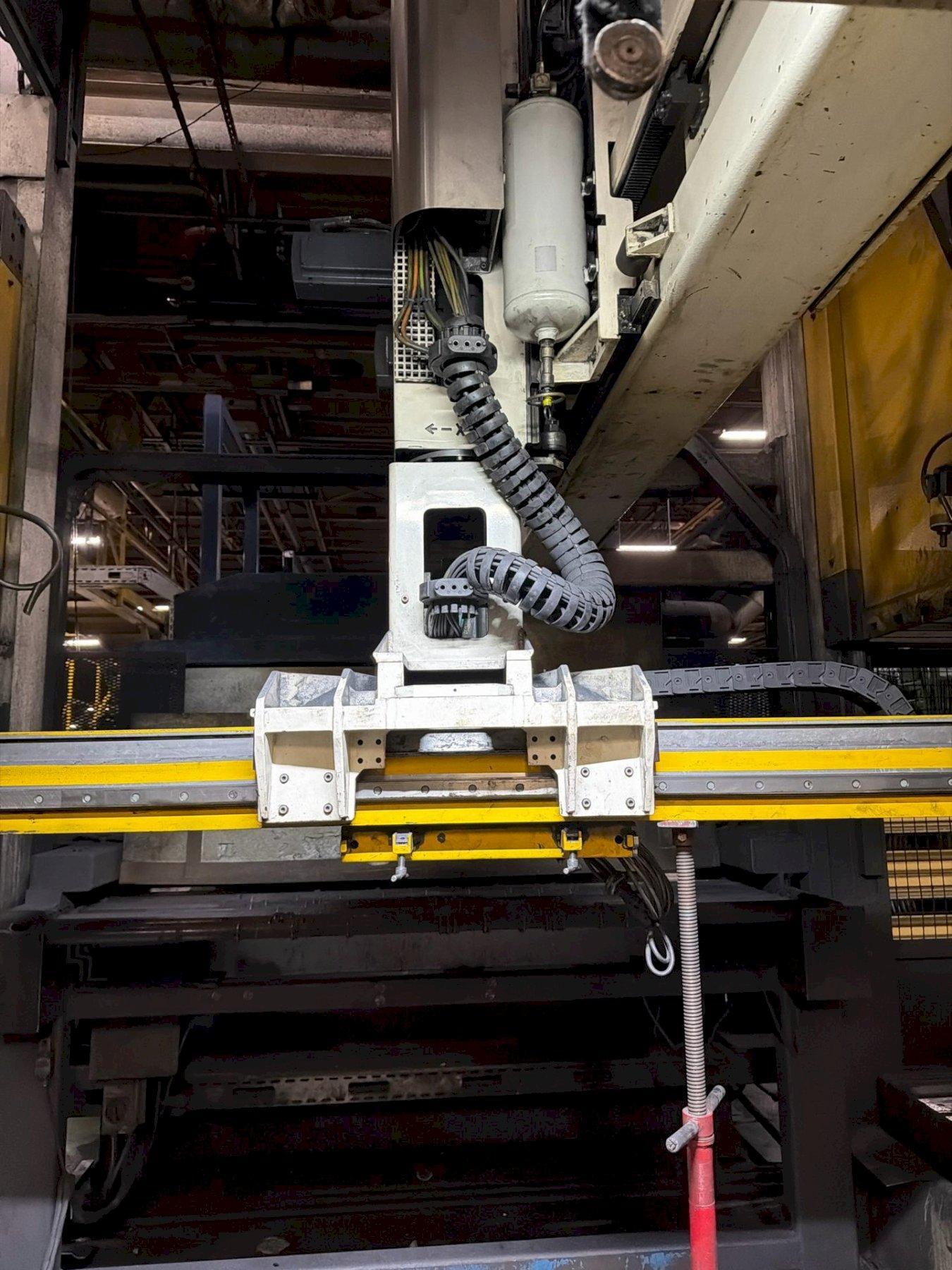

ROBOTS - QTY 4
ABB - 6600/2.80-175 W/ S4C+M2000 CONTROL
|
