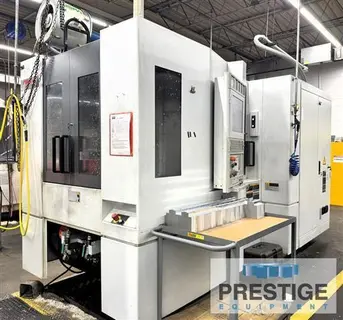

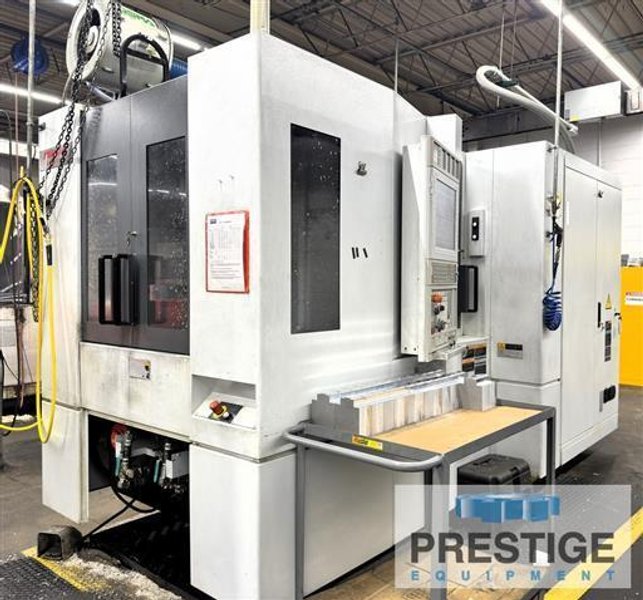

Machining Centers Horizontal CNC

SPECIFICATION:
X-Axis Travels 22.047"
Y-Axis Travels 22.047"
Z-Axis Travels 24.803"
Number of Pallets 2
Pallet Size 15.7" x 15.7"
Pallet Indexing .001°
Pallet Load Capacity 880 Lbs.
Spindle Speeds 14,000 RPM
Spindle Taper CAT 40
Spindle Drive Motor 25 HP
Rapid Traverse 1969 IPM
Dimensions 148"x98"x103"
Approx. Weight 21,120 Lbs.



Equipped With:

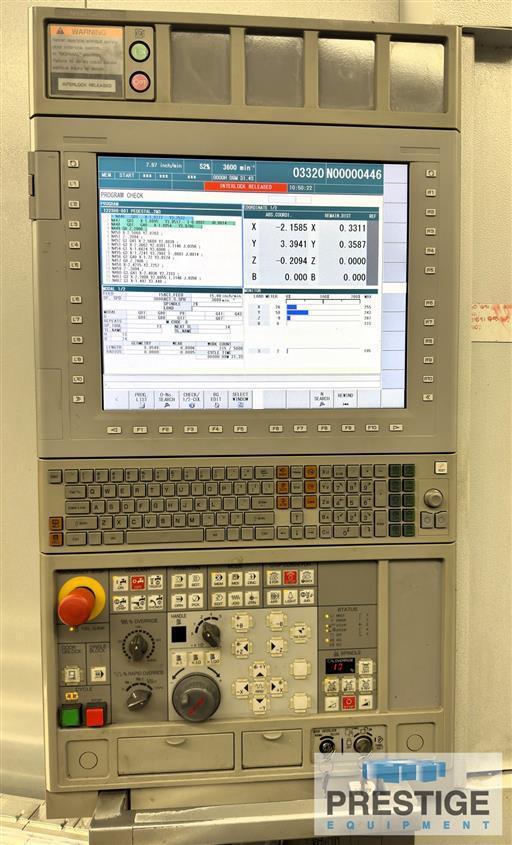

MSX-701 III, MAPPS IV (Fanuc) CNC Control
Full B-Axis Contouring
Chip Blaster Unit
2-Station Automatic Pallet Changer
40-Position Automatic Tool Changer

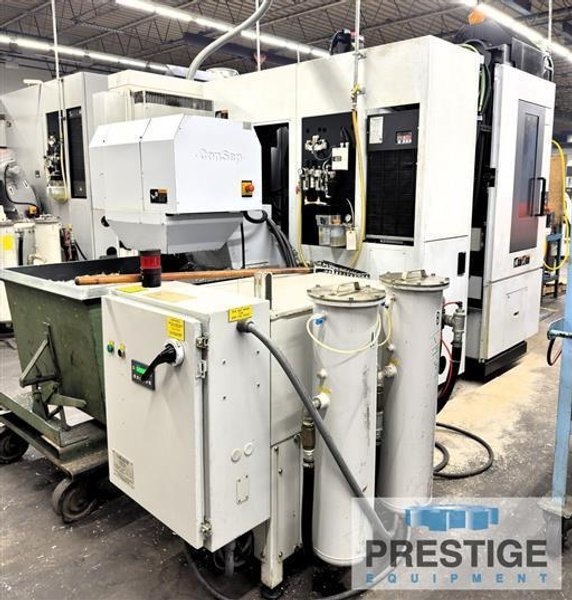

Mist Collector
Chip Conveyor


Auction Message:
5-12-2026 - Complete CNC Facility – High Precision Manufacturer of Defense, Industrial & Machine Components




View The Auction
