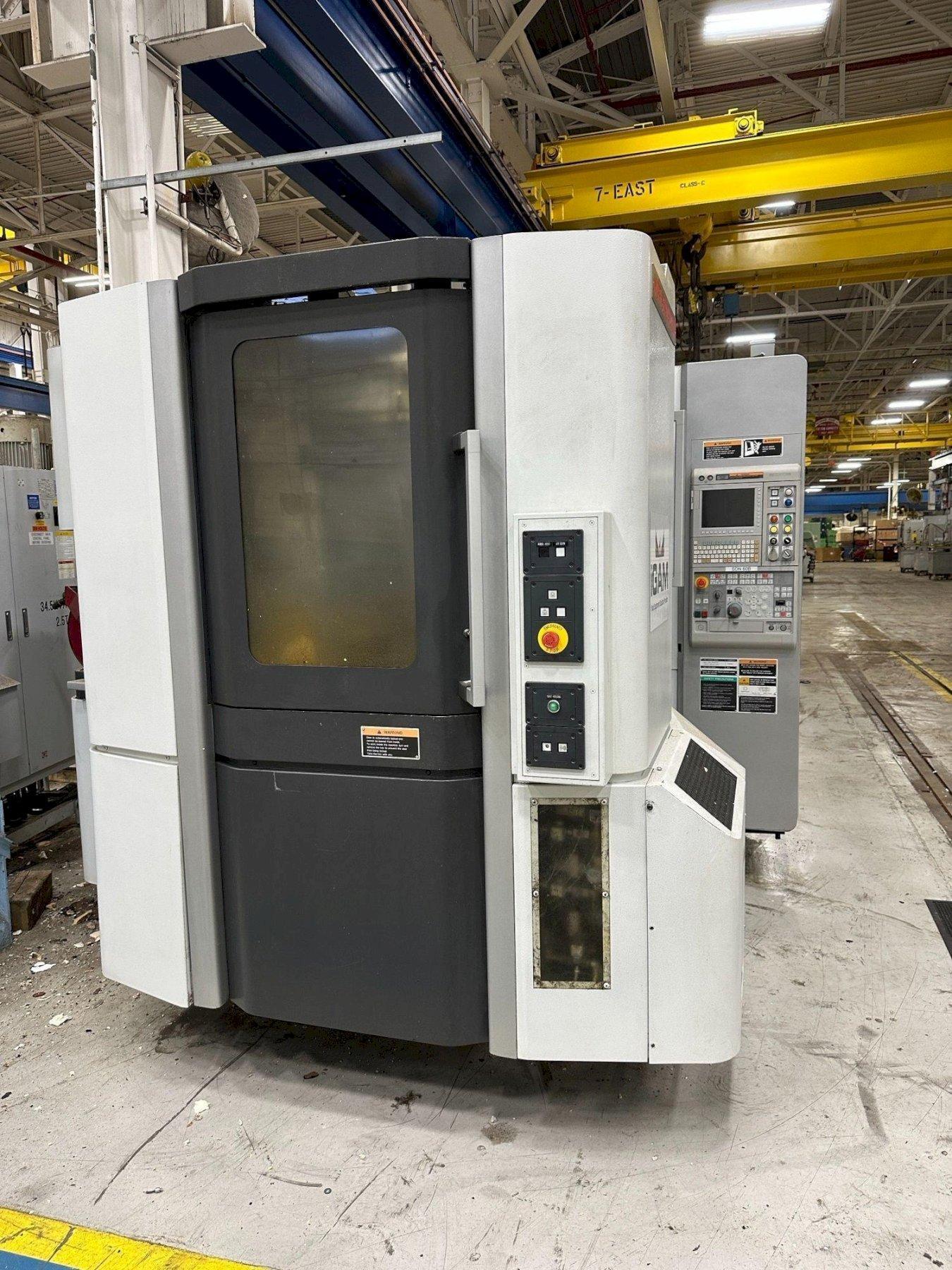

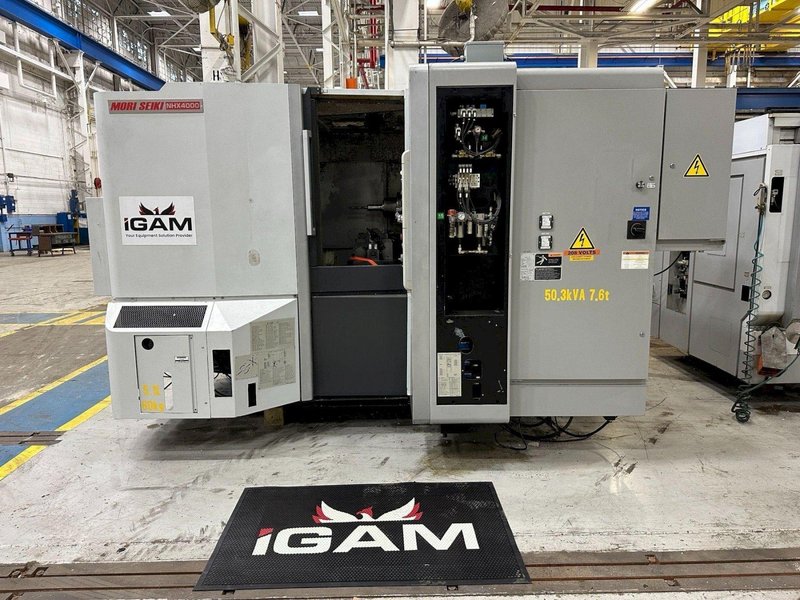

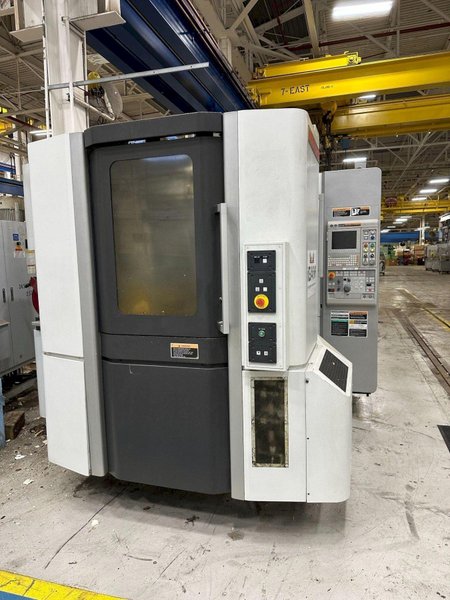

2012 MORI SEIKI NHX4000 CNC HORIZONTAL MACHINING CENTER USED

2012 MORI SEIKI NHX4000 CNC HORIZONTAL MACHINING CENTER USED

Name: Used MORI SEIKI NHX4000 For Sale IGAM0200007
Brand: MORI SEIKI
SKU: IGAM0200007
Availability: PreOrder

Brand

MORI SEIKI

Location

Michigan

REQUEST FINANCING

Specifications
Files & Videos

Overview

The 2012 MORI SEIKI NHX4000 with Mitsubishi 730 control, 400mm CNC Horizontal Machining Center is a used high-precision, high-efficiency horizontal machining center designed for demanding production environments. Engineered by Mori Seiki (now part of DMG MORI), the NHX4000 offers superior rigidity, high-speed spindle performance, and advanced automation features. This unit comes fully equipped with a ChipBlaster coolant filtration system, chip conveyor, and tooling, making it a turn-key solution for complex and high-volume machining operations.

Specification Table

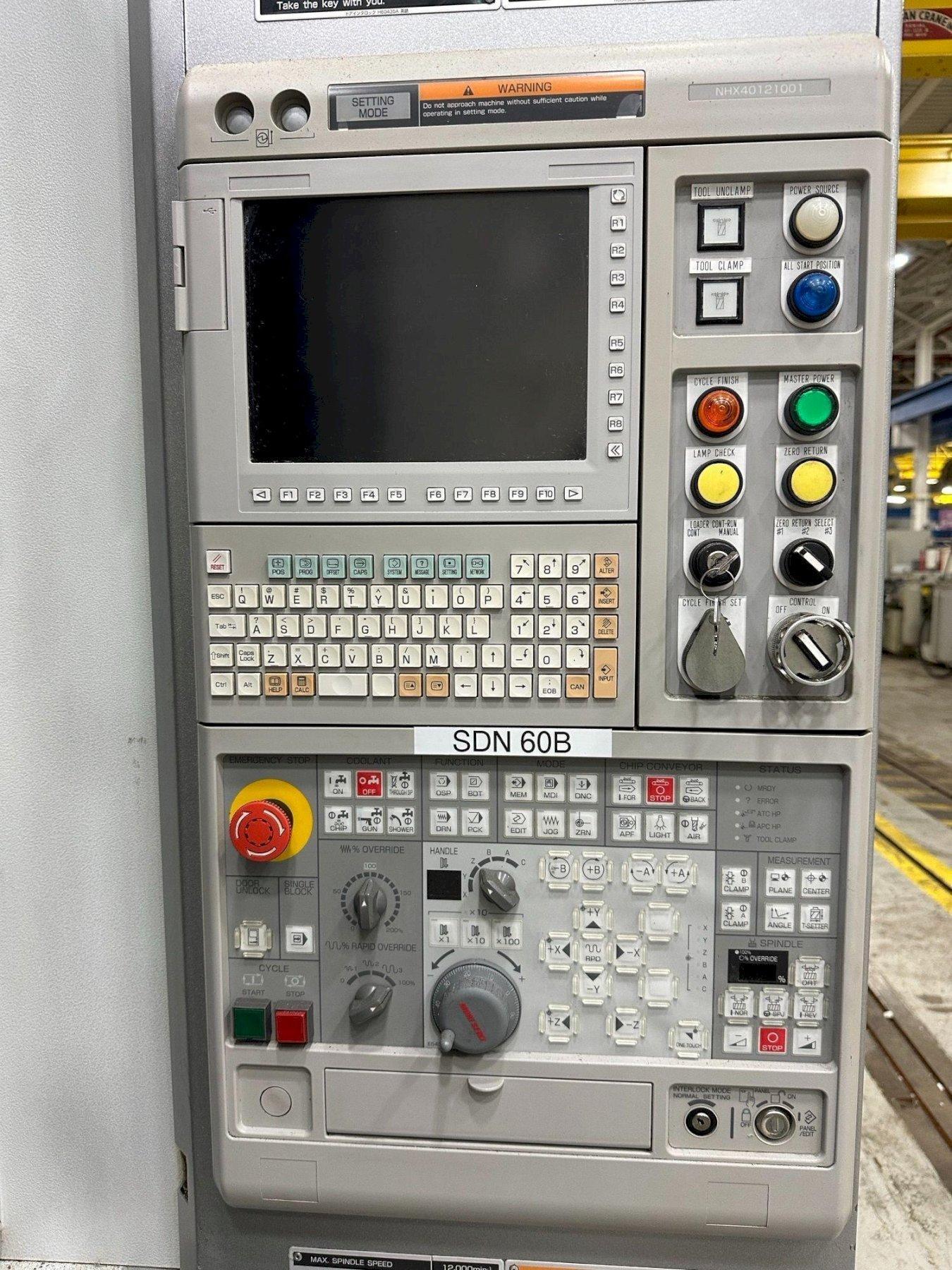

CNC Control	Mitsubishi 730
Pallet-L	15.7″
Pallet-W	15.7″
Pallet Indexing (B-axis)	.001
X-axis Travel	22″
Y-axis Travel	22″
Z-axis Travel	26″
Rapid Traverse Rate (X/Y/Z)	2362
Spindle Speed	12,000 RPM
Spindle Taper	HSK-A63
Spindle Motor	20 hp
# ATC	40

2012 MORI SEIKI NHX4000 MITSUBISI 730 CONTROL, 400MM CNC HORIZONTAL MACHINING CENTER, HMC SPECIFICATIONS: PALLET SIZE: 15.7″ (2) TRAVEL – X, Y, Z AXIS: 22.0″ (X), 22.0″ (Y), 26.0″ (Z) PALLET INDEX: .001 DEGREE SPINDLE SPEED: 12,000 RPM SPINDLE TAPER: HSK-A63 SPINDLE MOTOR: 20 / 15 HP SPINDLE CENTER TO TABLE TOP: 2.4″ – 24.4″ SPINDLE NOSE TO TABLE CENTER: 2.8″ – 28.7″ TOOLS: 40 RAPID TRAVERSE RATES: 2362 IPM TOOL CHANGE TIME (T – T / C – C): 0.9 / 2.8 SECONDS PALLET CHANGE TIME: 8 SECONDS PALLET LOAD CAPACITY: 880 LBS. MAX WORKPIECE DIA / HEIGHT: 24.8″ / 34.6″ MAX TOOL DIAMETER: 2.7″ / 6.6″ MAX TOOL LENGTH: 17.7″ MAX TOOL WEIGHT: 17.6 LBS. WEIGHT: 16,720 LBS. DIMENSIONS: 165.9″ L X 107.1″ W X 98.9″ H EQUIPPED WITH: TOOLING SHOWN CHIPBLASTER COOLANT FILTRATION SYSTEM CHIP CONVEYOR

Product Specifications:

Model: NHX4000
Manufacturer: MORI SEIKI
Year: 2012
Type: CNC Horizontal Machining Center
Pallet Size: 400 mm
Spindle Speed: High-speed (up to 15,000 RPM, model-dependent)
Axis Configuration: X/Y/Z
CNC Controller: MAPPS IV / FANUC-based (varies by unit)
Tool Capacity: Standard large-capacity ATC
Condition: Used
Construction: Heavy-duty cast iron frame for stability

Key Features:

Includes ChipBlaster high-pressure coolant filtration system for improved tool life and chip evacuation
Integrated chip conveyor for efficient material handling
Comes with tooling, ready for immediate deployment
High-rigidity spindle and advanced thermal stability for consistent precision
Designed for automation-ready manufacturing environments

Applications:

High-precision part production
Aerospace and automotive component machining
Mold and die manufacturing
Medical equipment fabrication
General industrial part production
