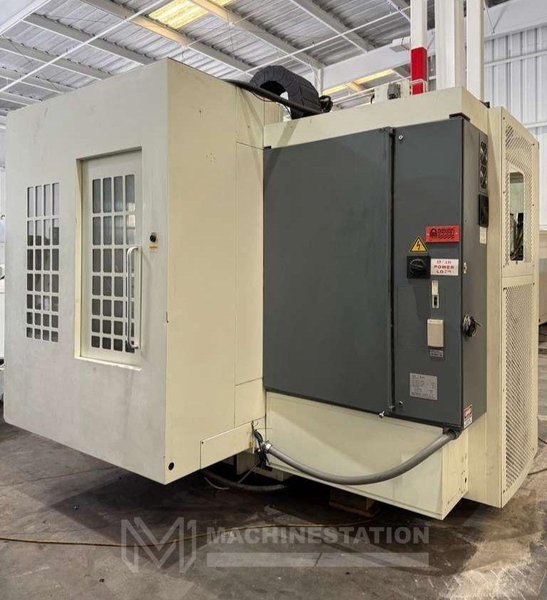

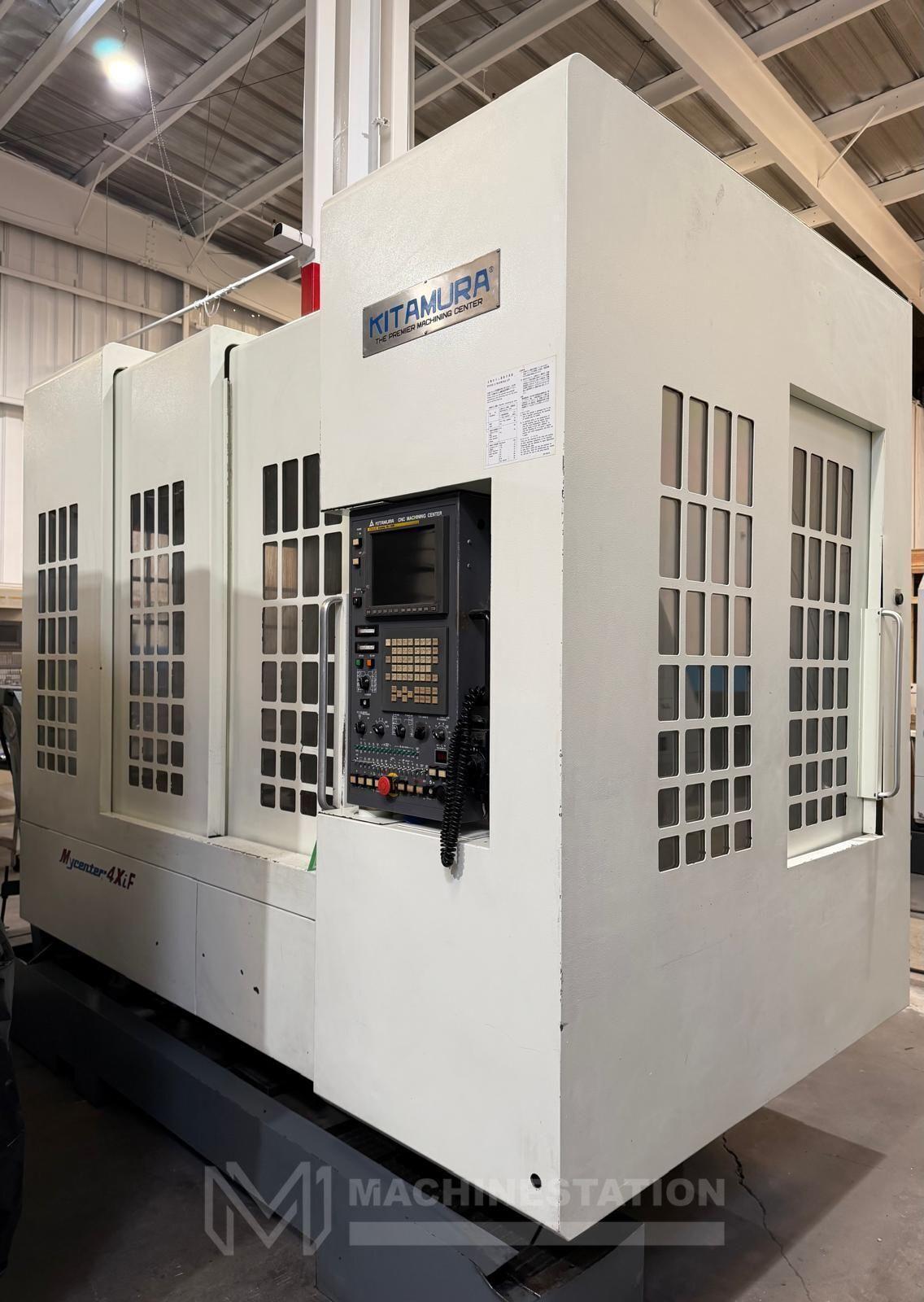

Kitamura Mycenter 4XiF CNC Vertical Machining Center – 50 Taper Mill

Brand
Not specified
Category
Machining Centers
Type
Vertical Machining Centers
Model
Kitamura Mycenter 4XiF
Stock #
112488
Year
2007
Condition
Not specified

Location

California
REQUEST FINANCING

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Make: Kitamura
Model: Mycenter 4XiF
Year: 2007
Condition: Used – Good
Equipped With:

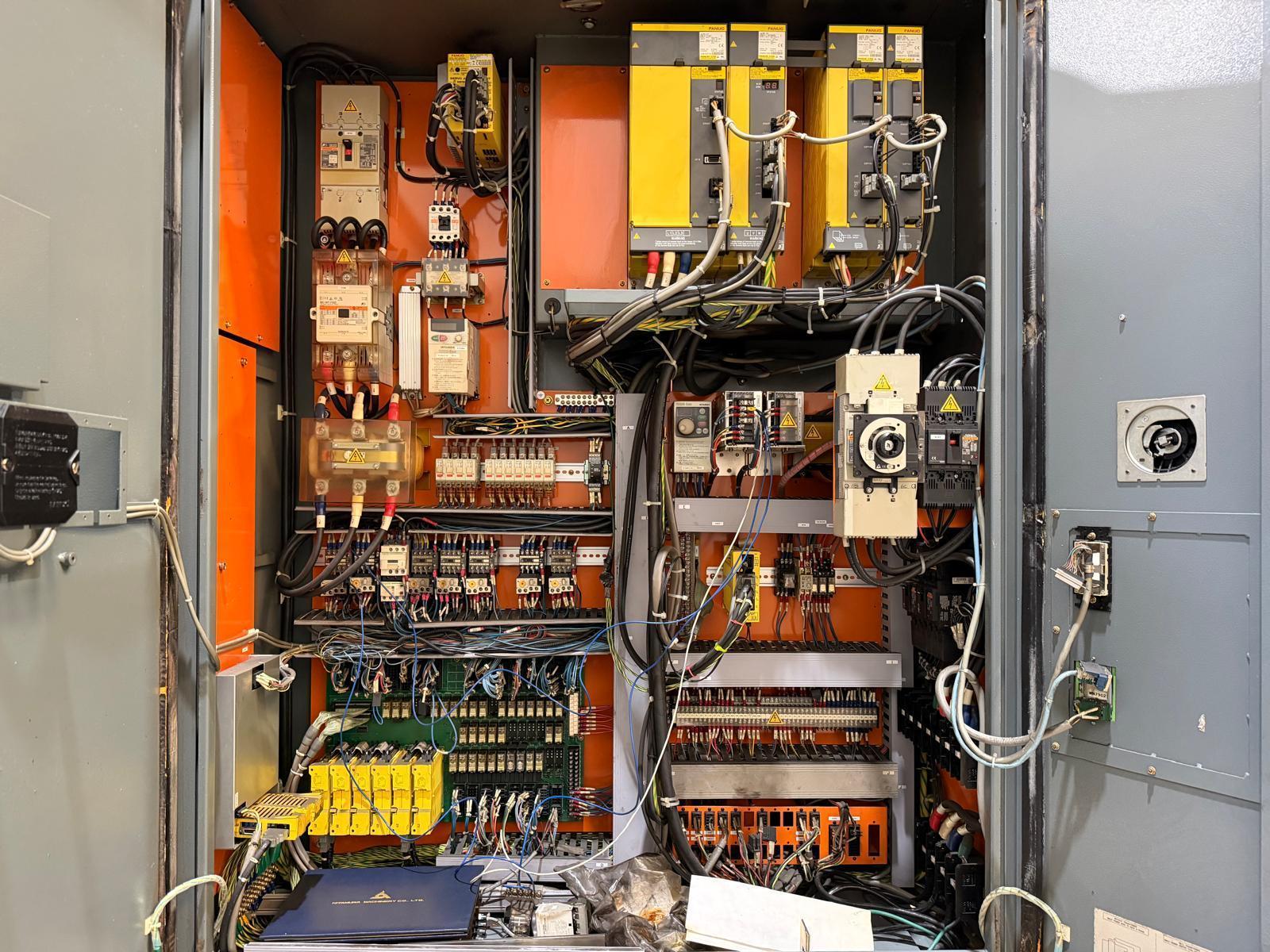

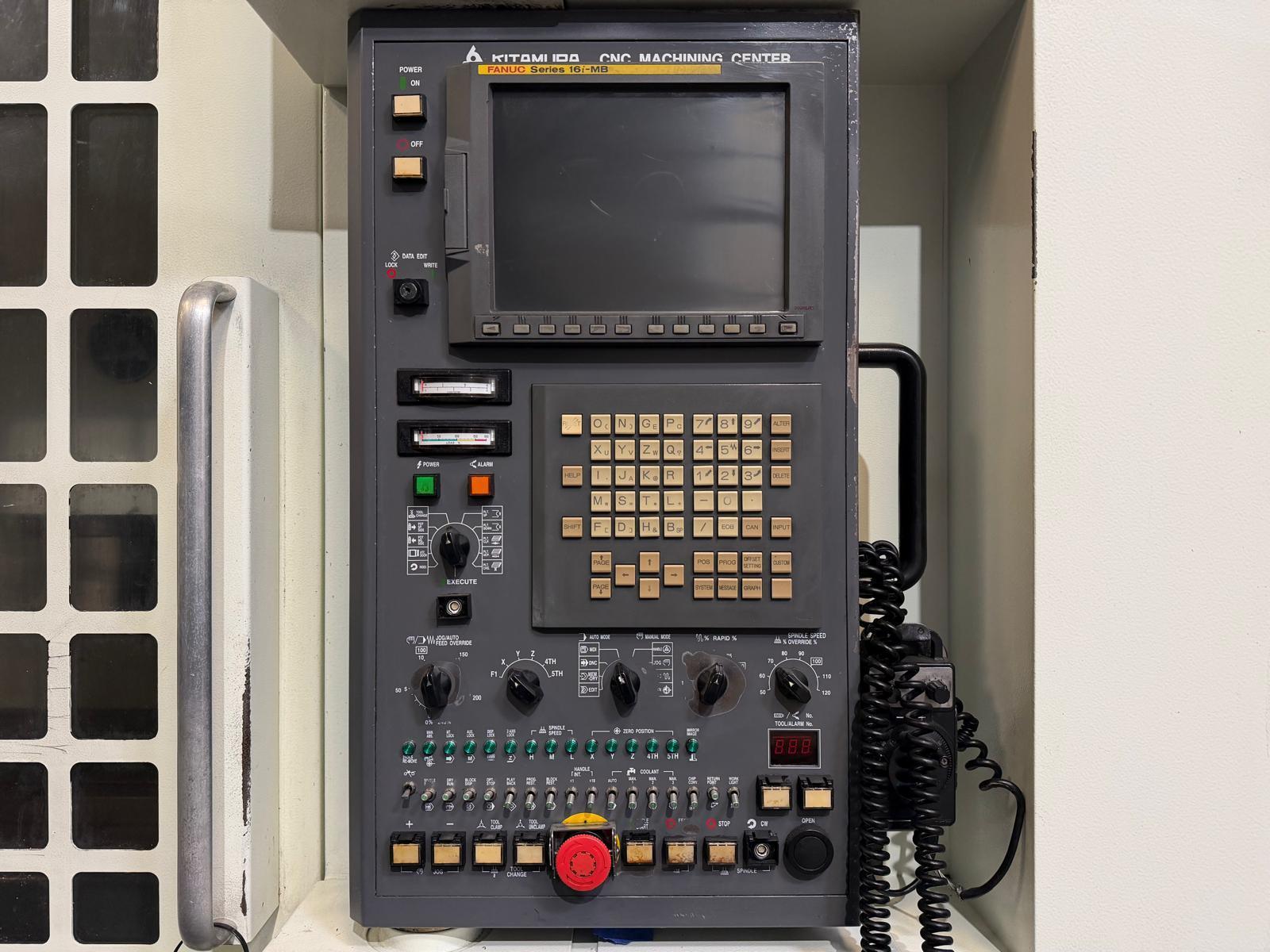

Fanuc 16i-MB Series CNC Control
Heavy Duty Box Ways Construction
10,000 RPM High Torque Spindle
Through Spindle Coolant

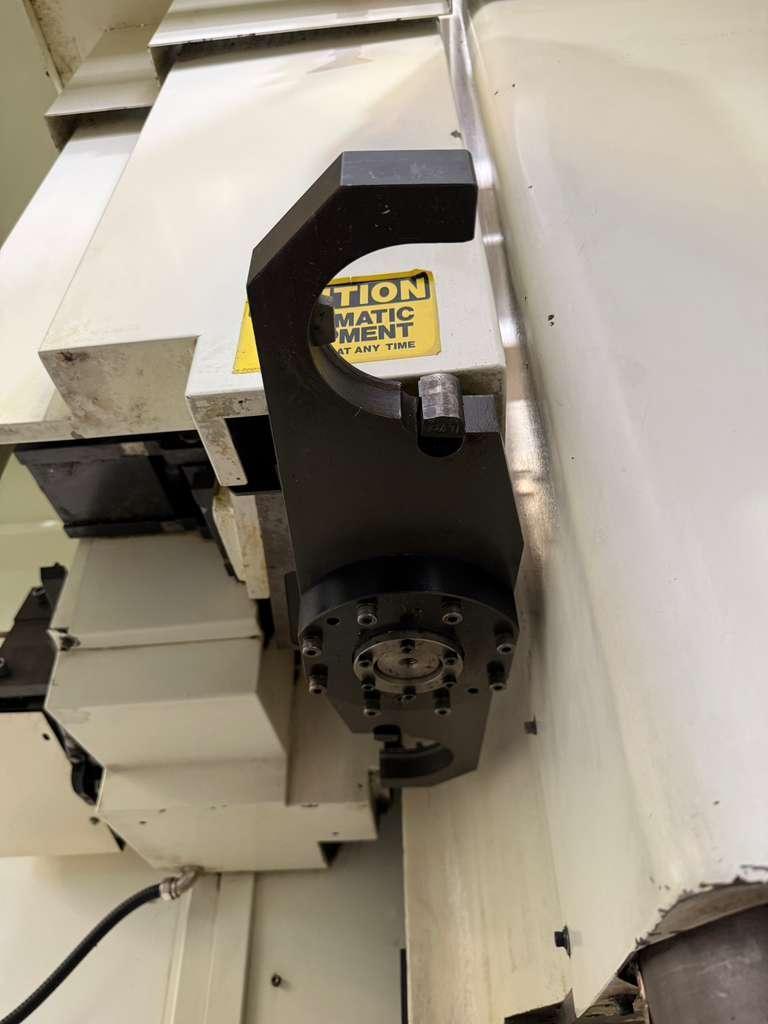

40 Station Automatic tool changer
20 HP High Torque Spindle Motor

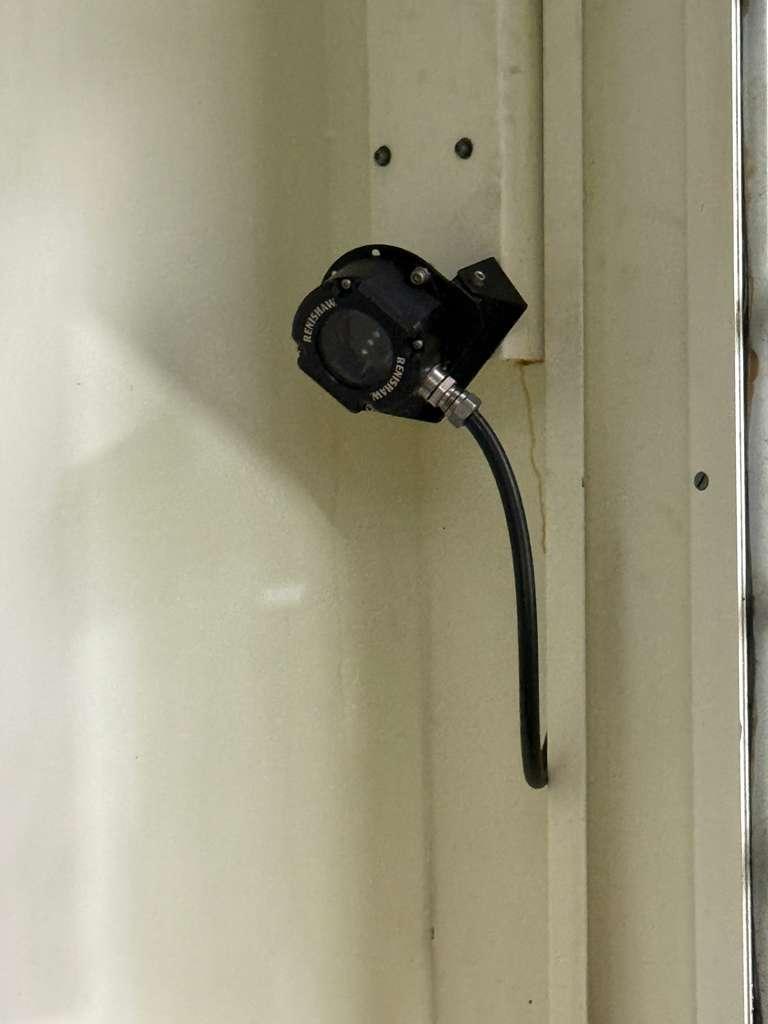

Renishaw Receiver Installed
Renishaw OMP60 Tool Probe
CAT-50 Taper
PCMCIA Card Slot
MPG Handwheel Control
Rigid Tapping
Spindle Chiller Unit

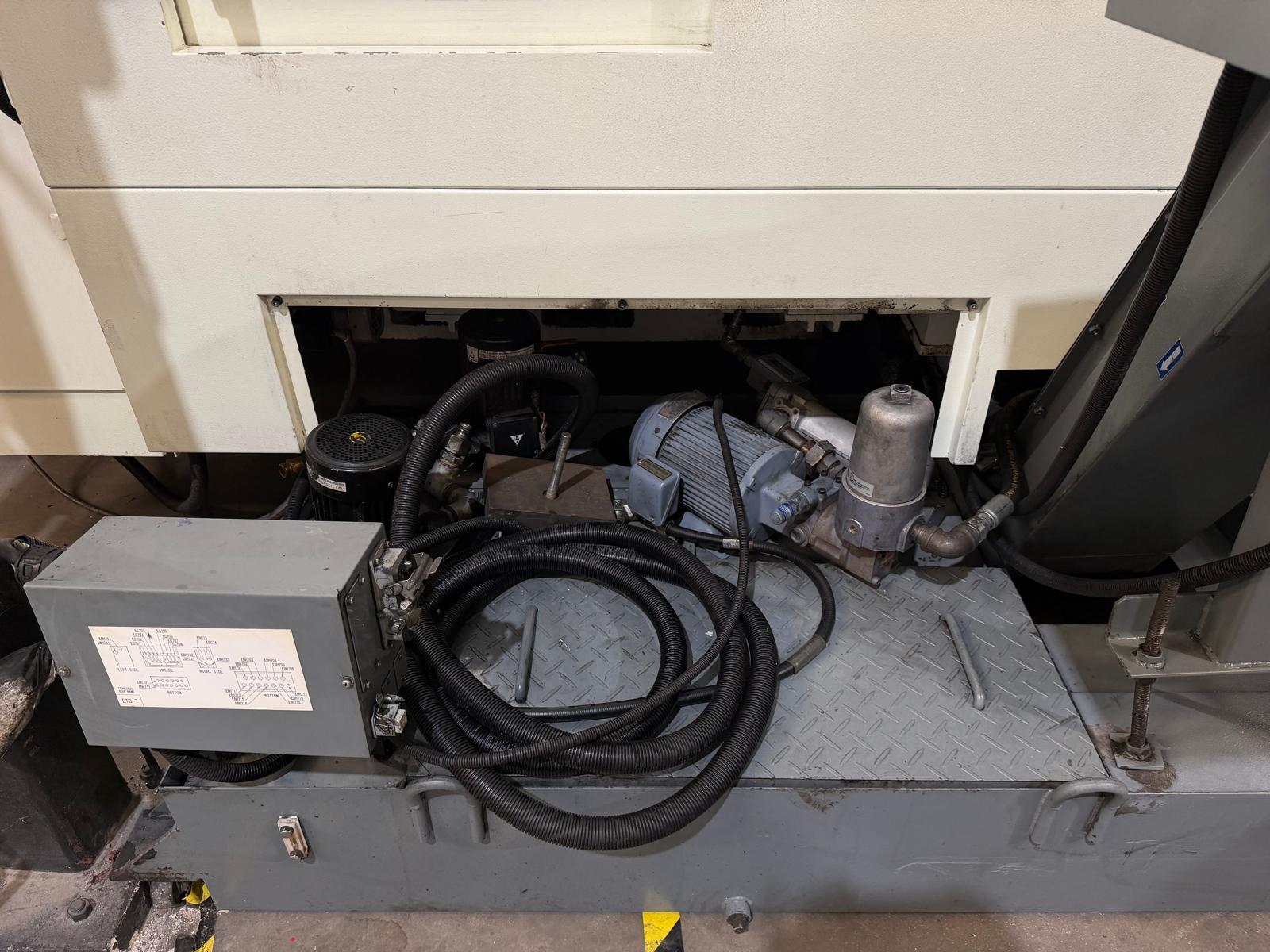

Coolant System

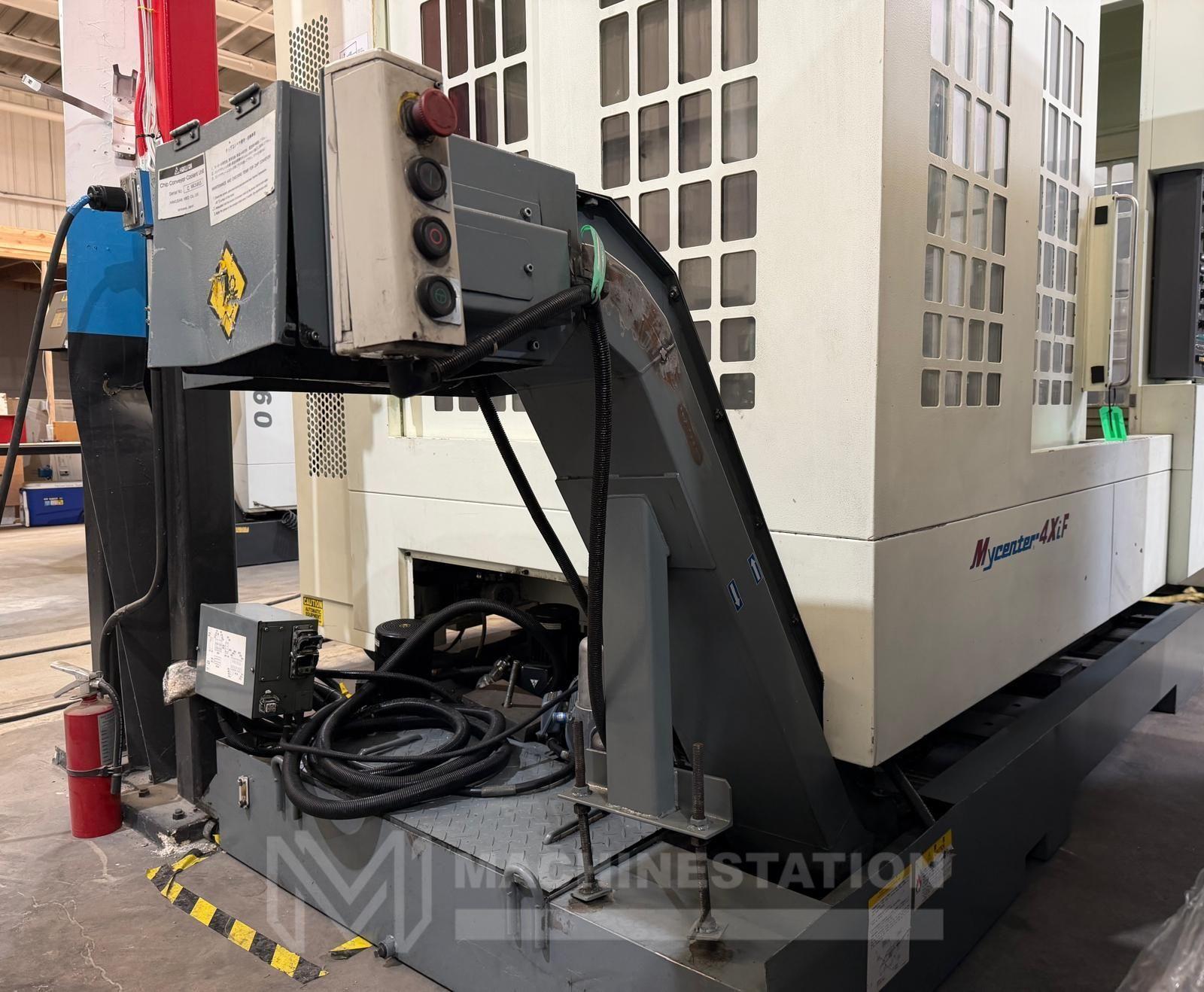

Chip Conveyor
Travels:
X-Axis: 40″
Y-Axis: 20″
Z-Axis: 20″
Spindle Nose to Table (Min.-Max): 5.9″ – 27″

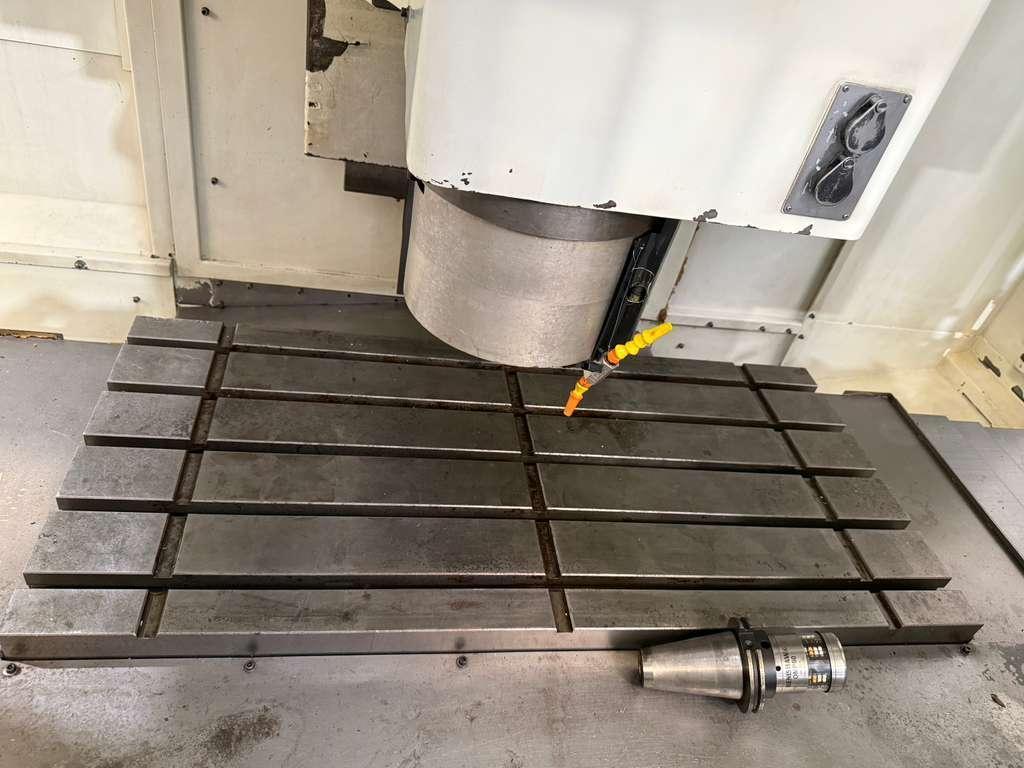

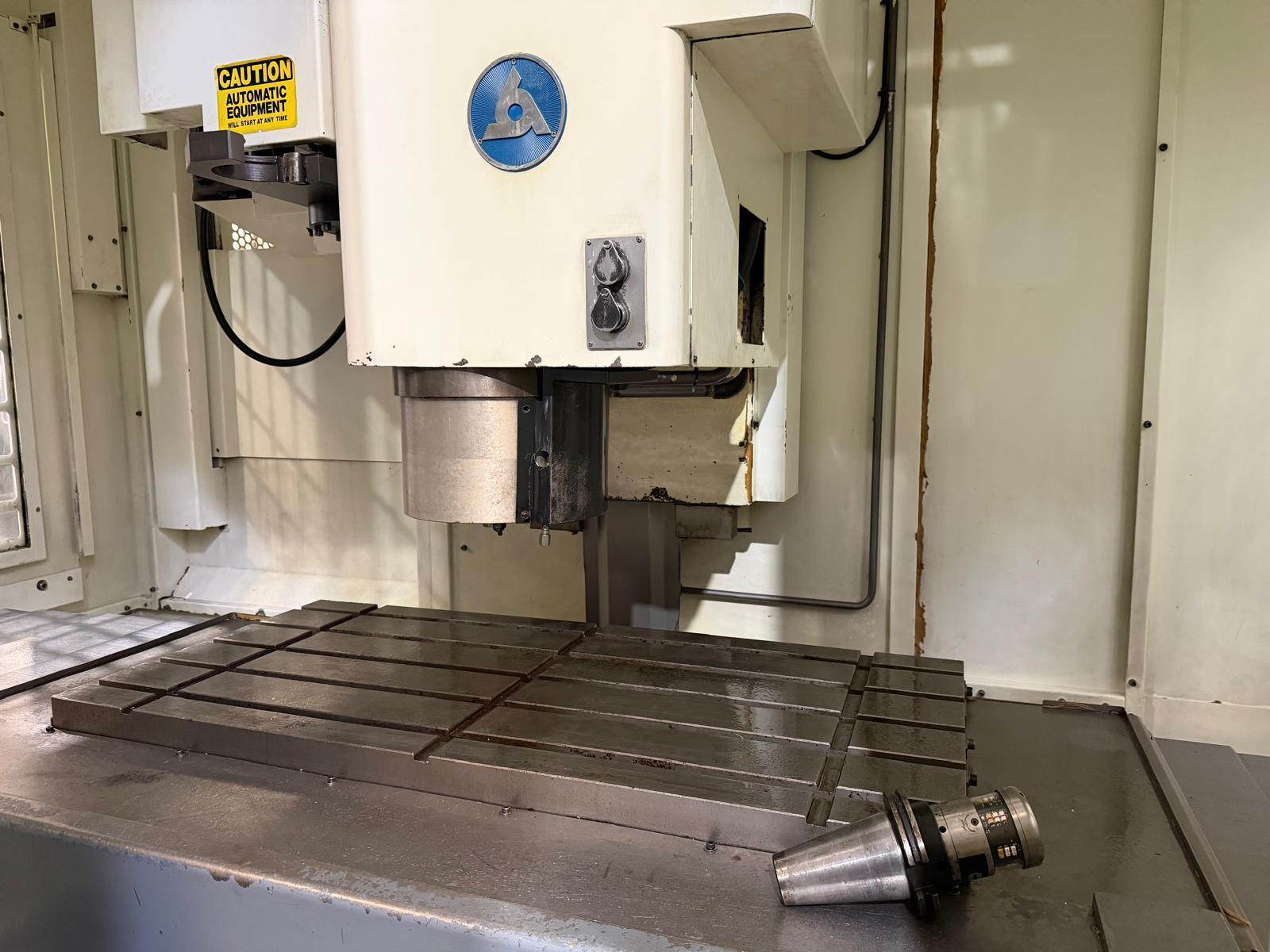

Table:
Length: 43.0″
Width: 20.5″
Max Weight on Table: 1320 lbs

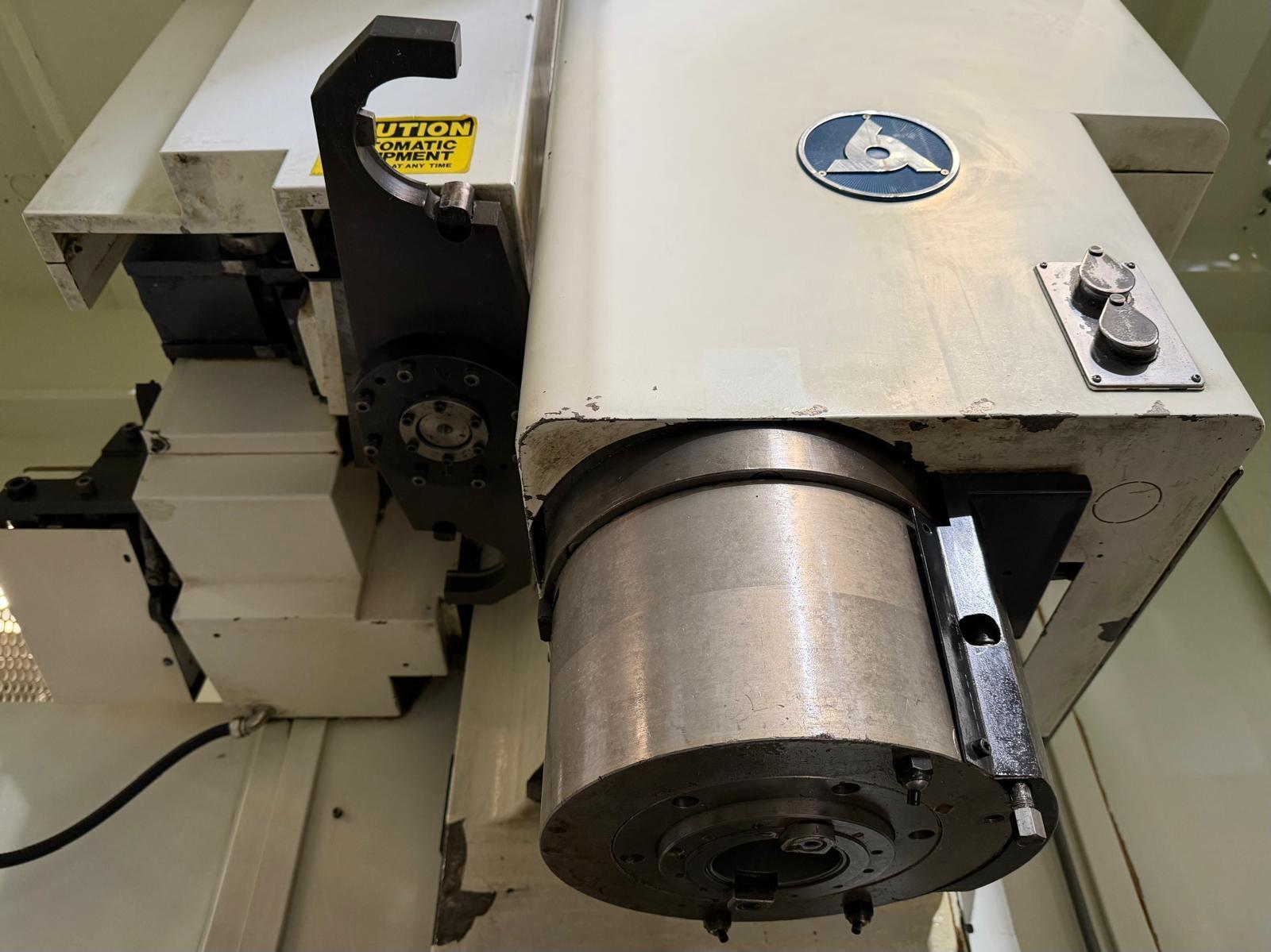

Spindle:
Taper Size: CAT-50
Speed Range: 10000 RPM
Spindle Power: 20 HP

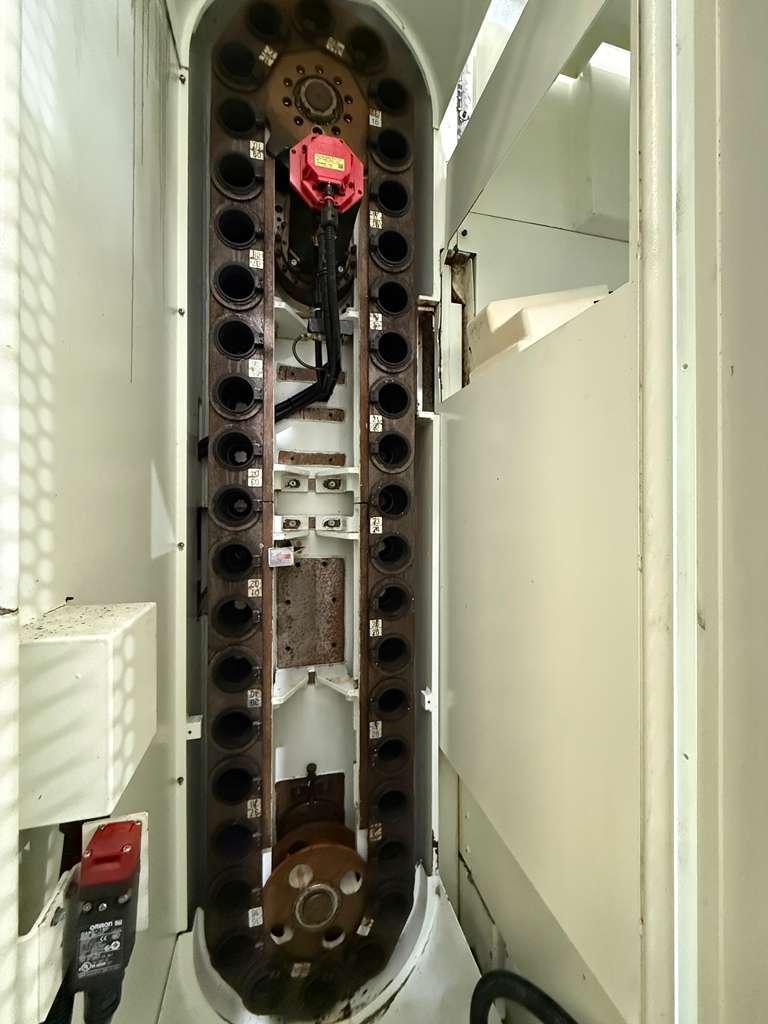

Automatic Tool Changer:
Capacity: 40 Station Side Mounted
Tool Weight: 33 Ibs
Max Tool Length: 11.8″
Max Tool Dia.: 4.33″
Feed Rates:
Rapid Traverse Rates X & Y Axis: 1969 IPM
Rapid Traverse Rates Z Axis: 1417 IPM
General:
Air Required: 80 psi, 4 scfm
Power: 220v/ 3-Phase, 35Kva
Overall Dimensions: 140″ x 116″ x 120″ High
Weight:  18,000 lbs
