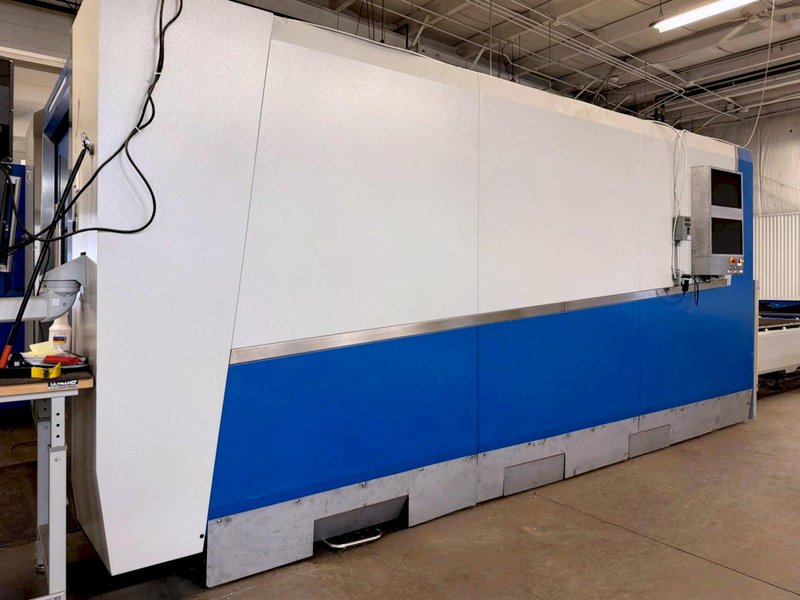

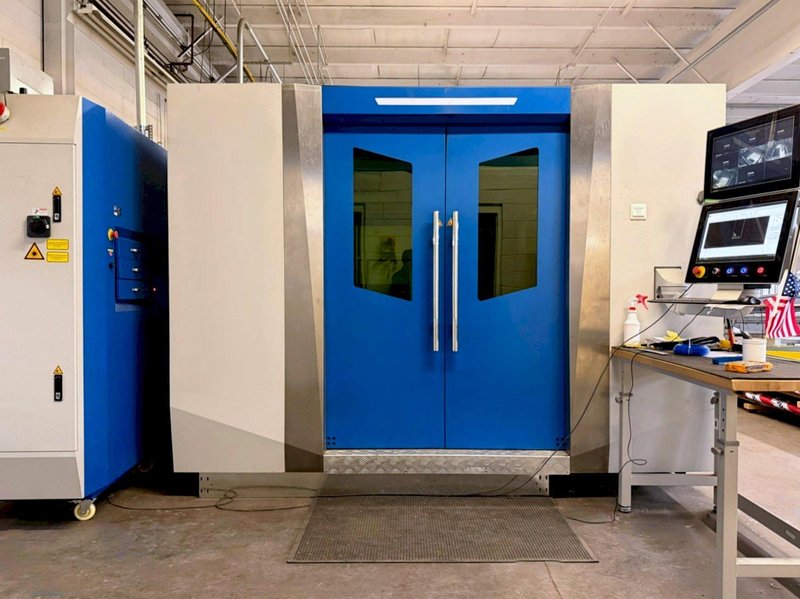

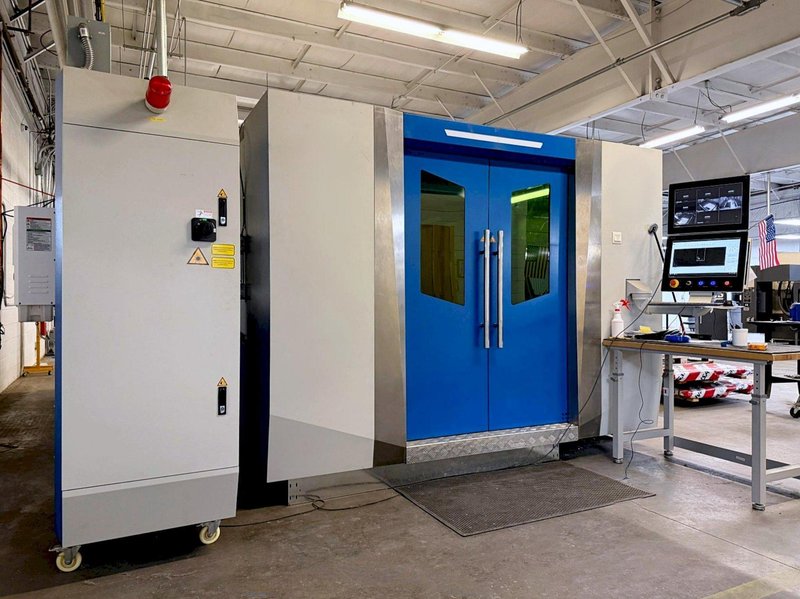

Knuth ACE Laser 3015 2.0 IPG Fiber

Name: Knuth ACE Laser 3015 2.0 IPG Fiber
Brand: KNUTH
SKU: 100649
Availability: InStock

Brand

KNUTH

Not specified

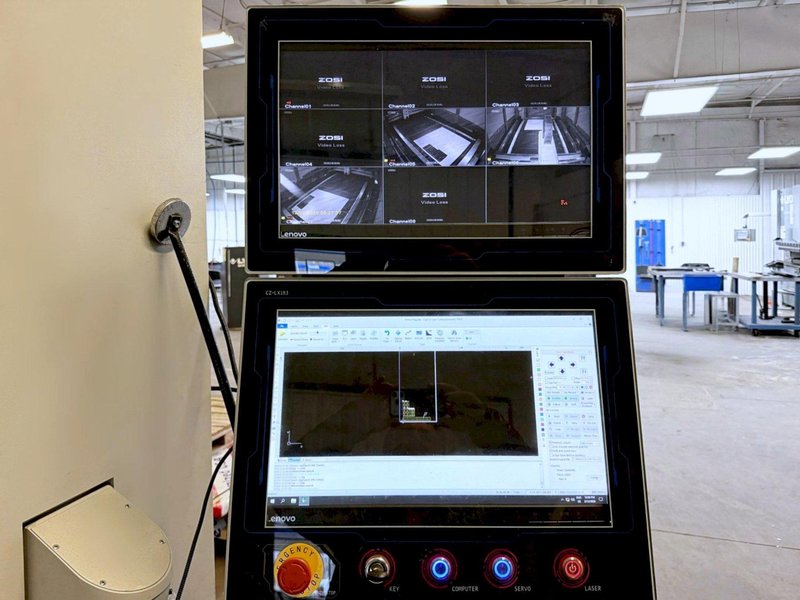

Control	FSCUT2000 CNC Control
Table Dimensions	118” x 59”
Workpiece Weight (Max.)	2,200 Lbs.
Travel X-Axis	59.8”
Travel Y-Axis	120”
Travel Z-Axis	4”
X-Axis Rapid Feed	327 fpm
Y-Axis Rapid Feed	327 fpm
Cutting Table Change Time	10 - 15 Sec.
Fiber Laser Source	IPG
Fiber Laser Power	2.0 kW
Shaft Length	108 ± 10% µm
Pulse Frequency	50~5k Hz
Power Consumption	26.82 Hp
Cutting Capacity - Mild Steel	0.47"
Cutting Capacity - Stainless Steel	0.24"
Cutting Capacity - Aluminum	0.197"
Machine Drive Capacity X-Axis	1.3 Hp
Machine Drive Capacity Y-Axis	2.0 Hp
Machine Drive Capacity Z-Axis	0.5 Hp
Dimensions	L 386” x W 146” x H 85”
Weight	17,600 Lbs.

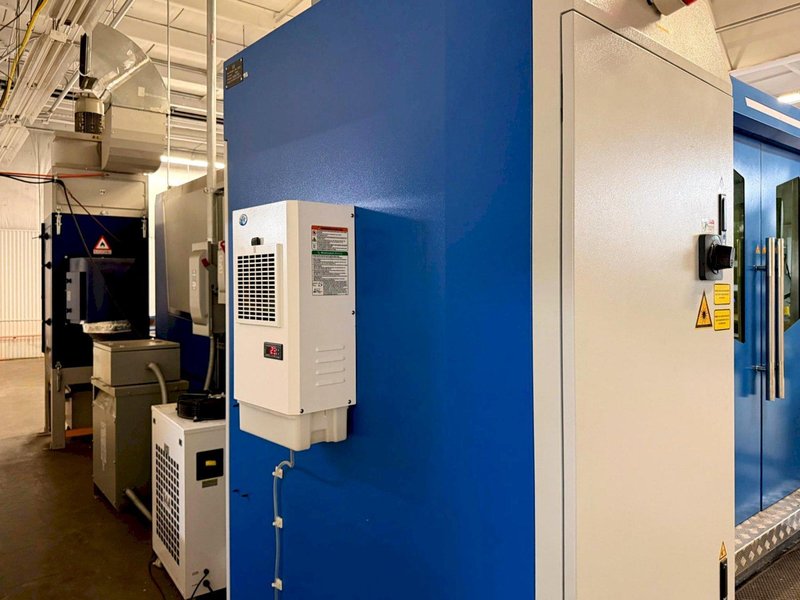

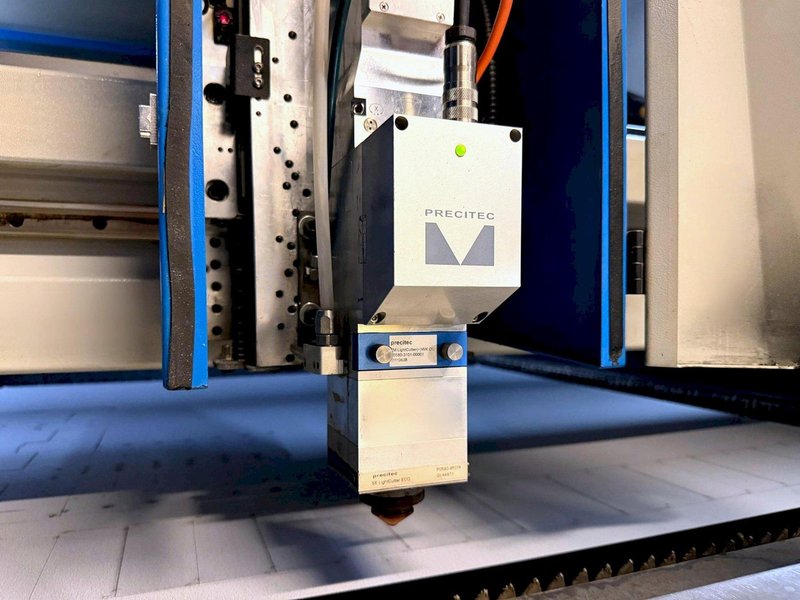

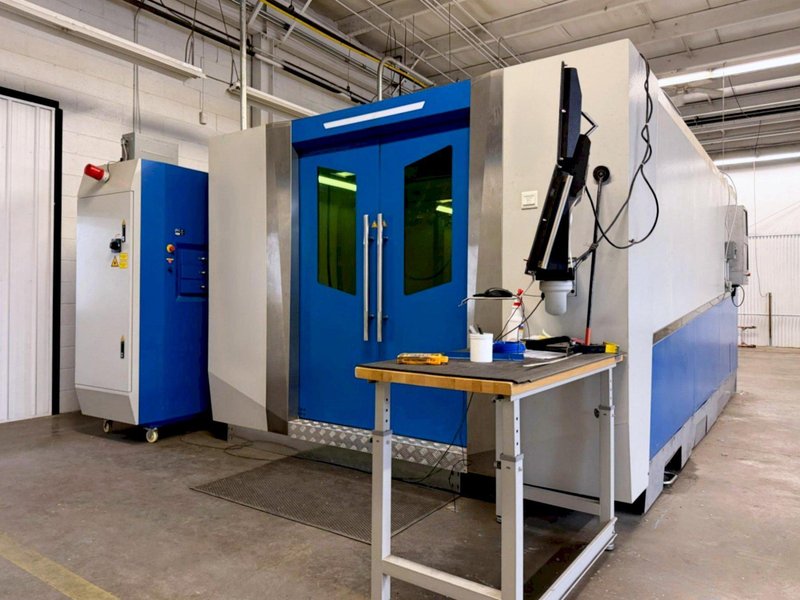

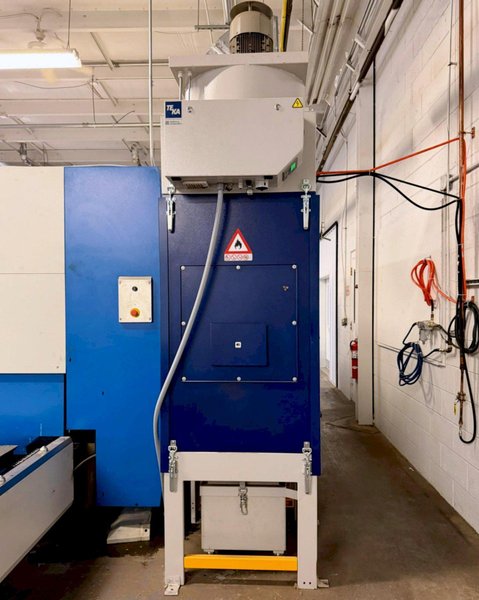

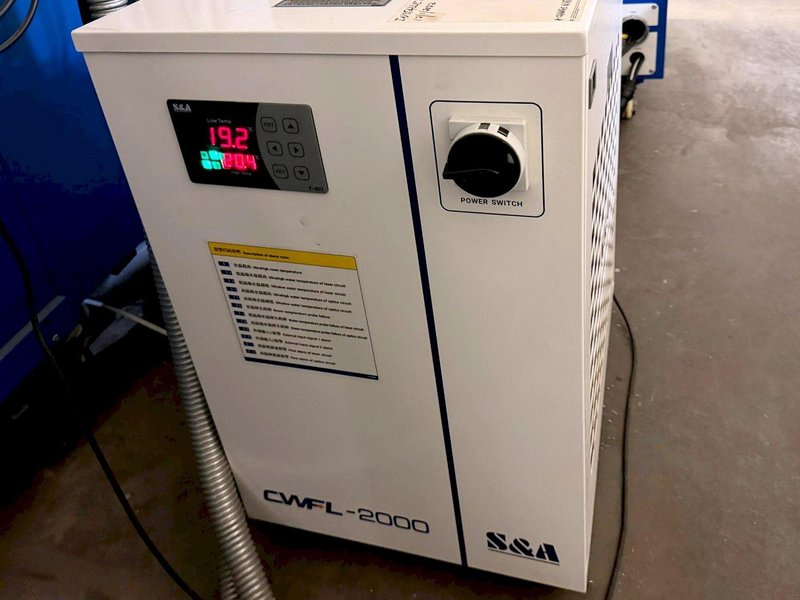

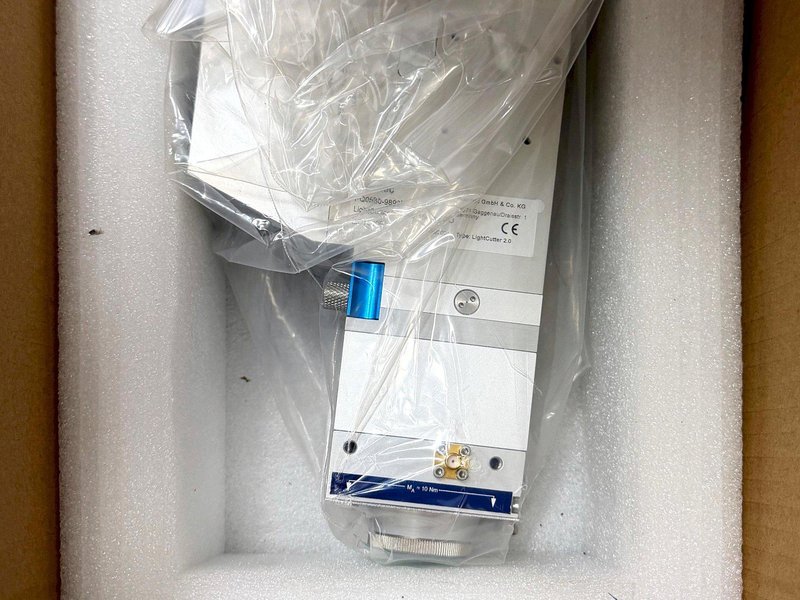

Equipped With: FSCUT2000 CNC Control IPG Fiber Laser Fiberoptic Cable Precitec High-Pressure Cutter Head Automatic Focus Position Adjustment Full Protective Housing Automatic Pallet Table System Dust Collector & Filtration Unit Automatic Gas Console w/ Electrovalves for Oxygen & Nitrogen Central Lubrication Chiller Unit All Available Manuals
