ACE Laser 3015 1.0 | ACE Laser 3015 1.5 | ACE Laser 3015 2.0 | ACE Laser 3015 3.0 | ACE Laser 3015 4.0 | ACE Laser 4020 1.0 | ACE Laser 4020 1.5 | ACE Laser 4020 2.0 | ACE Laser 4020 3.0 | ACE Laser 6020 4.0 | ACE Laser 6020 1.0 | ACE Laser 6020 1.5 | ACE Laser 6020 2.0 | ACE Laser 6020 3.0 | ACE Laser 4020 4.0 |
Working Area | Table dimensions | 118x59 in | 118x59 in | 118x59 in | 118x59 in | 118x59 in | 157x79 in | 157x79 in | 157x79 in | 157x79 in | 236x79 in | 236x79 in | 236x79 in | 236x79 in | 236x79 in | 157x79 in | Maximum workpiece weight | 2,200 lbs | 2,200 lbs | 2,200 lbs | 2,200 lbs | 2,200 lbs | 3,300 lbs | 3,300 lbs | 3,300 lbs | 3,300 lbs | 4,400 lbs | 4,400 lbs | 4,400 lbs | 4,400 lbs | 4,400 lbs | 3,300 lbs | Axis acceleration X / Y axis | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 8 | 8 | 8 | 8 | 8 | 10 | Axis acceleration Z axis | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 8 | 8 | 8 | 8 | 8 | 5 | Travels | Travel X-axis | 59.8 in | 59.8 in | 59.8 in | 59.8 in | 59.8 in | 79.5 in | 79.5 in | 79.5 in | 79.5 in | 79.5 in | 79.5 in | 79.5 in | 79.5 in | 79.5 in | 79.5 in | Travel Y-axis | 120 in | 120 in | 120 in | 120 in | 120 in | 159 in | 159 in | 159 in | 159 in | 238 in | 238 in | 238 in | 238 in | 238 in | 159 in | Travel Z-axis | 4 in | 4 in | 4 in | 4 in | 4 in | 4 in | 4 in | 4 in | 4 in | 5 in | 5 in | 5 in | 5 in | 5 in | 4 in | Rapid Feed | X axis rapid feed | 327 fpm | 327 fpm | 327 fpm | 327 fpm | 327 fpm | 327 fpm | 327 fpm | 327 fpm | 327 fpm | 261.6 fpm | 261.6 fpm | 261.6 fpm | 261.6 fpm | 261.6 fpm | 327 fpm | Y axis rapid feed | 327 fpm | 327 fpm | 327 fpm | 327 fpm | 327 fpm | 327 fpm | 327 fpm | 327 fpm | 327 fpm | 261.6 fpm | 261.6 fpm | 261.6 fpm | 261.6 fpm | 261.6 fpm | 327 fpm | Change time at cutting table | 10 - 15 sec | 10 - 15 sec | 10 - 15 sec | 10 - 15 sec | 10 - 15 sec | 12 - 17 sec | 12 - 17 sec | 12 - 17 sec | 12 - 17 sec | 15 - 20 sec | 15 - 20 sec | 15 - 20 sec | 15 - 20 sec | 15 - 20 sec | 12 - 17 sec | Laser | fiber laser | 1,000 | 1,500 | 2,000 | 3,000 | 4,000 | 1,000 | 1,500 | 2,000 | 3,000 | 4,000 | 1,000 | 1,500 | 2,000 | 3,000 | 4,000 | Shaft length | 1,08 ± 10% µm | Beam power max. | 1,000 | 1,500 | 2,000 | 3,000 | 4,000 | 1,000 | 1,500 | 2,000 | 3,000 | 4,000 | 1,000 | 1,500 | 2,000 | 3,000 | 4,000 | Pulse frequency | 50~20k Hz | 50~5k Hz | 50~5k Hz | 50~5k Hz | 50~5k Hz | 50~20k Hz | 50~5k Hz | 50~5k Hz | 50~5k Hz | -- | -- | -- | -- | -- | 50~5k Hz | Power consumption | 18.77 Hp | 22.8 Hp | 26.82 Hp | 37.55 Hp | 42.91 Hp | 18.77 Hp | 22.8 Hp | 26.82 Hp | 37.55 Hp | 42.91 Hp | 18.77 Hp | 22.8 Hp | 26.82 Hp | 37.55 Hp | 42.91 Hp | Supply voltage | AC 380V ± 10%, 50/60Hz, 3xL+N | Cutting capacity in structural steel | 0.31 in | 0.39 in | 0.47 in | 0.63 in | 0.71 in | 0.31 in | 0.39 in | 0.47 in | 0.63 in | 0.71 in | 0.31 in | 0.39 in | 0.47 in | 0.63 in | 0.71 in | Cutting capacity in stainless steel | 0.16 in | 0.2 in | 0.24 in | 0.31 in | 0.47 in | 0.16 in | 0.2 in | 0.24 in | 0.31 in | 0.47 in | 0.16 in | 0.2 in | 0.24 in | 0.31 in | 0.47 in | Cutting capacity in aluminum | 0.079 in | 0.157 in | 0.197 in | 0.236 in | 0.394 in | 0.079 in | 0.157 in | 0.197 in | 0.236 in | 0.394 in | 0.079 in | 0.157 in | 0.197 in | 0.236 in | 0.394 in | Drive Capacity | Machine drive capacity X-axis | 1.3 Hp | 1.3 Hp | 1.3 Hp | 1.3 Hp | 1.3 Hp | 1.3 Hp | 1.3 Hp | 1.3 Hp | 1.3 Hp | 2.7 Hp | 2.7 Hp | 2.7 Hp | 2.7 Hp | 2.7 Hp | 1.3 Hp | Machine drive capacity Y-axis | 2 Hp | 2 Hp | 2 Hp | 2 Hp | 2 Hp | 2 Hp | 2 Hp | 2 Hp | 2 Hp | 2.7 Hp | 2.7 Hp | 2.7 Hp | 2.7 Hp | 2.7 Hp | 2 Hp | Machine drive capacity Z-axis | 0.5 Hp | Measures and Weights | Overall dimensions (length x width x height) | 386x146x85 in | 386x146x85 in | 386x146x85 in | 386x146x85 in | 386x146x85 in | 408x169x87 in | 408x169x87 in | 408x169x87 in | 408x169x87 in | 642x187x85 in | 642x187x85 in | 642x187x85 in | 642x187x85 in | 642x187x85 in | 408x169x87 in | Weight | 17,600 lbs | 17,600 lbs | 17,600 lbs | 17,600 lbs | 17,600 lbs | 19,800 lbs | 19,800 lbs | 19,800 lbs | 19,800 lbs | 39,160 lbs | 39,160 lbs | 39,160 lbs | 39,160 lbs | 39,160 lbs | 19,800 lbs |

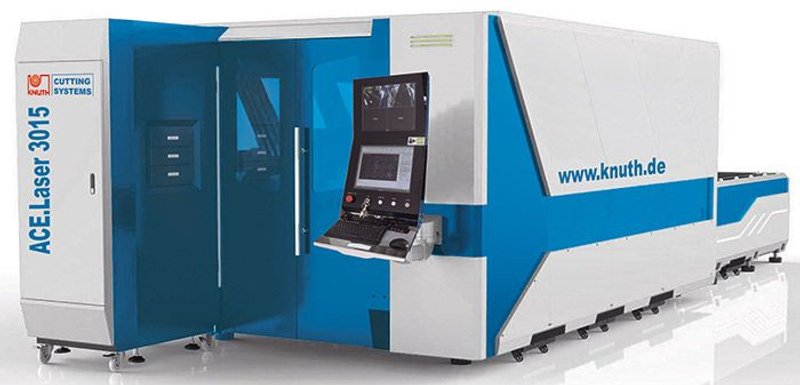

- This state-of-the-art laser cutting system features a gantry-style construction with drives on both sides and a large working area of 118 x 59 inch up to 236 inch x 79 inch that can accommodate most of the common plate sizes

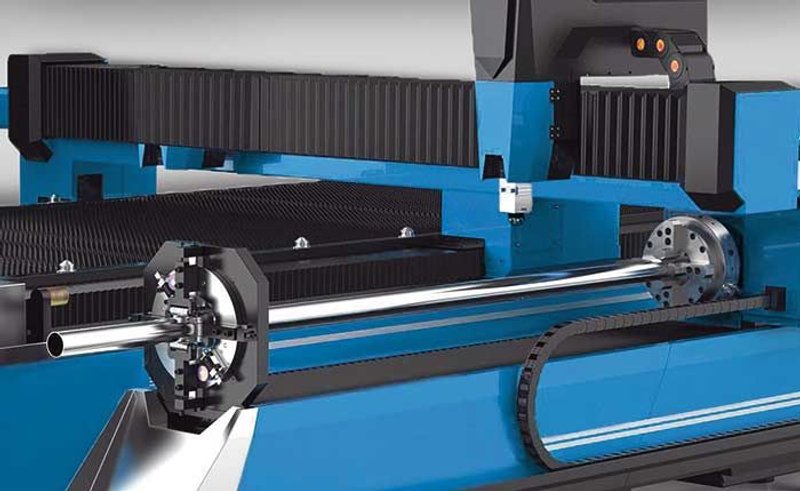

- The Y axis portal features an aluminum die-cast construction with low weight and high rigidity for excellent dynamics
- Thermal treatment of the meticulously welded machine frame and all structural parts reliably eliminates production-related material stresses Ð ensuring long-lasting, precise alignment of all components. This ensures long-term and reproducible cutting edge accuracy and long machine life
- The precision linear guides require minimal maintenance and are designed for long-lasting precision and high cutting speeds
- High-precision rack-and-pinion gears on the Z and Y axis ensure superior and reliable positioning accuracy
- Powerful servo-motors on all axes
- For the safety of people and the environment, the cutting system is equipped with a machine housing and filter extraction system. Special protective glass windows make it possible to observe the cutting process
- An automatic shuttle table system minimizes production downtimes, since the table can be loaded and unloaded during the cutting process
- Perpendicularity or squareness tolerance for laser cutting acc. to DIN EN ISO 9013-1
Control - Easy operation with user-friendly optimized interface
- Technology database includes cutting parameters and pre-set cycles for various metals
- The efficient processing of all cutting jobs is further supported by user-friendly software for the selection of process parameters
- Solenoid and proportional valves regulate the gas pressures (set in the control) during the cutting process
Cutter head - High-quality cutter head made by Raytools with motorized focus position adjustment, integrated collision guard, and level control
- Maintenance-free beam guide is provided by a flexible fiberoptic cable and ensures a long tool life
Laser sources - The ytterbium fiber laser provides 1000 to 4000 W beam power, is made by the renowned manufacturer, Raycus, and ensures maximum cut quality and productivity
- The maintenance-free laser source reduces maintenance and operating cost
Laser source and cutter head: Service within 48 hours on workdays (in Germany only) - if necessary, the source or head can be replaced within this timeframe Laser cutting systems with a laser power up to 8kW upon request
- Spannungsstabilisator
- complete system with CNC-control (CypCut)
- ytterbium fiber laser, Raycus
- fiberoptic cable
- high-pressure cutter head
- automatic focus position adjustment
- laser protection booth
- automatic changing table system
- filter exhaust system
- automatic gas console
- central lubrication
- coolant regeneration
- CAD/CAM software (CypCut)
- operating manual and programming instructions
|
