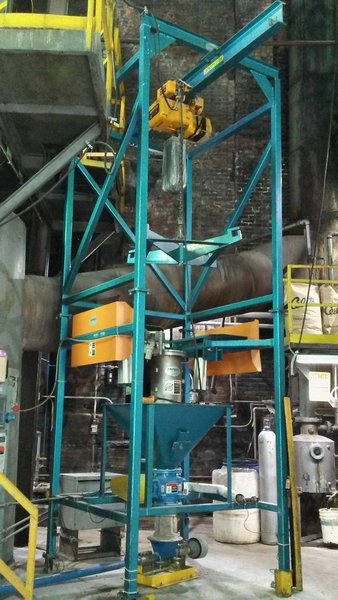

Hapman 2 Ton Bulk Bag Unloader and MiniVacTM Pneumatic Conveyor, 2011

Bag Capacity: 4,000 Lbs Frame Construction: 3″ Square 7 Gauge Steel Tubing Hoist Capacity: 2 Metric Tons Lift Height: 15 Ft Hoist Lift Speed: 14 FPM Trolley Speed: 40 FPM Hoist Motor Horsepower: 2.4 HP Trolley Motor Horsepower: 0.5 HP Hoist Power Requirement: 230 / 460 VAC 3 Phase Hoist Duty Rating: 60 Minute Agitator Air Requirement: 5 SCFM @ 80 PSI Iris Valve Size: 12″ Access Chamber Size: 12″ Round Surge Hopper Capacity: 8 Cubic Feet Rotary Valve Inlet Size: 8″ Diameter Rotary Valve Motor Inlet: 0.75 HP Rotary Valve Motor Discharge: 0.5 HP Blower Motor Horsepower: 5 HP Filter Area: 31 Sq Ft Filter Efficiency: 99.99% @ 0.5 Micron Conveying Line Diameter: 2.5″ Conveying Line Length: 35 Ft

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Fixed Height Bulk Bag Unloader Frame Electric Hoist And Trolley With Pendant Control Automatic Bag Agitator Assembly 12″ Iris Valve Flow Control 12″ Round Access Chamber With Side Door 8 Cubic Foot Surge Hopper 8″ Rotary Airlock Valve Inlet And Discharge Hapman Model 24R Filter Receiver Regenerative Vacuum Blower With Silencer Reverse Pulse Filter Cleaning System Pneumatic Conveying Line Kit Unitronics PLC Control System With 10.4″ Touchscreen Load Cell Weighing System Yaskawa VFD Drives Emergency Stop And Batch Controls Painted Carbon Steel Construction All Available Manuals

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
