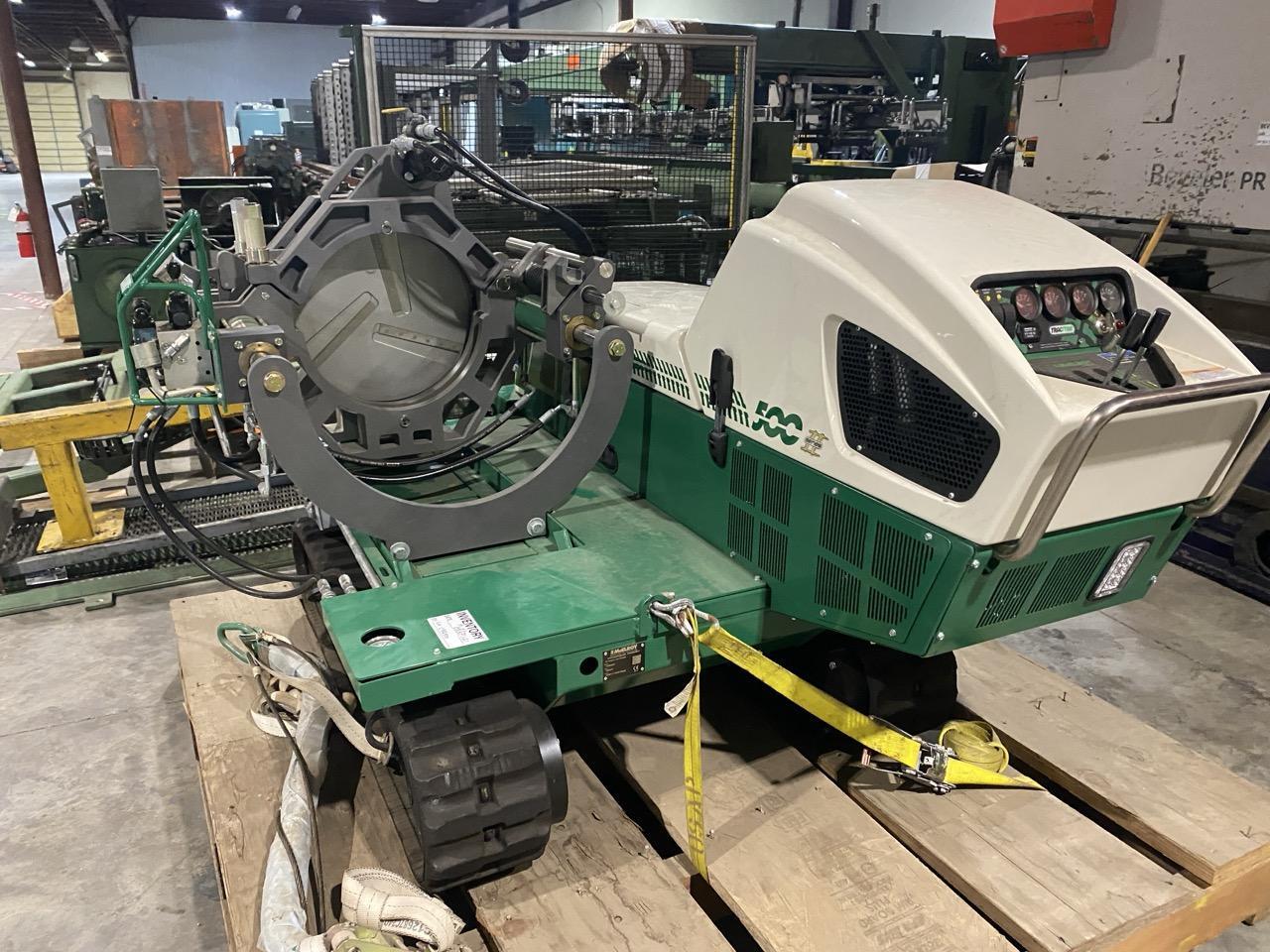

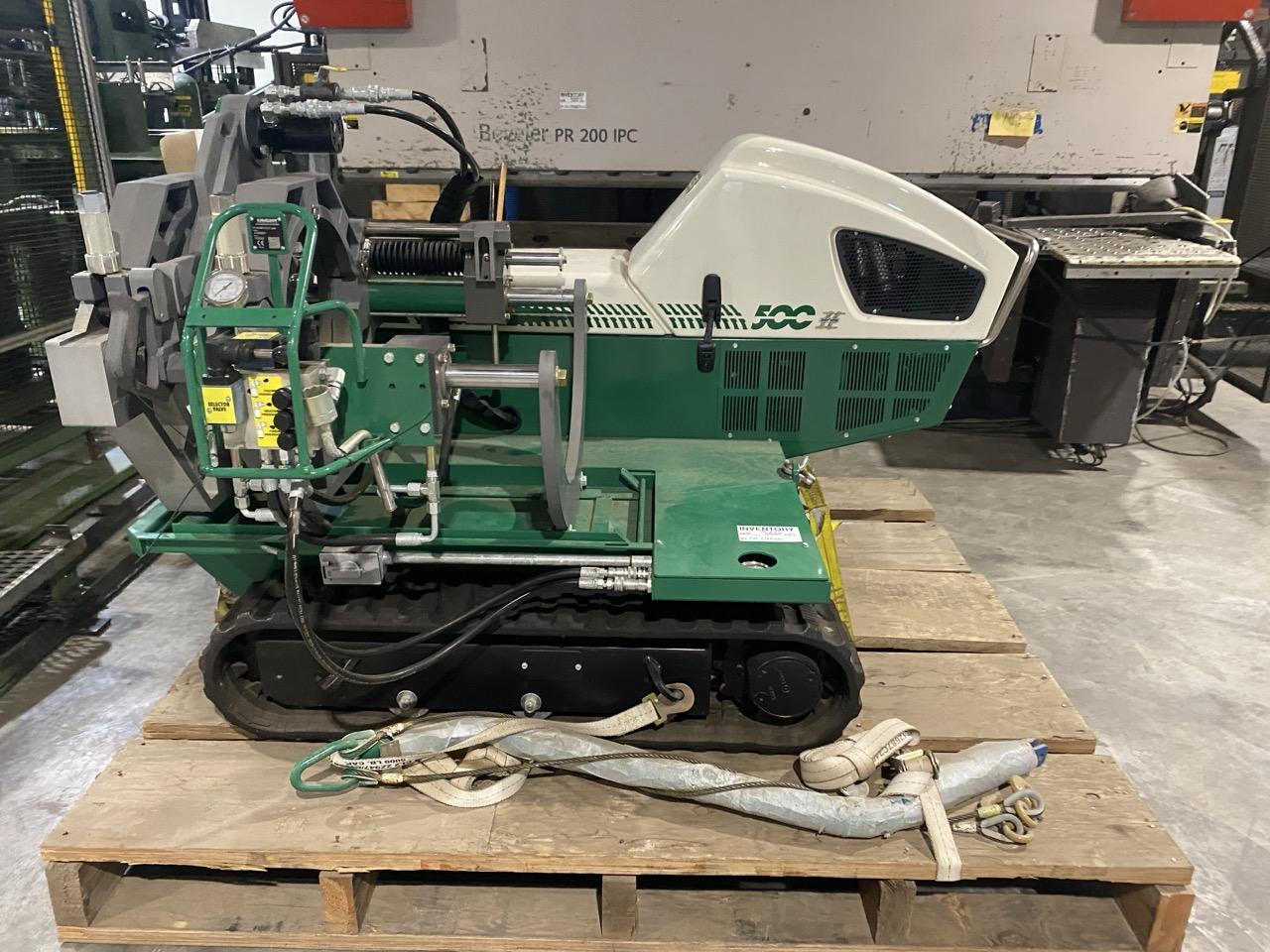

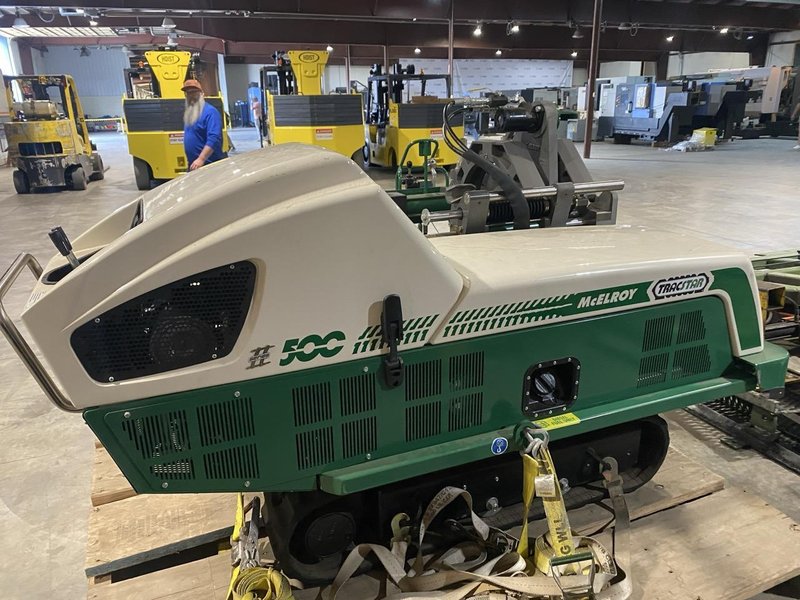

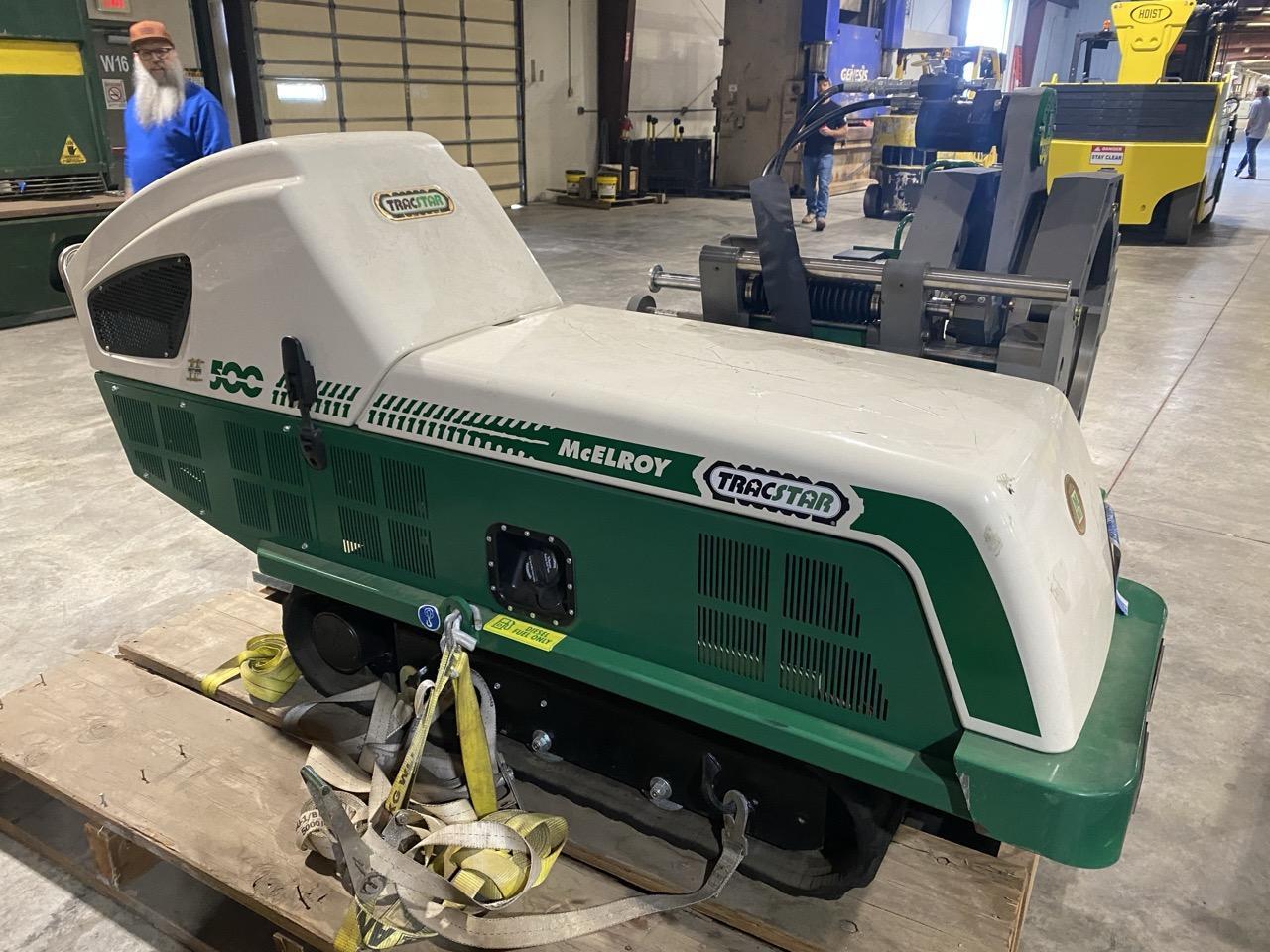

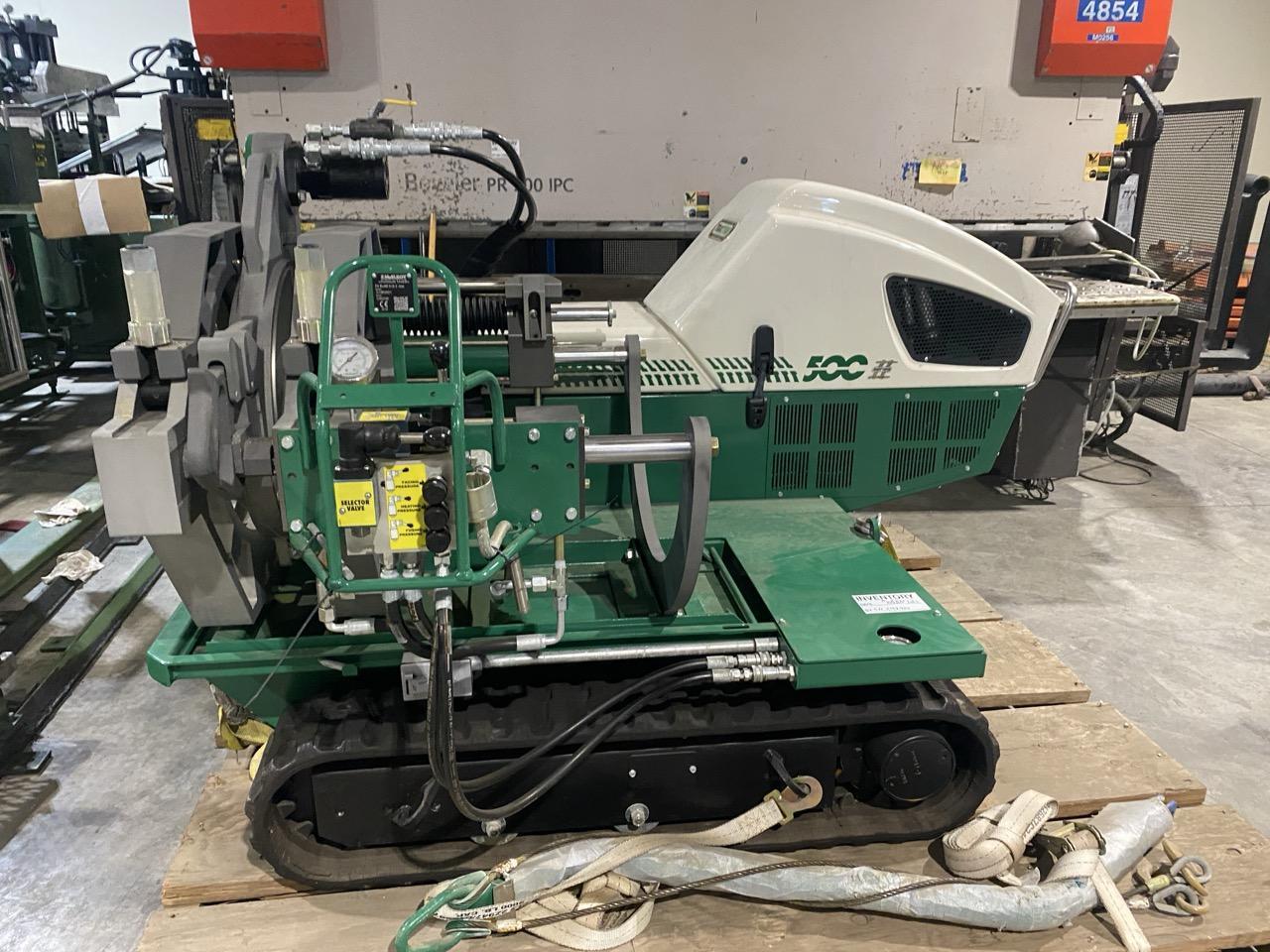

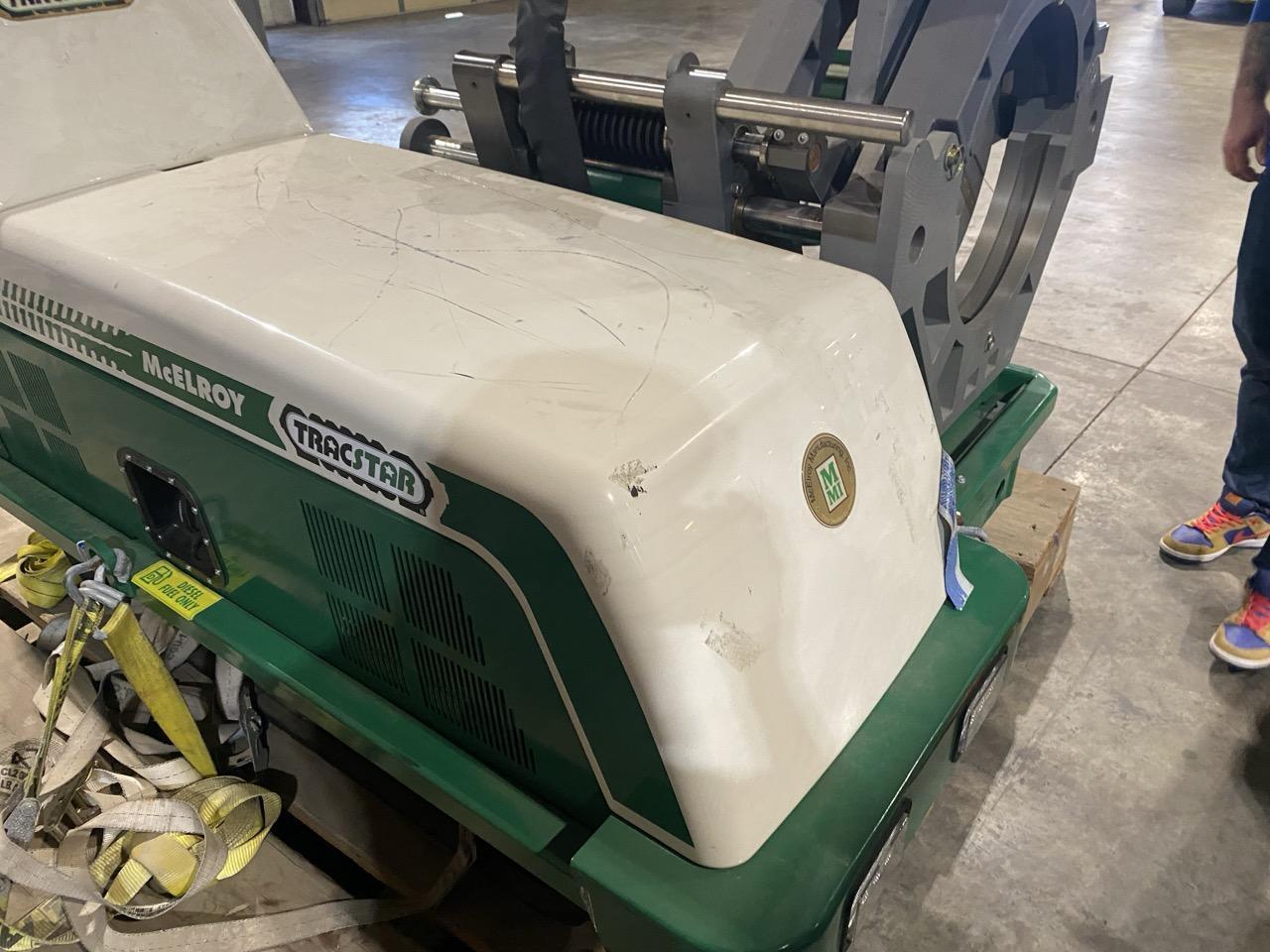

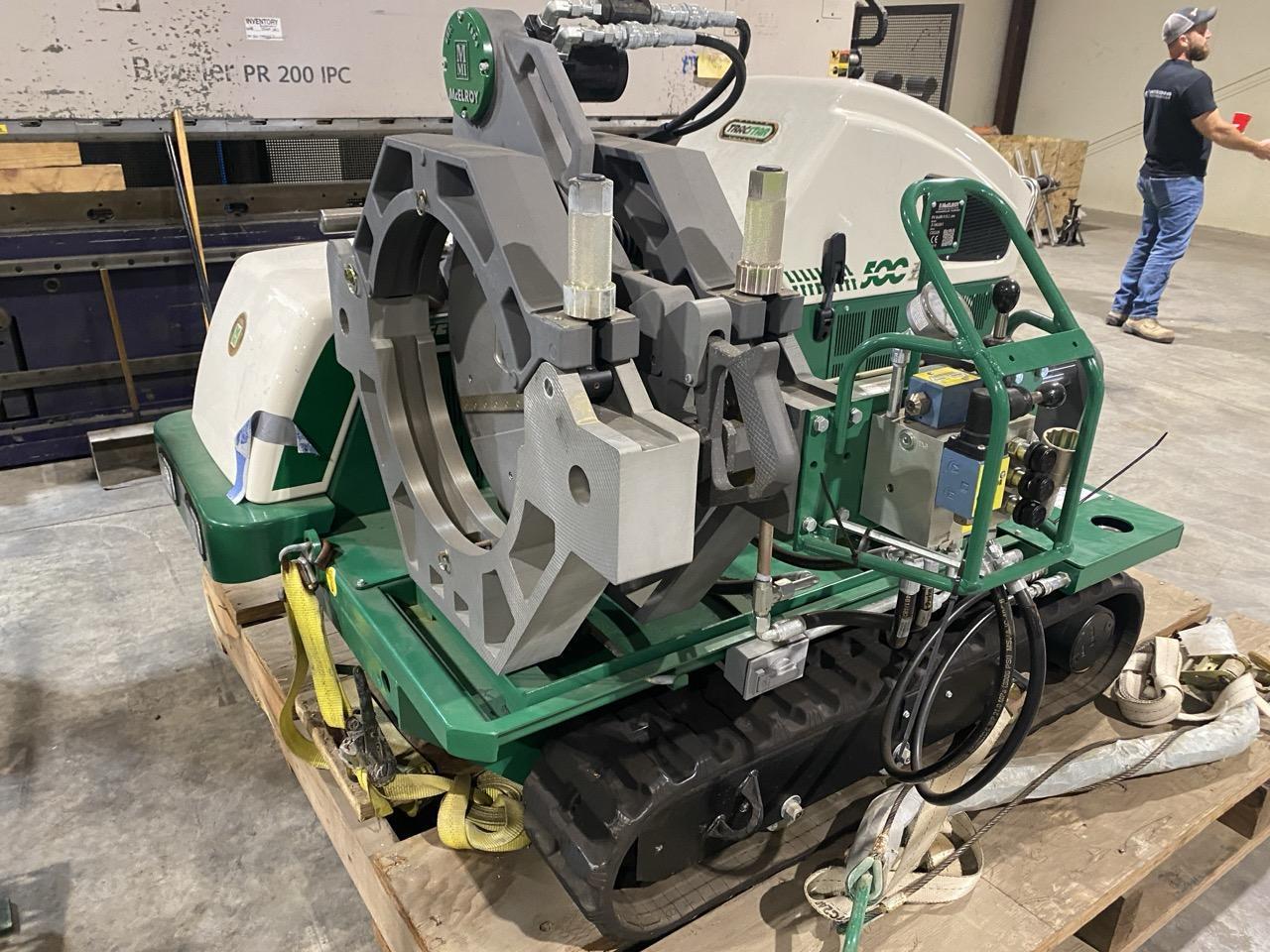

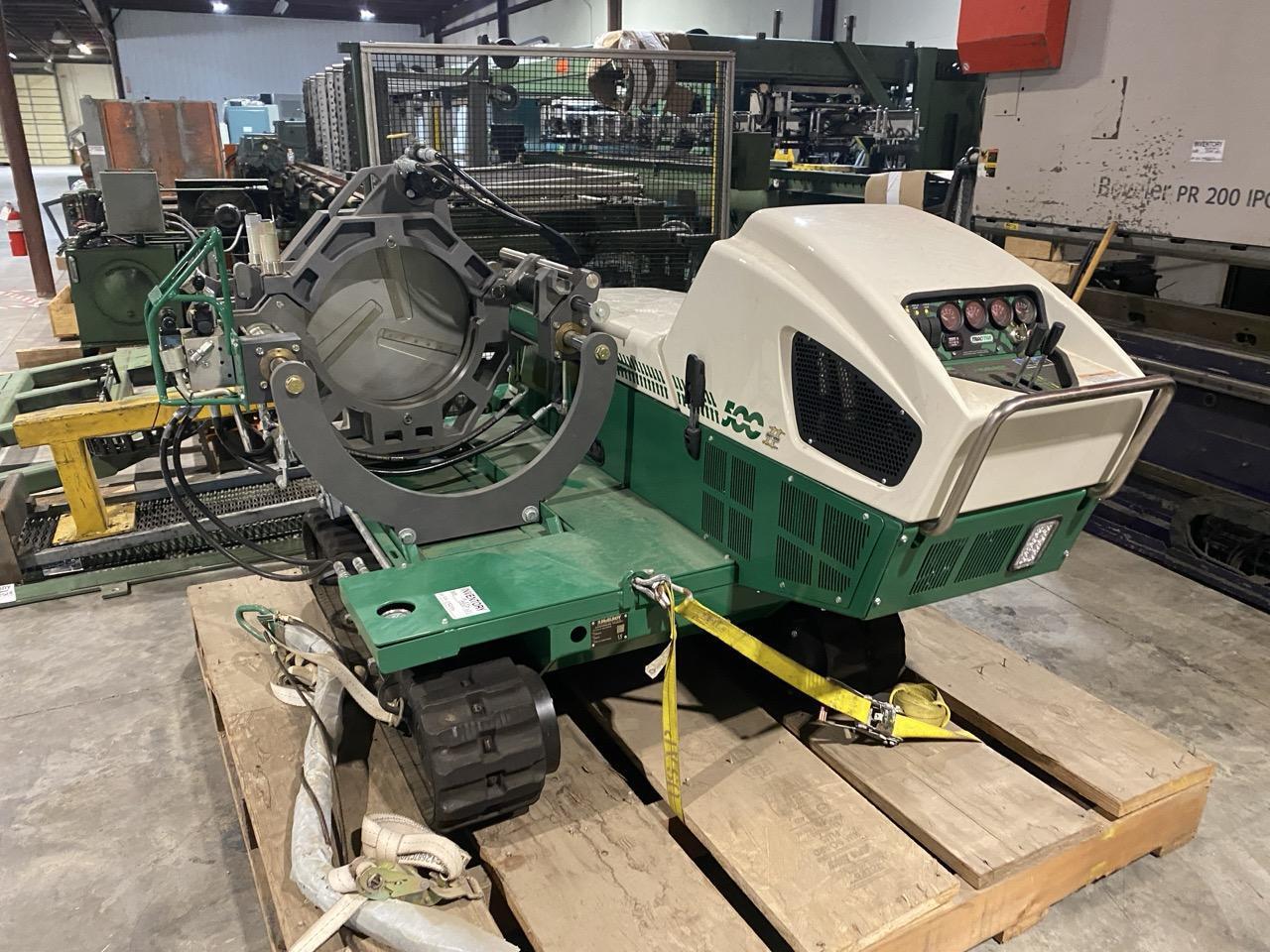

McElroy TracStar® 500 Series II Track Mounted Fusion Machine, 2000 – 18 Track, 2-Jaw

Pipe Fusion Capacity: 6″ IPS – 20″ OD Machine Weight: 2,700 Lbs Facer Weight: 84 Lbs 6″ IPS To 12″ DIPS Heater Weight: 28 Lbs 12″ IPS To 20″ OD Heater Weight: 39 Lbs Maximum Hydraulic Pressure: 2,300 PSI Hydraulic Reservoir Capacity: 12 Gallons Engine Horsepower: 23 HP Engine Configuration: 3 Cylinder Liquid Cooled Diesel Fuel Tank Capacity: 11 Gallons Operating Time Per Tank: 8 Hours Starting System: Electric Heater Power: 4,000 Watt Facer Drive: Hydraulic Frame Construction: Welded Steel Track Type: Rubber Crawler Tracks Travel Speed Low: 1.8 MPH Travel Speed High: 2.1 MPH Lifting Points: Integrated Lift Points And Lifting Assembly

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,20″ Carriage With Medium Cylinder Force On Board Generator Self Contained Diesel Power All Available Manuals

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
