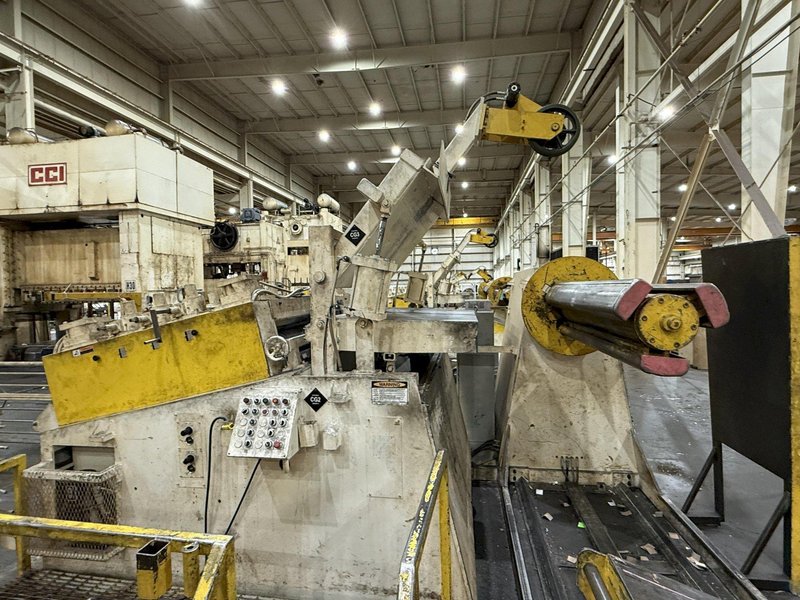

30,000 lbs. x 72" Coe Press Equipment Coil Feed Line, 3 Available for Sale!
Brand
Category
Type
Model

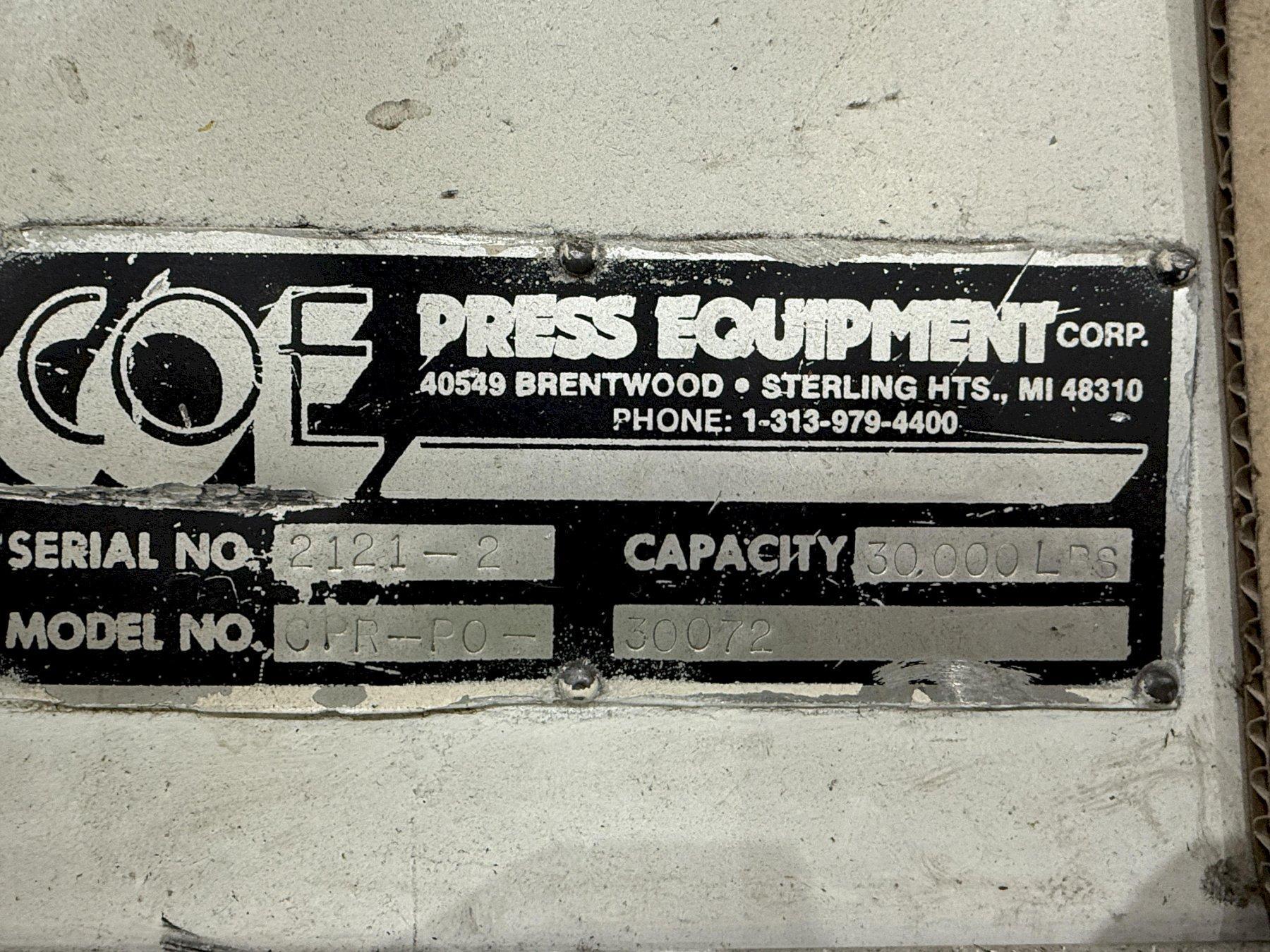

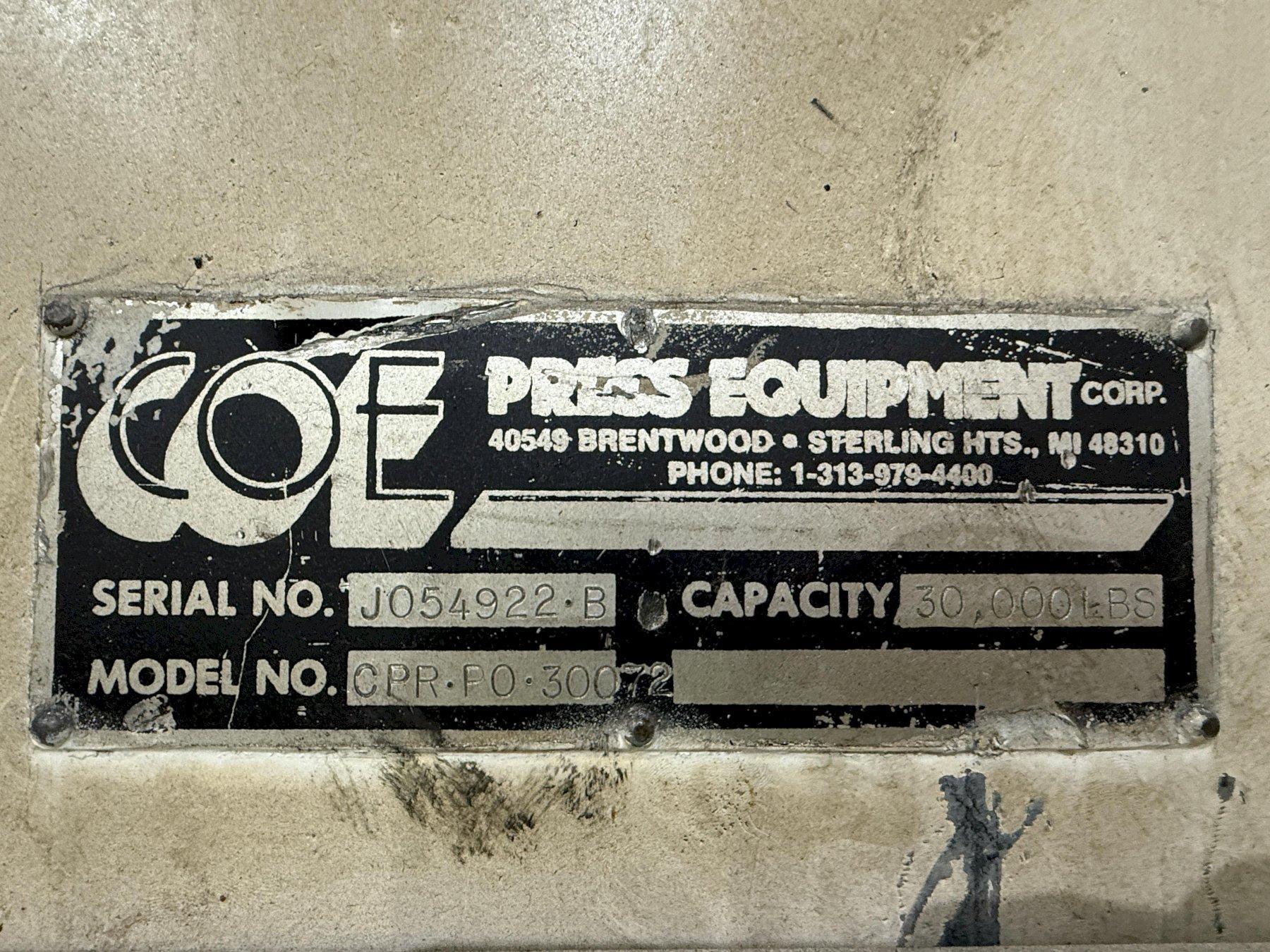

CPR-PO-30072 / CPPS-PO-50072 / CPRF-872
Stock #
3008
Year
Not specified
Condition
Used
Location
Michigan
| Coil Weight | 30000 pounds |
| Coil Width | 72 inches |
| Coil Thickness | .187 inches |

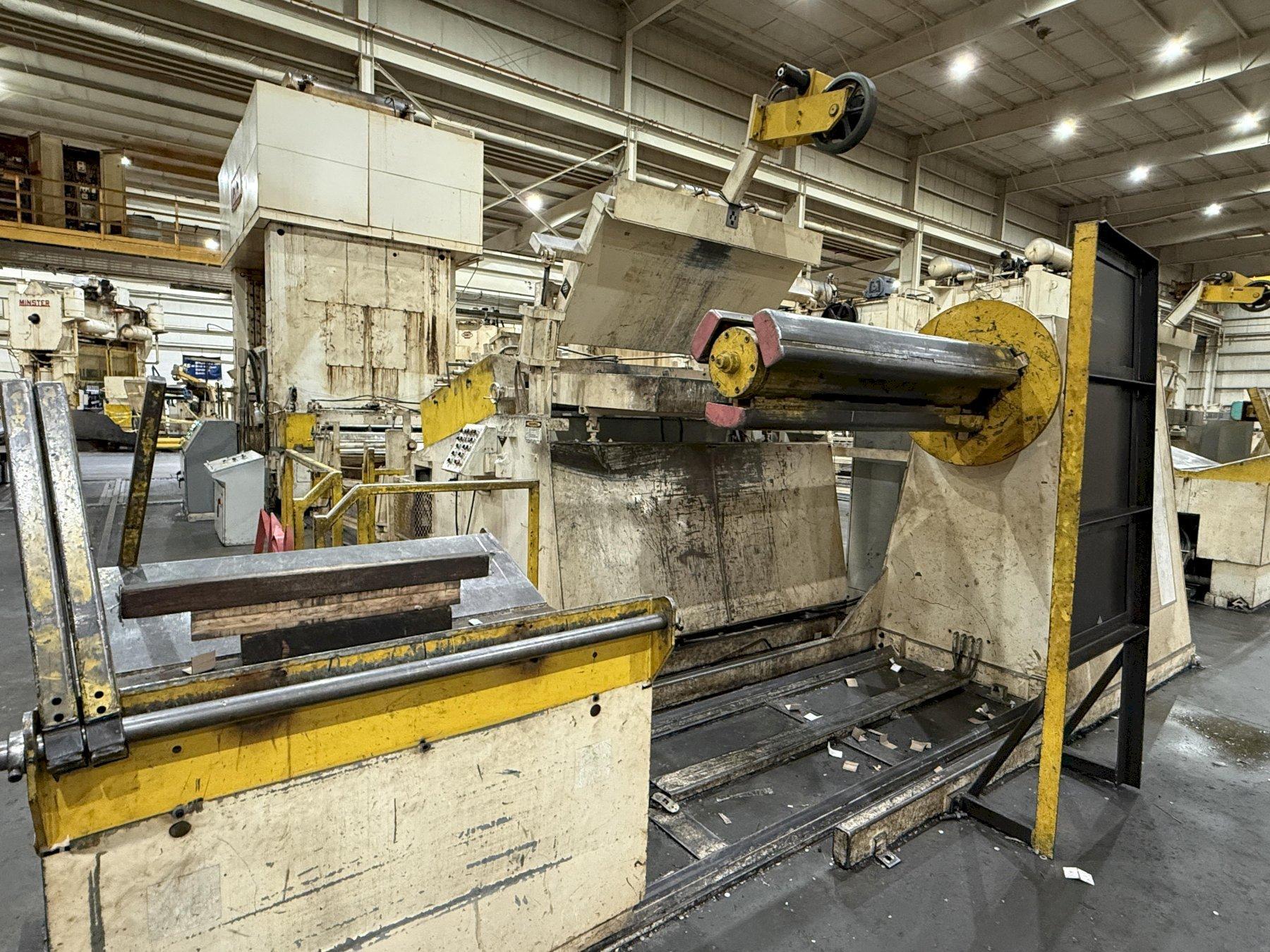

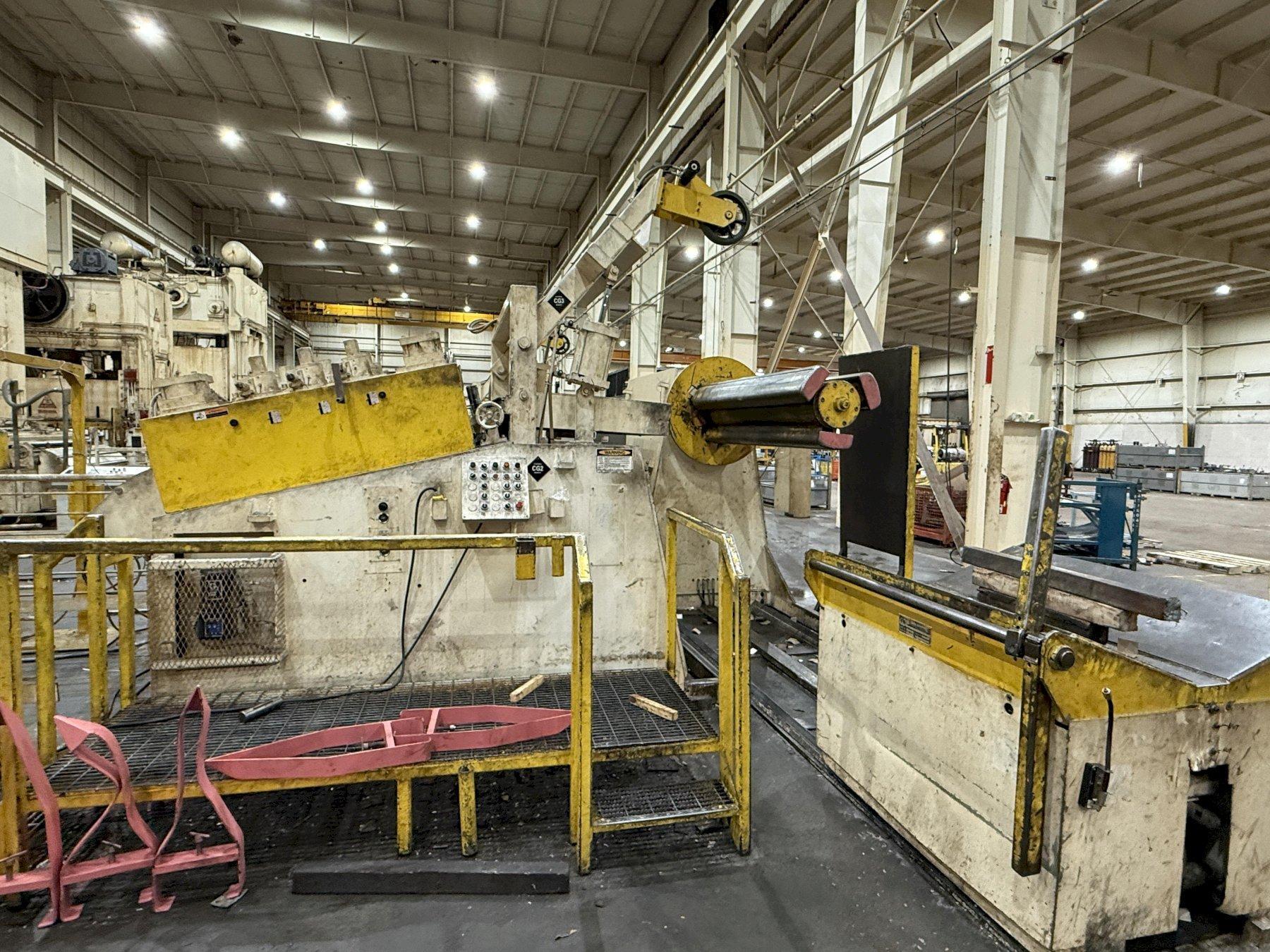

72" Coe Press Equipment: Coil ProcessingConventional Coil Feed LineModel CPPR-PO-30072 / CPPS-PO-50072 / CPRF-87230,000 lbs. Maximum Coil Weight at Full Width72" Maximum Coil Width .187" Stock Thickness Capacity at 72" Wide .250" Stock Thickness Capacity at 36" Wide 23"-27" I.D. Mandrel Expansion Range 72" Maximum Coil O.D. Right to Left Feed Direction Equipment and Features: Coe Press Equipment Coil Reel Model No. CPER-PO-30072 Three leaf mandrel
Hydraulic mandrel expansion
Heavy Duty Wedge Type Expansion Air brake mounted on main spindle
Jog drive for threading

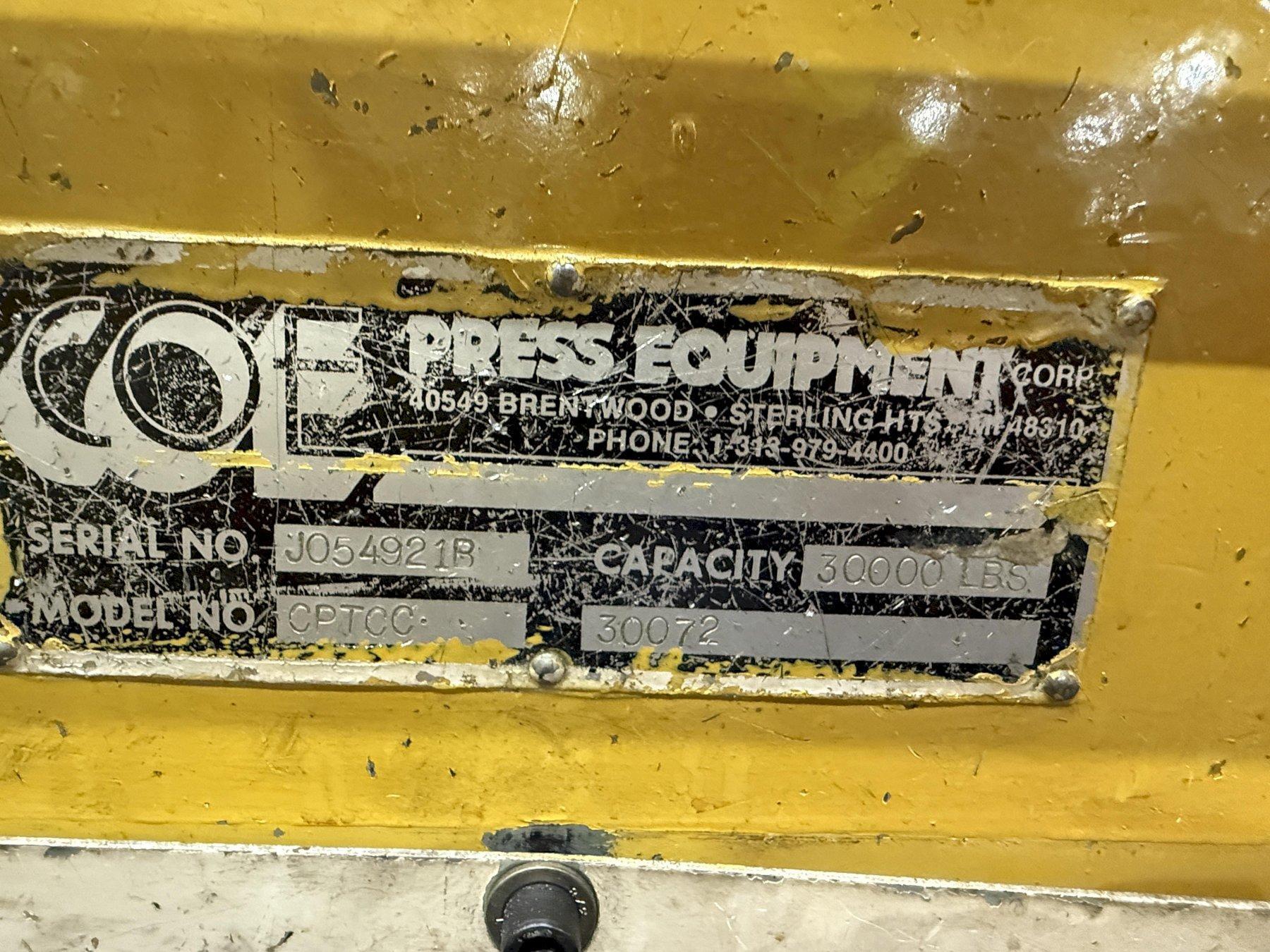

Set of Coil Keepers Coe Travelling Coil Load Car Model CPTCC-30072
Hydraulic Lift for Coils

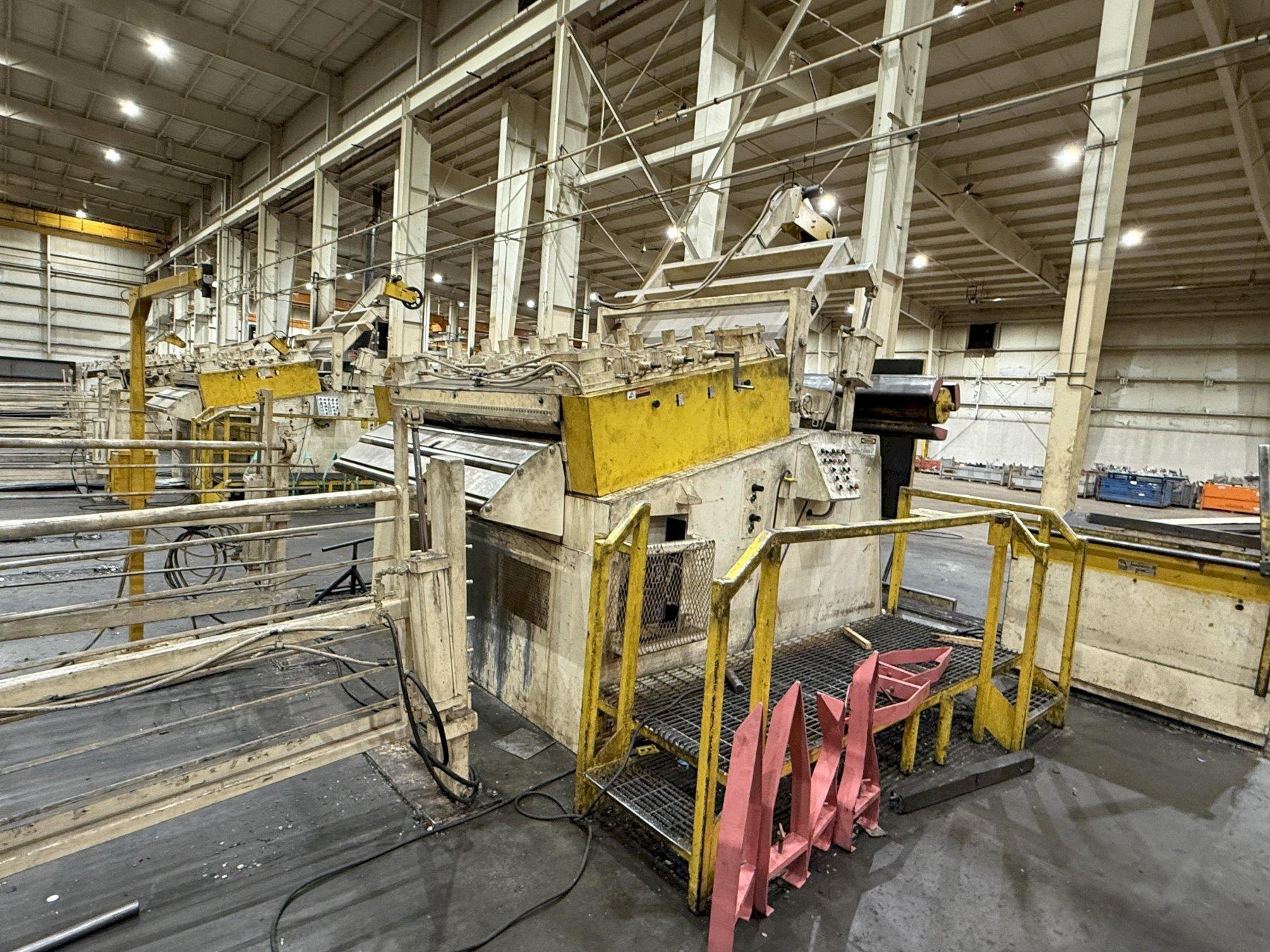

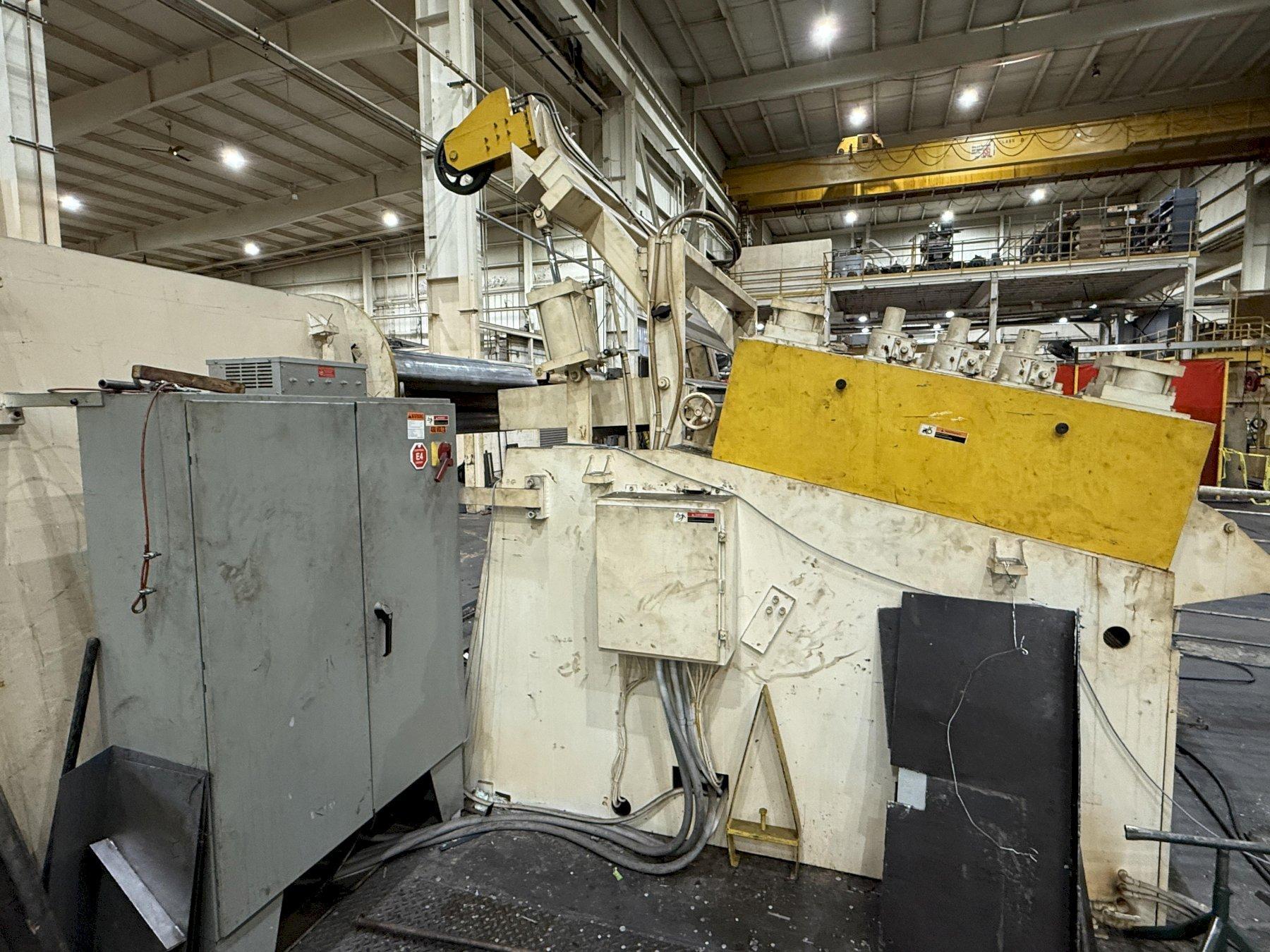

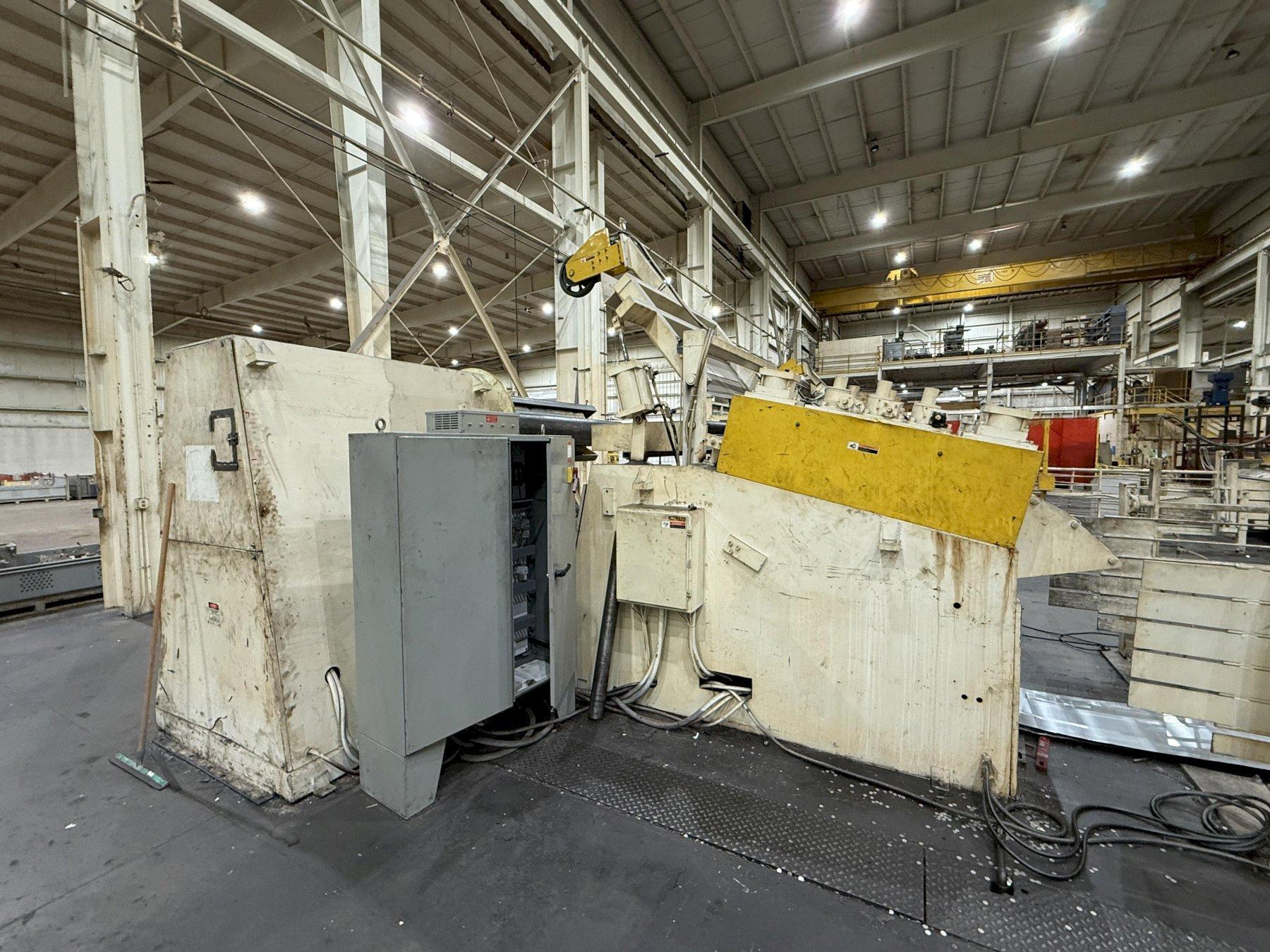

Coe Powered Coil Straightener Model No. CPPS-PO-500-72
Seven straightening rolls
Individual upper straightening roll adjustments
Pinch rolls with air operated adjustments
Hold Down Arm (Hydraulically Actuated)
Motorized End Wheel
Stock Peeler table with integrated end De-bender
Exit and Entry Pinch Rolls
Exit cascade rollers
Adjustable stock width edge guides
Exit cascade loop support rollers

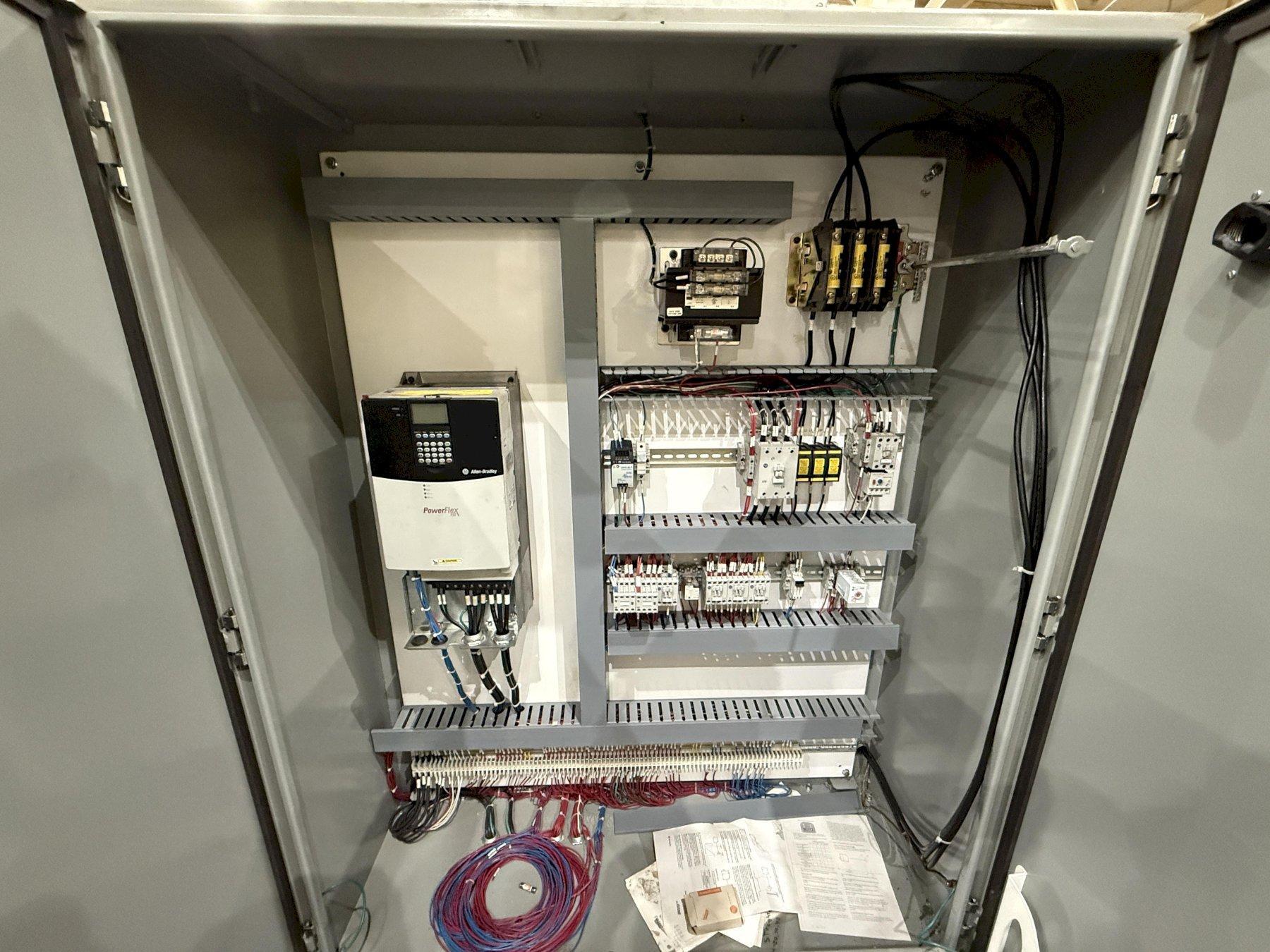

Updated Allen Bradley AC Variable Freq Drive and control system
Auto / run loop control

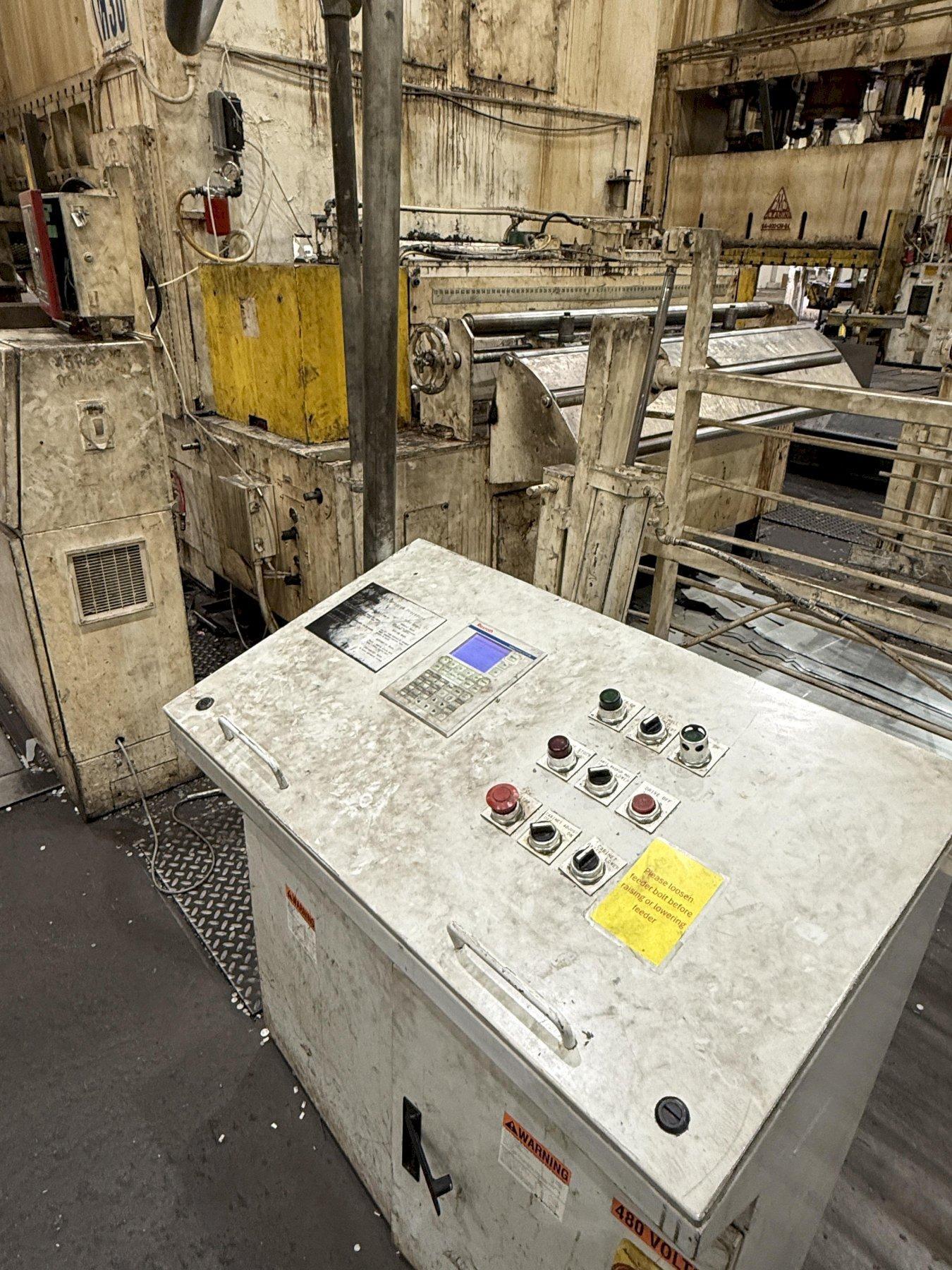

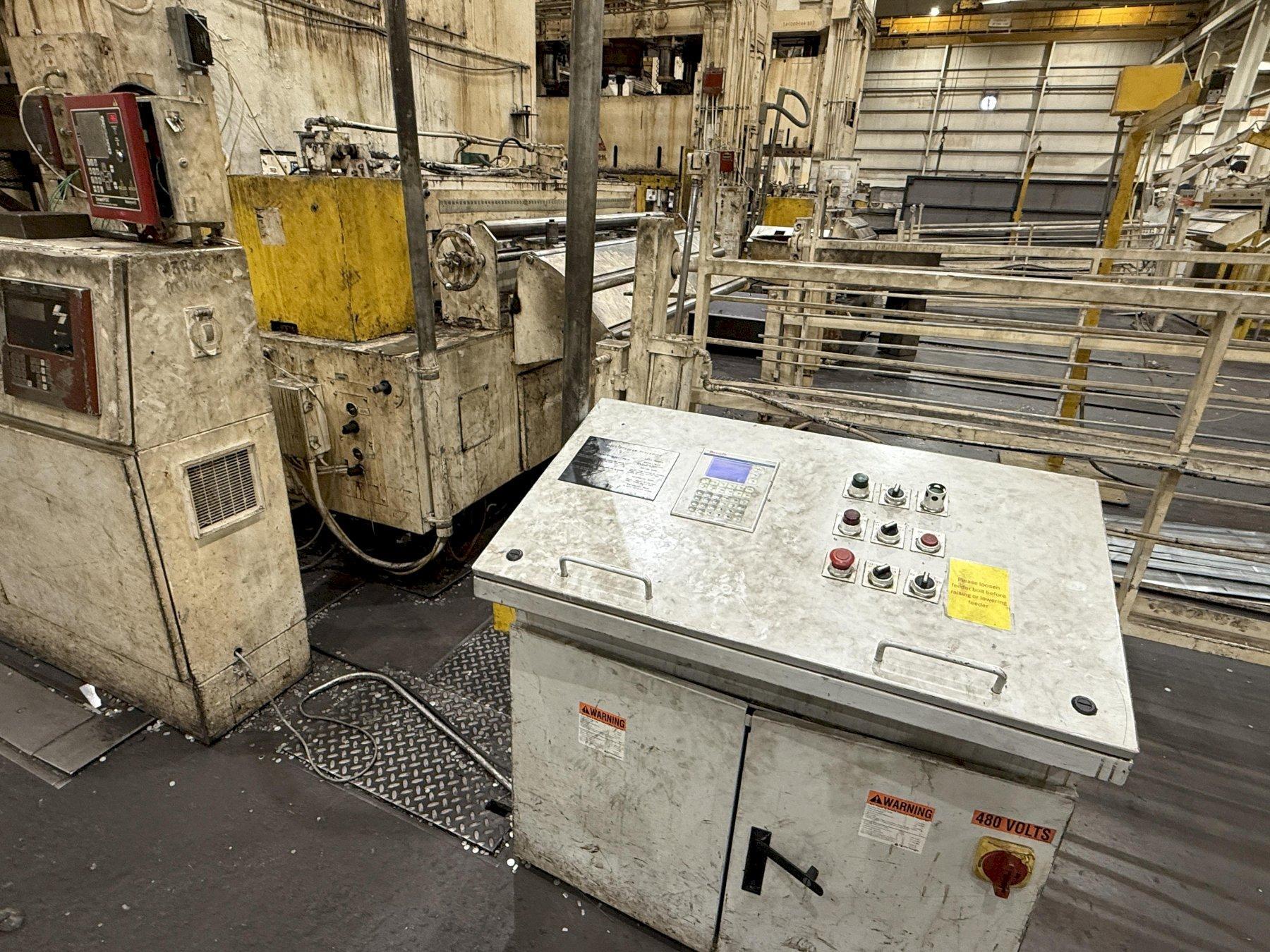

Operator's stations
Dual Thread Table with Loop Control Model#: CPTT-1572

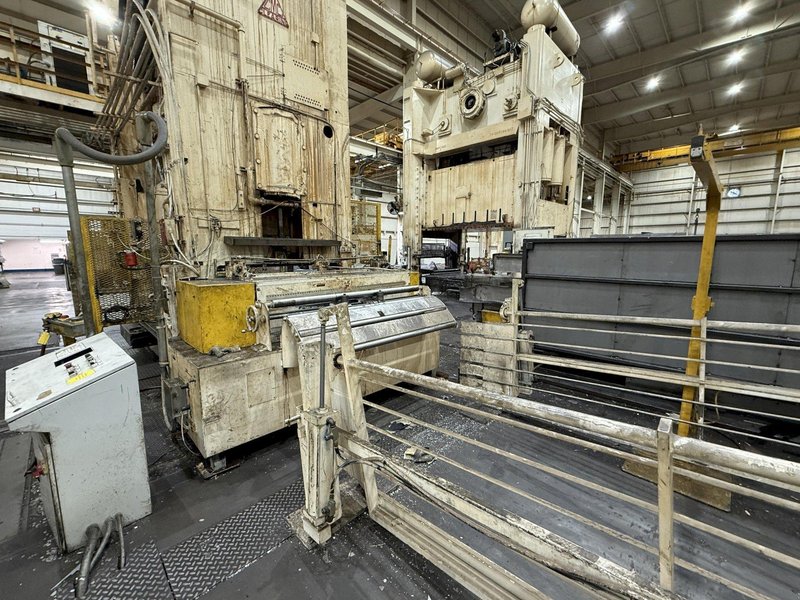

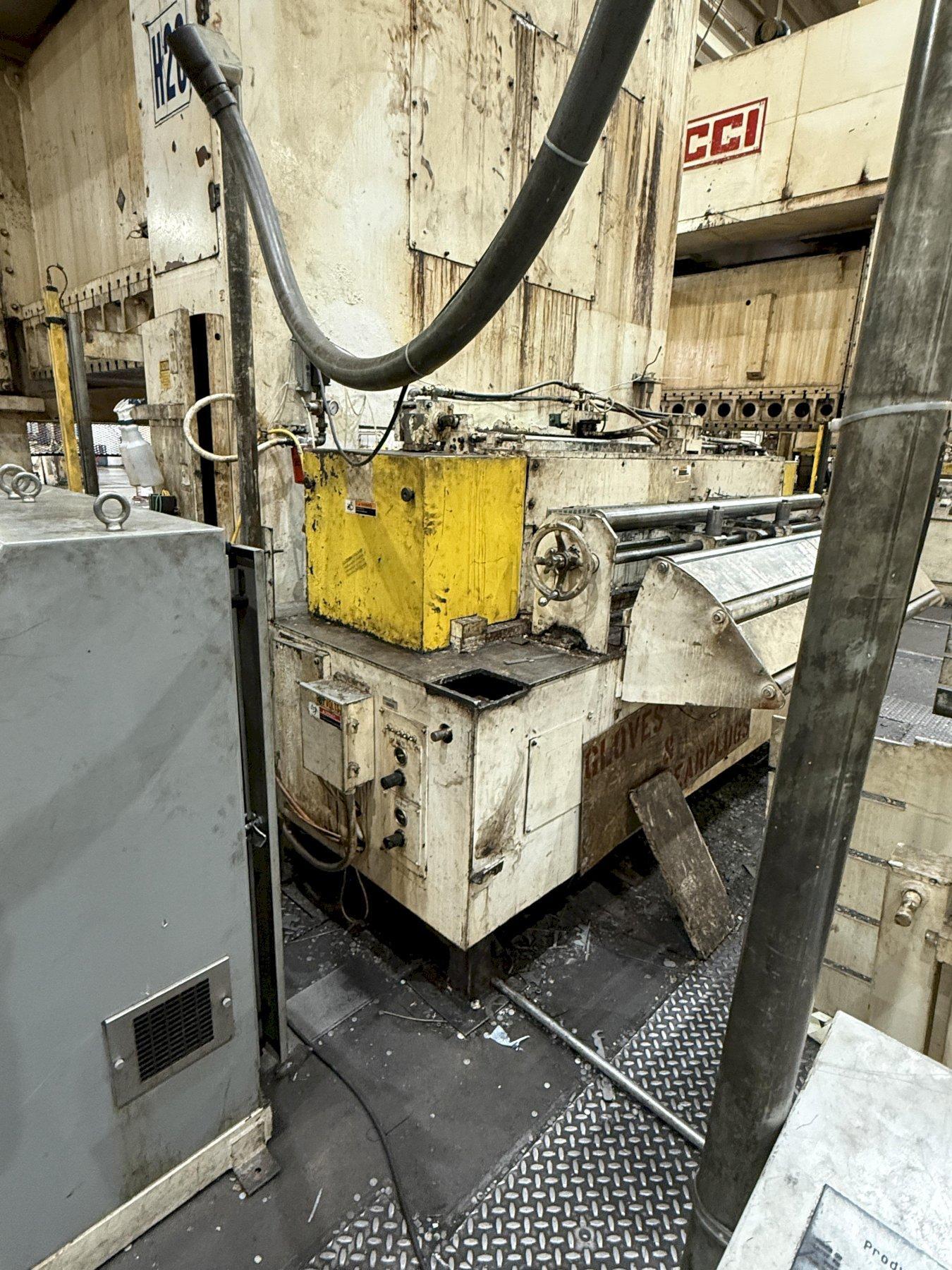

Coe Cabinet Mounted Feeder Model#: CPRF-8-72
8” diameter Upper and Lower Feed Rolls
Pilot Release of upper rolls
Cabinet Base Mounted
Entry Cascade Loop Support Rollers
AC Servo Drive and Controls
Adjustable Base Feeder
Motors and Controls
Optimize your metal forming facility with this high-capacity 72" Coe Press Equipment Conventional Coil Feed Line. Engineered for heavy-duty performance, this line handles a 30,000 lbs. coil capacity and material thicknesses up to .187" at full 72" width. Featuring a CPPS-PO-500-72 straightener with seven rolls and a CPRF-8-72 cabinet-mounted servo feeder with 8” rolls, this system ensures precision flatness and feed accuracy for high-production environments.
When you buy from S&G Press and Machinery, you aren’t just buying equipment; you are gaining 26 years of technical expertise. We specialize in stocking and reconditioning premium brands like Coe, ensuring every line is production-ready. This specific Coe line features updated Allen Bradley AC Variable Frequency Drives and can be inspected under power, providing the ultimate transparency before your purchase. Trust S&G Press for reliable industrial machinery solutions that minimize downtime and maximize ROI. |
|
