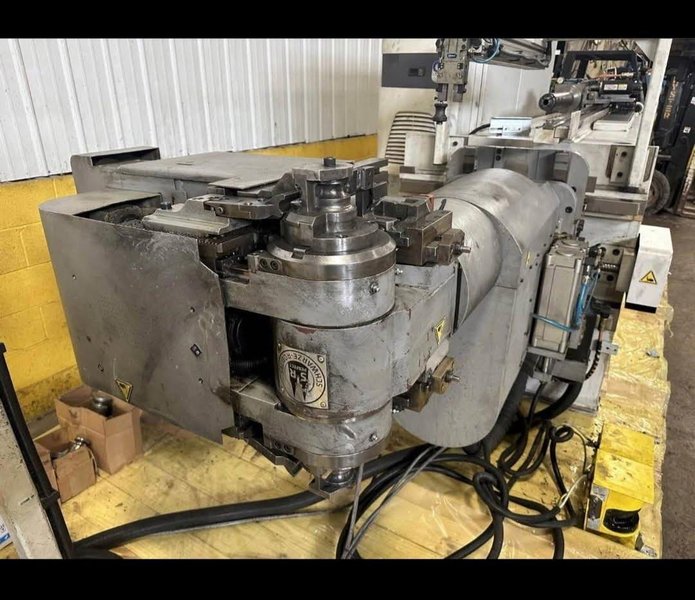

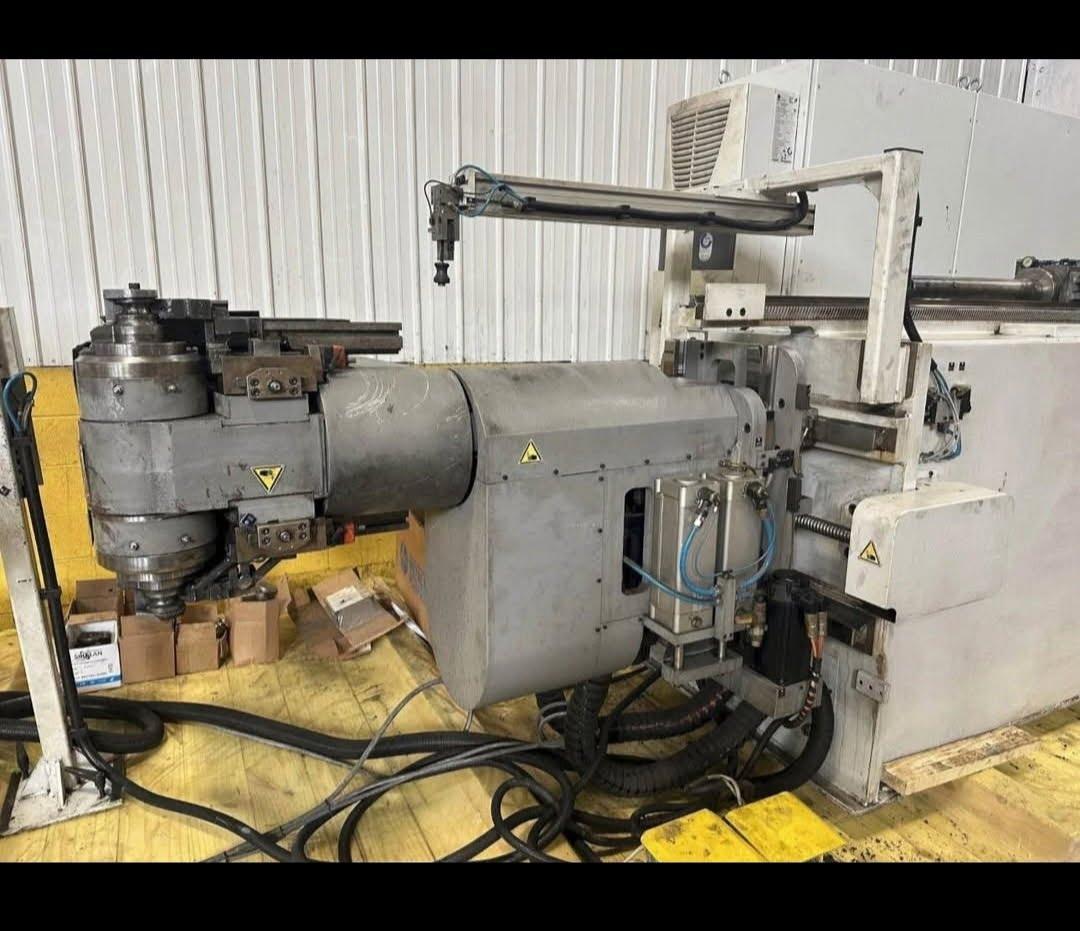

Schwarze Robitec CNC 40 Rotary 6 Axis Tube Bender, 2017

New tooling in 2021 New PC Board 2024

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,–SPECIFICATIONS–

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Tube Capacity: 1.25 collet Max centerline radius: 5.9” Max bending rotation: 185 degrees Bending rotation: left to right Max. bending capacity of the machine: tube OD x wall thickness Standard steel: 40 x 2 mm 1.57 x 0.08 In Stainless steel: 32 x 1,5 mm 1.26 x 0.06 In Max. modulus of section: approx. 2,2 cm³ 0.9 In³ Max. tensile strength of material to be bent: Standard steel: 450 N/mm² Stainless steel: 750 N/mm² Min. tube OD: 8 mm 0.31 In Max. bending radius (CLR): 125 + 25 mm 4.9 + 0.98 In Min. bending radius (CLR): 10 mm 0.39 In Max. tube length: 2000 mm 6.56 feet Max. bending angle: 185° Max. bending angle accuracy: ± 0,1° Max. bending speed: forward, steplessly adjustable and programmable from CNC panel: 45,0 1/ min. Return, constant: 45,0 1/ min. Bending direction: Right – Left

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Total power requirement: 25 kW Operating voltage: 400 V, 50 Hz, 3 Phases, PE, N Control voltage: 24 V= Solenoid valve voltage: 24 V=

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Machine: RAL 7035 light grey Moveable parts: RAL 7037 dust grey

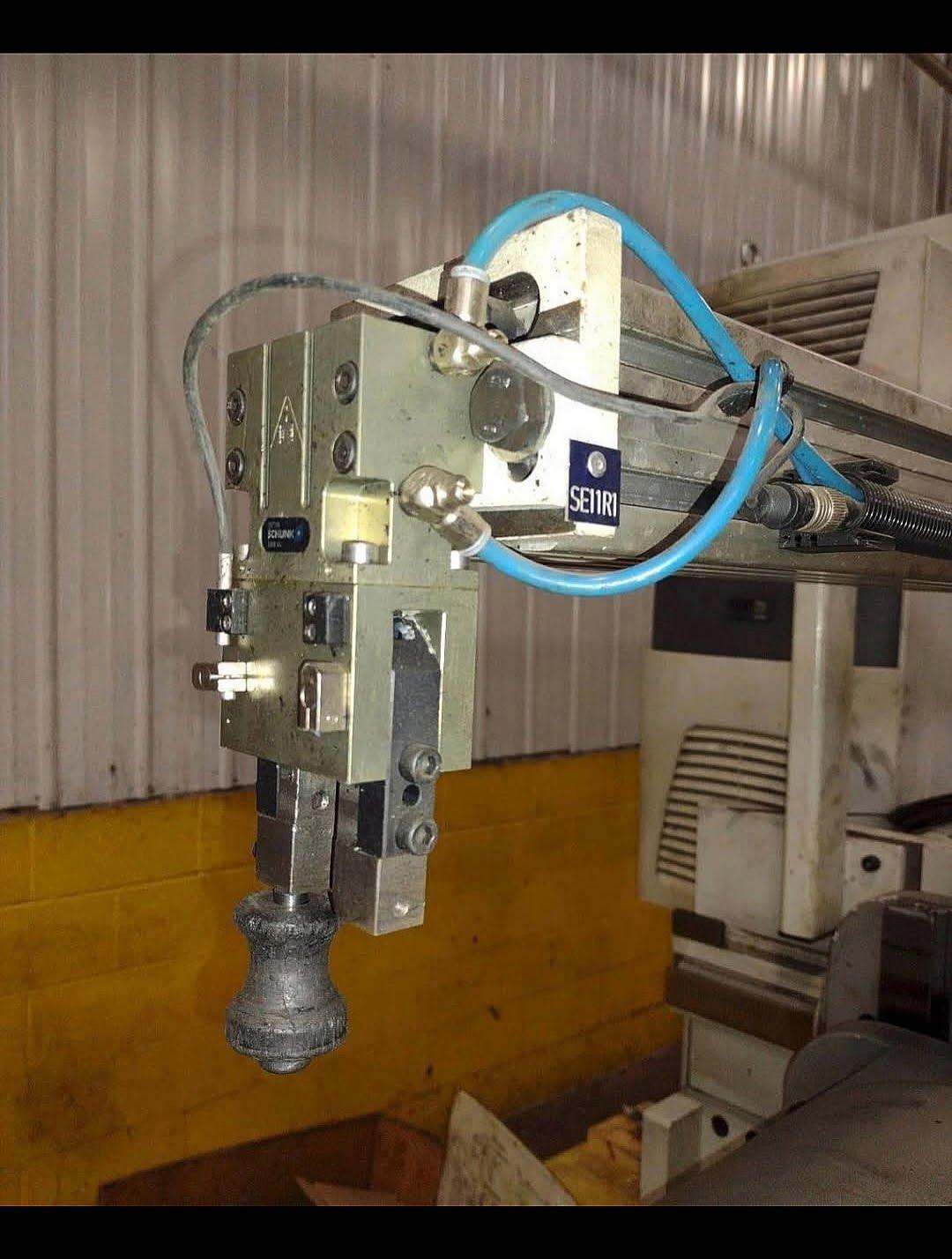

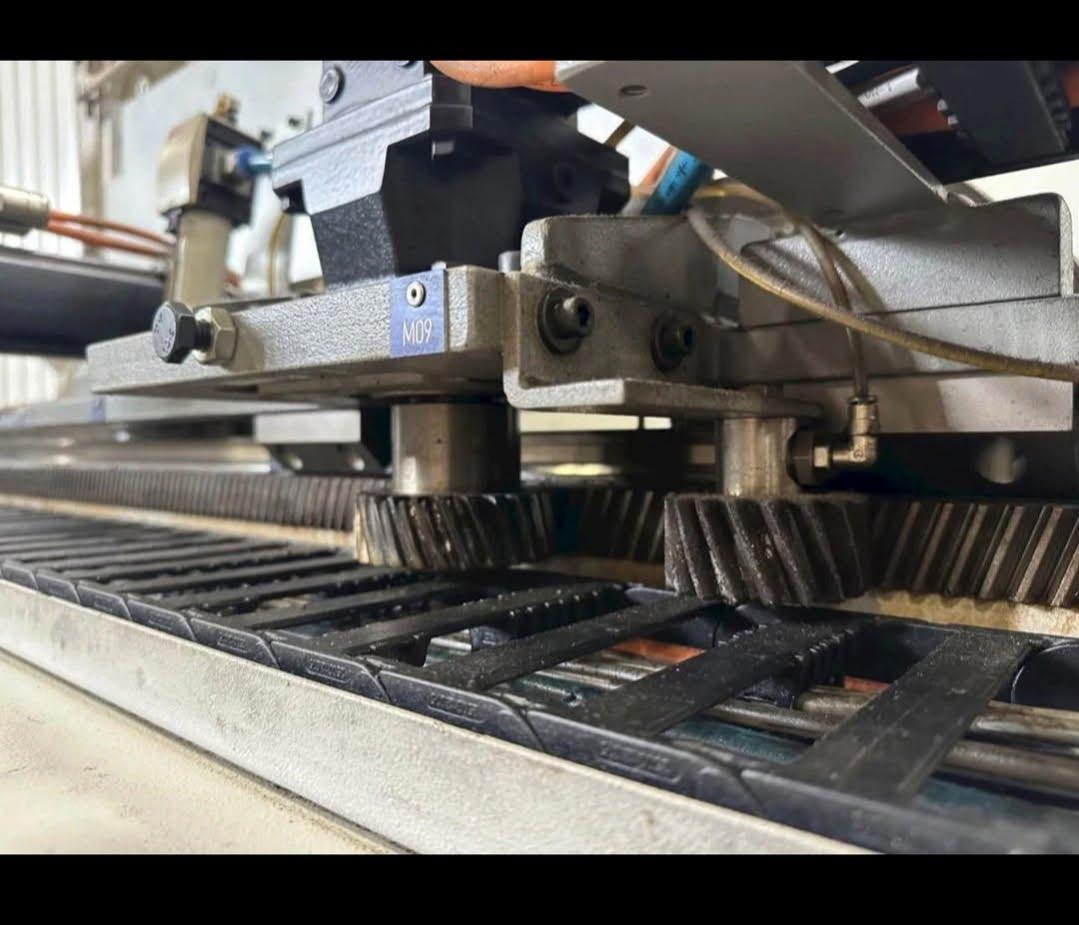

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,–Tube positioning device– (Transport and Orientation)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Max. orientation angle: 360° Max. orientation accuracy: ± 0,1° Max. orientation speed: 120 1/ min. Max. transport speed: 65 m/ min. 213 ft/ min. Transport accuracy: ± 0,1 mm Speeds are steplessly adjustable and programmable from control panel.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
