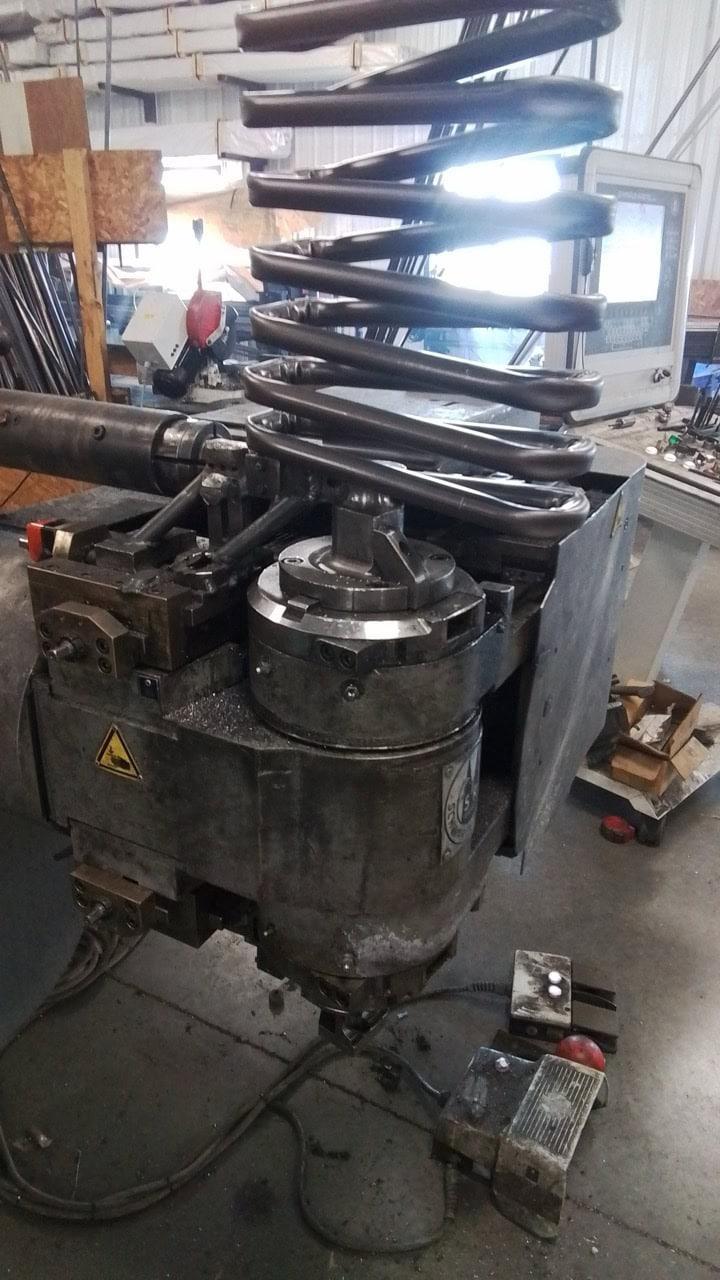

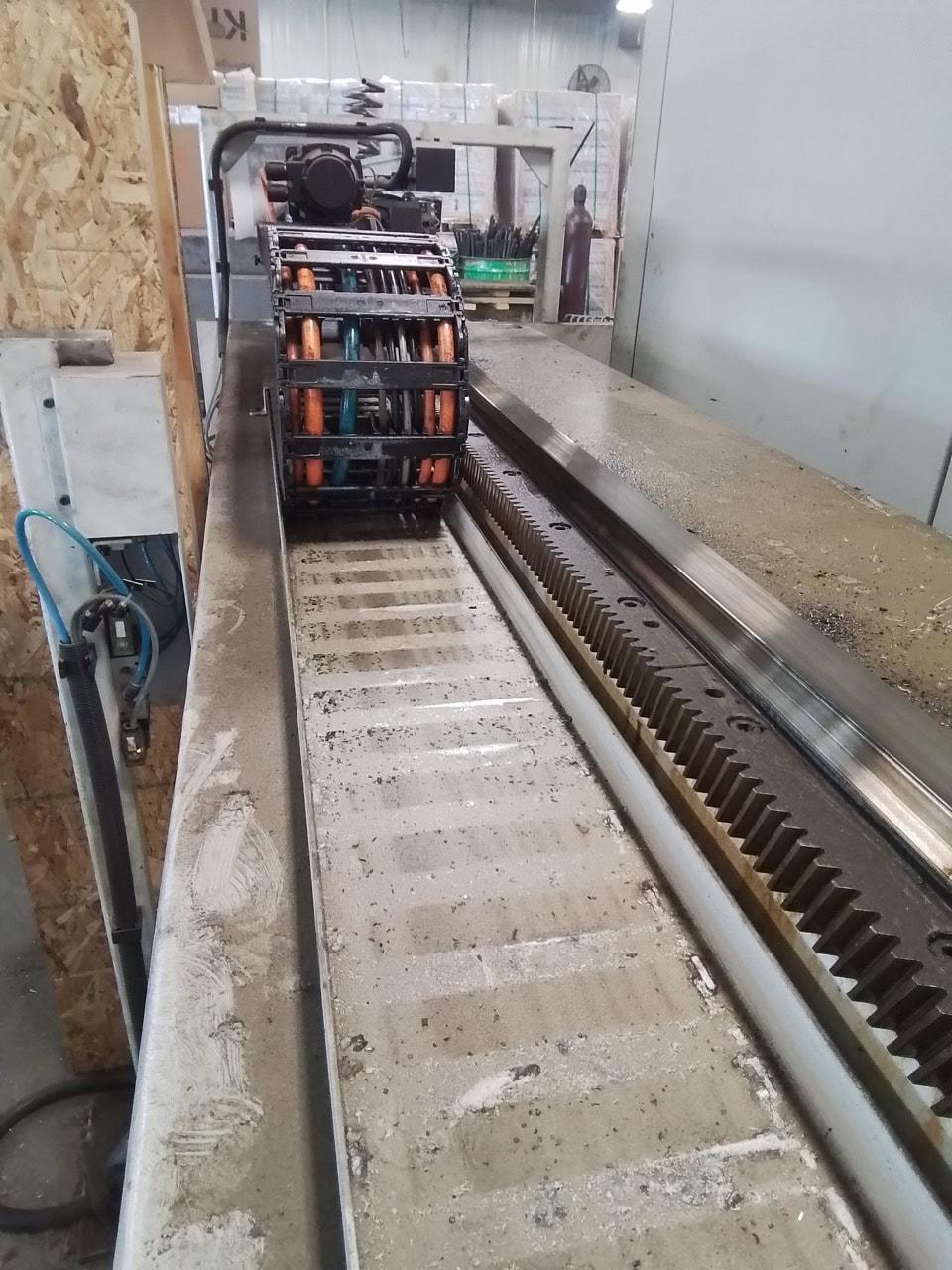

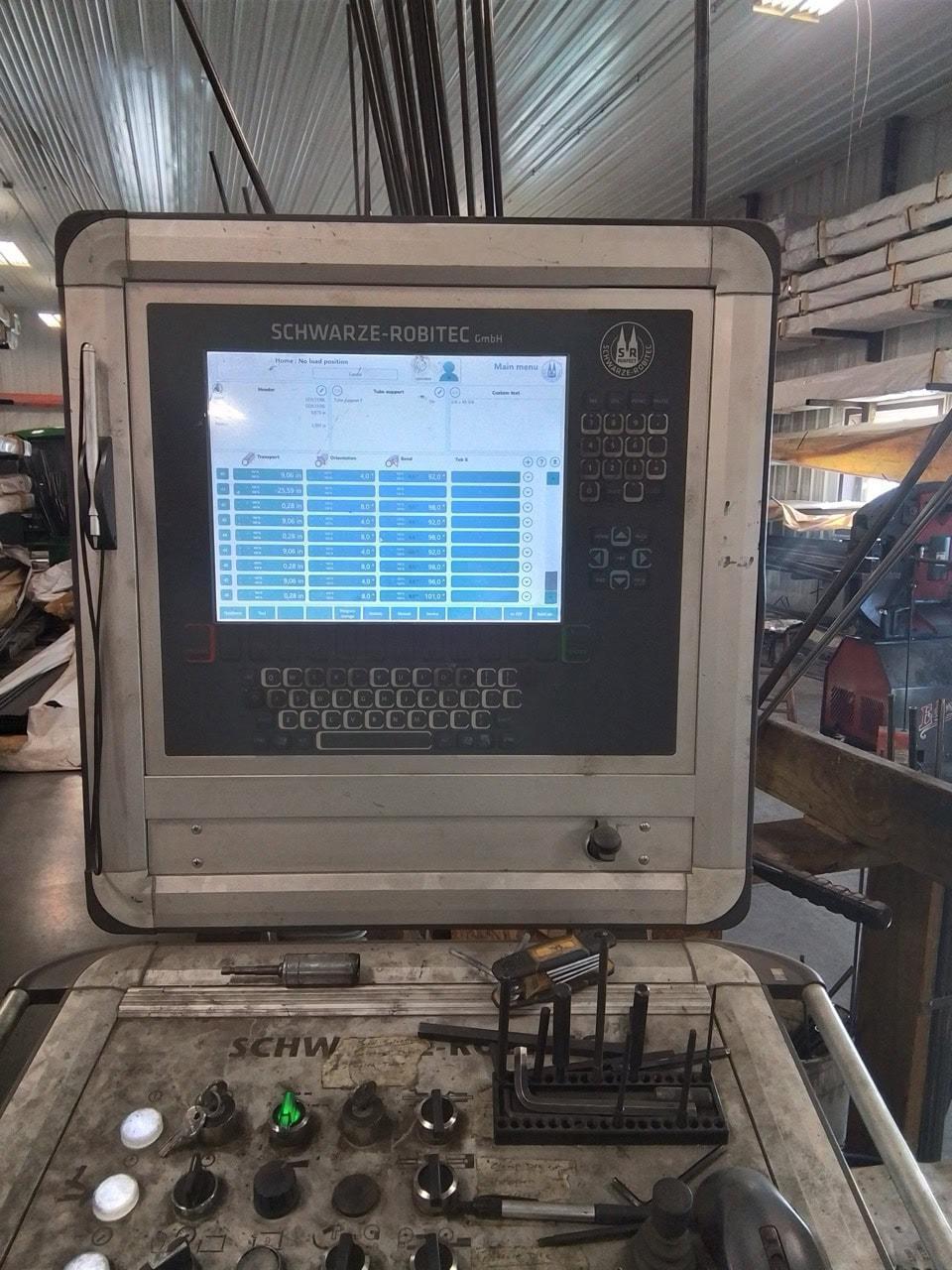

Schwarze Robitec CNC 40 Rotary Tube Bender, 2017

Tube Capacity: 0.5" to 1.25" Maximum Centerline Radius: 5.9" Maximum Bending Rotation: 185 degrees Bending Direction: Left to Right Max. bending capacity of the machine: tube OD x wall thickness standard steel: 40 x 2 mm 1.57 x 0.08 In stainless steel: 32 x 1,5 mm 1.26 x 0.06 In Max. modulus of section: approx. 2,2 cm3 0.9 In3 Max. tensile strength of material to be bent: Standard steel: 450 N/mm2 Stainless steel: 750 N/mm2 Min. tube OD: 8 mm 0.31 In Max. bending radius (CLR): 125 + 25 mm 4.9 + 0.98 In Min. bending radius (CLR): 10 mm 0.39 In Max. tube length: 2000 mm 6.56 feet Max. bending angle: 185° Max. bending angle accuracy: ± 0,1°

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,See Video attached

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
