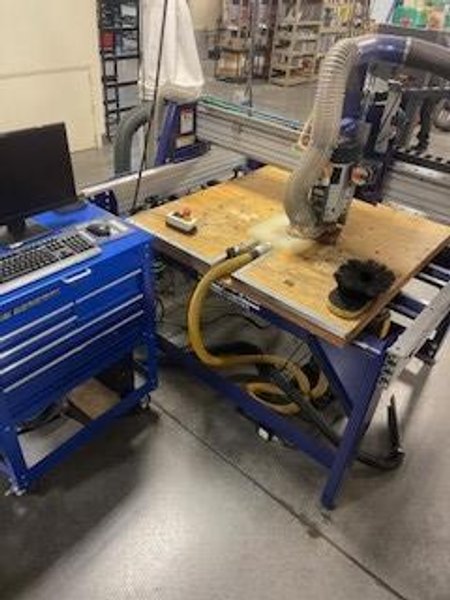

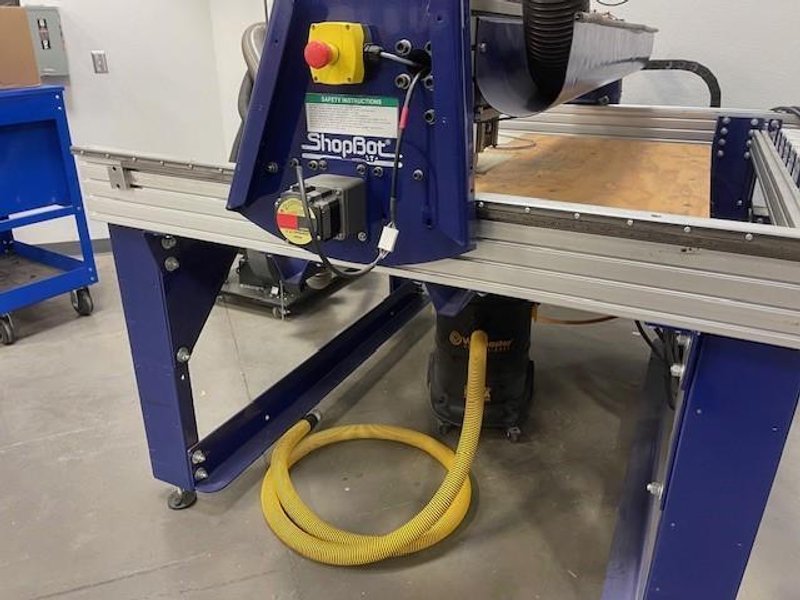

4′ x 4′ ShopBot PRS5 Gantry Alpha 48-48-8 CNC Router, 2020 – Auto Tool Changer, Vacuum System
Brand
Category
Type
Model
PRS5 Gantry Alpha 48-48-8
Stock #
129854
Year
2020
Condition
Not specified
Location
Not specified
|
X-Axis Travels: 48″
Y-Axis Travels: 48″
Z-Axis Travels: 8″
Spindle Motor: 5 HP
Spindle Speed: 18,000 RPM
Positional Resolution: 0.0004″
Repeatability: +/- 0.002″
Max Cutting Speed: 600 IPM
Max Rapid Speed: 1,800 IPM
Side Force: 150lbs

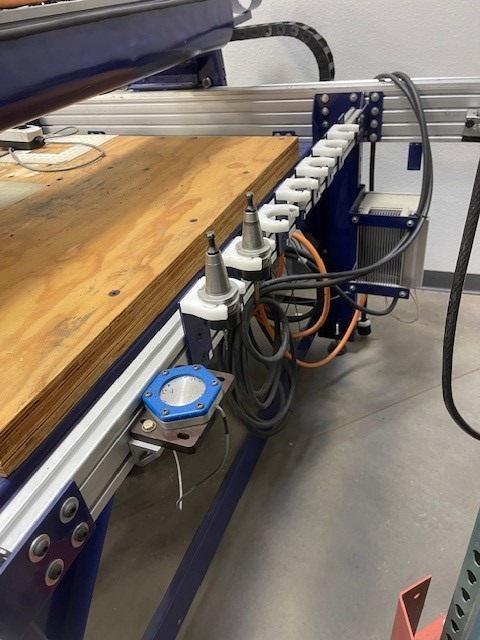

ATC: 8

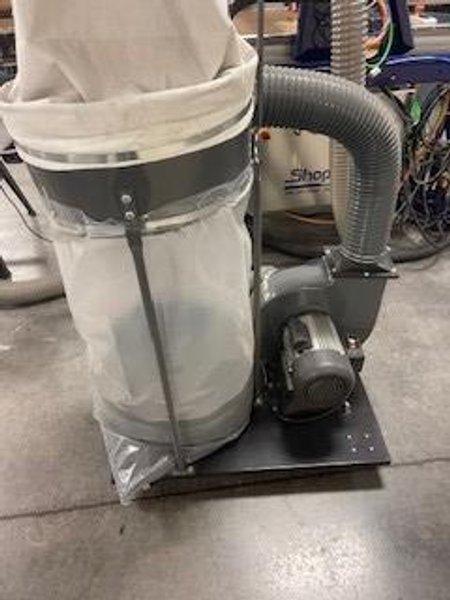

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Approximate Machine Dimensions: 72″ x 79″ x 67″ Approximate Machine Weight: 1500lbs Electrical: 230V, 3-Phase All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With ShopBot SB3 Control Software Dust Collector All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
