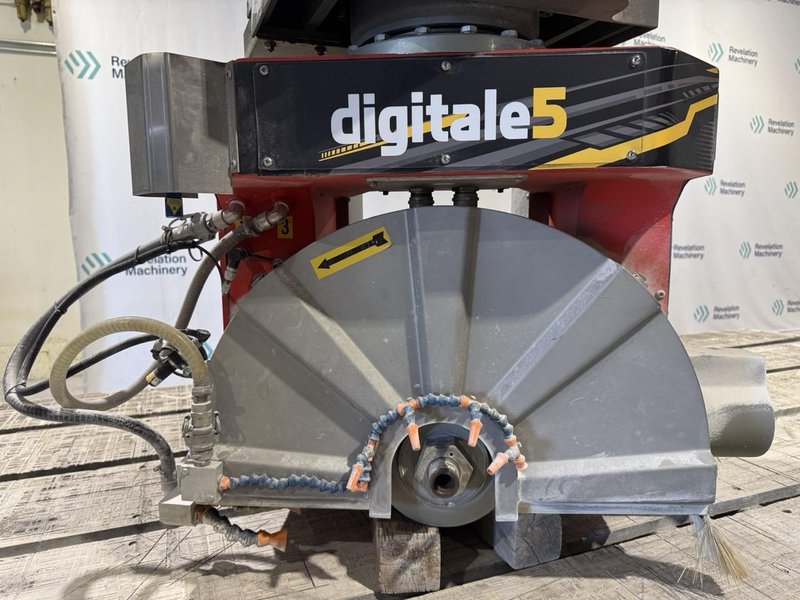

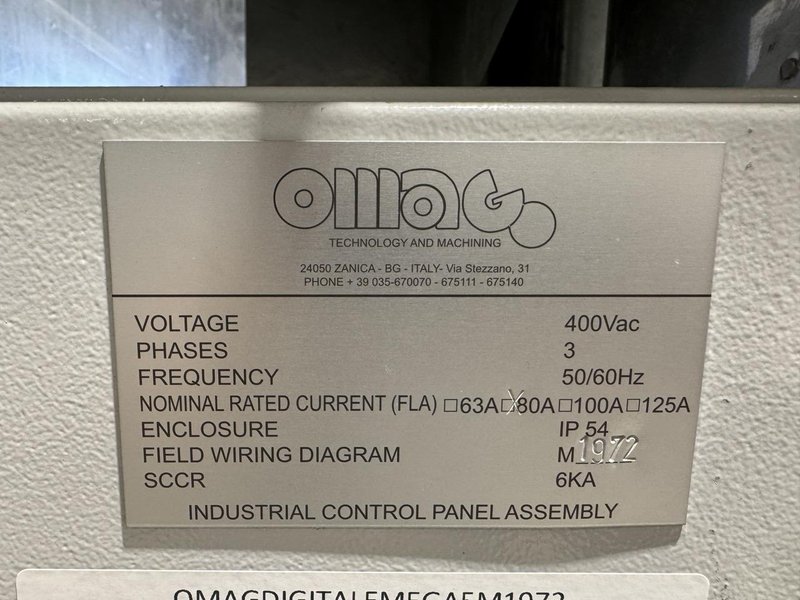

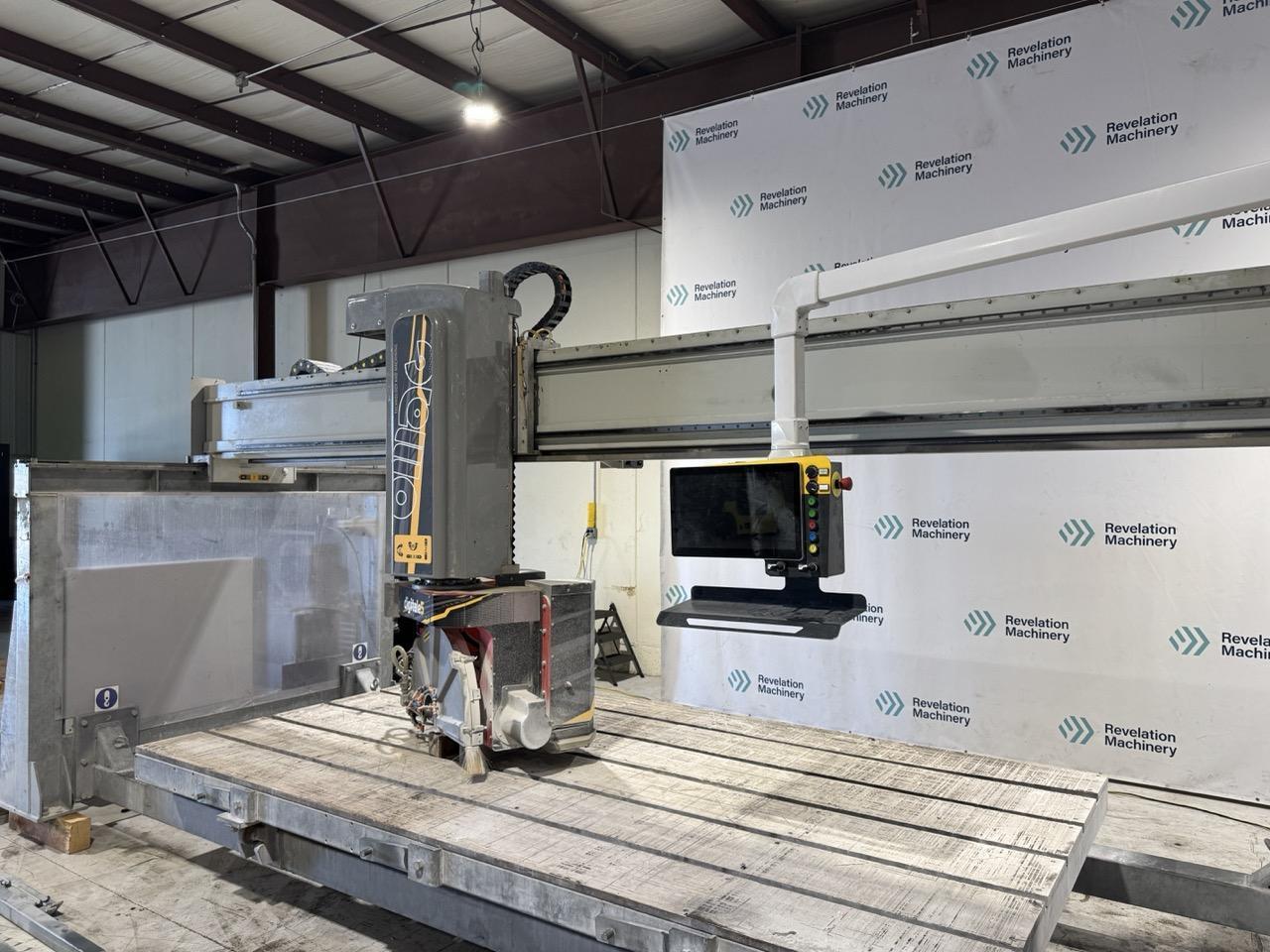

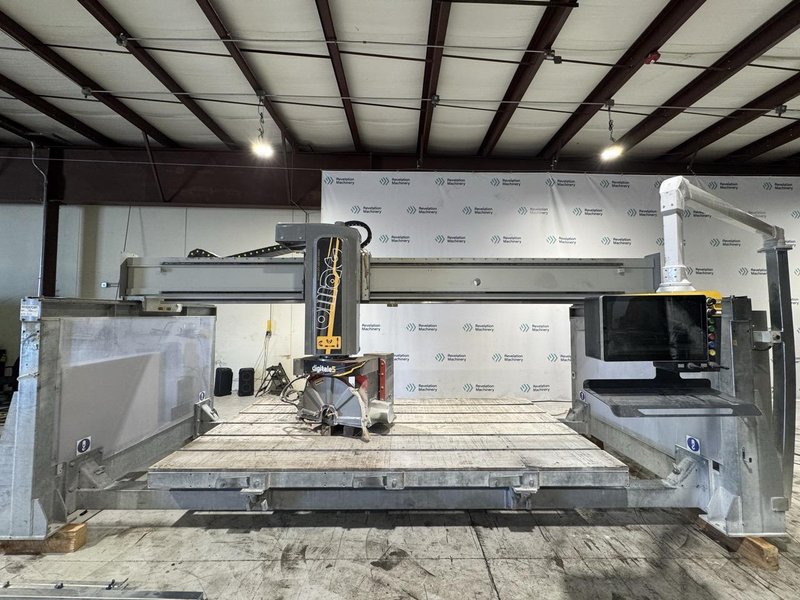

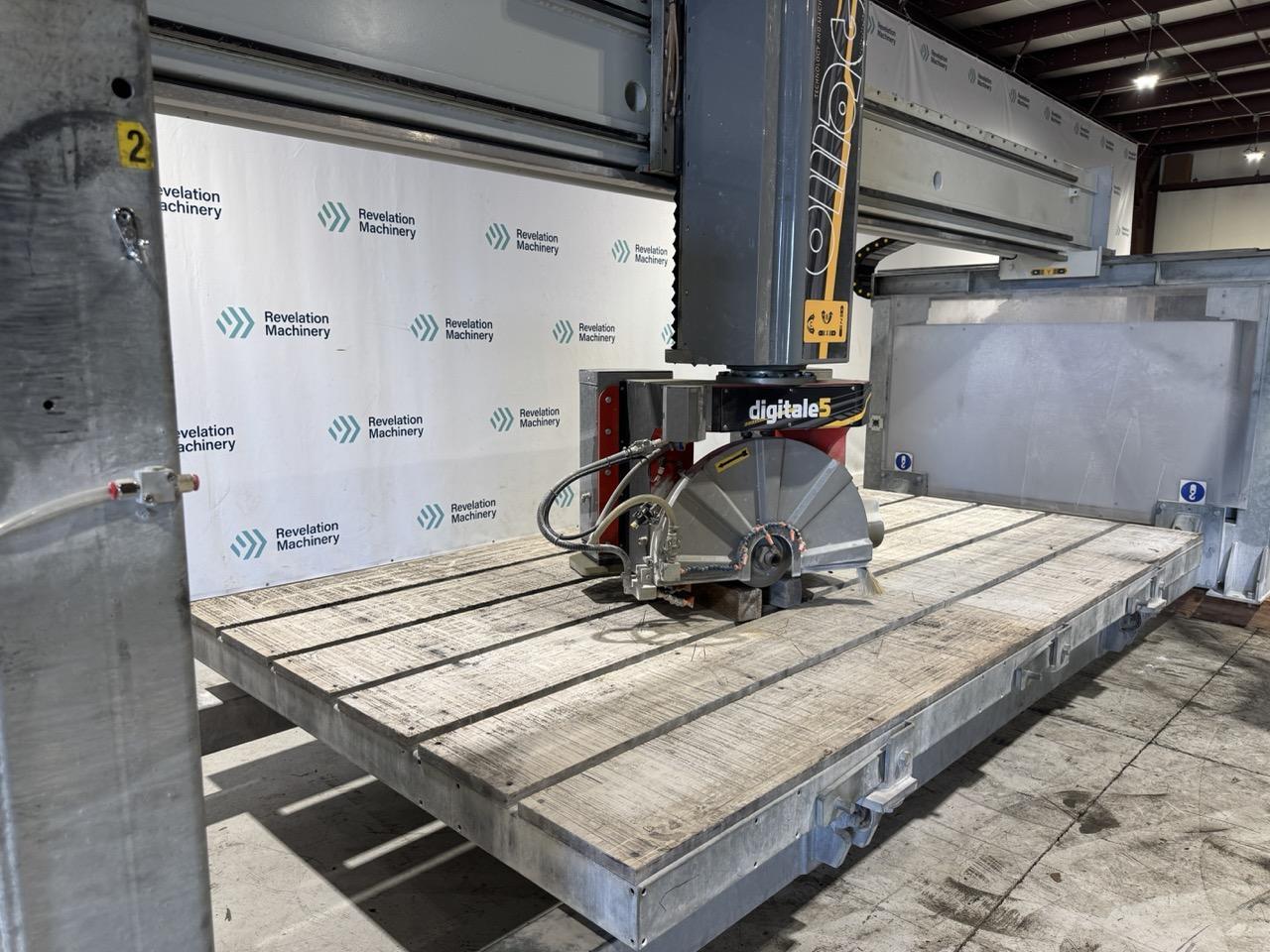

OMAG Digitale 5 Type 3600×2000 + 500×400 CNC 5-Axis Bridge Saw, 2024 – Stone Cutting & Milling Center for Granite, Marble, Quartz & Porcelain

Late-model 2024 OMAG Digitale 5 Type 3600×2000 + 500×400 5-axis CNC bridge saw and milling machine designed for precision cutting, mitering, drilling, shaping, and sink processing of granite, marble, quartz, porcelain, and ceramic slabs. Updated Compact Spec Sheet: Item Spec Year 2024 Make OMAG Model Digitale 5 Type / Configuration 3600 x 2000 + 500 x 400 Machine Type 5-Axis CNC Bridge Saw / Stone Cutting & Milling Machine Controlled Axes 5 Workbench / Table Size 3,600 x 2,000 mm + 500 mm / approx. 141″ x 78.7″ + 19.6″ Tilting Table Up to 85° tilt; approx. 3,520 lb / 1,600 kg loading capacity on comparable Digitale 5 specs X-Axis Travel 3,600 mm / approx. 141″ Y-Axis Travel Approx. 2,650 mm / 104″ on listed Digitale 5 configuration Z-Axis Travel Approx. 400 mm / 15.7″ on listed Digitale 5 configuration B-Axis Disc inclination 0° to 90° C-Axis Rotation in disc axis approx. 0° ± 200° Minimum Blade Diameter Approx. 350 mm / 13.7″ Cutting Thickness Approx. 200 mm / 7.87″ with 625 mm disc

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
