Fanuc Milling Robot - X: 10 500 / Y: 3045 / Z: 3500 mm CNC

Brand
FANUC
Category
Machining Centers
Type
Horizontal Machining Centers
Model
X: 10 500 / Y: 3045 / Z: 3500 mm CNC
Stock #
D.02 16238
Year
Not specified
Condition
Not specified

Location

Not specified
REQUEST FINANCING
Located in Deinze, Belgium

Additional info

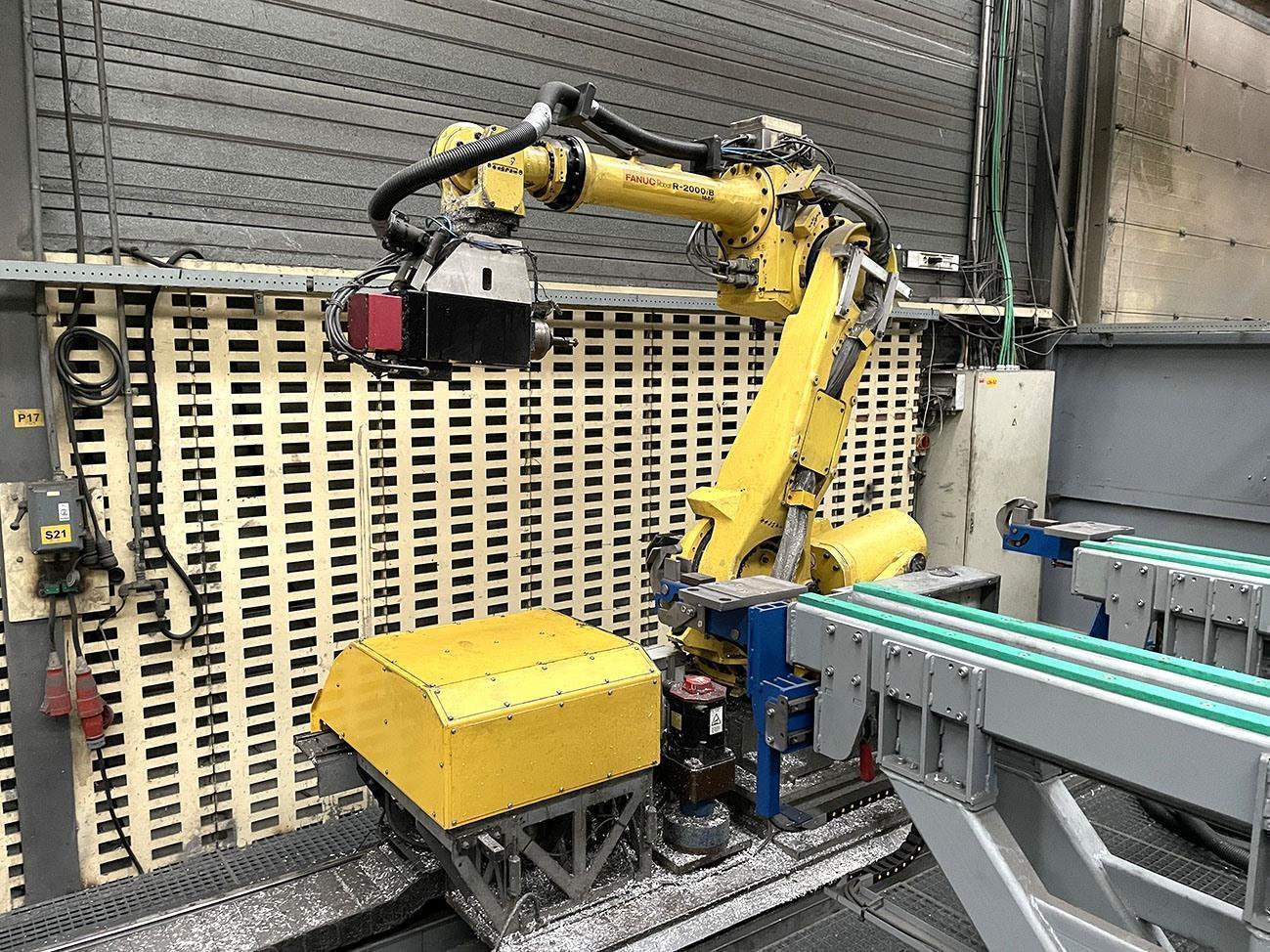

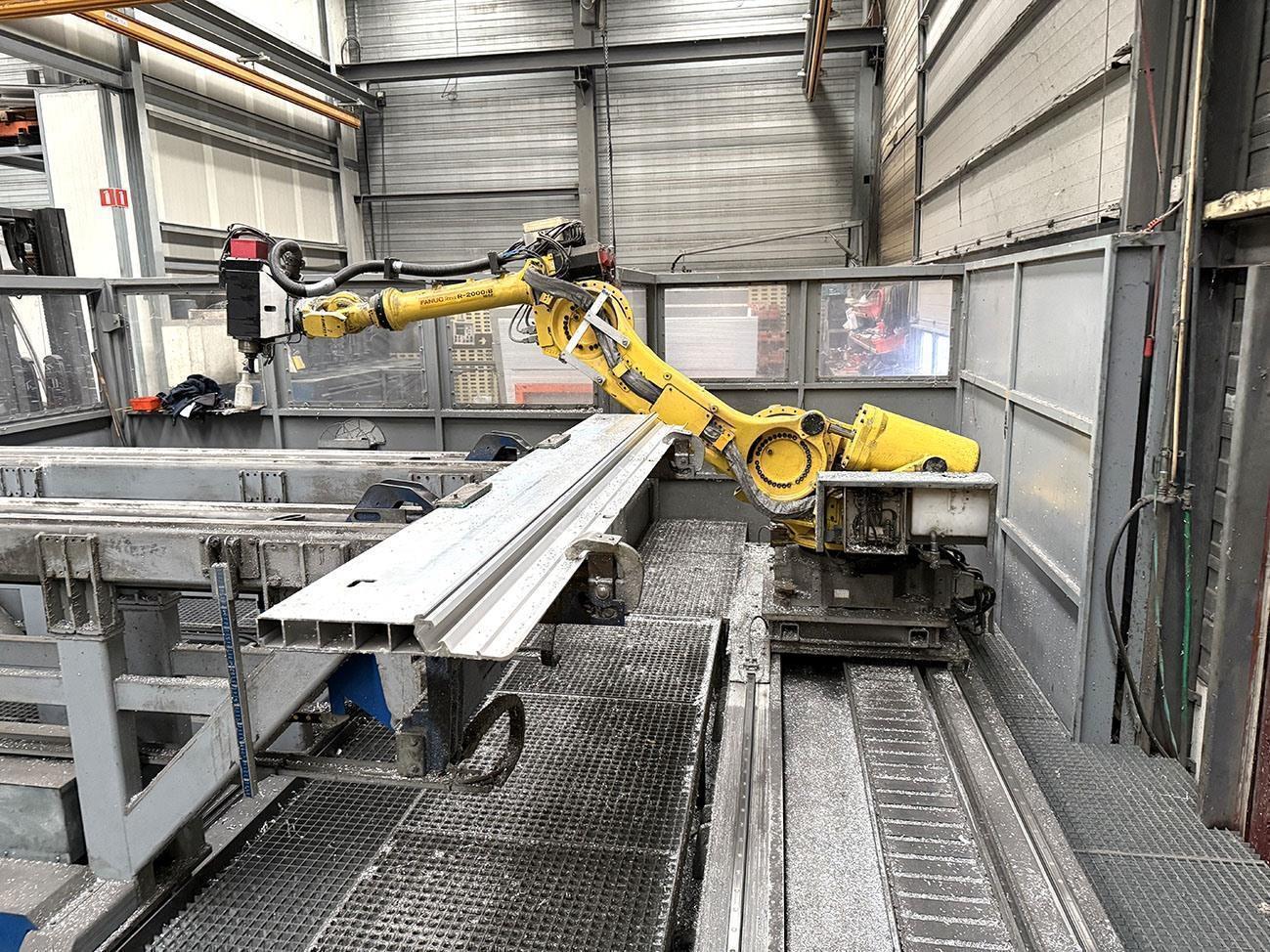

  • Fanuc 6-axis robotic milling center for aluminum and steel

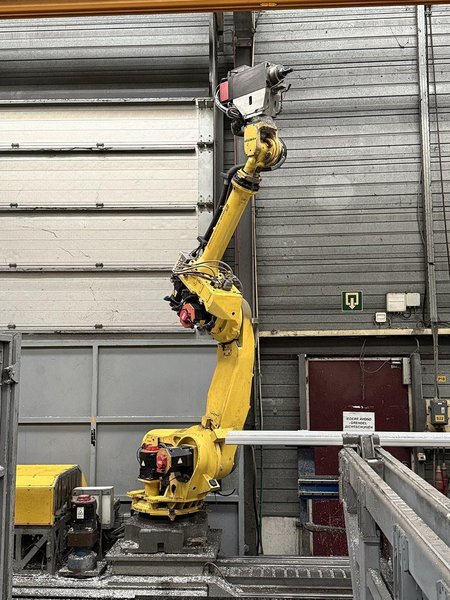

    Fanuc R-2000-B/165F
    CNC: R-30iA CONTROLLER

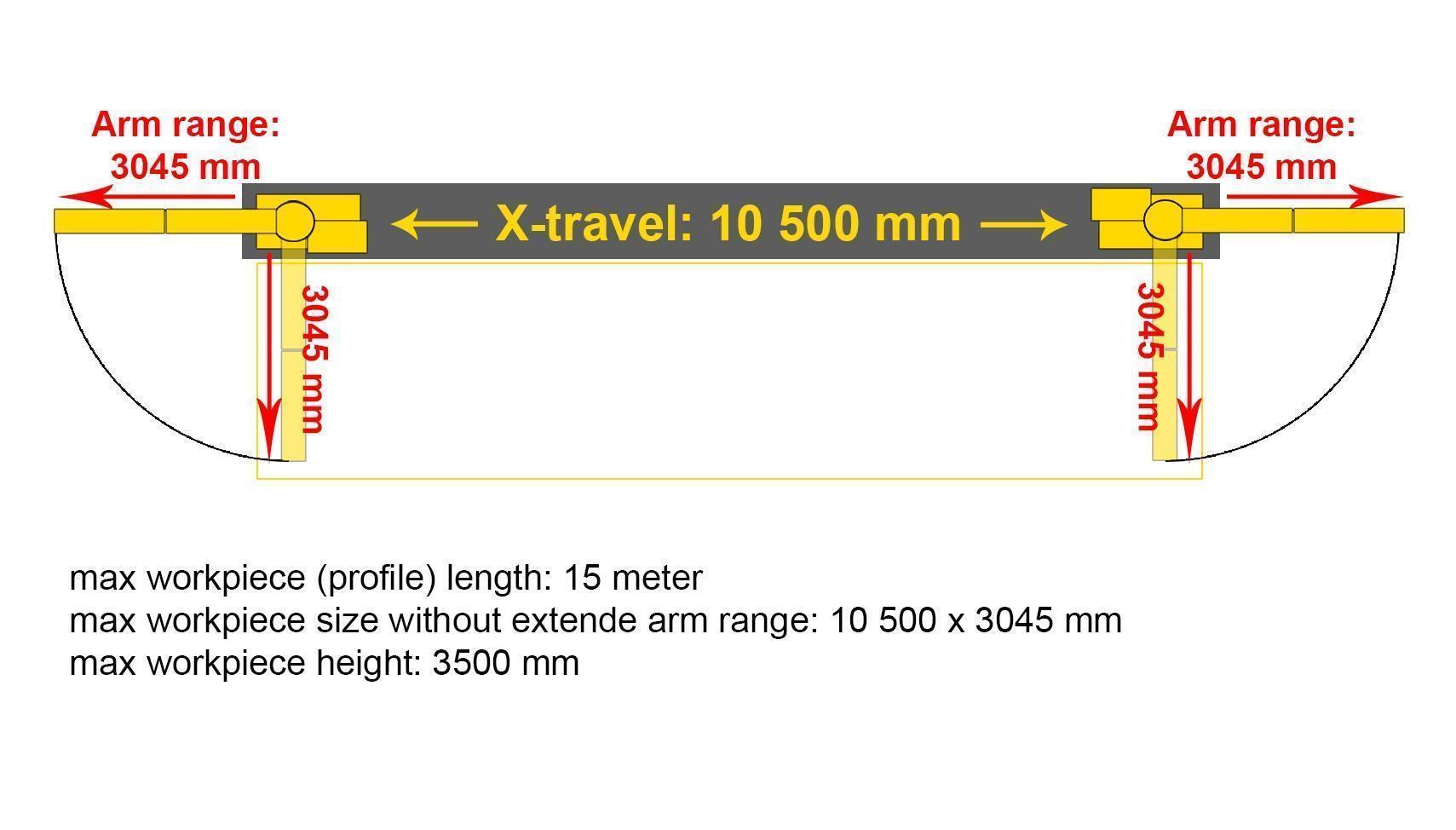

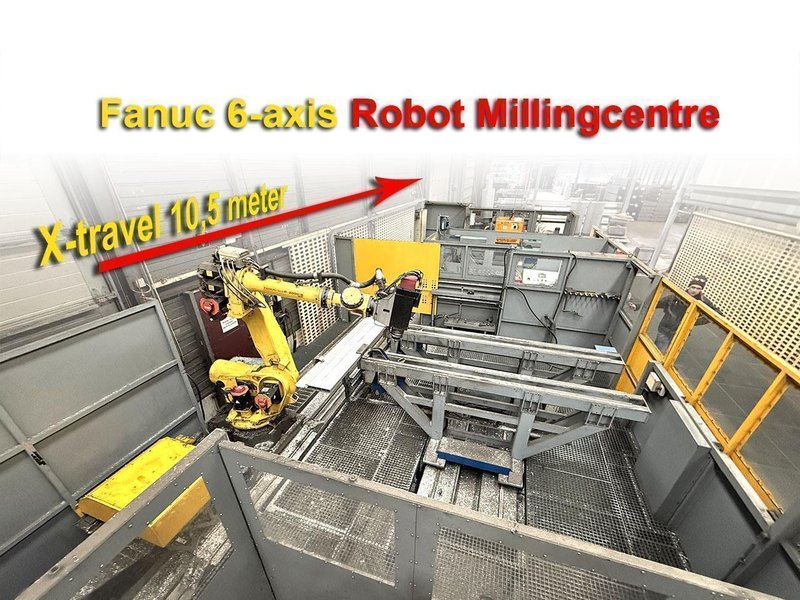

    X-movement of the robot on track: 10,500 mm

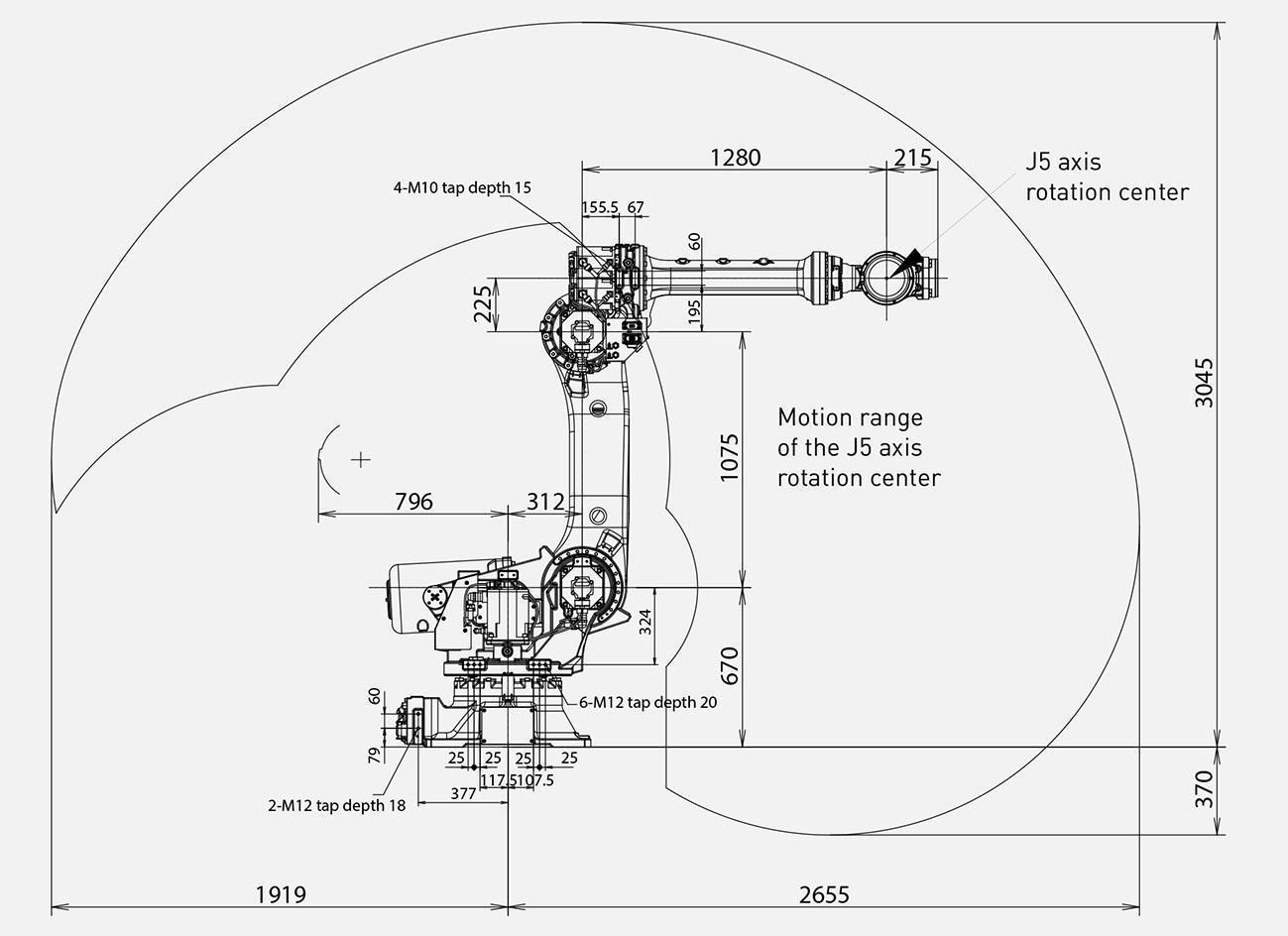

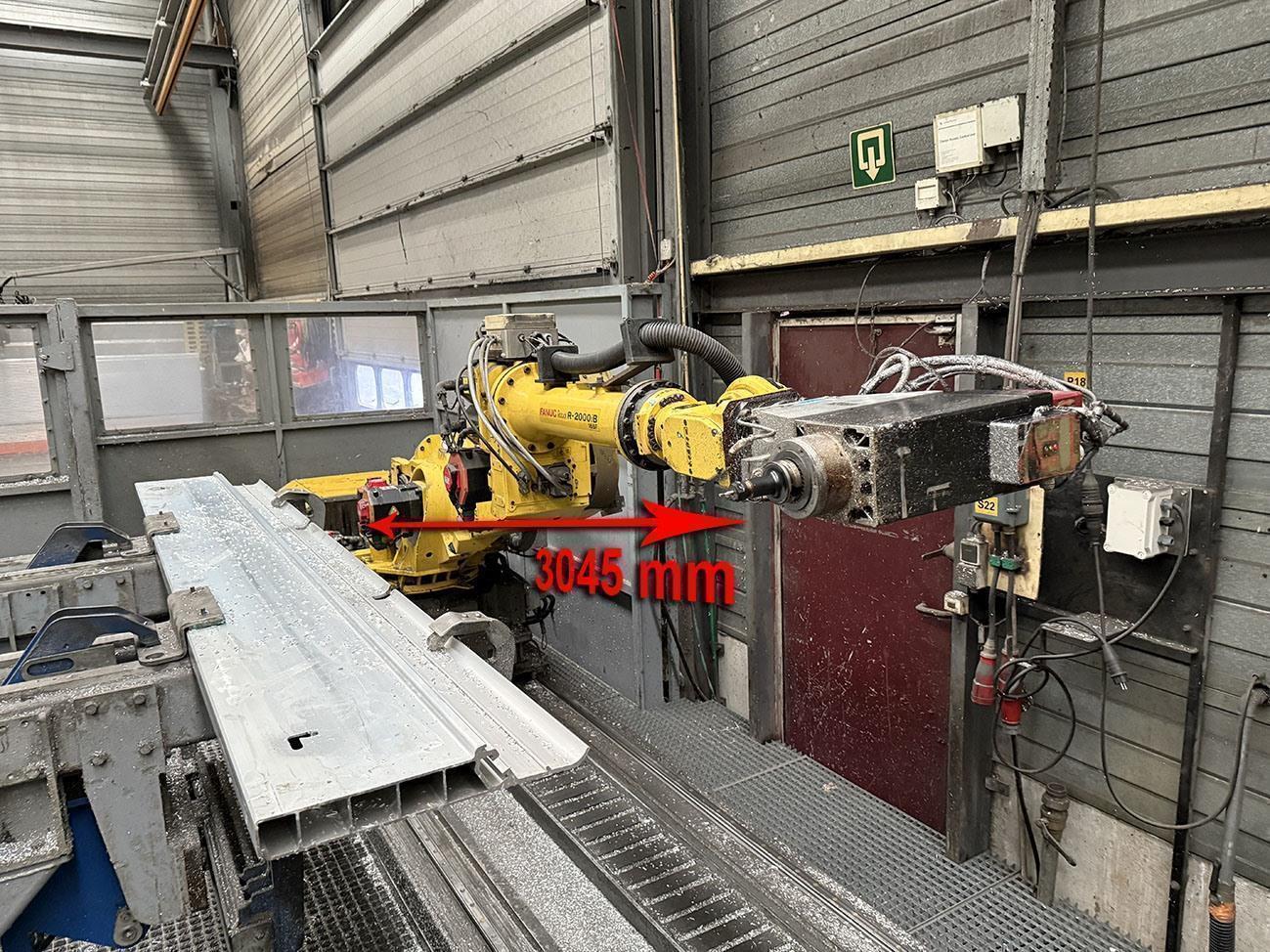

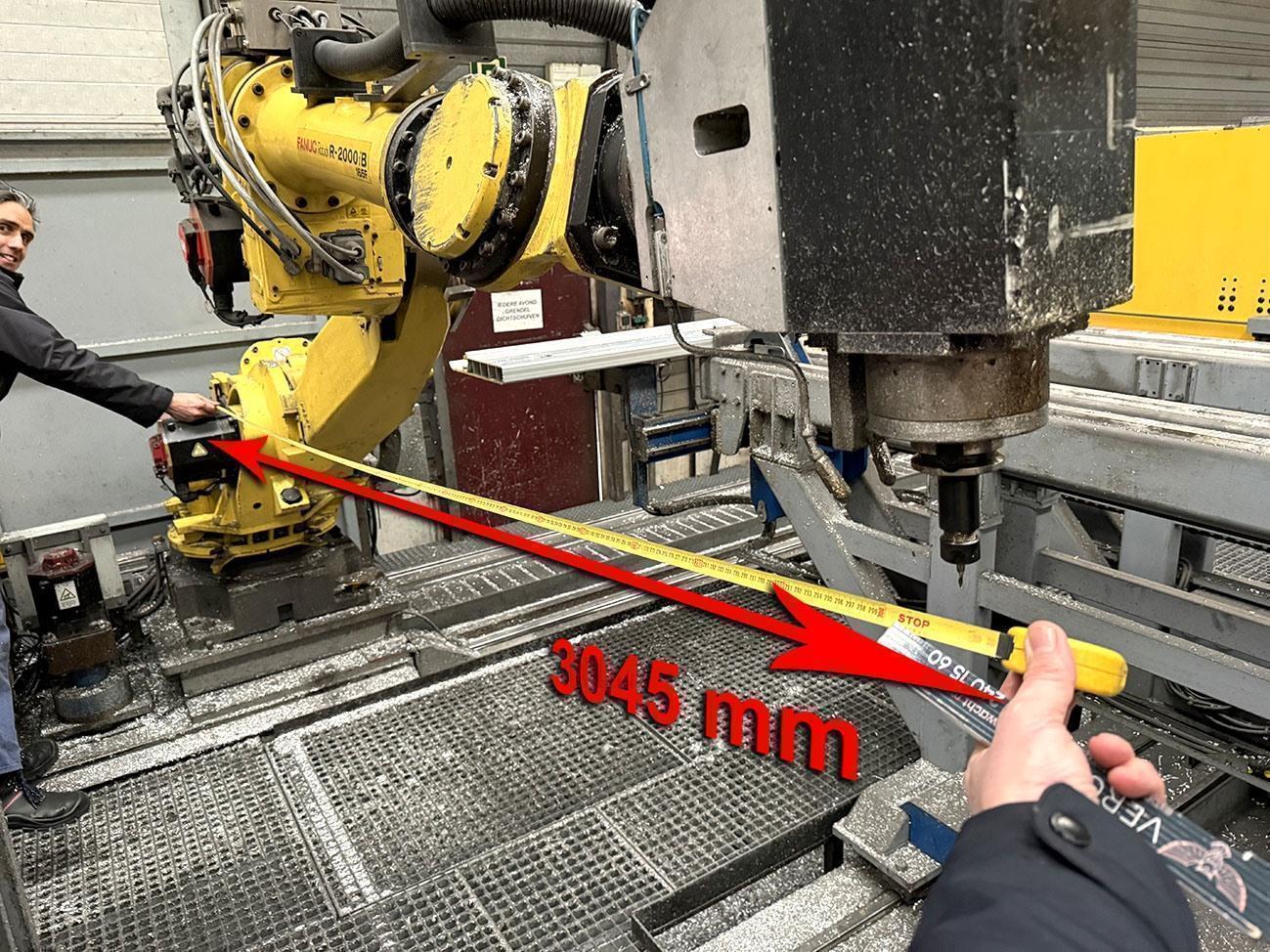

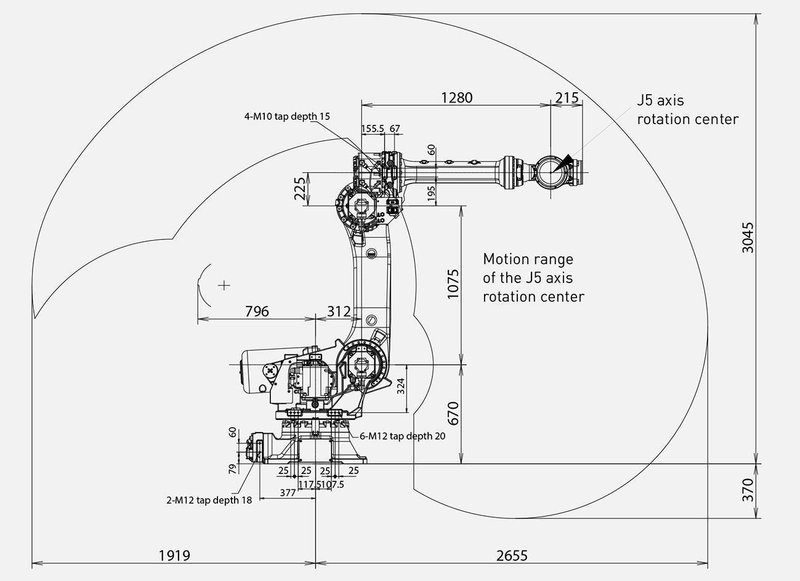

    Extended robot arm reach (left and right): 3045 mm
    > maximum workpiece length if it is a profile: 15 meters
    > max. workpiece size without extended arm reach: 10,500 x 3045 mm

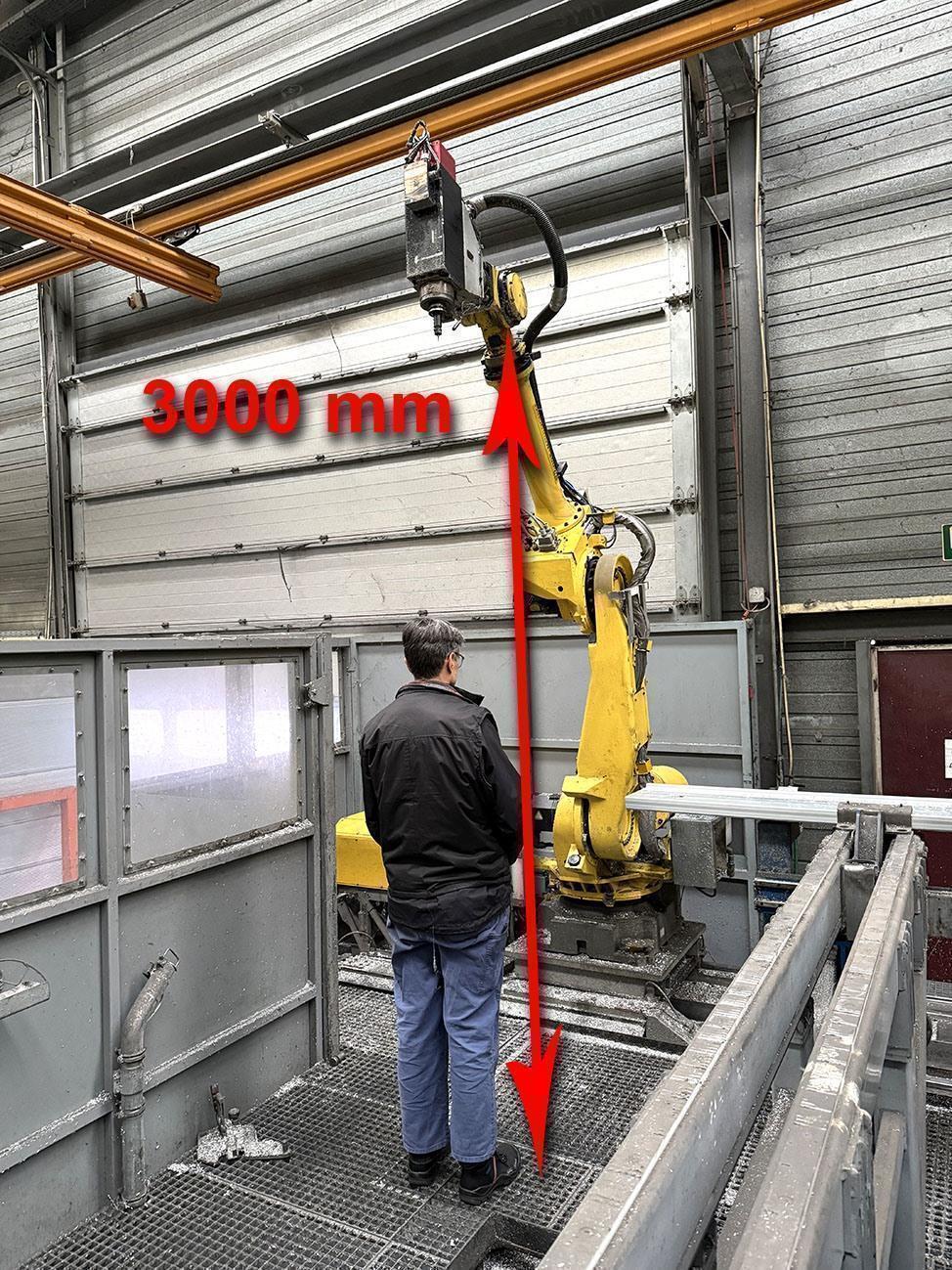

    > max. workpiece height: 3500 mm
    > max weight which can be attached to the robot: 165 kg
    > weight of only the robot: 1200 kg

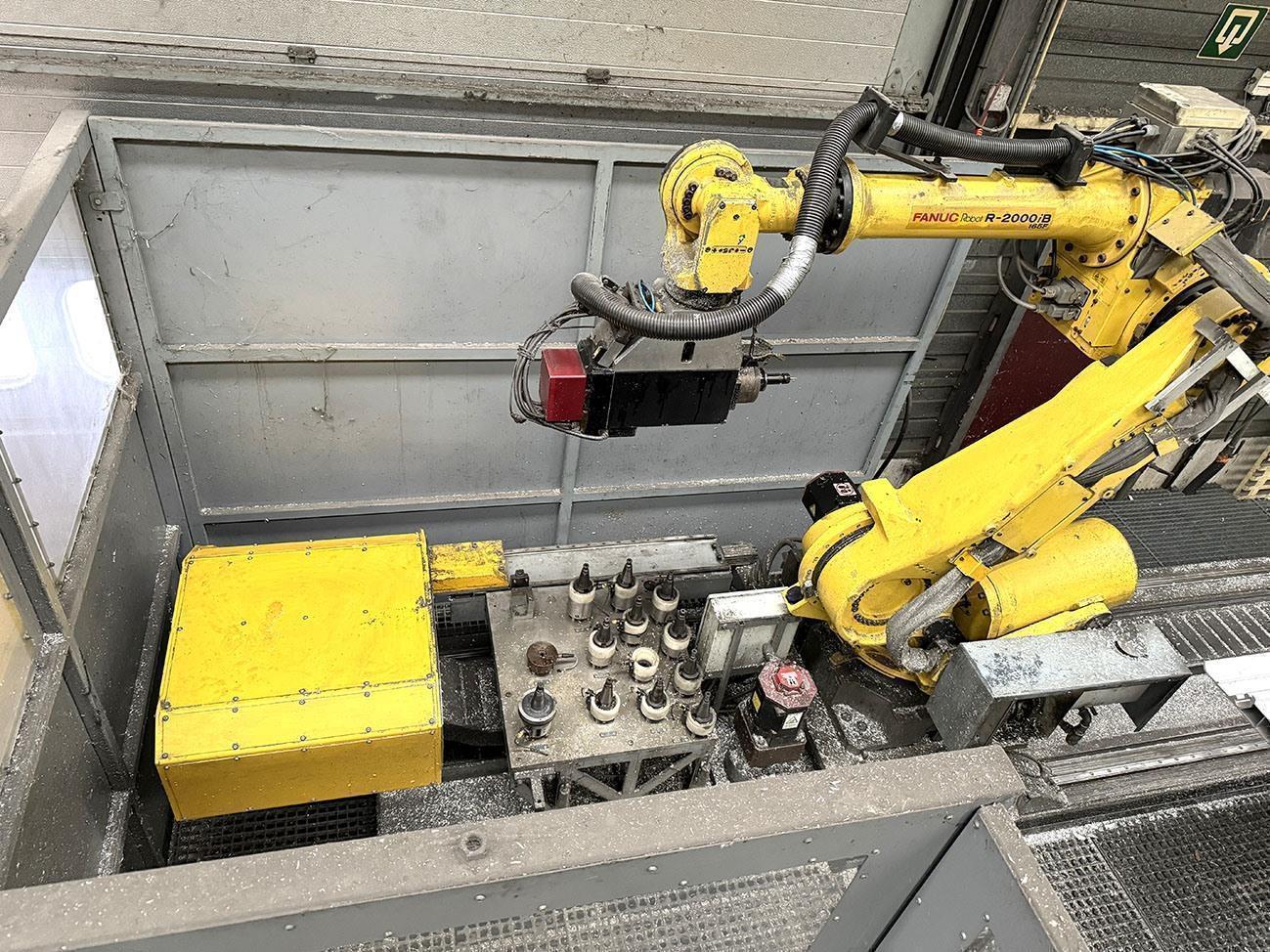

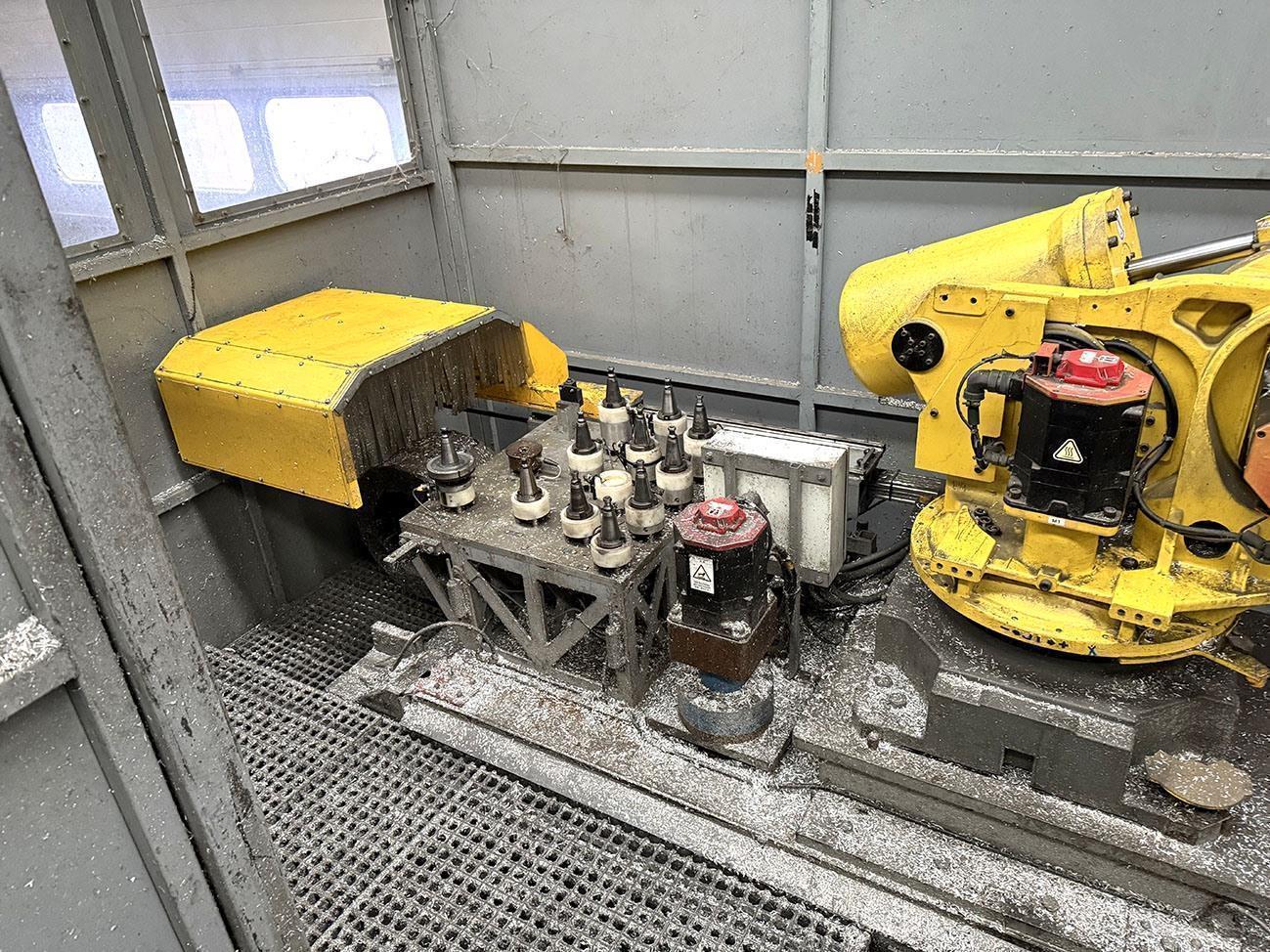

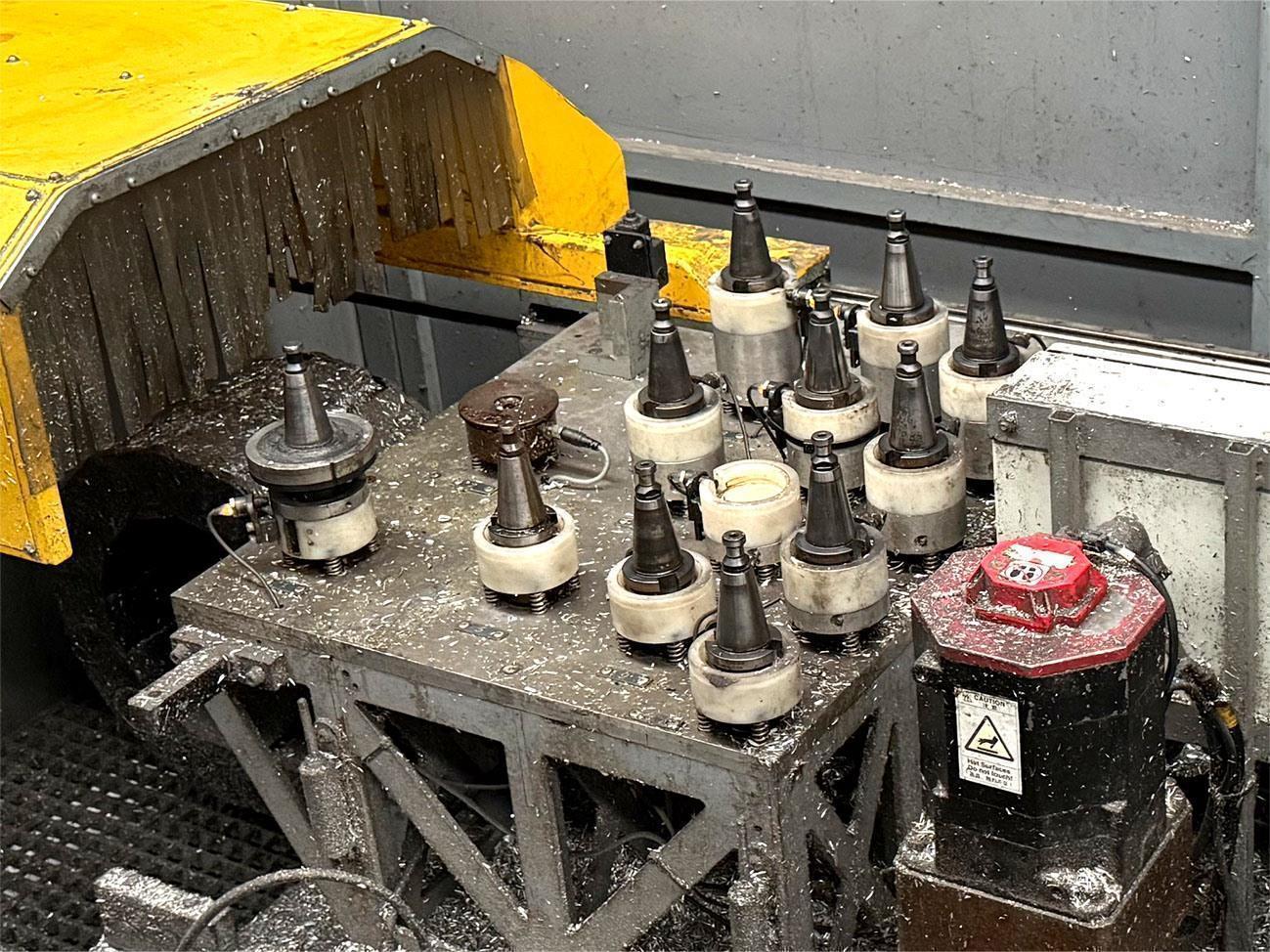

    Toolchanger mounted on the track with 13 tool positions:
    - 12 live tools - ISO BT 40
    - 1 measuring probe

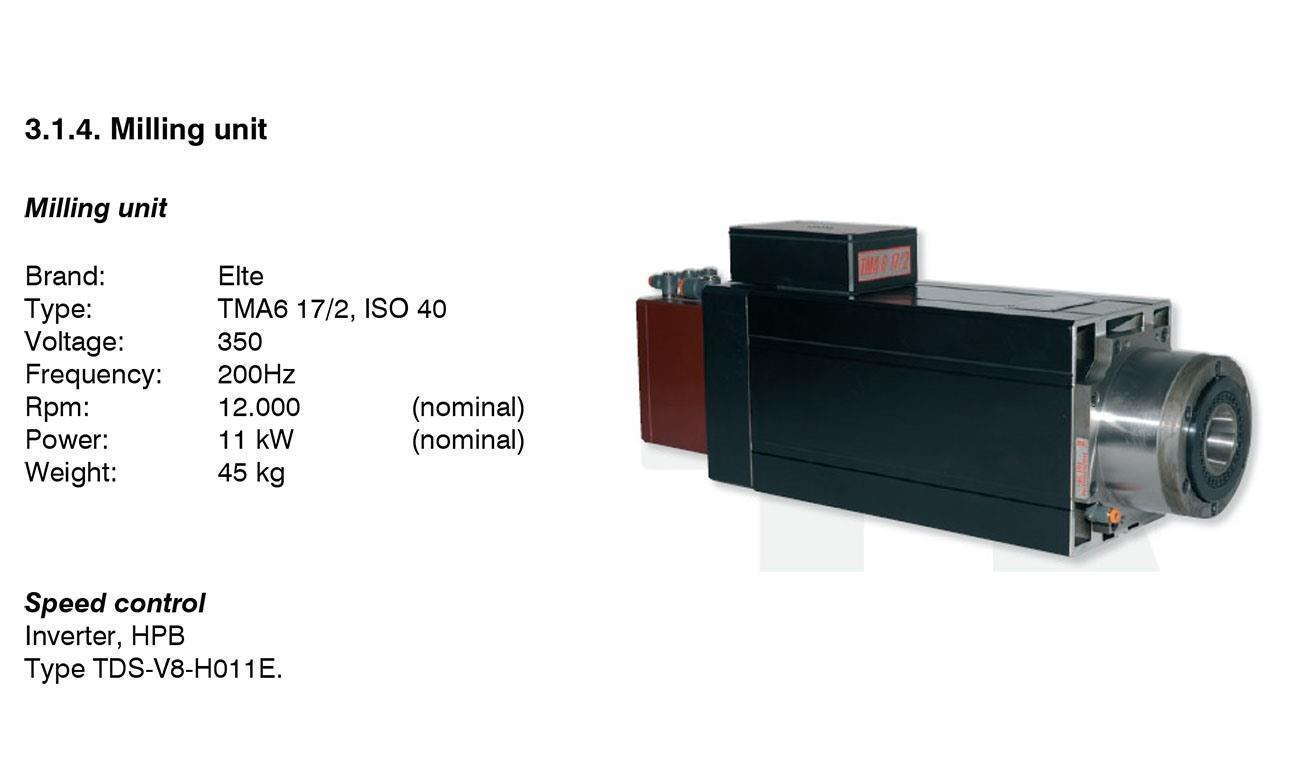

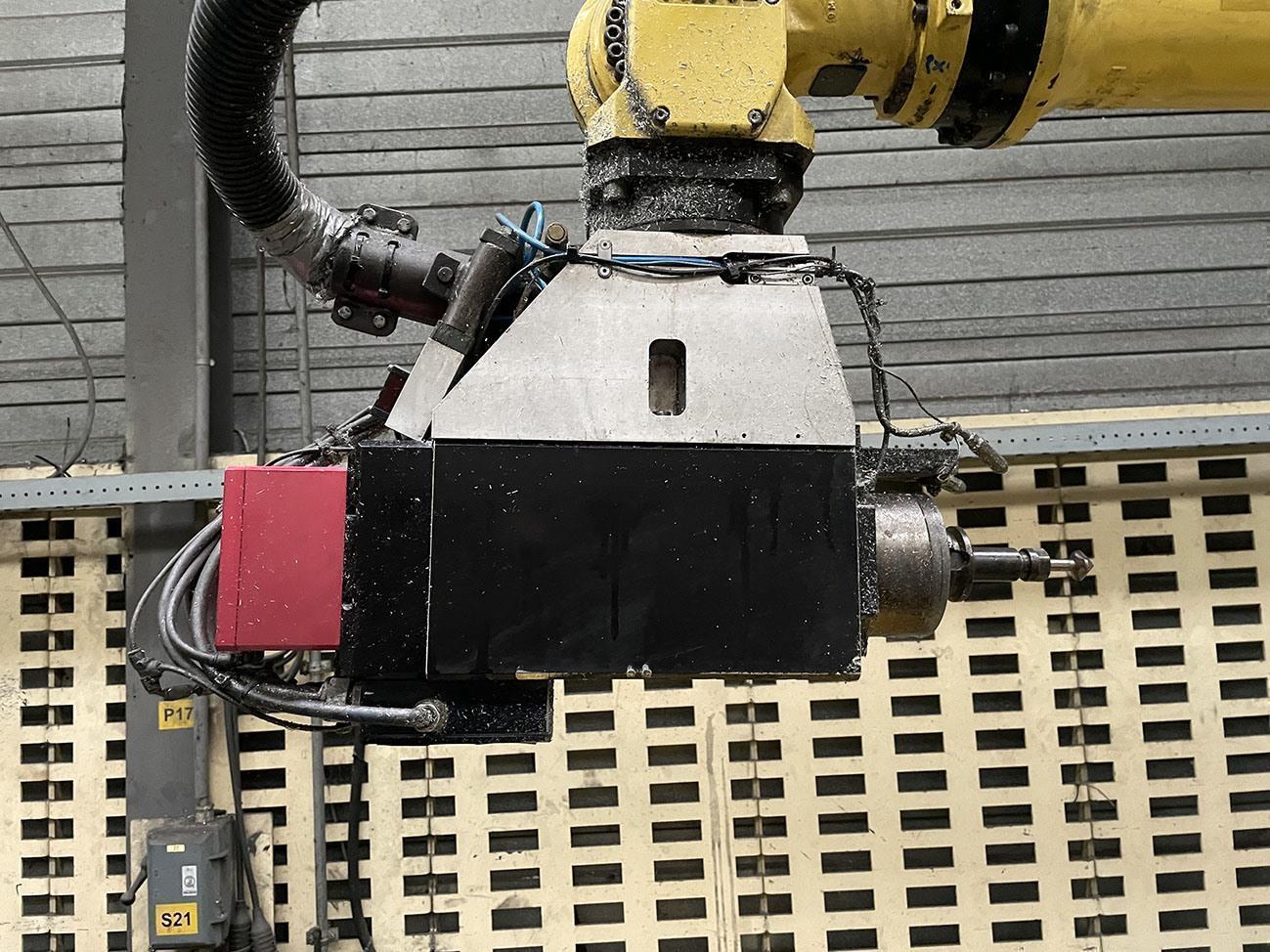

    Milling head:
    TMA6 17/2
    Speed: 1 > 12,000 rpm
    ISO 40 - 11 kW
    Weight: 45 kg

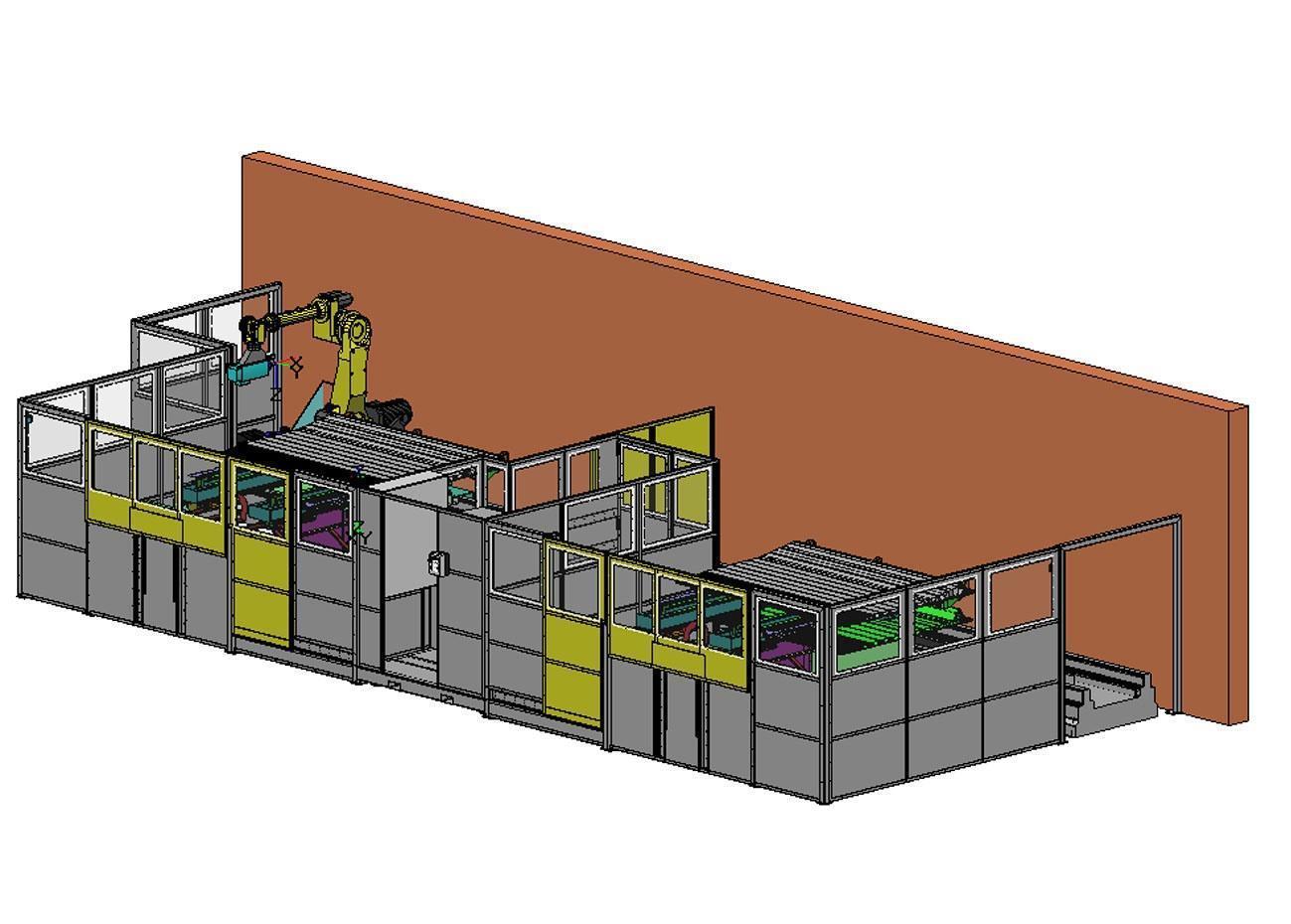

    There are many configurations possible, depending on the type of workpiece. Currently there are two separate work areas, but you can change this to one work area (for a large workpiece) or split it into multiple separate work areas for smaller workpieces.



  • Type/Model: X: 10 500 / Y: 3045 / Z: 3500 mm CNC
  • Stocknumber: D.02 16238
  • Main category: [D] Machining centres
  • Sub category: [D.02] Horizontal machining centers
  • Brand: Fanuc Milling Robot
