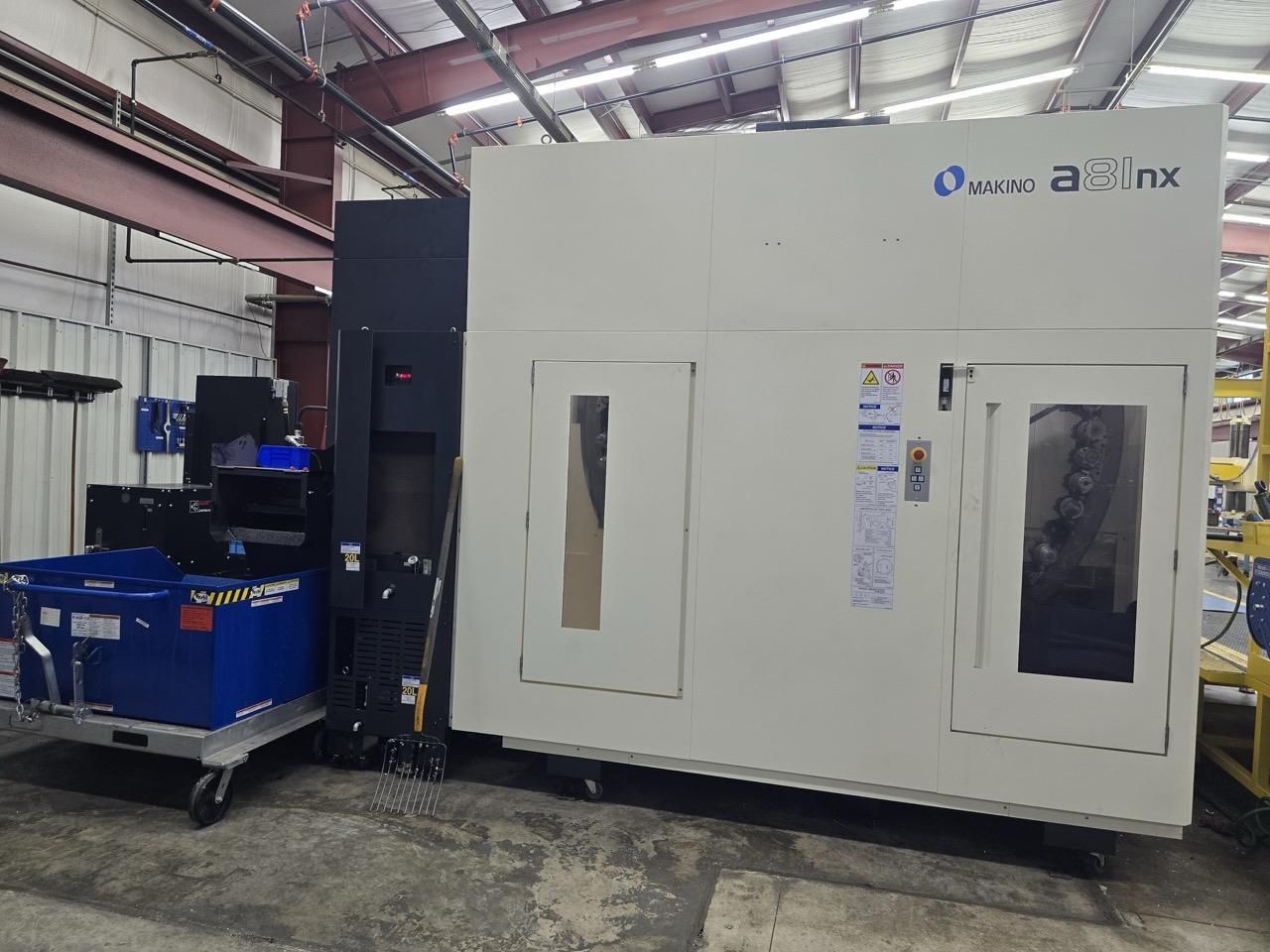

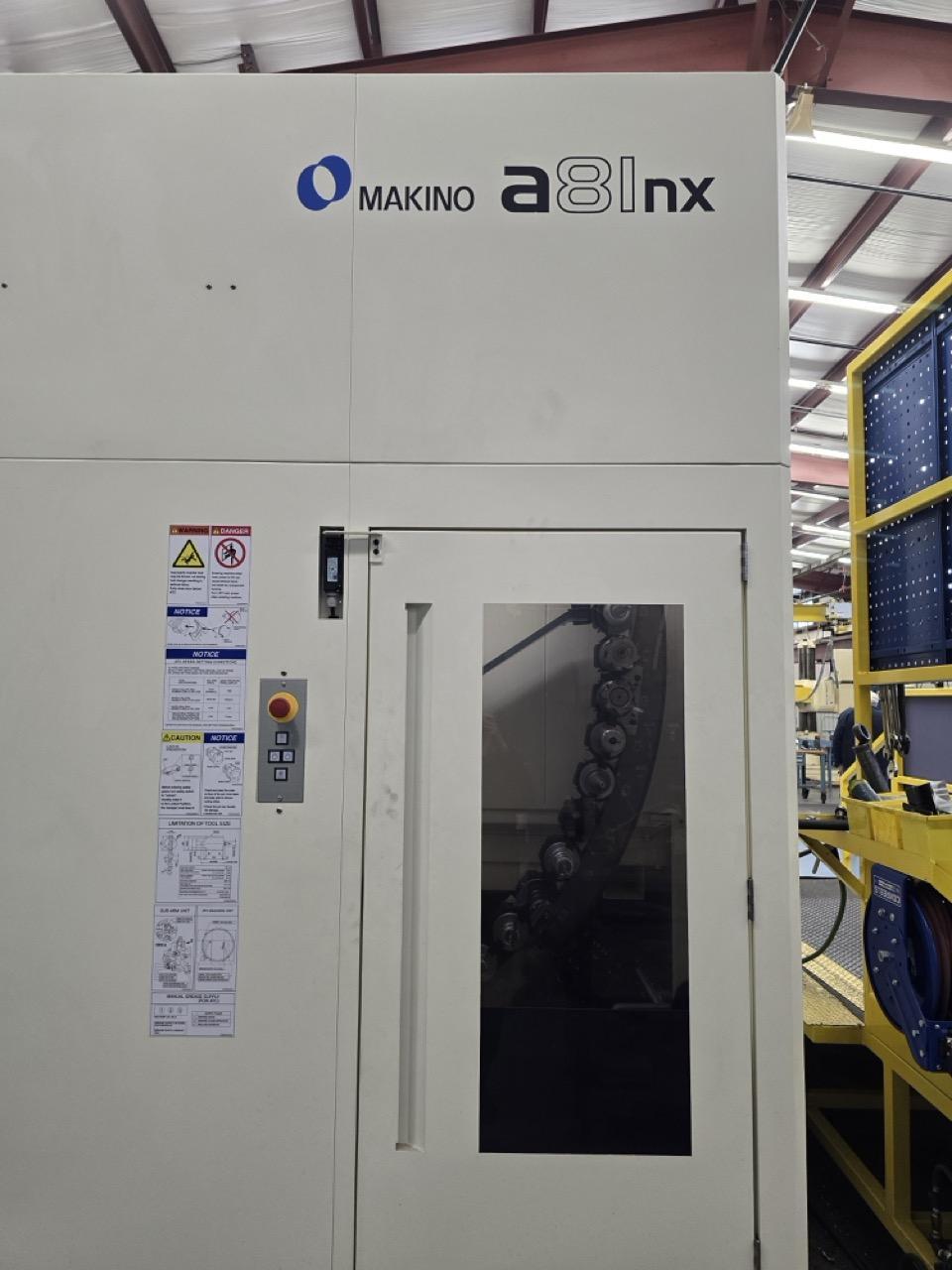

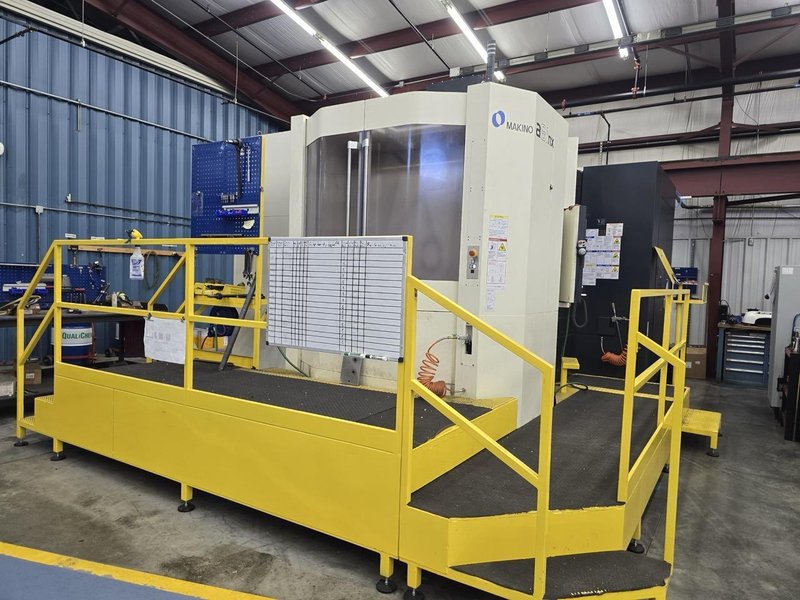

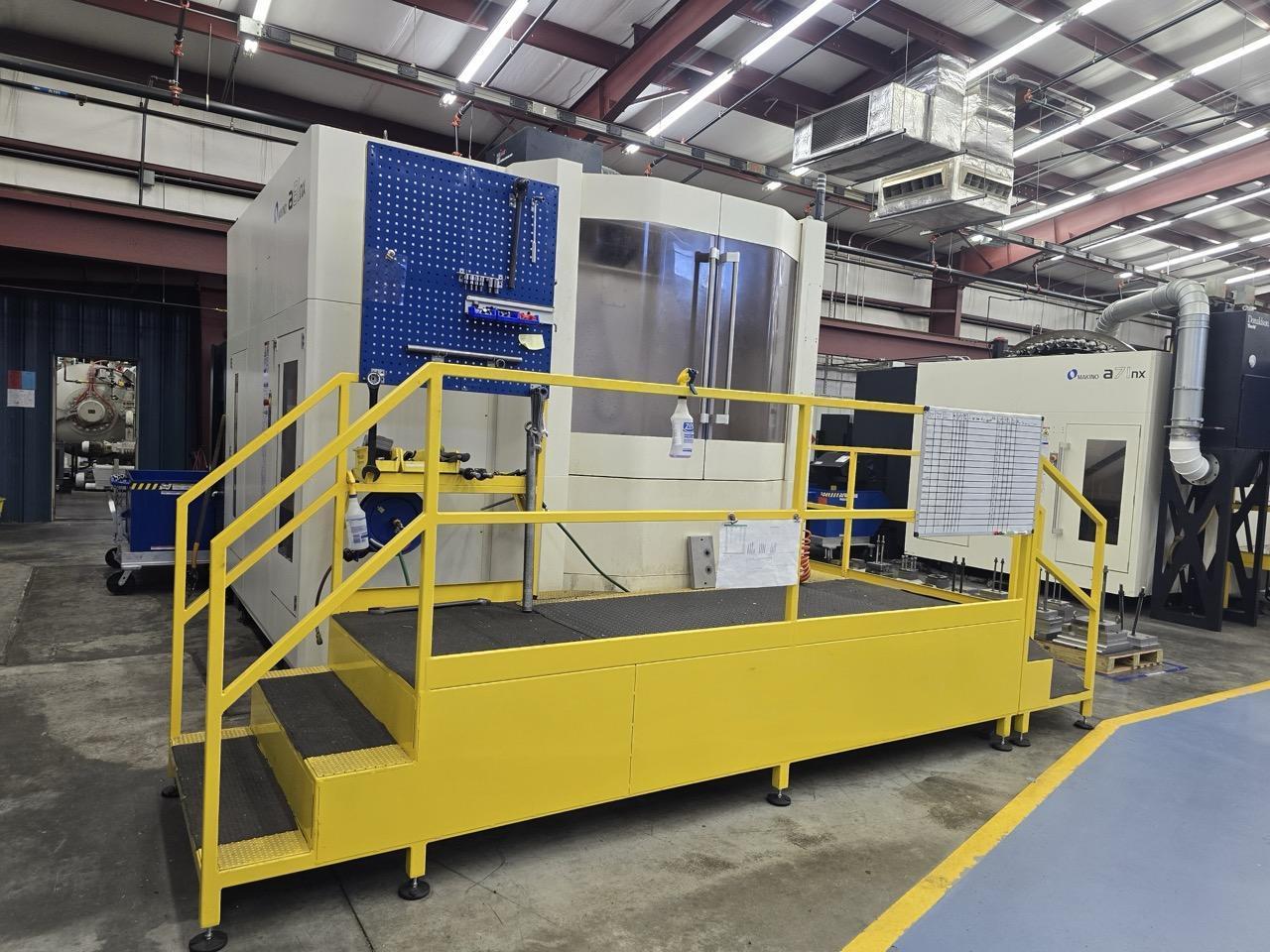

Makino A81NX HMC, 2023

X-Axis Travel: 35.4″ Y-Axis Travel: 35.4″ Z-Axis Travel: 40.2″ B-Axis: 360° (full 4th Axis, bi-directional)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Pallet Size: 24.8″ x 24.8″ Pallet Count: 2

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Spindle Taper: CAT 50 Spindle Speed: 50 – 10,000 RPM Spindle Power: 60 HP (35 HP continuous)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Rapid Traverse: 1,968 in/min Cutting Feedrate: 1,968 in/min Max Workpiece: 39.4″ x 51.2″ Max Table Load: 2,645 lbs

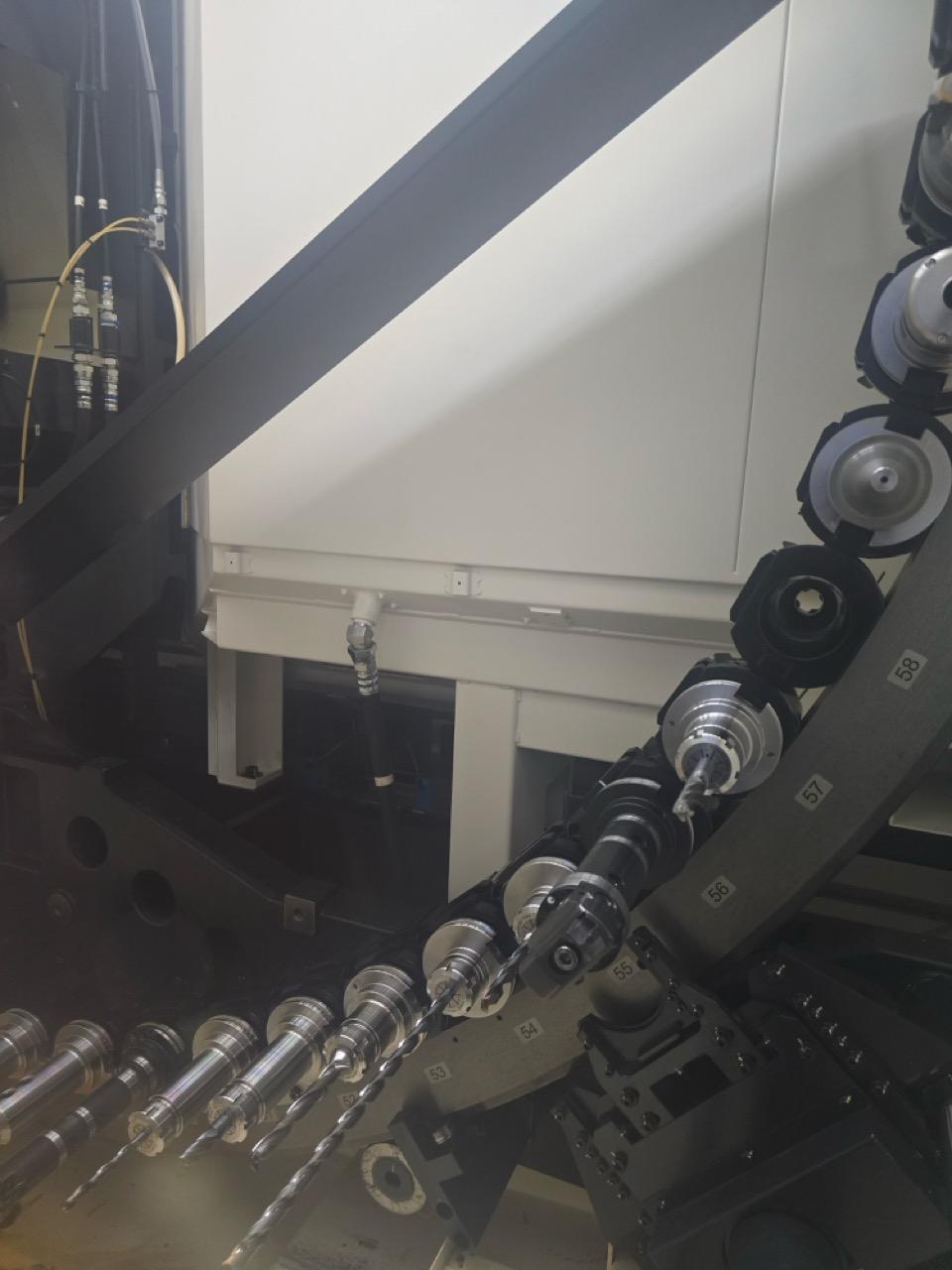

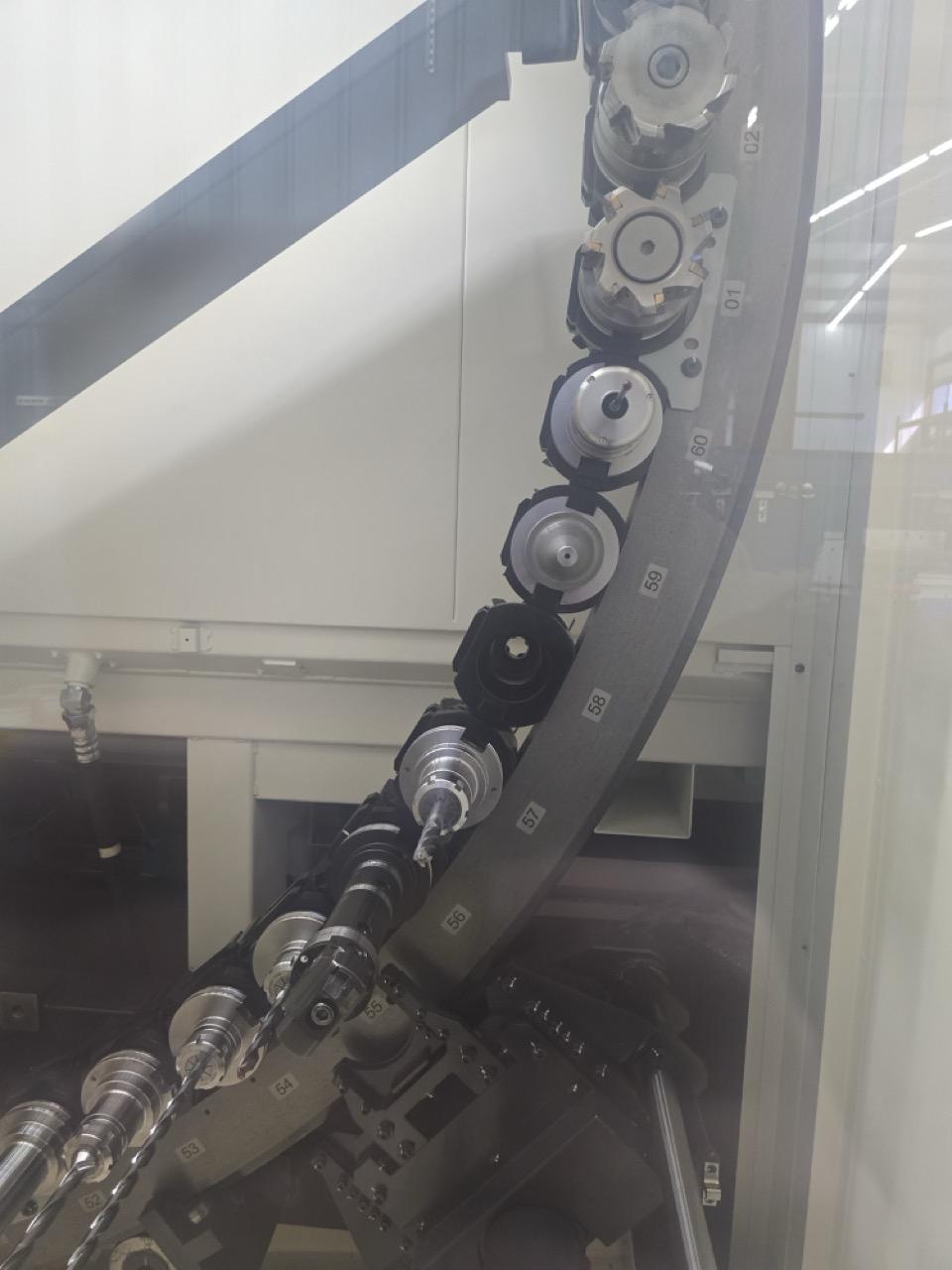

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Auto Tool Changer: 60 Tools Tool to Tool: 1.7 sec (12 kg tool) Chip to Chip: 3.7 sec Maximum Tool Length (Cat): 27.2″ Maximum Tool Diameter: 14.0″ Max Tool Weight: 66 lbs

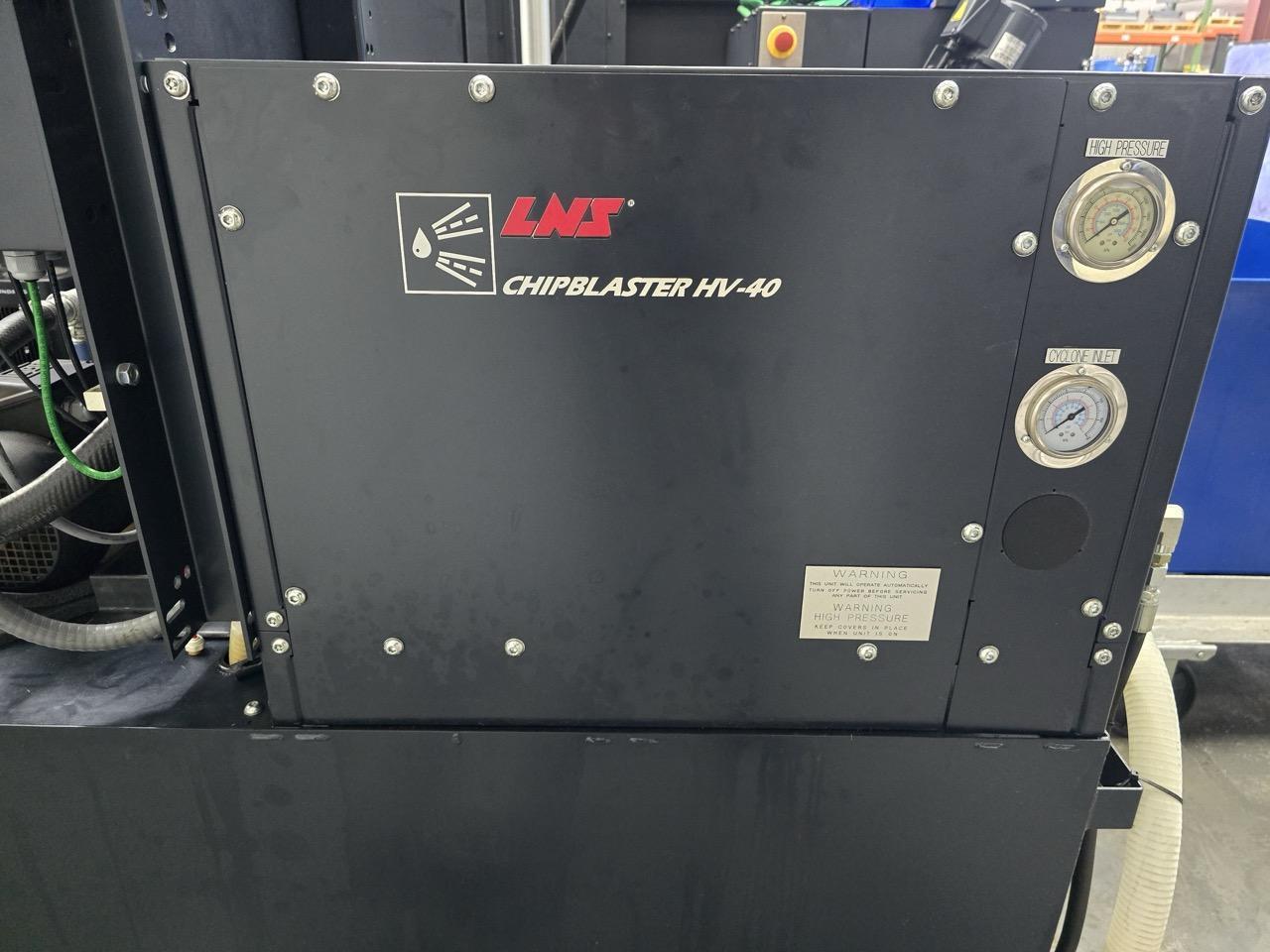

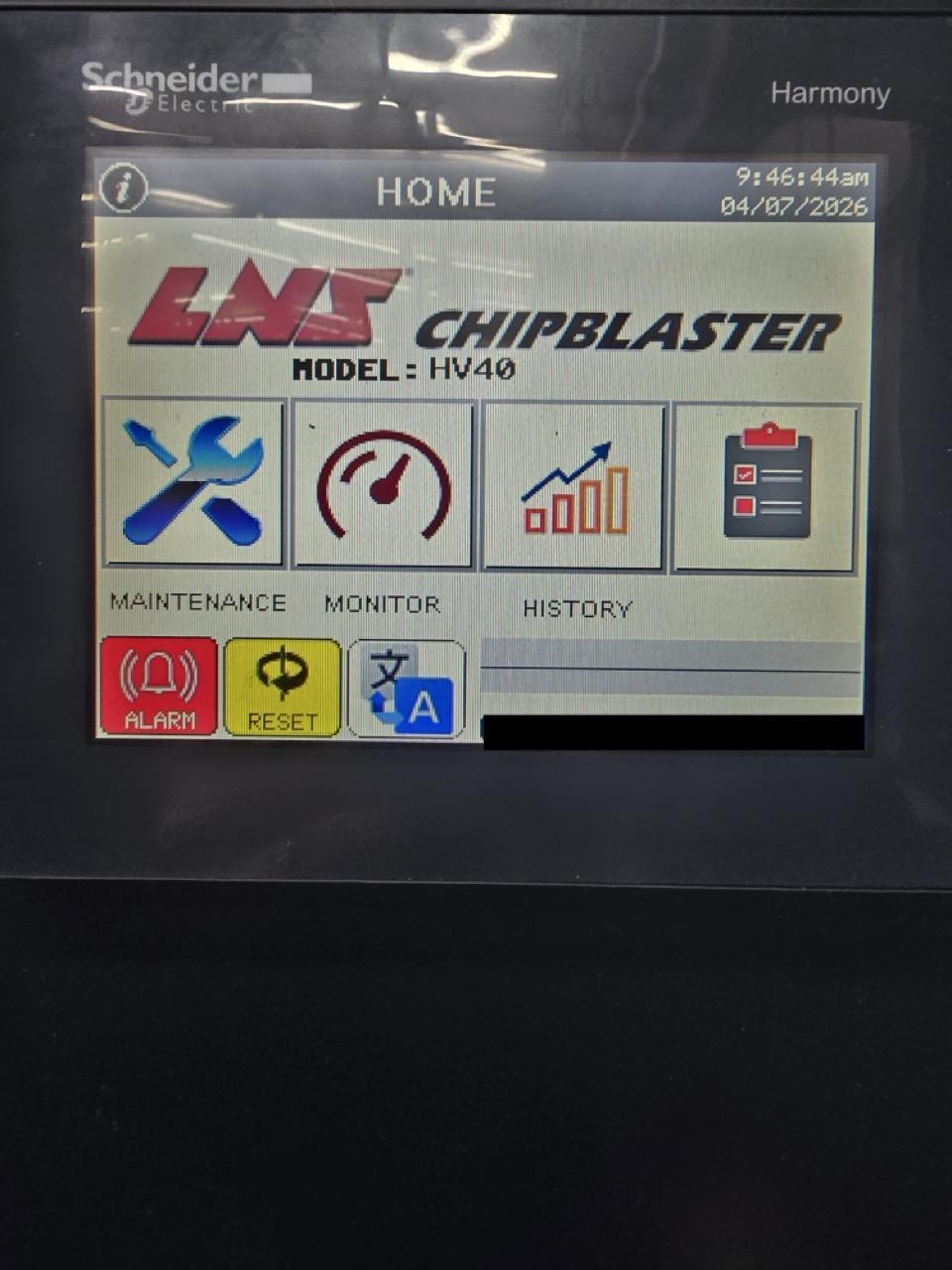

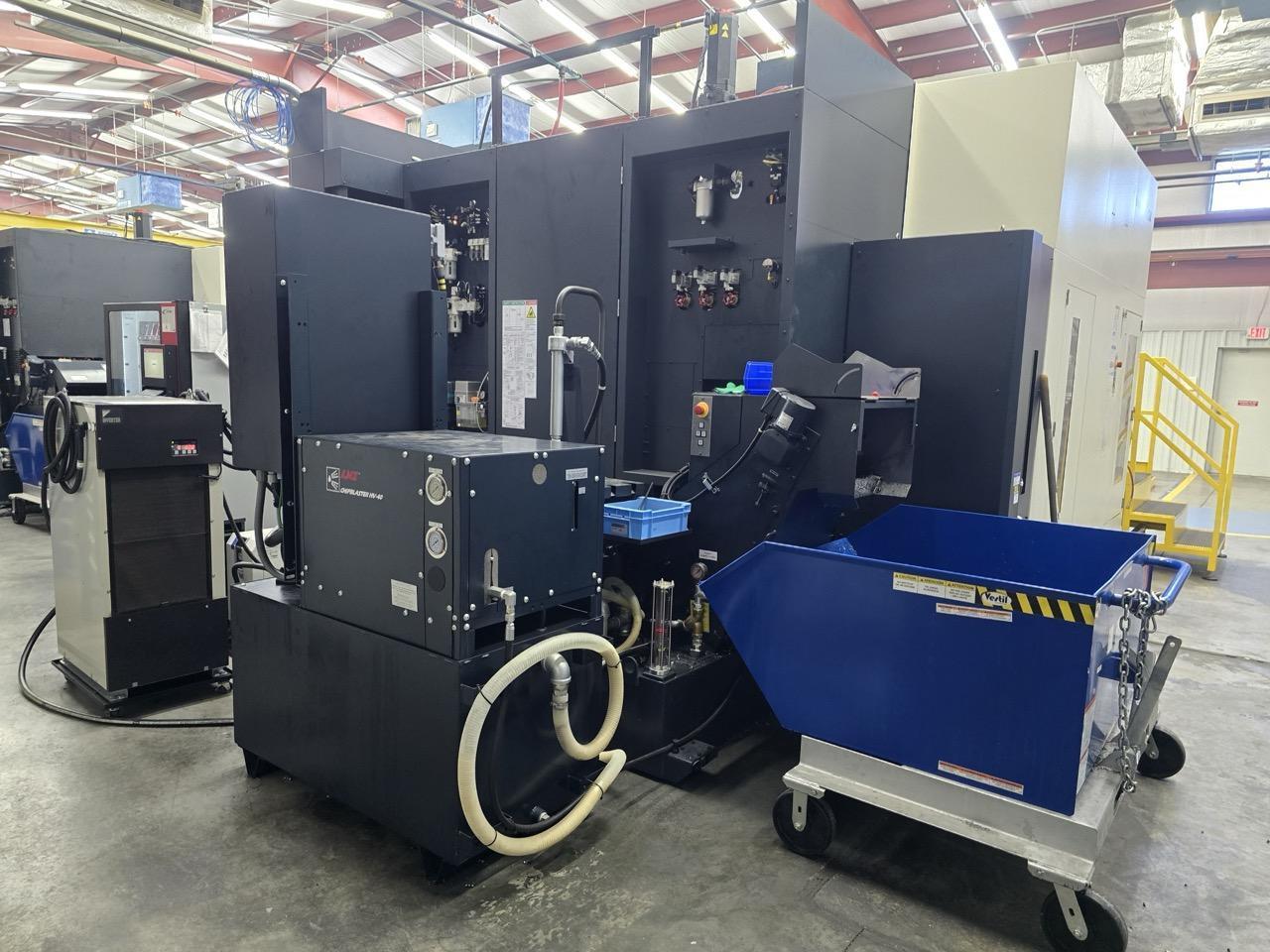

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped with: Pro6 CNC Control Full 4th Axis- Bi-directional Workpiece Wash Gun ChipBlaster HV40 1,000 psi Through Spindle Coolant Rigid Tap Full build sheet available at request

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
