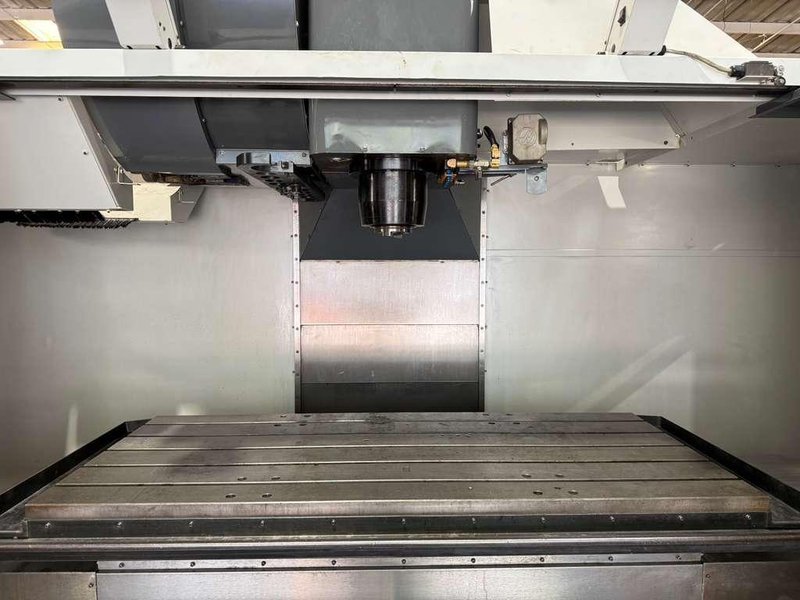

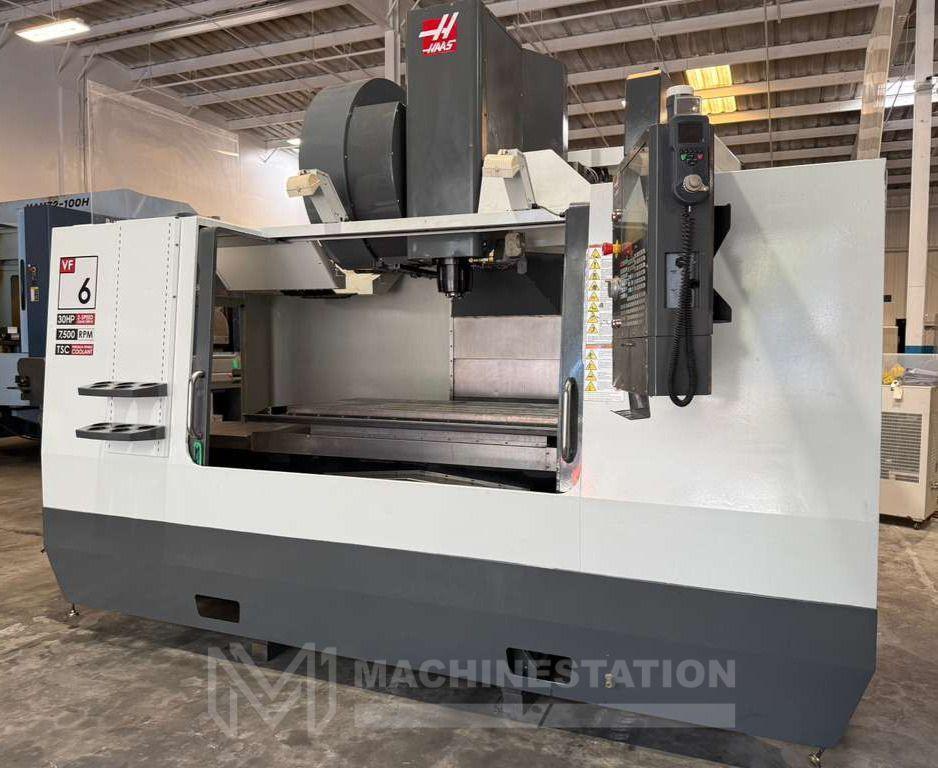

Haas VF-6/50 CNC Vertical Machining Center – 4th Axis Ready, 50 Taper Mill

Haas VF-6/50 CNC Vertical Machining Center – 4th Axis Ready, 50 Taper Mill

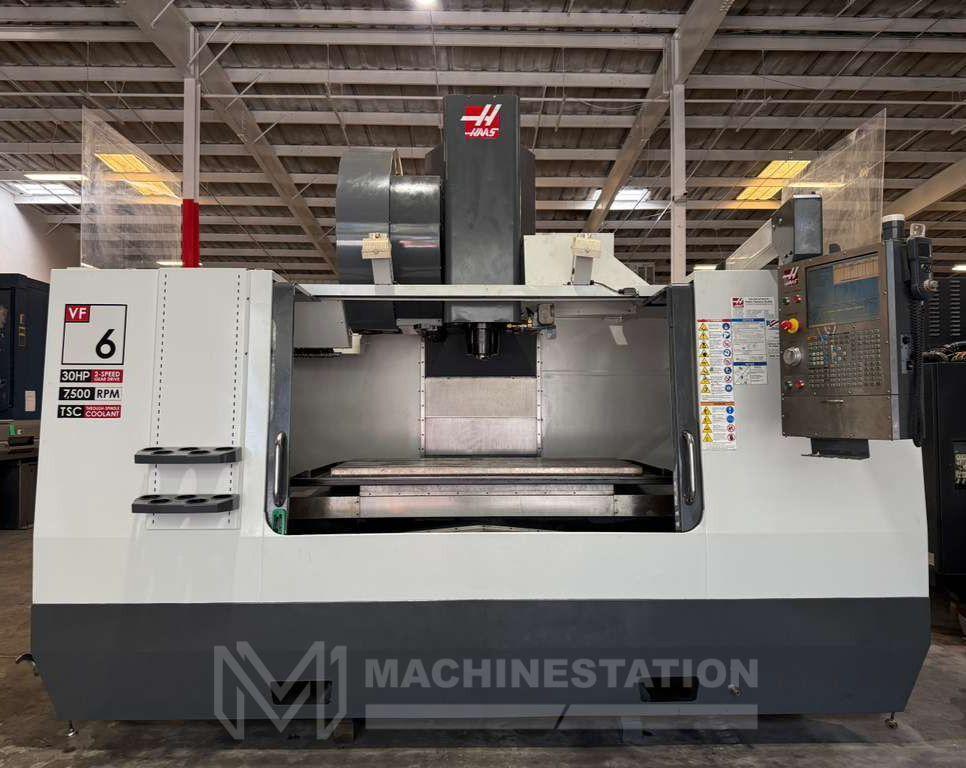

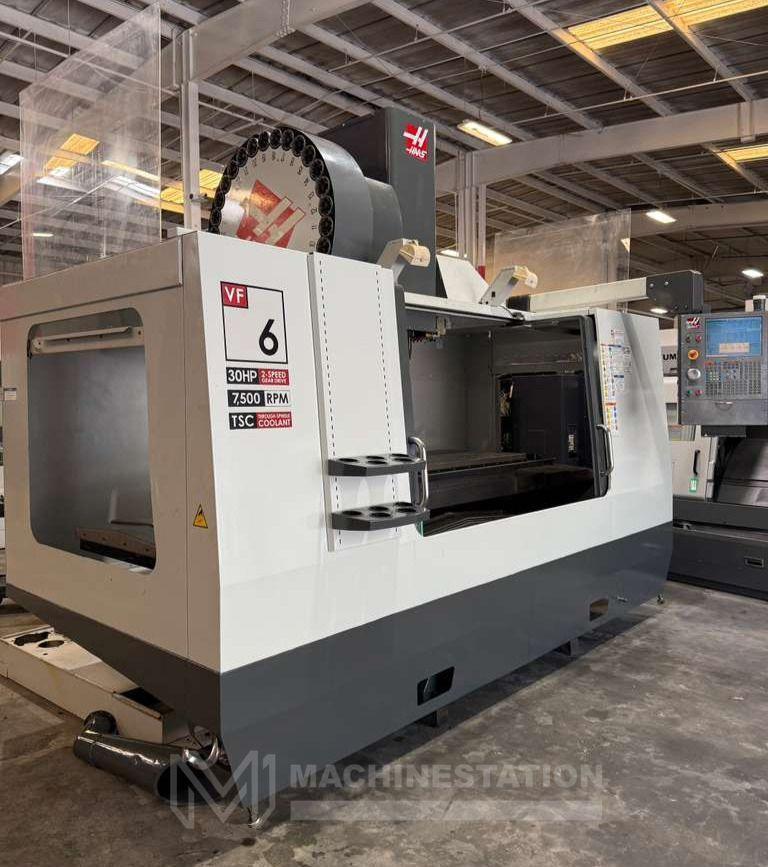

Name: Haas VF-6/50 CNC Vertical Machining Center – 4th Axis Ready, 50 Taper Mill
Brand: HAAS
SKU: 112919
Availability: InStock

Brand

HAAS

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Make:	HAAS
Model:	VF-6/50
Year:	2008
Condition:	Used – Good

Features:

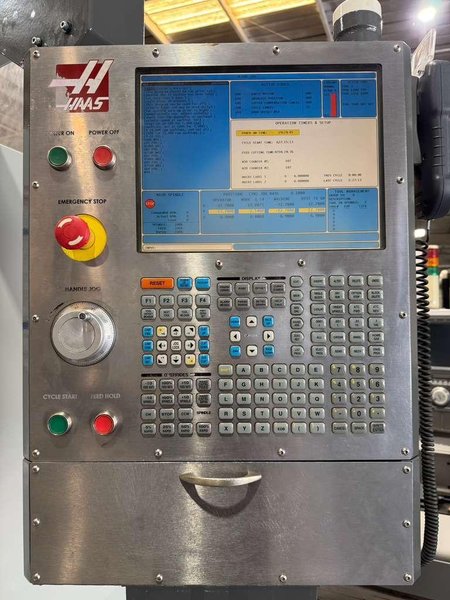

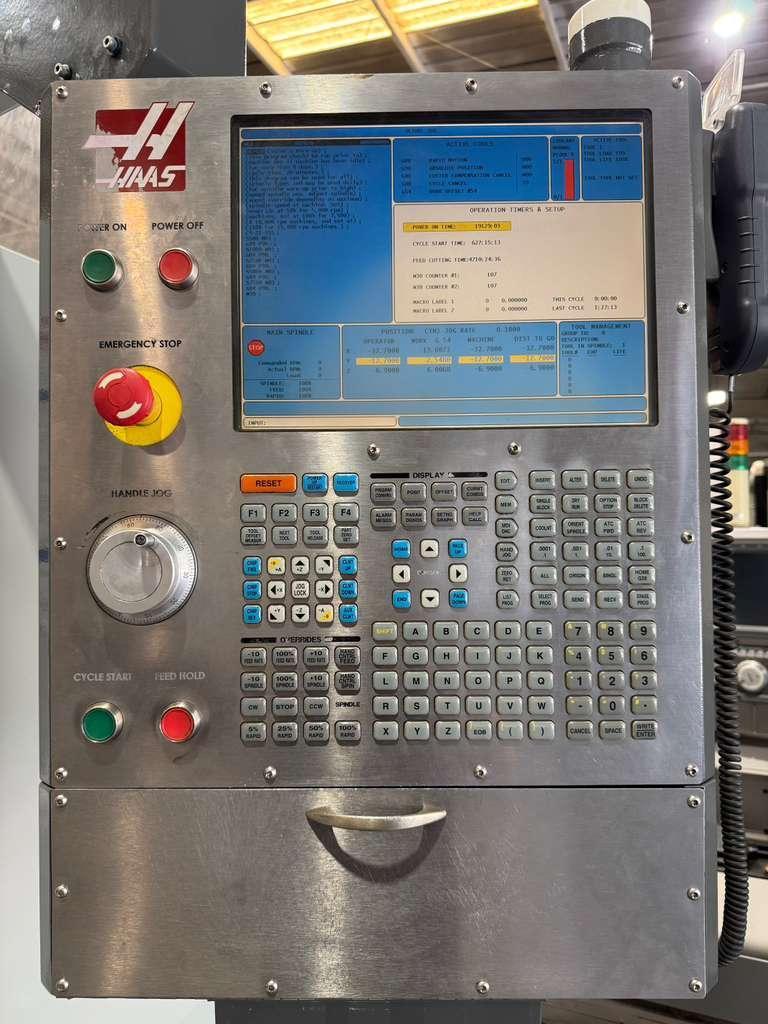

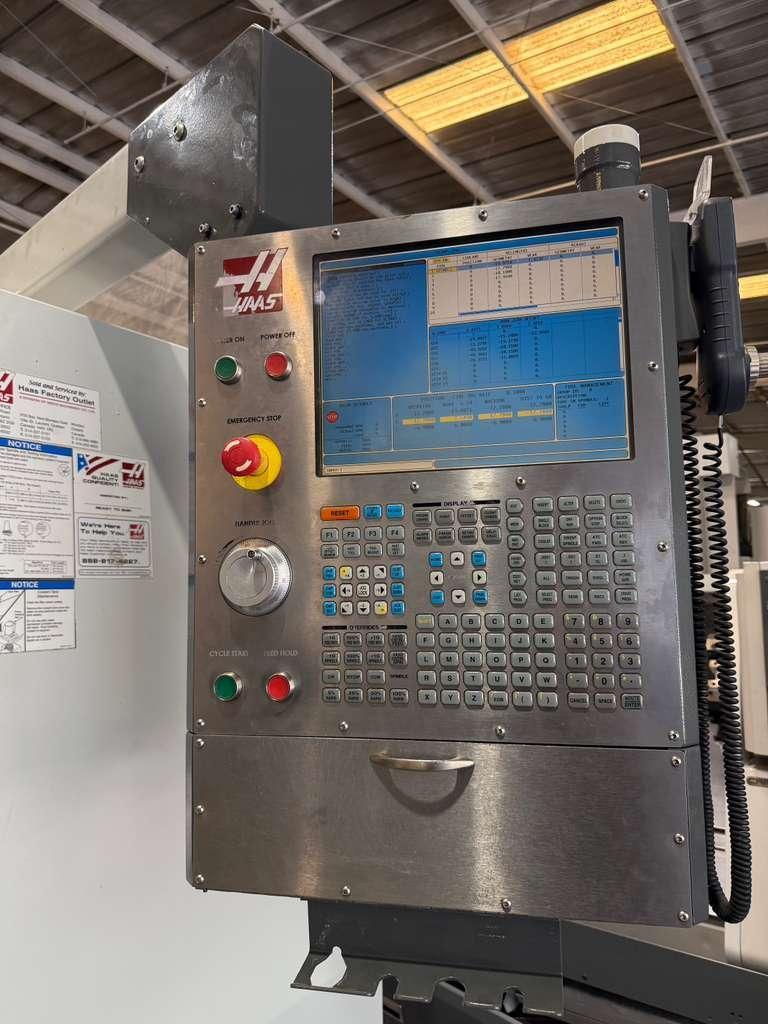

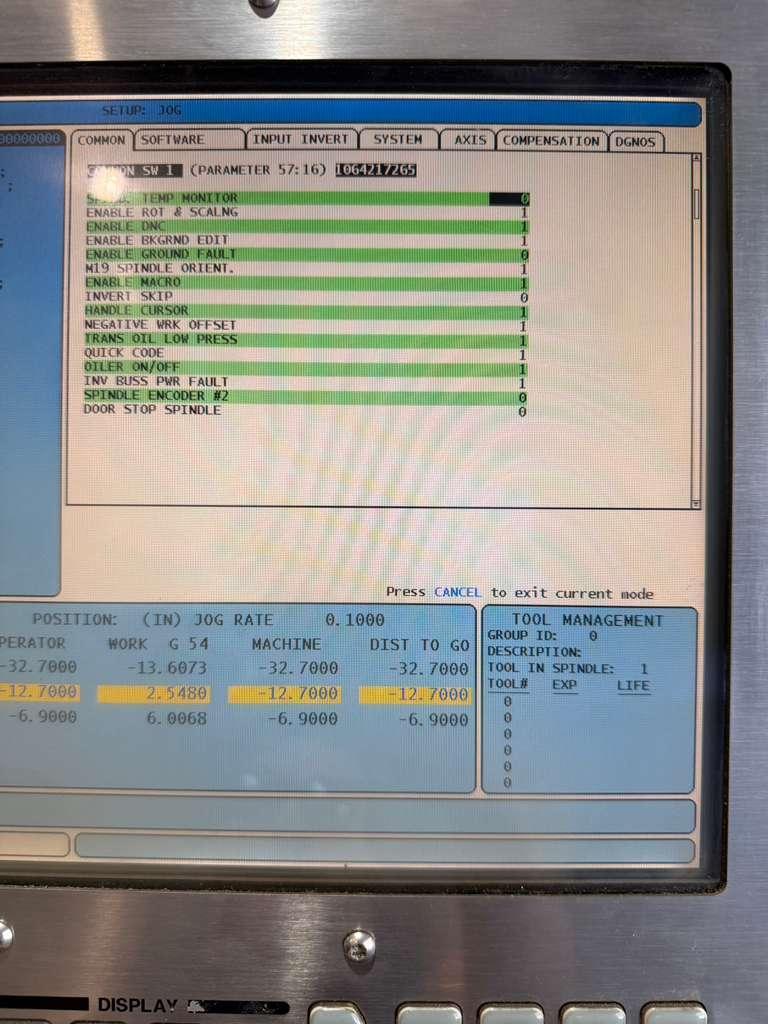

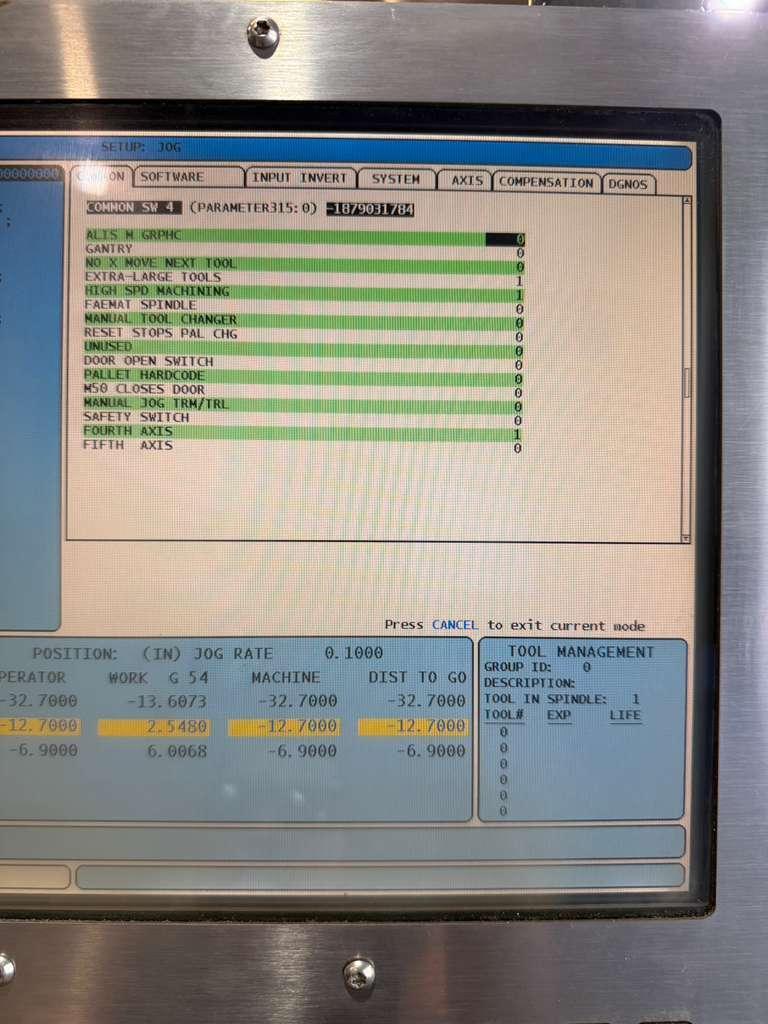

Haas CNC Control
4th Axis Wiring and Drive (Upgraded $3,795 value Included)
7500 RPM High Torque Spindle
30 HP 2 Speed Gear Drive
Through Spindle Coolant (Upgraded $7,495 value Included)
30 Station Automatic Tool Changer
High Speed Machining (Upgraded $3,395 value Included)
MPG Hand Wheel Control
Spindle Orientation
Probing System Ready (Needed Reciever & Tool Probe)

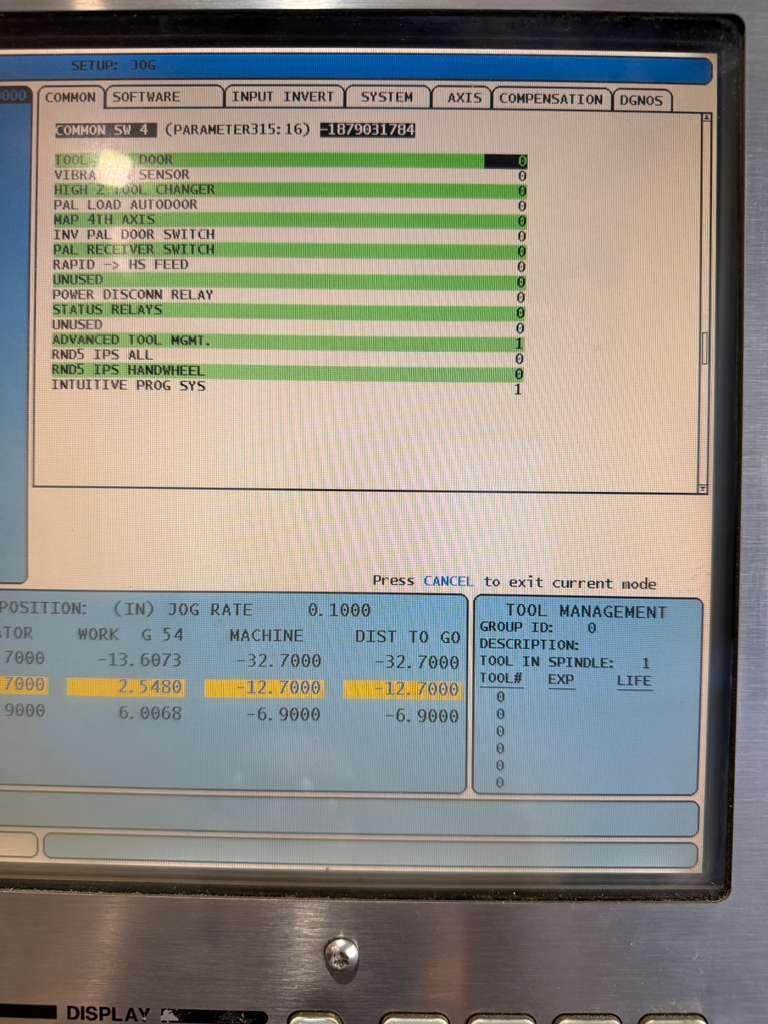

Advance Tool Management
Rotation and Scaling
Macros
Quick Code
Enable DNC

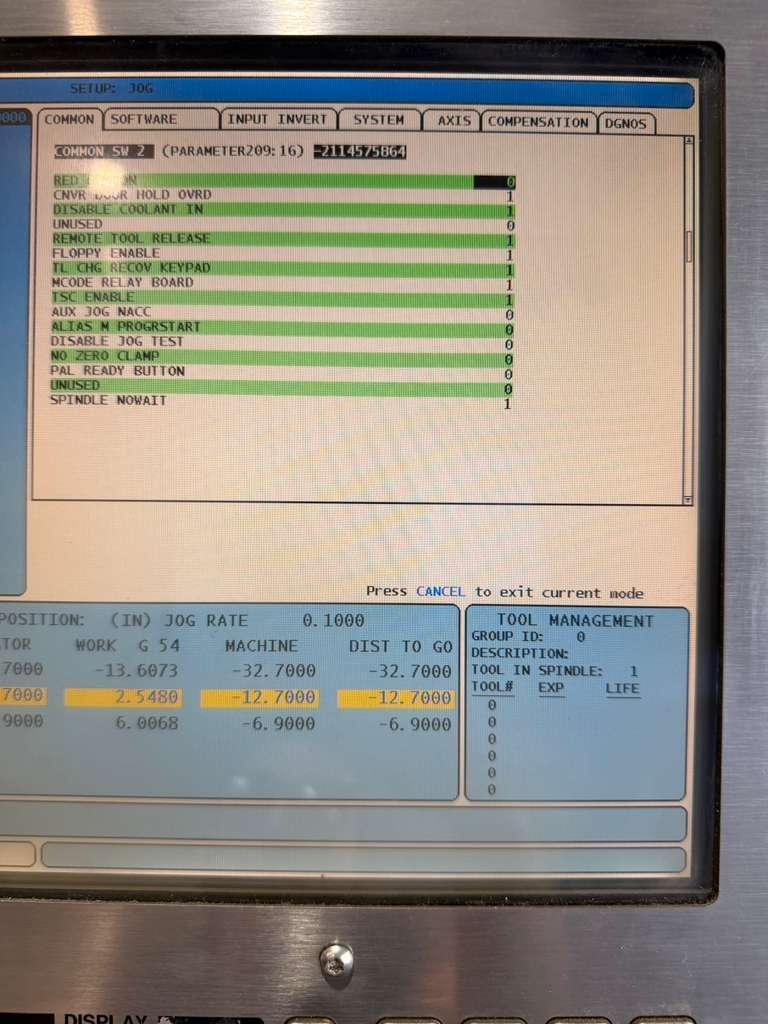

Floppy Enable
Extended Memory
Extra Large Tools
Programmable Coolant
Coolant System
Chip Auger

Travels:
X-Axis: 64″
Y-Axis: 32″
Z-Axis: 30″
Rapid Traverse Rates: 600 Inch Per Minute
Cutting Feed Rates: 500 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 5″ – 35″

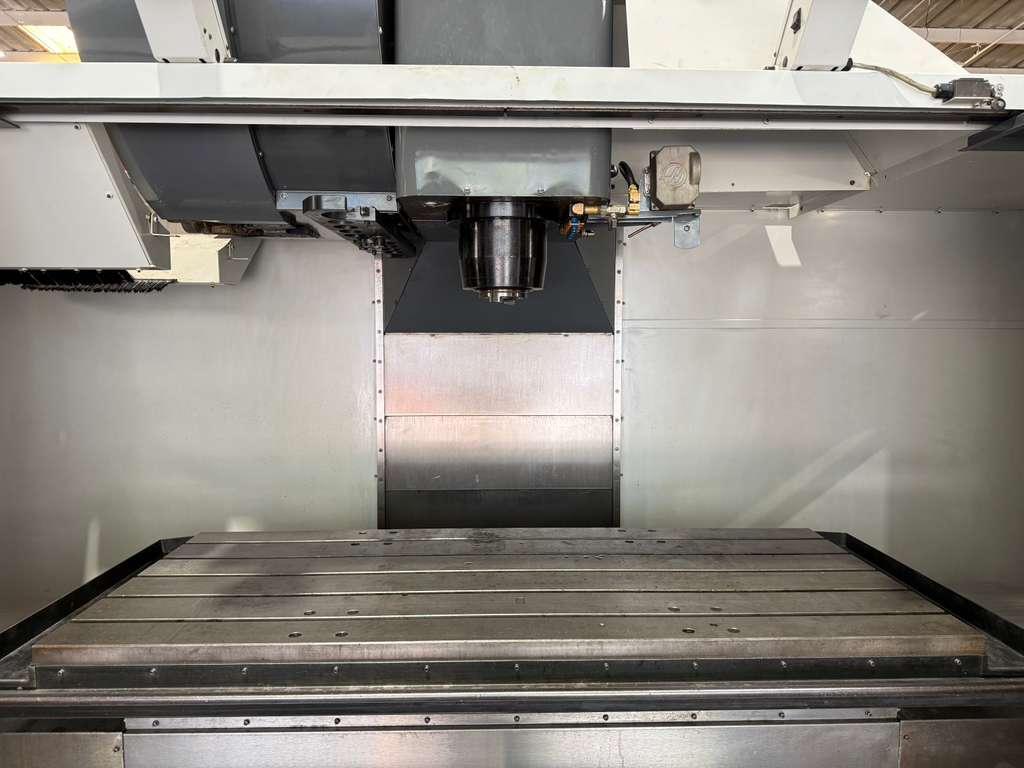

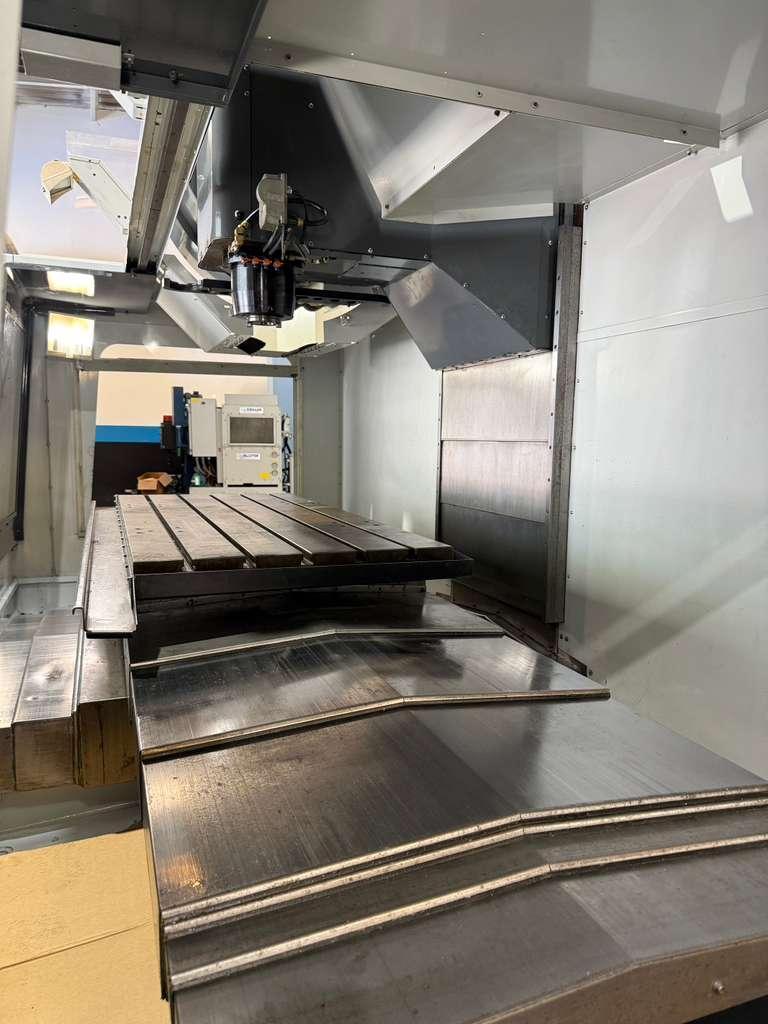

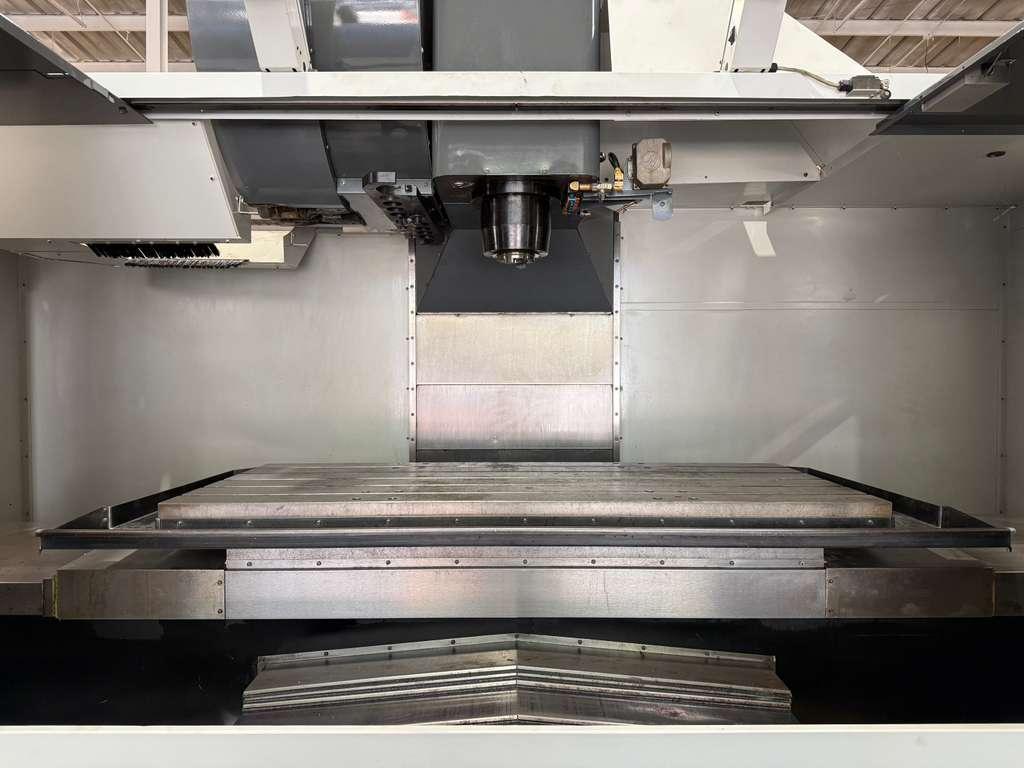

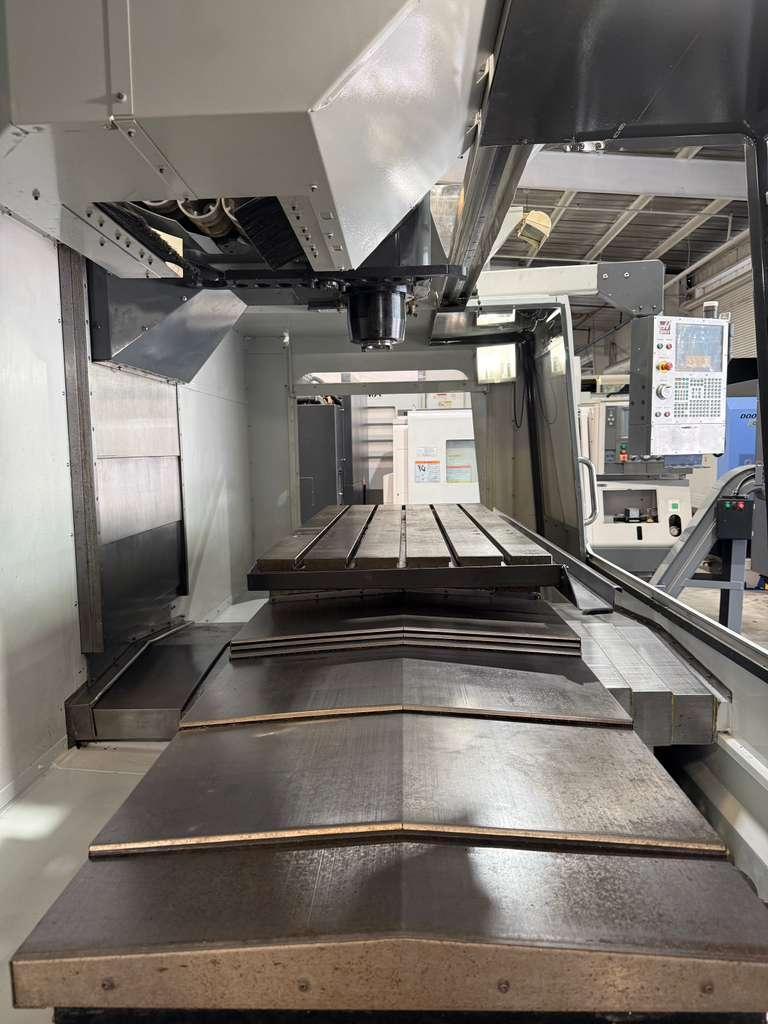

Table:
Length: 64″
Width: 28″
Number of Std T-Slots: 5
T-Slot Width: 5/8″
Max Weight on Table: 4000 lbs

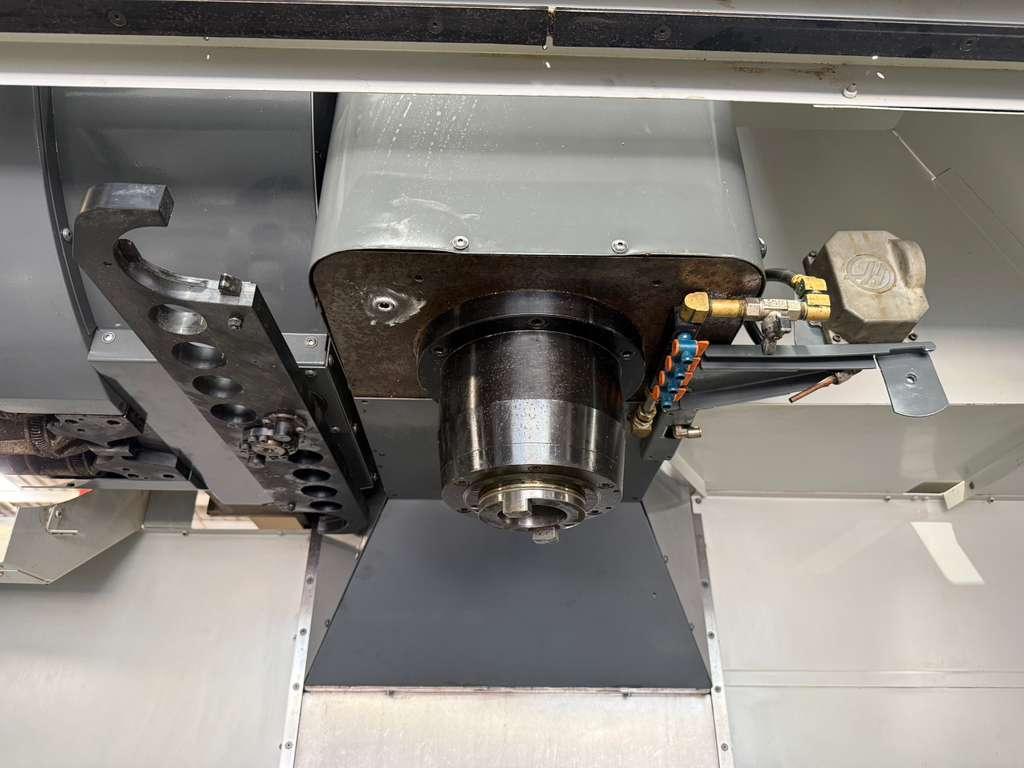

Spindle:
Taper Size: CAT-50
Speed Range: 7500 RPM
Spindle Power: 30 HP
Vector Drive Max Torque: 340 ft-lb @ 700 RPM

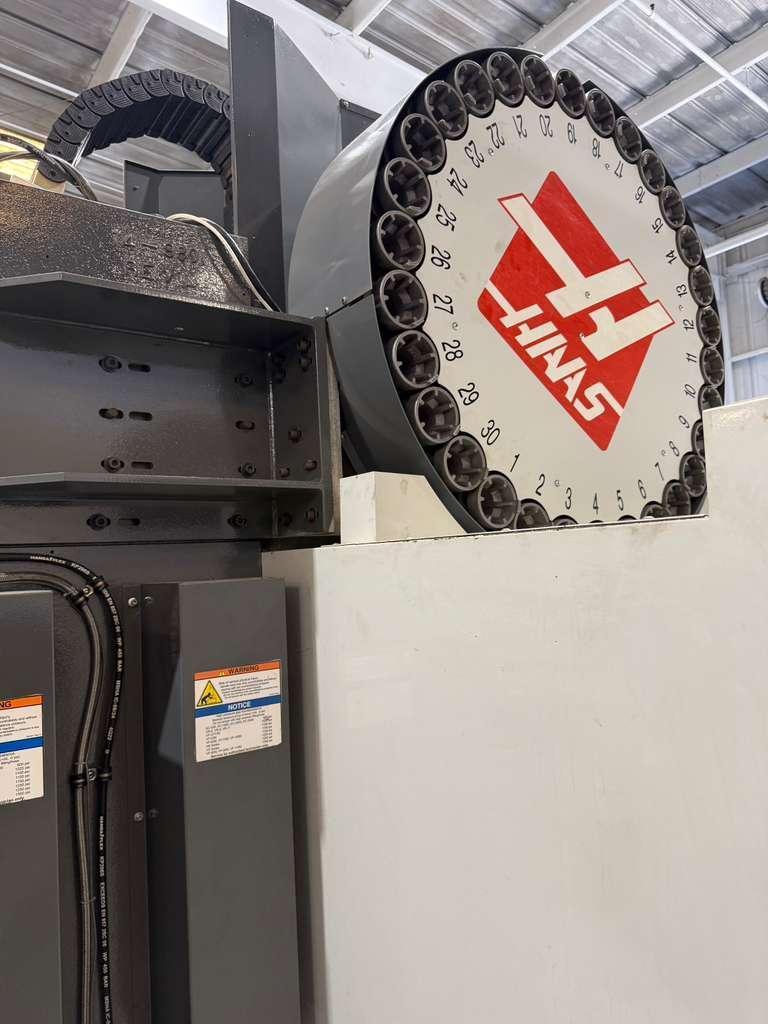

Automatic Tool Changer:
Capacity: 30 Station Side Mounted
Max Tool Weight: 30 lbs
Max Tool Diameter (Full): 4″
Max Tool Diameter (adjacent empty): 10″
Max Tool Length: 16″
Tool Changing Time: 4.2 Seconds
