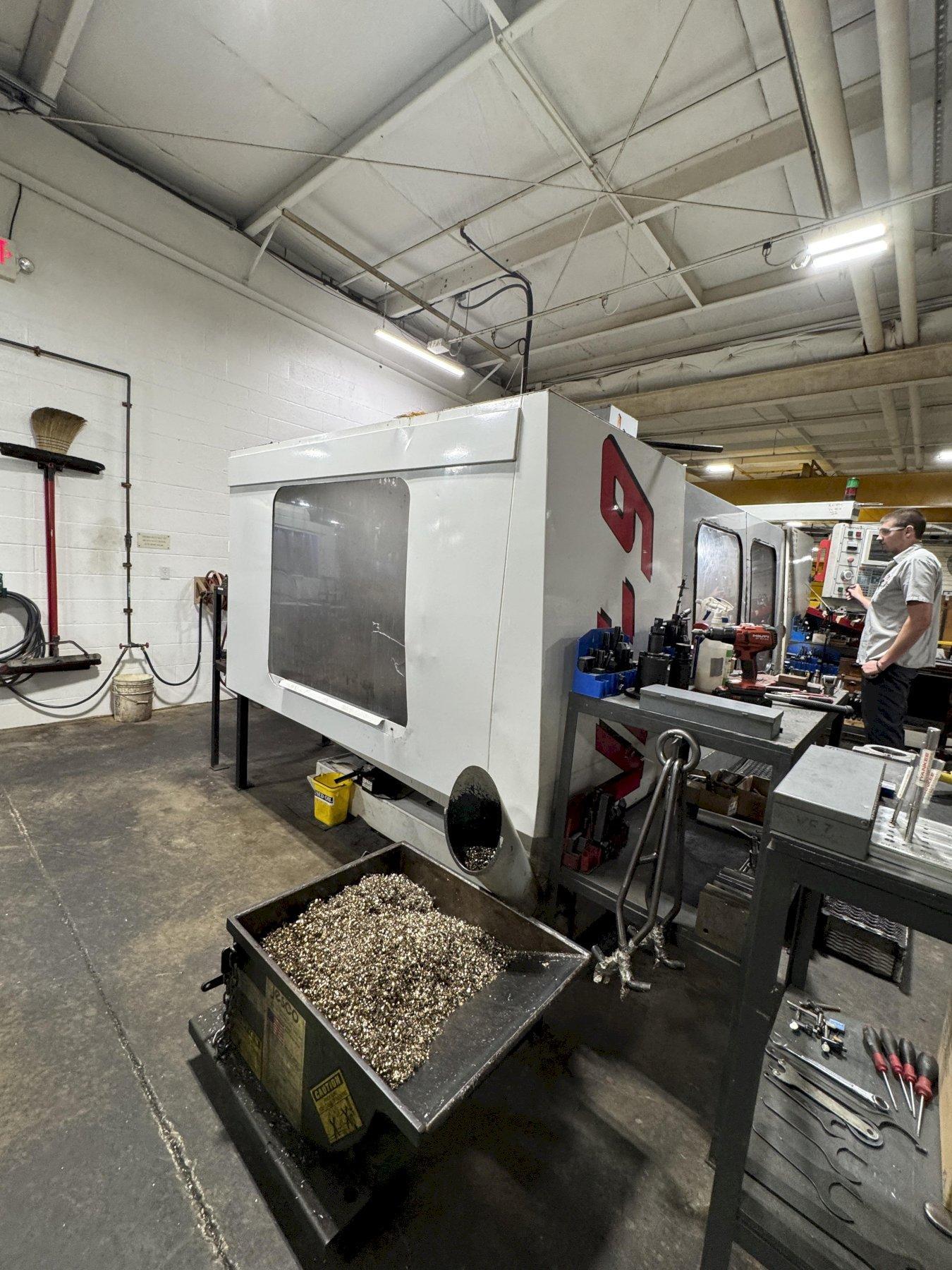

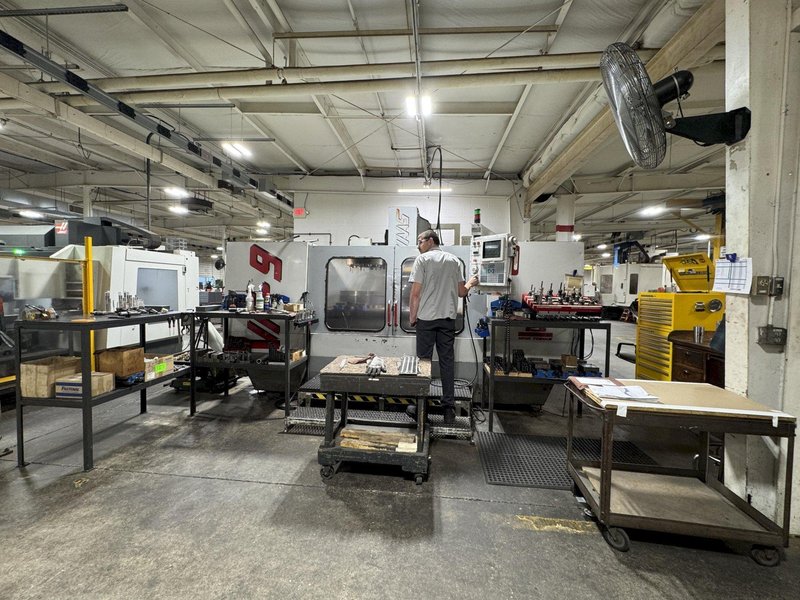

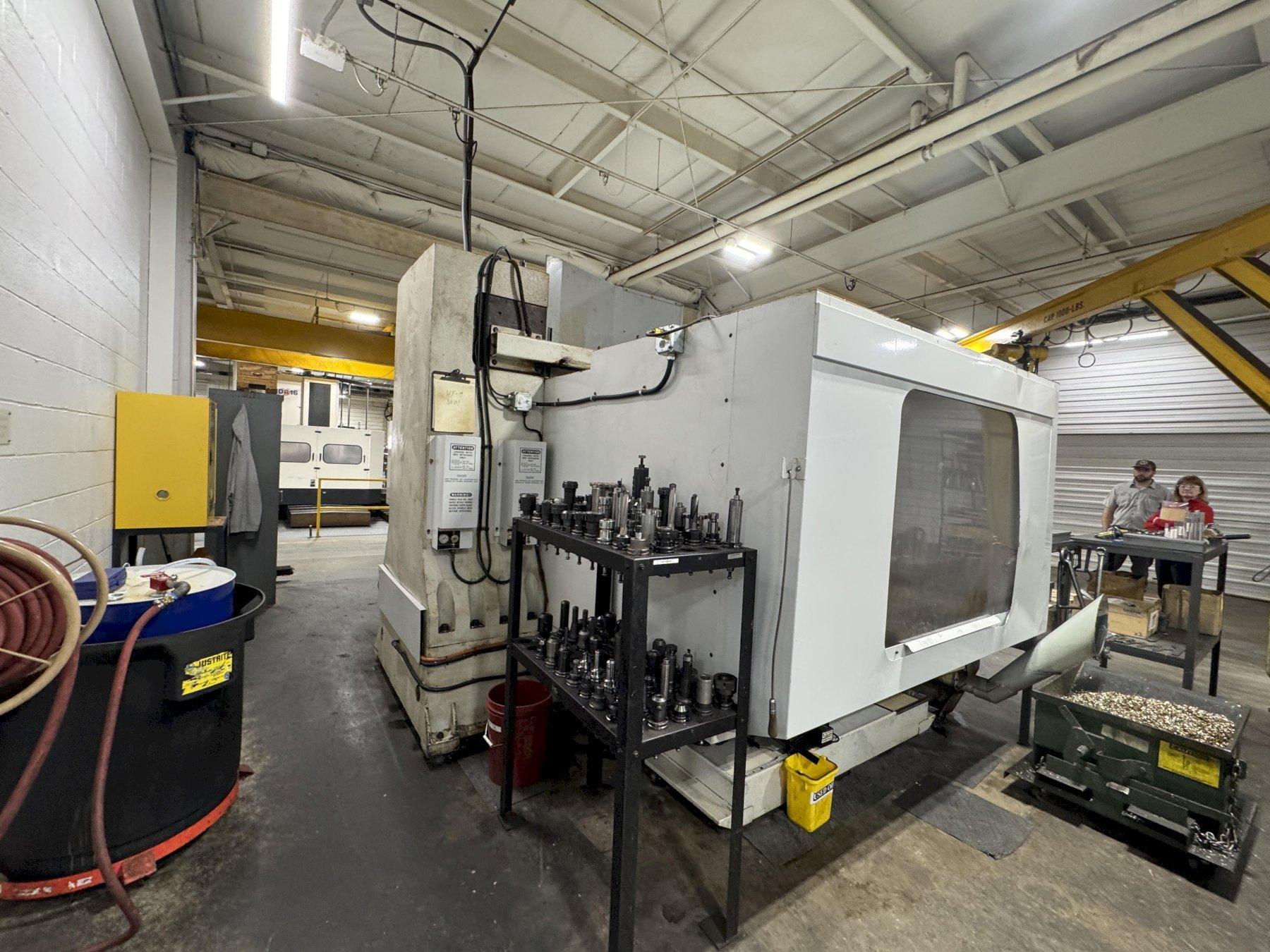

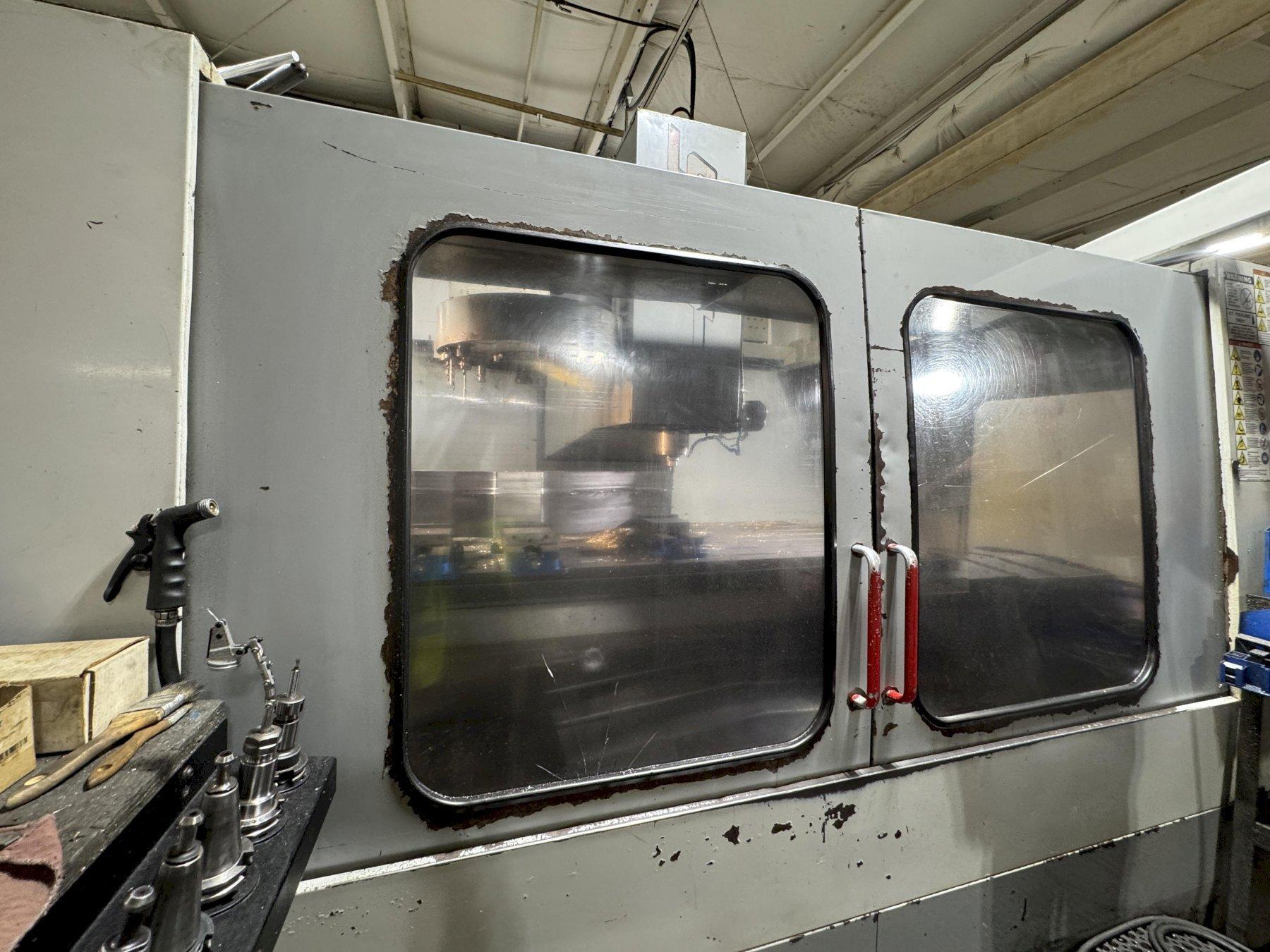

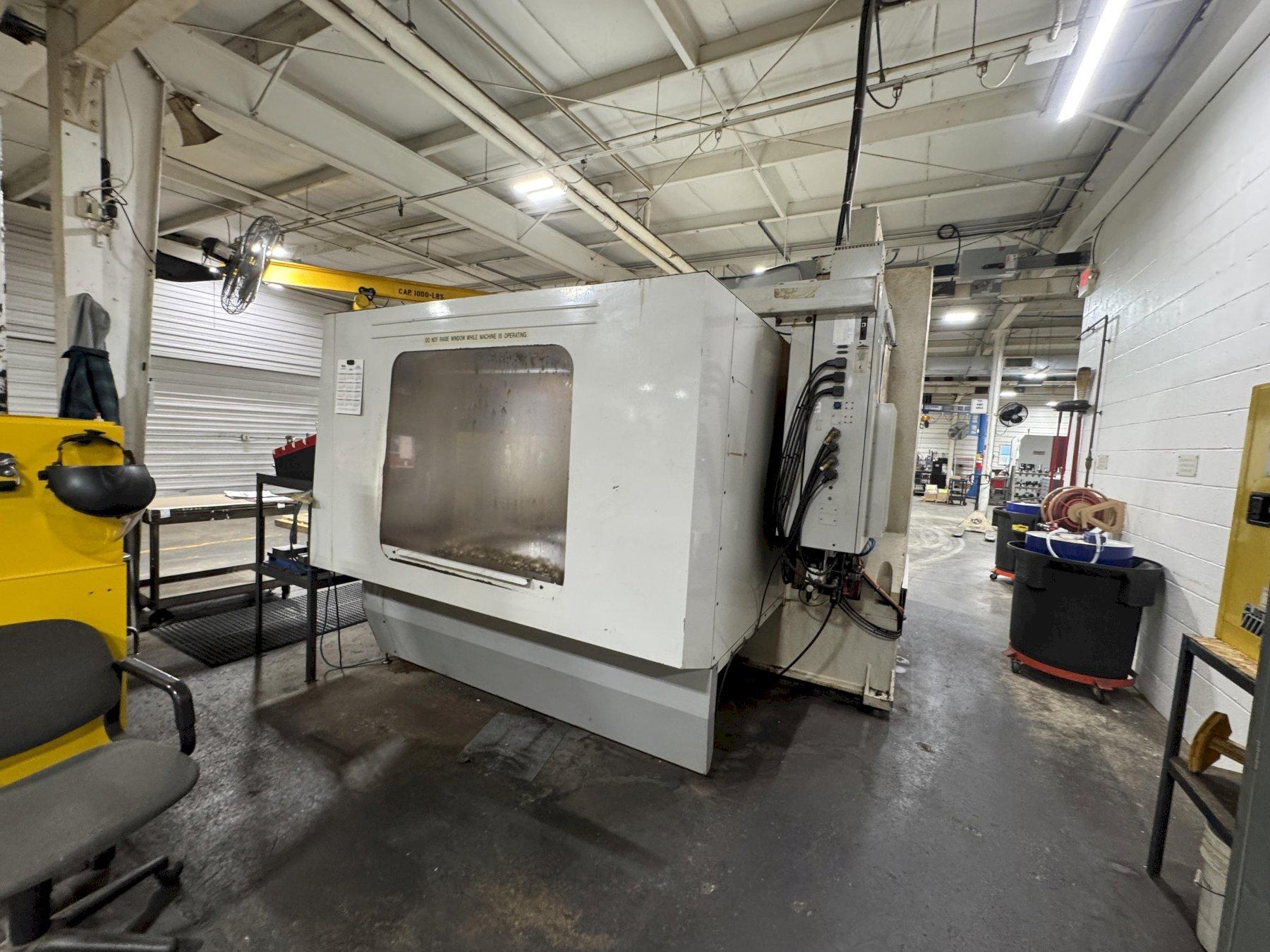

HAAS VF-9 VERTICAL MACHINING CENTER: STOCK #81122

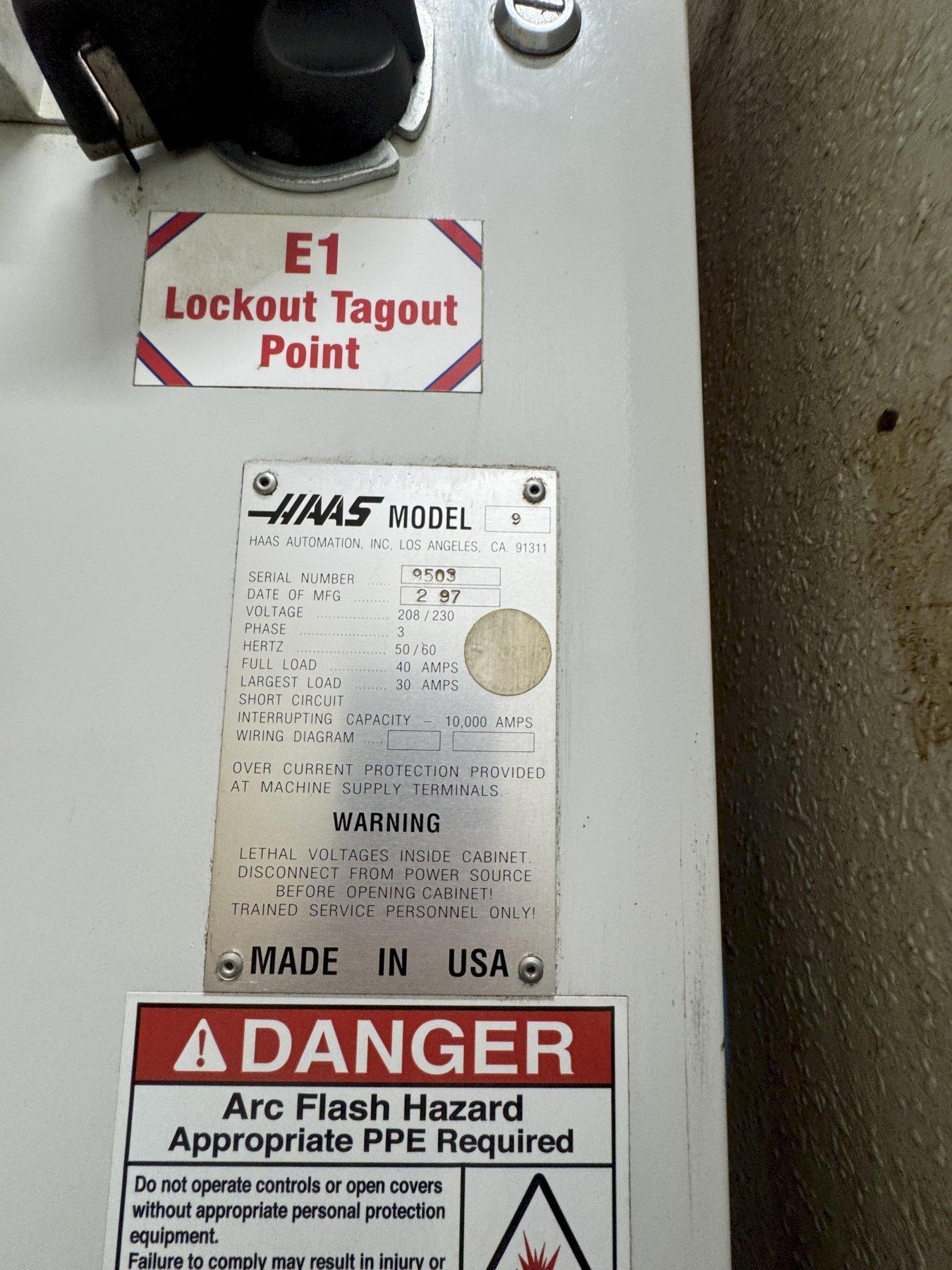

SERIAL ............................ 9503

MODEL ............................. VF-9

YEAR NEW .......................... 2/1997

TABLE AREA ........................ 84" X 36"

VARIABLE SPINDLE SPEED ............ 7500 RPM

X TRAVEL .......................... 84"

Y TRAVEL .......................... 40"

Z TRAVEL .......................... 30"

FEEDS ............................. 0.003 TO 0.15 MM

SPINDLE NOSE TO TABLE ............. 4" MINIMUM TO 34" MAXIMUM

SPINDLE TAPER ..................... NMTB 40

TOOL-TO-TOOL ...................... 2.8 SECONDS

CHIP-TO-CHIP ...................... 4.7 SECONDS

TABLE CAPACITY .................... 4000 LB

TOOL CHANGER ...................... 24

RS-232 PORT ....................... YES

PROGRAMMABLE COOLANT .............. YES

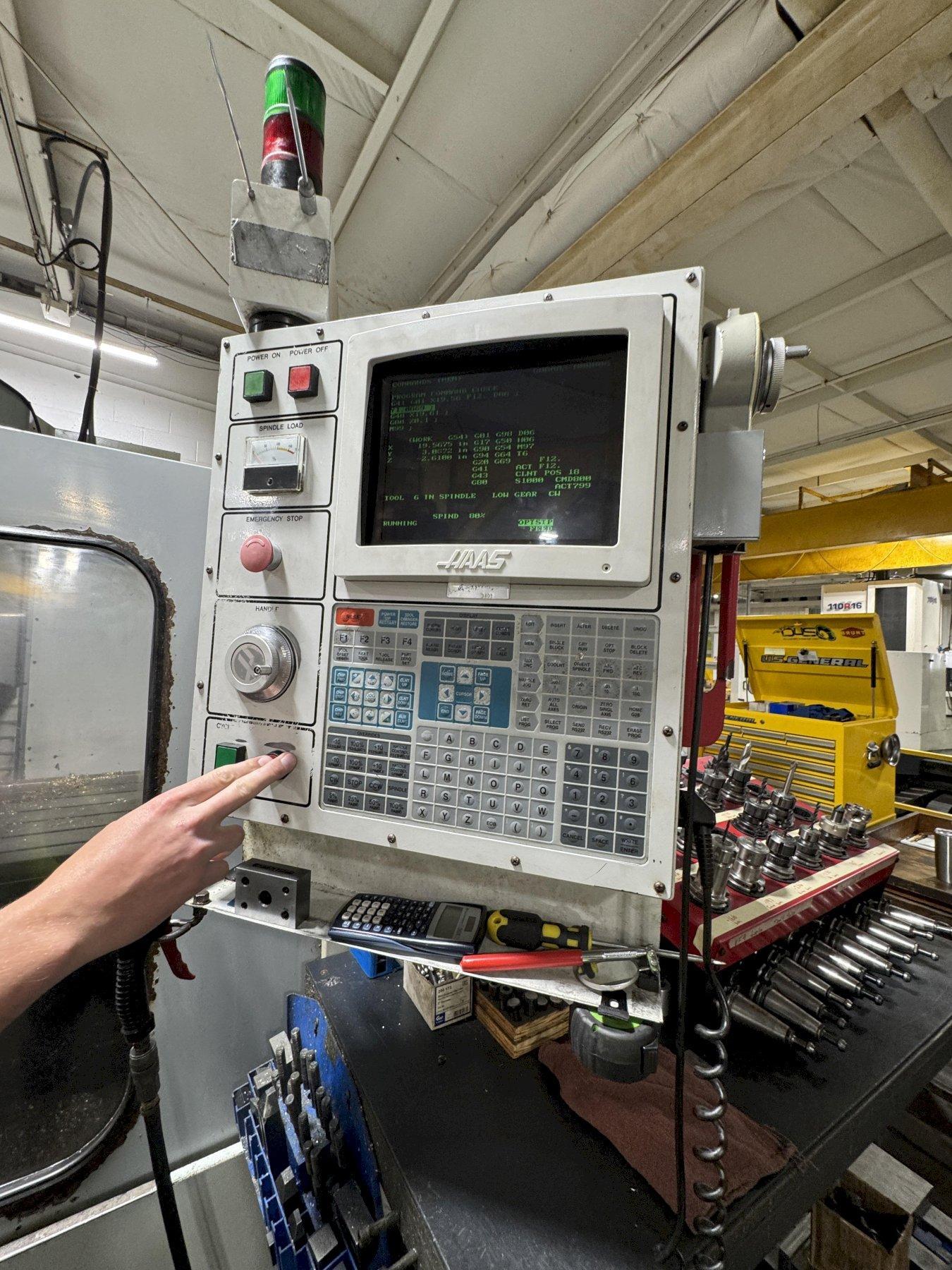

TOUCHSCREEN CONTROLS .............. YES

MOTOR HORSEPOWER .................. 22
