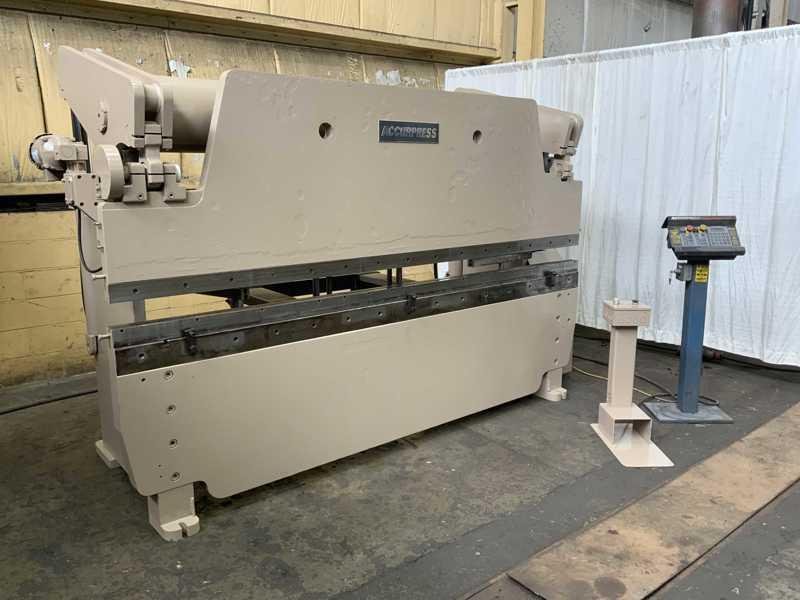

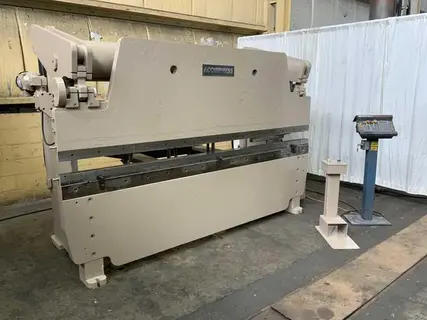

100 Ton X 10’ CNC Hydraulic Press Brake with ETS 200 Pedestal Mounted Controller for Dual Palm Button or Foot Pedal Operation, Full Length Die Rail and Flush Floor Mount Design.

GENERAL SPECIFICATIONS
Capacity:                        100 Tons X 10’
Distance Between Housings:            8’ 6”
Ram Stroke:                        16”
Closed Height:                    8”
Throat Depth:                    10”
Fast Approach Speed:                115 IPM
Slow Bend Speed:                    24 IPM
Fast Return Speed:                    230 IPM
Motor:                            10
Electrical:                        230V / 3 Ph
Approx Shipping Weight:                15,000 Lbs
Approx Shipping Dimensions:            136” X 52” X 84”


INCLUDES: ETS 200 Pedestal Mounted Controller for Dual Palm Button or Foot Pedal Operation, Full Length Die Rail and Flush Floor Mount Design.

***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
