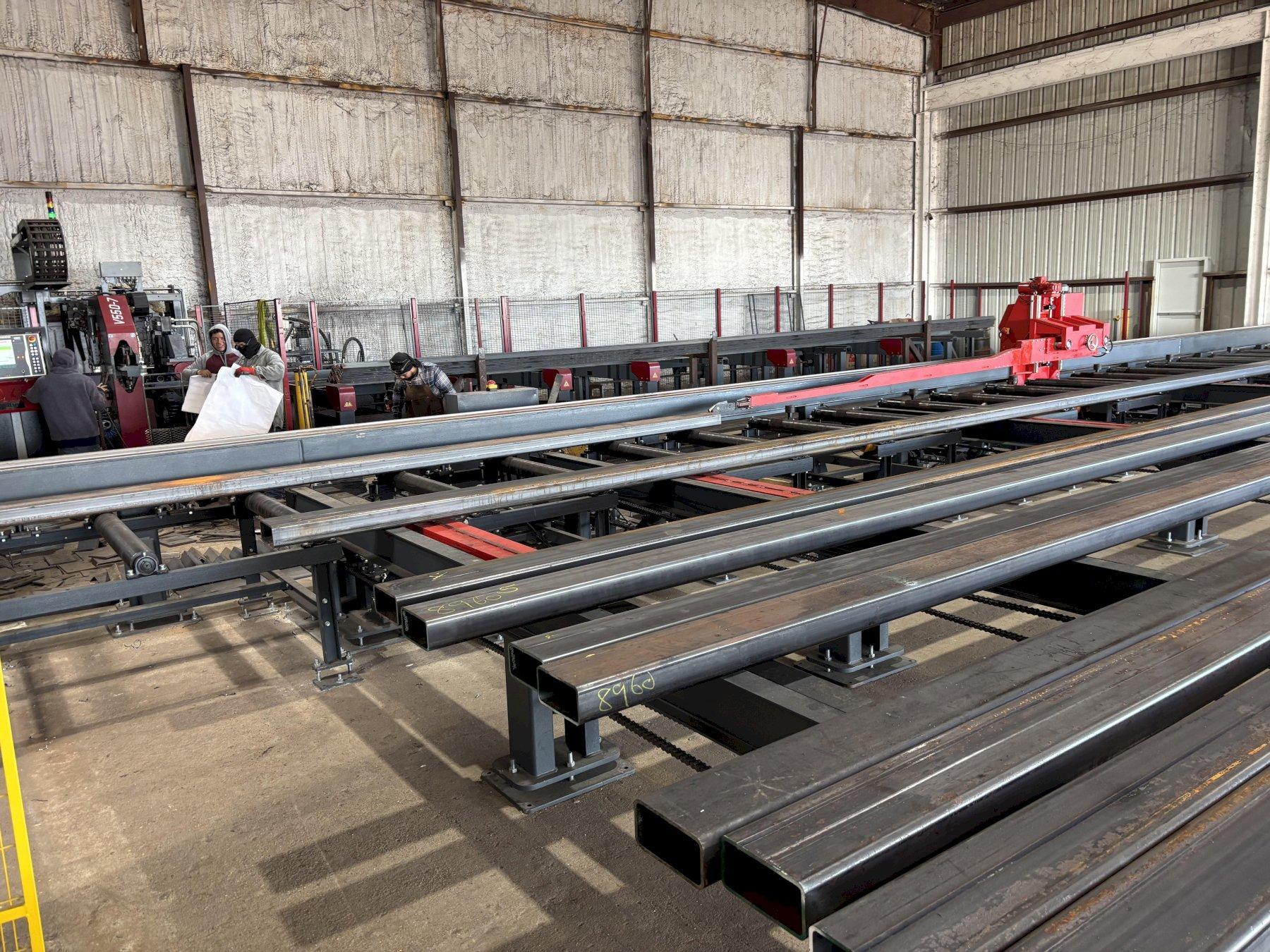

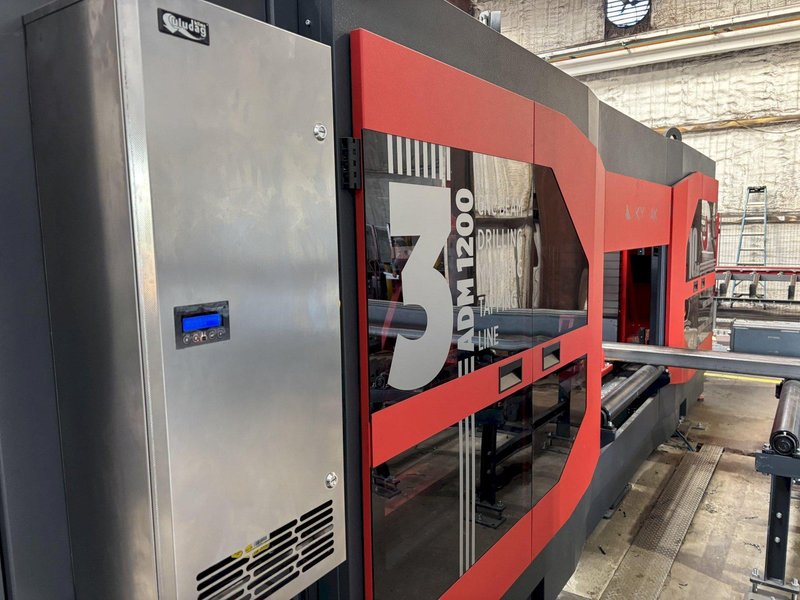

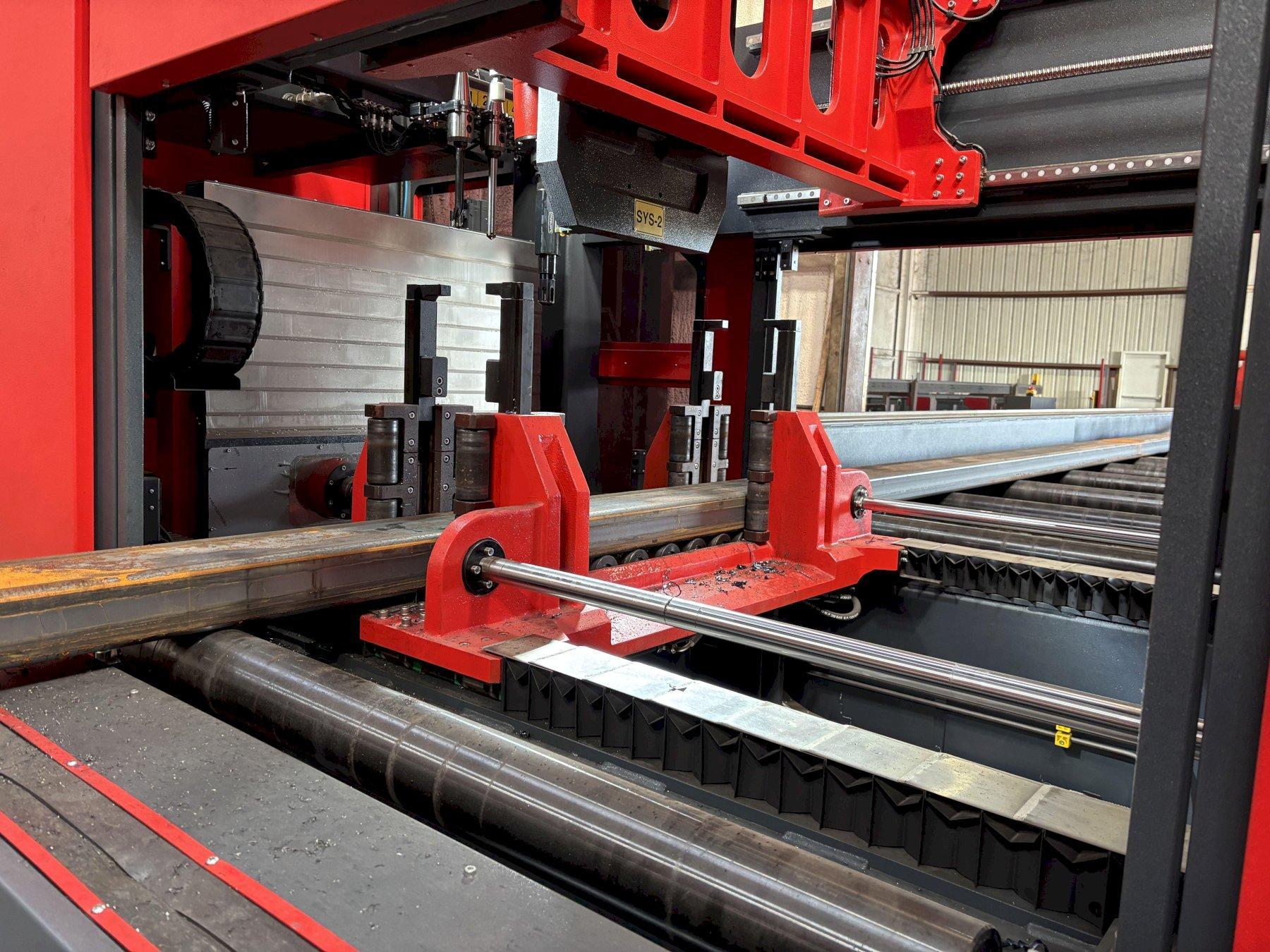

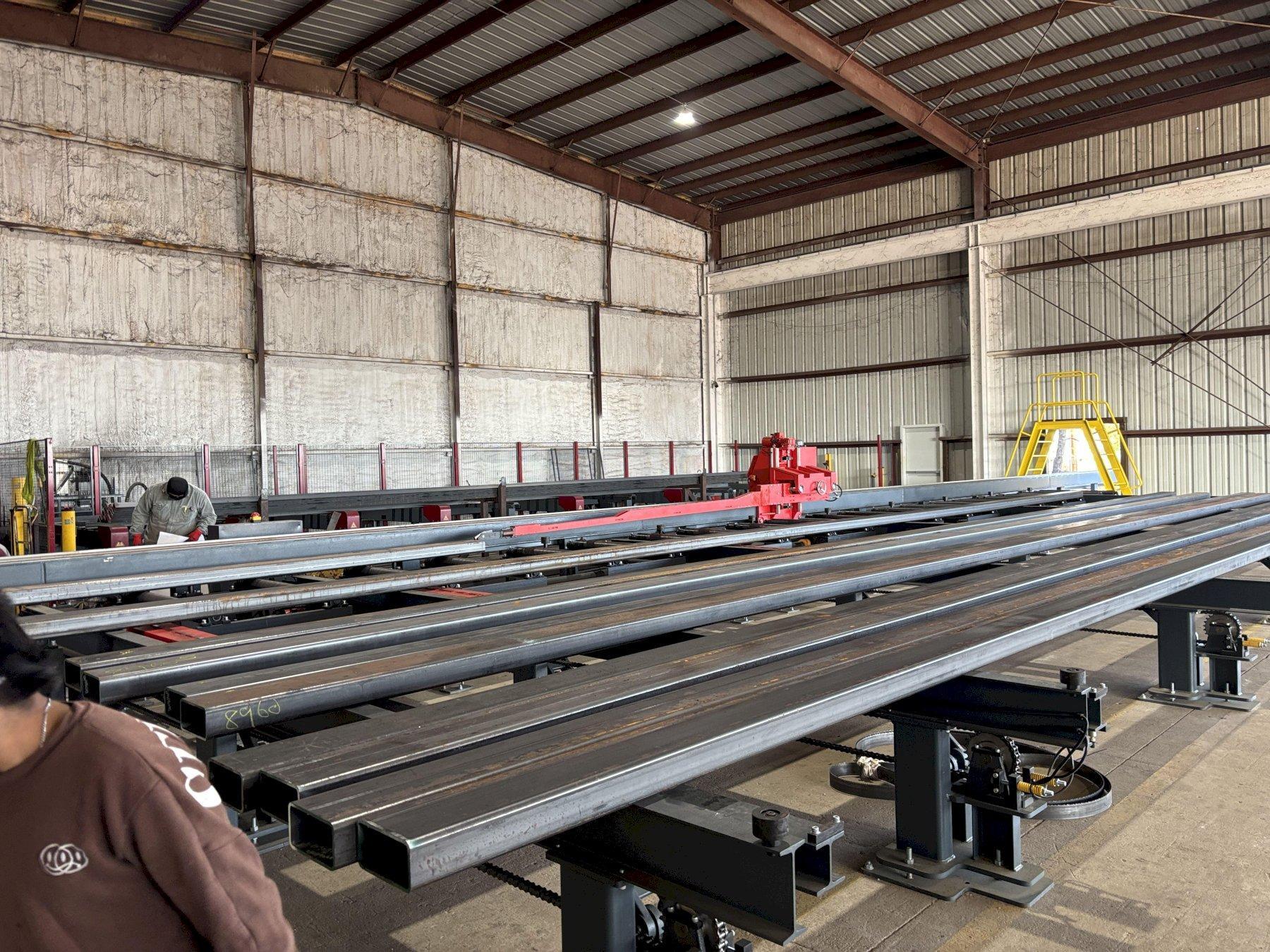

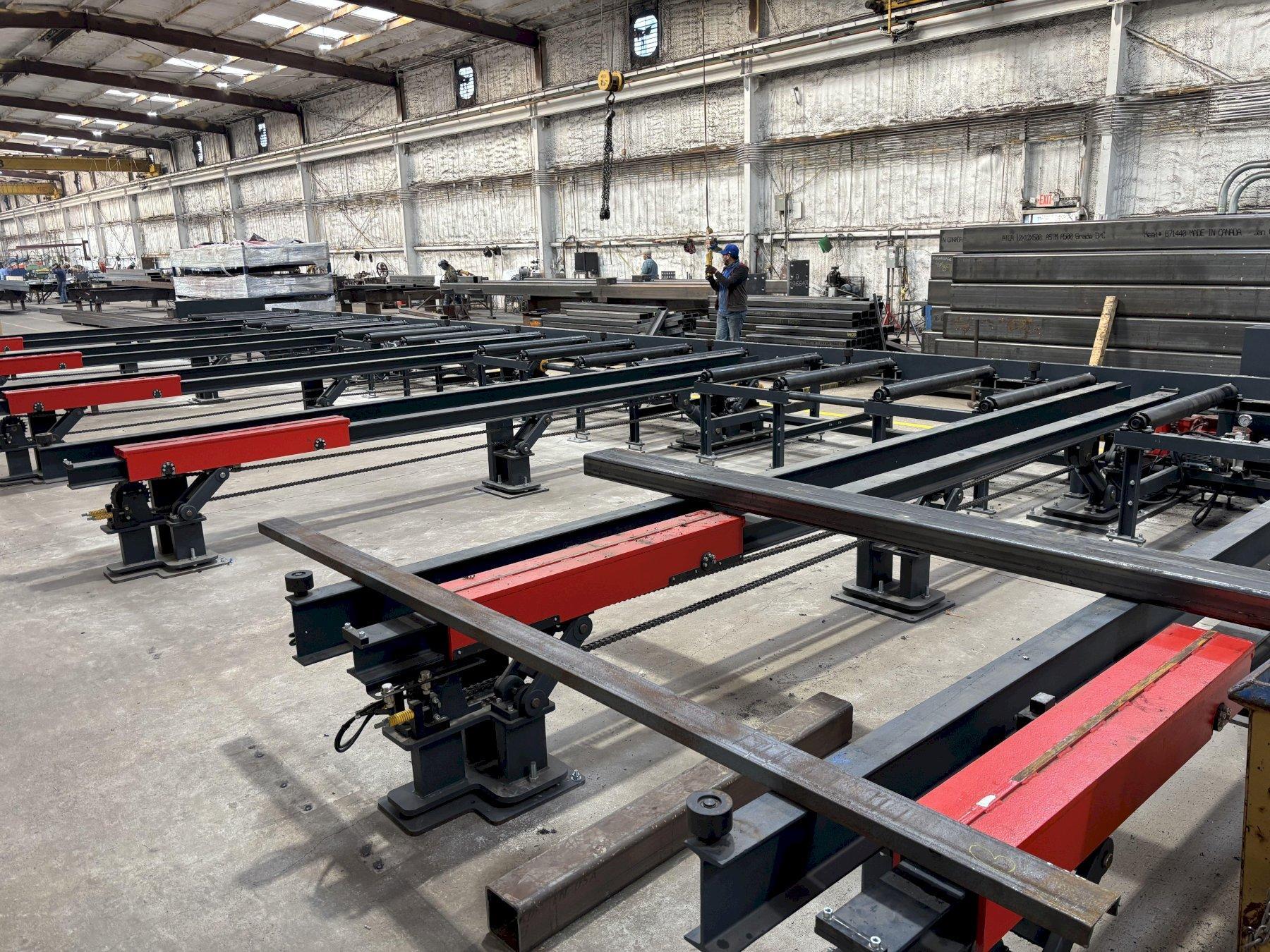

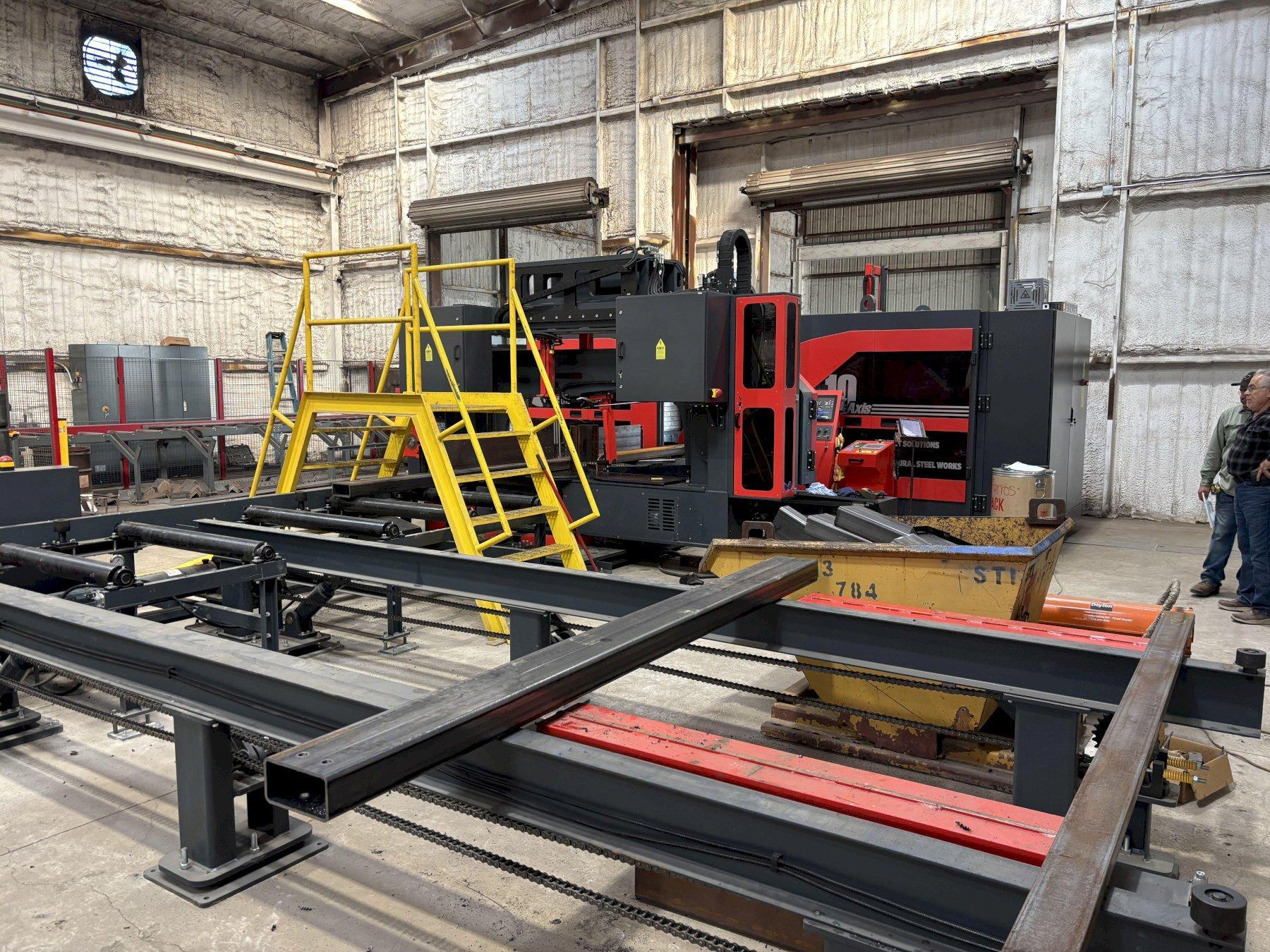

48” X 20” 3 - Spindle Beam Drill Line with Siemens Touch - Screen Control, 60’ Infeed & Outfeed, Transfer Tables, Underscribe Scribing Station, Automatic Tool & Material Measurement, Chip Conveyor, Oil Cooler, and Akyapak AST 1300 Horizontal Bandsaw

GENERAL SPECIFICATIONS

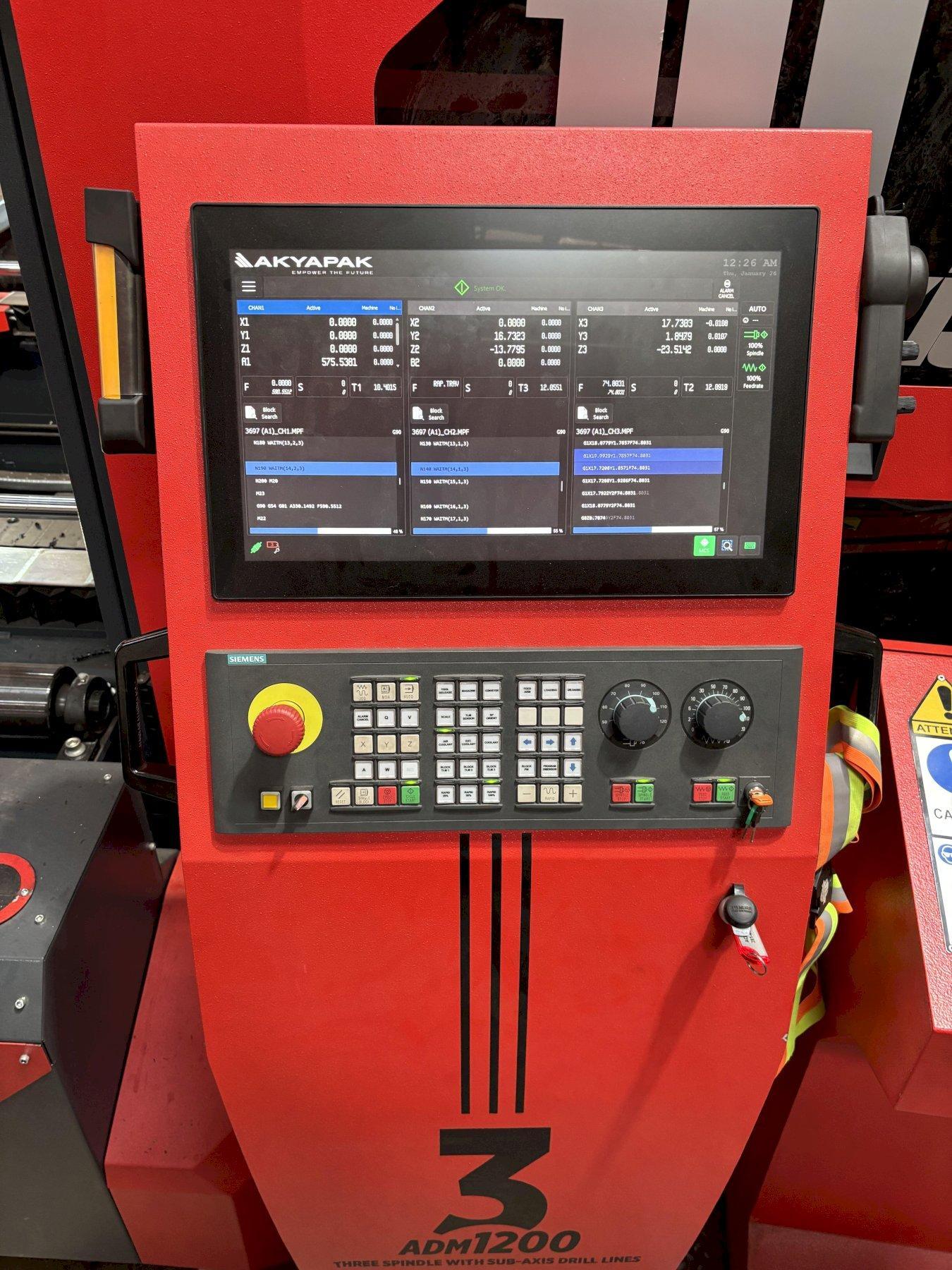

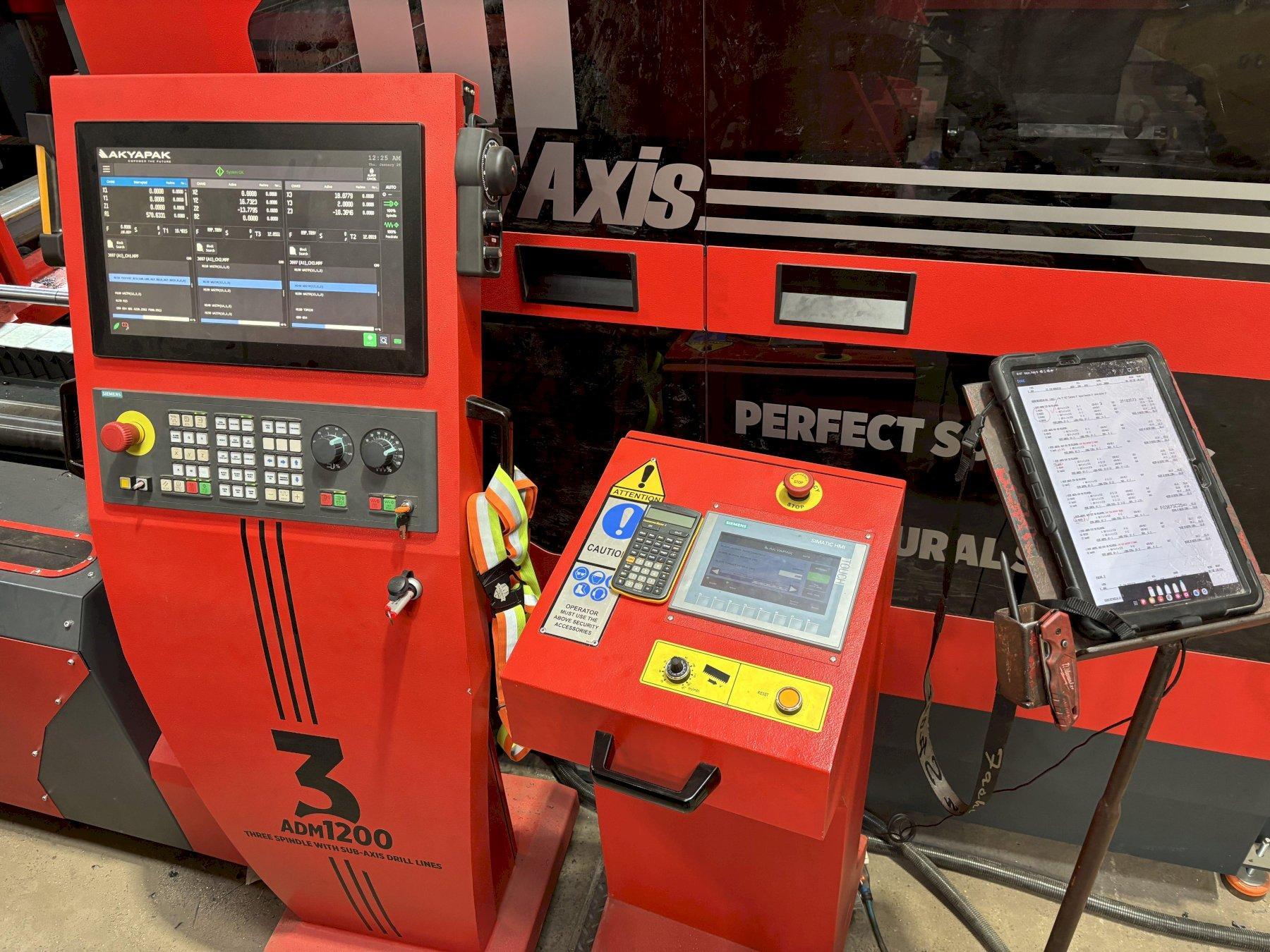

Control:                         Siemens
Number of Vertical Drilling Units:            1
Number of Horizontal Drilling Units:        2
Drilling Diameters:                    ⅜”- 1½”
Spindle Speed:                    50 - 3,000 RPM
Spindle Motor Power:                30 HP 103 Lb.ft
Automatic Tool Changing Unit:            1 ATC per Spindle / 4-Tools Per ATC
Tool Cooling System:                MQL
Beam Width:                        48”
Beam Height:                    20”
Tool Holder:                        BT 40 (Internal Coolant Hole)

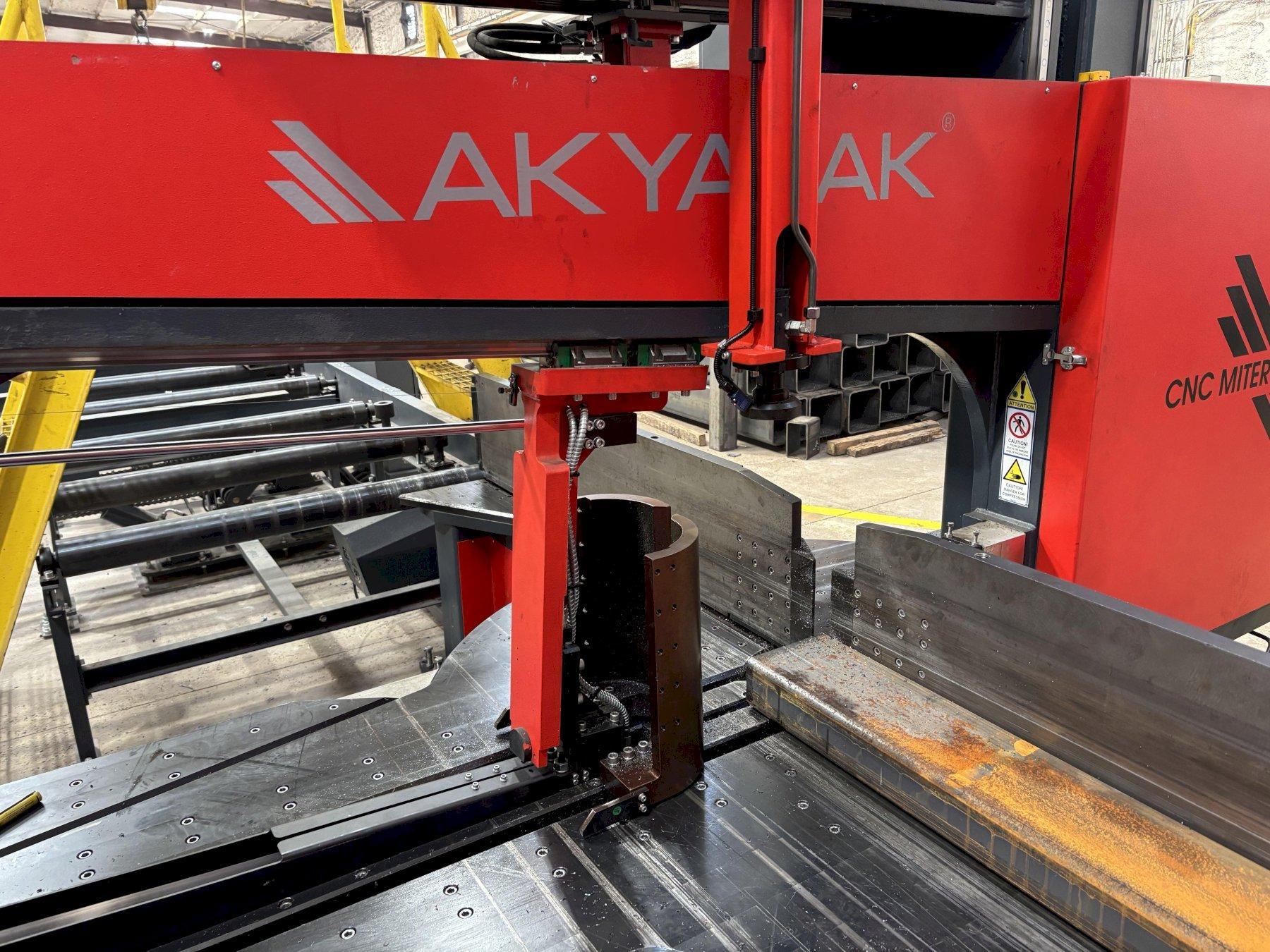

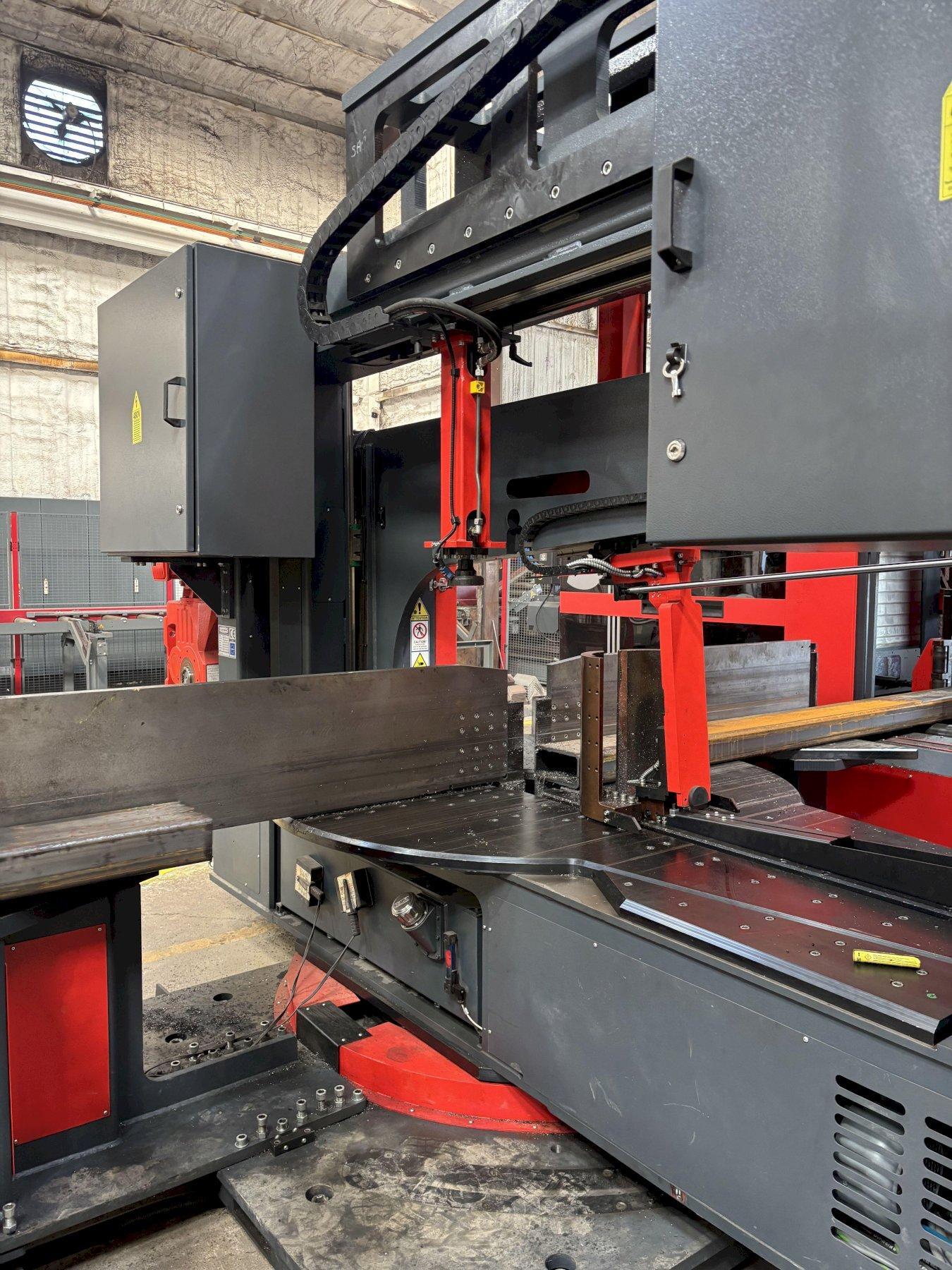

Sawing Specifications
Main Saw Motor:                    20 HP
Mitering Servo Motor:                2.0 HP
Chip Brush Motor:                    0.16 HP
Hydraulic Pump Motor:                7.4 HP
Blade Length:                    32.8’
Cutting Speed:                    65 - 328’ / Min
Working Height:                    31.5”
Mitering Angle:                    +60° / -60°
Sawing Capacity Max:                51” X 24”
Sawing Capacity Min:                2.56” X 1.77”


INCLUDES: Siemens Touch - Screen Control, 60’ Infeed & Outfeed, Transfer Tables, Underscribe Scribing Station, Automatic Tool & Material Measurement, Chip Conveyor, Oil Cooler, and Akyapak AST 1300 Horizontal Bandsaw
