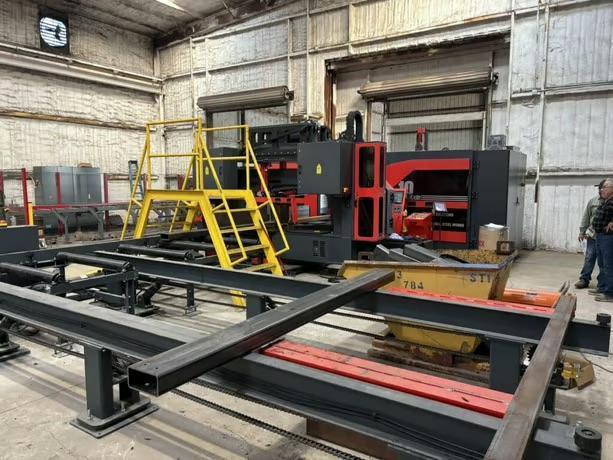

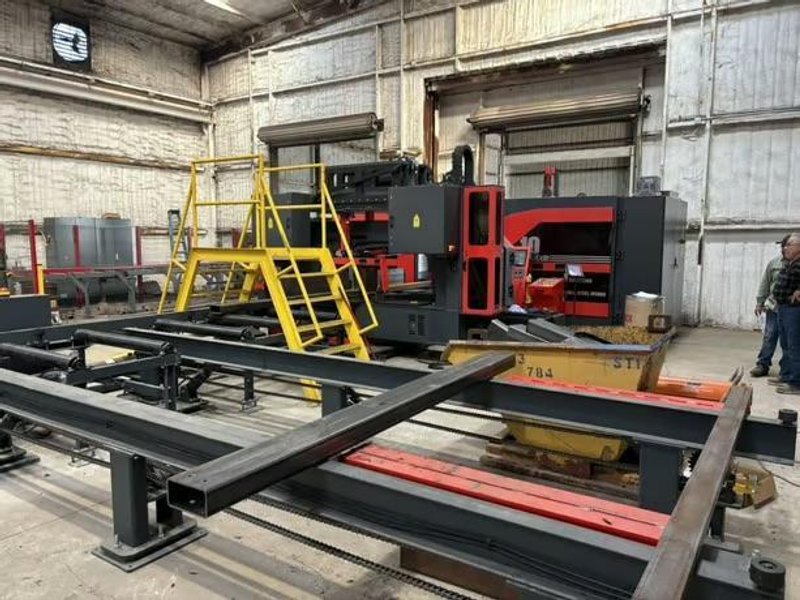

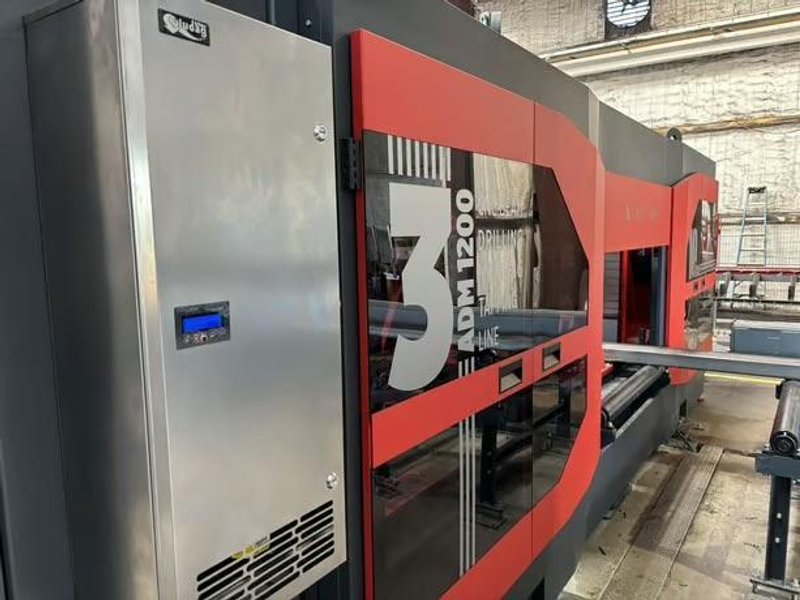

Akyapak 3ADM 1200 3-Spindle 10-Axis CNC Drilling Line, 2025 – 51″ x 23″ AST1300 Double Miter Bandsaw, Chip Conveyor, Transfer Tables

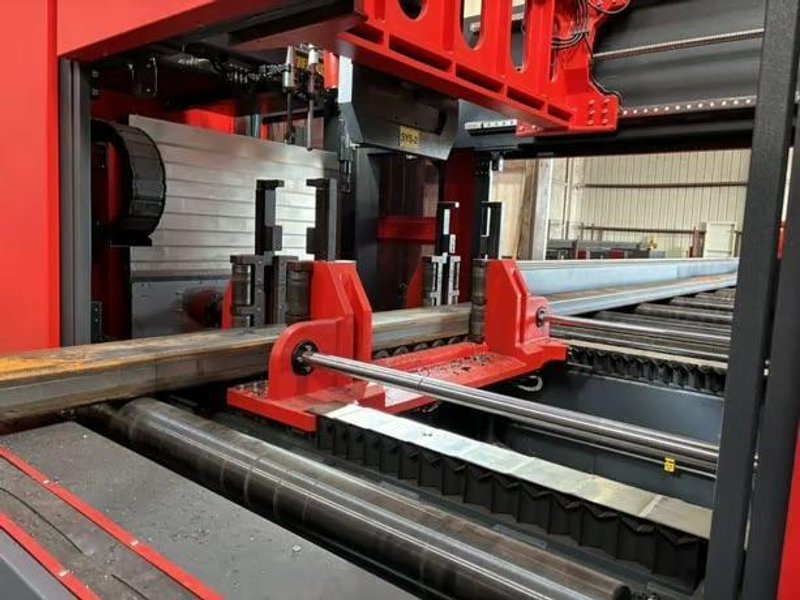

Capabilities: Drilling, Milling, Tapping, Countersinking, Layout Marking Material: Beam, Channel, Tube, Angle, Plate Min Beam Size: 8″ x 3.15″ Max Beam Size: 48″ x 20″ Number of Drill Heads: 3 ATC Capacity: 4 Tools per Spindle, Total 12 tools (3 spindle x 4 tools), 17.64 lbs for Each Station Drill Diameter: 3/8″ – 1-1/2″ Thread Tapping: M10 – M24 Drilling Thickness: 0.2″ – 3.94″ Tool Holder: BT40 Spindle Speed: 50 – 3,000 RPM (Stepless) Vertical Spindle Strokes (X, Y, Z): 57″, 20″, 36″ Horizontal Spindle Strokes (X, Y, Z): 20″, 21″, 28″

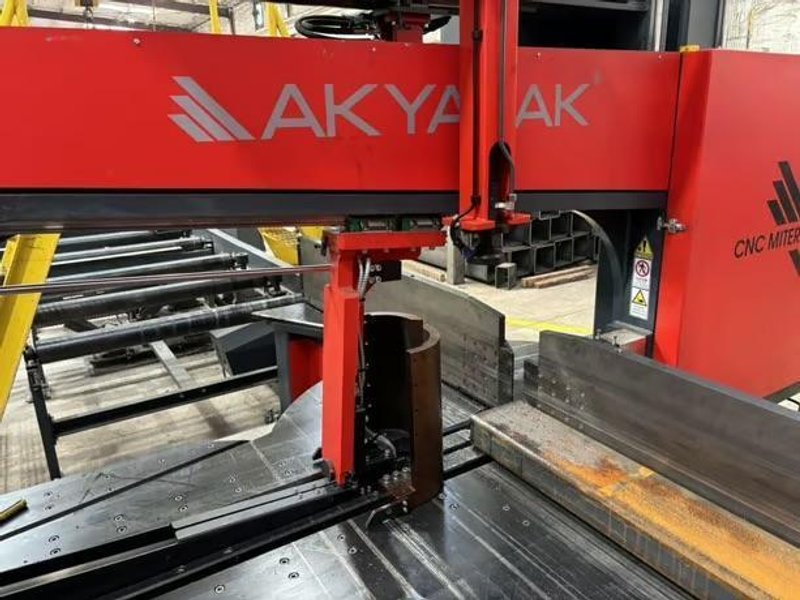

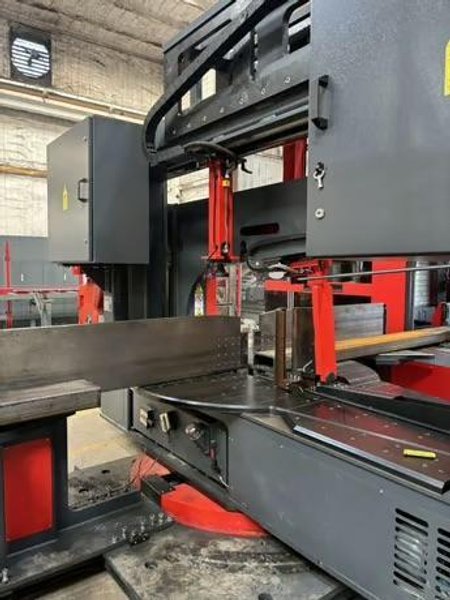

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,AST 1300 Saw Specifications Main Saw Motor: 20 HP Mitering Servo Motor: 2.0 HP Chip Brush Motor: 0.16 HP Hydraulic Pump Motor: 7.4 HP Blade Length: 32.8’ Cutting Speed: 65 – 328’ / Min Working Height: 31.5” Mitering Angle: +60° / -60° Sawing Capacity Max: 51” X 23” Sawing Capacity Min: 2.56” X 1.77” Upper Pressure Cylinders for Batch Cutting: Yes

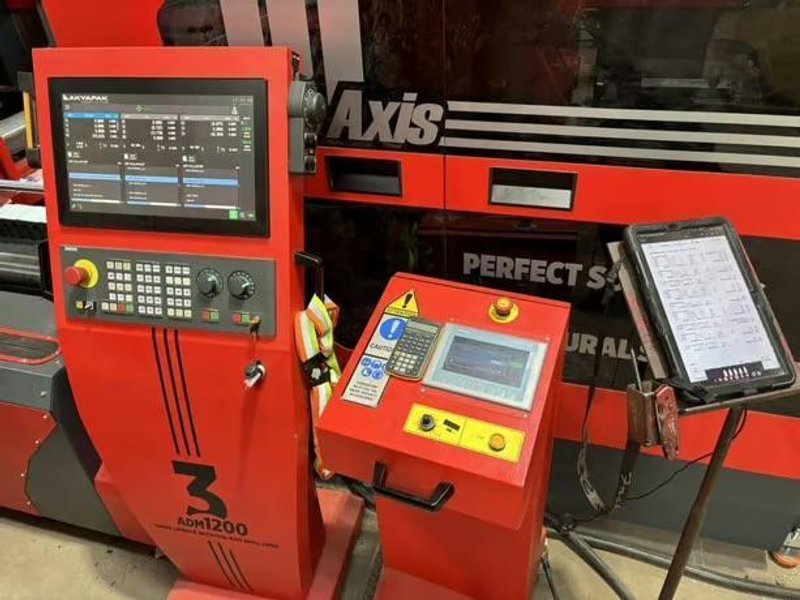

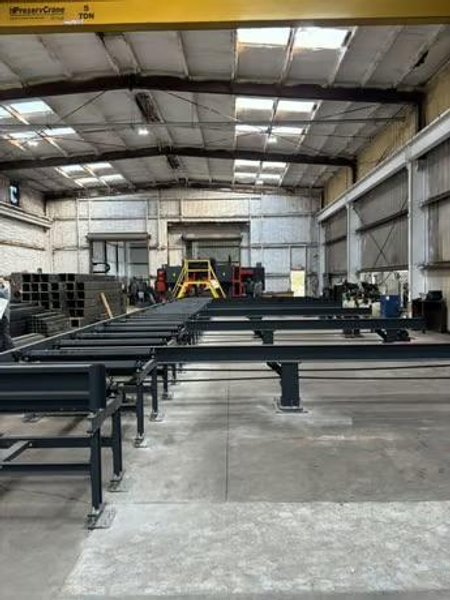

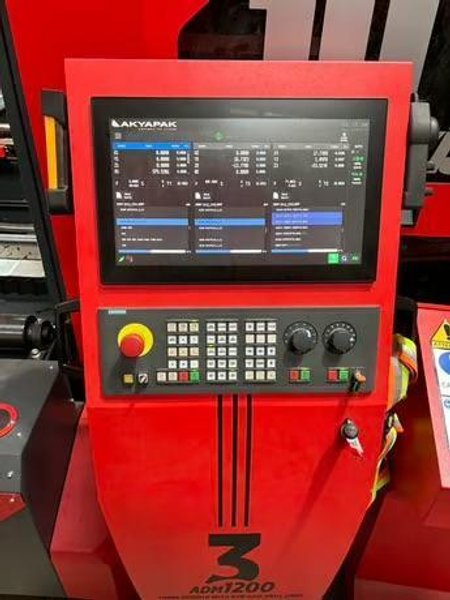

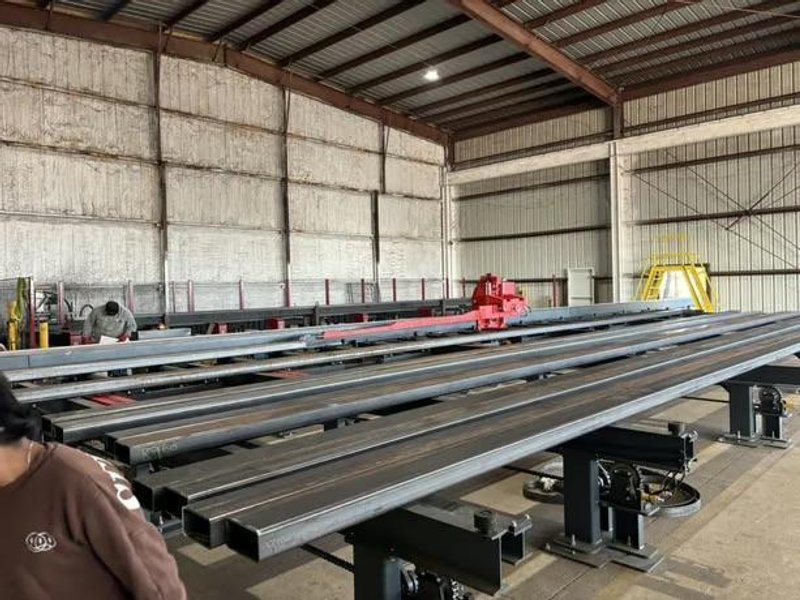

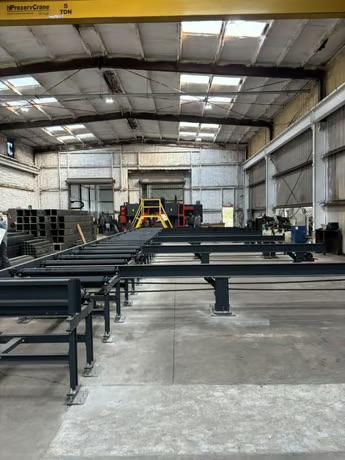

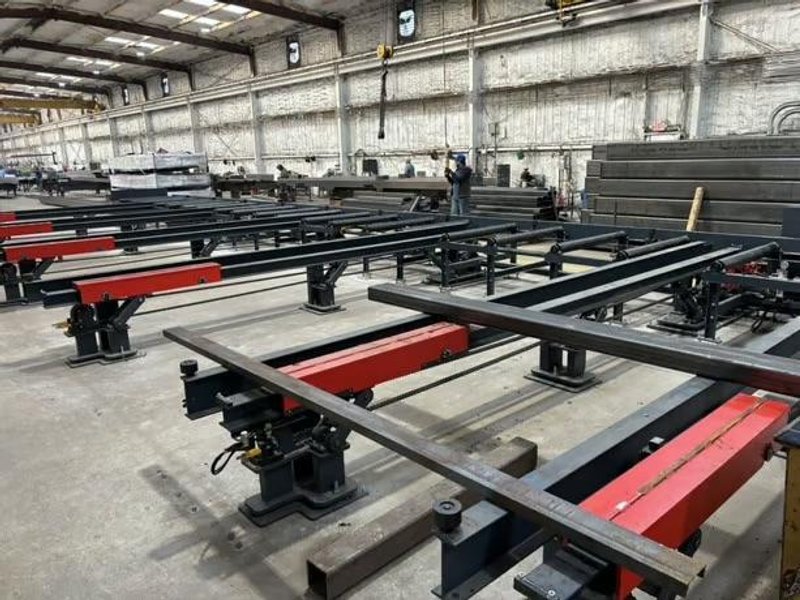

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: Siemens Touch-Screen Control 60’ Infeed & Outfeed Transfer Tables Underscribe Scribing Station Automatic Tool & Material Measurement Chip Conveyor Oil Cooler Akyapak AST 1300 Horizontal Bandsaw

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
