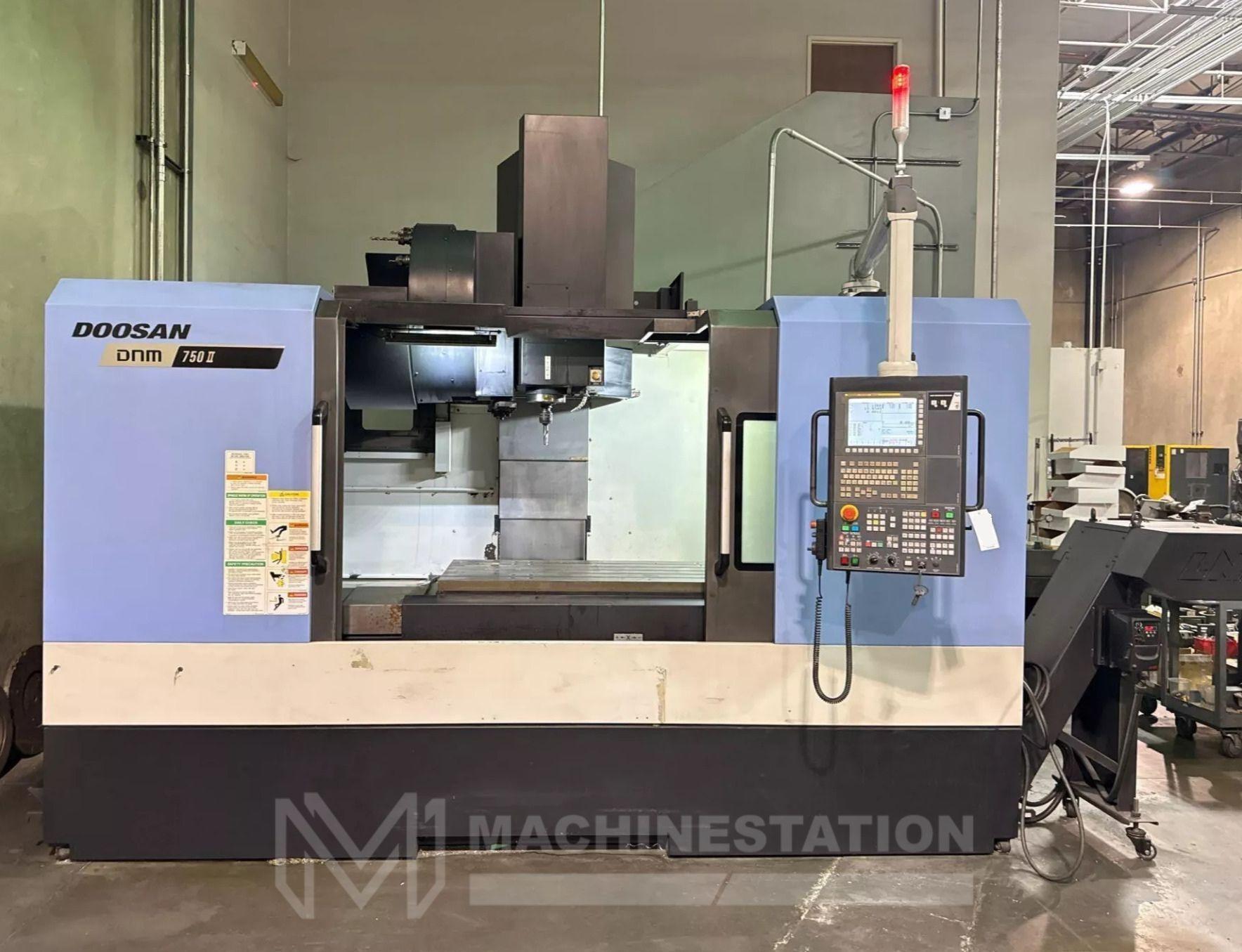

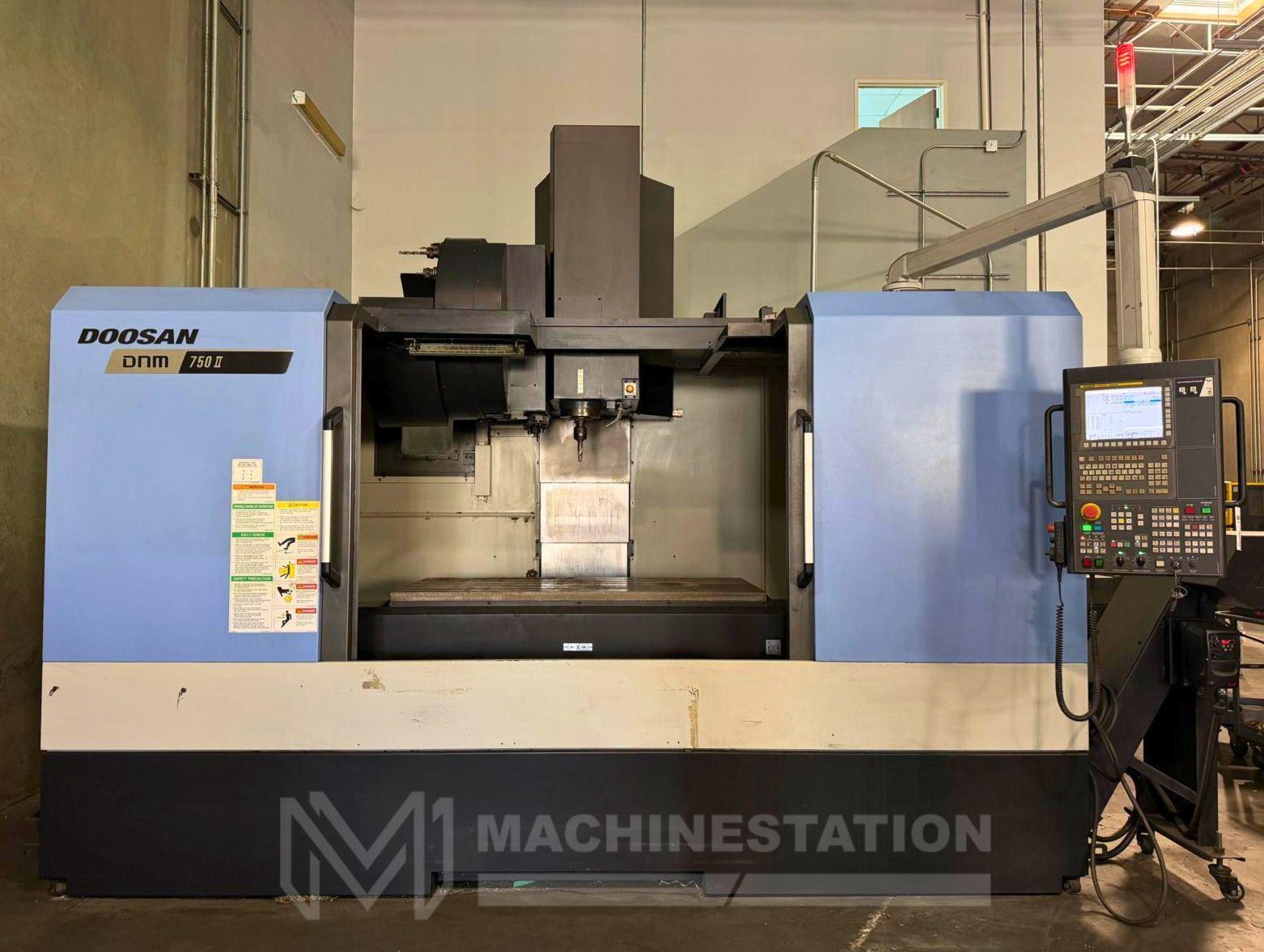

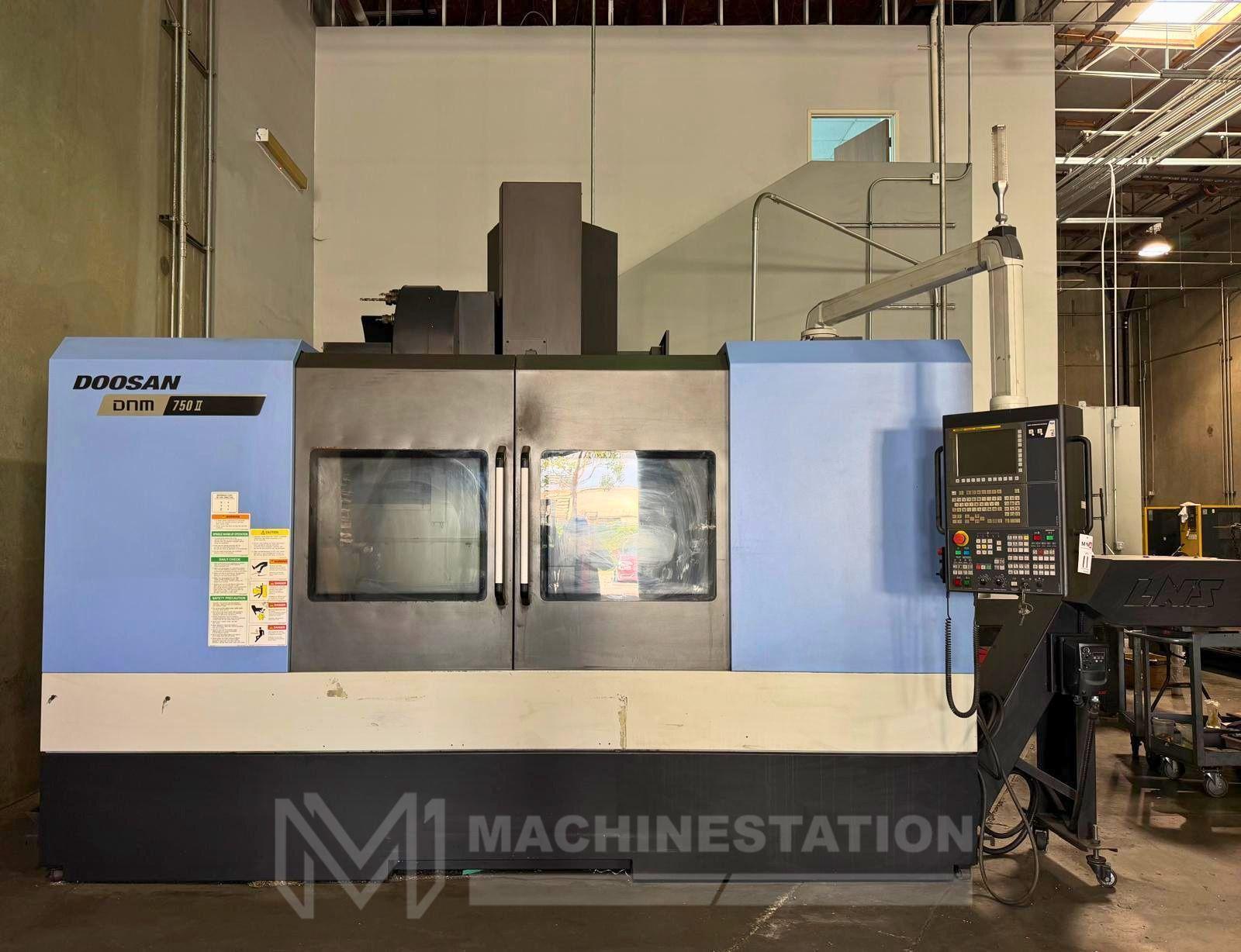

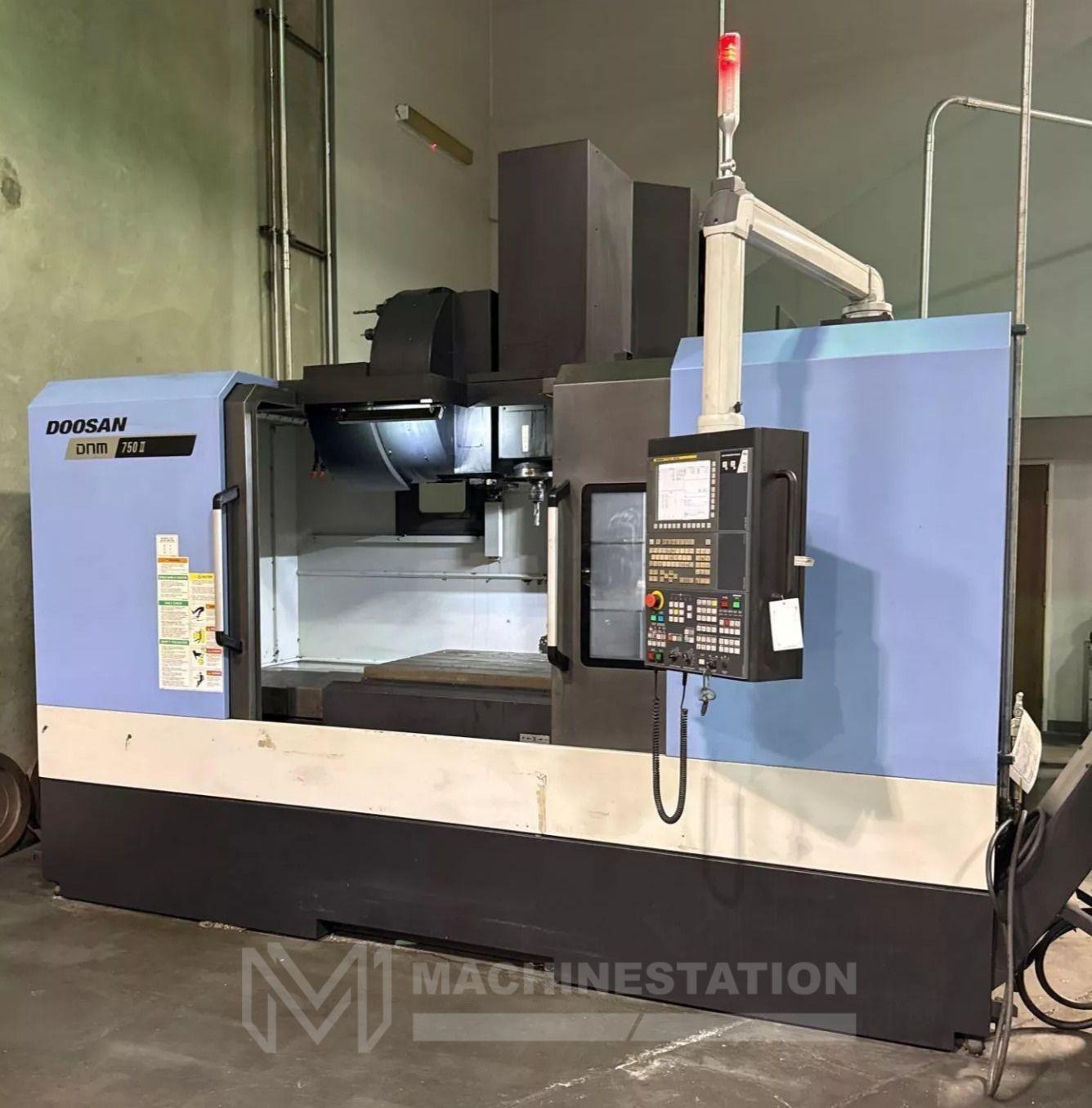

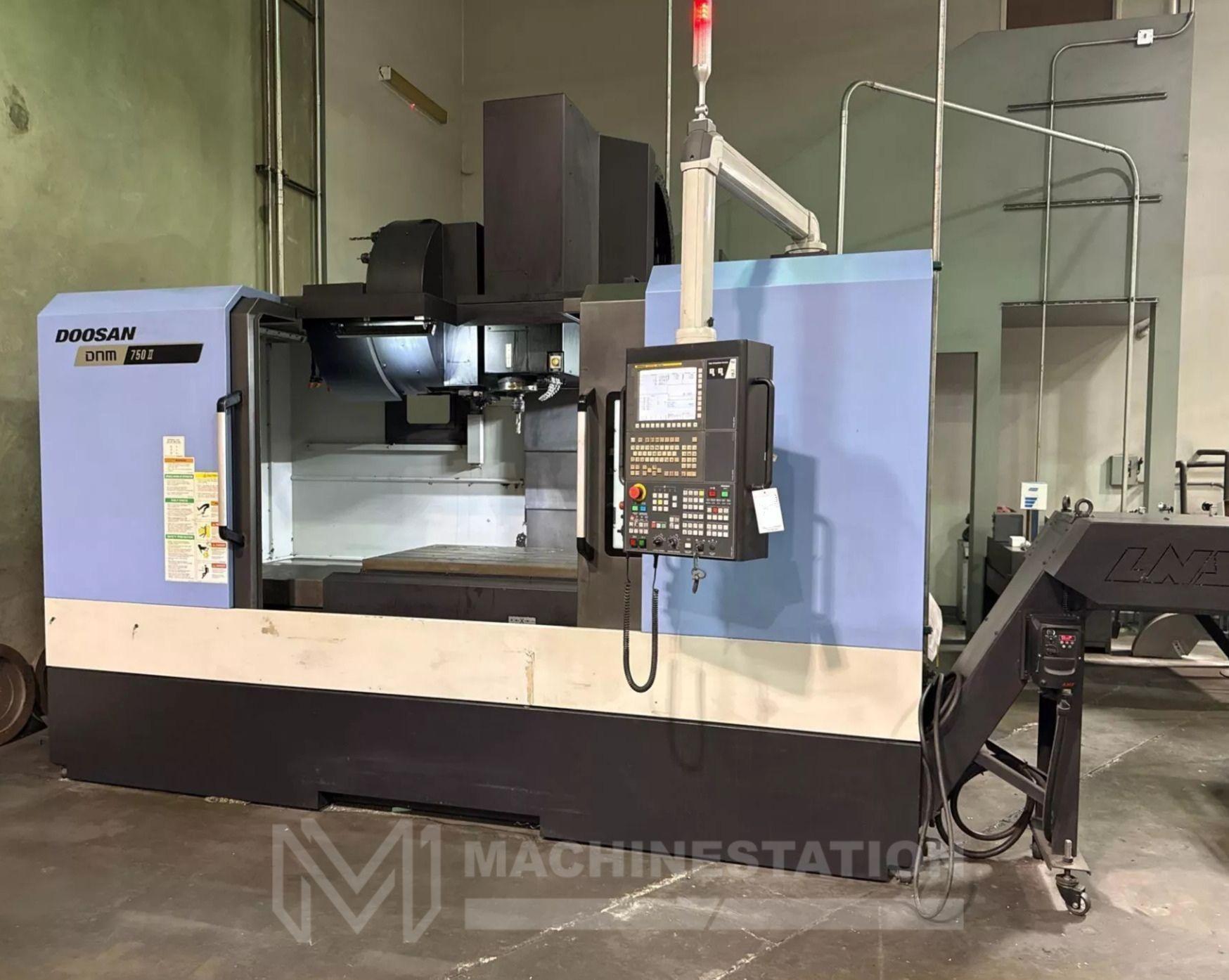

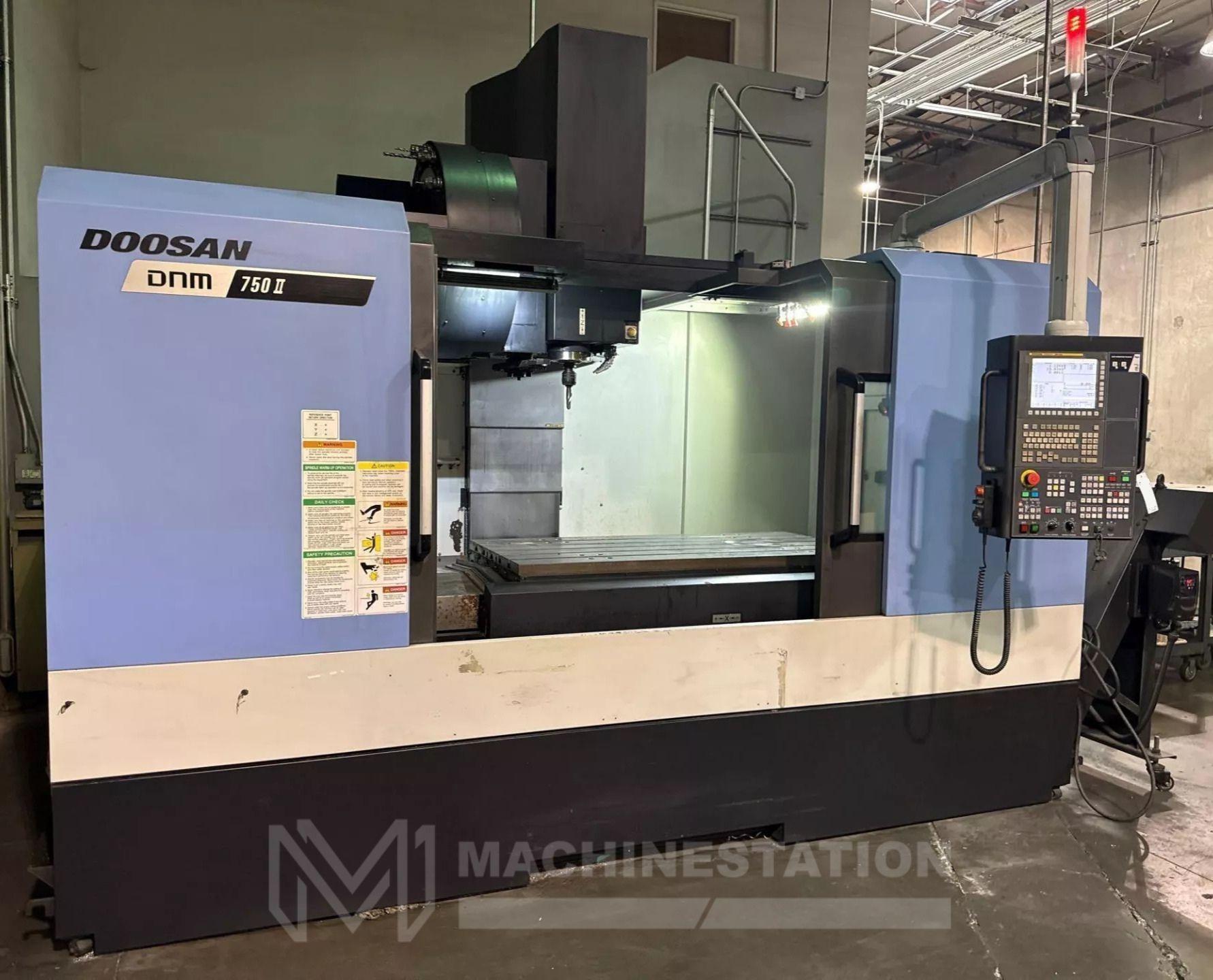

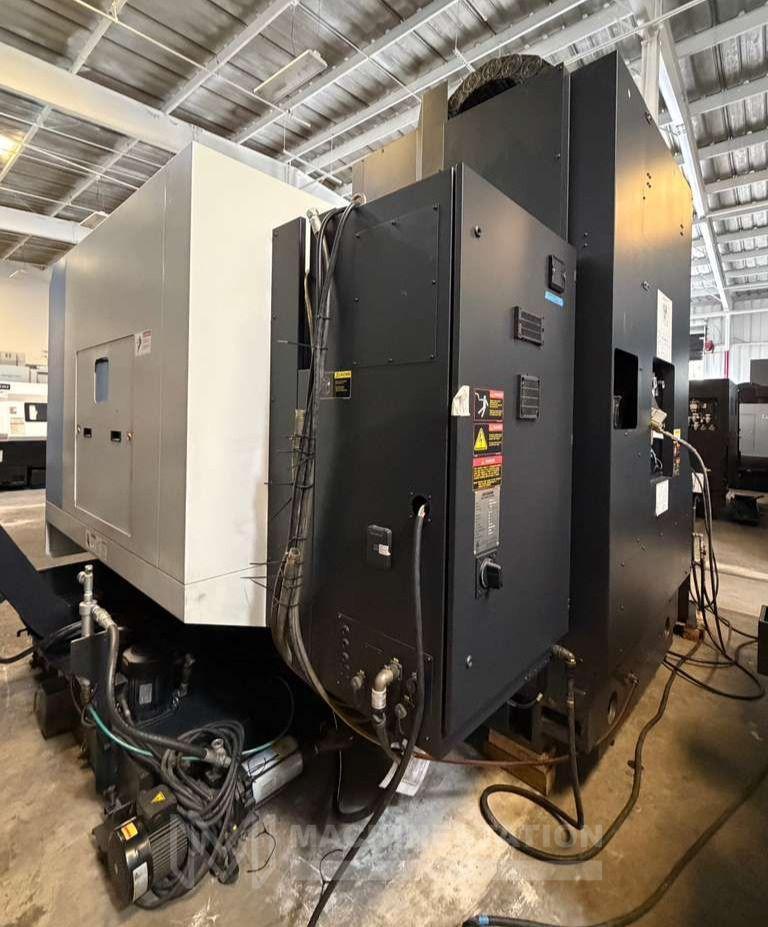

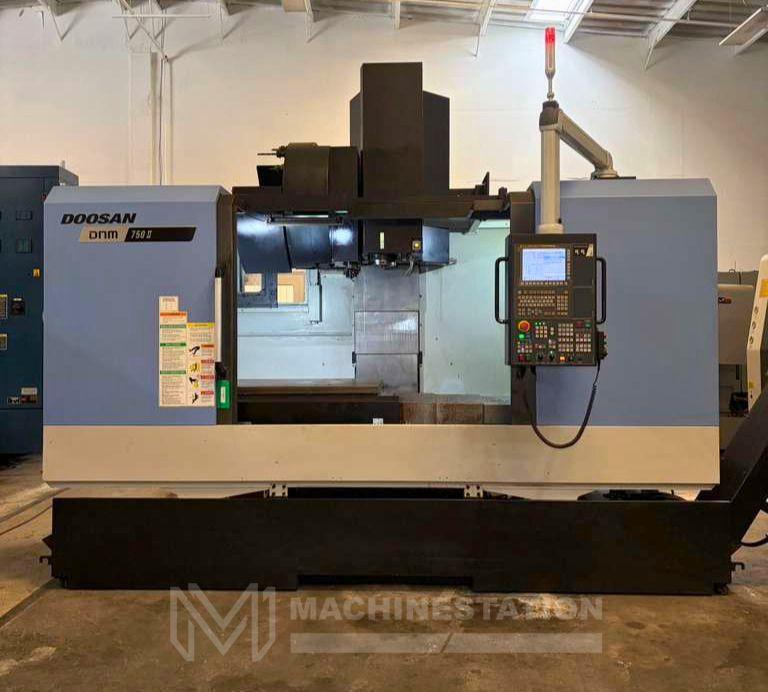

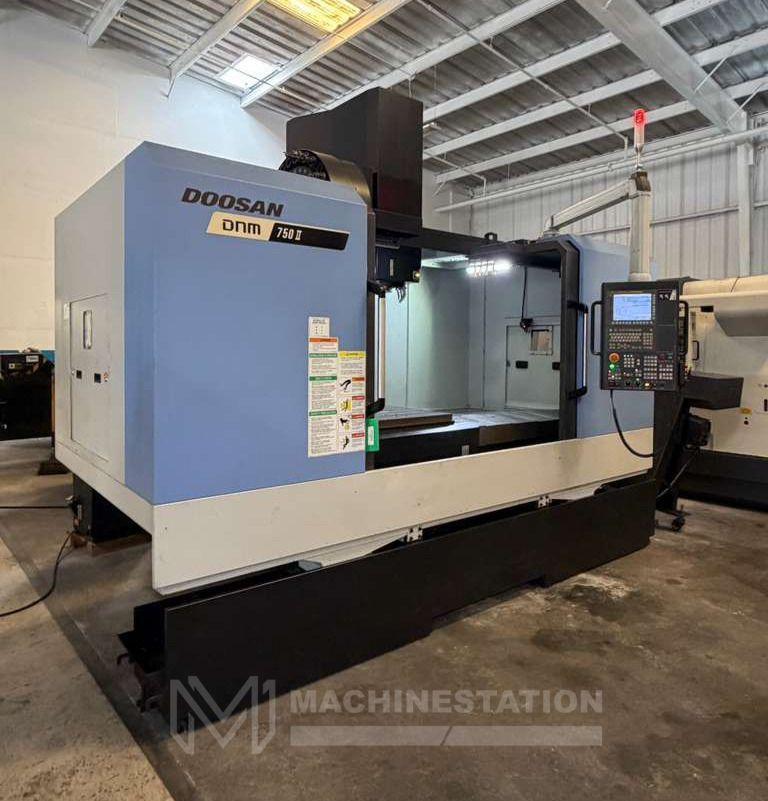

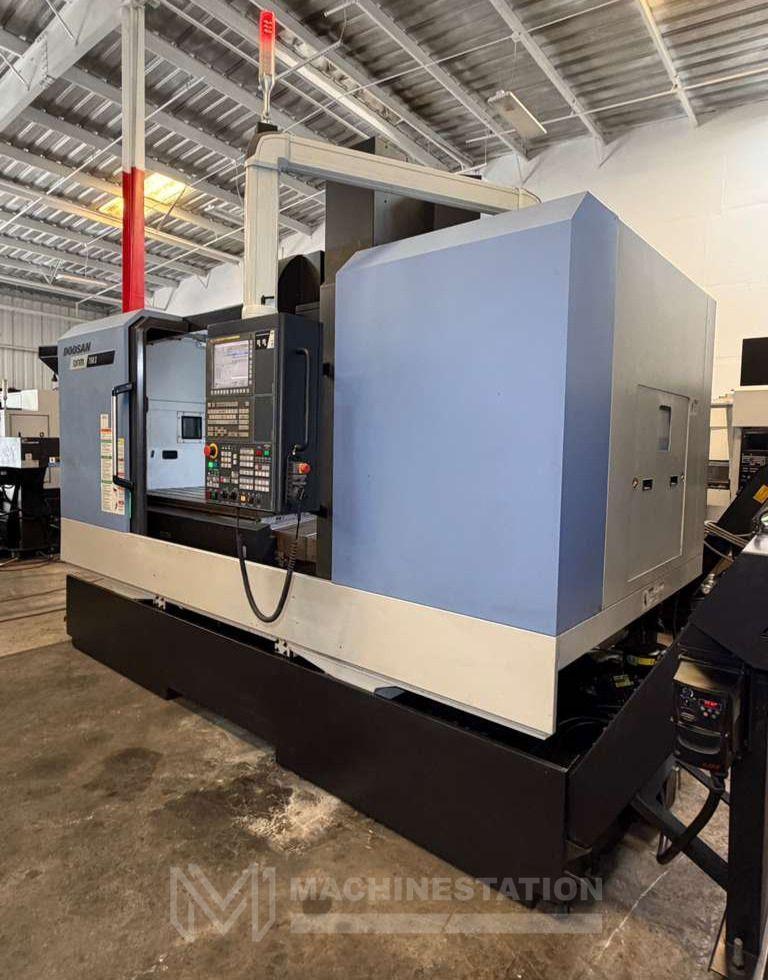

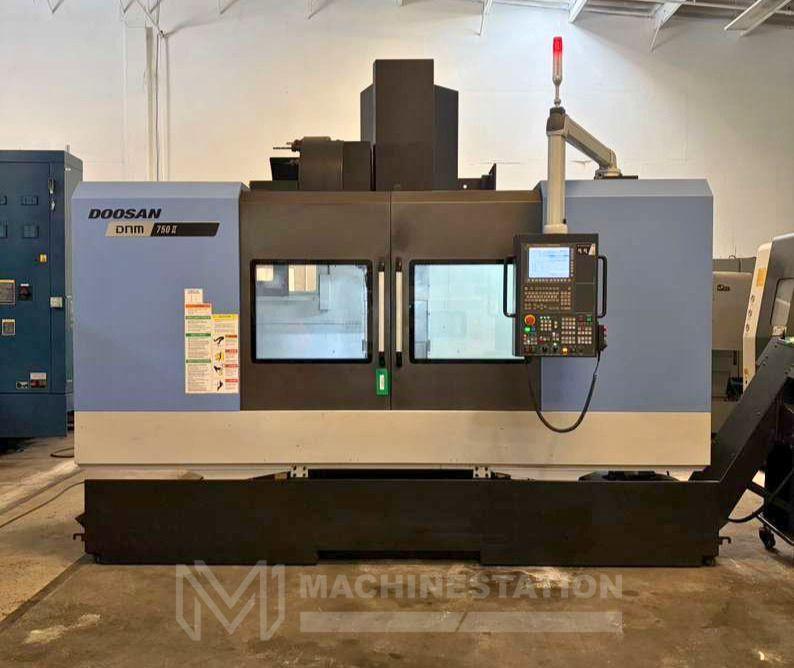

Doosan DNM 750II CNC Vertical Machining Center – 2018 TSC, 12,000 RPM Mill

Brand
DOOSAN
Category
Machining Centers
Type
Vertical Machining Centers
Model
Doosan DNM 750II
Stock #
113601
Year
2018
Condition
Not specified

Location

Not specified
REQUEST FINANCING

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Make: Doosan
Model: DNM-750II
Year: 2018
Condition: Used – Excellent
Features:

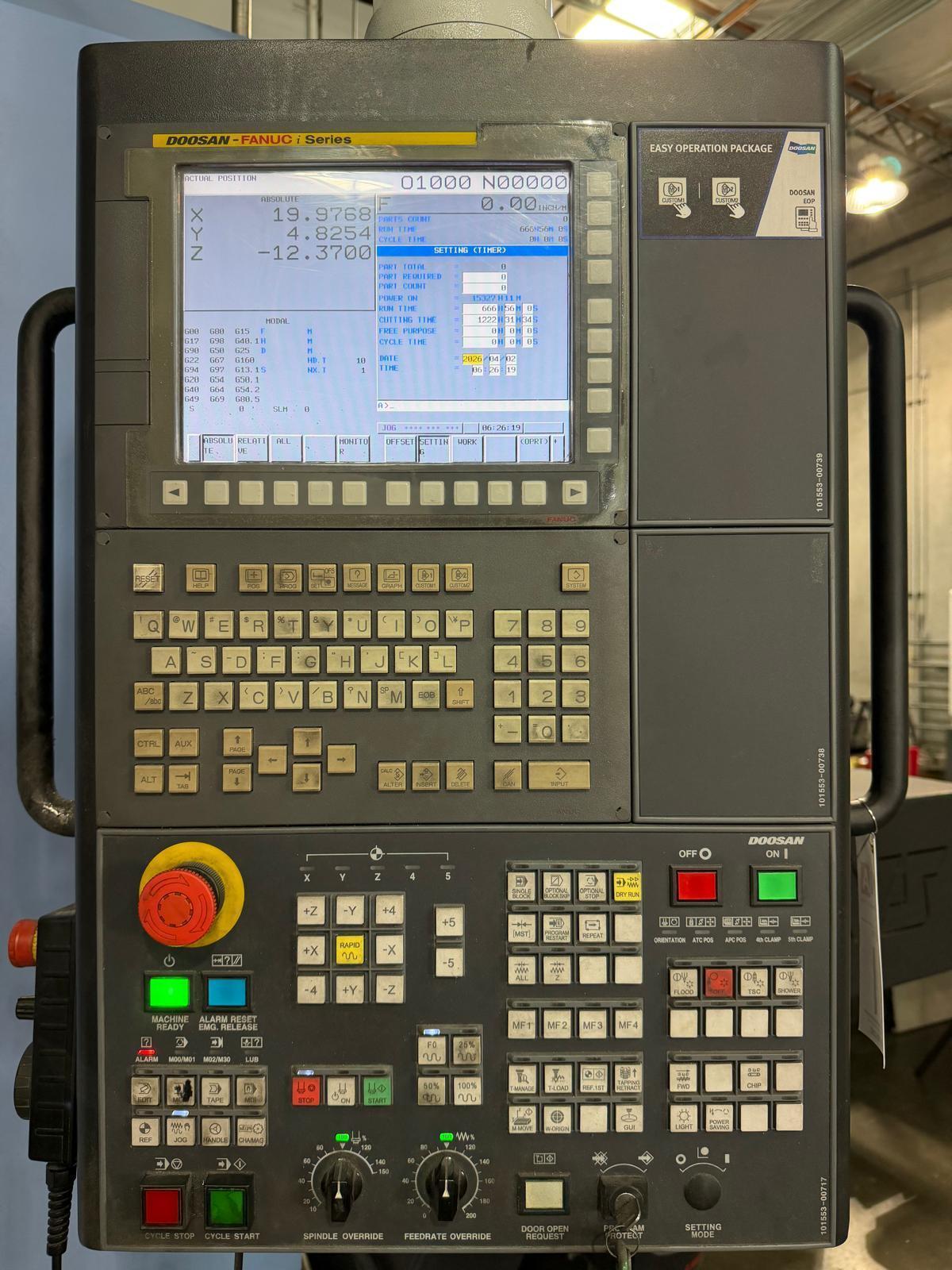

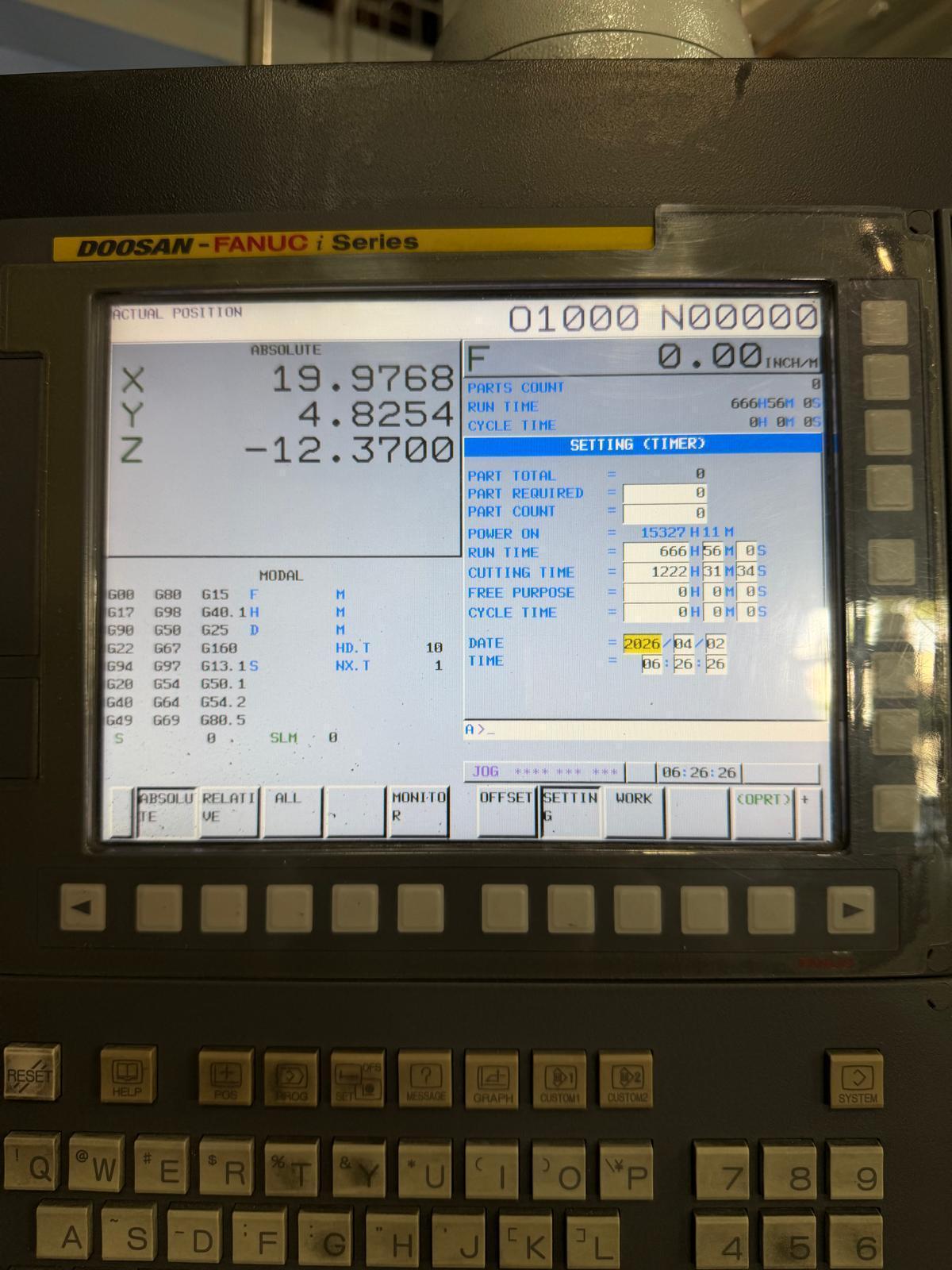

Doosan Fanuc i-Series CNC Control
12,000 RPM High Speed Spindle
Through Spindle Coolant

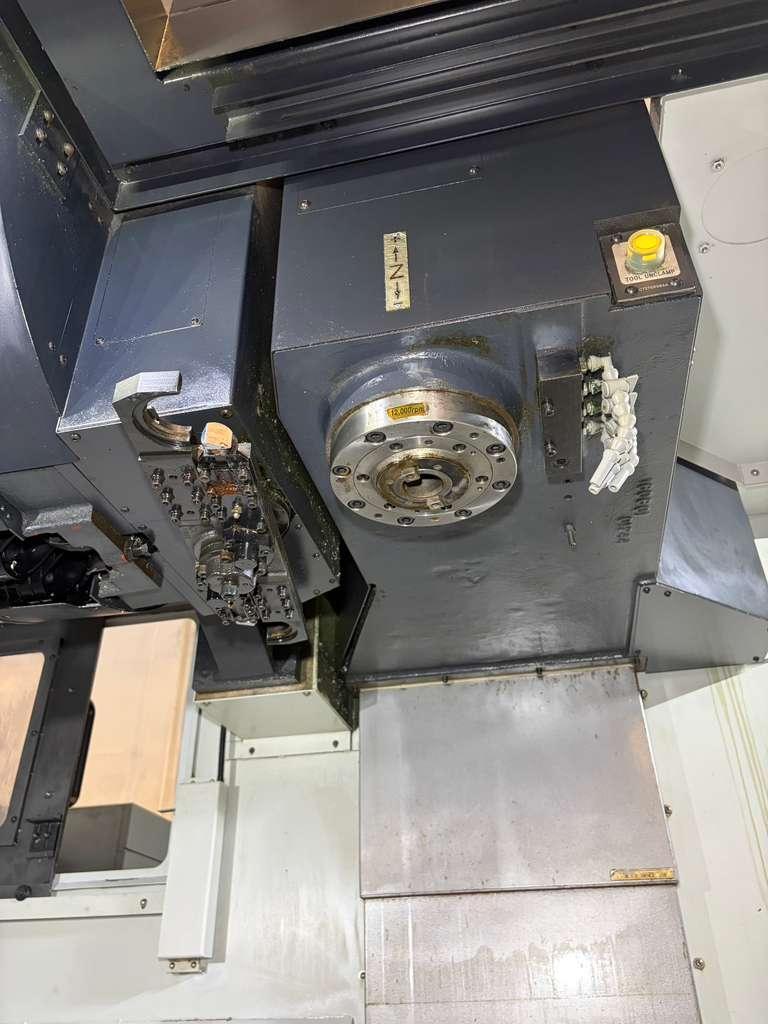

30 Station Automatic Tool changer
CAT-40 Taper Spindle
USB Drive
PCMCIA Card Slot
MPG Hand Wheel Control

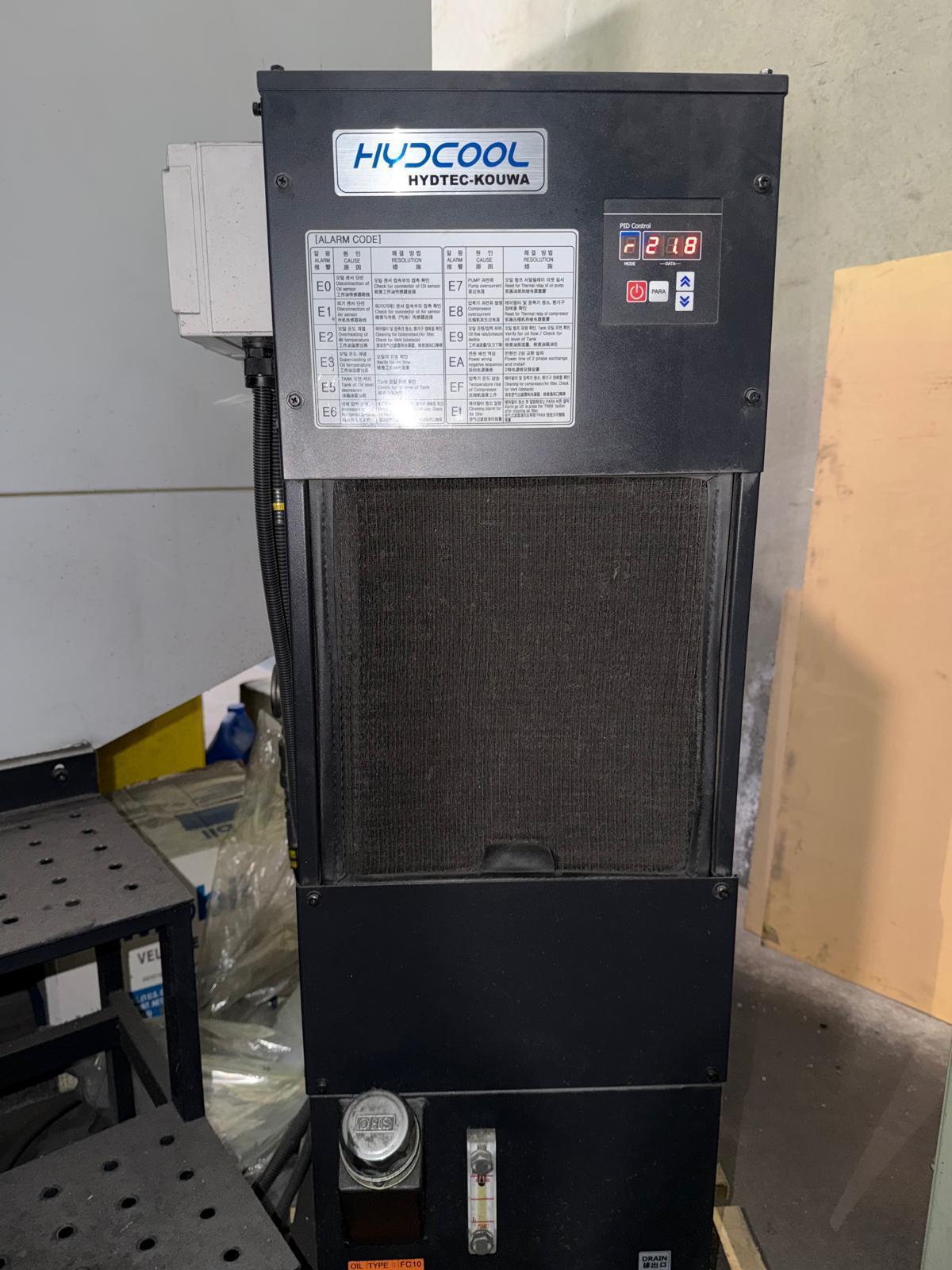

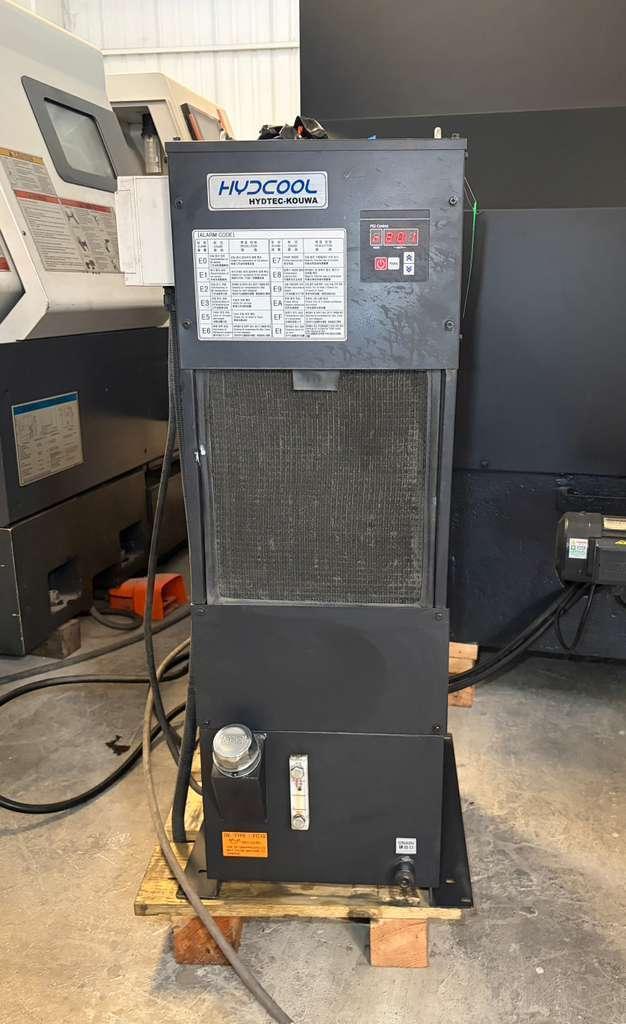

Spindle Chiller Unit
Automatic Lubrication System
Rigid Tapping

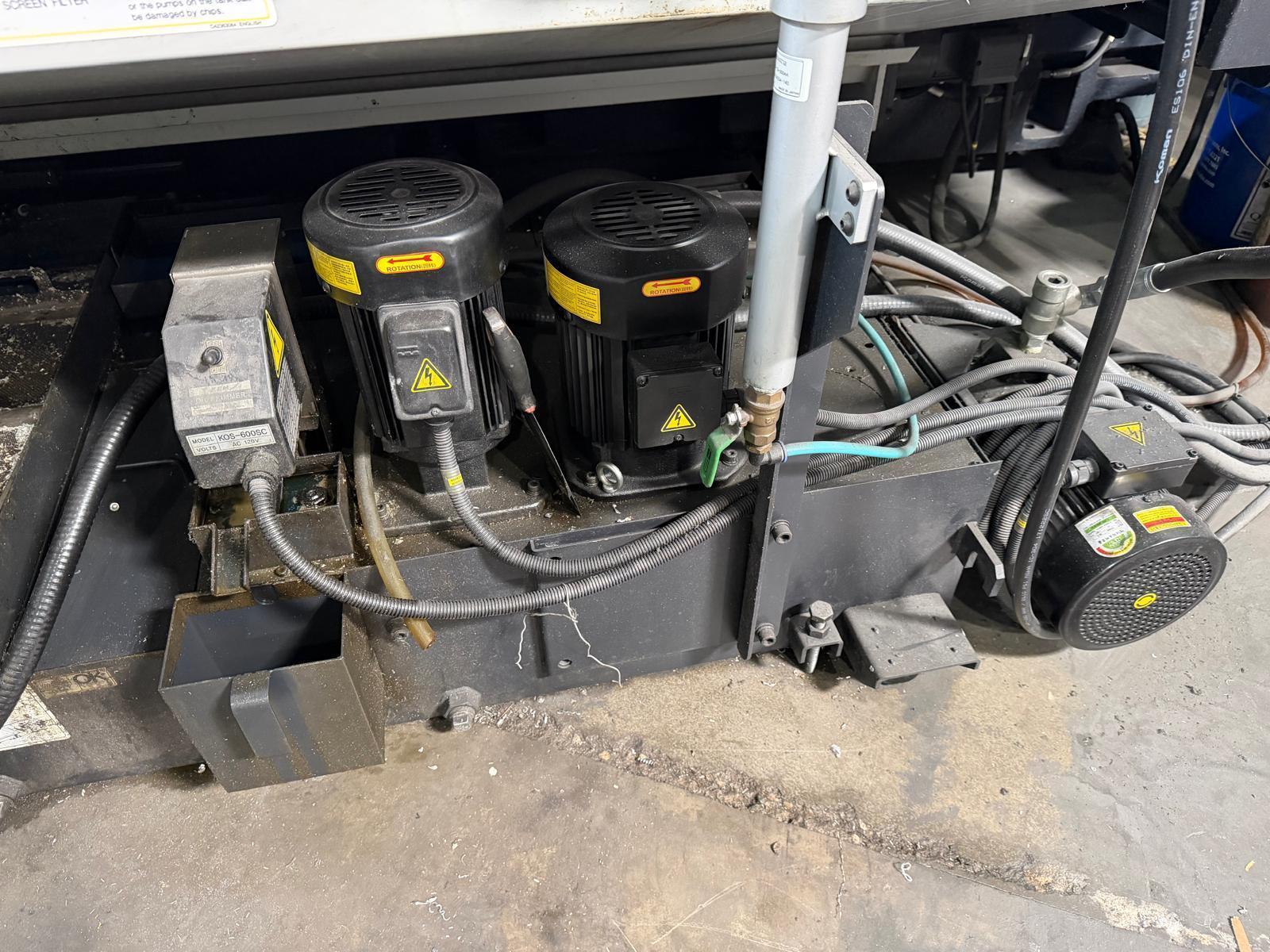

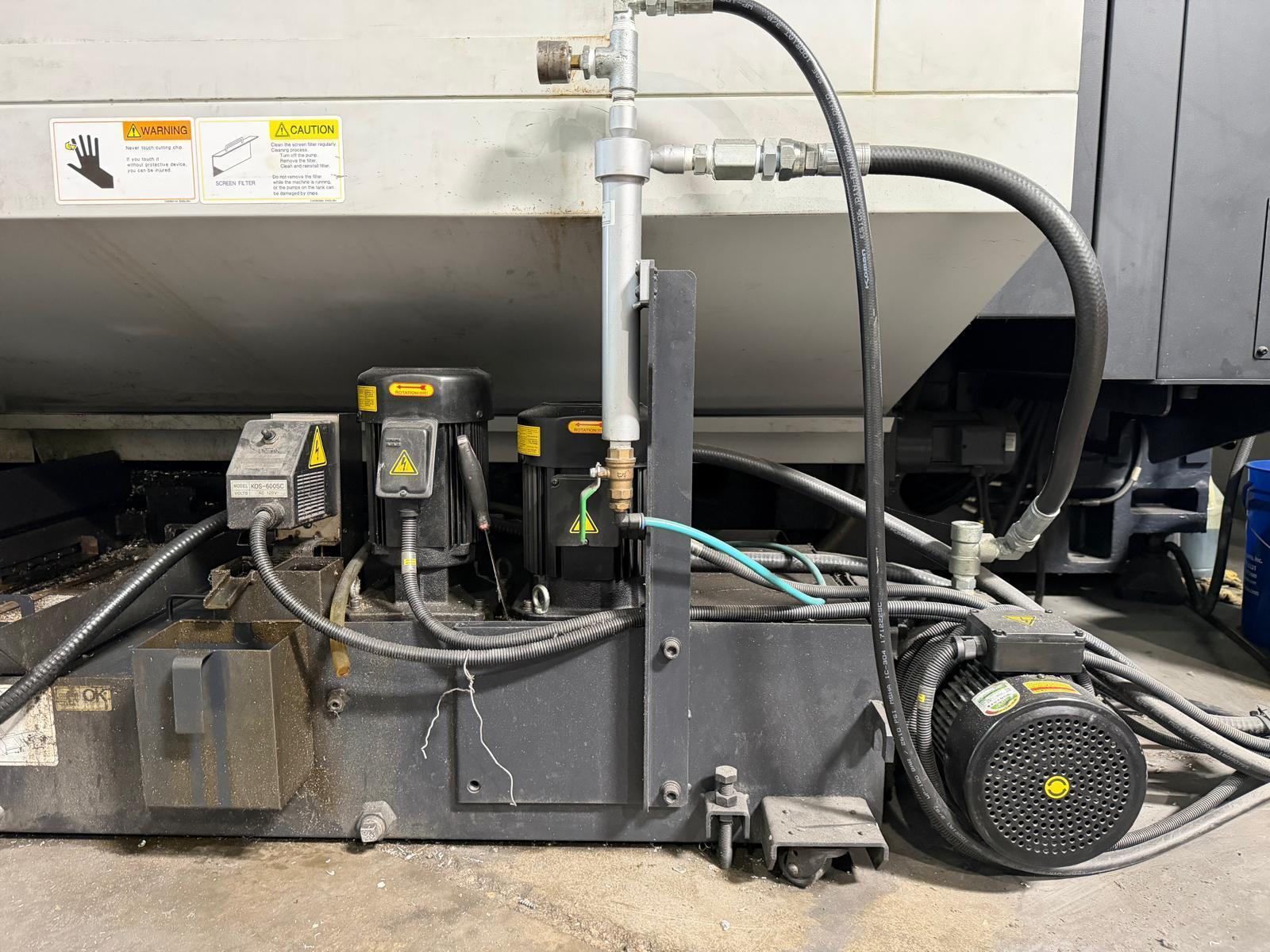

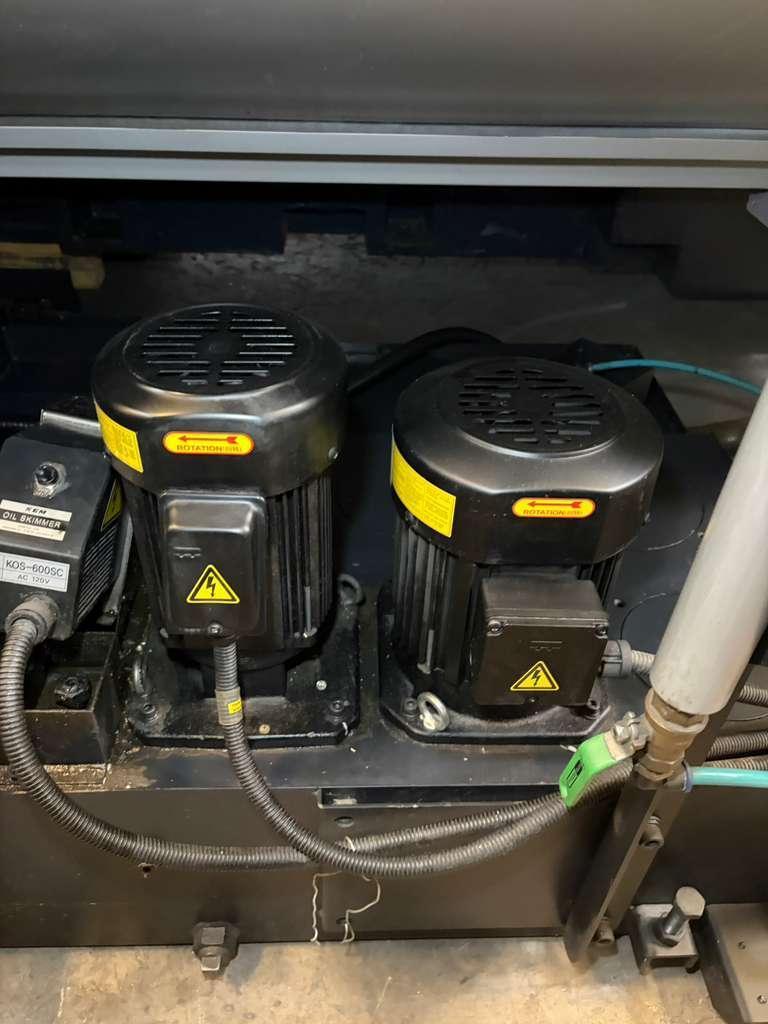

Coolant System

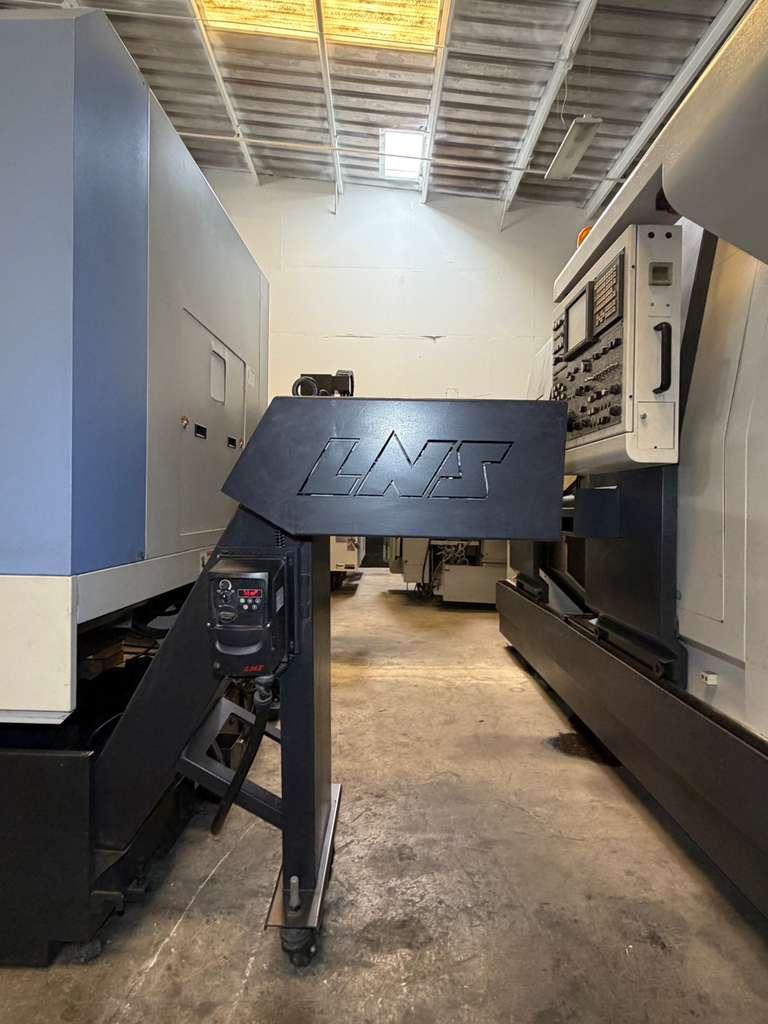

Chip Conveyor
Travels:
X-Axis: 64.2″
Y-Axis: 30.0″
Z-Axis: 25.6″
Rapid Traverse Rates X & Y Axis: 1181 IPM
Rapid Traverse Rates Z Axis: 945 IPM
Spindle Nose to Table (Min.- Max.): 5.9″ – 31.5″

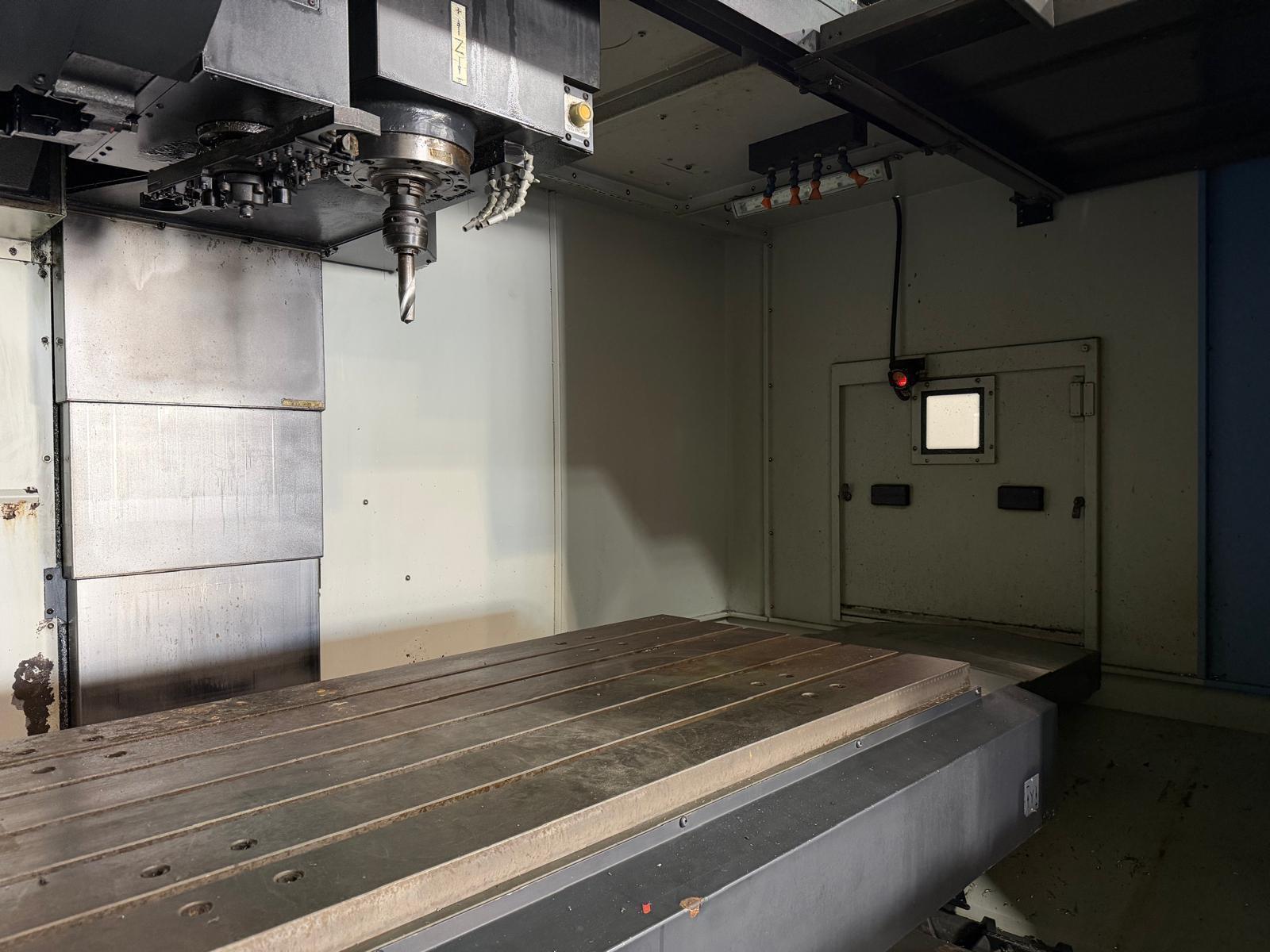

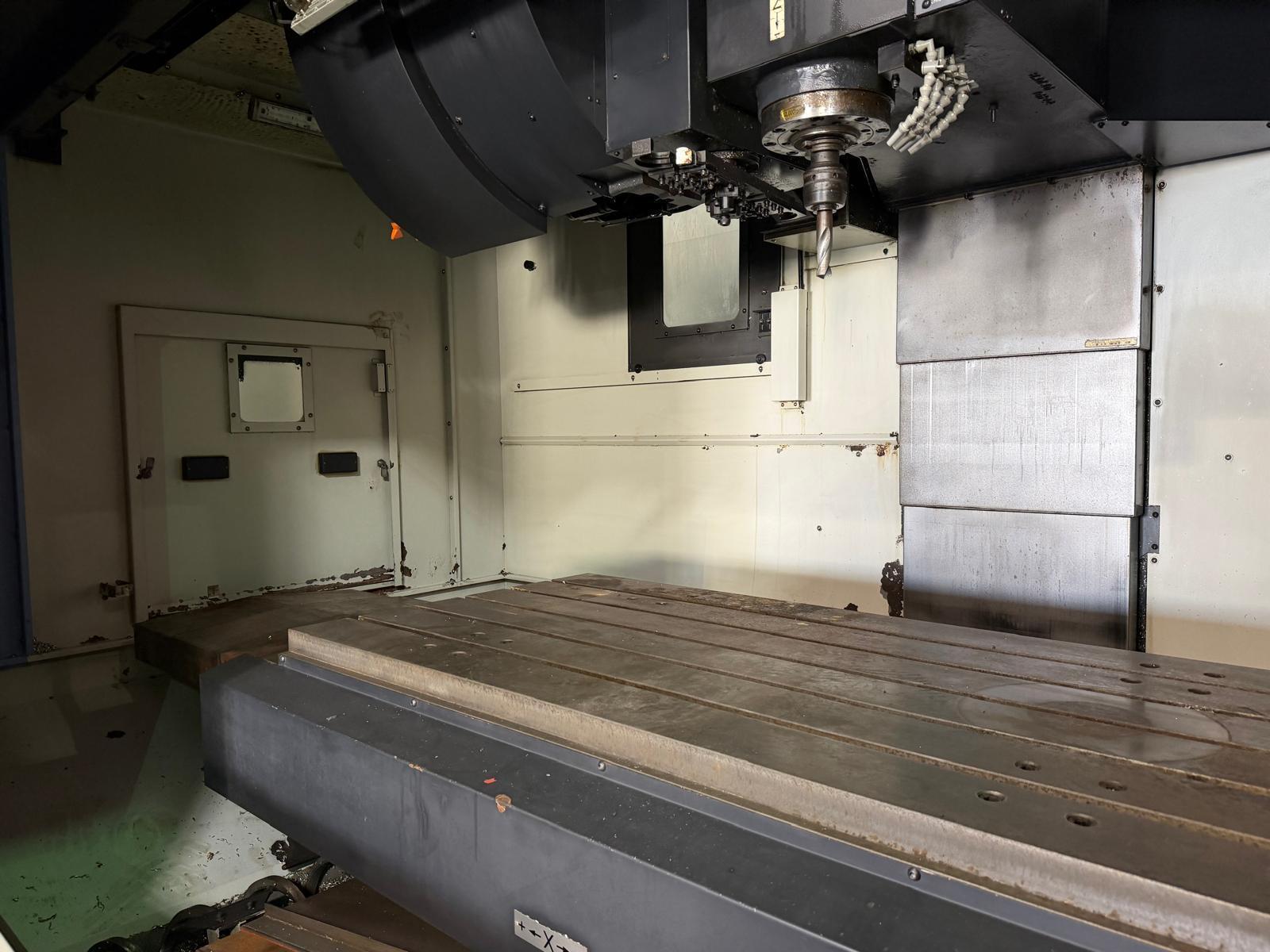

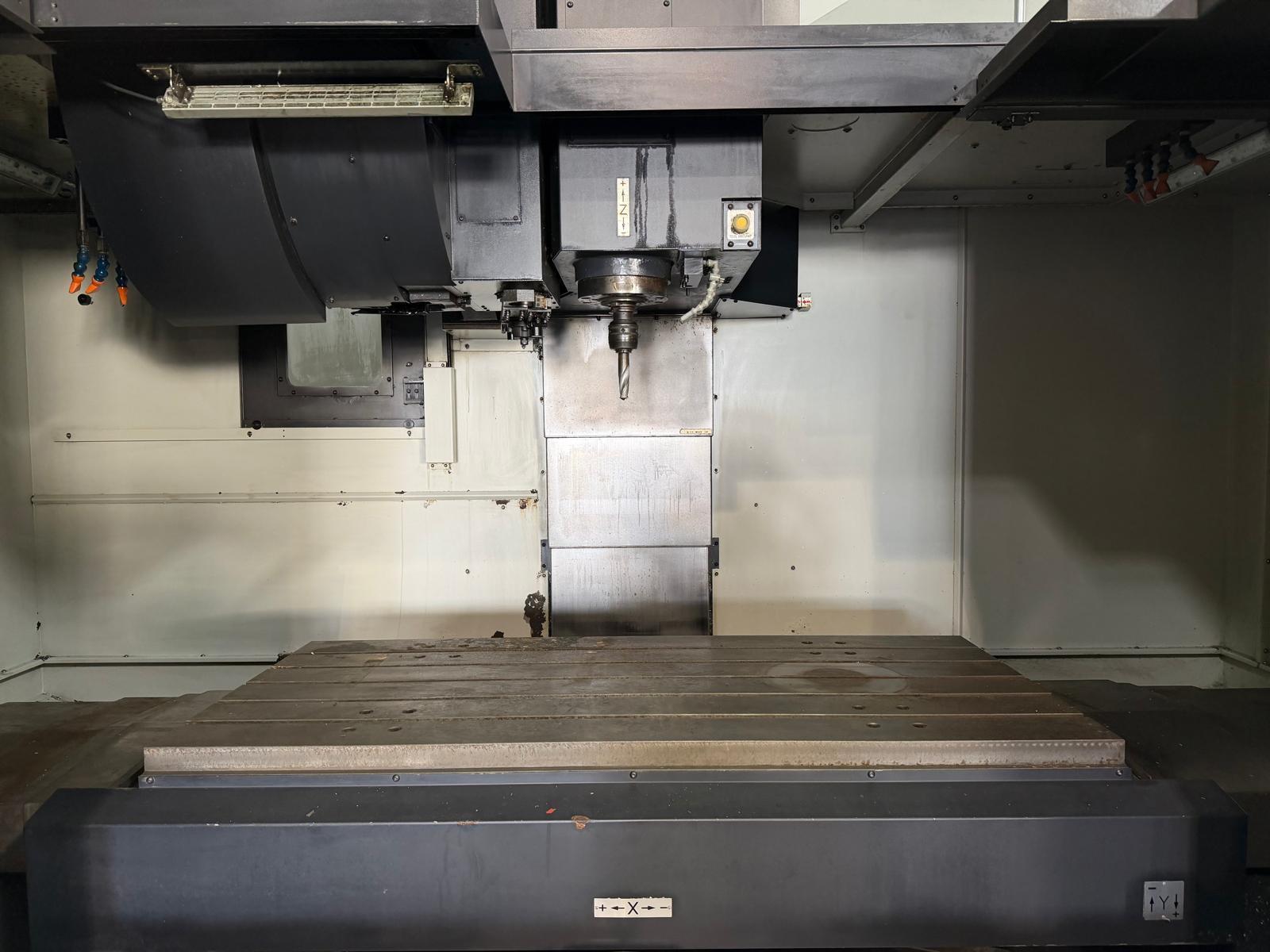

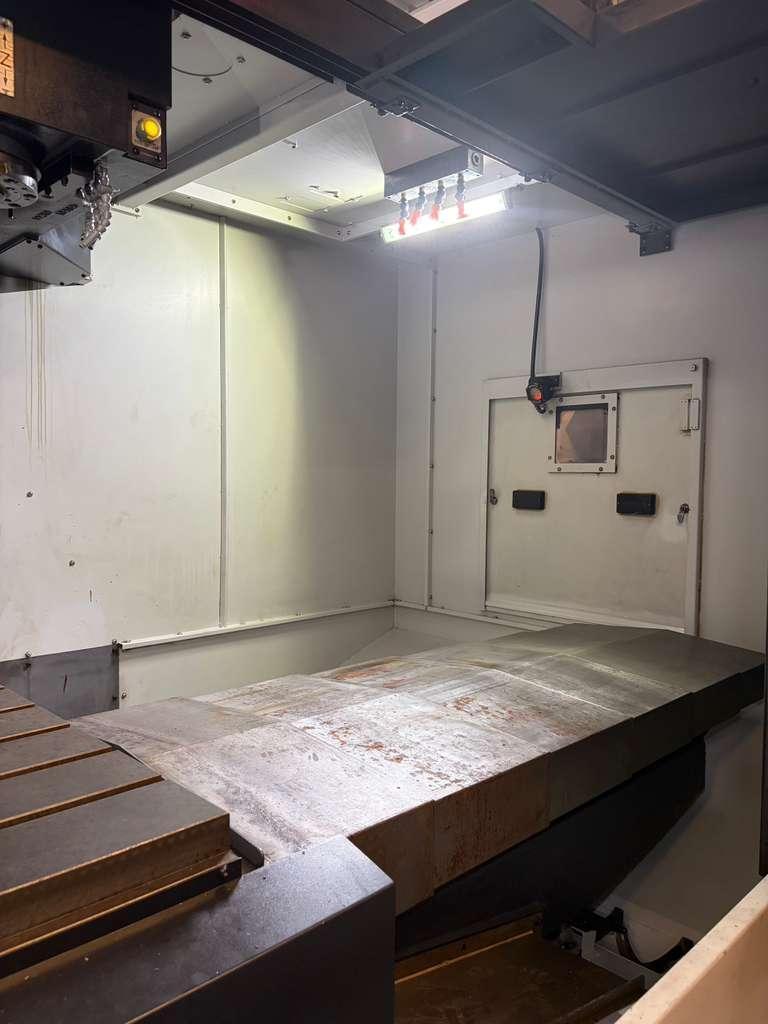

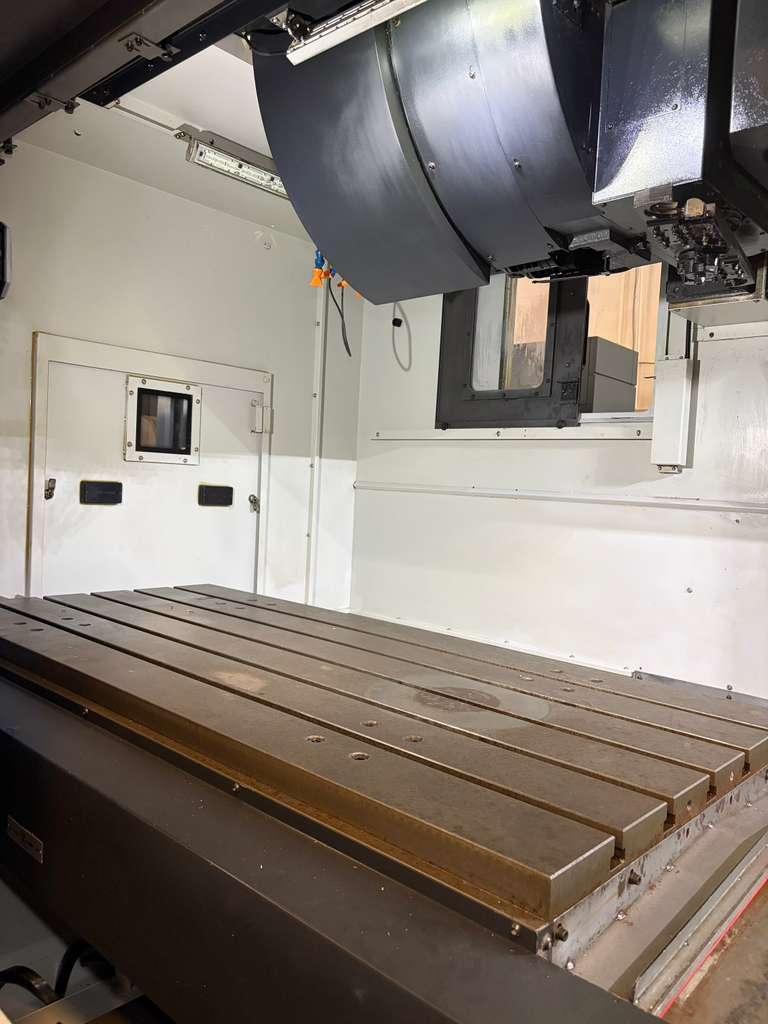

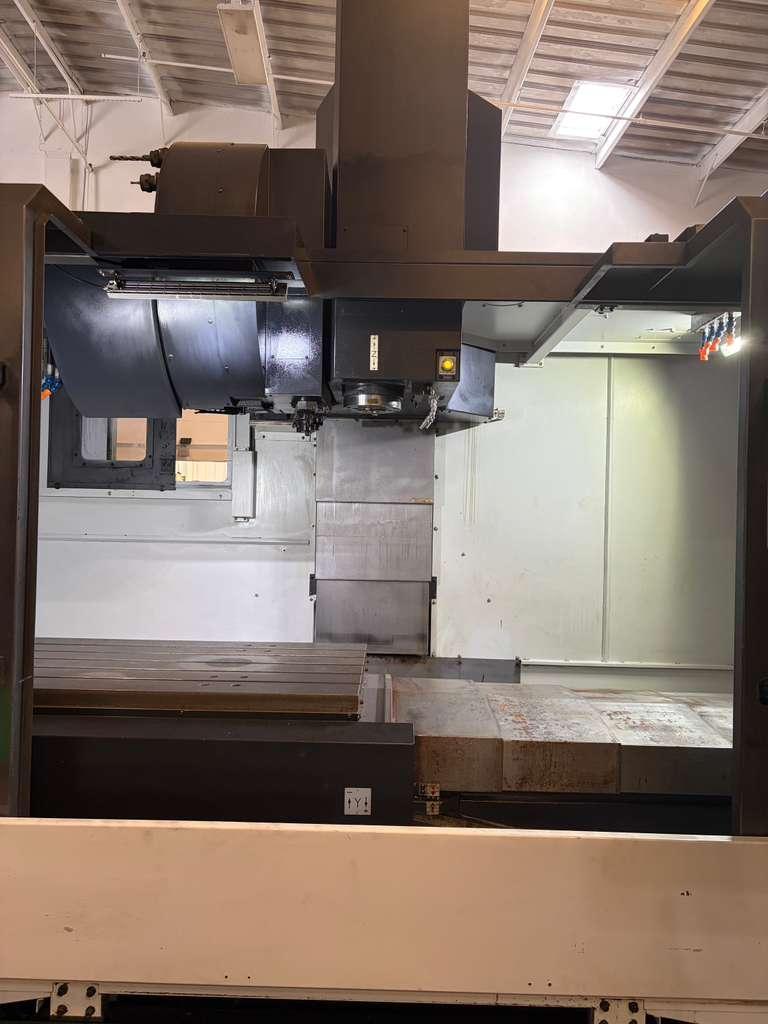

Table:
Length: 64.2″
Width: 29.9″
Number of Std T-Slots: 5
T-Slot Width: 4.9″ x 0.7″
Max Weight on Table: 3306 lbs

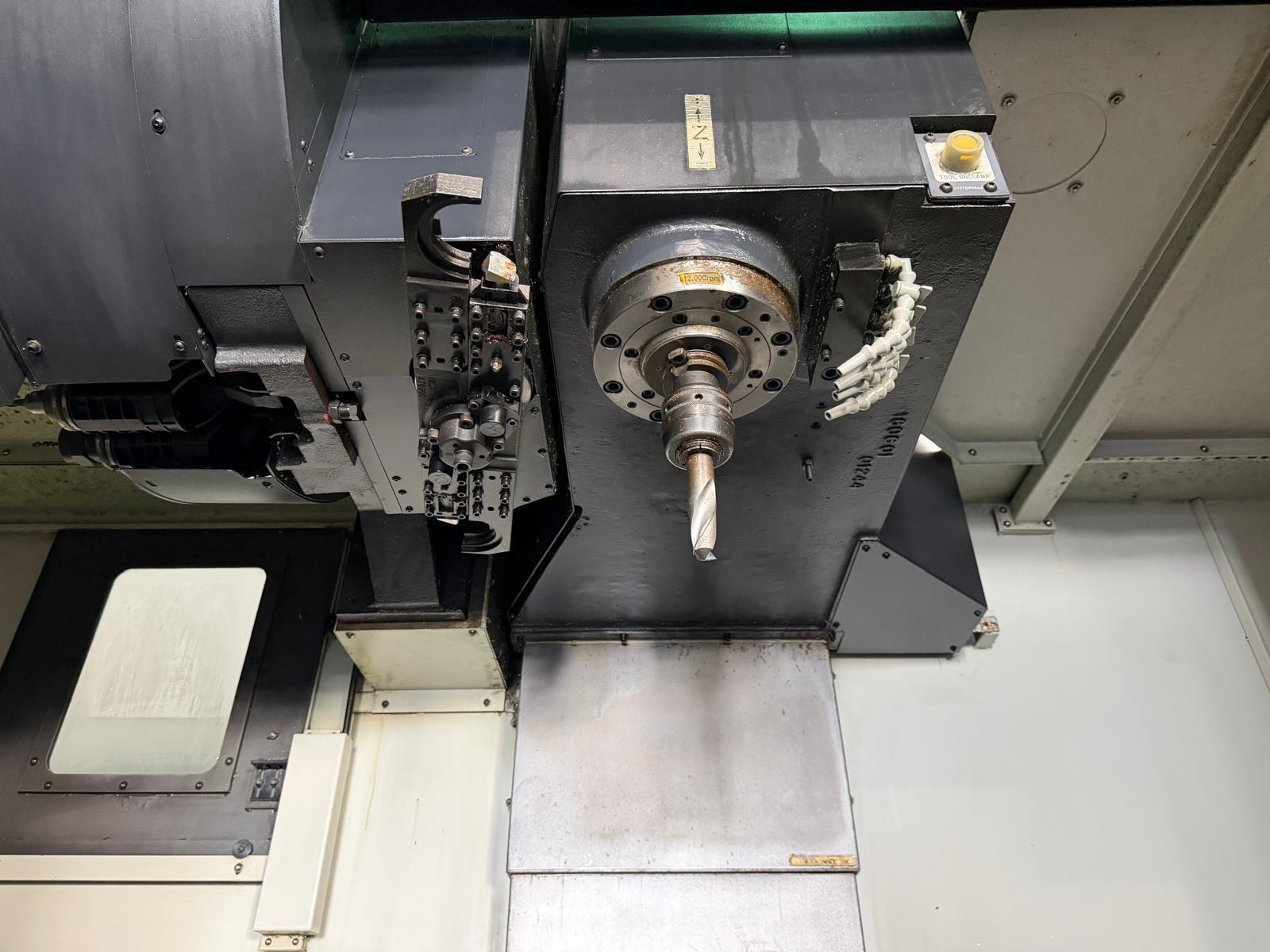

Spindle:
Taper Size: CAT-40
Speed Range: 12,000 RPM
Spindle Power: 21 HP

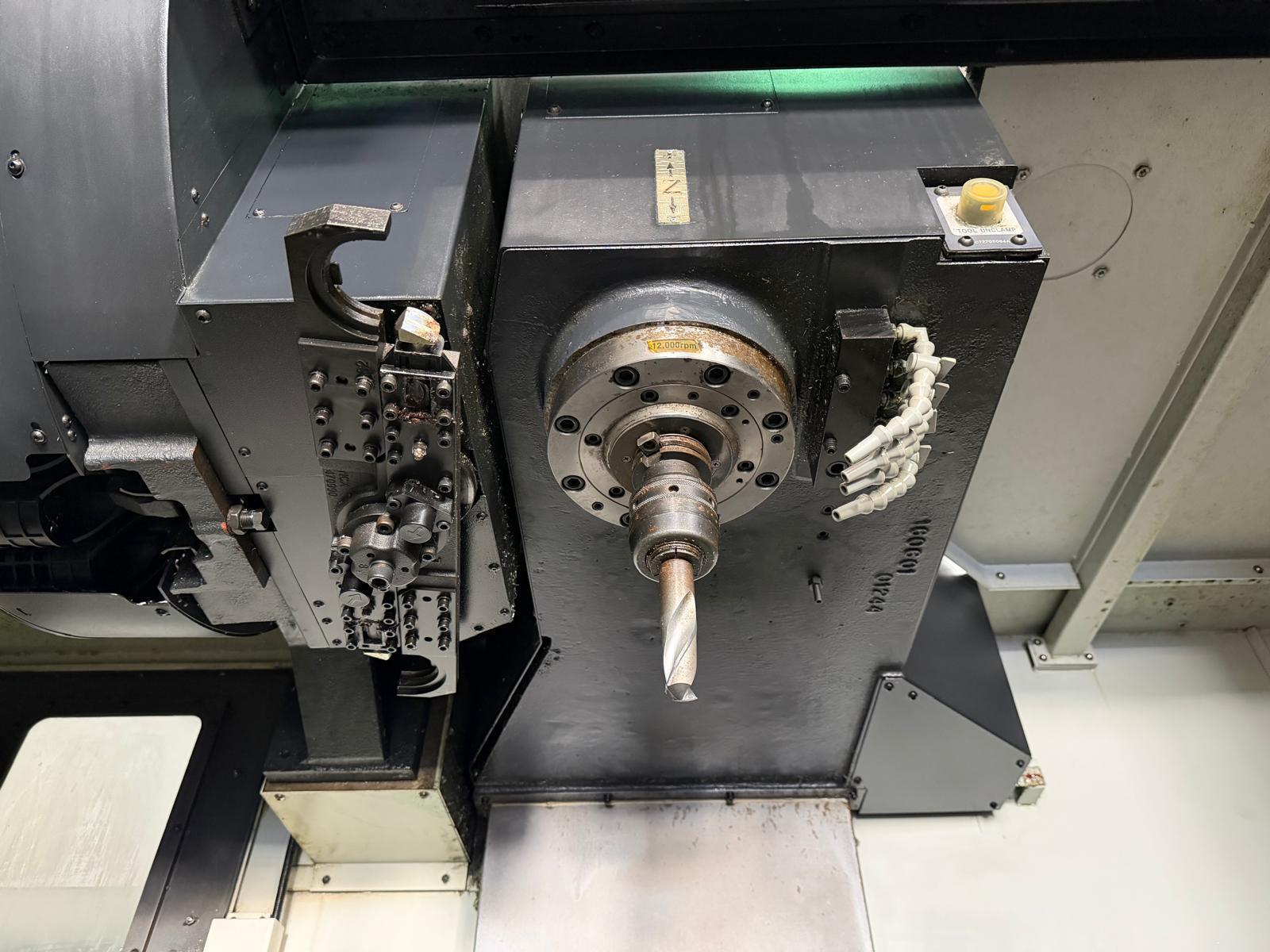

Automatic Tool Changer:
Capacity: 30 Station Side Mounted
Max Tool Weight: 17.6 lbs
Max Tool Dia: 3.1″ -4.9″
Max Tool Length: 11.81″
Tool Changing Time : 1.3 Seconds
General:
Air Required: 90 psi 4 scfm
Power: 220v / 43.1 kva / 3-Phase / 50/60 Hz
Overall Dimensions: 151″ x 137″ x 125″ High Approx.
Weight: 29,760 lbs
