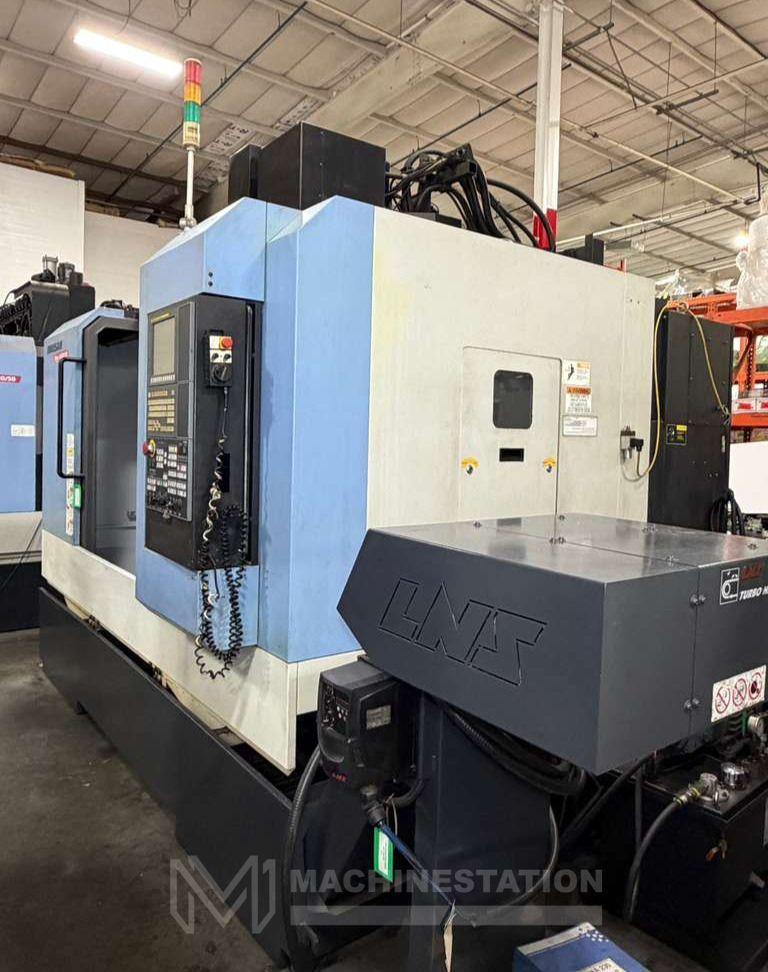

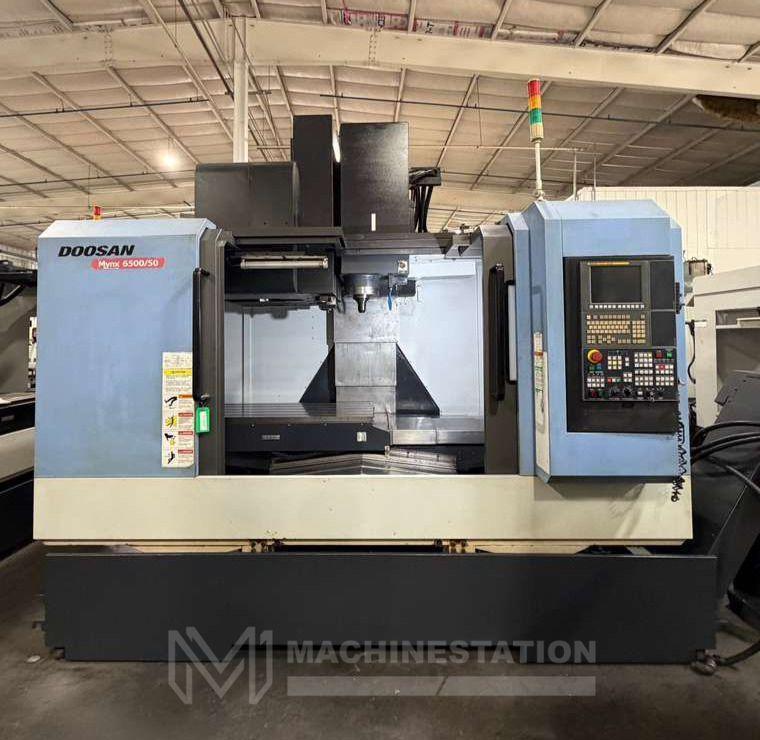

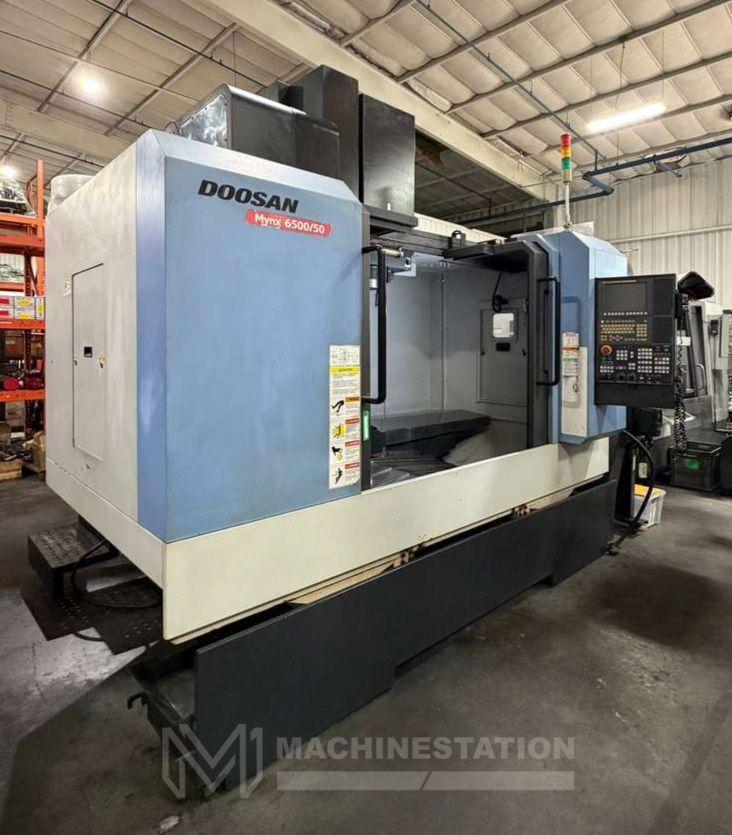

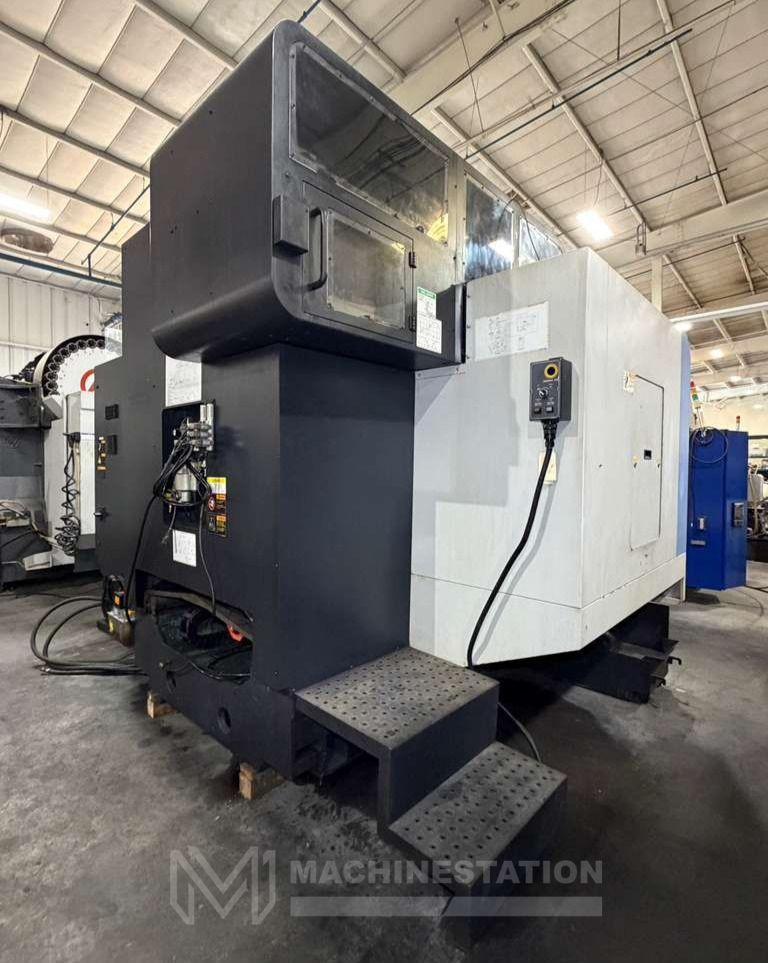

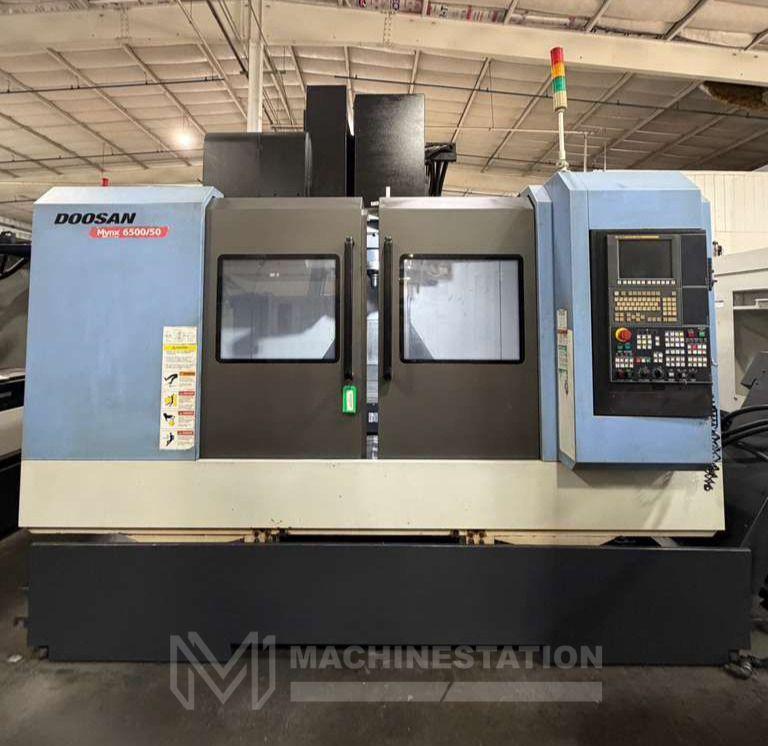

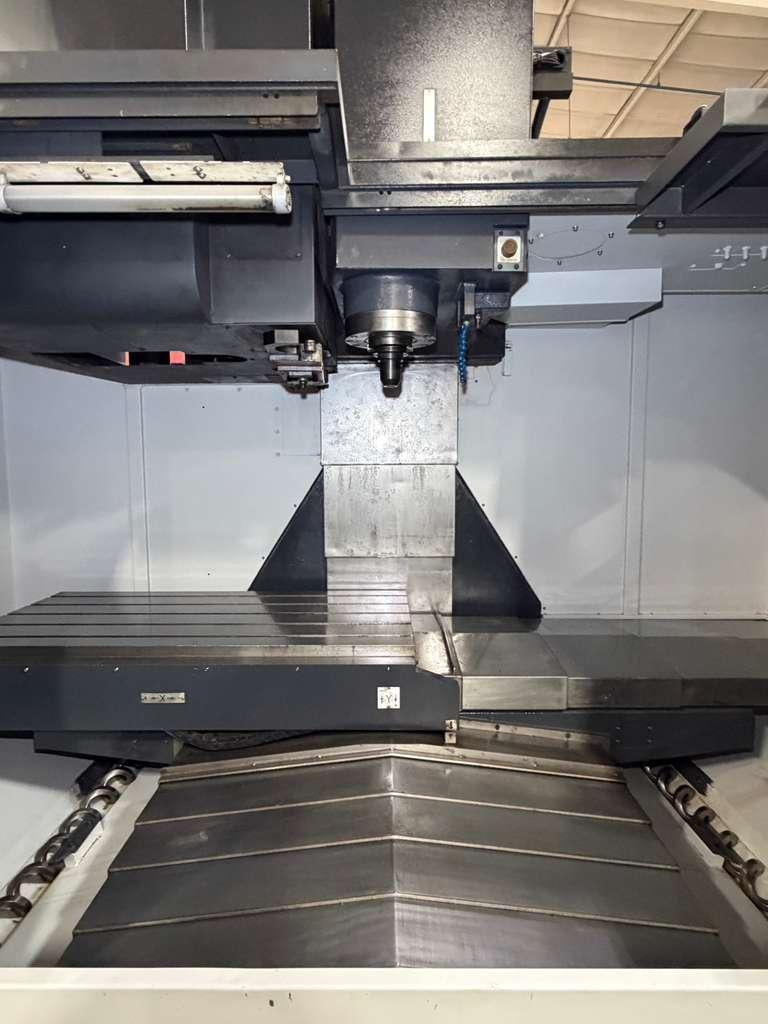

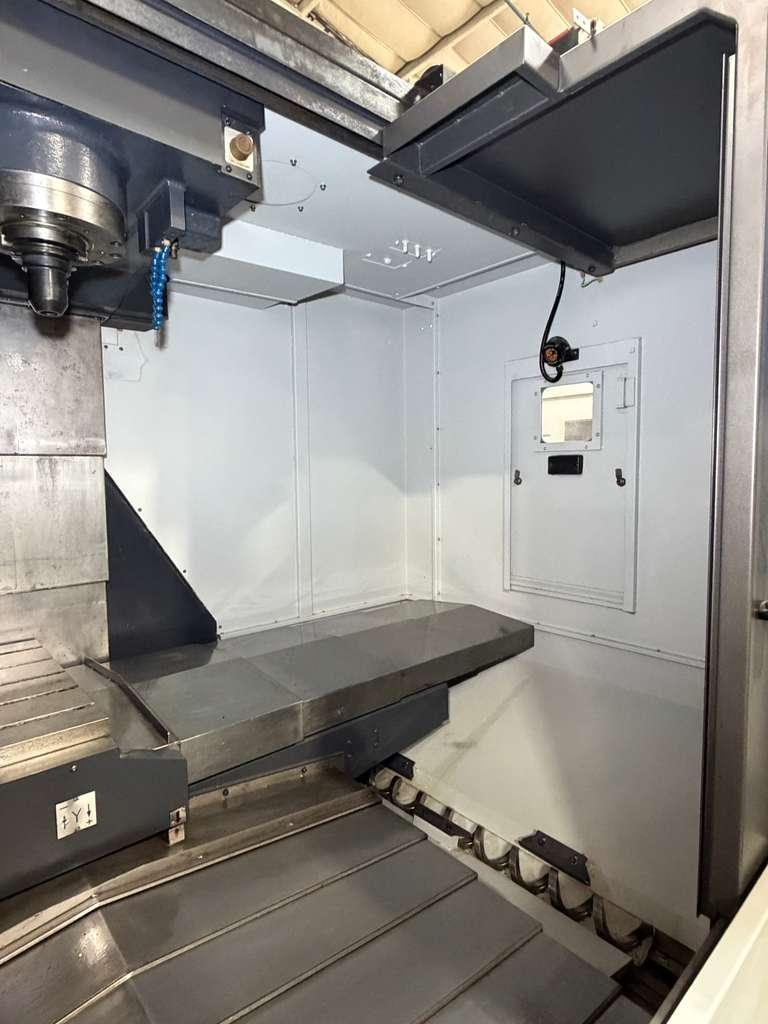

Doosan MYNX 6500/50 CNC Vertical Machining Center – 50 Taper Mill

Brand
DOOSAN
Category
Machining Centers
Type
Vertical Machining Centers
Model
Doosan Mynx 6500/50
Stock #
113023
Year
2014
Condition
Not specified

Location

Not specified
REQUEST FINANCING

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Make: Doosan
Model: Mynx 6500/50
Year: 2014
Condition: Used – Good
Features:

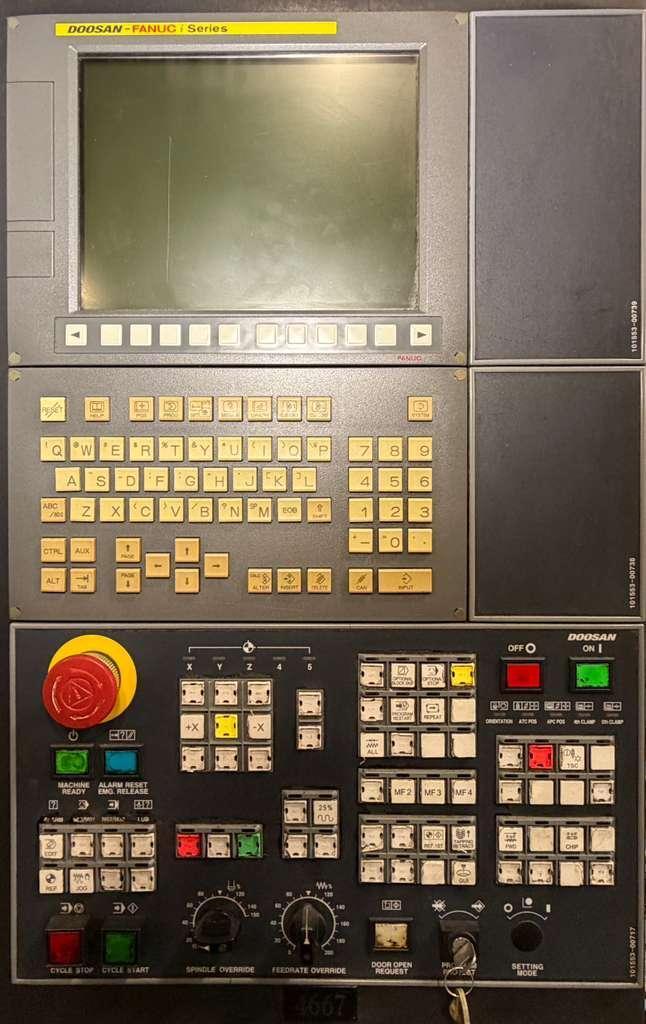

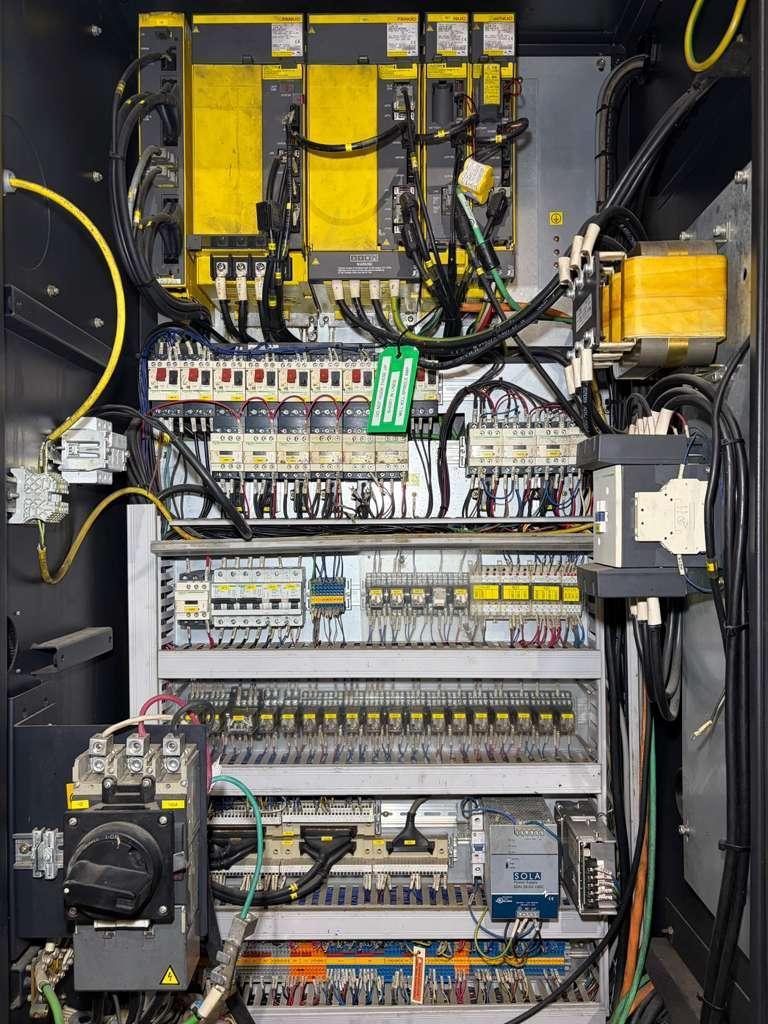

Doosan Fanuc i-Series CNC Control
Box Way Construction

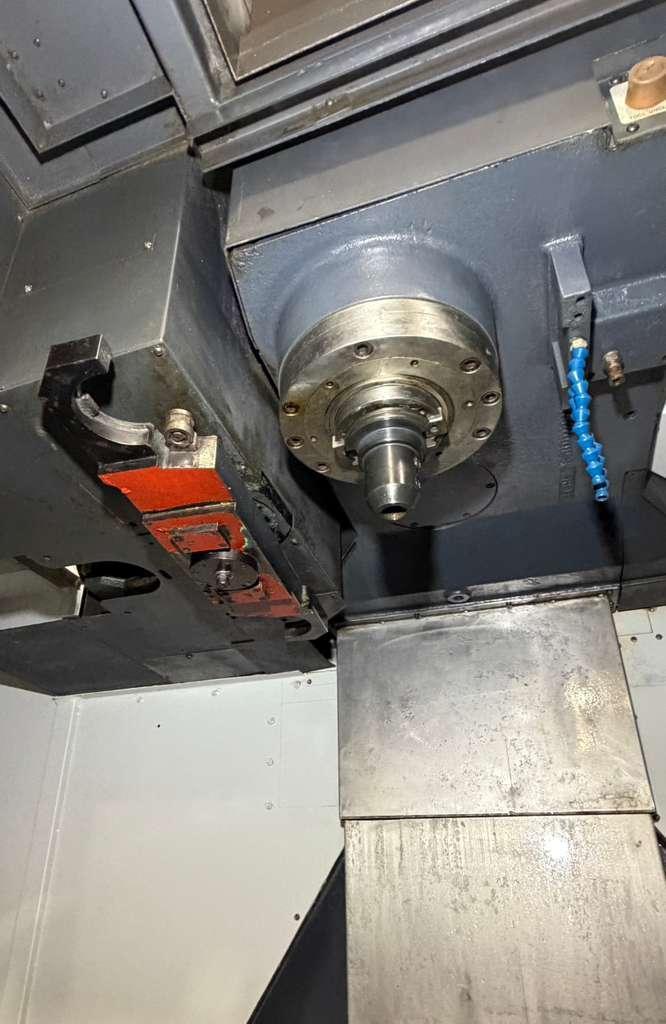

6,000 RPM Precision Spindle
30 Station Automatic Tool Changer
CAT-50 Taper Spindle
Through Spindle Coolant

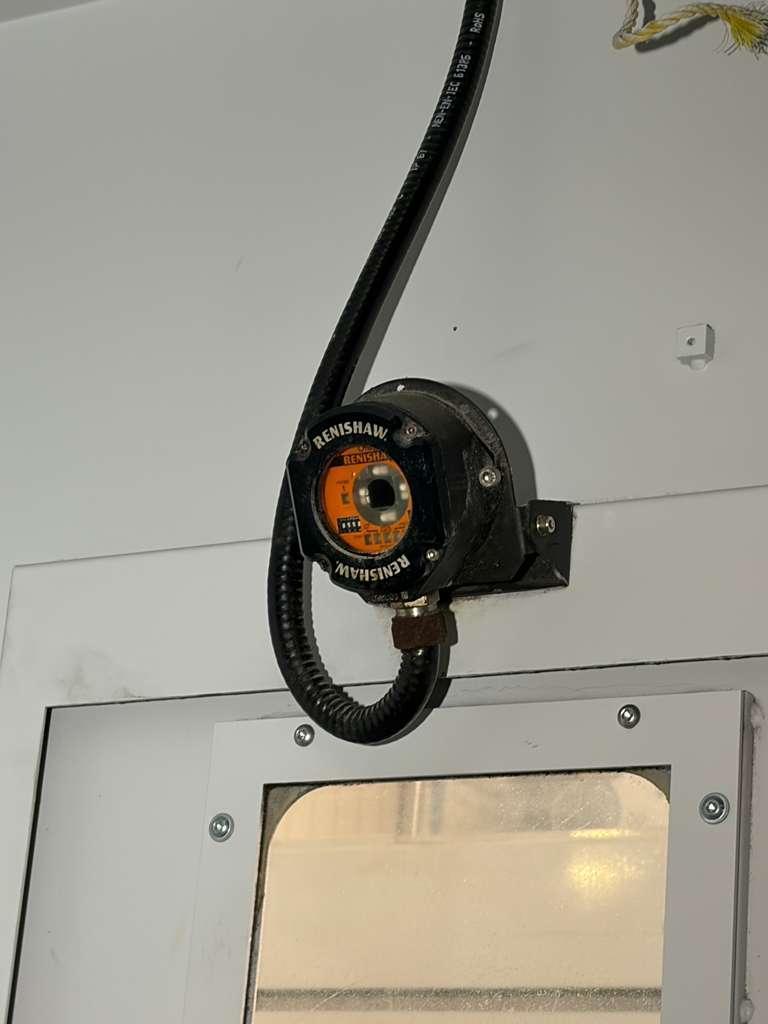

Renishaw Receiver Installed
PCMCIA Interface
MPG Handwheel Control
Rigid Tapping
Spindle Orientation
High Pressure Coolant System

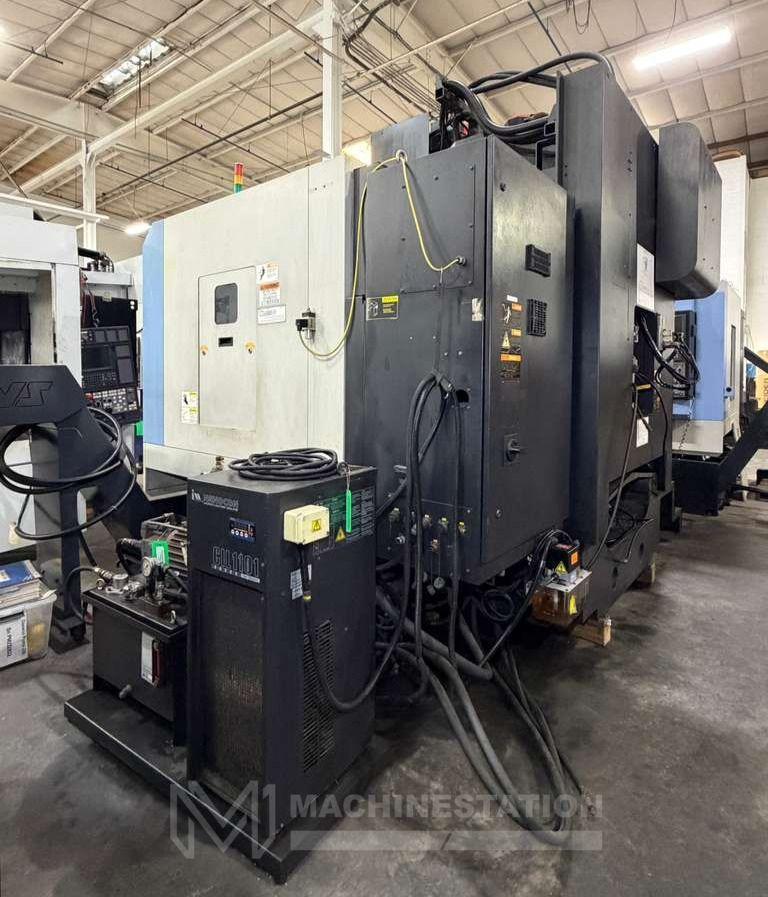

Spindle Chiller Unit
Chip Conveyor
Travels:
X-Axis: 50.7″
Y-Axis: 26.1″
Z-Axis: 25″
Rapid Traverse Rates X & Y Axis: 1417 IPM
Rapid Traverse Rates Z Axis: 944 IPM
Cutting Feed Rates: 590 IPM
Spindle Nose to Table (Min.- Max.): 5.9″ – 30.9″

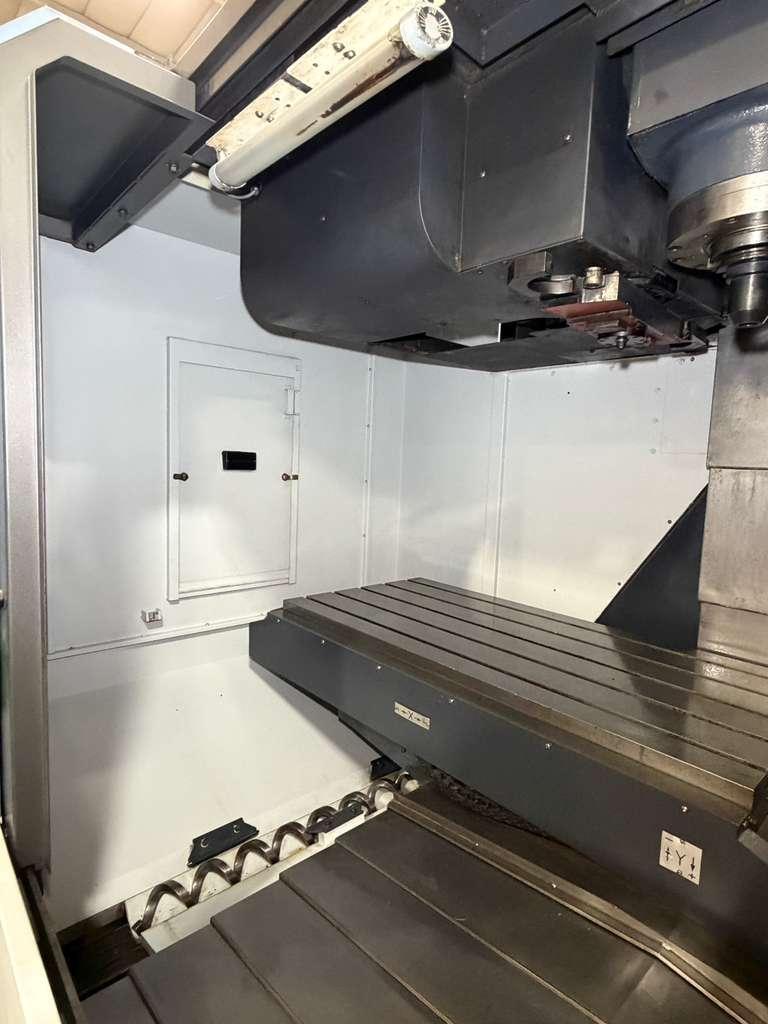

Table:
Length: 51.2″
Width: 26.37″
Number of Std T-Slots: 5
T-Slot Width: 5/8″
Max Weight on Table: 2200 lbs
Spindle:
Taper Size: CAT-50
Speed Range: 0 – 6,000 RPM
Spindle Type: Gear Head
Spindle Power: 30 HP
Automatic Tool Changer:
Capacity: 30 Tools
Max Tool Weight: 17.6 lbs
Max Tool Dia: 3.54″
Max Tool Length: 11.8″
Tool Changing Time: 1.3 Seconds
General:
Air Required: 80 psi 4 scfm

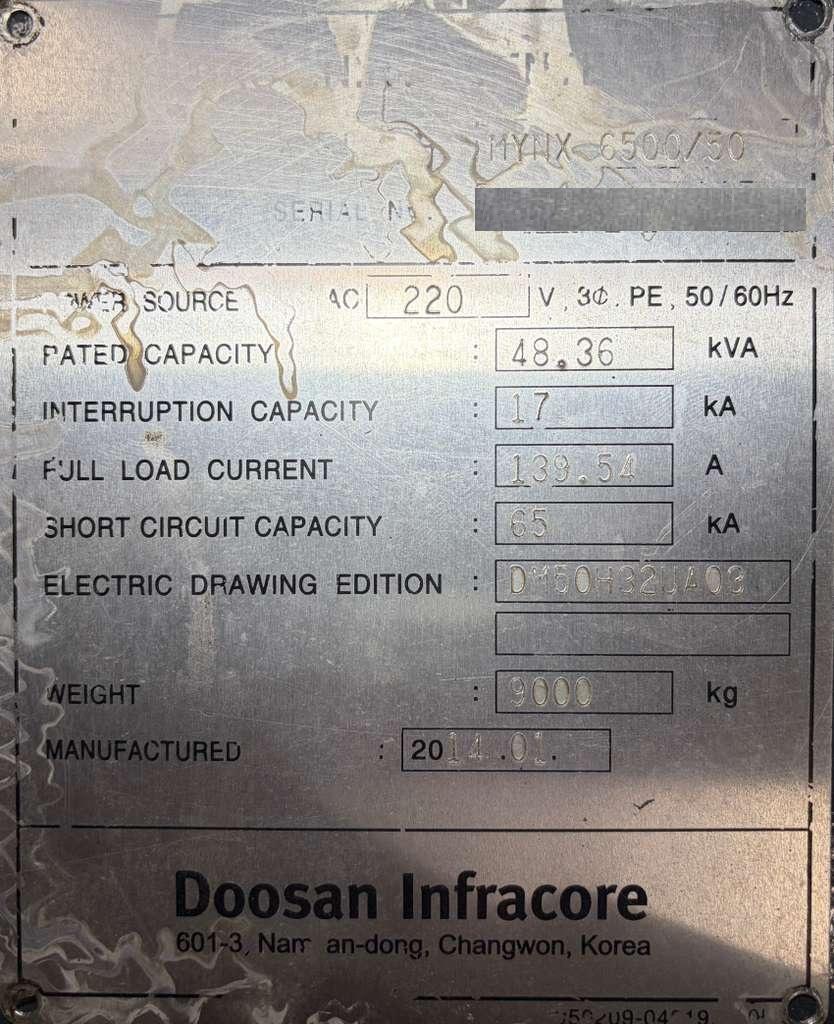

Power: 220v / 48.36 kva / 3-Phase
Overall Dimensions: 140″ x 100″ x 110″ High Approx.
Weight: 19,840 lbs Approx.
