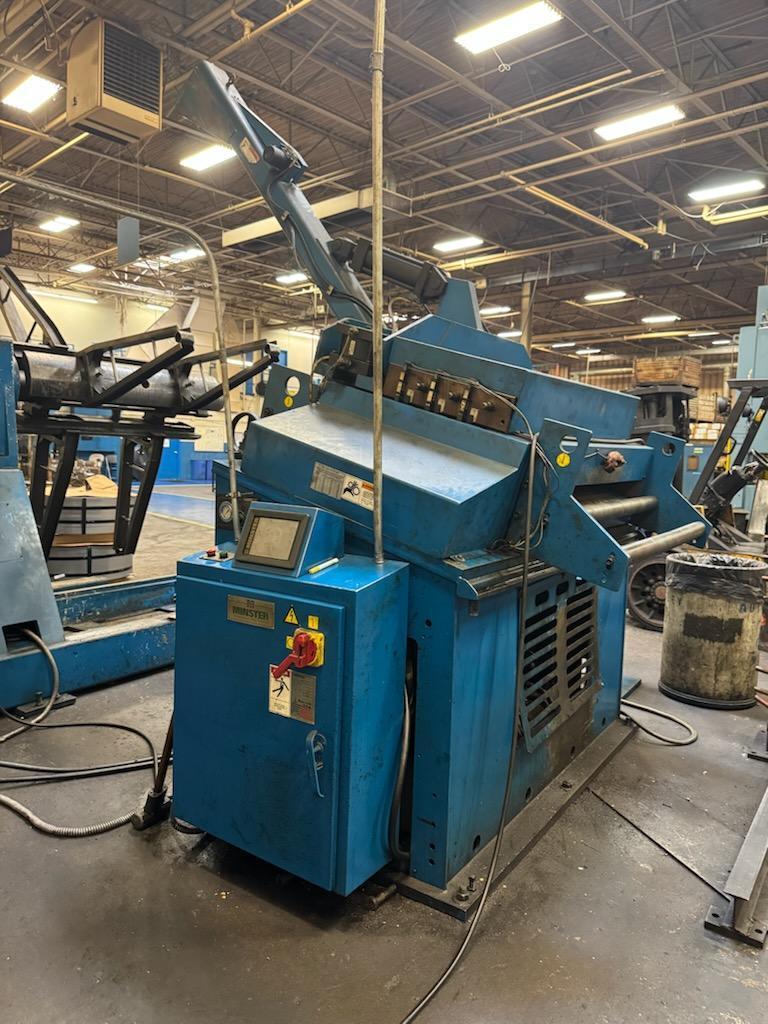

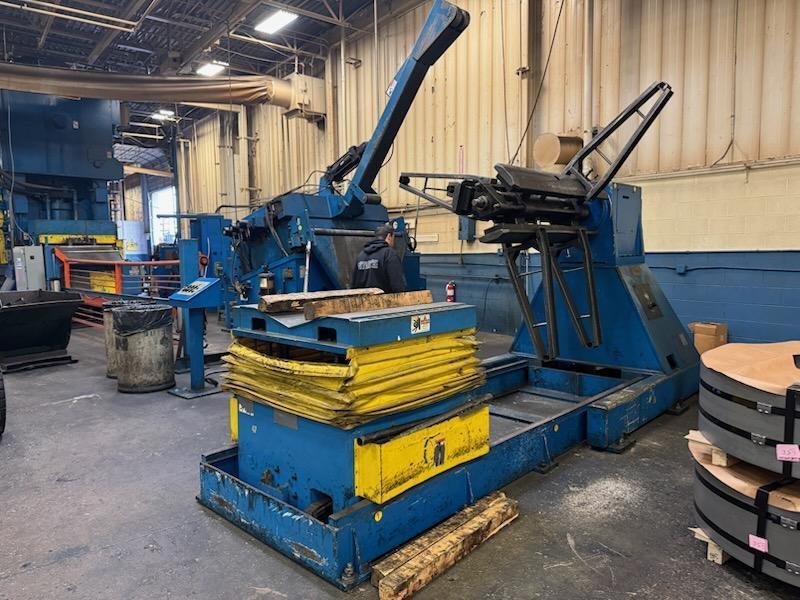

MINSTER Coil Reel And Powered Straightener Combination 20,000 Lbs. x 50" Wide
Brand
Category
Model
MRH-20-50S / MSH-40-50-7
Stock #
5993B
Year
2001
Condition
Used
Location
Michigan
| Coil Weight Capacity: | 20000 pounds |
| Stock Width Capacity | 50 inches |
| Max Stock Thickness Capacity At Full Width | .180 inches |
| Minimum Expansion Range: | 20 inches |
| Maximum Expansion Range: | 24 inches |
| Coil O.D. Capacity: | 72 inches |
|
Stock thickness capacities:
.180" x 50" Wide (40KSI) .180" x 19" Wide (80 KSI) .300" x 27" Wide (40 KSI) .300" x 07" Wide (80 KSI) MINSTER Coil Reel Model No. MRH-20-50S Three leaf mandrel with hydraulic expansion Drag brake mounted on main spindle Threading drive for jog forward and reverse Traveling coil load car Powered lift and travel MINSTER Coil Straightener Model No. MSH-40-50-7 Seven straightening rolls x four inch diameter Motorized straightening roll adjustments Entry pinch rolls with air operated adjustments Hand crank edge guides Exit cascade loop support rollers Automatic lubrication system Operator's control station Automatic lubrication system Ultrasonic loop control |
|
