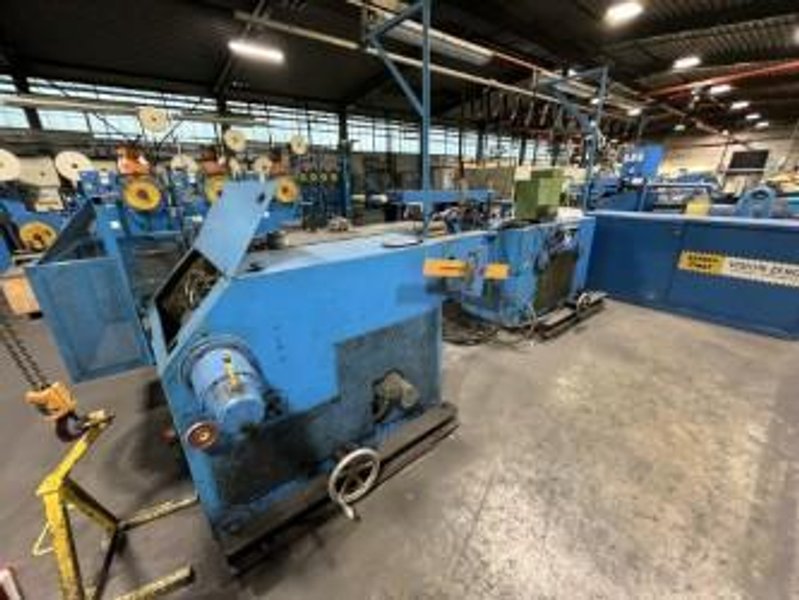

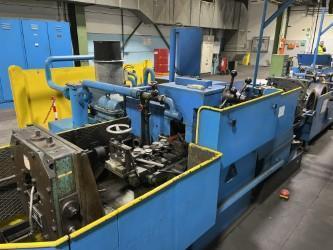

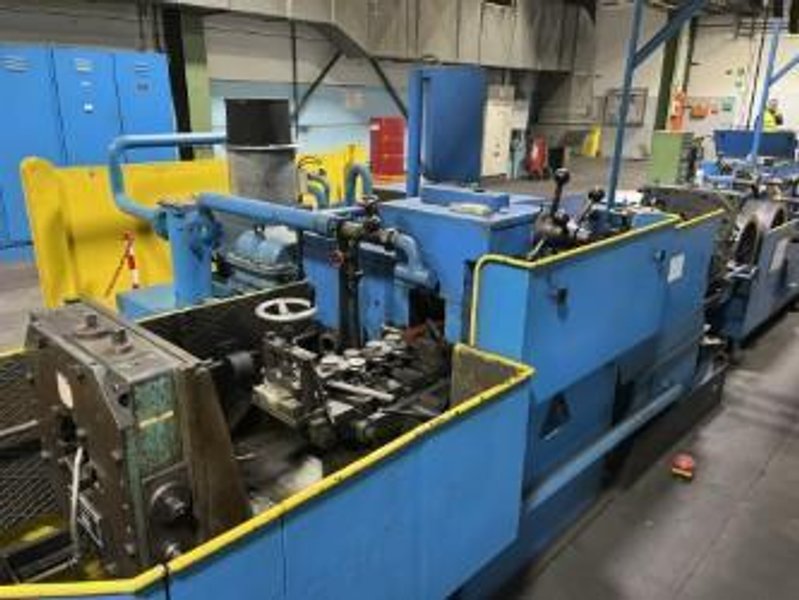

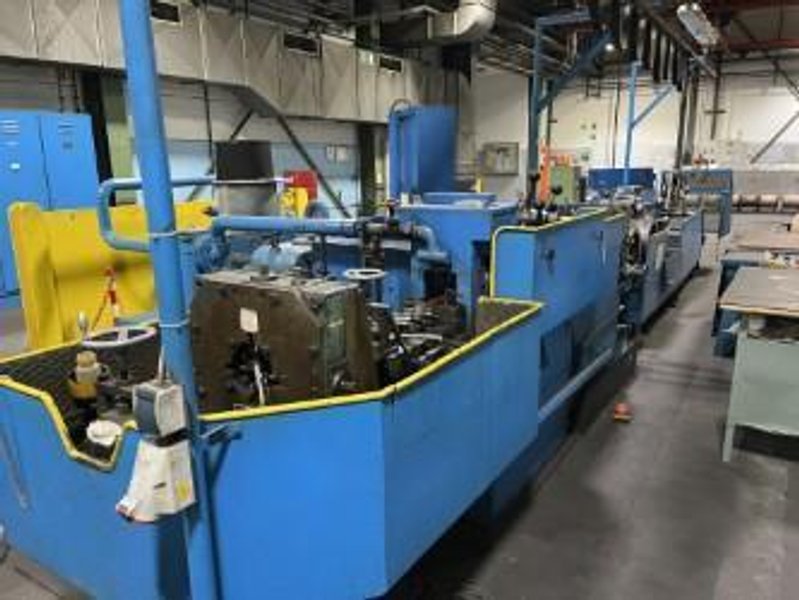

BONGARD WIRE FLATTENING MILL

Machine Type: Bongard Wire Flattening Mill

Application: Precision Flat Wire Production

Flat Wire Working Range (W x H): 0.5 x 0.1 mm to 8.0 x 1.5 mm+

Maximum Line Speed: 120 m/min+

Entry Section:

Entry Uncoiler

Maximum Coil Weight: Not Available

Entry Wire Guide

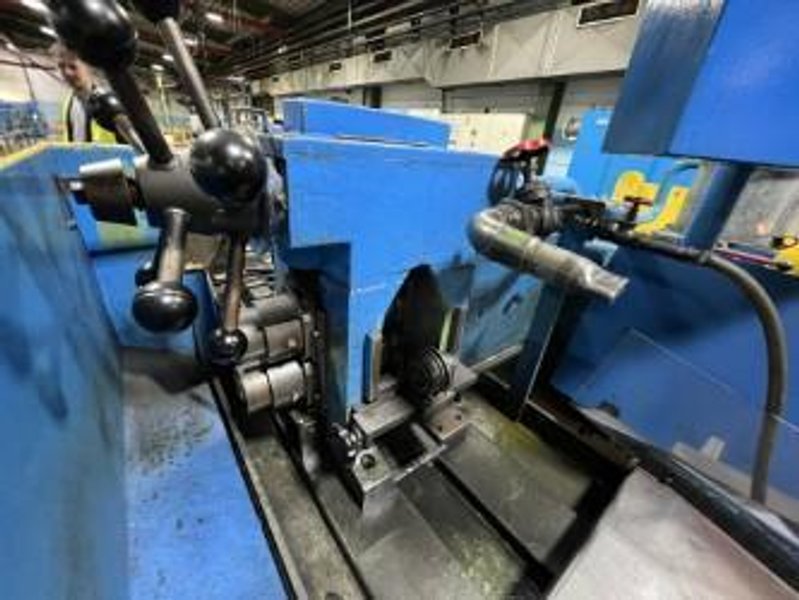

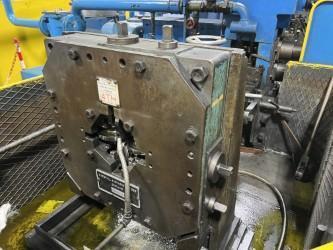

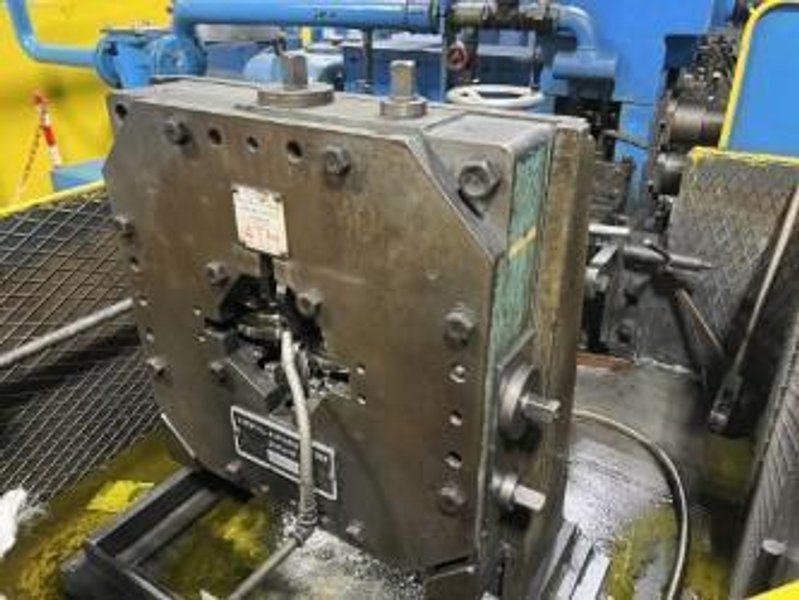

Turkshead: Marshal Richards 4th Turkshead, hand adjustment

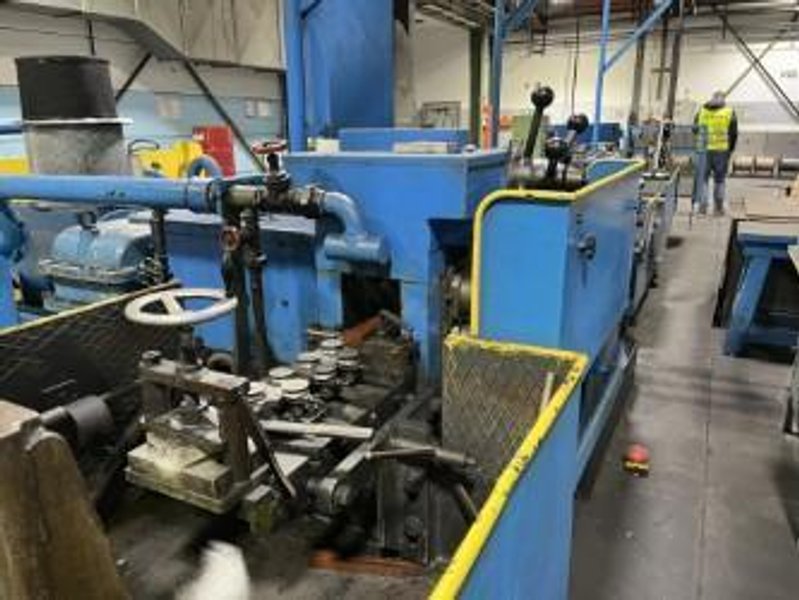

Entry Straightener: 7 Roll Entry Straightener and Guide

Rolling Mill Section:

Rolling Mill Type: 2-Hi Rolling Mill

Roll Dimensions: 120 mm Diameter x 30 mm Roll Face

Top Roll Adjustment: Hand Adjustment

Main Drive Motor: 0.15 / 15 / 15 kW

Motor Speed: 75 / 250 / 1500 RPM

Motor Voltage: 42 / 400 / 400 V

Exit Section:

Exit Guide

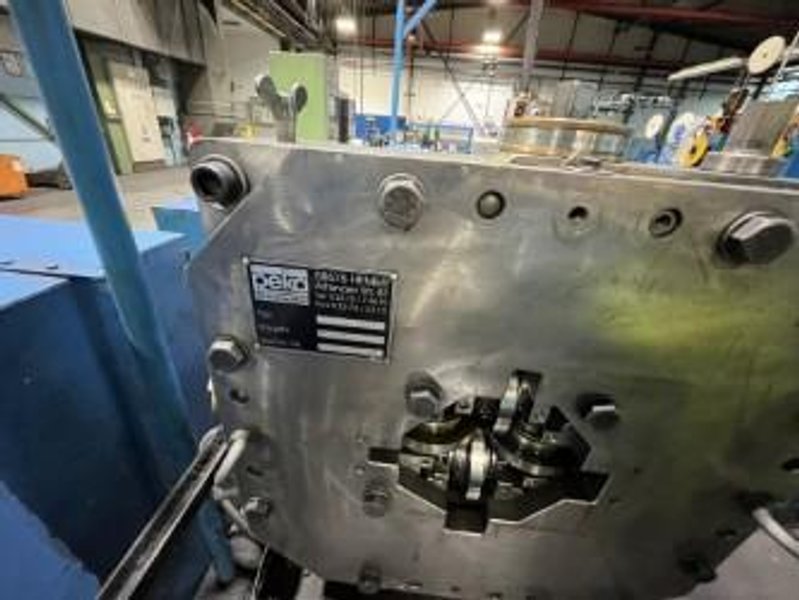

Exit Turkshead: PEKA Turkshead

Tension Stand

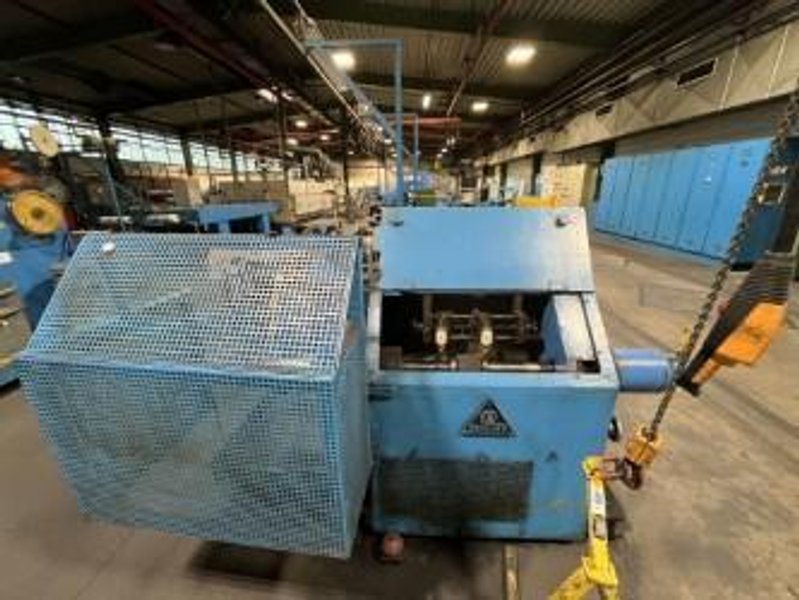

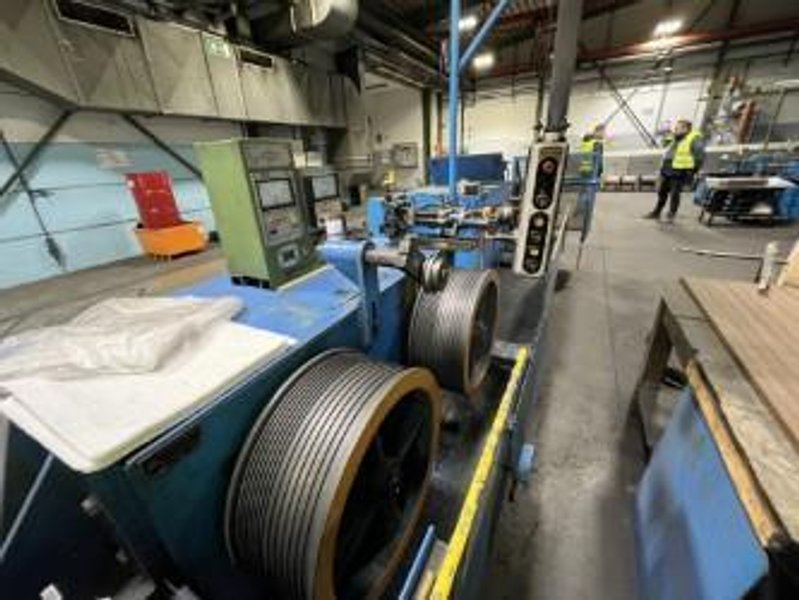

Pull Through Unit: BONGARD Dual Capstan Pull Through

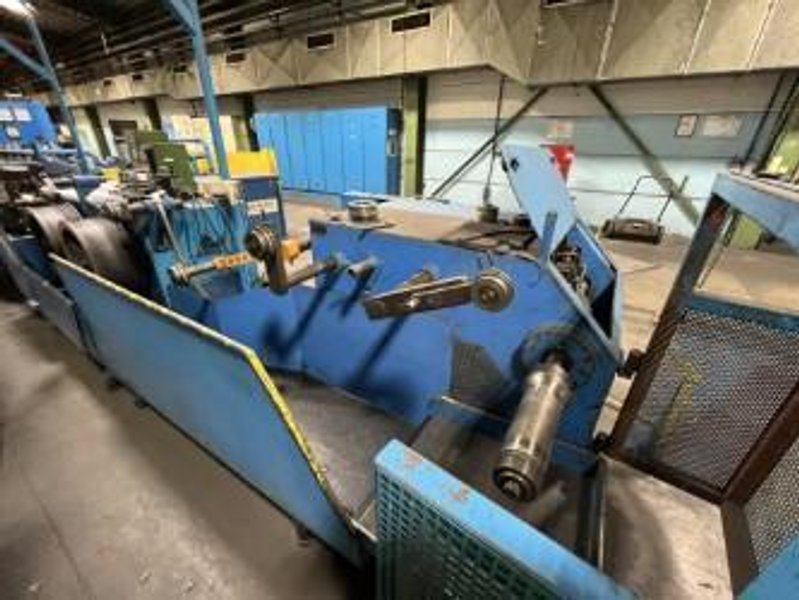

Traverse Spooler:

Traverse Spooler

Maximum Spool Width: 200 mm

Spooler Motor Type: DC Motor

Spooler Motor Power: 0.1 / 10 kW

Motor Speed: 15 / 1500 RPM

Motor Voltage: 19 / 400 V

Additional Information:

Coolant circulation and filtration system included

Coolant Pump Motor: 4 kW

Manuals Available

Drawings Available
