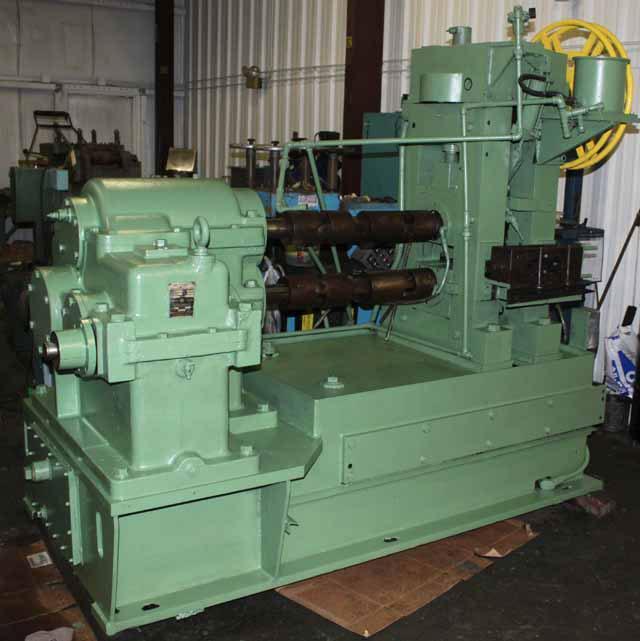

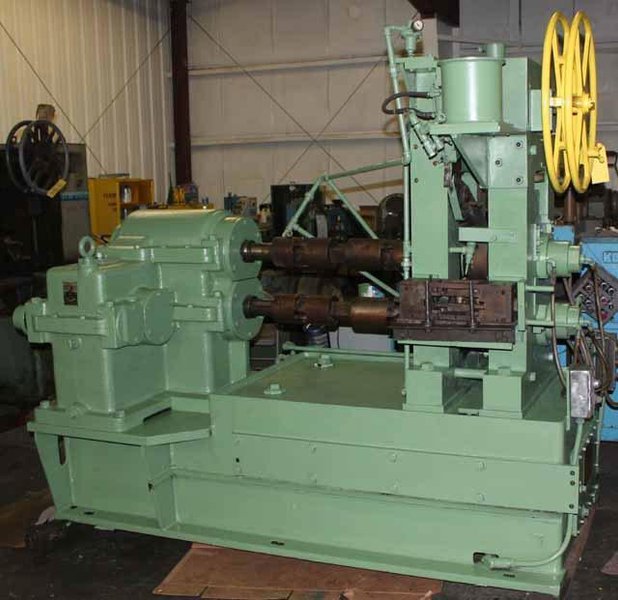

-MANUFACTURER: FENN MANUFACTURING COMPANY (USA)
-TYPE: 2 HI WIRE FLATTENING ROLLING MILL

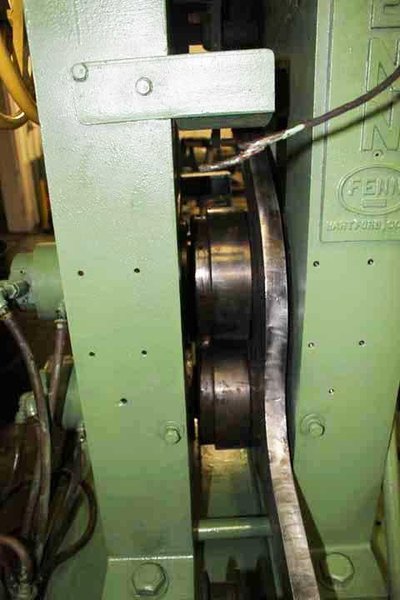

-ROLLS
-DIAMETER: 10" (254mm)
-ROLL FACE: 2-1/2" (63.5mm) WIDE CARBIDE SHELL INSERTS
MOUNTED ON 5" (127MM) WIDE STEEL ROLLS
-ROLLS ARE WATER-COOLED
-HOUSING COLUMN SIZE: 6"(152mm) X 6"(152mm)
-WINDOW WIDTH: 10-5/8"(270mm)
-BEARINGS FENN TYPE ROLLER BEARINGS
-BEARING LUBE FORCED OIL
-DRIVE MOTOR 75 HP DC General Electric KINAMATIC Direct
current Motor, 850/1700 RPM, 500 Volts
-REDUCER PINION STAND/REDUCER
HORSBURGH & SCOTT SIZE 10 W-27-SPL, RATIO 11.56
HP RATING 75, SERVICE FACTOR 1.0, INPUT RPM
800/1700
-SCREWDOWNS DUAL HANDWHEEL
-DRIVE JOINTS SQUARE TYPE UNIVERSAL JOINTS
-INCLUDES ONE SPARE SET OF SHELL CARBIDE ROLLS
PURCHASER TO SUPPLY NEW ELECTRIC CONTROLS
NOTE: THE MILL IS EQUIPPED WITH AN EDGER BOX ON THE ENTRY SIDE BUT NO EDGER
ROLLS OR ROLL BOX ASSEMBLIES. THIS MILL WAS ORIGINALLY PART OF A 3 STAND WIRE
FLATTENING LINE AND AS SUCH IT HAS A DANCER ARM MOUNTED TO THE MILL HOUSING
THAT COULD BE USED AGAIN FOR A DANCER ROLL IF NEEDED.
DIMENSIONS:
-WIDTH: 90" (2286mm)
-DEPTH: 102" (2590mm)
-HEIGHT: 90" (2286mm)
**Temporary Specifications are Subject to Revisions**
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION BY PURCHASER**
|
