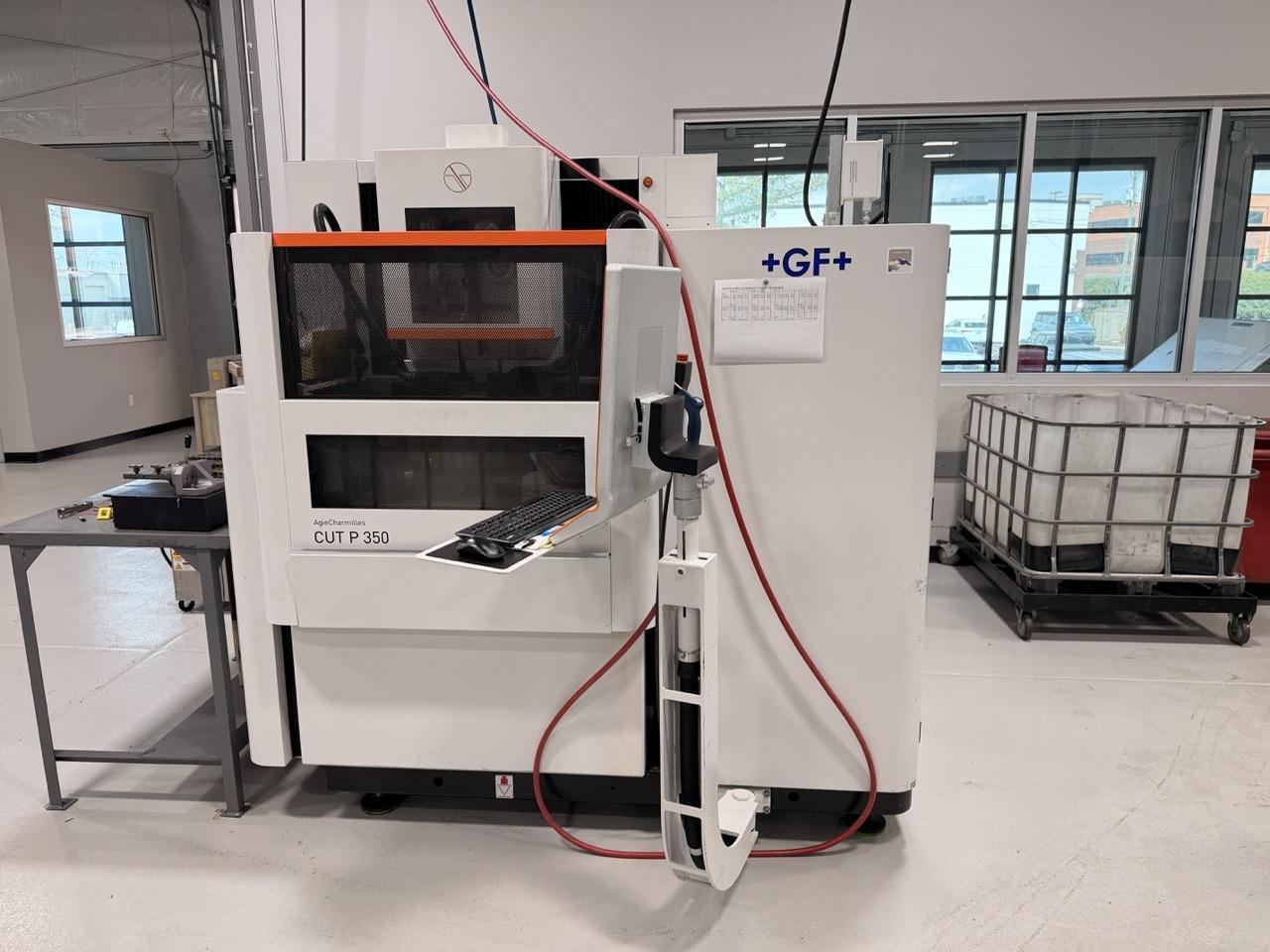

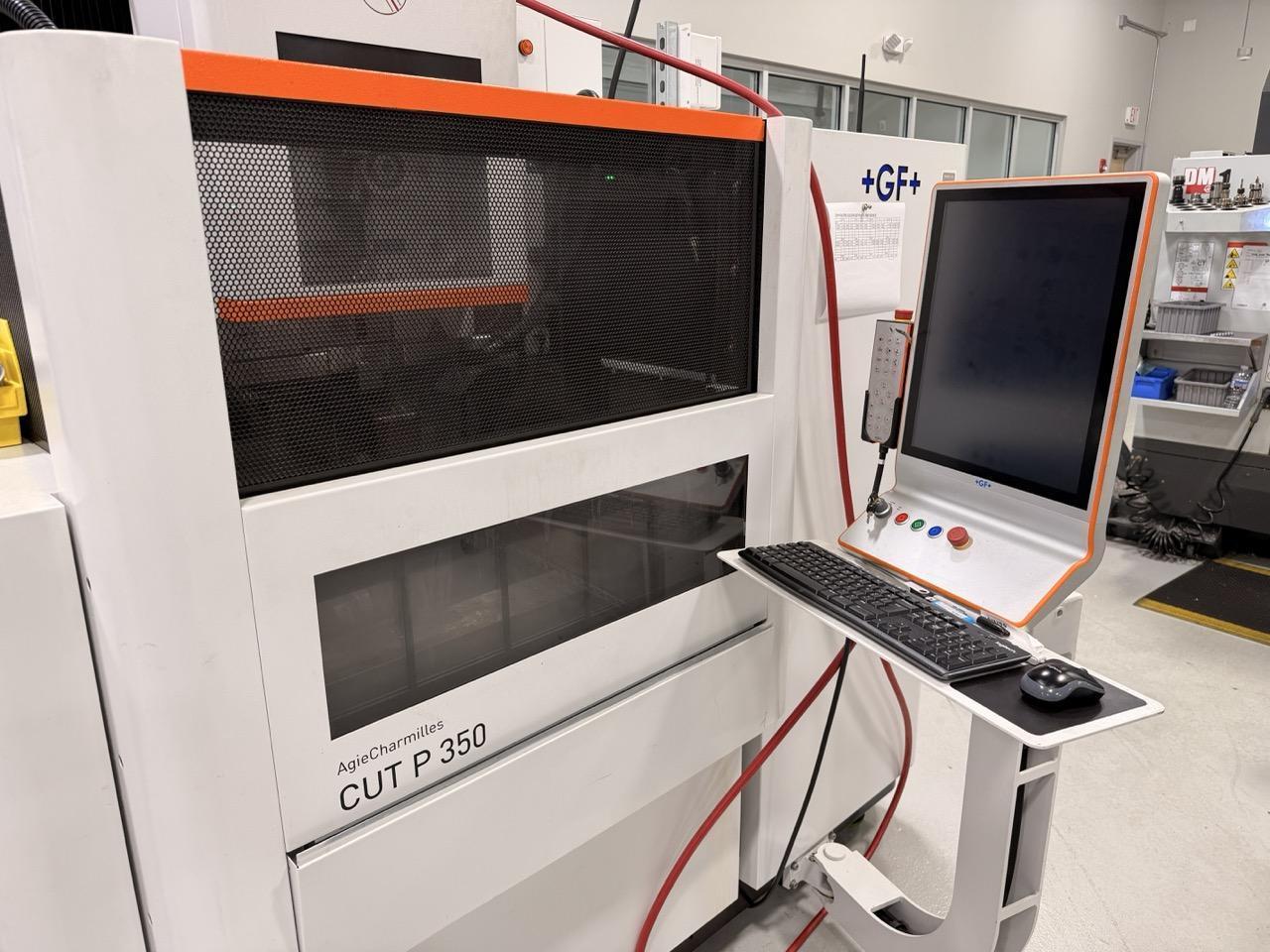

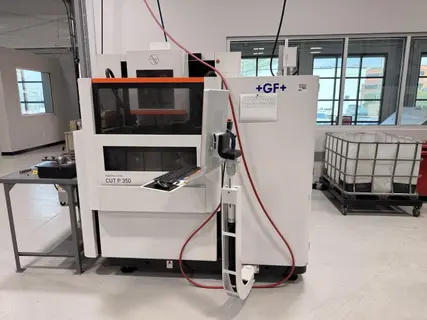

Agie Charmilles Cut P 350 Wire EDM, 2021 – 60Hz, Big Spool, Chopper, Chiller

X Axis: 13.77″ Y Axis: 8.66″ Z Axis: 8.66″ U Axis: 13.77″ V Axis: 8.66″ Maximum Cutting Speed: 118 IPM Maximum Taper: 45° Power Requirement: 380 – 400 VAC 3 Phase Maximum Power Consumption: 12 kVA Maximum Workpiece Dimensions Top Load: 39.37″ x 5.90″ x 8.66″ Maximum Workpiece Dimensions Front Load: 31.50″ x 21.65″ x 8.66″ Maximum Workpiece Weight: 1,653 Lbs Table Size: 26.77″ x 17.72″ Floor To Table Distance: 39.37″ Dielectric Capacity: 185 Gallons Machine Dimensions: 80.71″ x 87.95″ x 84.80″ Machine Weight: 5,401 Lbs

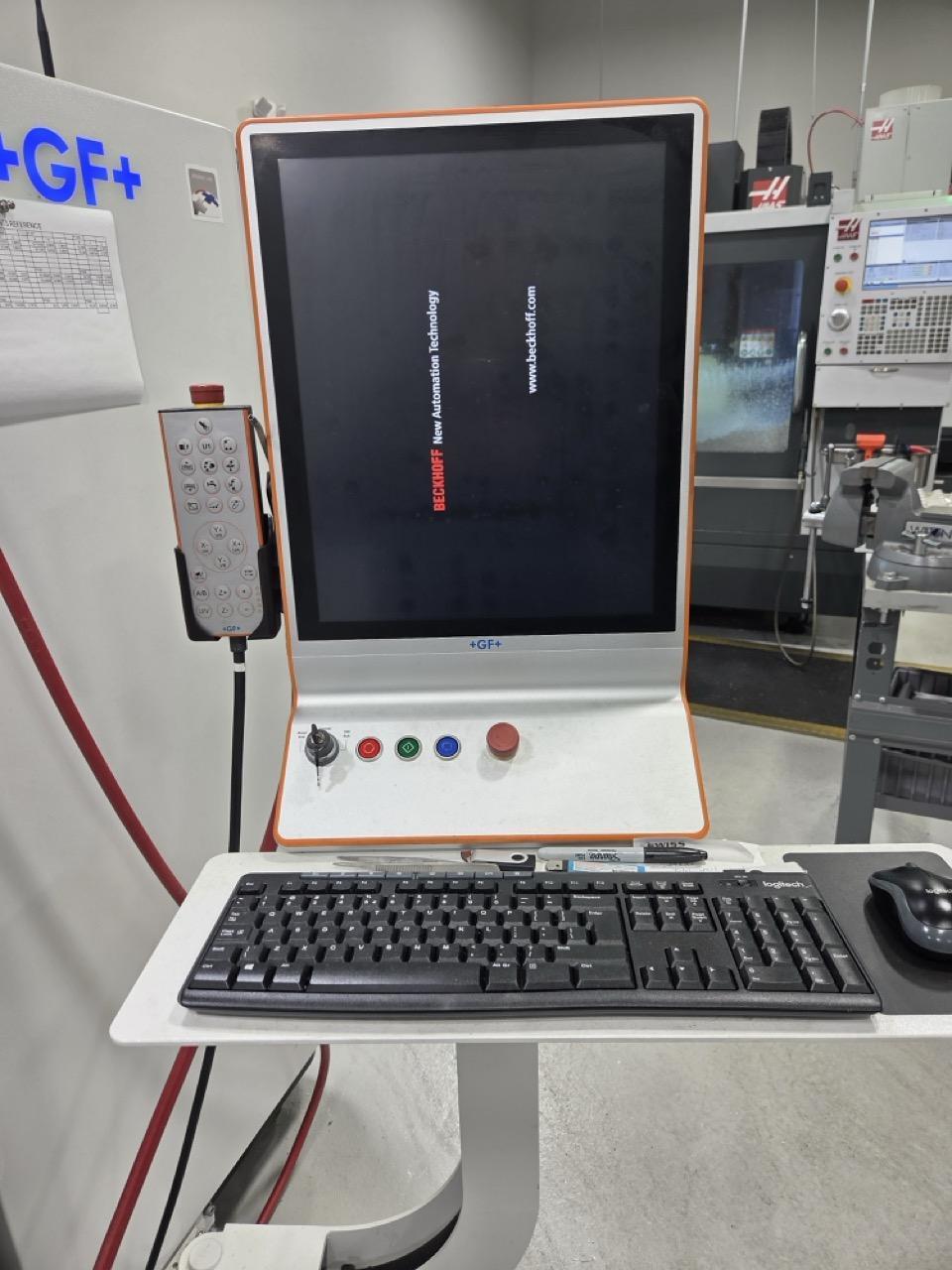

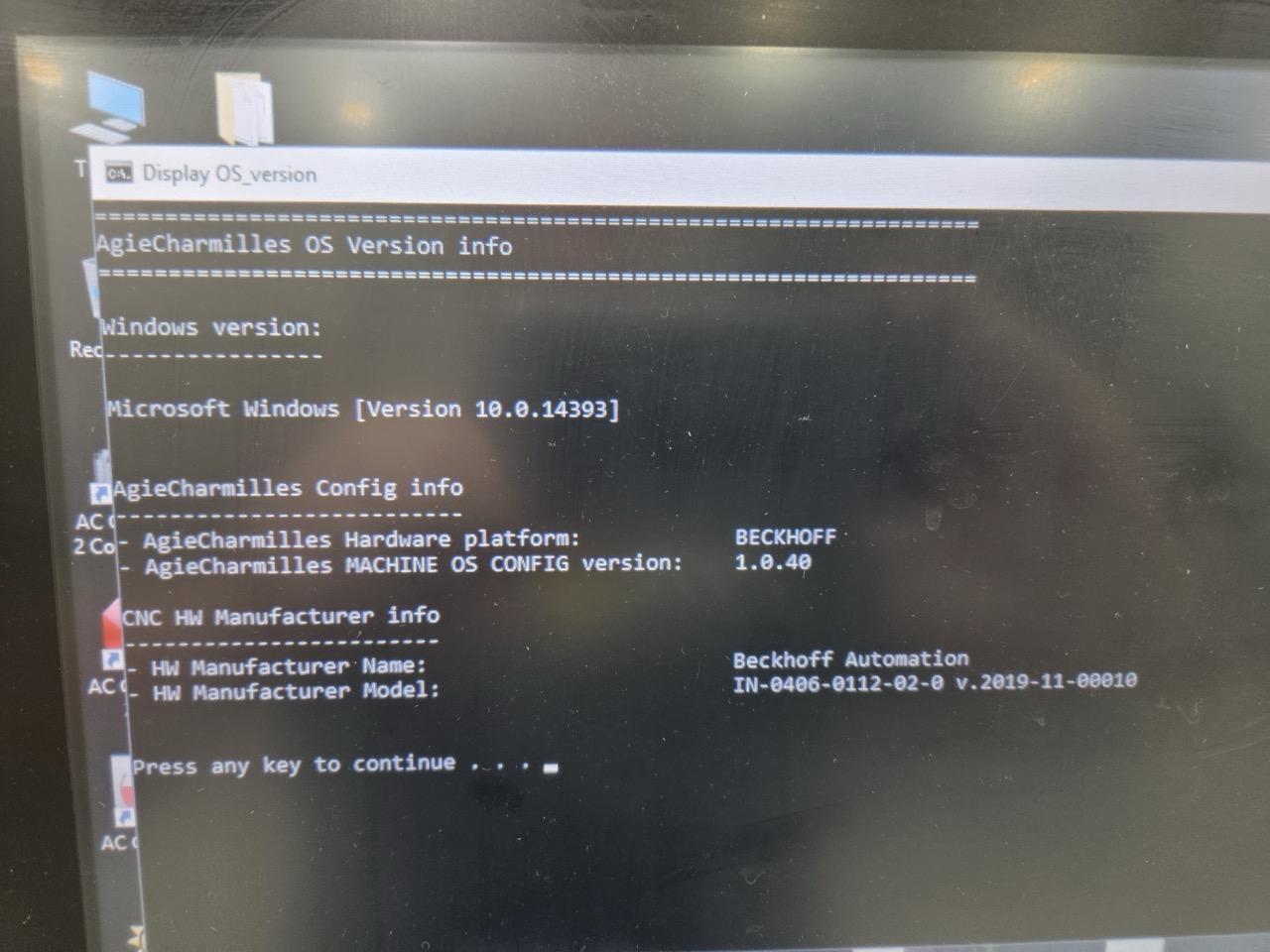

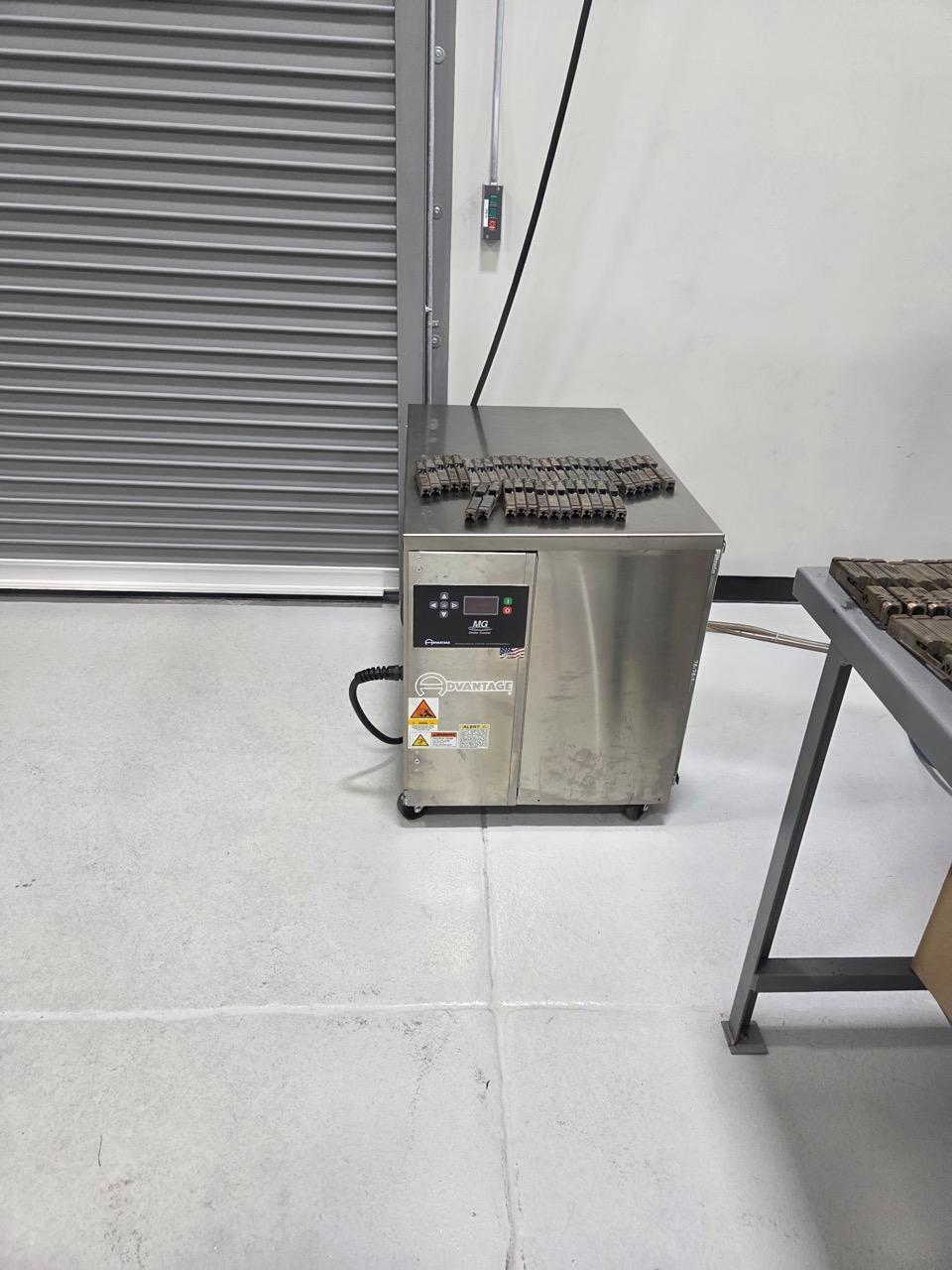

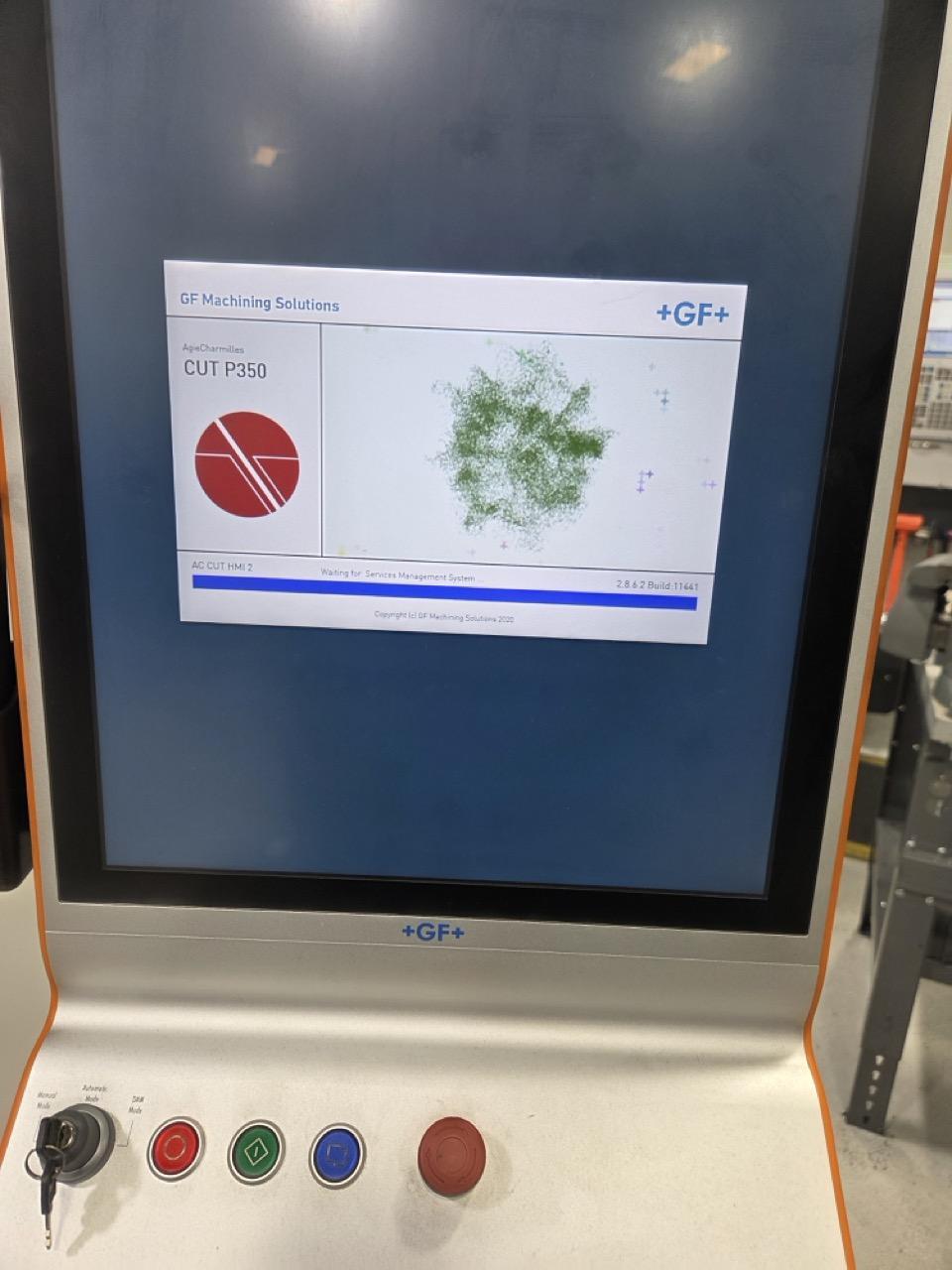

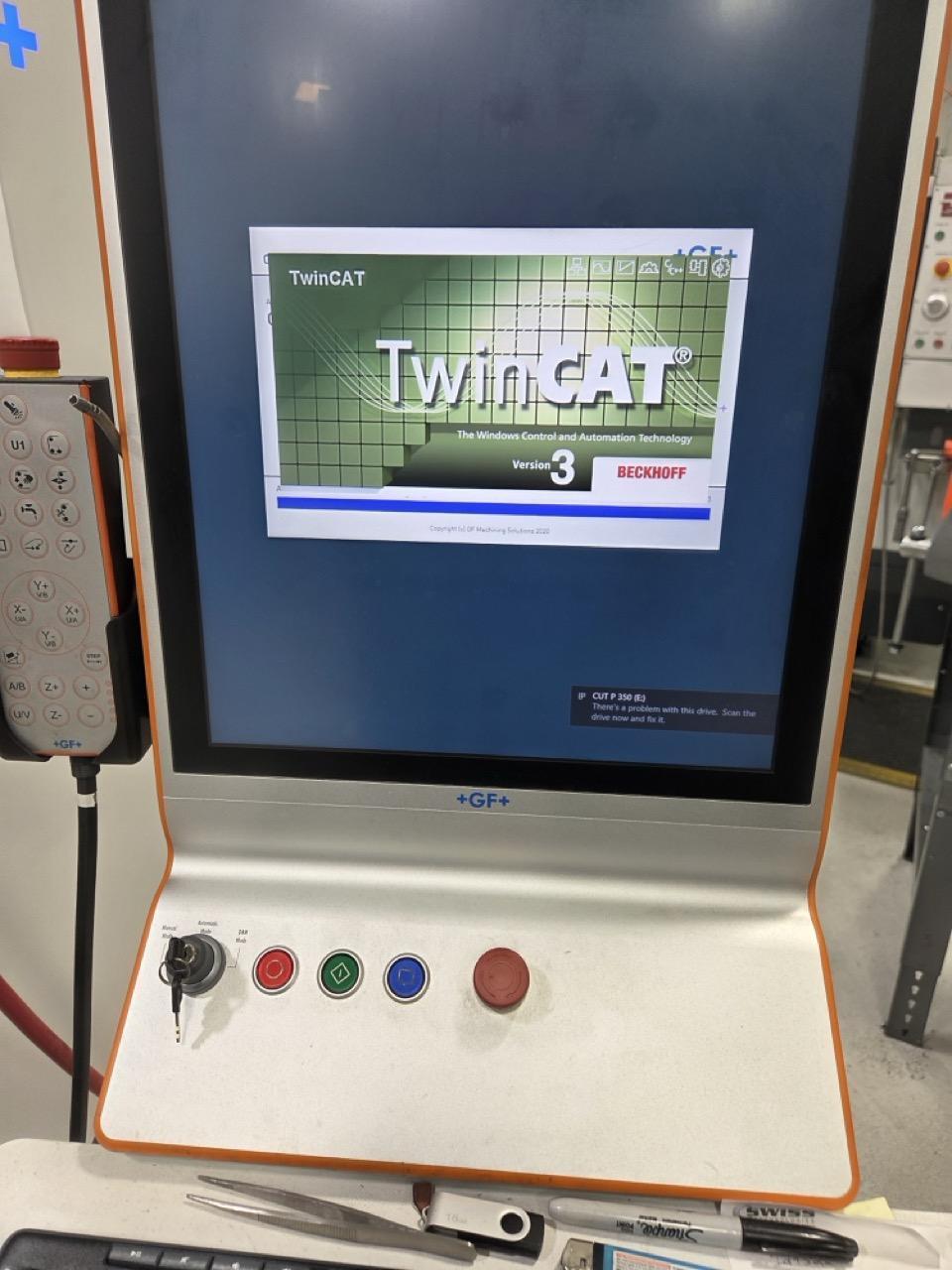

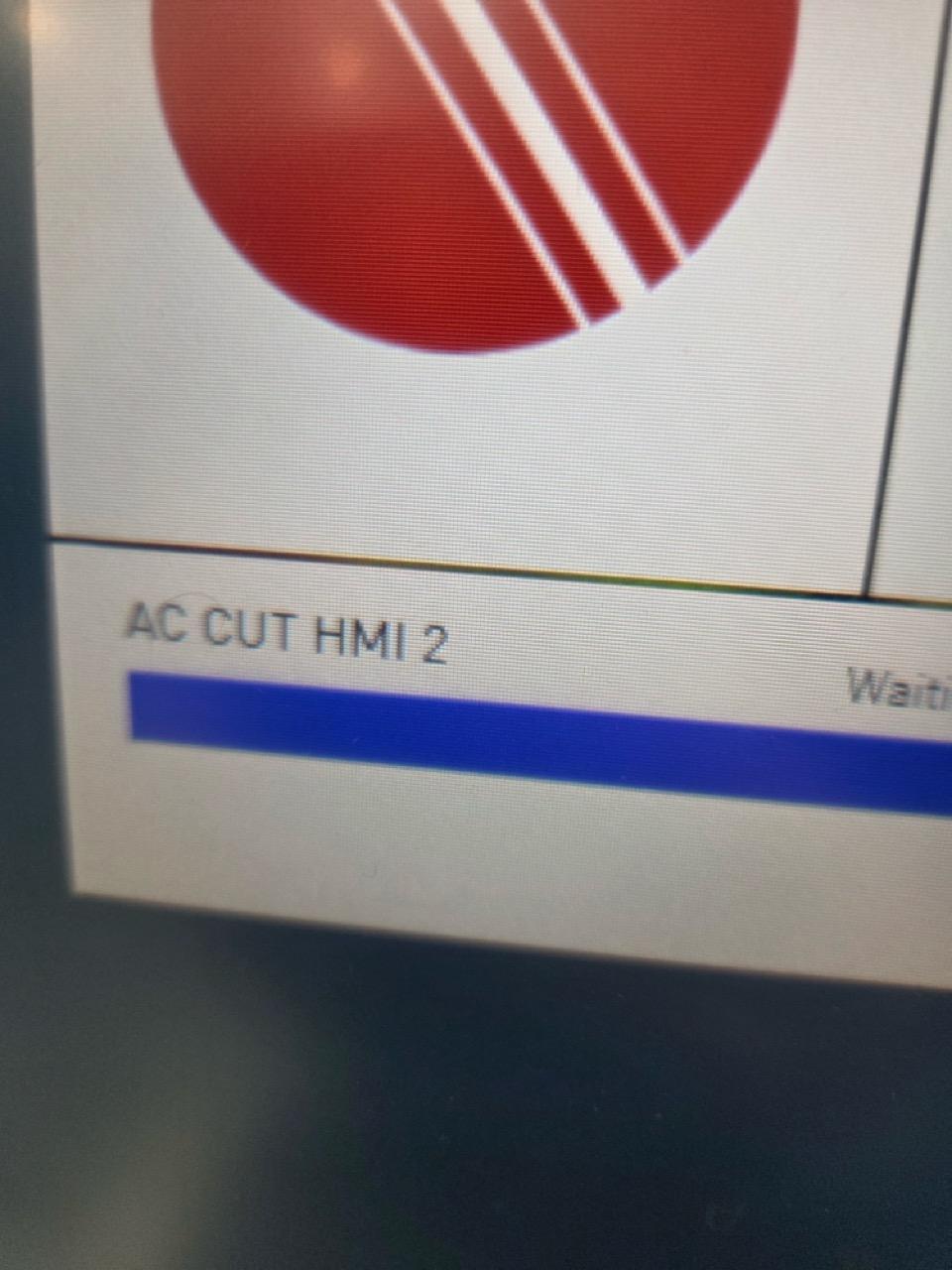

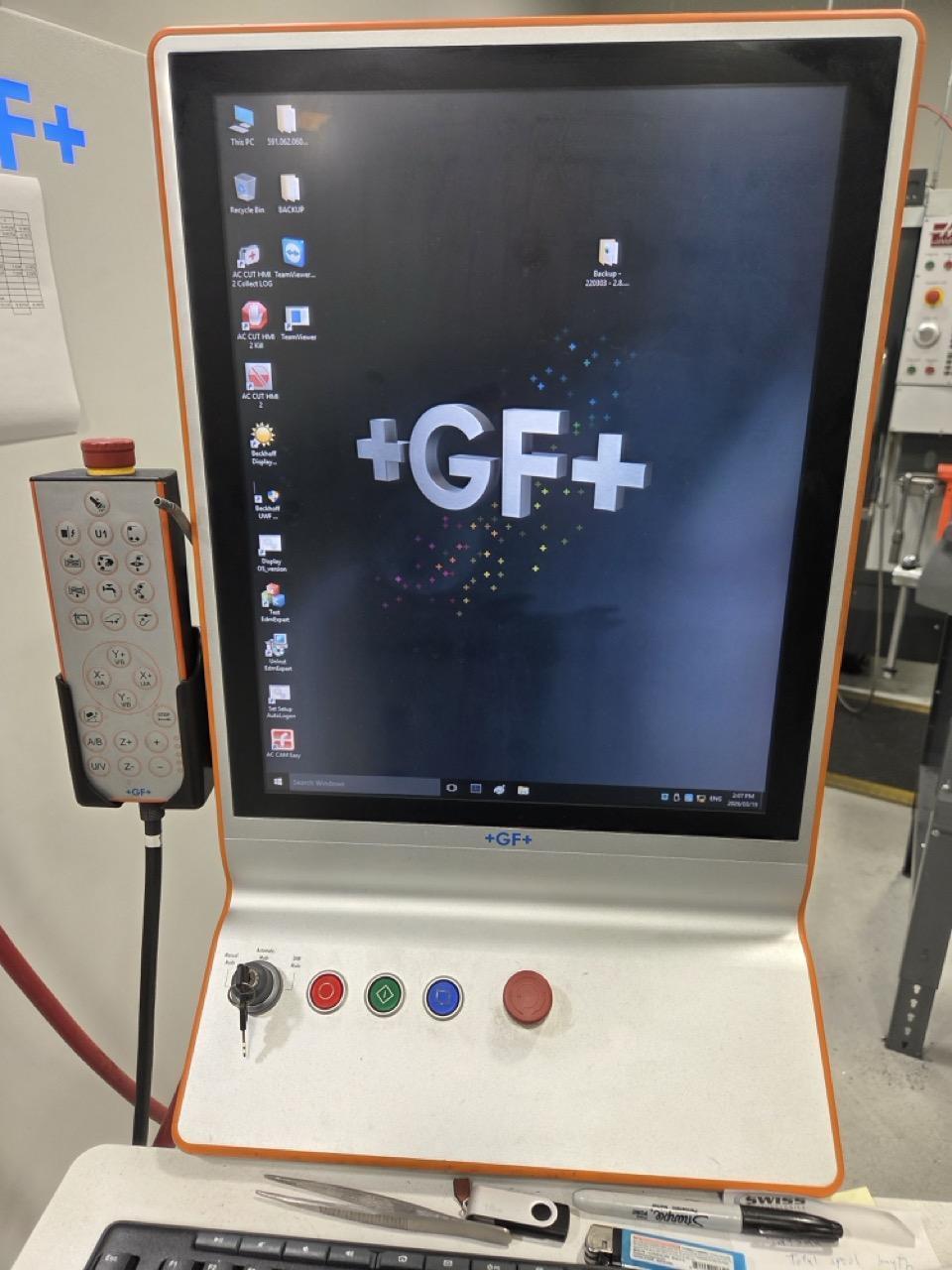

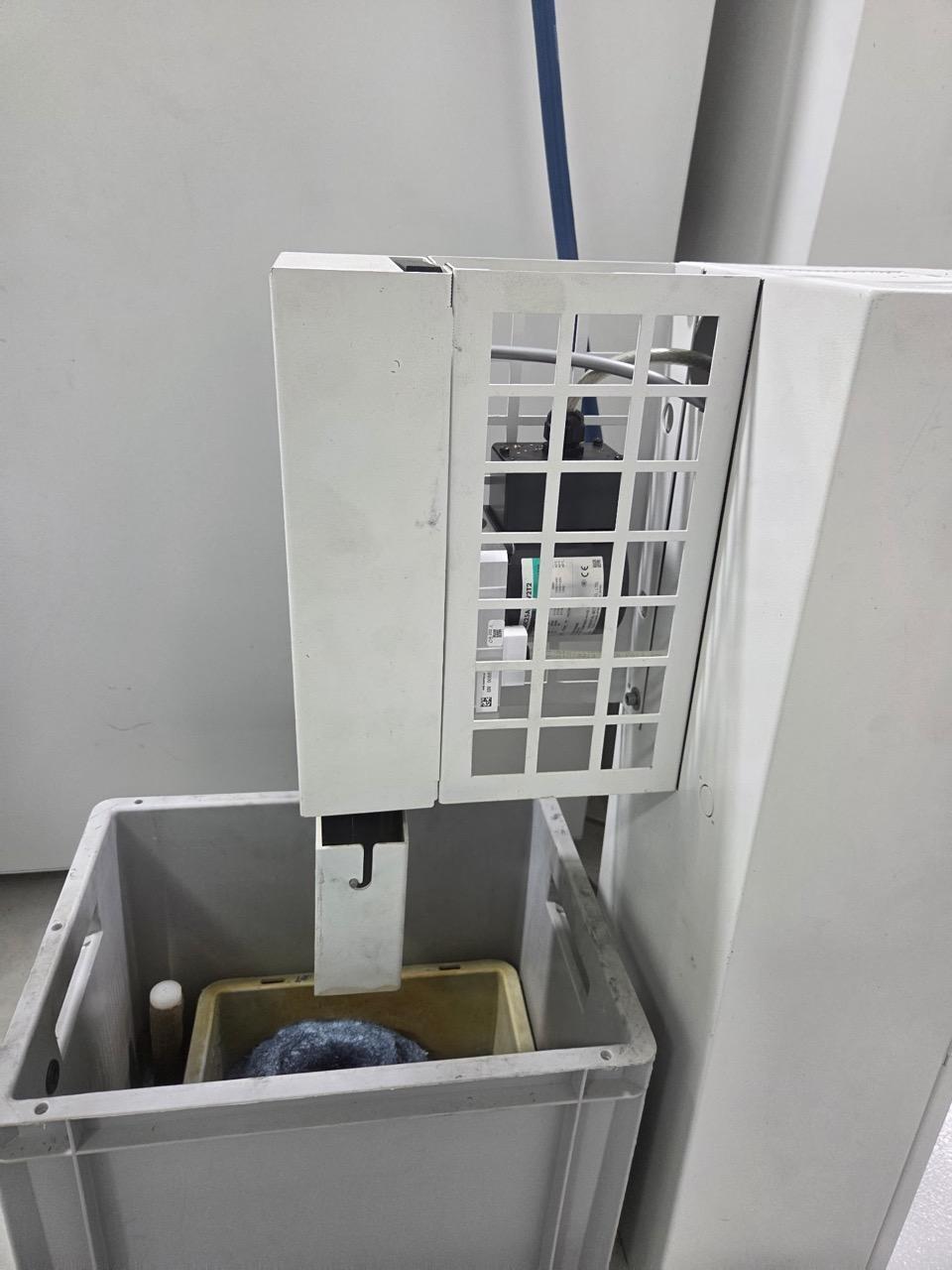

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With AC CUT HMI 2 CNC Control Large Wire Spool System Chopper Unit Chiller Transformer Drop Tank (Auto Door) All Available Manuals
