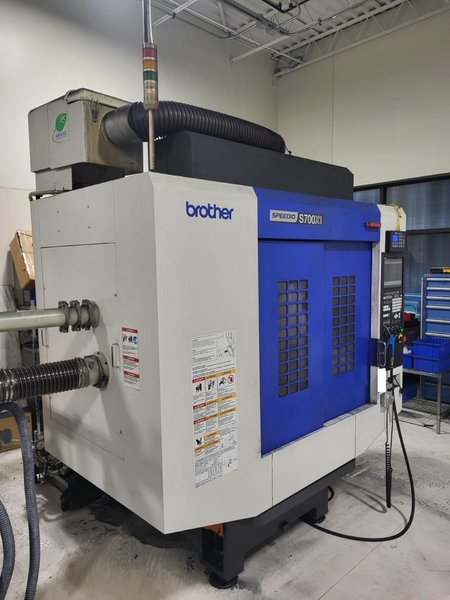

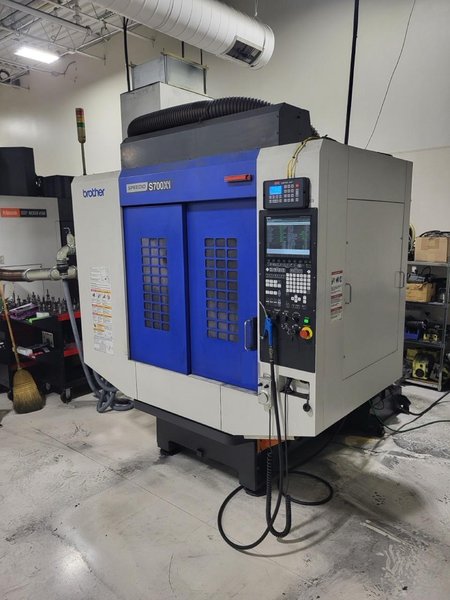

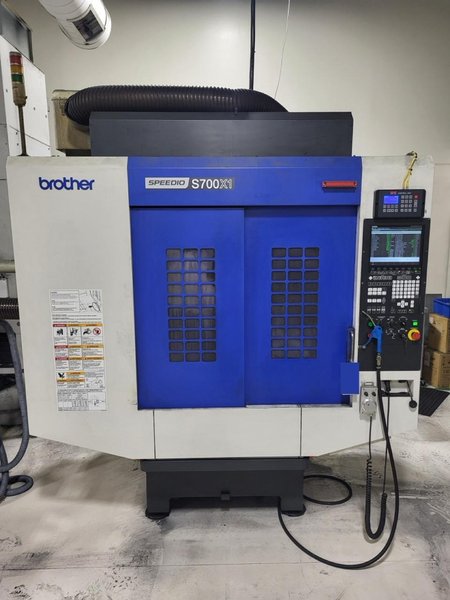

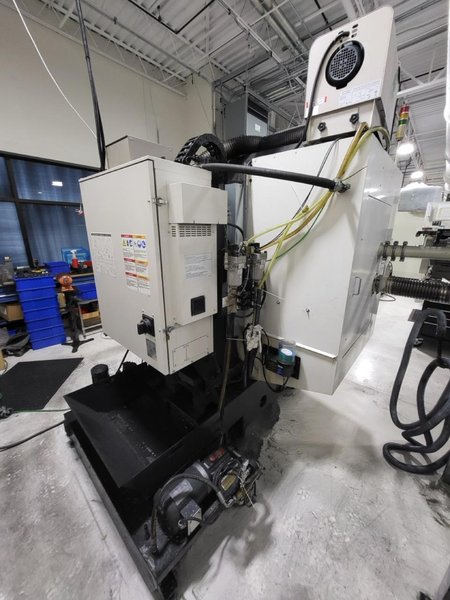

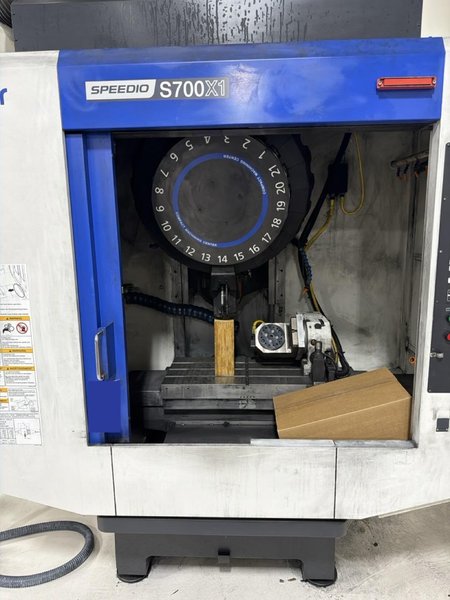

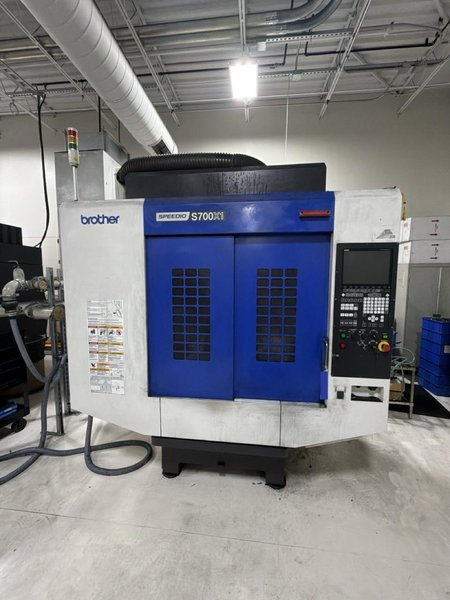

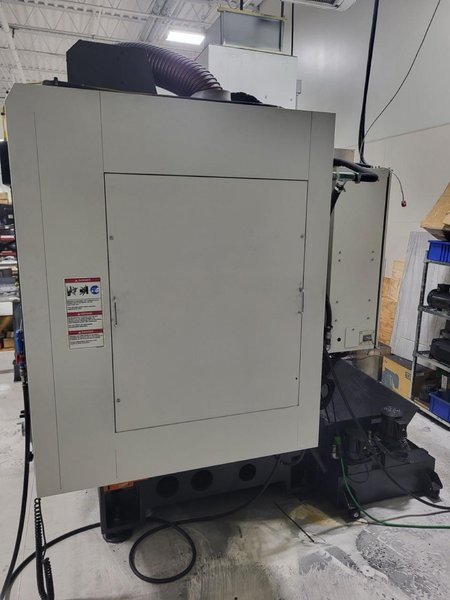

Brother Speedio S700X1 5 Axis CNC VMC, 2016 – Yukiwa Rotary, Blum Probe

X-Axis Travel: 27.6″ Y-Axis Travel: 15.7″ Z-Axis Travel: 11.8″ Spindle Nose to Table: 5.1″ – 16.9″ Table Size: 31.5″ × 15.7″ Max Table Load: 1,323 lbs Spindle Taper: BT-30 Spindle Speed: 10,000 RPM Spindle Motor: 10 HP Direct Drive Spindle Rapid Traverse X/Y/Z: 1,969 IPM Cutting Feedrate: 0 – 787 IPM Tool Capacity: 21 Tools Tool Change Time (Tool-to-Tool): 0.8 sec Power Requirement: 220V / 3-Phase Machine Dimensions (Approx.): 82″ × 79″ × 90″ Machine Weight (Approx.): 6,200 lbs

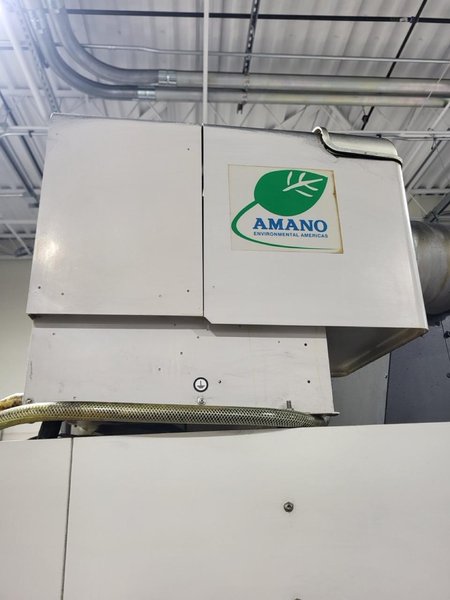

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped with: Brother CNC Control 5-Axis Machining YUKIWA CNC Tilting Rotary Table Blum Probing MISTRIA MZ-10/15 Mist Collector Tooling Not Included

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
