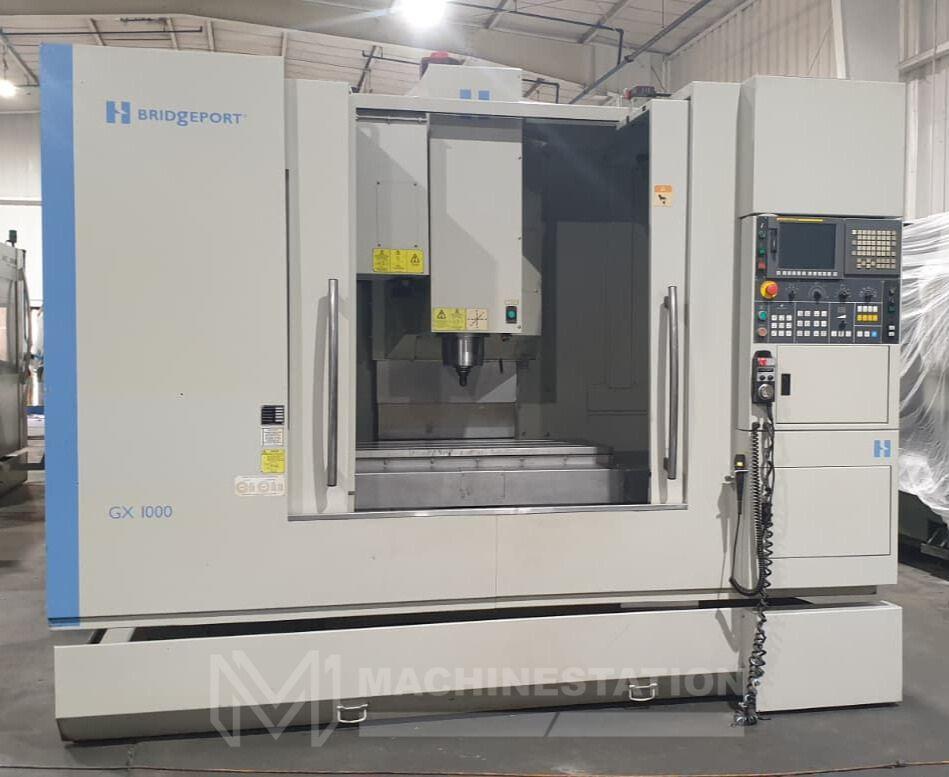

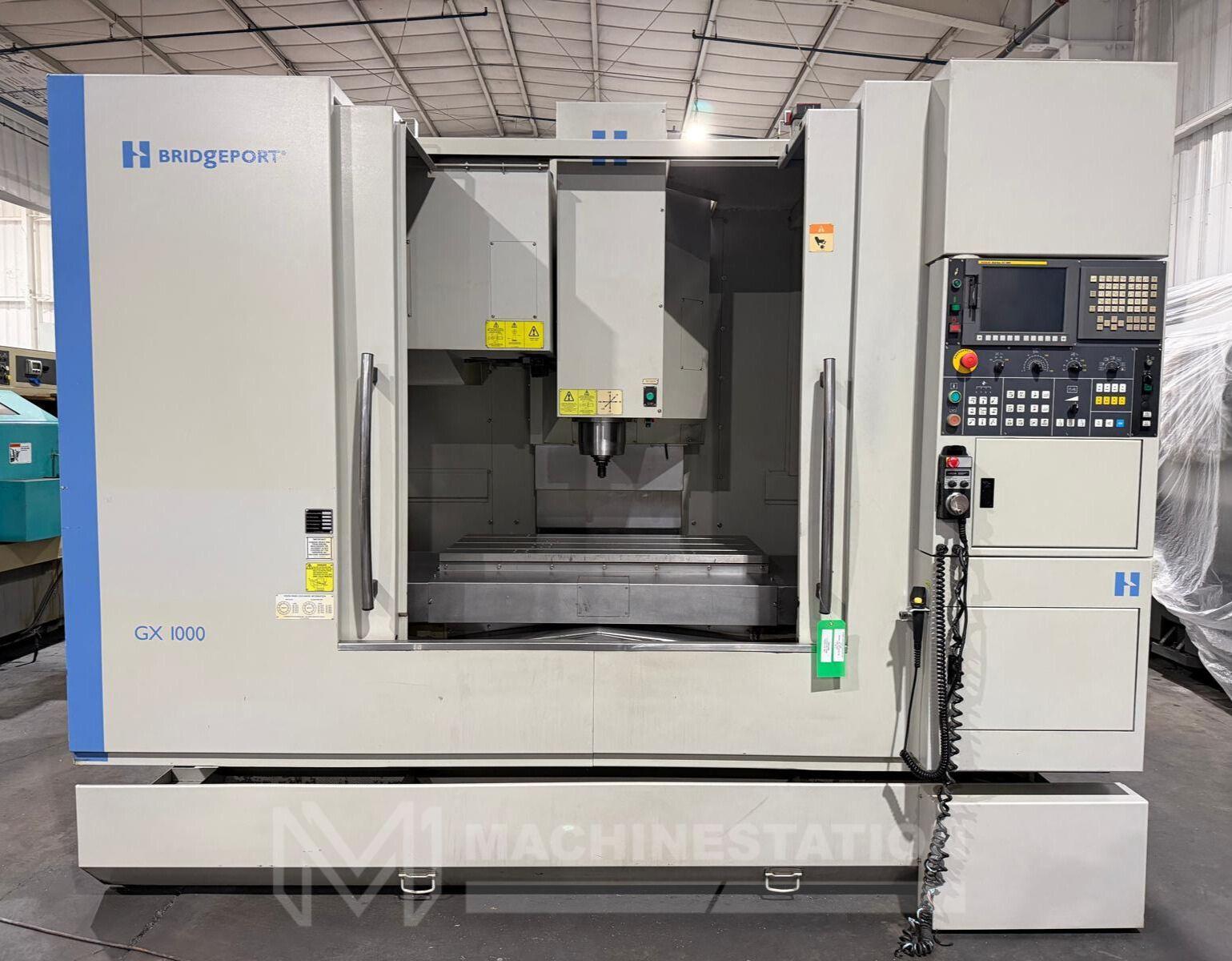

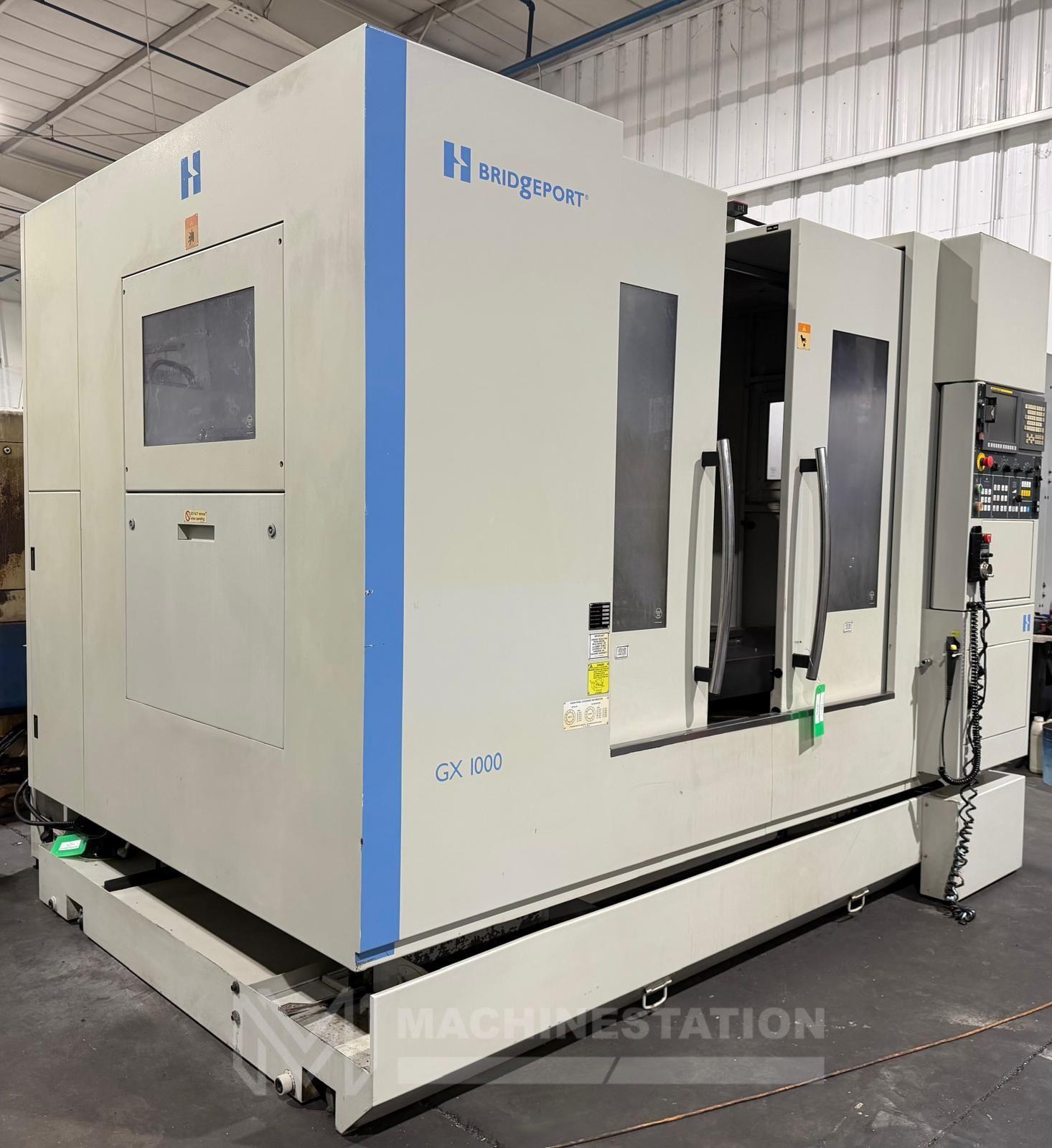

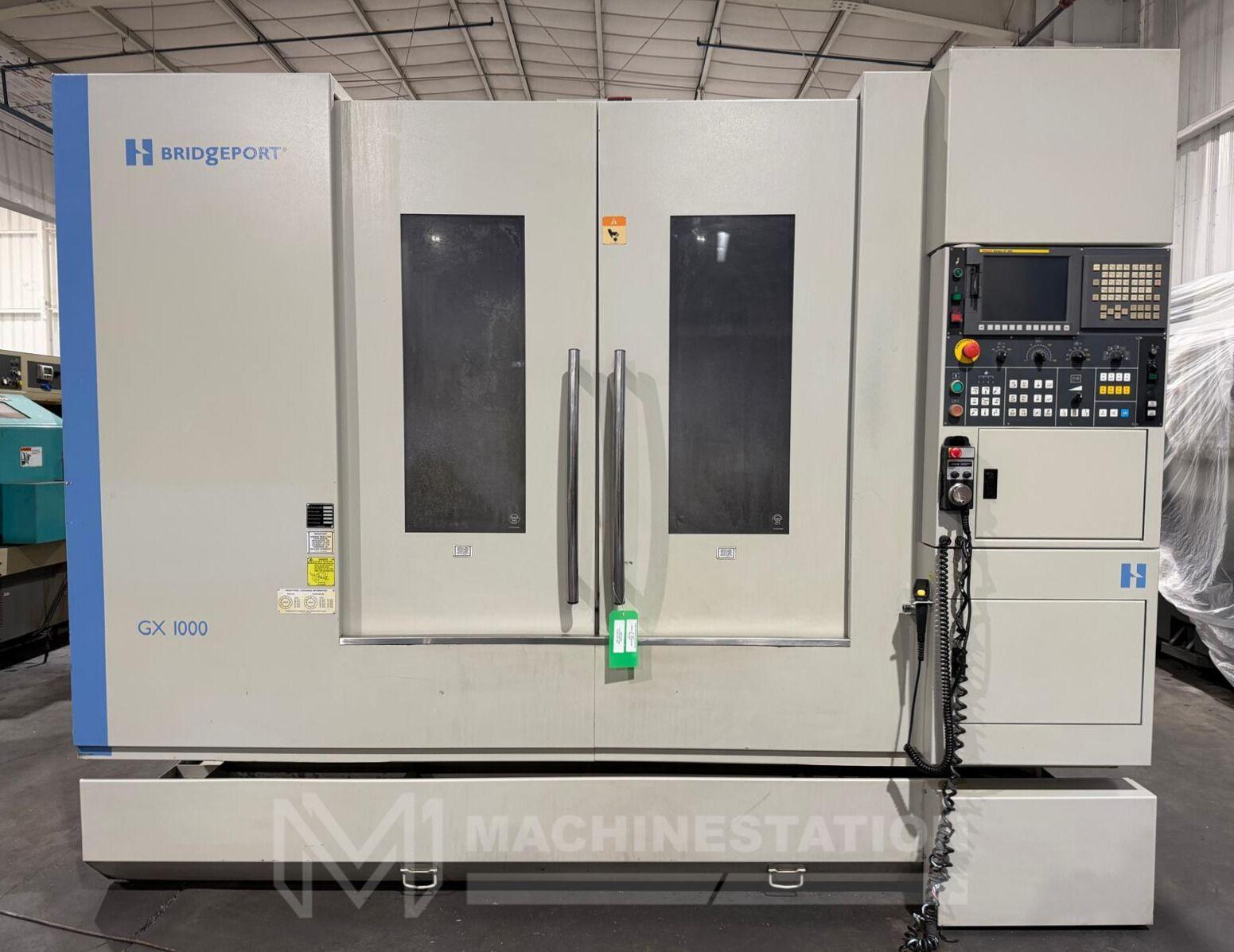

Hardinge Bridgeport GX-1000 CNC Vertical Machining Center – 10,000 RPM Mill

Hardinge Bridgeport GX-1000 CNC Vertical Machining Center – 10,000 RPM Mill

Name: Hardinge Bridgeport GX-1000 CNC Vertical Machining Center – 10,000 RPM Mill
Brand: HARDINGE
SKU: 113549
Availability: InStock

Brand

HARDINGE

Location

Not specified

Specifications
Files & Videos

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

SKU:	112584
Make:	Hardinge Bridgeport
Model:	GX-1000
Year:	2012

Features:

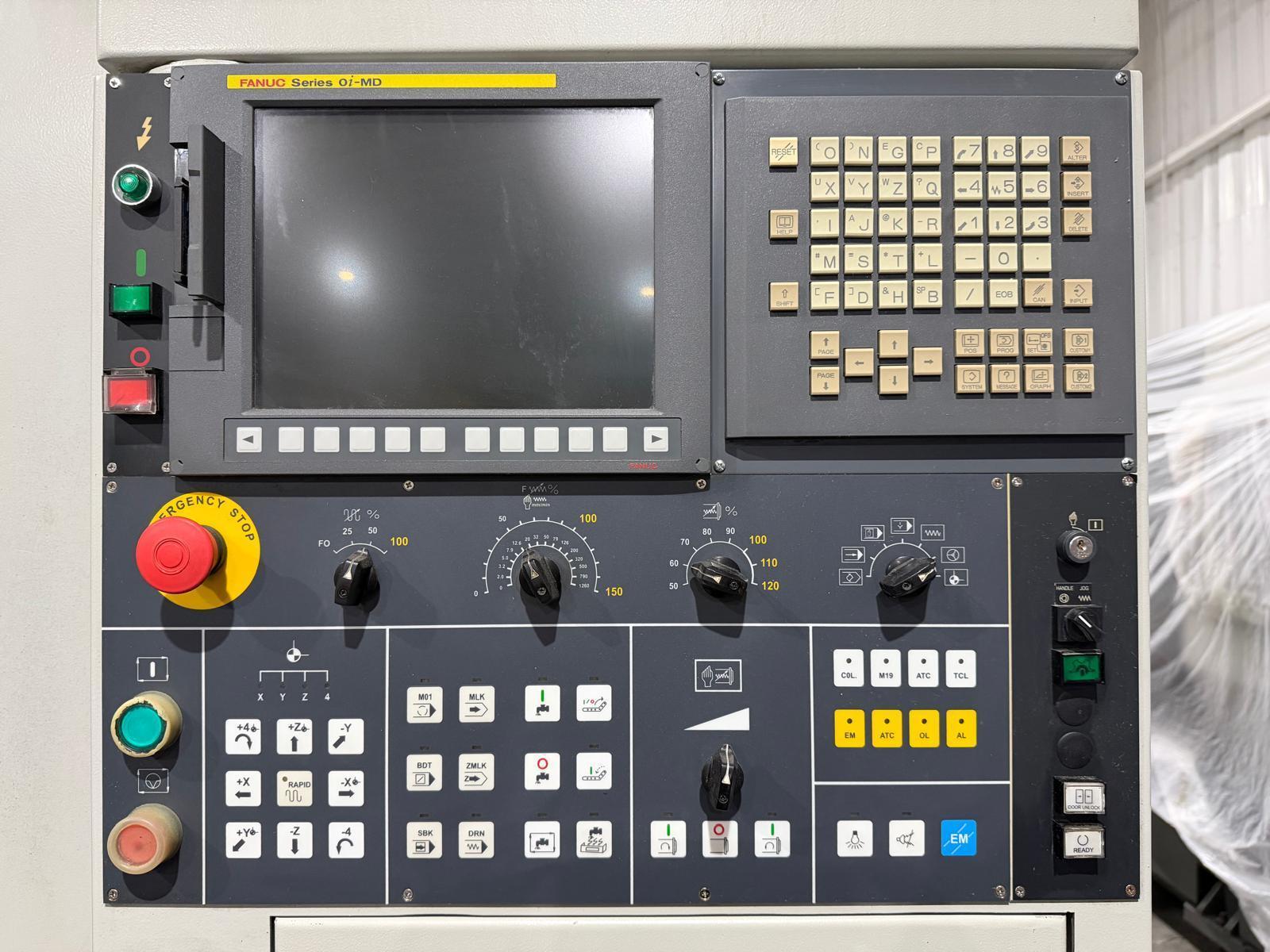

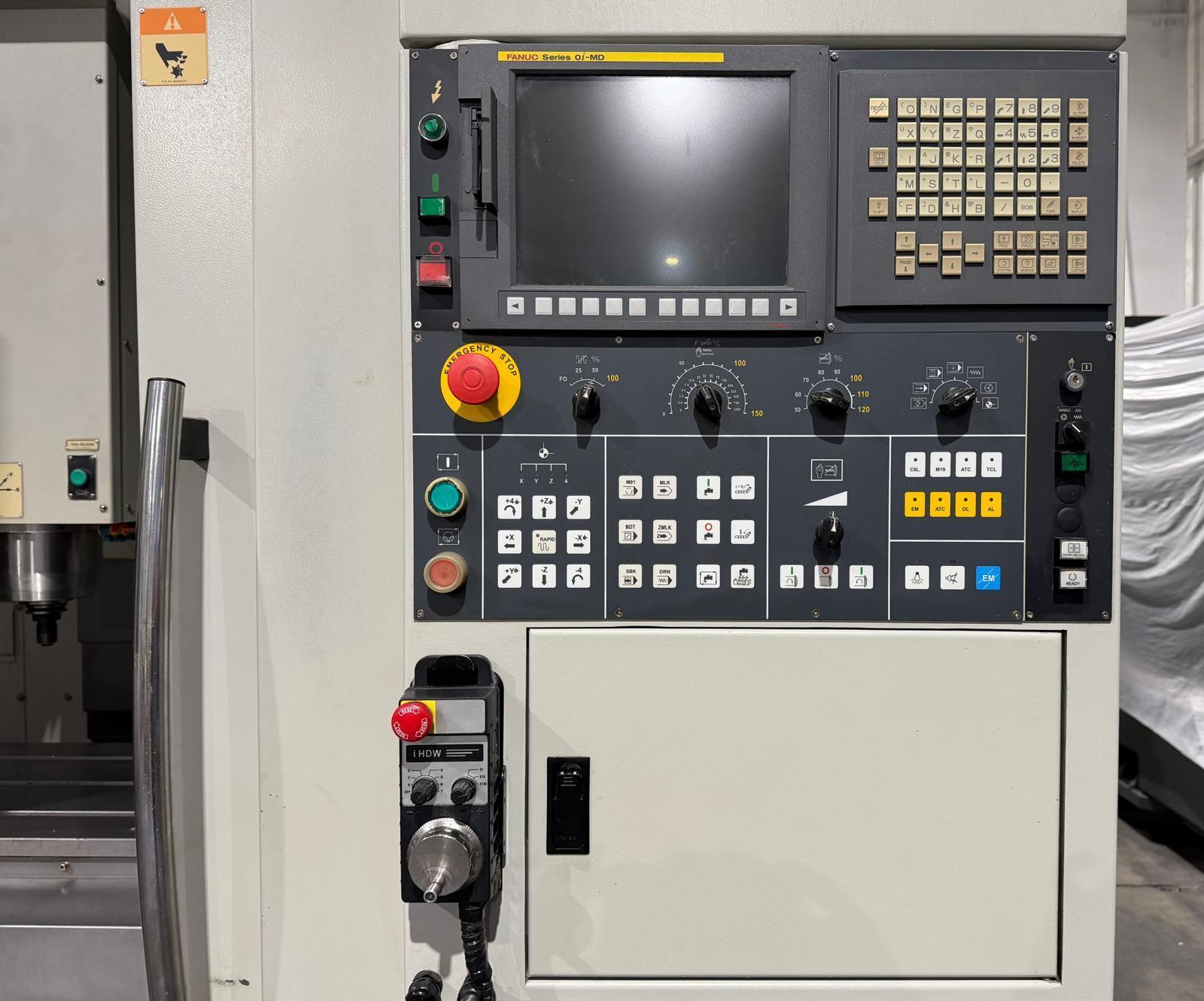

Fanuc Oi-MD Series CNC Control
4th Axis Wired
10000 RPM High Precision Spindle
30 Station Side Mounted Automatic Tool changer
PCMCIA Card Slot
Hand Wheel MPG Control
Rigid Tapping

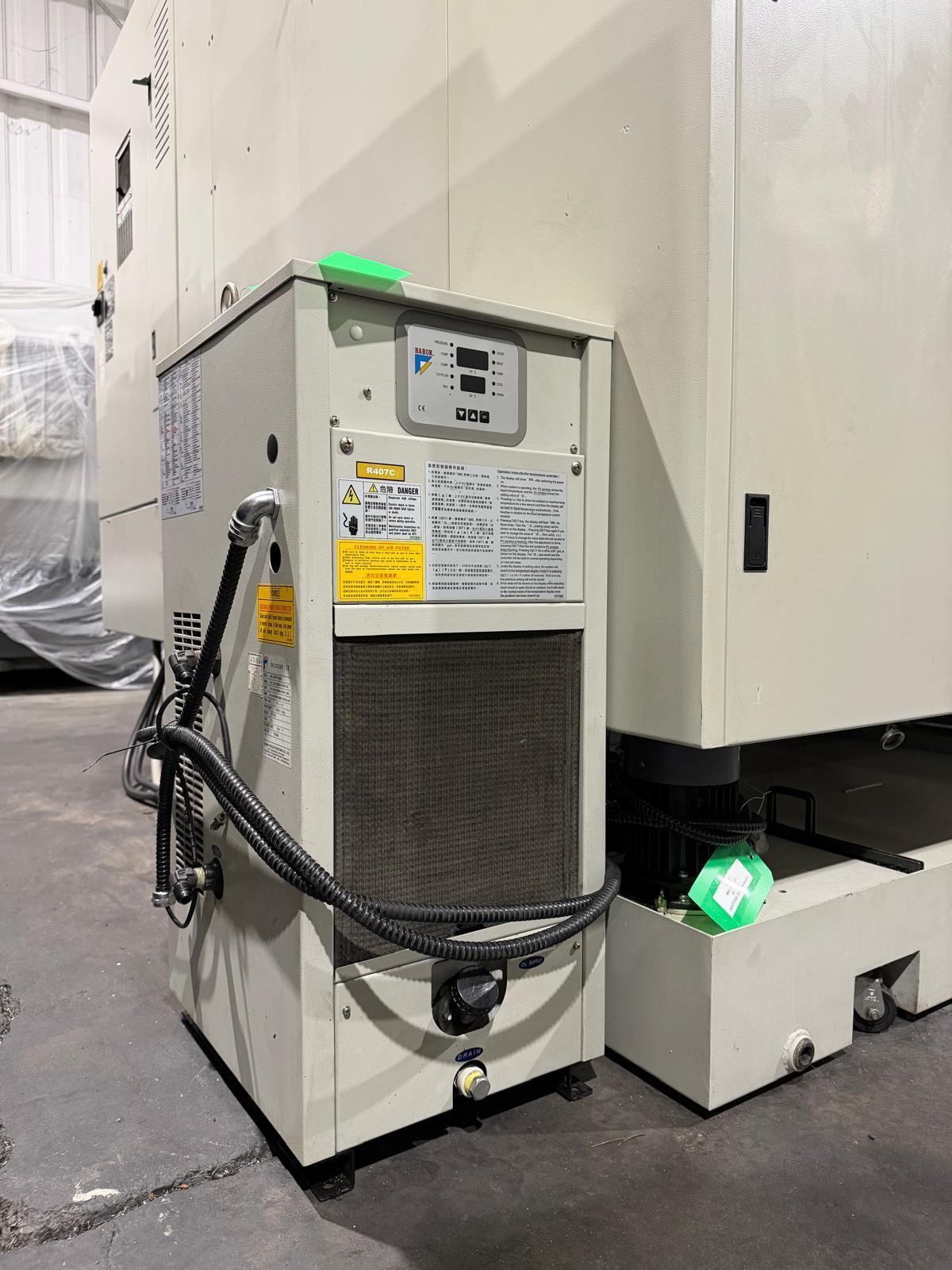

Spindle Chiller Unit

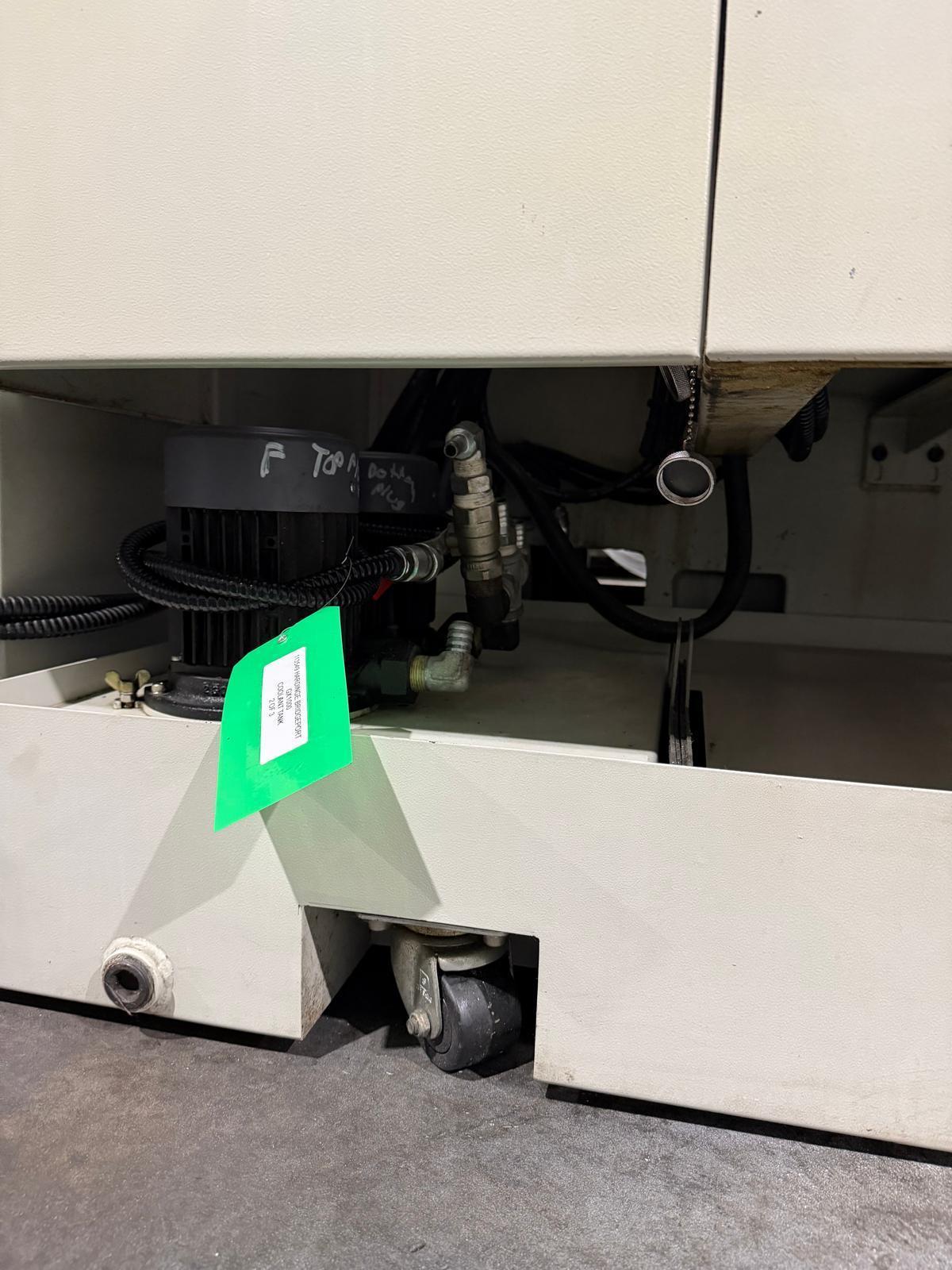

Coolant System
Books & Manuals

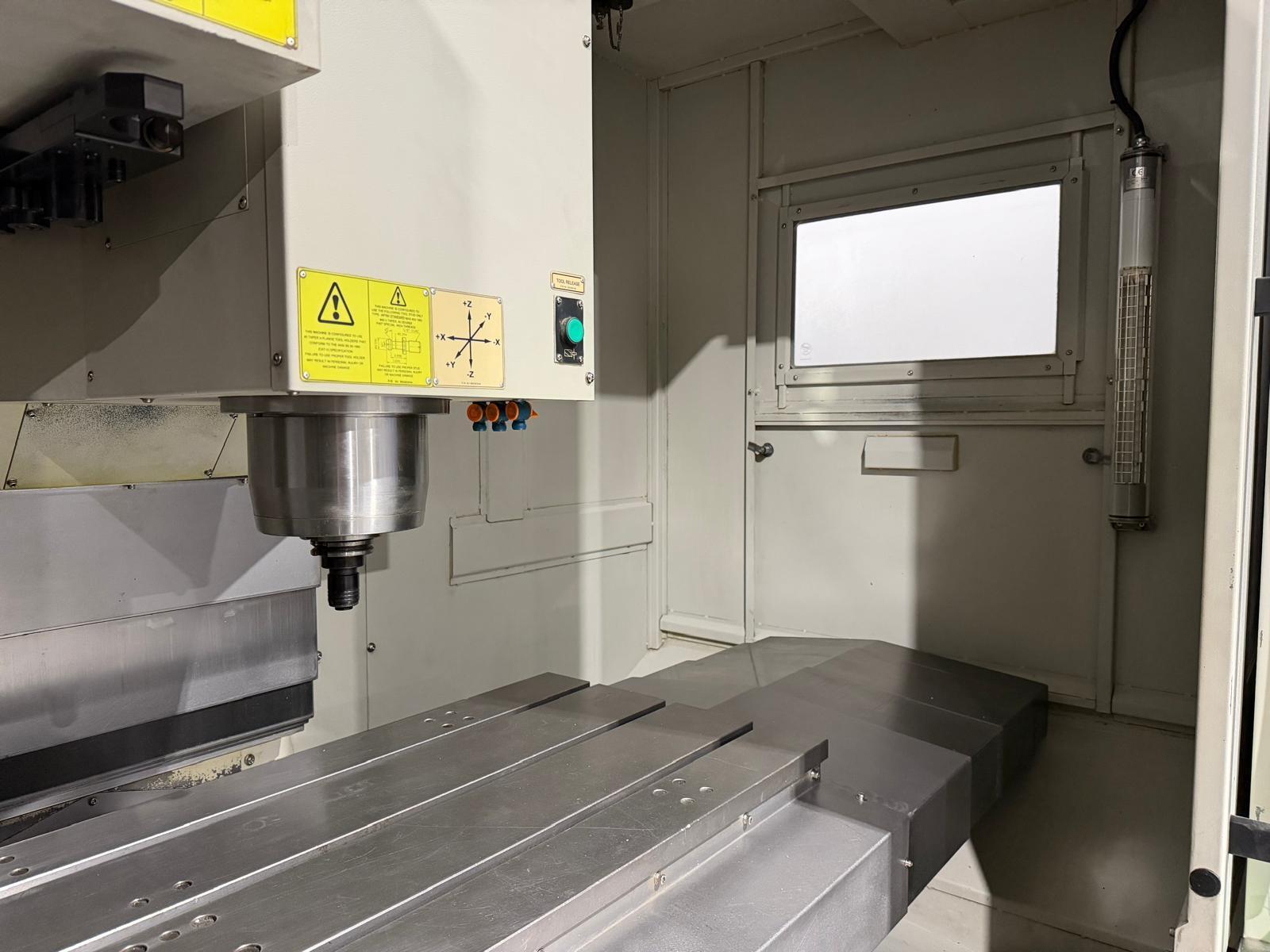

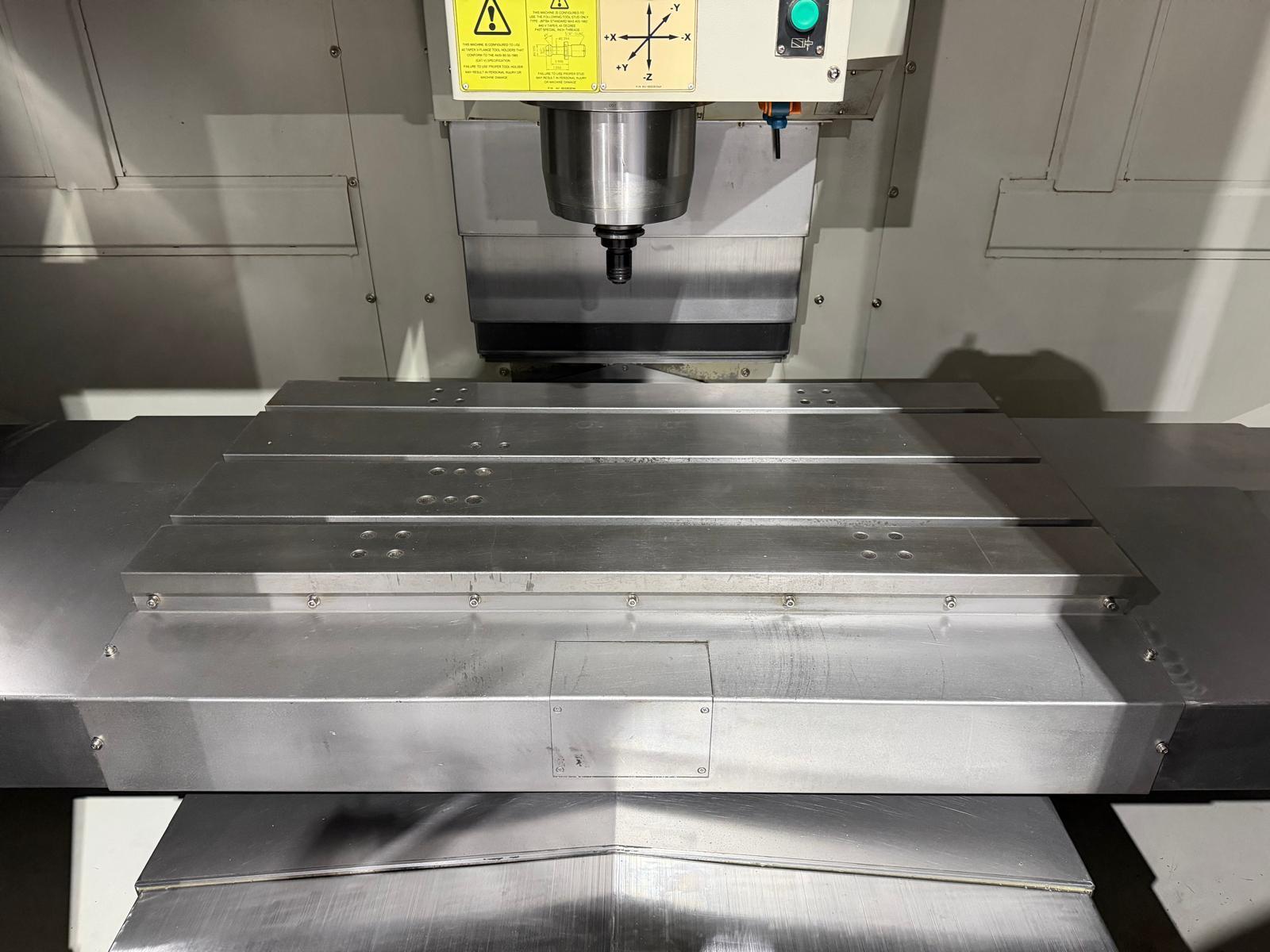

Table:
Length: 44.09 inch
Width: 21.25 inch
Number of Std T-Slots: 3
T-Slot Width: 0.7 inchX 3.93 inch
Max Weight on Table: 1543 lbs

Travels:
X-Axis: 40.15 inch
Y-Axis: 21.25 inch
Z-Axis: 21.25 inch
Rapid Traverse Rates X & Y Axis: 1692 IPM
Rapid Traverse Rates Z Axis: 1417 IPM
Cutting Feed Rates: 787 IPM
Spindle Nose to Table (Min.- Max.): 5.70 inch – 26.96 inch

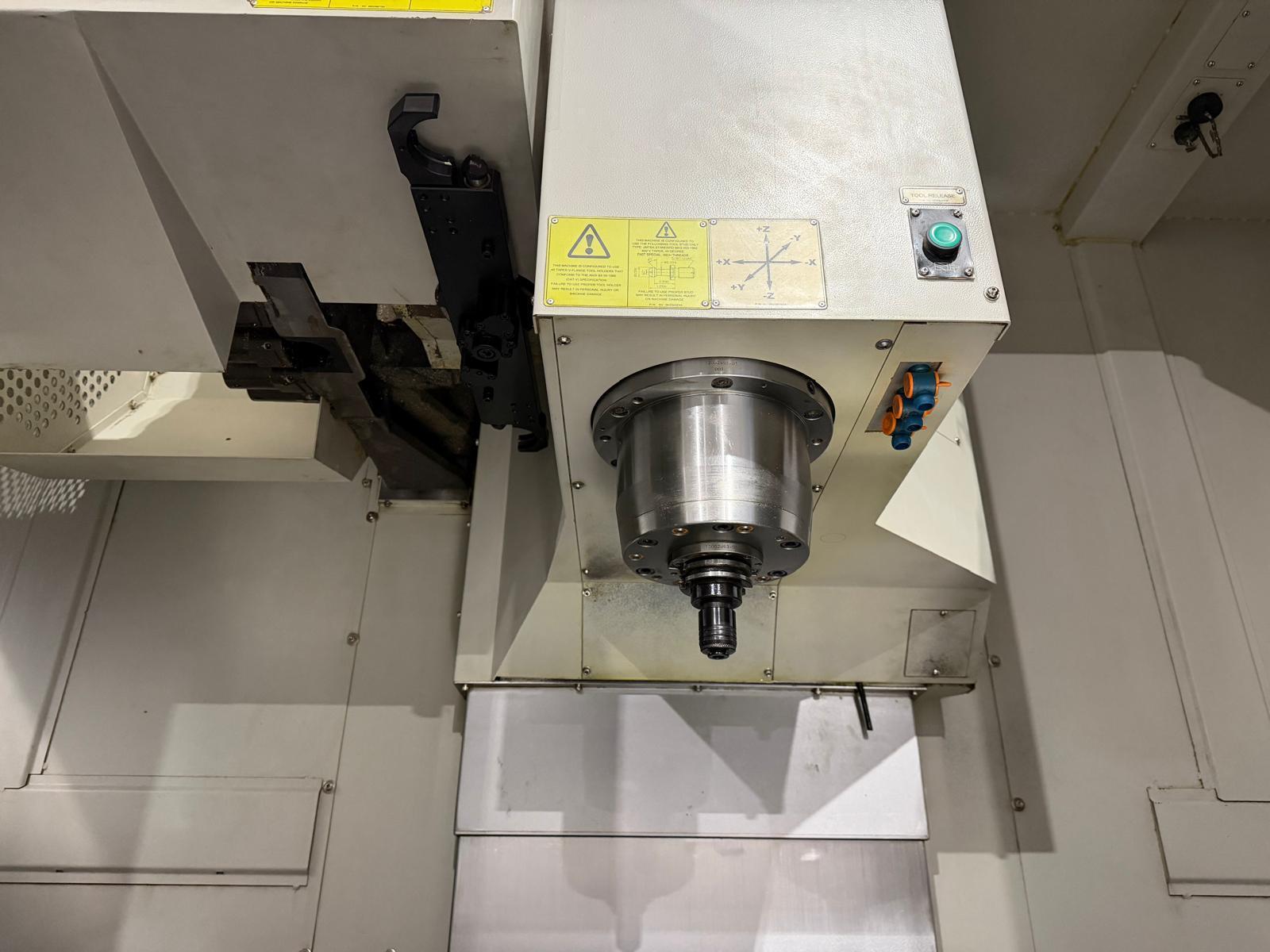

Spindle:
Taper Size: CAT-40
Speed Range: 10000 RPM
Spindle Power: 25 HP

Automatic Tool Changer:
Capacity: 30 Station Side Mounted
Max Tool Weight: 15.43 lbs
Max Tool Dia: 5.11 inch
Max Tool Length: 11.81 inch
Tool Changing Time (Chip to Chip): 1.6 Seconds
