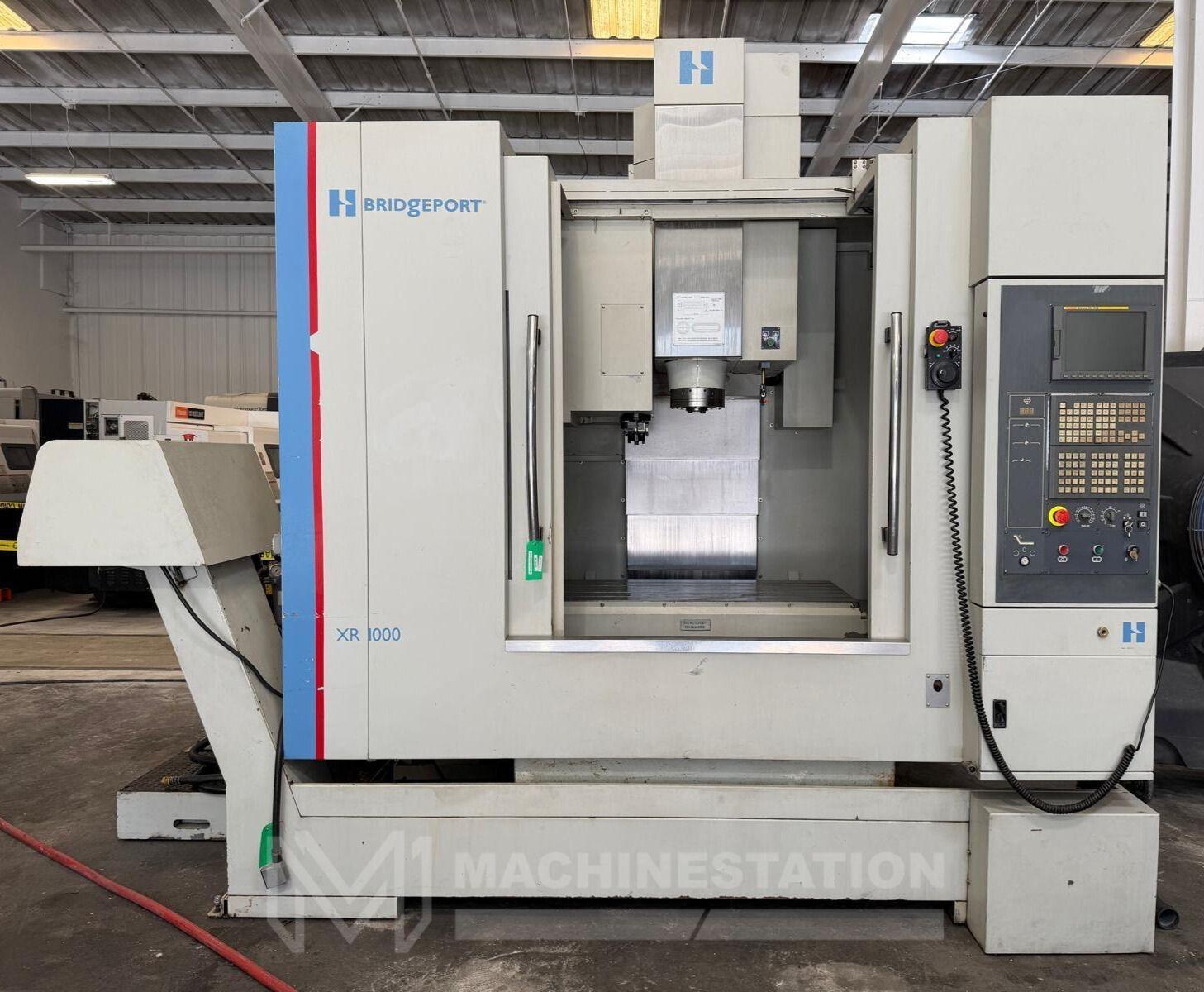

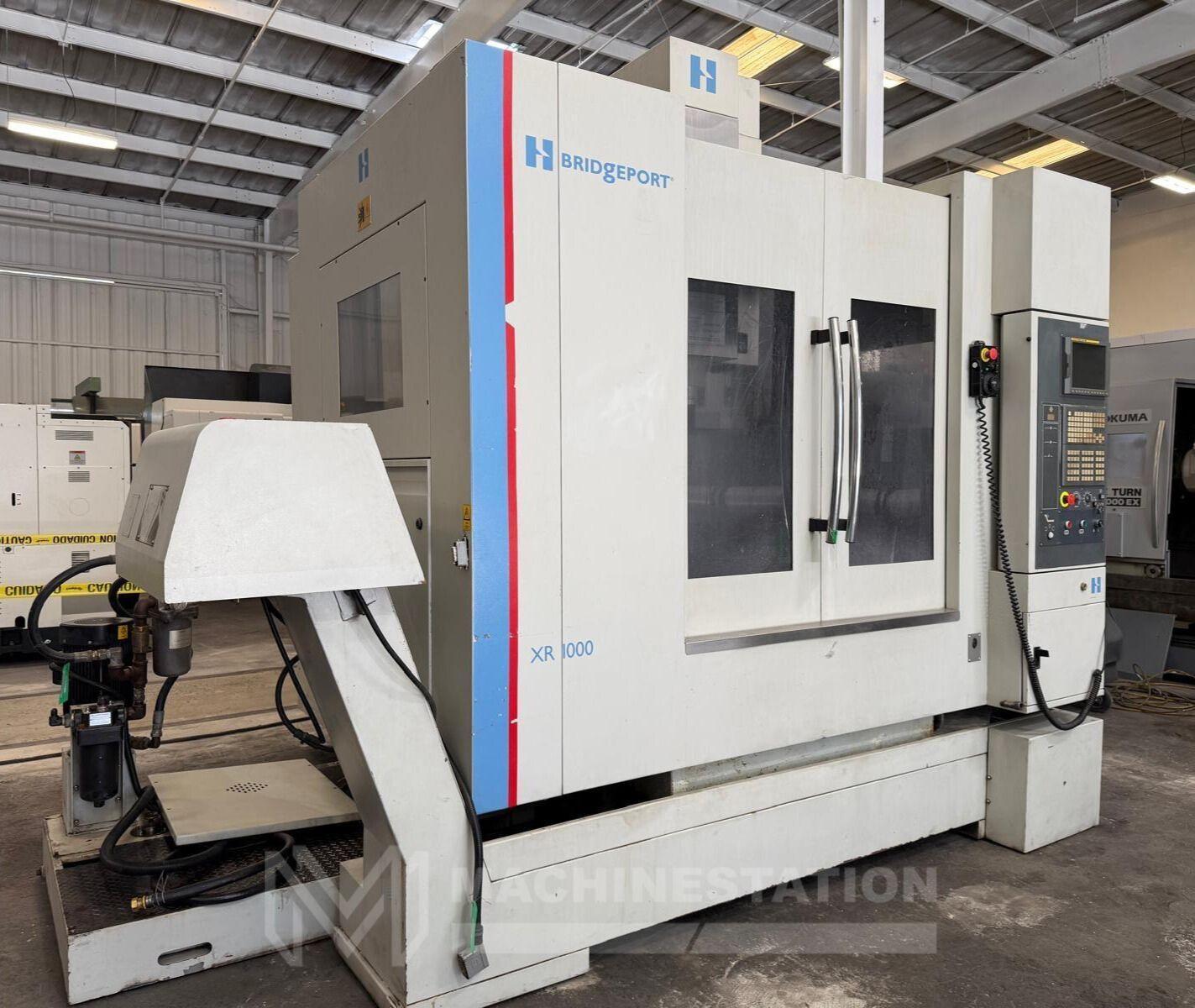

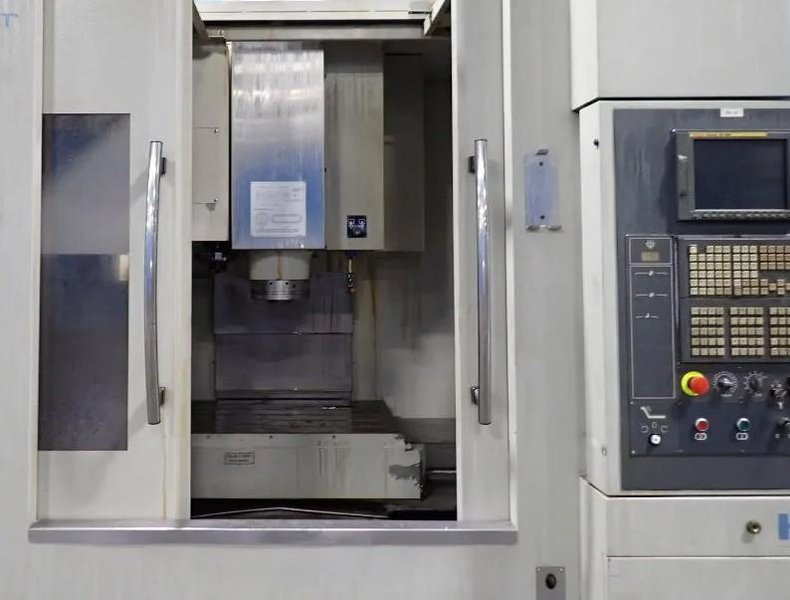

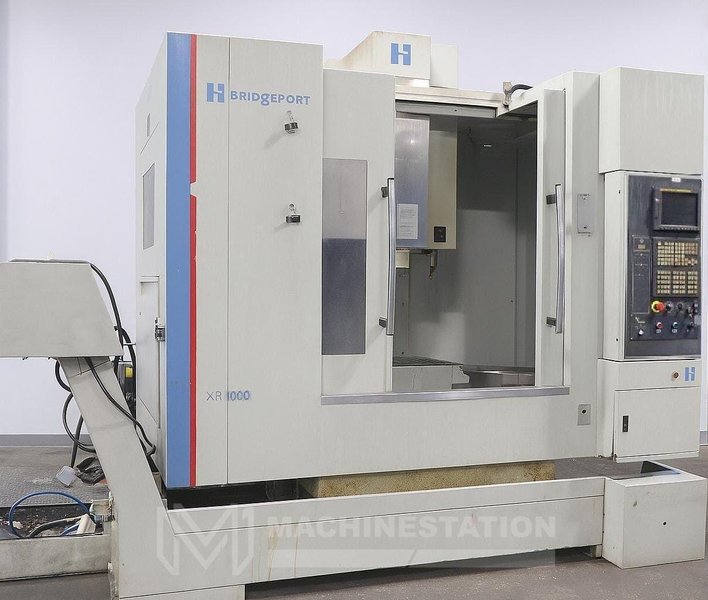

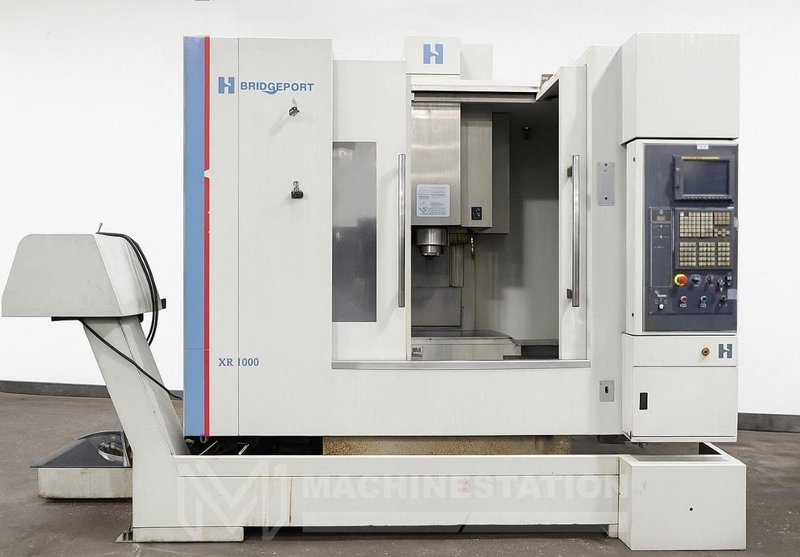

Hardinge Bridgeport XR 1000 CNC Vertical Machining Center – TSC, 12,000 RPM Mill

Hardinge Bridgeport XR 1000 CNC Vertical Machining Center – TSC, 12,000 RPM Mill

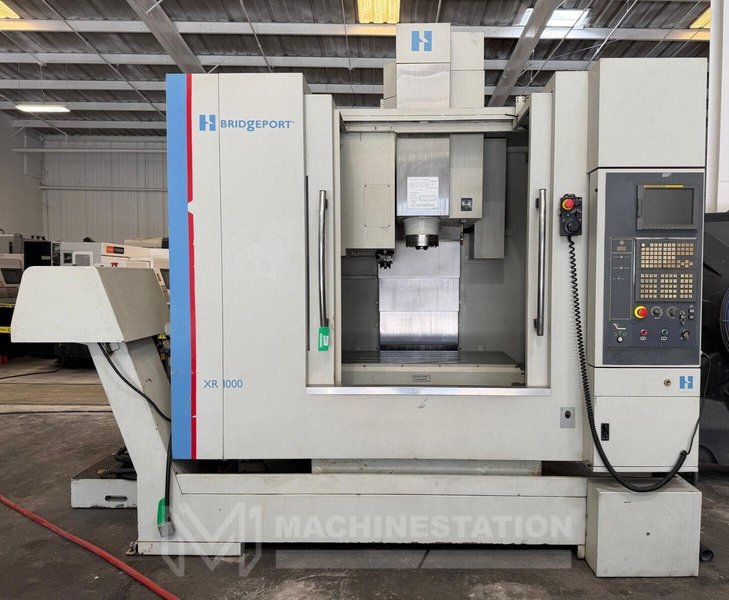

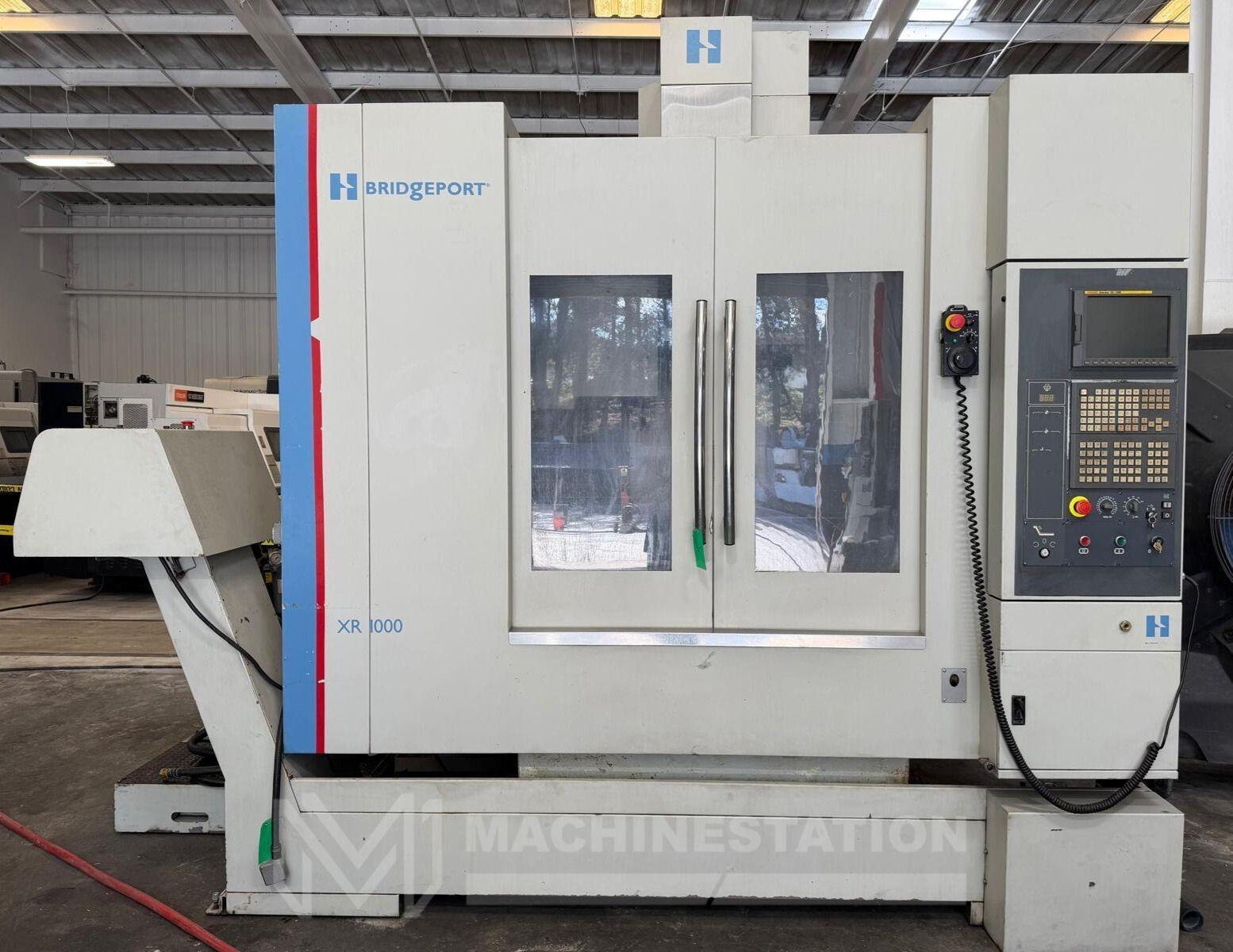

Name: Hardinge Bridgeport XR 1000 CNC Vertical Machining Center – TSC, 12,000 RPM Mill
Brand: HARDINGE
SKU: 112930
Availability: PreOrder

Brand

HARDINGE

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

SKU:	112930

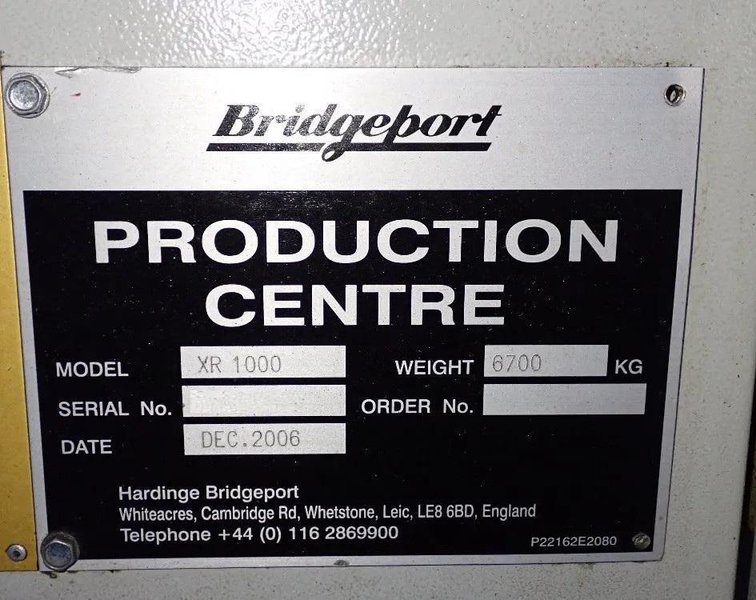

Make:	Hardinge Bridgeport
Model:	XR 1000

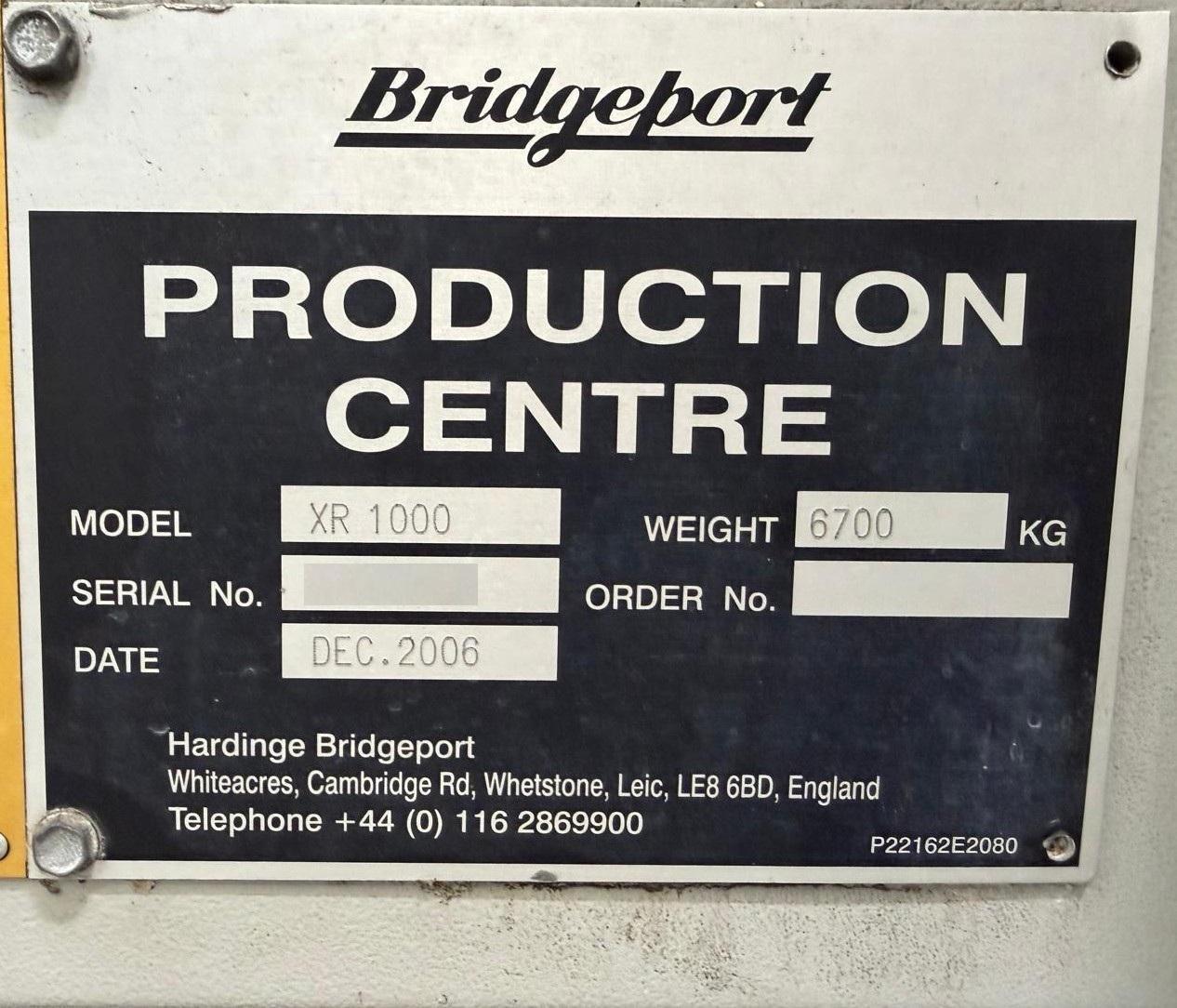

Year:	2006 (Installed in 2007)
Condition:	Used – Good

Features:

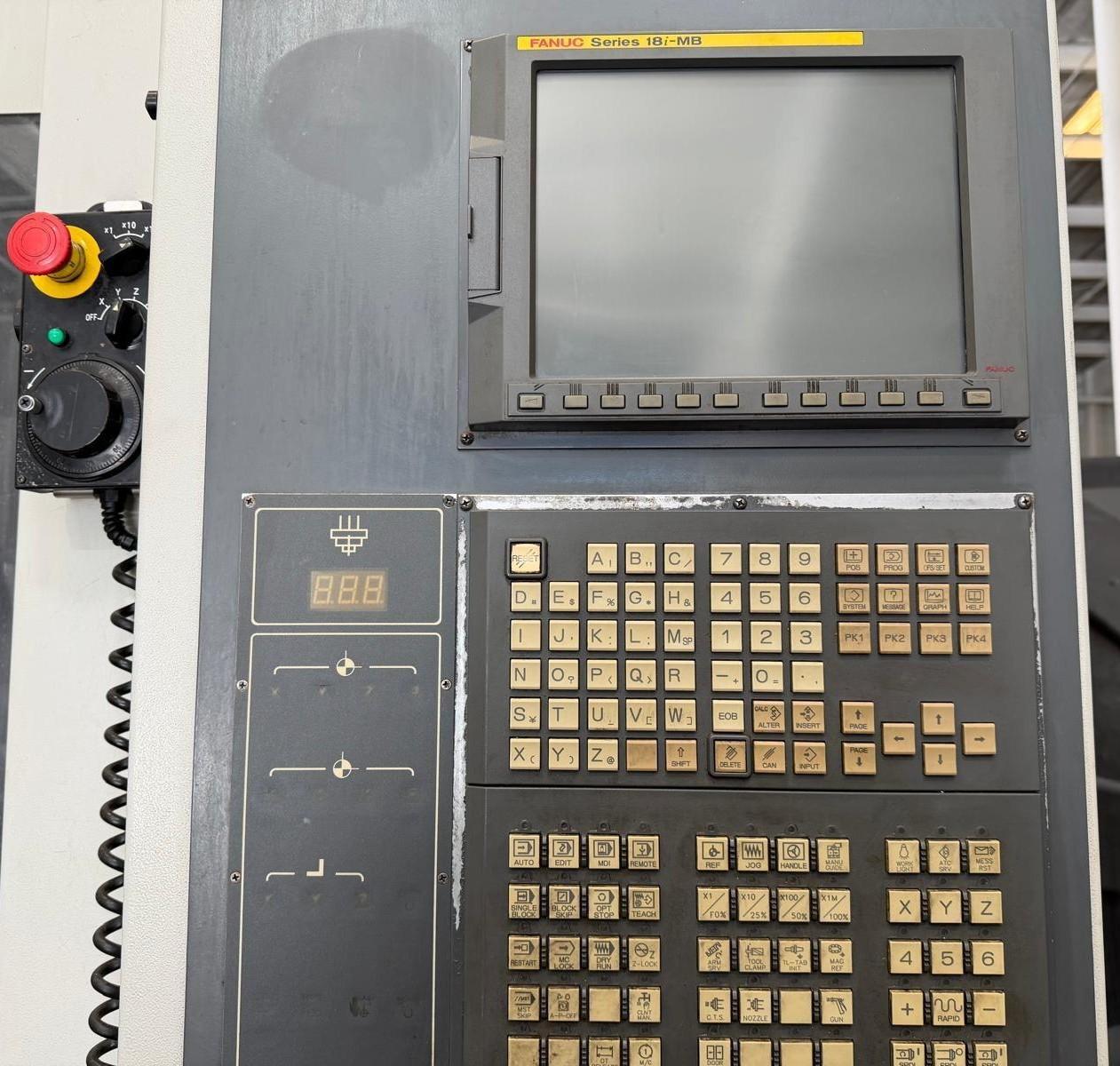

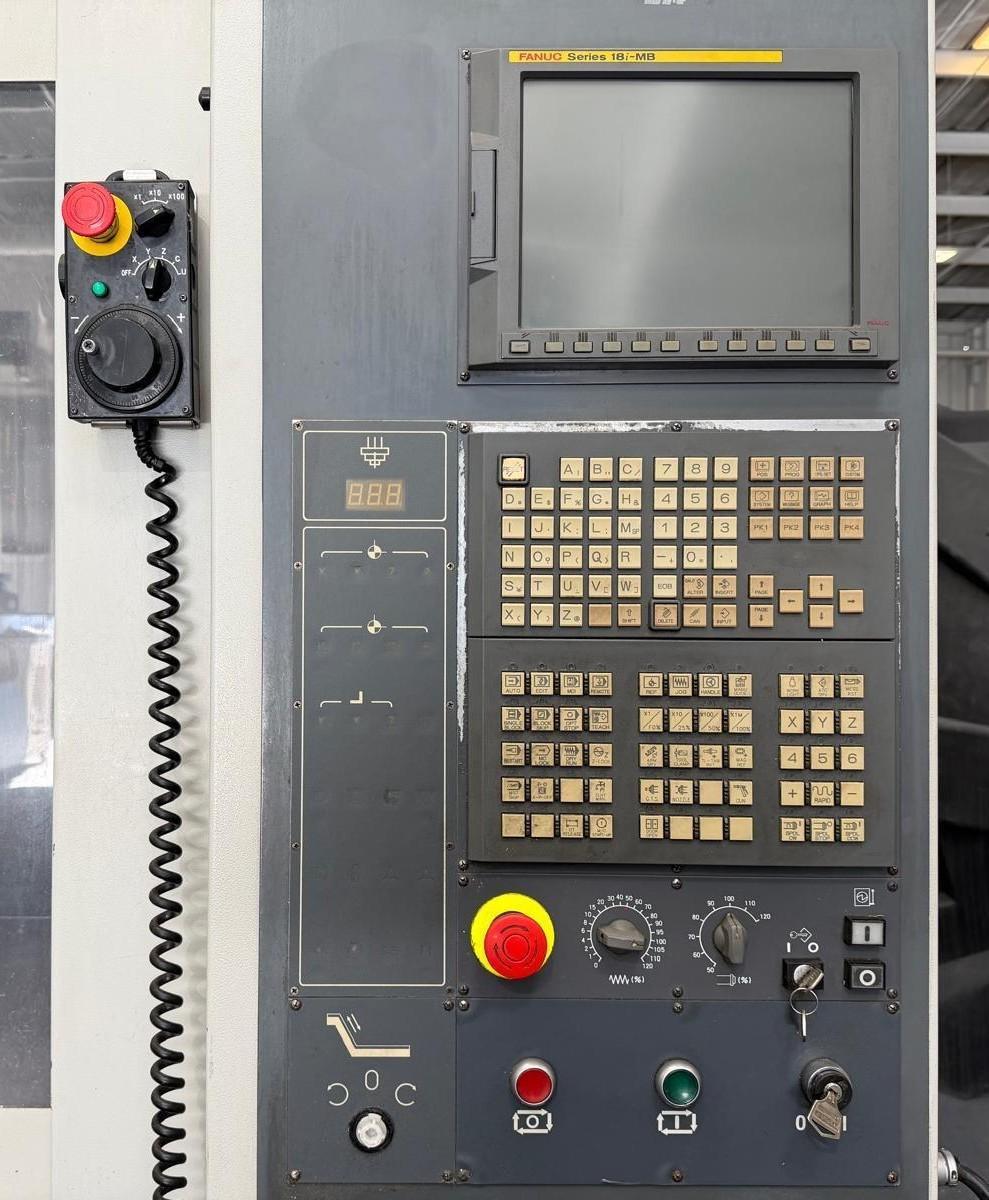

Fanuc 18i-MB Series CNC Control
Linear Ways Construction
12000 RPM High Precision Spindle

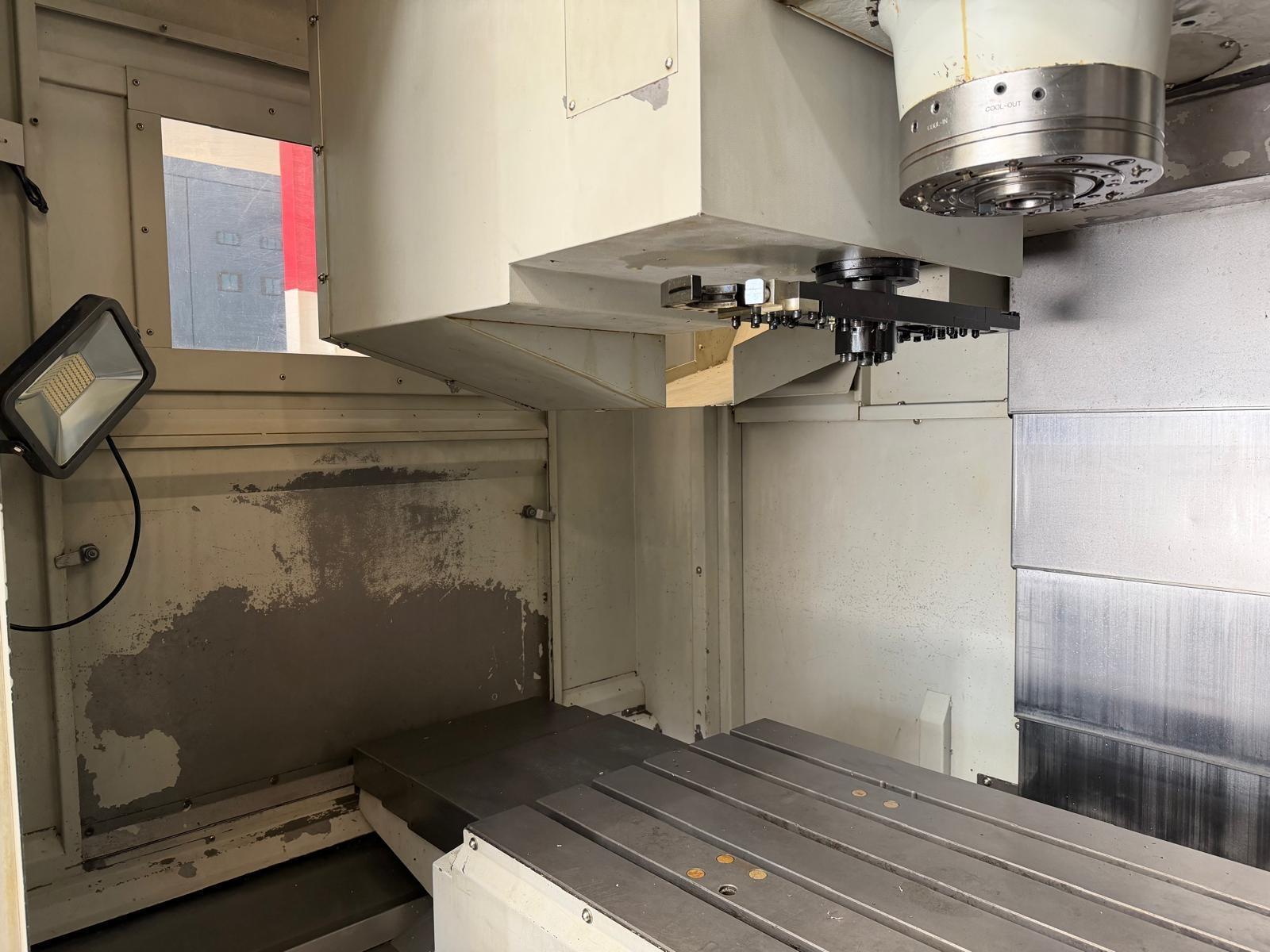

30 Station Side Mounted Automatic Tool changer

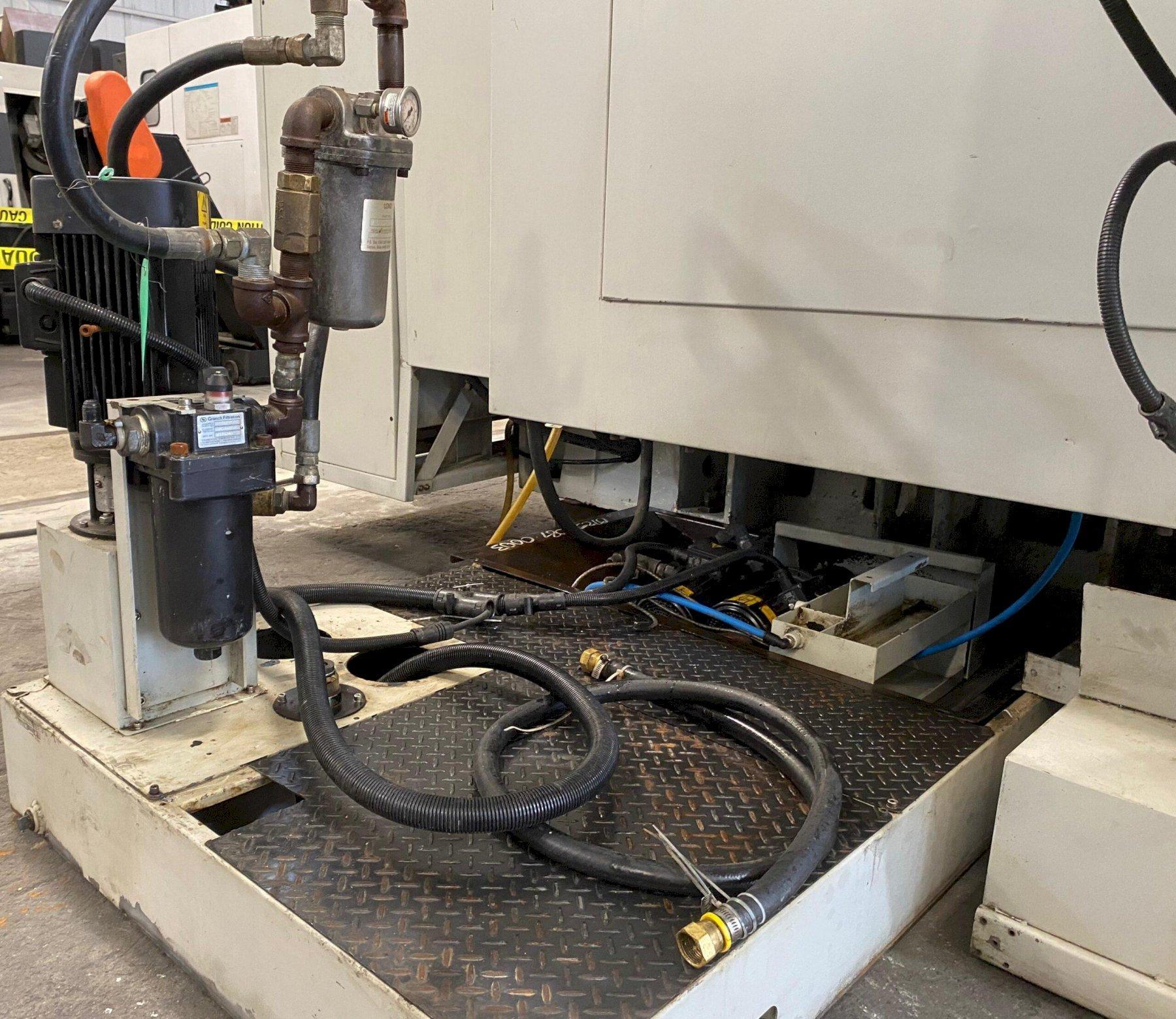

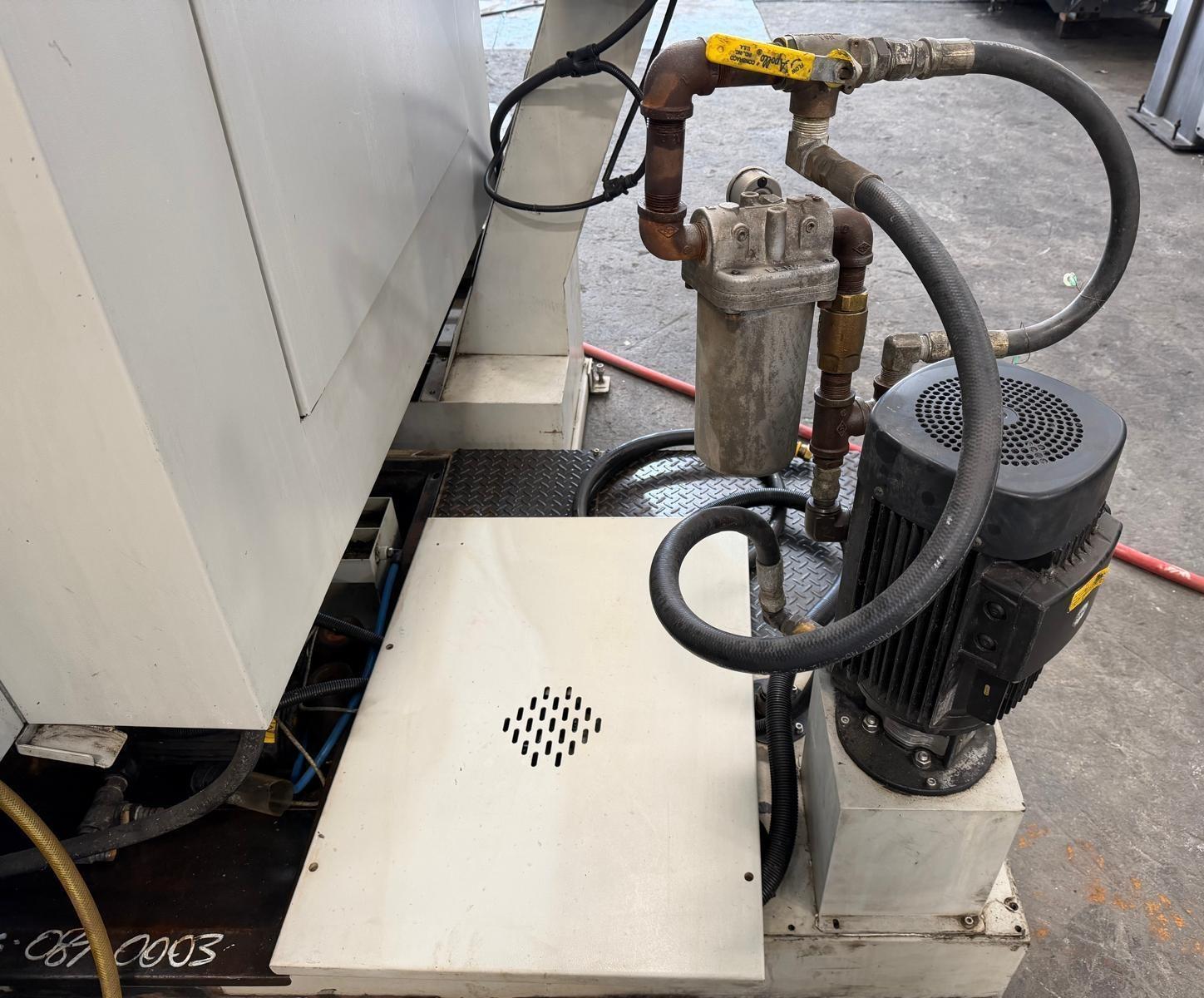

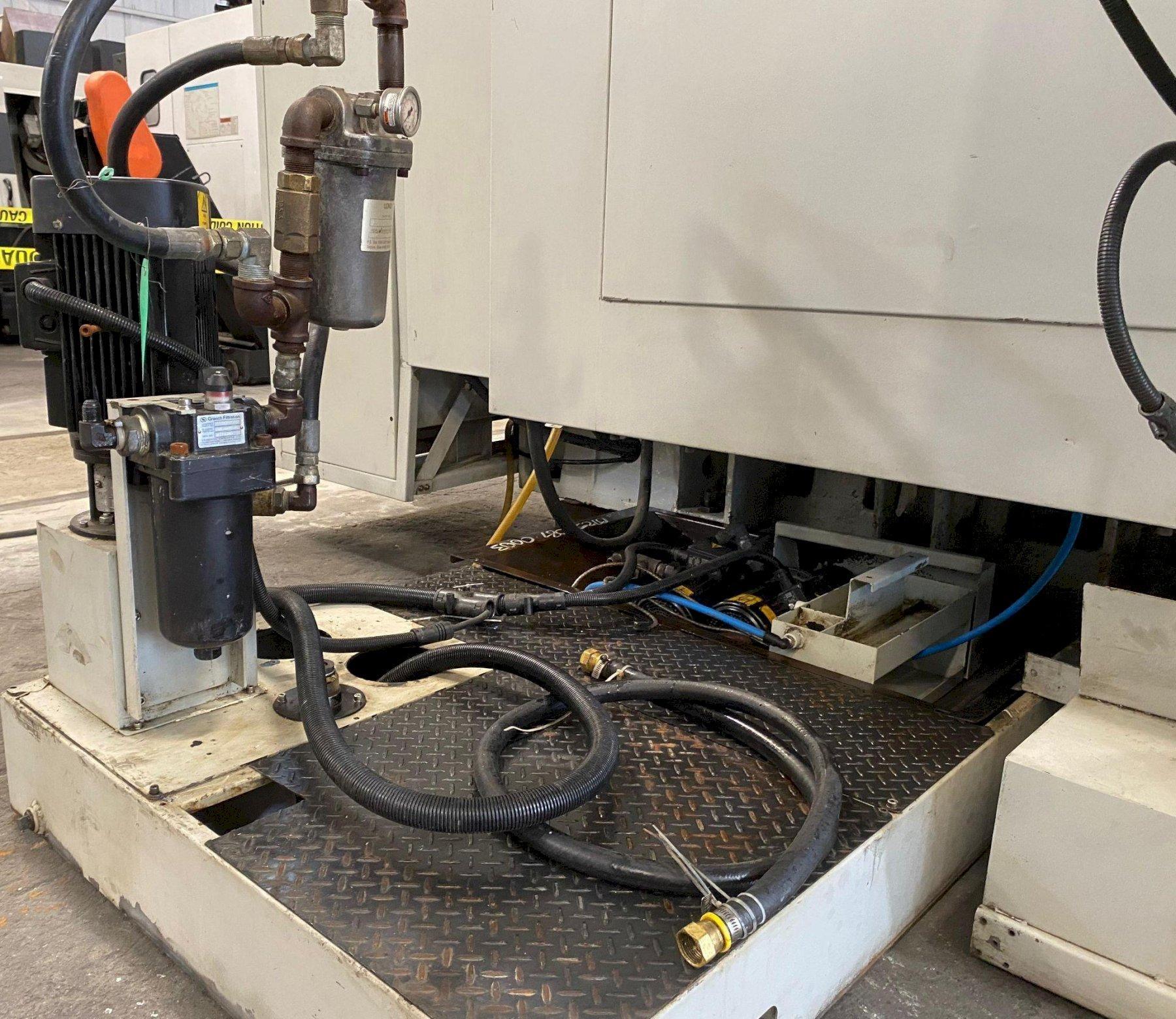

Through Spindle Coolant
PCMCIA Card Slot
RS-232 Port
Rigid Tapping

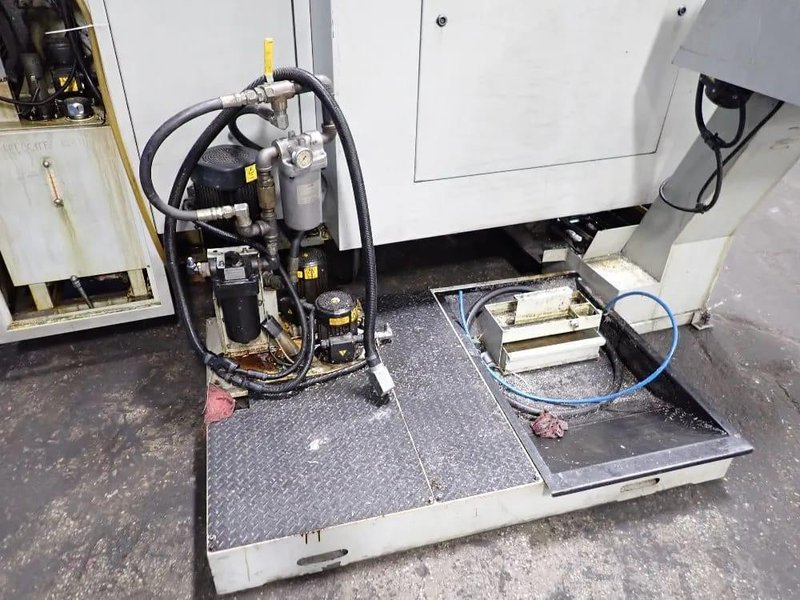

Coolant System

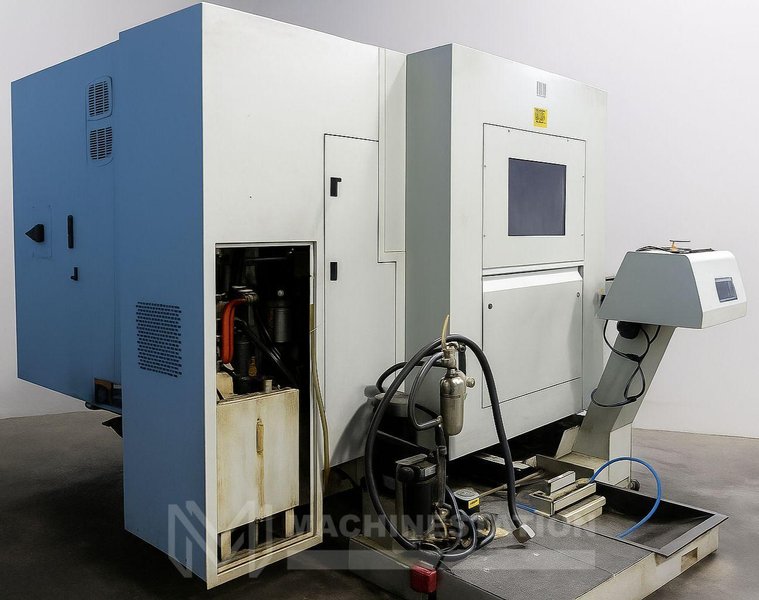

Chip Conveyor

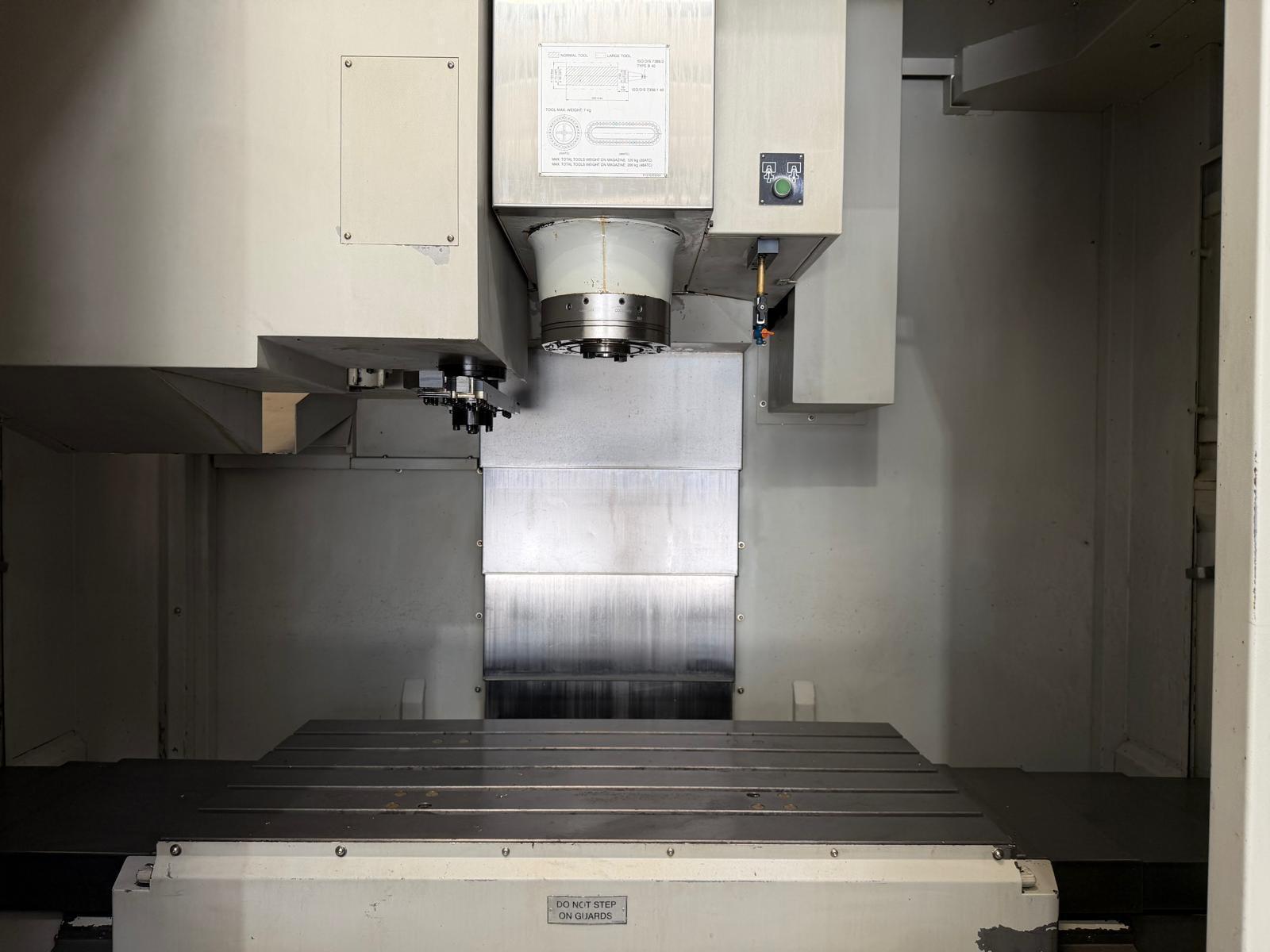

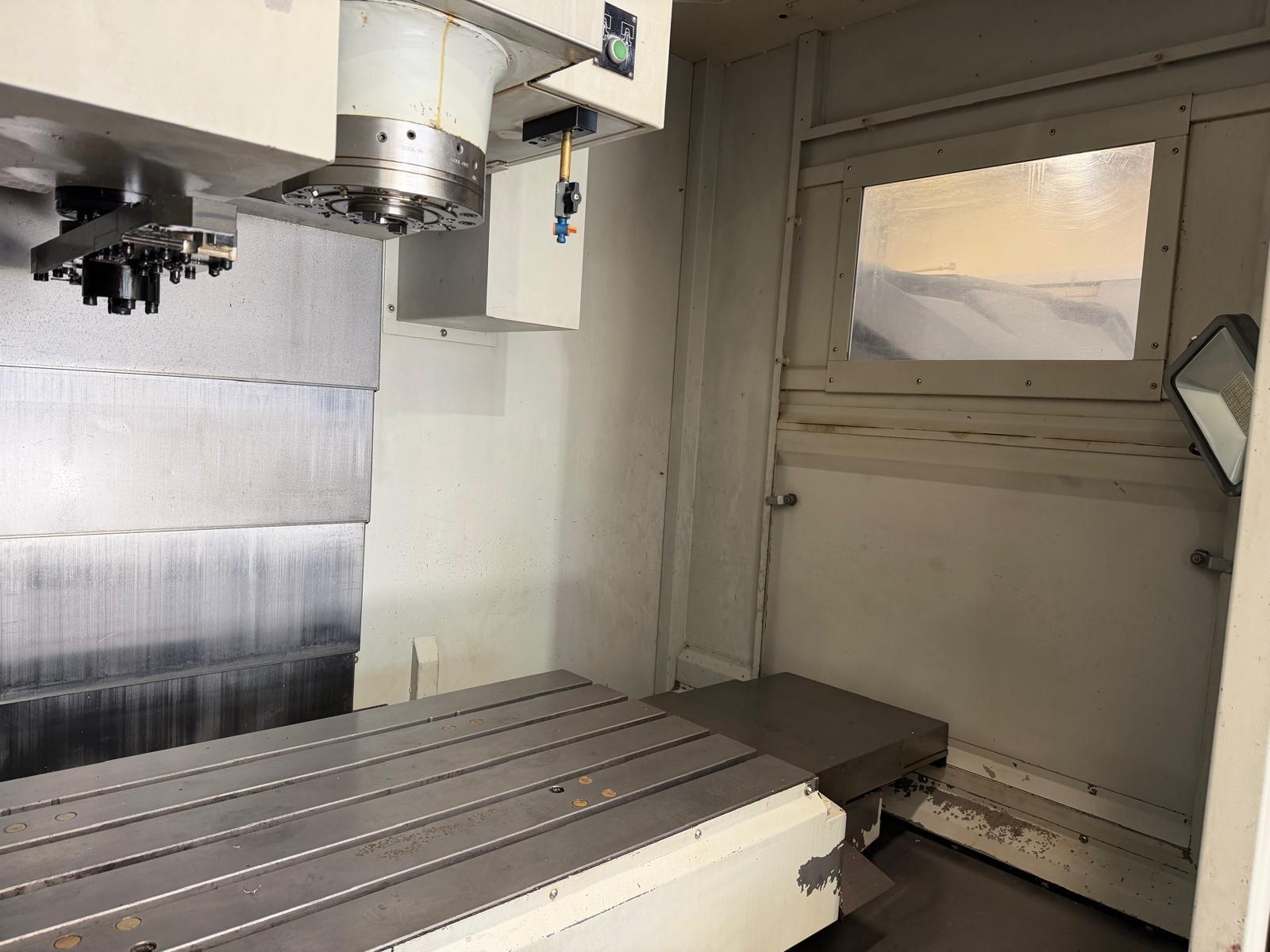

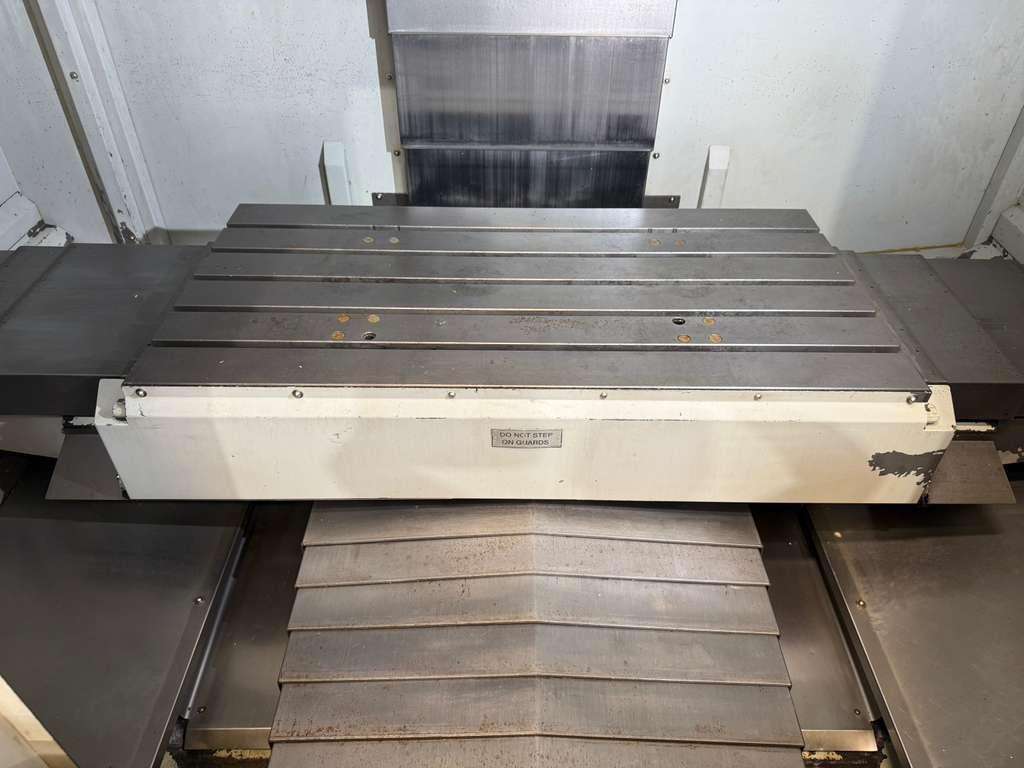

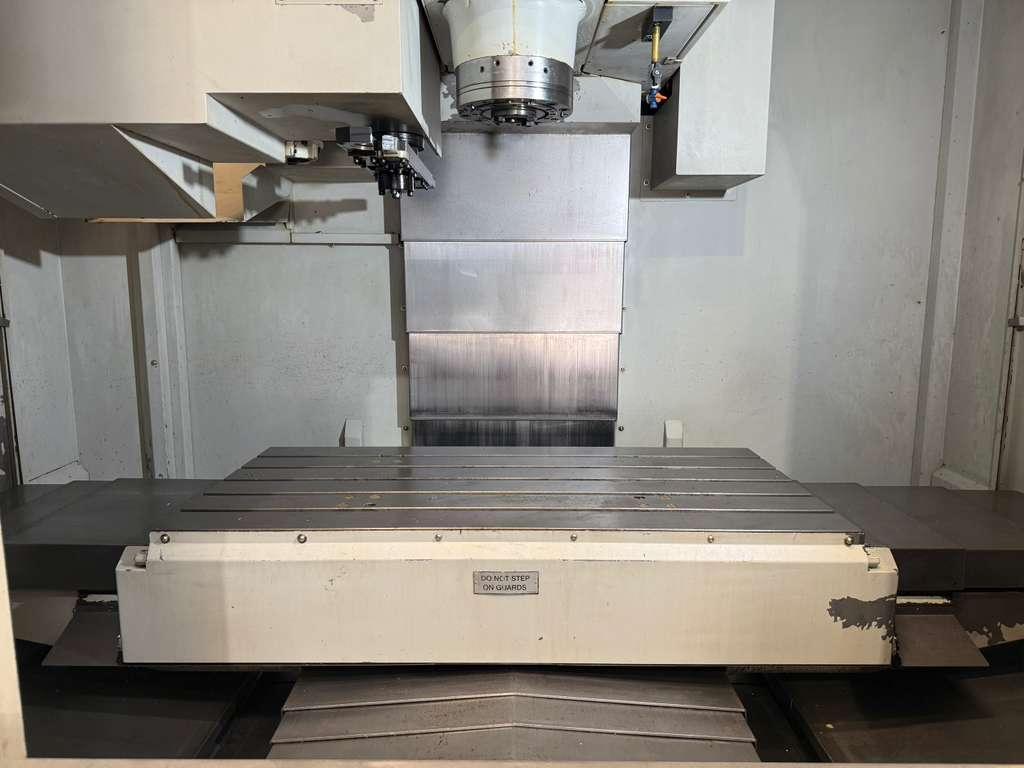

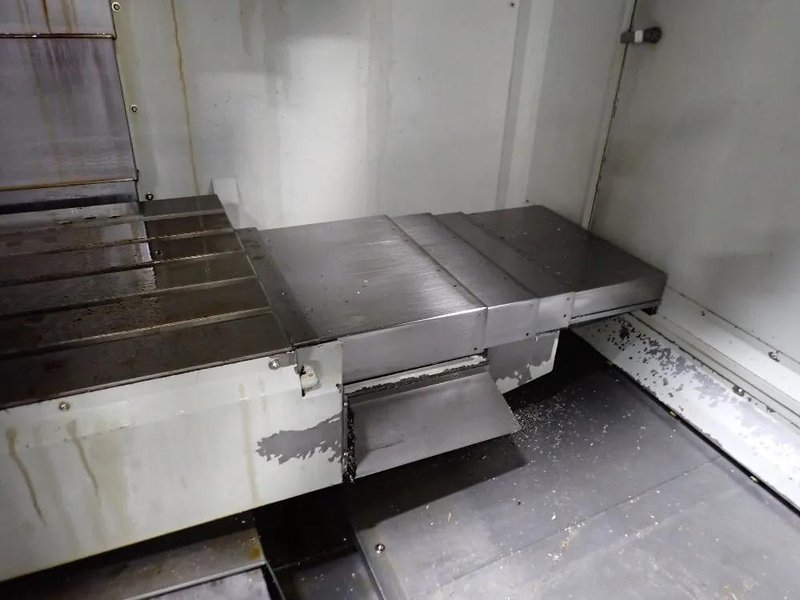

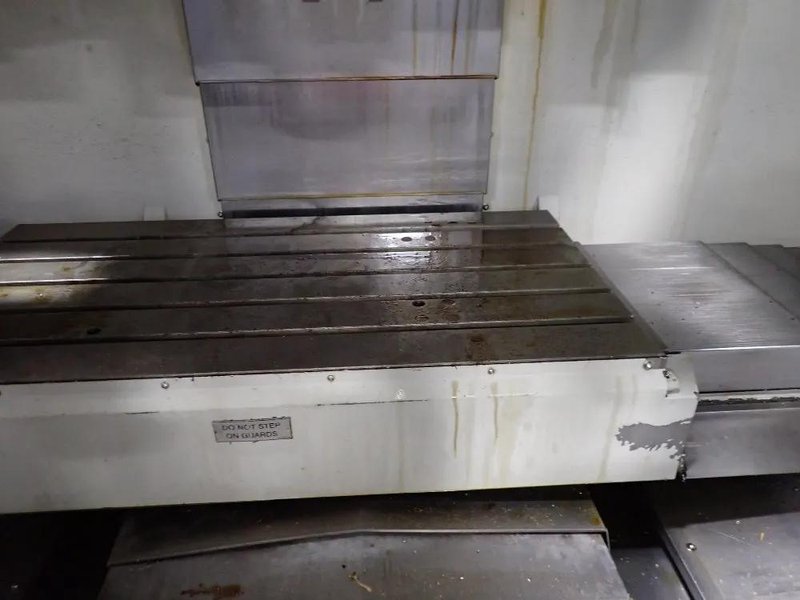

Table:
Length: 47.2″
Width: 23.6″
Number of Std T-Slots: 5
T-Slot Width: 0.70″ X 3.93″
Max Weight on Table: 2000 lbs

Travels:
X-Axis: 40″
Y-Axis: 24″
Z-Axis: 24″
Rapid Traverse Rates X & Y Axis: 1692 IPM
Rapid Traverse Rates Z Axis: 1417 IPM
Cutting Feed Rates: 787 IPM
Spindle Nose to Table (Min.- Max.): 3.94″ – 27.95″

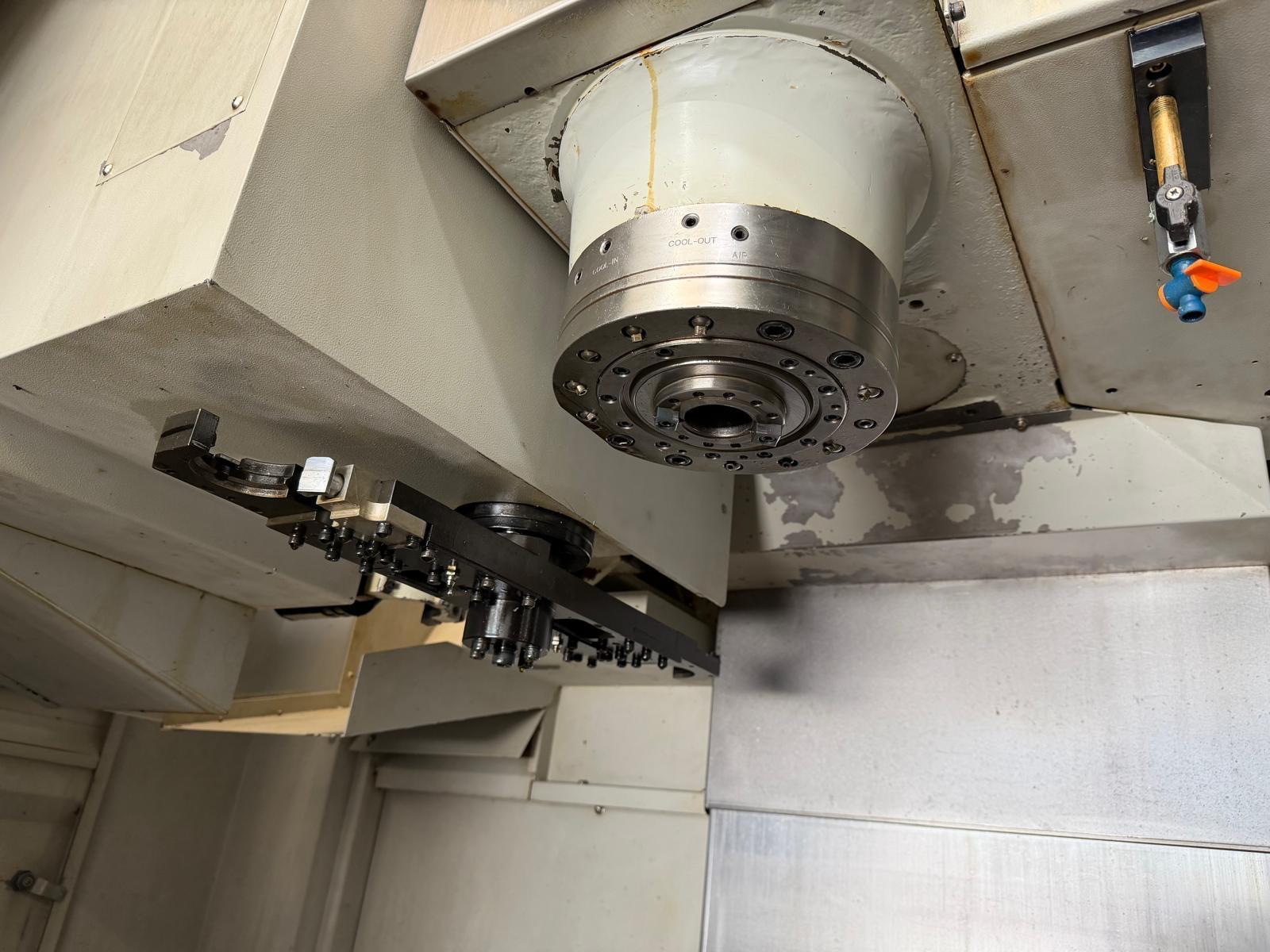

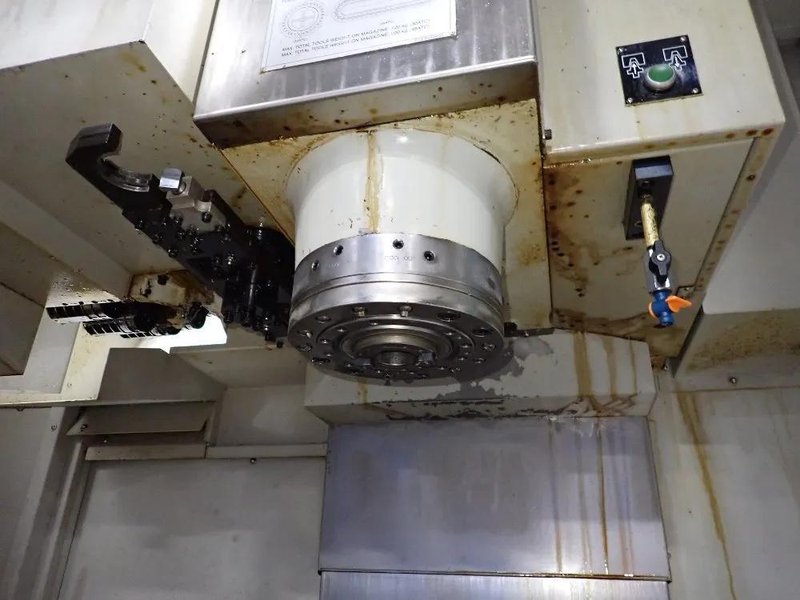

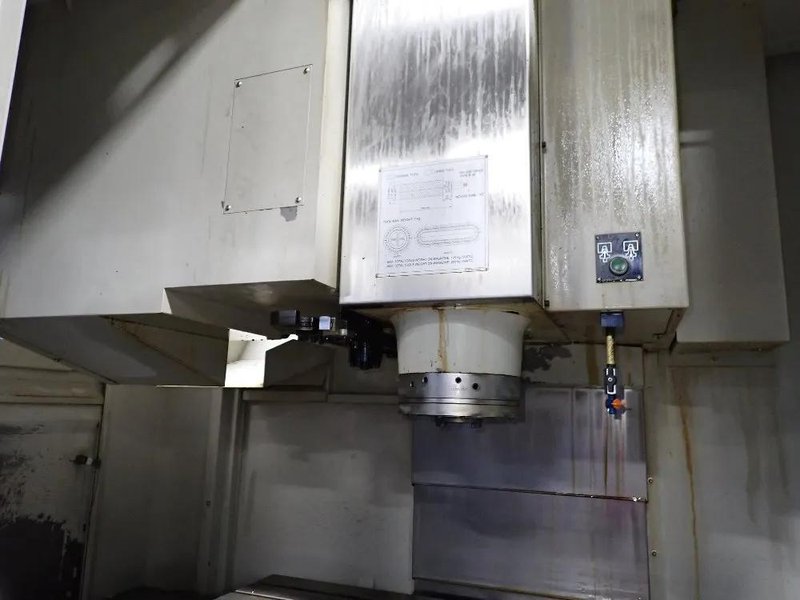

Spindle:
Taper Size: 40
Speed Range: 12000 RPM
Spindle Power: 25 HP

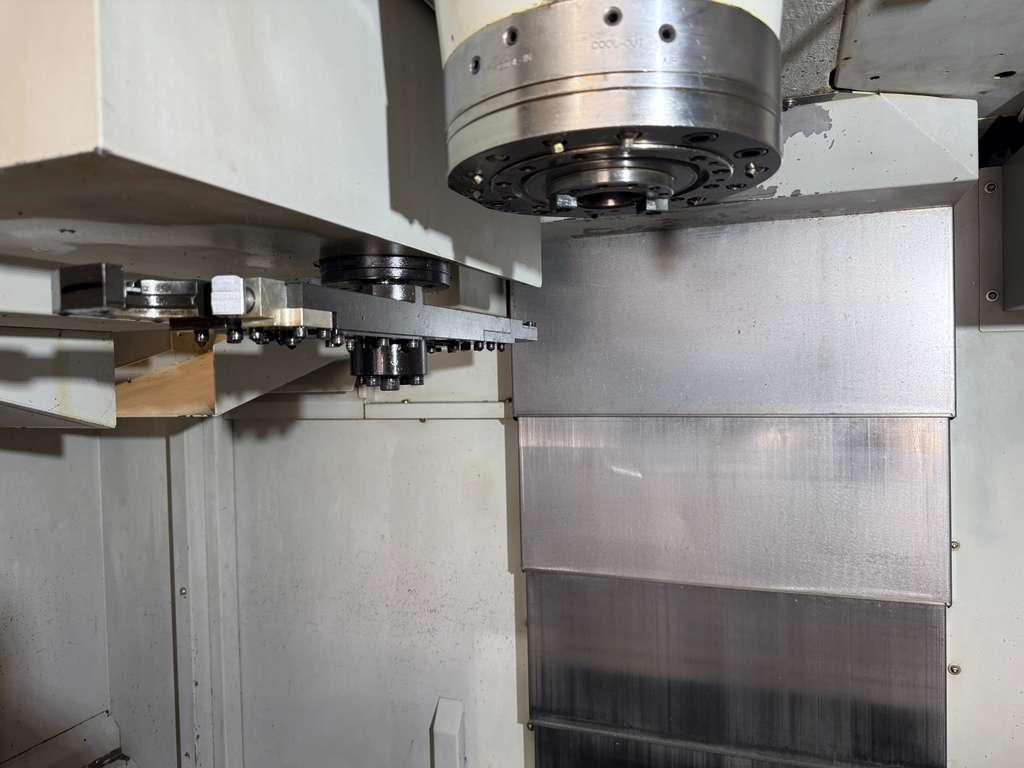

Automatic Tool Changer:
Capacity: 30 Station Side Mounted
Max Tool Weight: 15.43 lbs
Max Tool Dia: 3.35″ – 4.92″
Max Tool Length: 11.81″
Tool Changing Time (Chip to Chip): 4 Seconds
