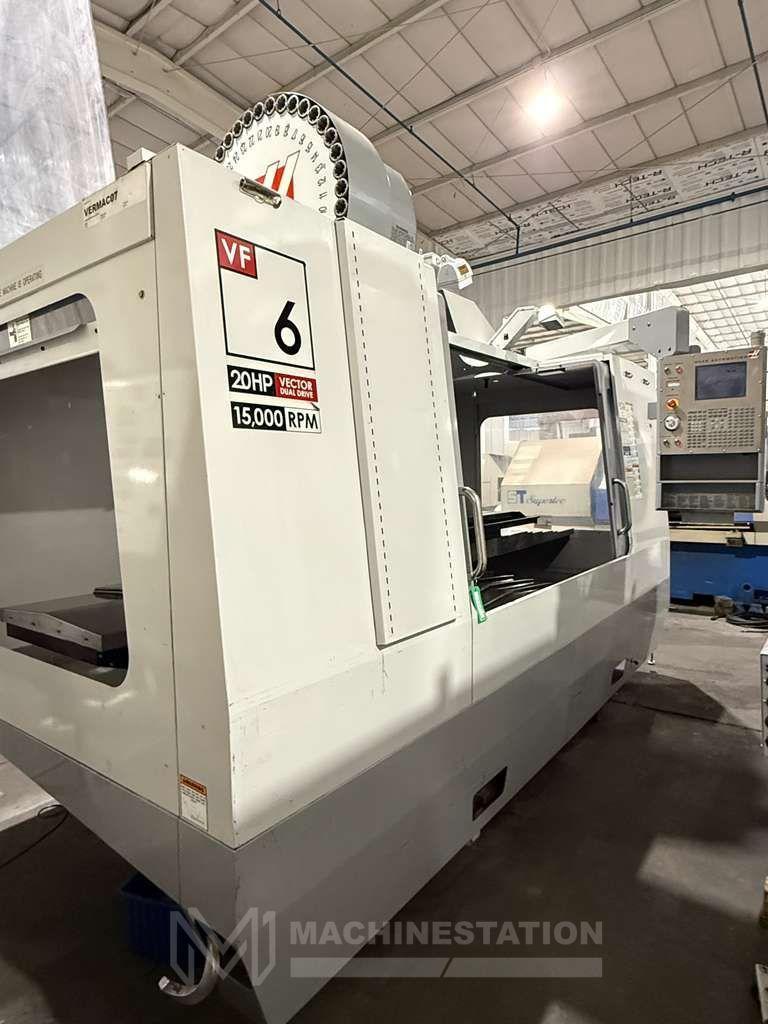

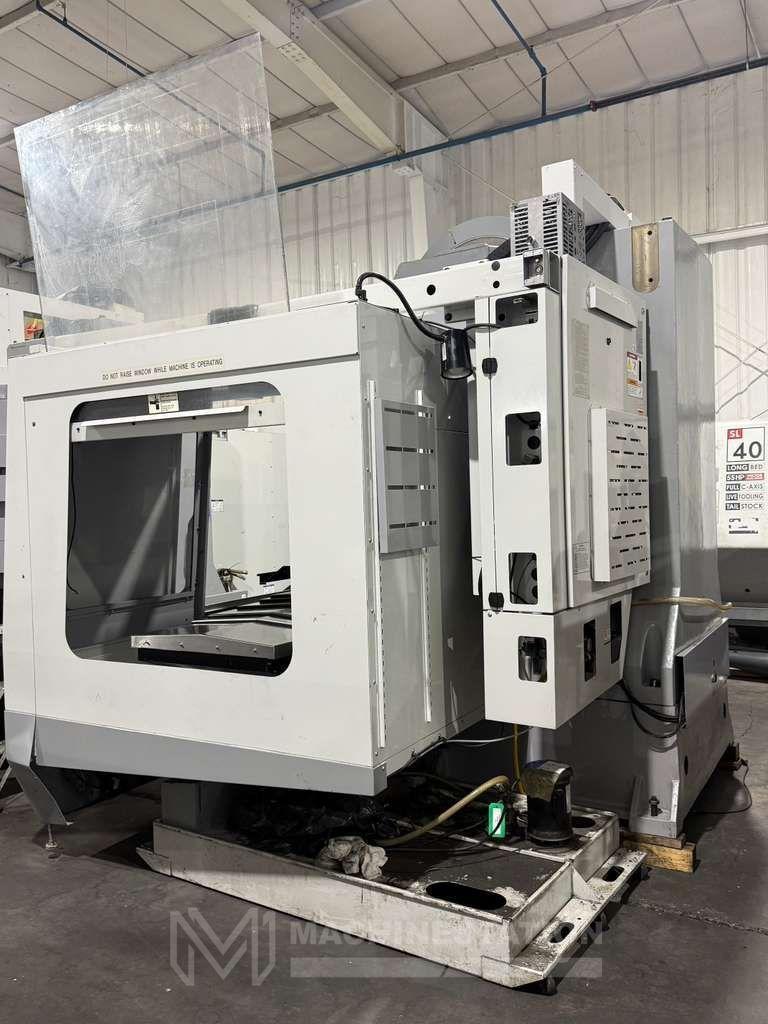

Haas VF-6D/40 CNC Vertical Machining Center – 15,000 RPM, 4th Axis Ready Mill

Haas VF-6D/40 CNC Vertical Machining Center – 15,000 RPM, 4th Axis Ready Mill

Name: Haas VF-6D/40 CNC Vertical Machining Center – 15,000 RPM, 4th Axis Ready Mill
Brand: HAAS
SKU: 113527
Availability: InStock

Brand

HAAS

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

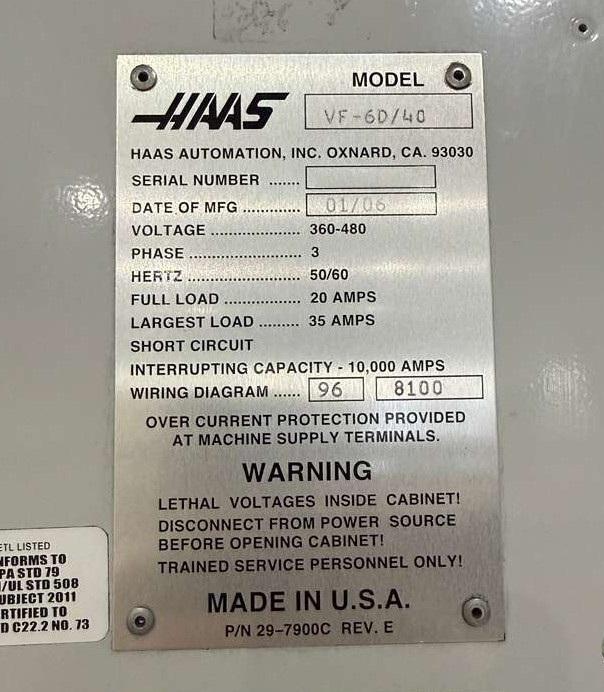

Make:	Haas
Model:	VF6D/40
Year:	2006
Condition:	Used – Good

Equipped With:

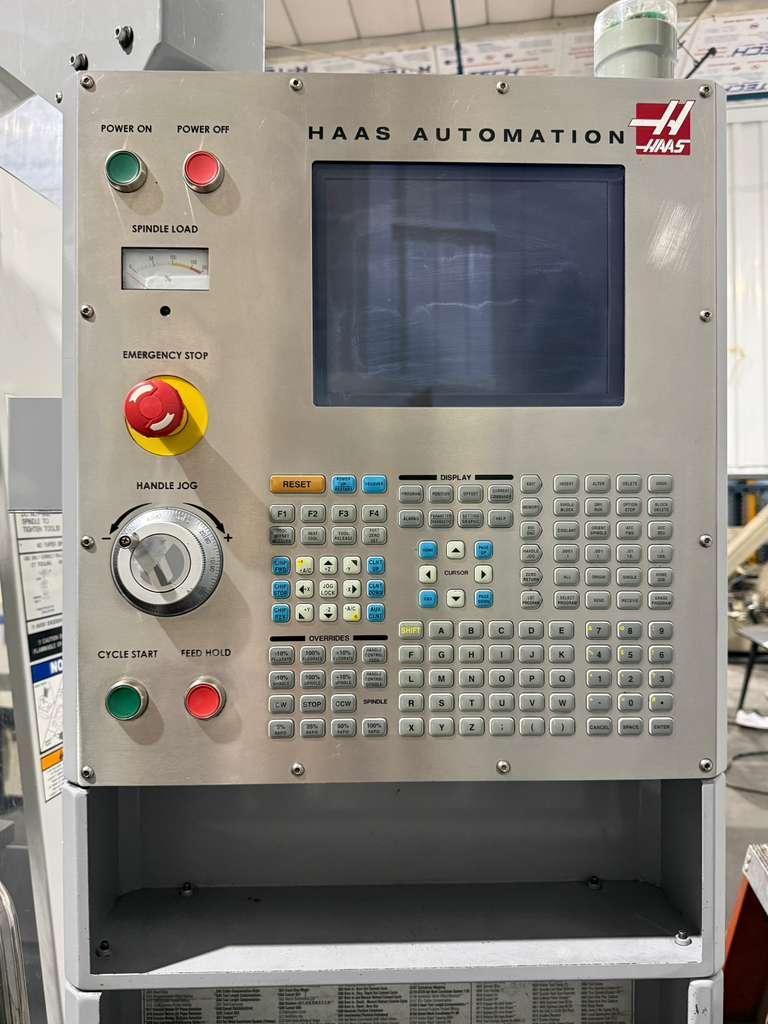

Haas CNC Control

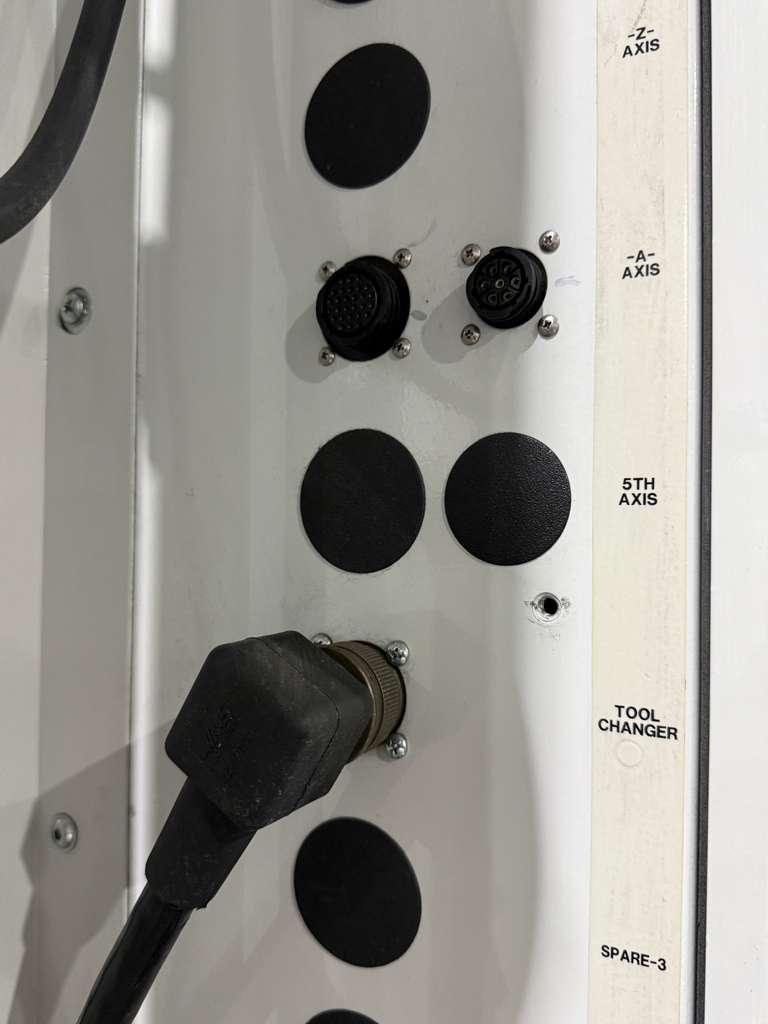

4th Axis Drive and Wiring (Upgraded $3,795 value Included)
15,000 RPM High Speed Spindle (Upgraded $16,795 value Included)

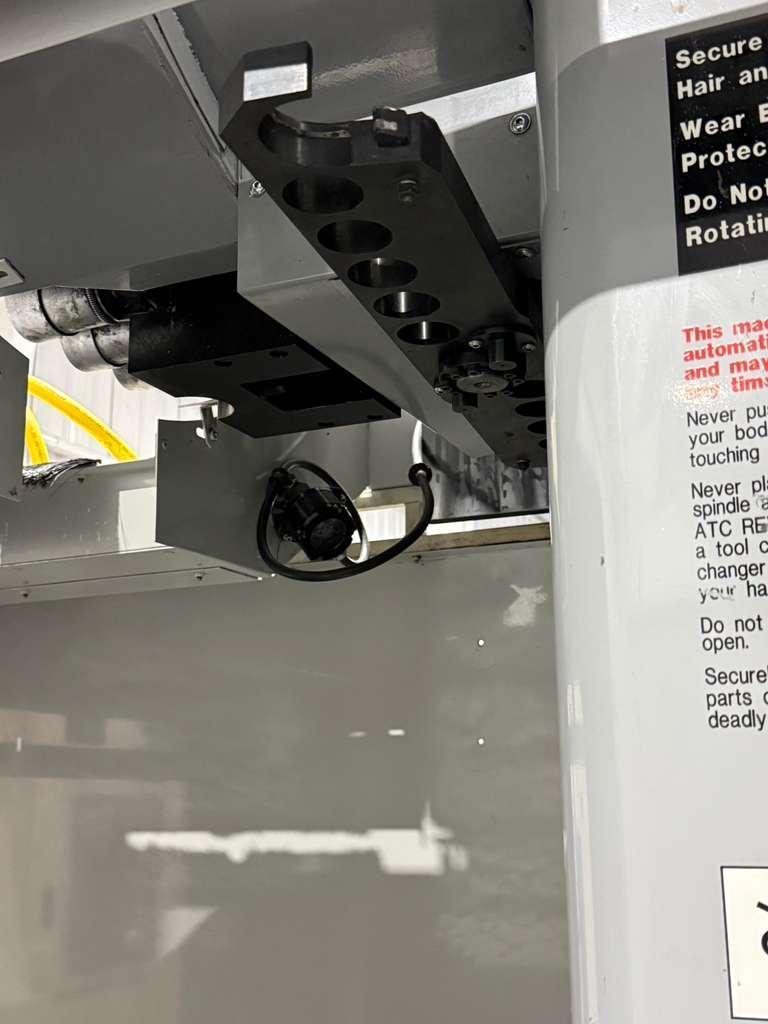

Wireless Intuitive Probing System (Probe Needed) (Upgraded $6,795 value Included)

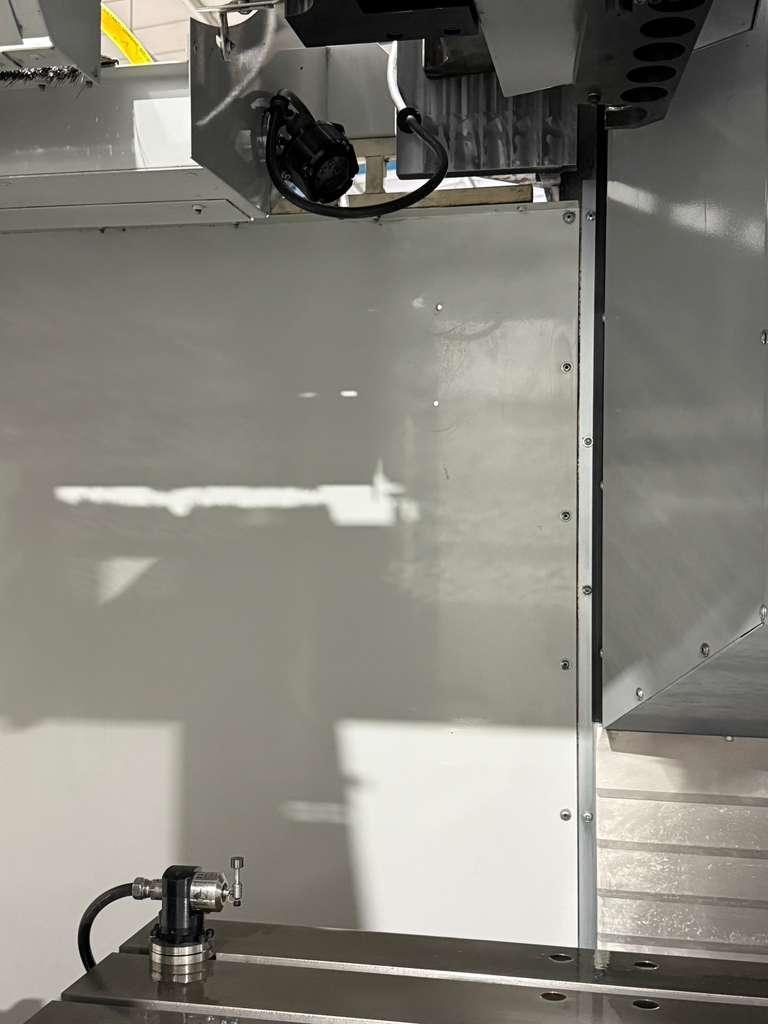

Tool Presetter
40 Station Automatic Tool Changer (Upgraded $9,795 Approx. value Included)

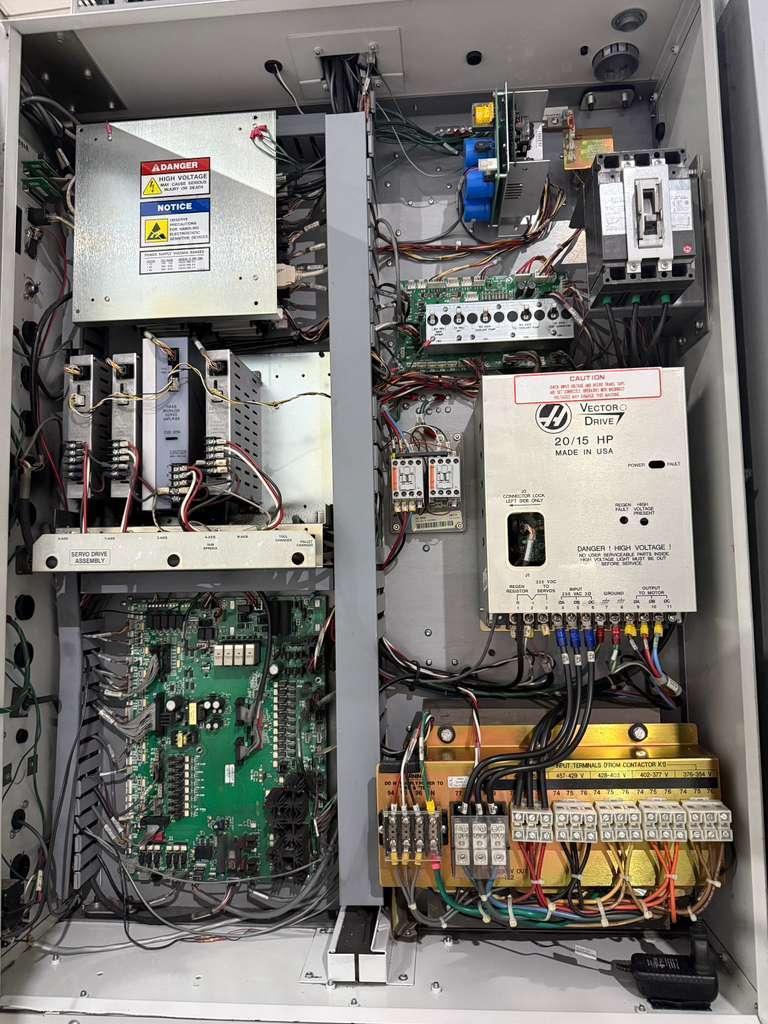

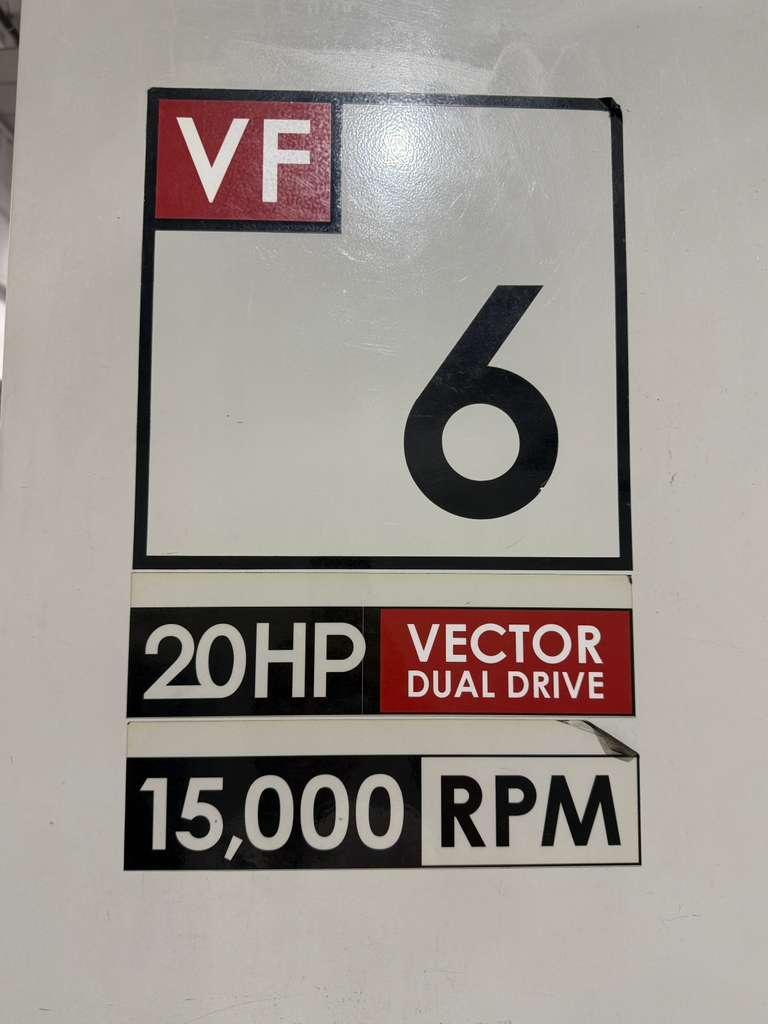

20 HP Vector Dual Drive
Rigid Tapping
MPG Handwheel Control
Coolant System
Chip Auger

Travels:
X-axis: 64″
Y-Axis: 32″
Z-Axis: 30″
Rapid Traverse Rates: 600 IPM
Cutting Feed Rates: 500 IPM
Spindle Nose To Table (Min.- Max.): 4″ – 34″

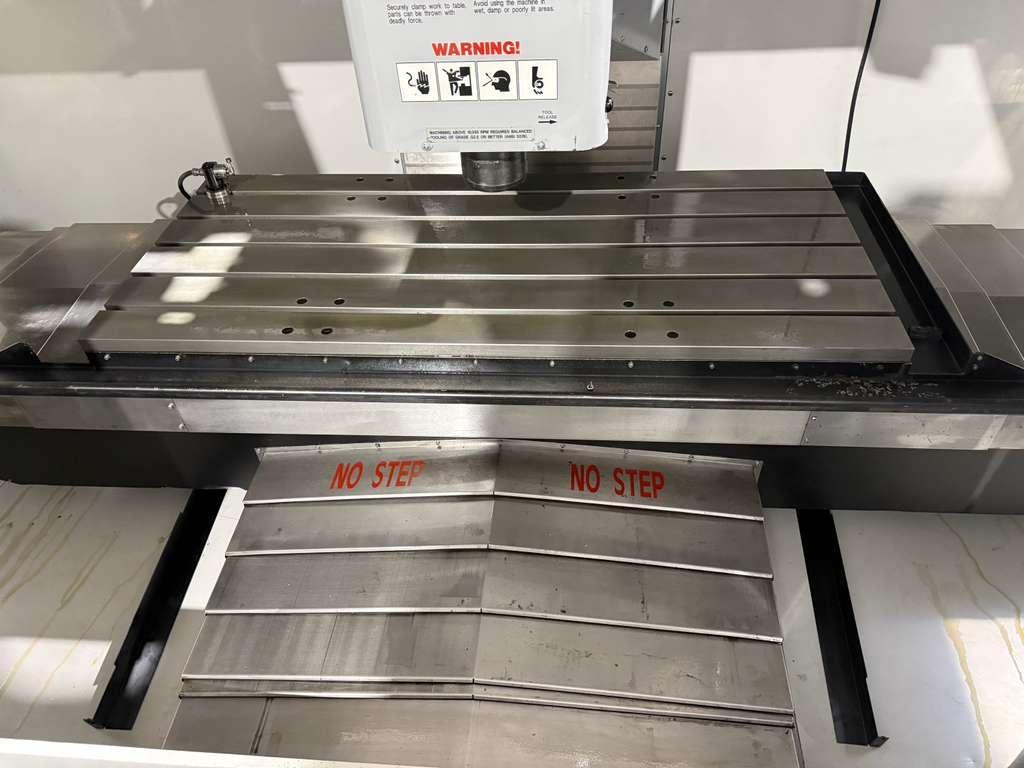

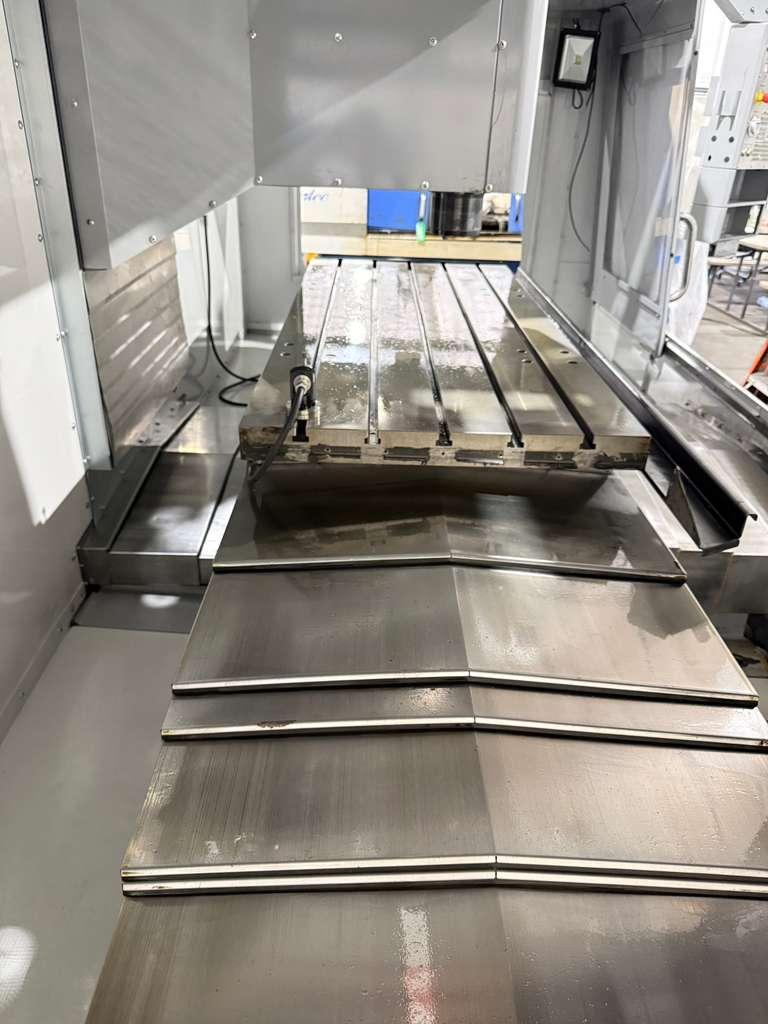

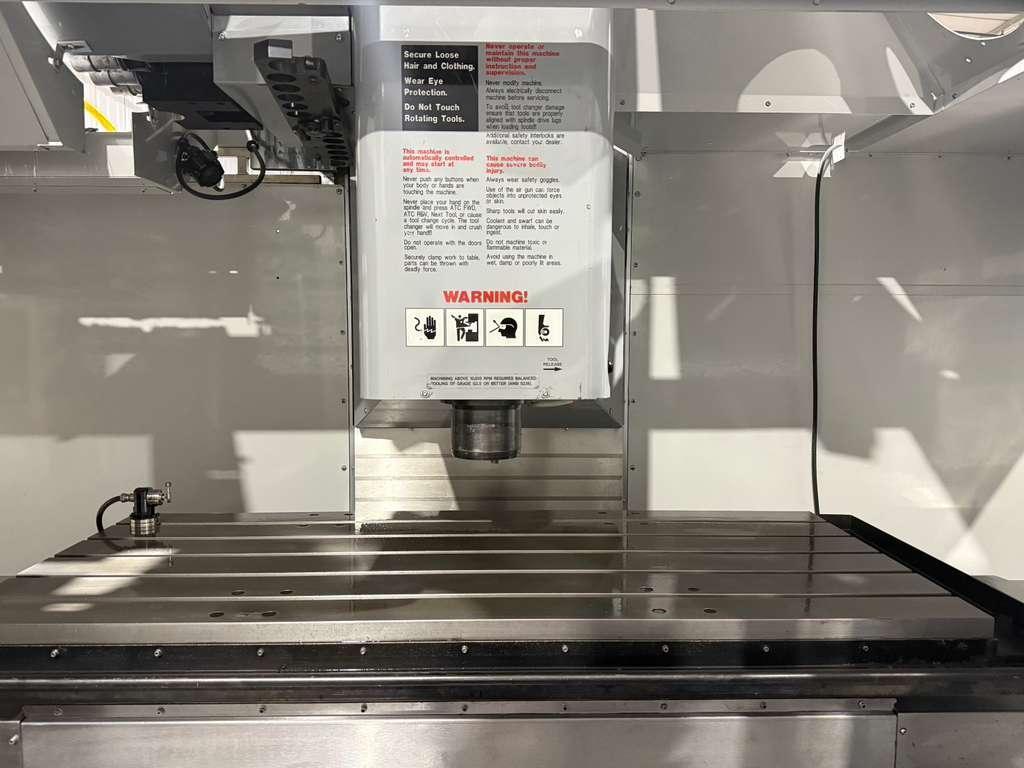

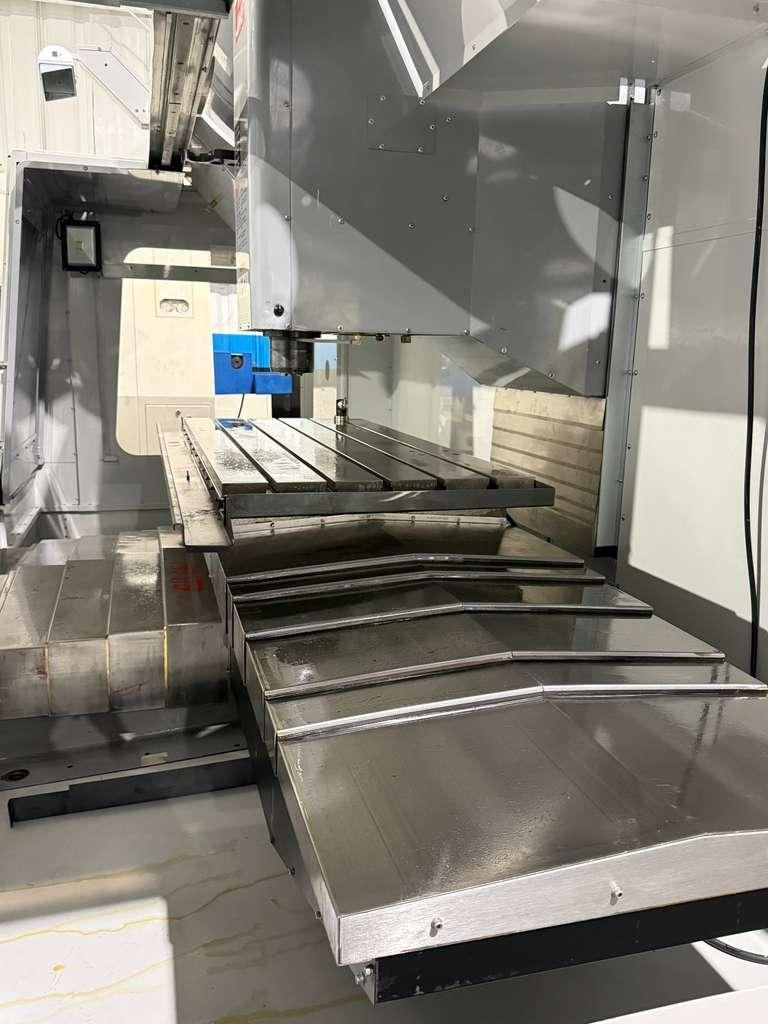

Table:
Length: 64″
Width: 28″
Number Of Std T-slots: 5
T-Slot Width: 5/8″
Max Weight On Table: 4000 Lbs

Spindle:
Taper Size: CAT-40
Speed Range: 15,000 RPM
Spindle Power: 20 HP
Vector Drive Max Torque: 90ft-lb @ 2000 RPM

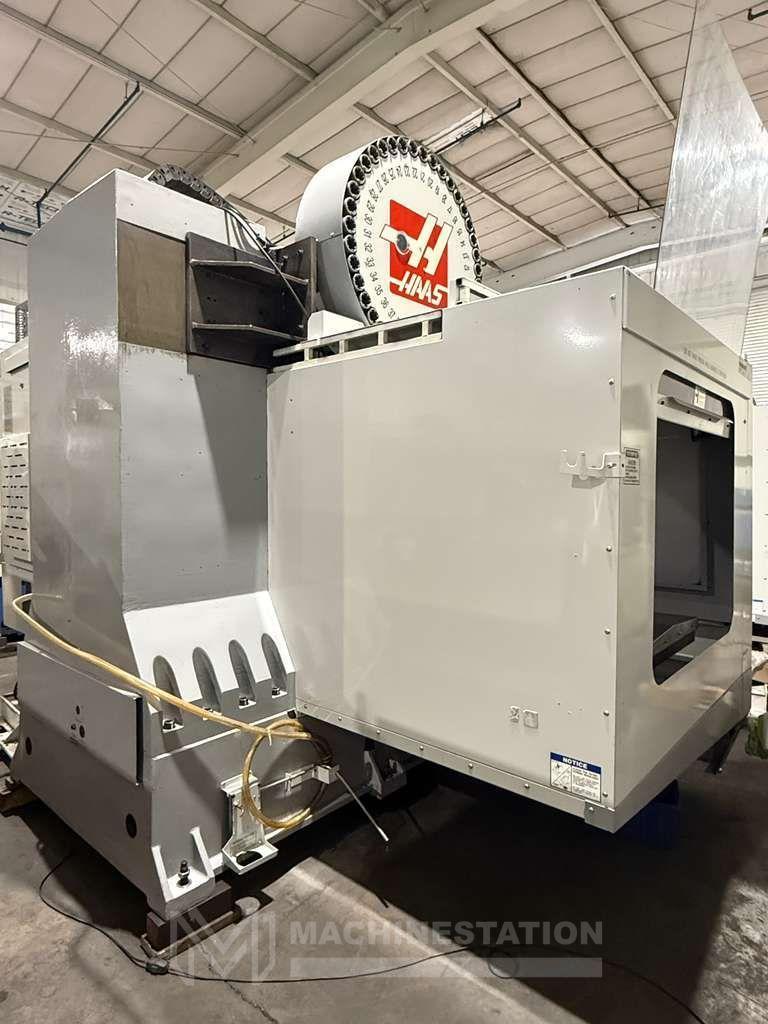

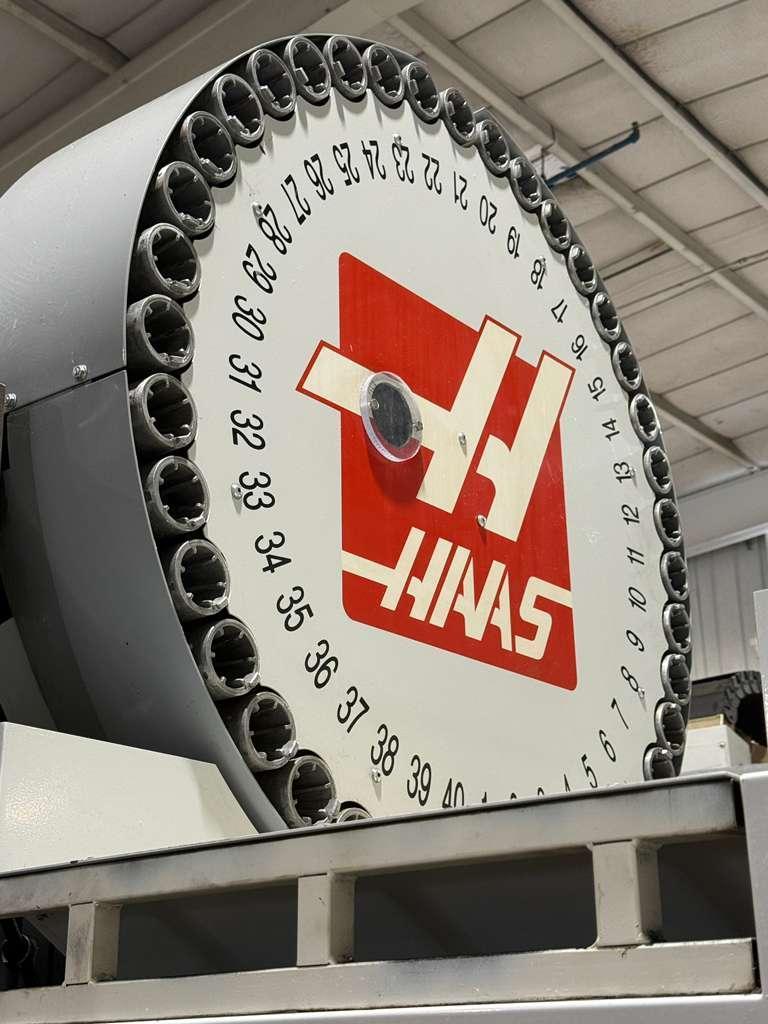

Automatic Tool Changer:
Capacity: 40 Station Side Mounted
Tool Weight: 12 Lbs
Max Tool Diameter (Full): 2.5″
Max Tool Diameter (adjacent empty): 5″
Max Tool Length: 16″
Tool Changing Time: 3.6 Seconds
