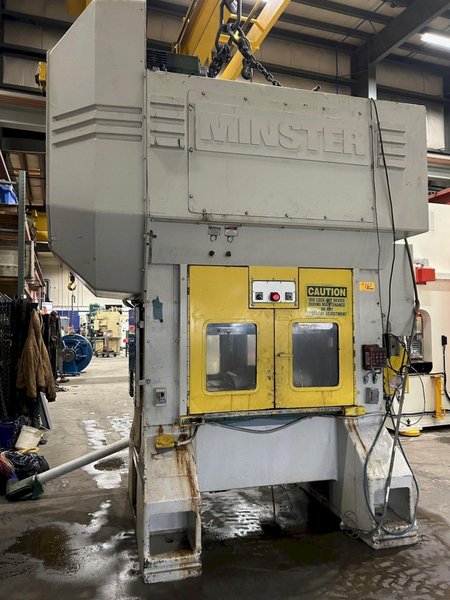

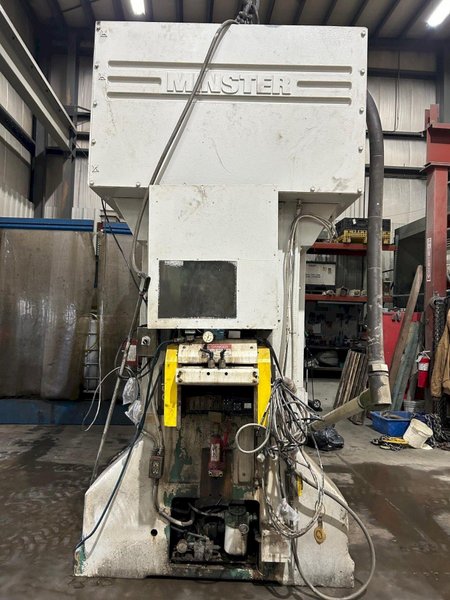

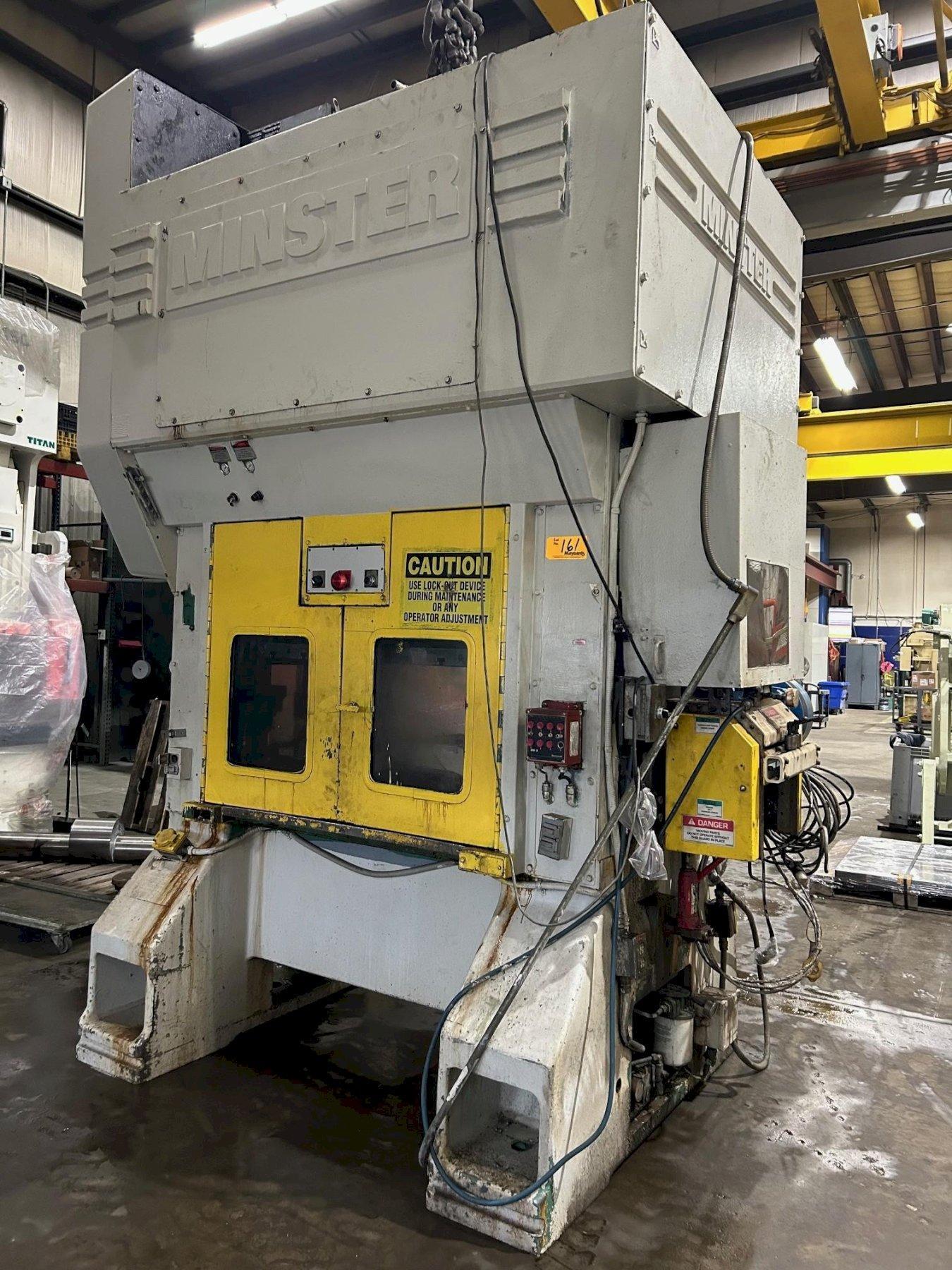

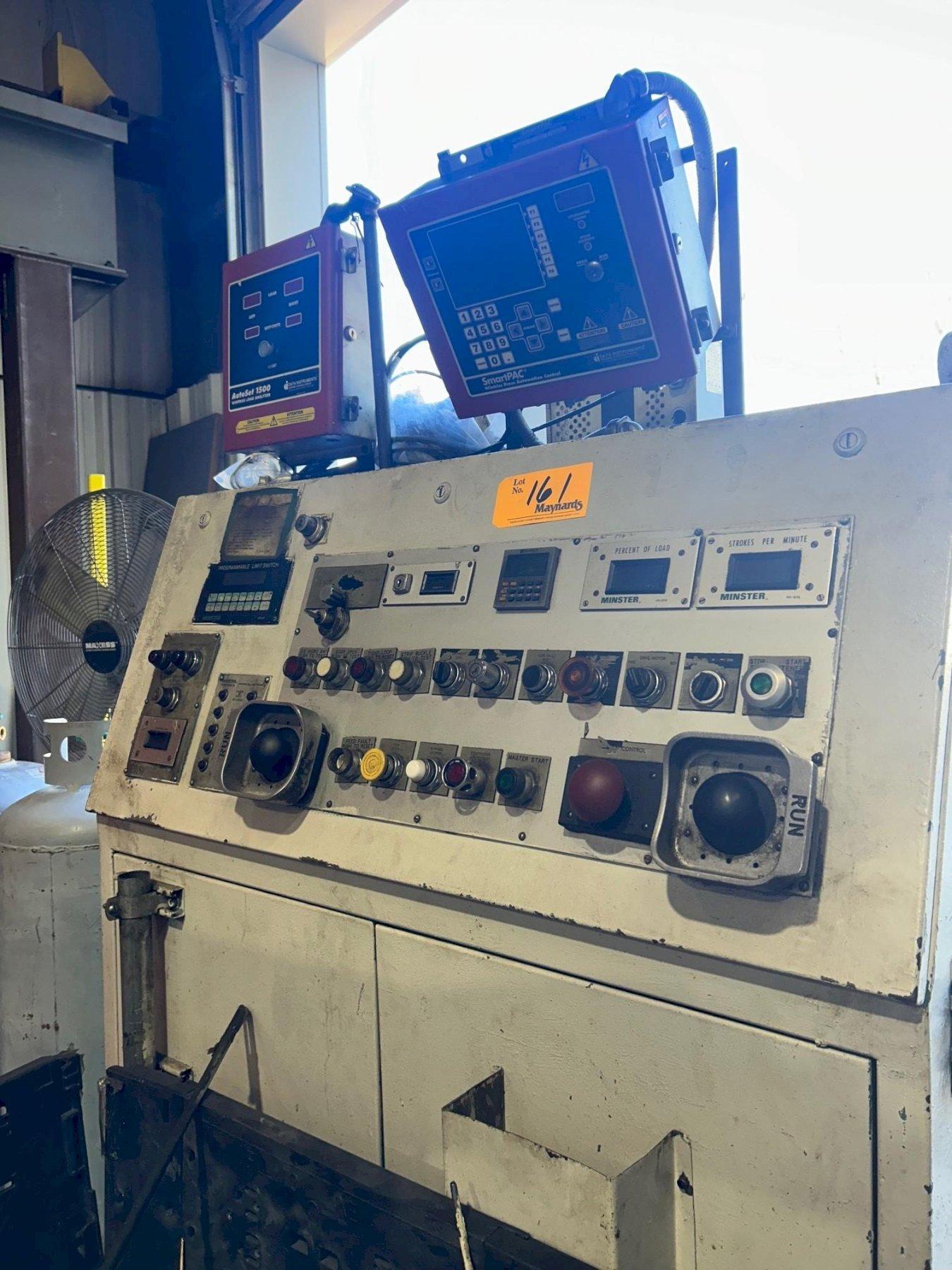

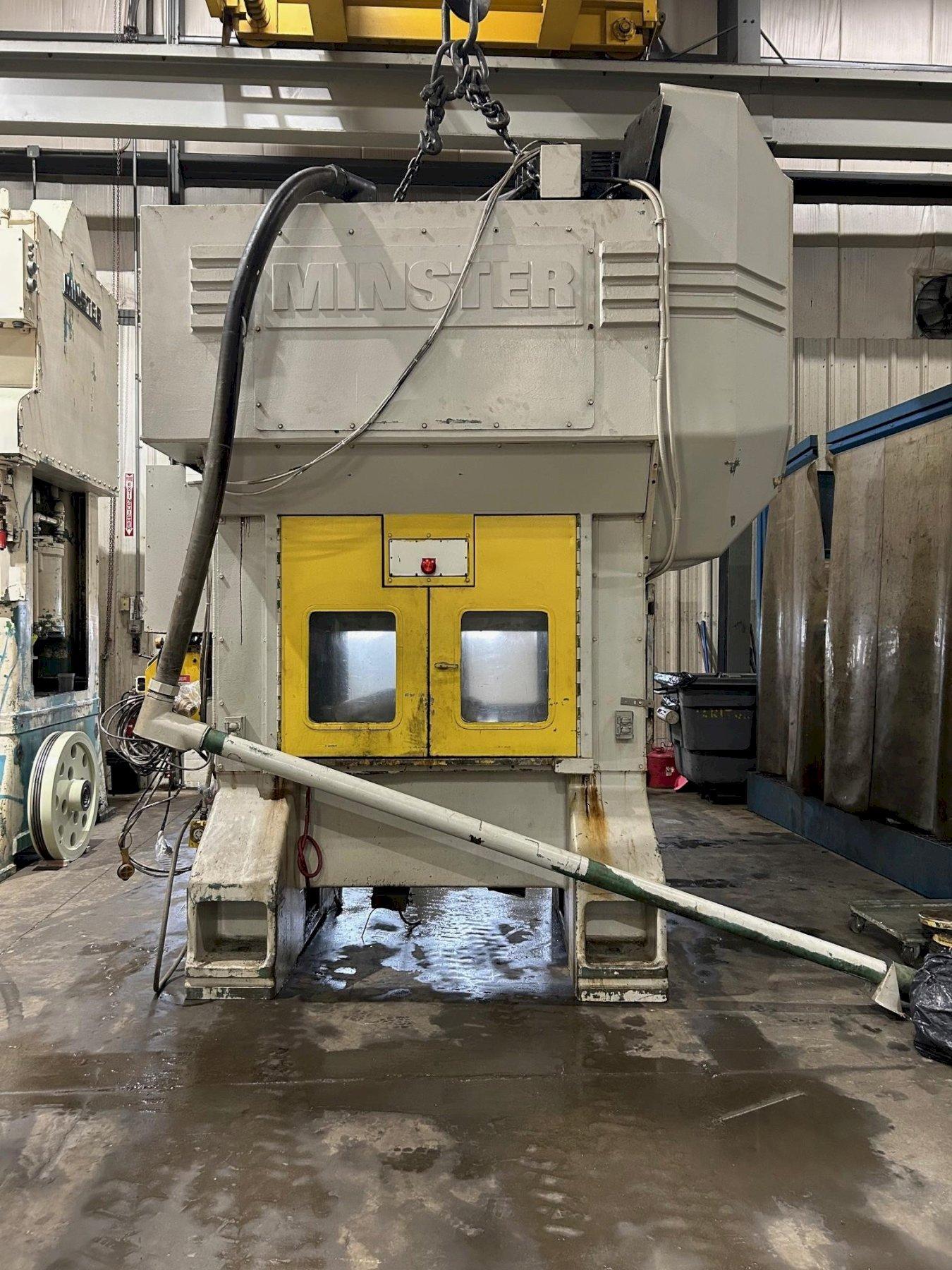

Minster P2-100-48 Special Edition Straight Side Press

Precision Straight Side Press

Specifications (INCH)

Press Specifications

Model Number........................................................ P2S-100-48×31-FW

Force × Distance off Bottom.................................. 100 ton

Crankshaft Extension Location............................... Opposite Drive Side

Drive Arrangement.................................................. Flywheel

Drive Location........................................................ Left Hand Side

Lube Unit Location................................................. Drive Side

Approximate Press Mass......................................... 34,000 lb.

Shutheight Indicator Readout................................. Inch

Press Slide Specifications

Stroke Length, Speed Range................................... 3.00 in, 300spm

Adjustment of Shutheight....................................... 4.00 in

Area of Slide, R-L × F-B........................................ 48.0 × 18.5 in

Slide Face Machining.............................................. Standard

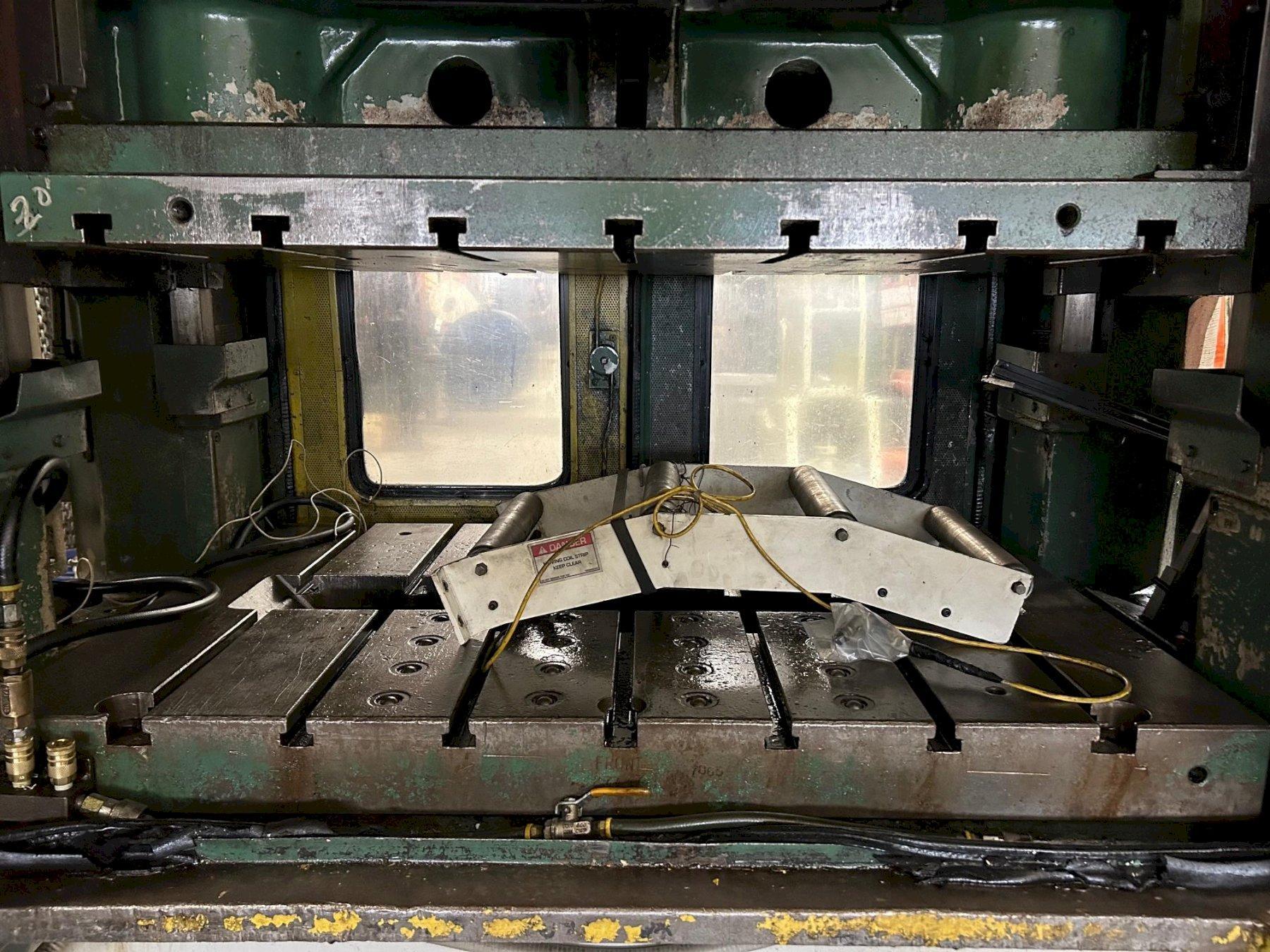

Press Bolster Specifications

Plate Material.......................................................... Steel

Bolster Plate Thickness........................................... 4.00 in

Area of Bolster, R-L × F-B..................................... 48.0 × 31.0 in

Bolster Plate Machining.......................................... 1165-552

P2 Precision Straight Side Press

Specifications (INCH) continued

Press Frame Specifications

Upright Passline Opening, F-B............................... 16.0 in

Area of Bed, R-L × F-B.......................................... 48.0 × 31.0 in

Opening in Bed, R-L × F-B.................................... 41.0 × 15.0 in

Shutheight, SDAU on Bed and under slide plate.....19.25 in

Shutheight, SDAU on Bed...................................... 21.00 in

Approx. Clearance, Mount to Bottom of Bed........ 18.00 in

Dist Mount to Top of Bed..........................................   42.0 in
