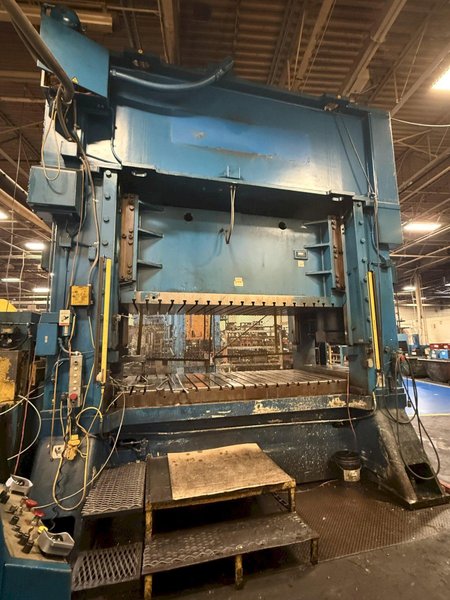

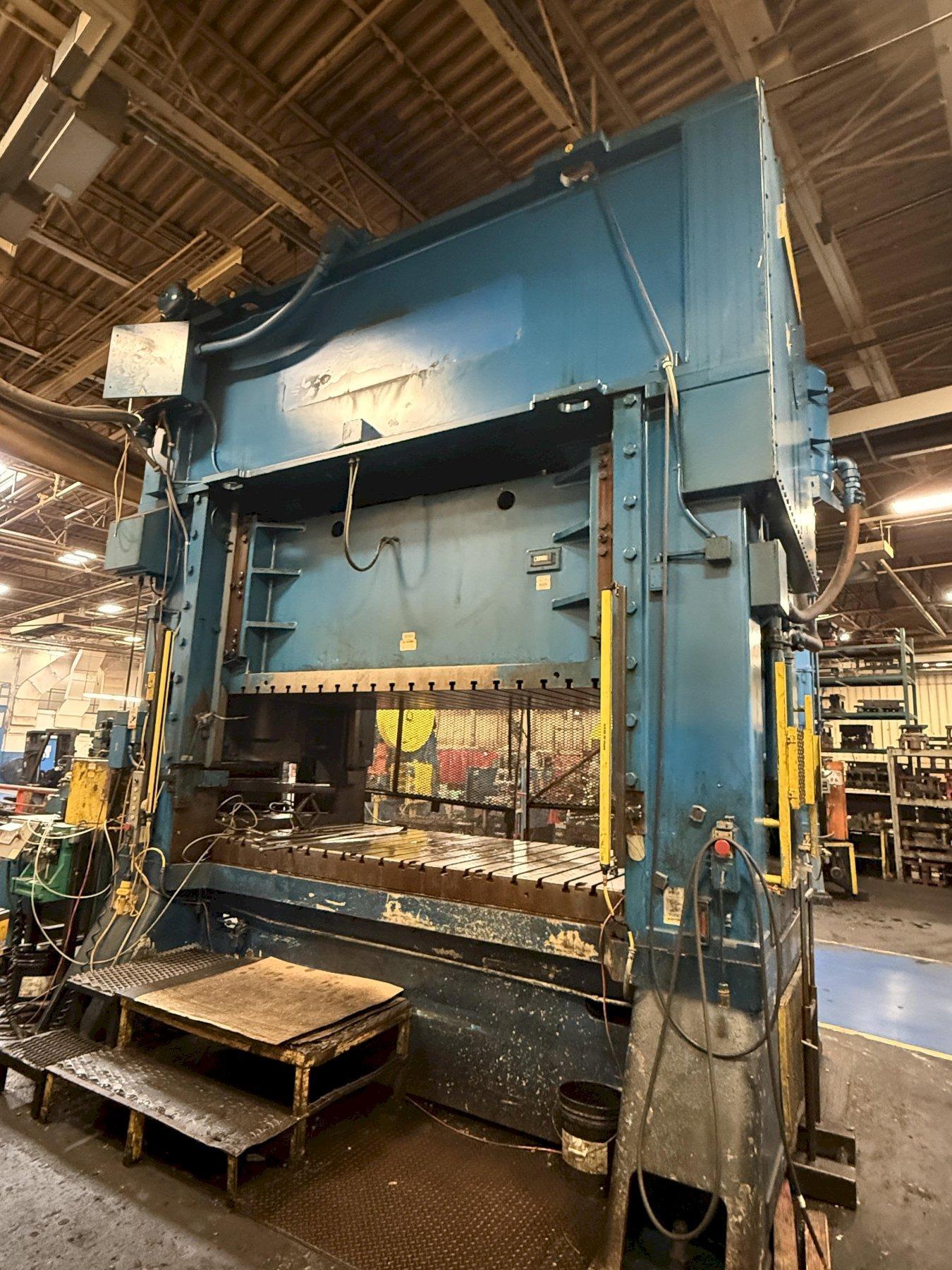

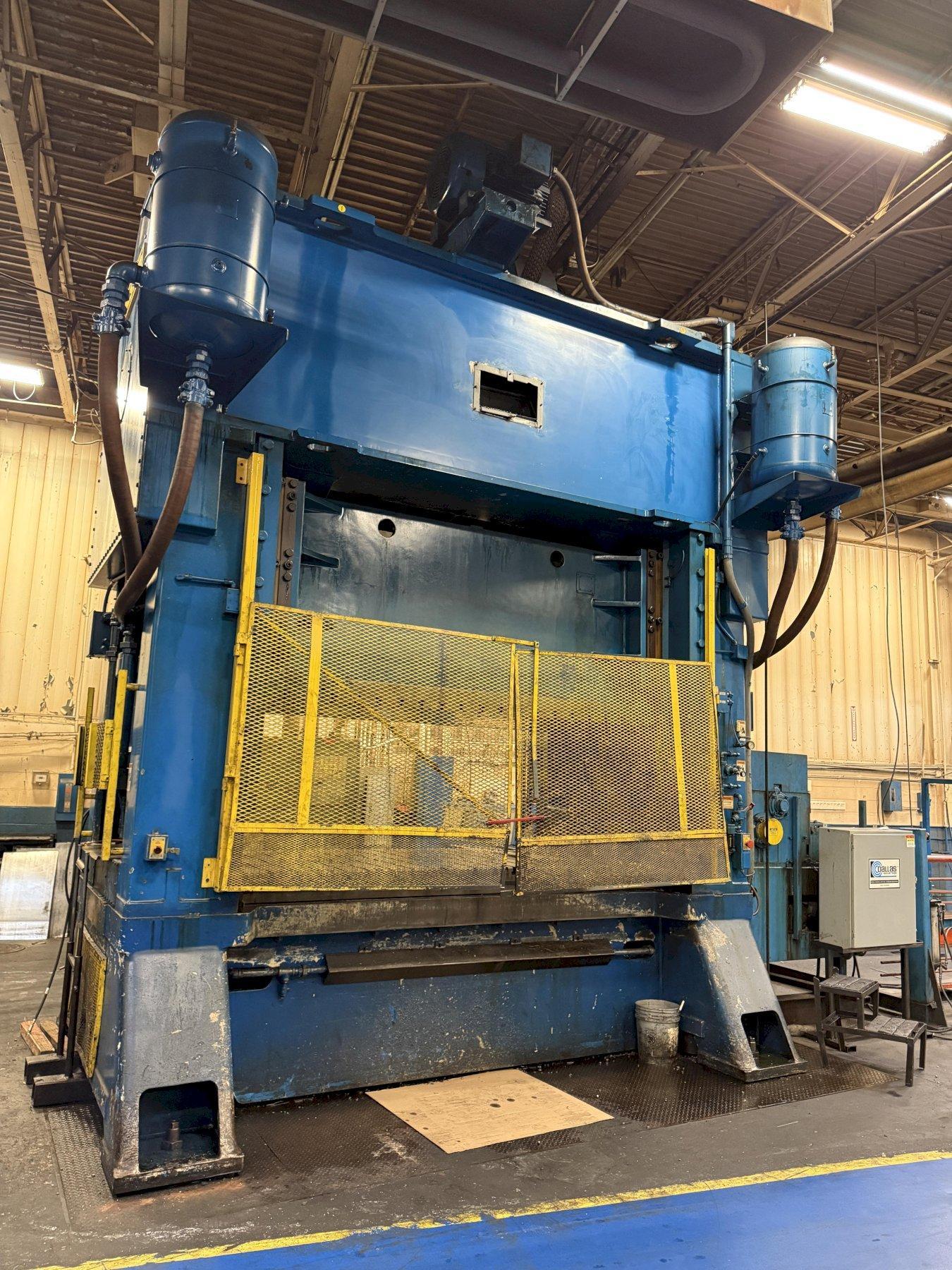

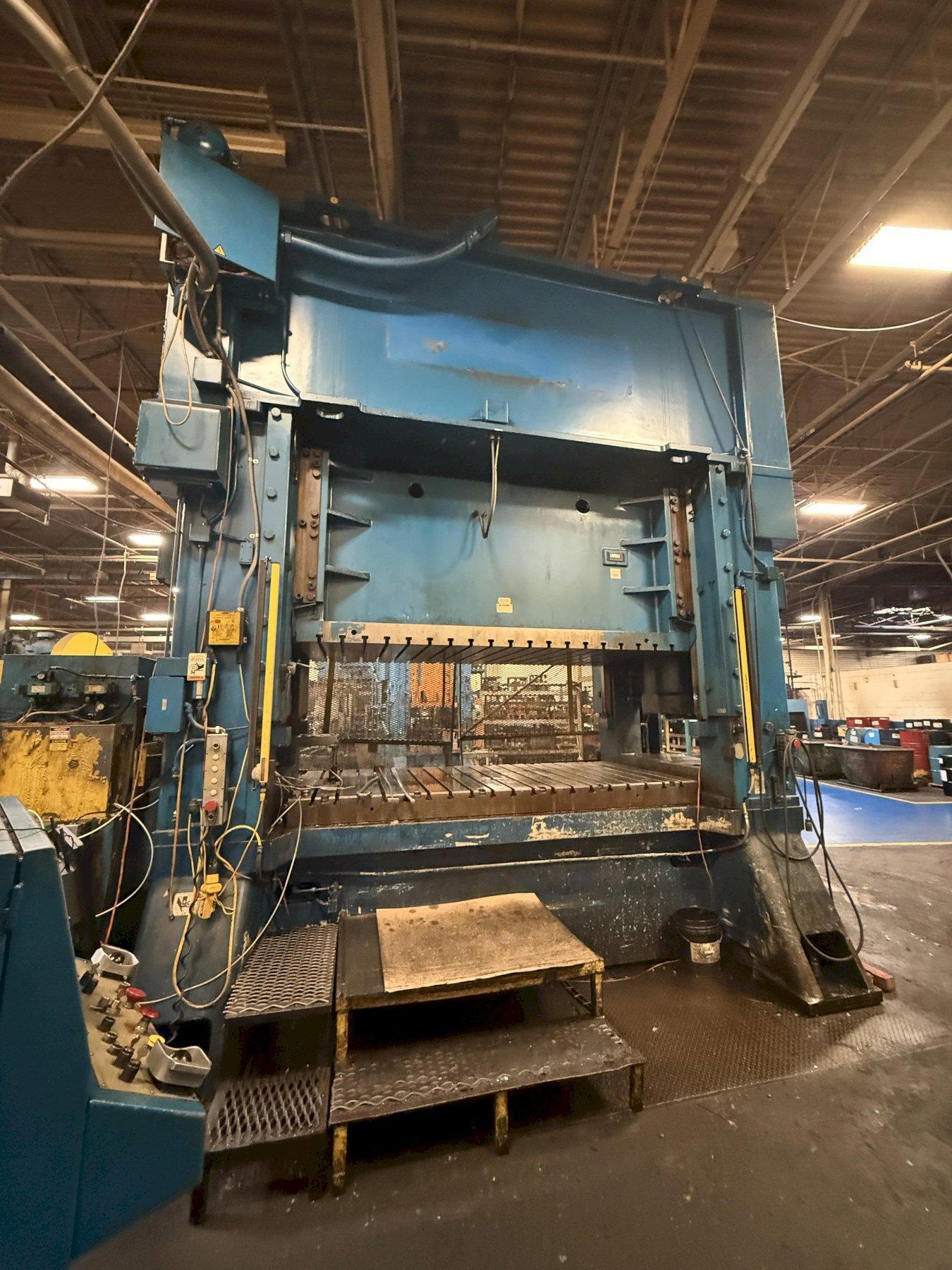

2001 Minster E2-600-120-60 Hevi-Stamper - 600-Ton Double Crank Press

Name: 2001 Minster E2-600-120-60 Hevi-Stamper - 600-Ton Double Crank Press
Brand: MINSTER
SKU: 3002
Availability: InStock

Brand

MINSTER

Michigan

Tonnage	600
Stroke	16 inches
Shut Height	32 inches
Adjustment	6 inches
Bed Size	120" LR x 60" FB
Ram Area	120" LR x 60" FB
SPM	30-60

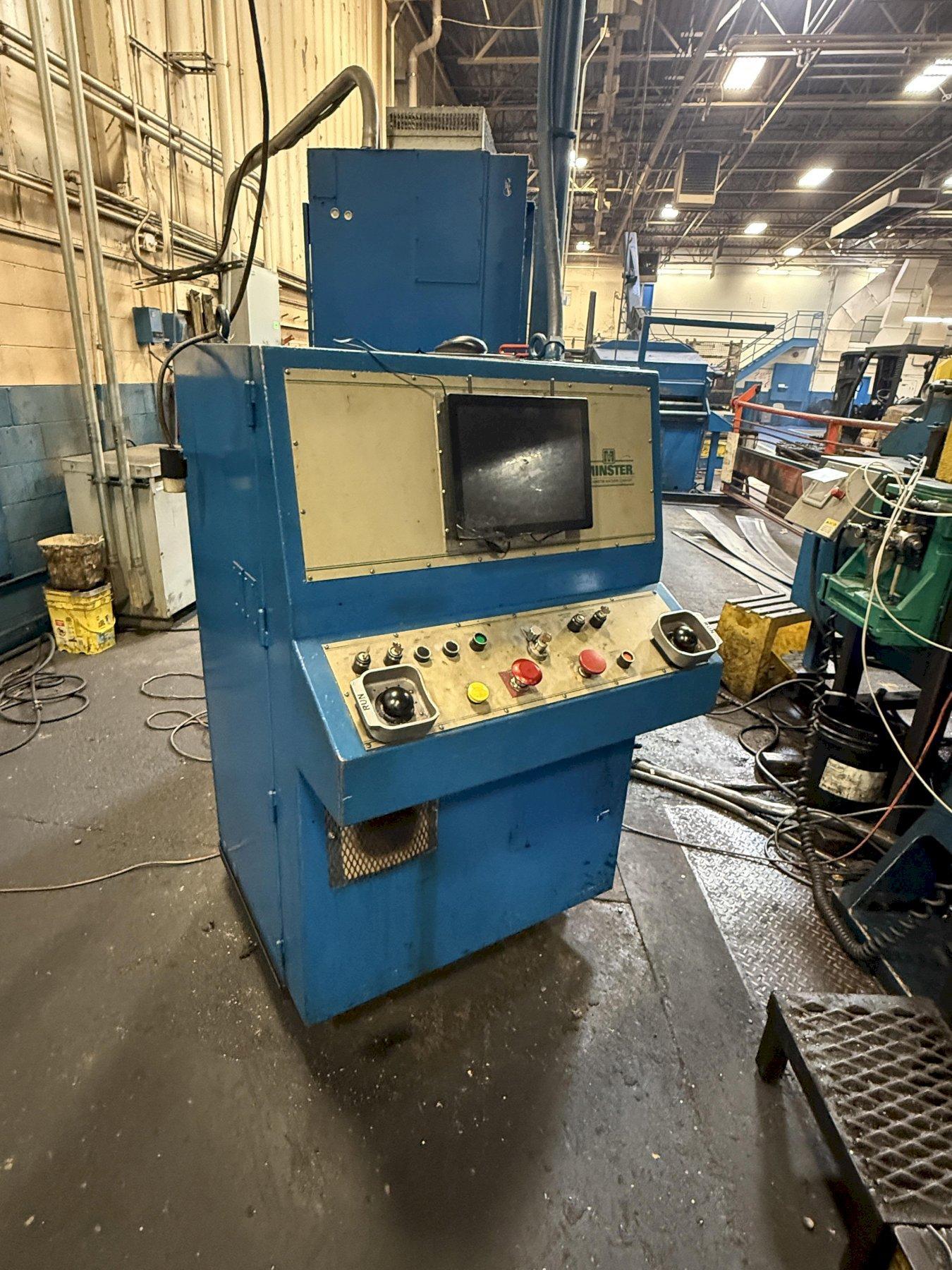

Year 2001 Minster E2-600-120-60 Hevi-Stamper 600-Ton Straight Side Press For Sale Can be seen underpower! 600 ton Capacity 16" Stroke 32" Shut Height 6" Motorized Adjustment 120" LR x 60" FB Bed Area 120" LR x 60 FB Slide Area 30-60 Variable Strokes Per Minute Equipment and Features Minster Pneumatic Clutch and Brake Minster Monitor Flow Lubrications System Air Counterbalances Twin End Drive - 8 Point Gibbing One Piece Forged Eccentric Shaft Tie Rod Construction with Heavy Uprights for Frame Rigidity 7" Thick Bolster Plate T-Slotted Ram and Bolster Light Curtains Free Standing Console Control Variable Frequency Drive Vibro Dynamic Floor Standing 53" Wide Windows Floor Standing Overall Height: 20' 5" Tall or 21' Tall with Vibro Mounts Elevate your high-speed production with this 2001 Minster Hevi-Stamper, a premium 600-ton straight side mechanical press. Model E2-600-120-60 is engineered specifically for heavy-duty metal forming and complex progressive die applications. Currently available under power and in operation, this used Minster press delivers the industry-leading rigidity and precision required for high-tonnage stamping. With a massive 120" x 60" bed area, this robust machine provides a reliable, long-term solution for your most demanding industrial manufacturing needs.
