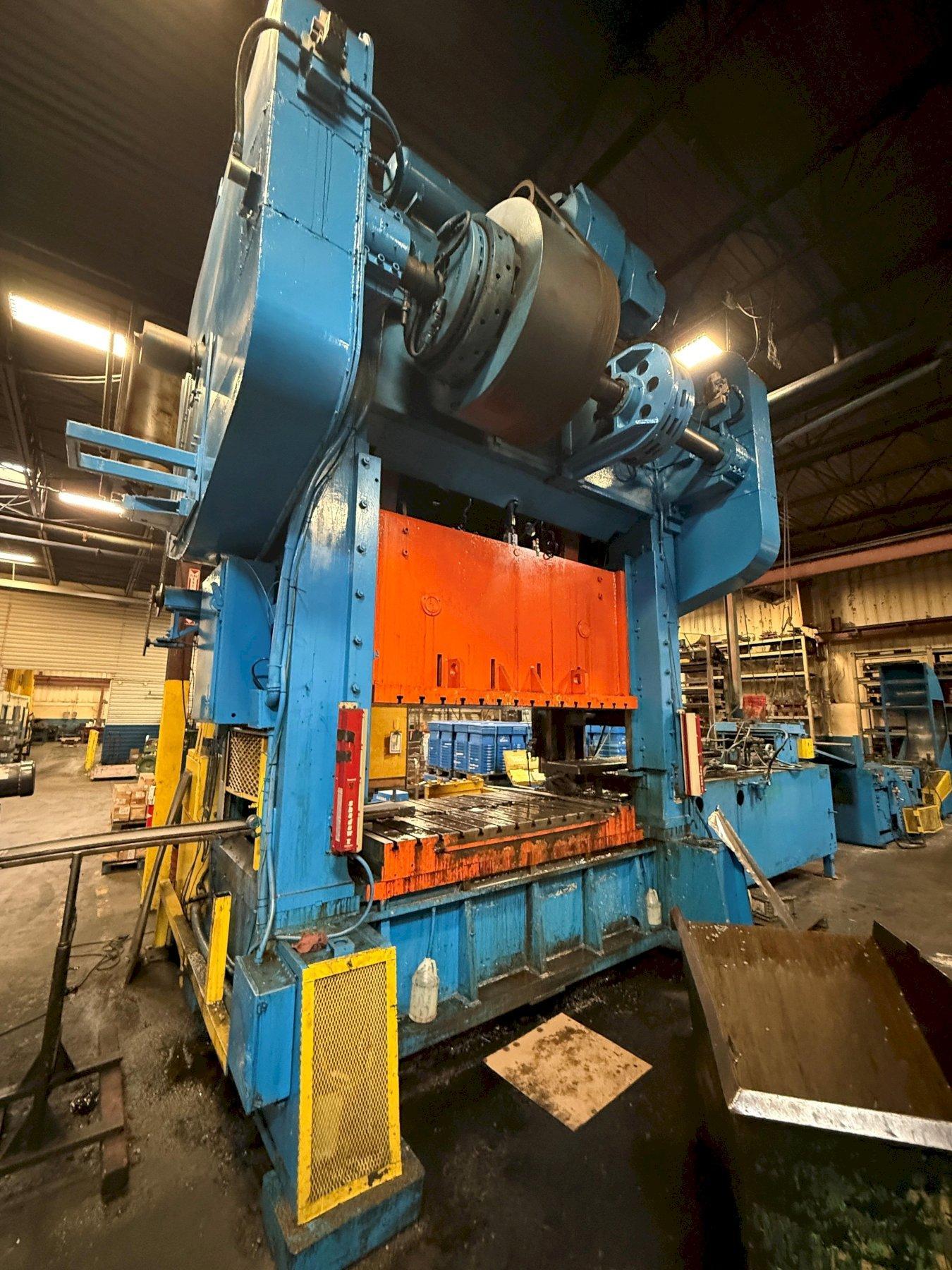

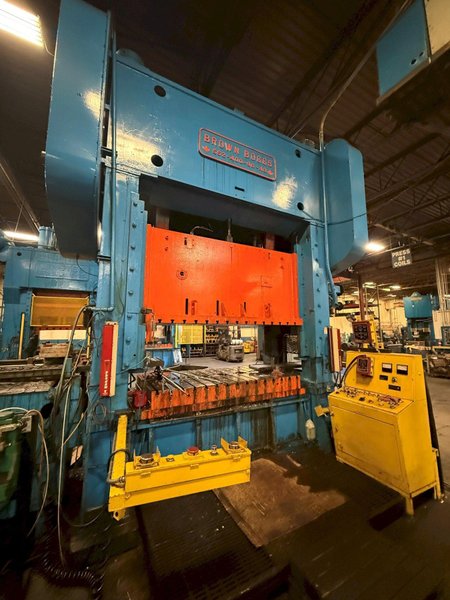

400-ton Brown Boggs Straight Side Mechanical Press For Sale Model SS2-400-96-48, Year 1985

400-ton Brown Boggs Straight Side Mechanical Press For Sale Model SS2-400-96-48, Year 1985

Name: 400-ton Brown Boggs Straight Side Mechanical Press For Sale Model SS2-400-96-48, Year 1985
Brand: BROWN & BOGGS
SKU: 3000
Availability: PreOrder

Brand

BROWN & BOGGS

Location

Michigan

REQUEST FINANCING

Specifications
Files & Videos

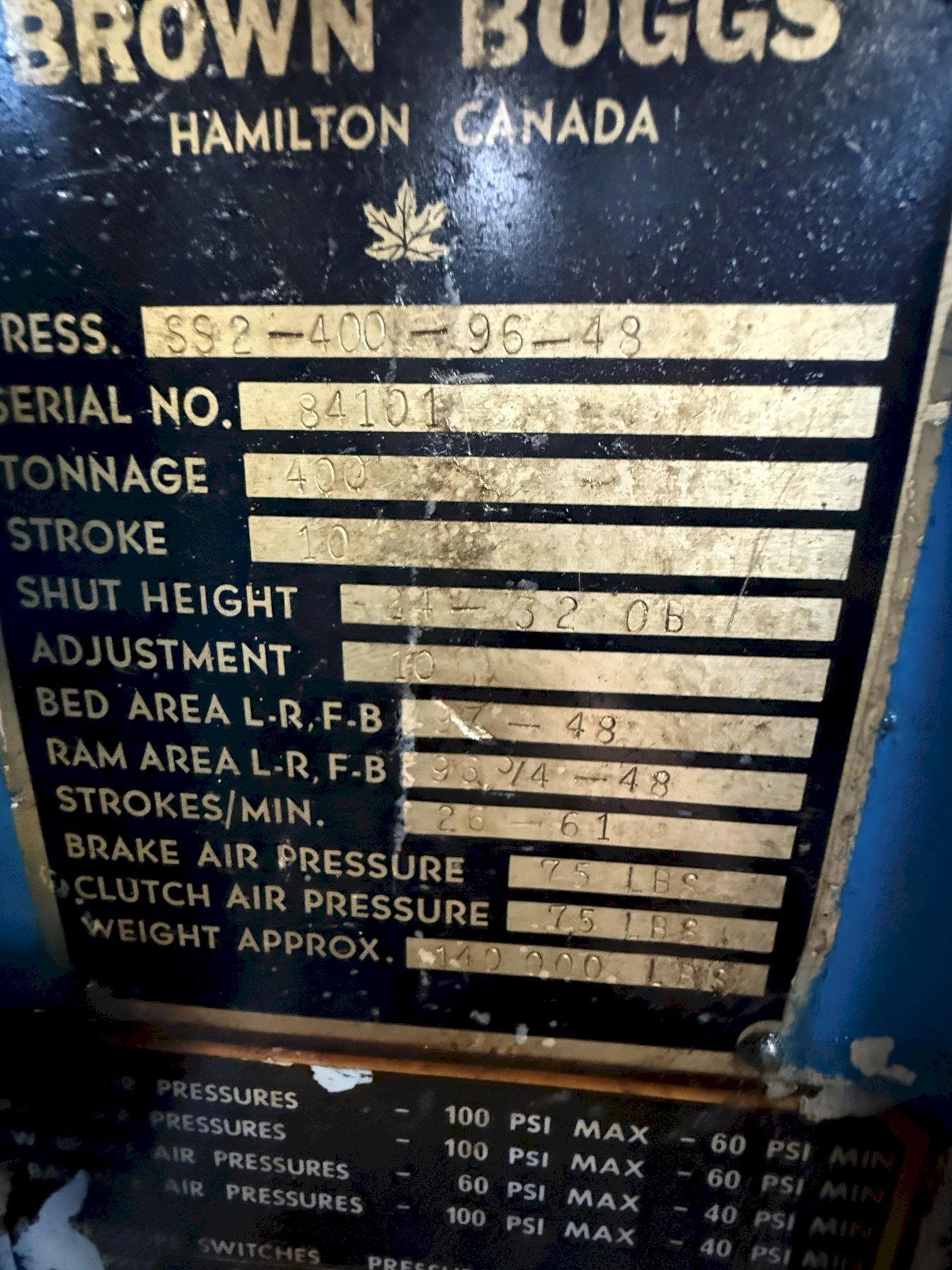

Tonnage	400
Stroke	10 inches
Shut Height	32 inches
Adjustment	10 inches
Bed Size	96" LR x 48" FB
Ram Area	96" LR x 48" FB
SPM	26-61

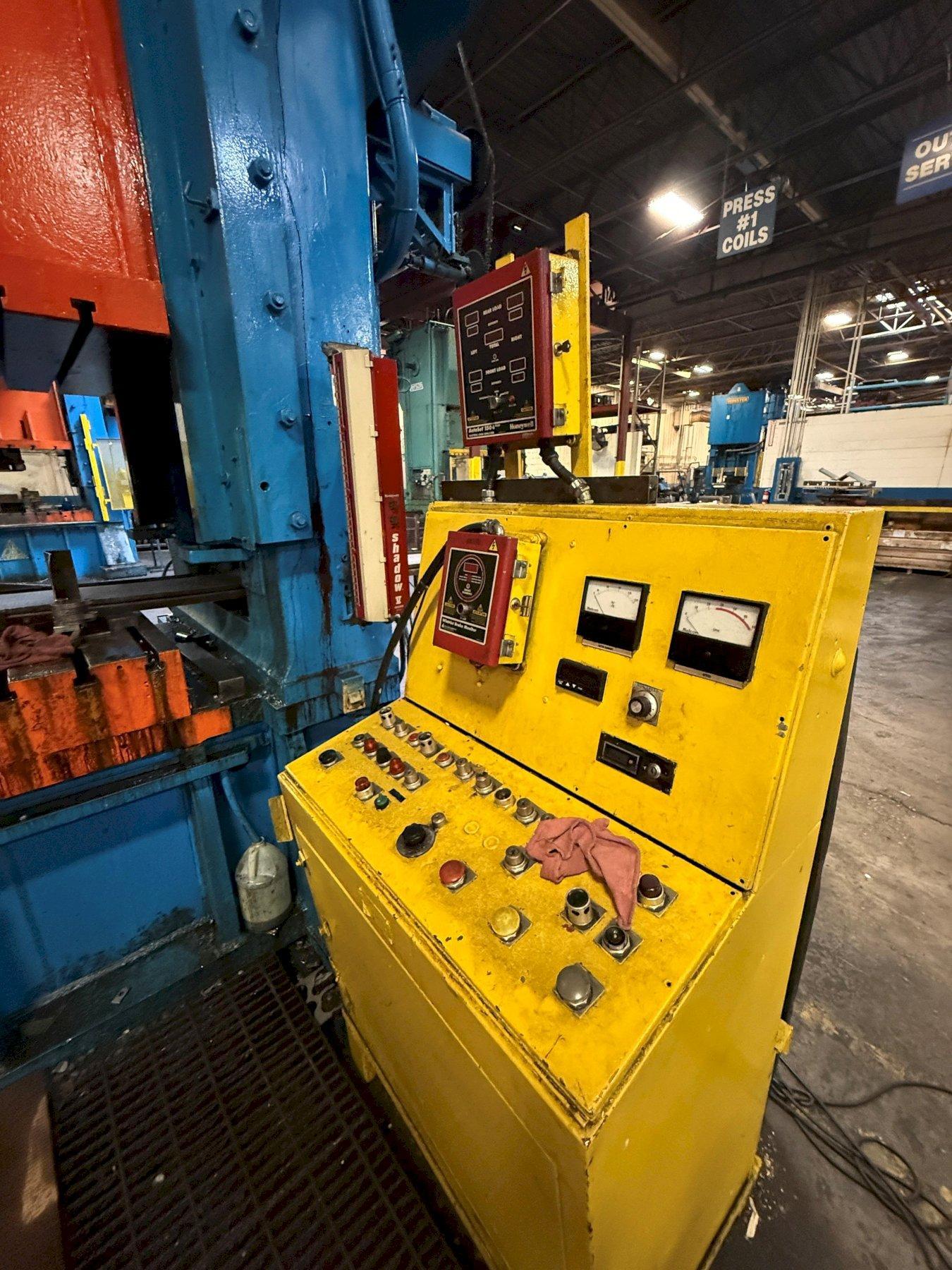

Brown Boggs Straight Side Mechanical Stamping Press 400-ton Capacity Metal Stamping / Progressive Die Model # SS2-400-96-48 400-ton Capacity 10" Stroke 32" Shut Heigh on Bed 24" Shut Heigh on Bolster 10" Motorized Adjustment 96" LR x 48" FB Bed Area 96" LR x 48" FB Slide Area 21-61 VSPM Equipment and Features Air Clutch and Brake Air Counterbalances Recirculating Lube System 8" Thick T-Slotted Ram and Bolster Wintriss Shadow V Light Curtains Wintriss AutoSet 1504 Wintriss Brake Monitor Free Standing Console Controls Wide Windows Vibro Dynamic Floor Pads Floor Standing Can be seen underpower in stamping operation. For more details or to schedule an inspection please do not hesitate to call or email. Optimize your metalforming production with this heavy-duty 400-ton Brown Boggs SS2-400-96-48, a high-performance straight side mechanical stamping press. Engineered for precision progressive die applications, it features a massive 96" x 48" bed, 10" stroke, and variable speeds of 21–61 VSPM. Equipped with Wintriss Shadow V light curtains and AutoSet 1504 controls, this floor-standing used mechanical press ensures maximum safety and accuracy. Available for immediate inspection under power in a professional stamping operation.
