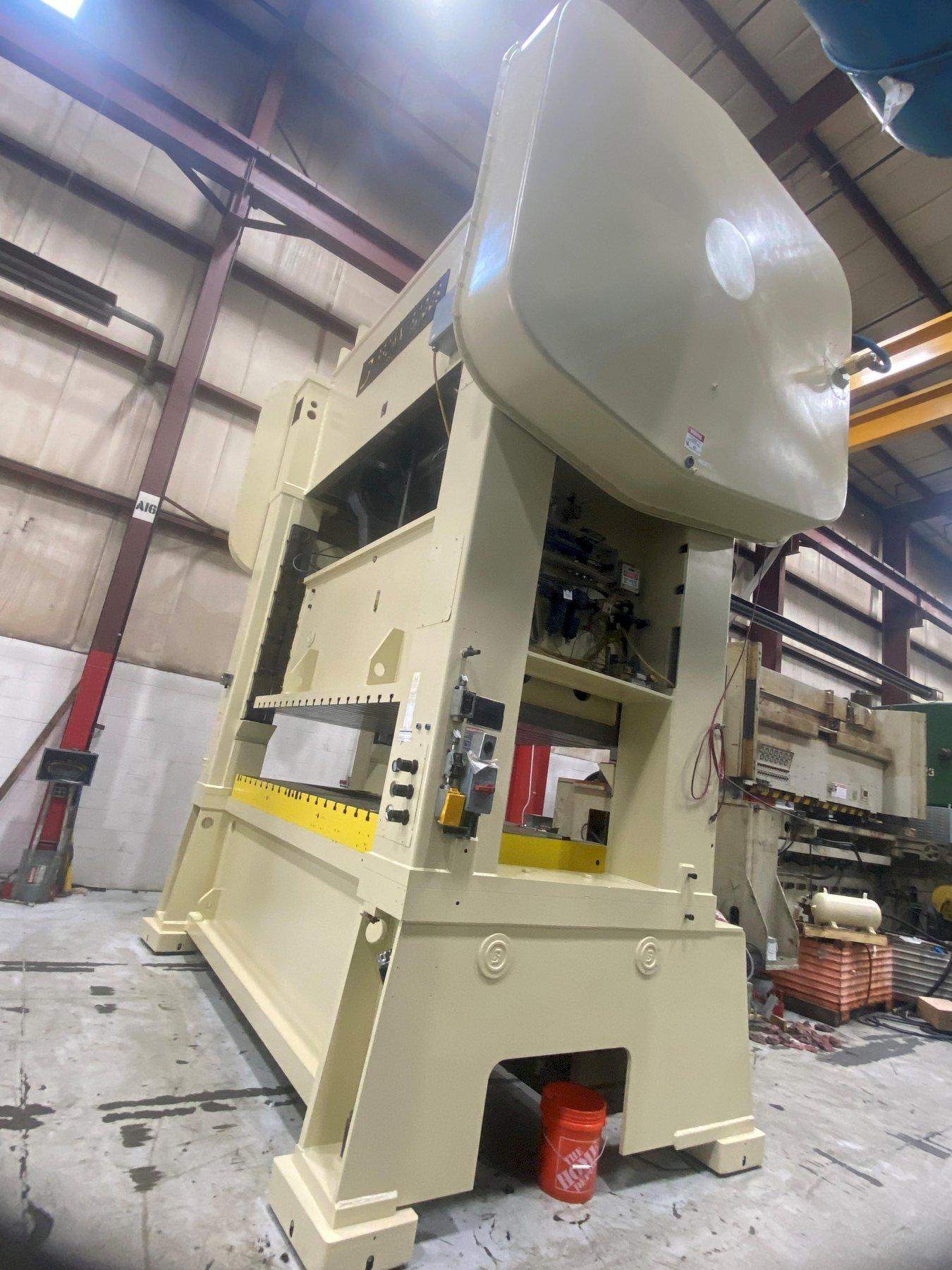

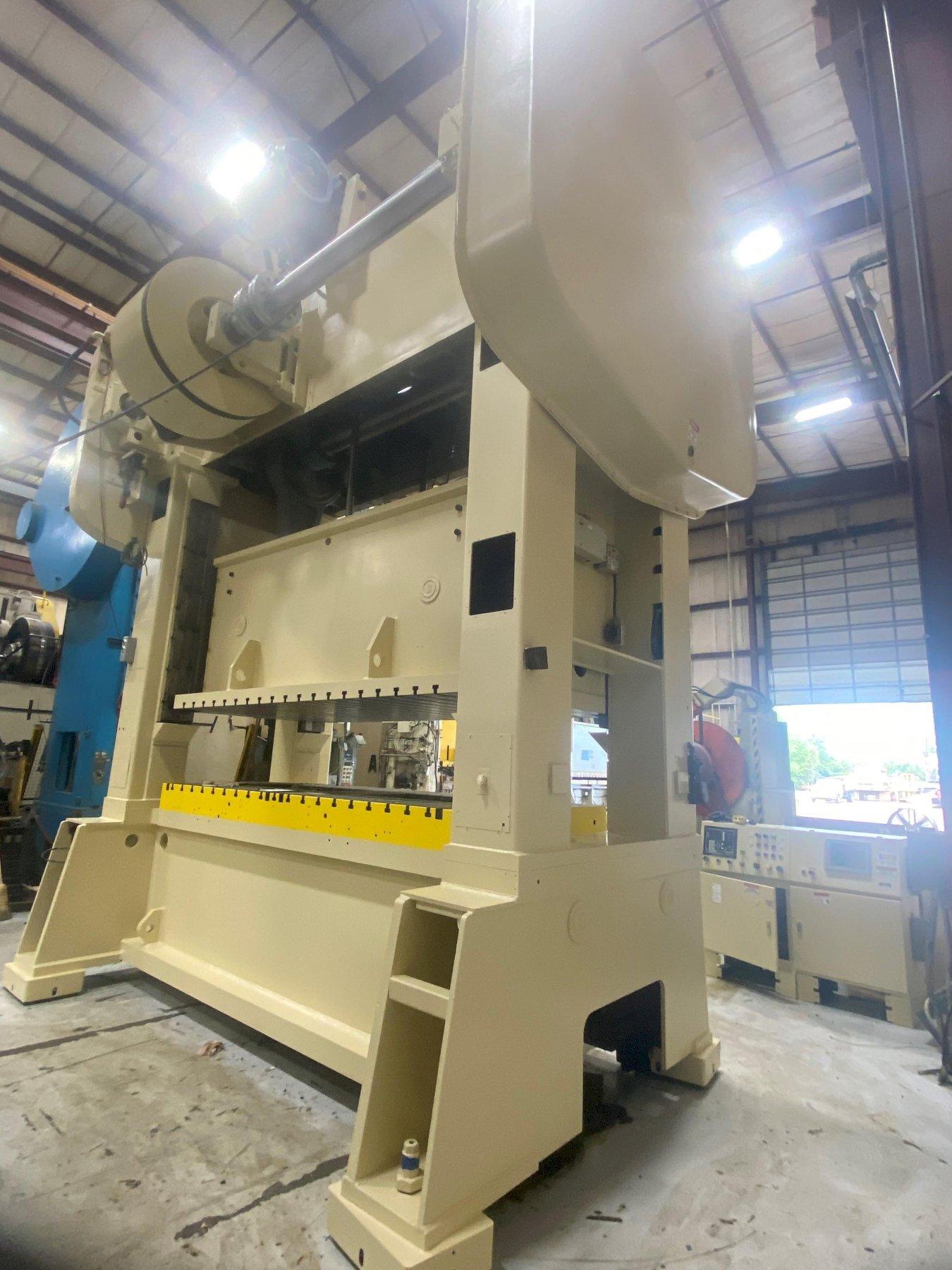

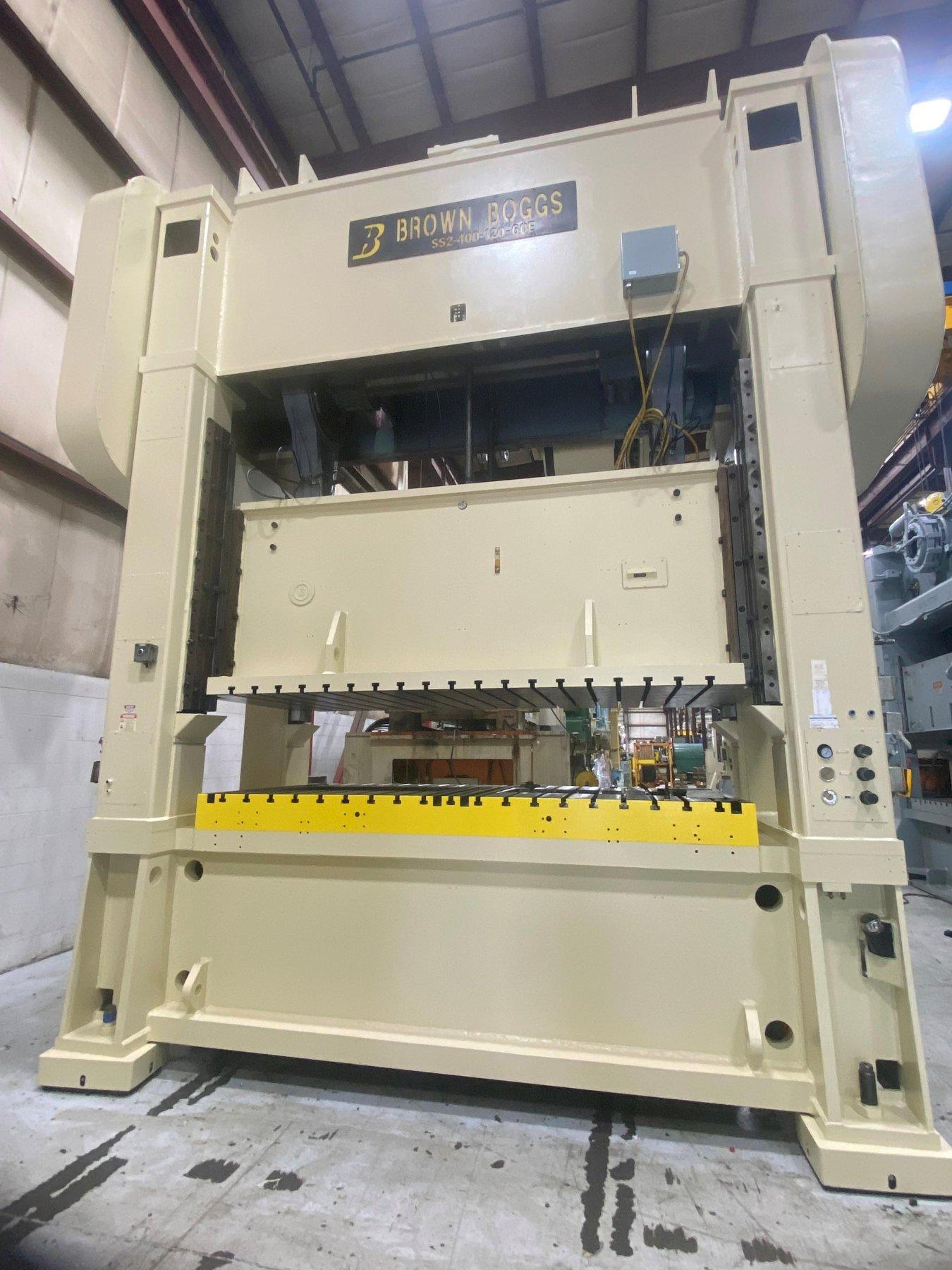

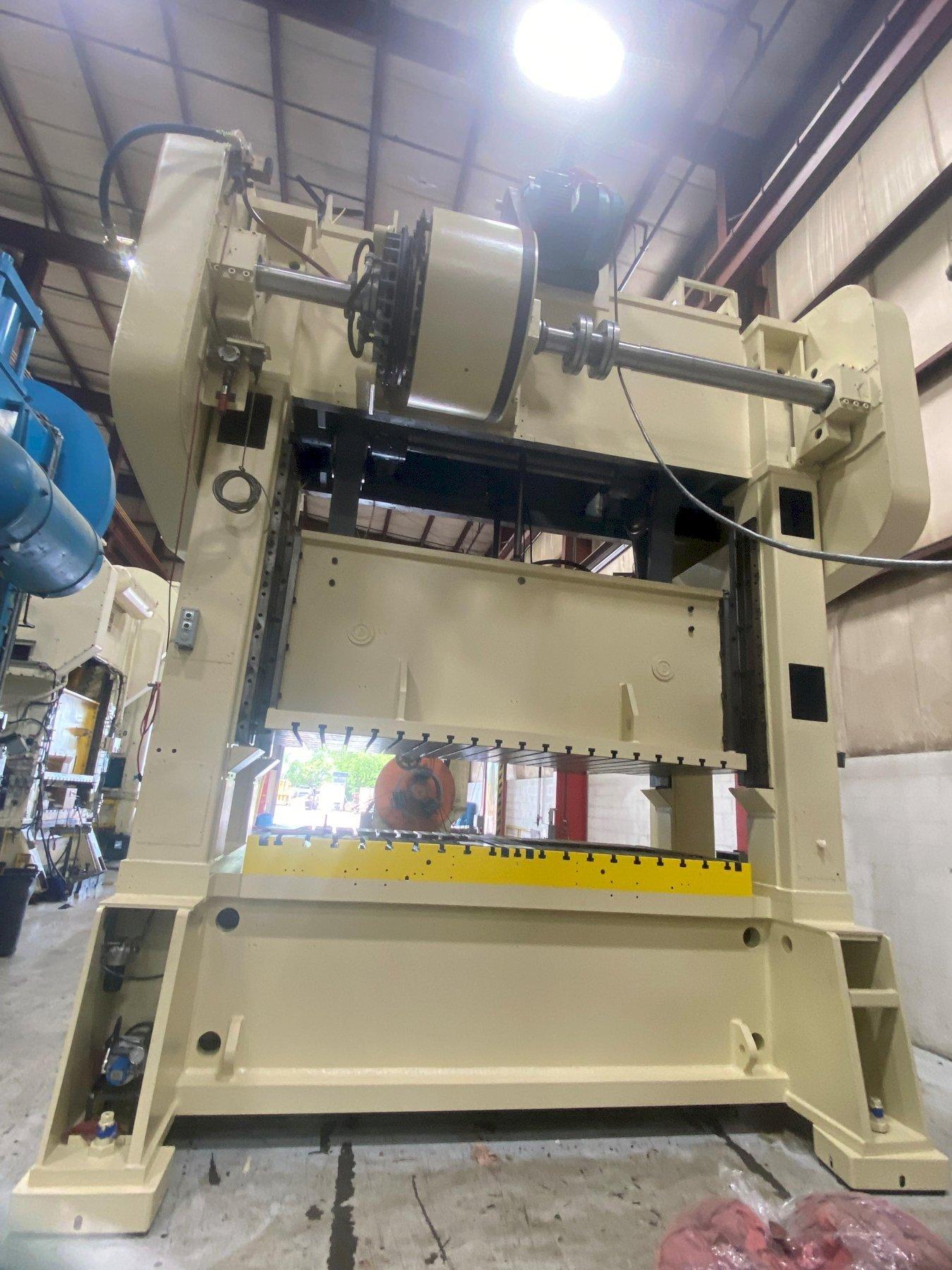

400 ton Brown Boggs Model SS2-400-120-60 Used Straight Side Mechanical Press, 100% Rebuilt! Work Fully Completed
Brand
Category
Model
SS2-400-120-60
Stock #
2816
Year
2008
Condition
Rebuilt
Location
Michigan
| Tonnage | 400 |
| Stroke | 12 inches |
| Shut Height | 31 inches |
| Adjustment | 10 inches |
| Bed Size | 120" LR x 60" FB |
| Ram Area | 120" LR x 60" FB |
| SPM | 20-40 VSPM |
|
Standard Specifications
Used Brown Boggs Press Model SS2-400-120-60 Press Rebuild - Mechanical Straight Side Press 400 ton Capacity Press 12" Stroke 31" Die Height on Bolster 38" Shut Height on Bed 10" Motorized Adjustment 120" LR x 60" FB Bed Area 120" LR x 60" FB Slide Area 20-40 VSPM Equipment and Features Air Clutch and Brake Air Counterbalances Recirculating Lube System T-Slotted Ram and Bolster Hydraulic Tie Rod Nuts 7" Thick Bolster Plate 40" Wide Windows Floor Standing Click here for more 400-500 ton Press Options Press Rebuild in process. This 400 ton Straight Side Mechanical Metal Stamping Press can be seen under power in the S&G Press Warehouse upon completion... FULLY REBUILT - COMPLETED AND READY TO SHIP! Used Straight Side Double Crank Mechanical Press For Sale,
We specialize in providing high-quality used metal stamping and used coil feed equipment. |
|
