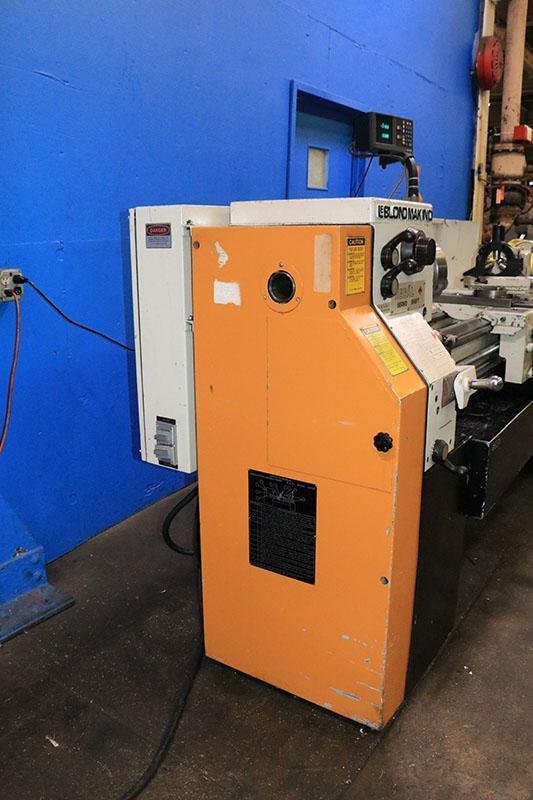

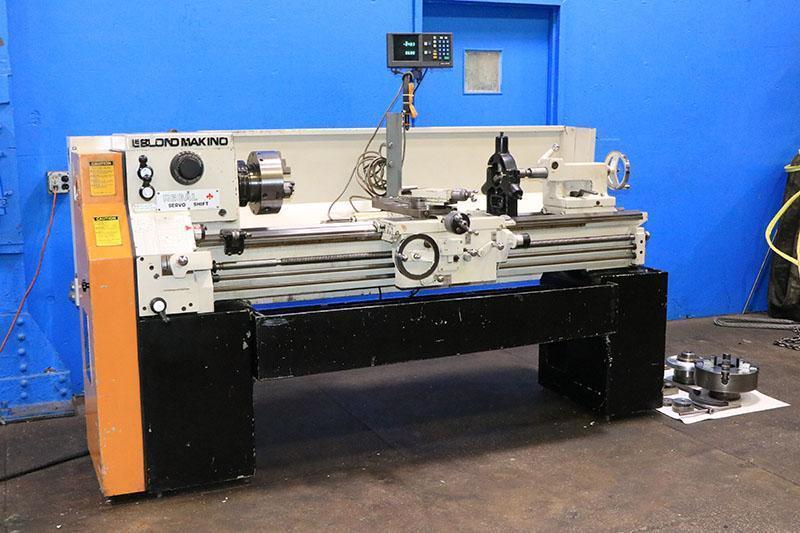

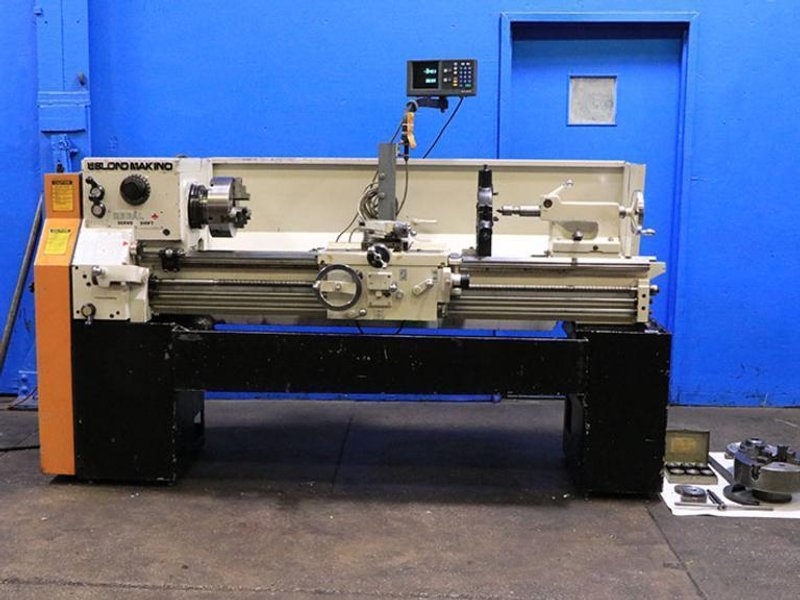

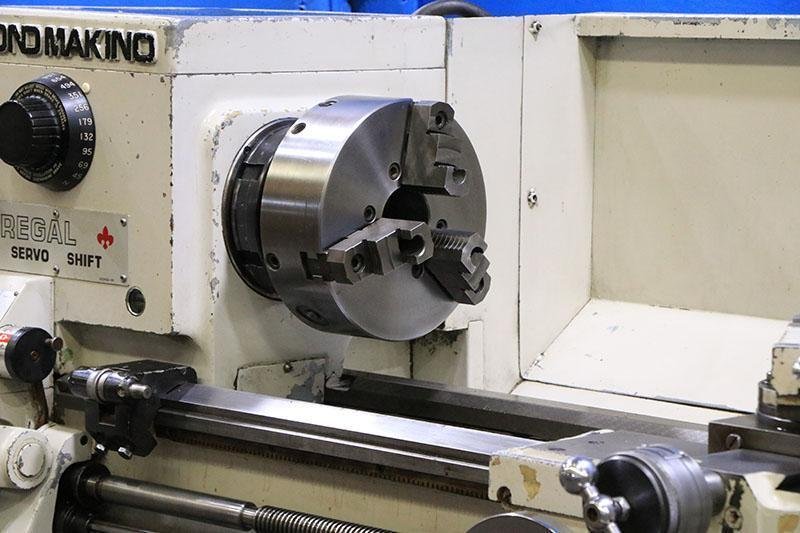

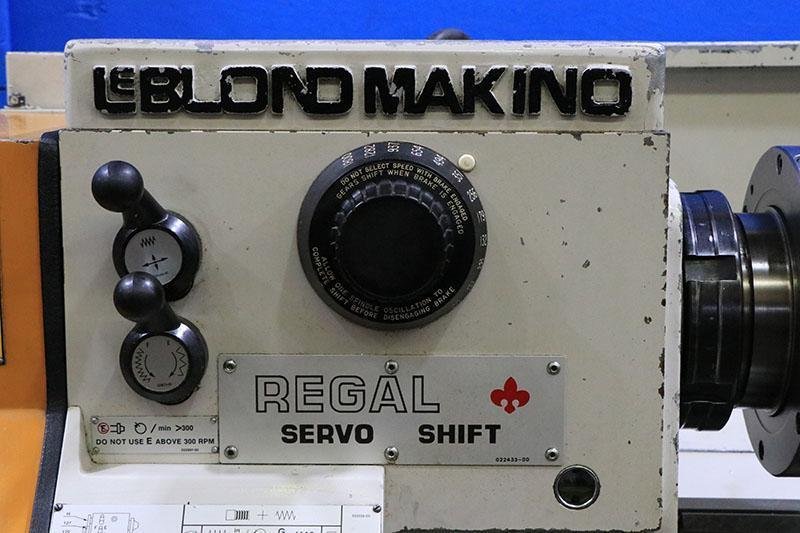

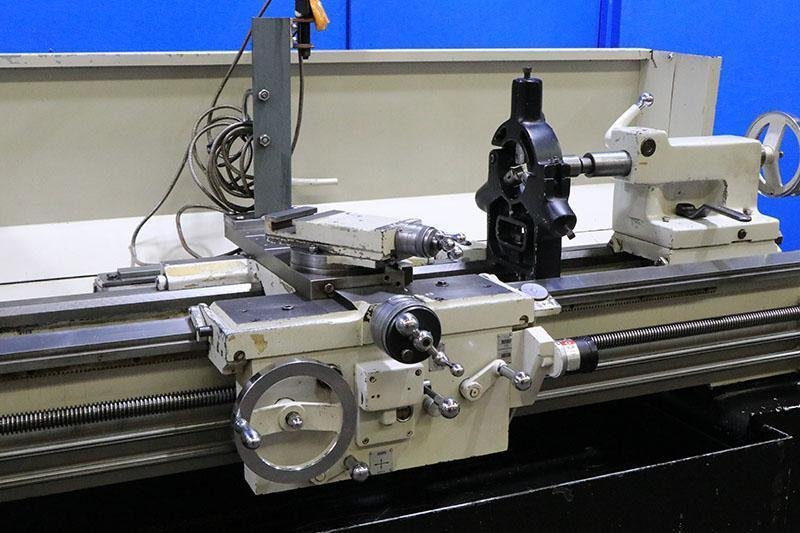

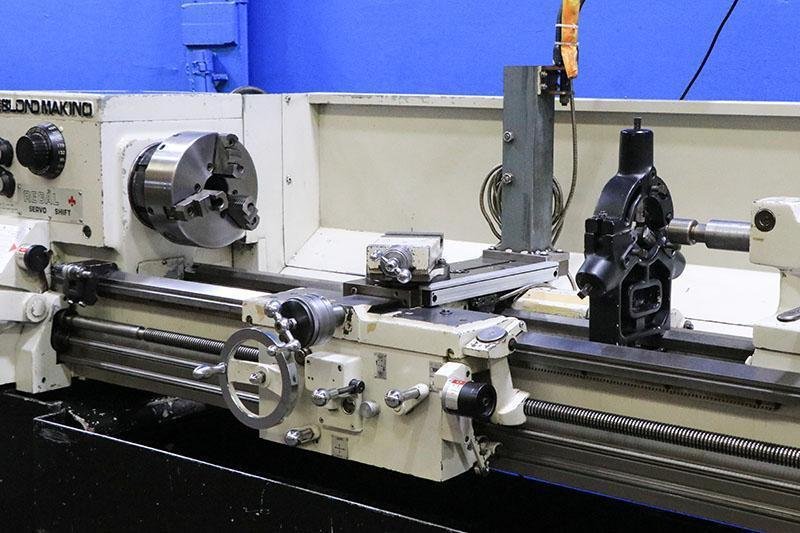

Leblond Makino 15" x 54" Regal Engine Lathe , Servo-Shift
Brand
Category
Type
Model
Regal 15" x 54"
Stock #
7342
Year
1990
Condition
Not specified
Location
Not specified
|

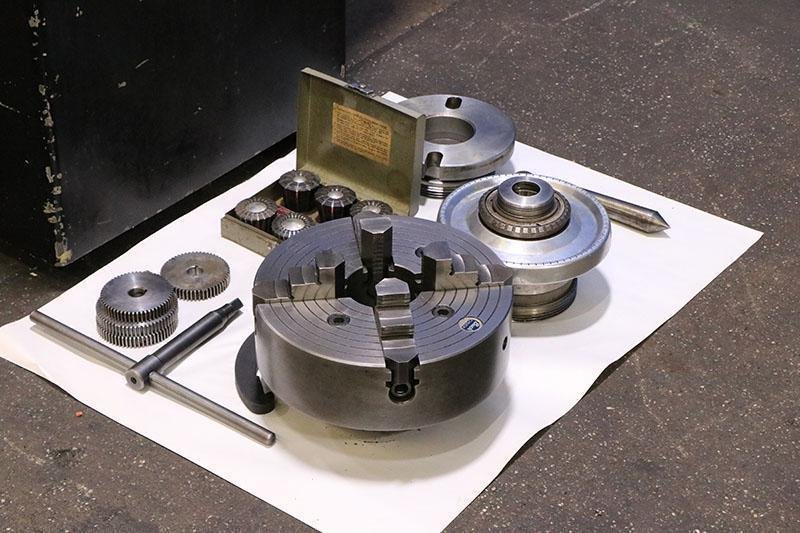

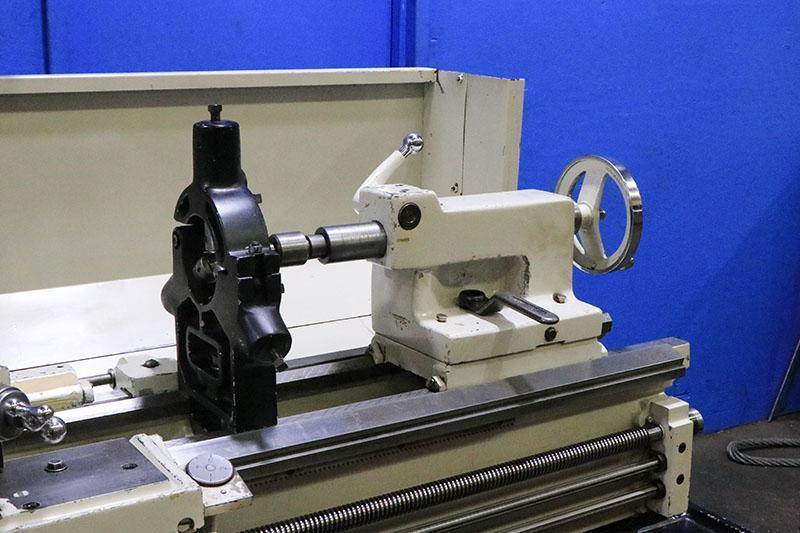

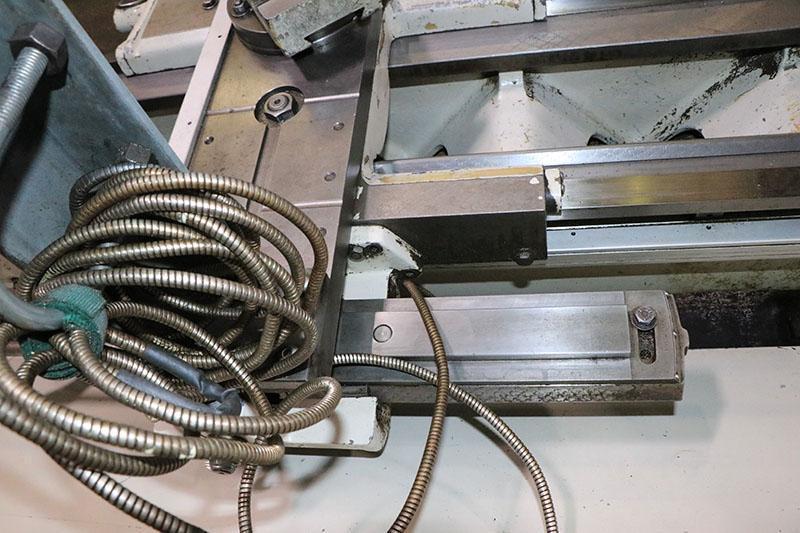

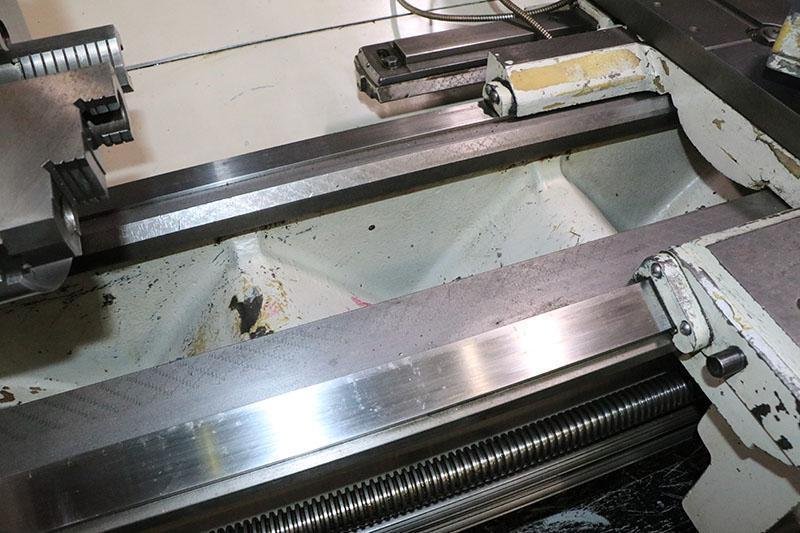

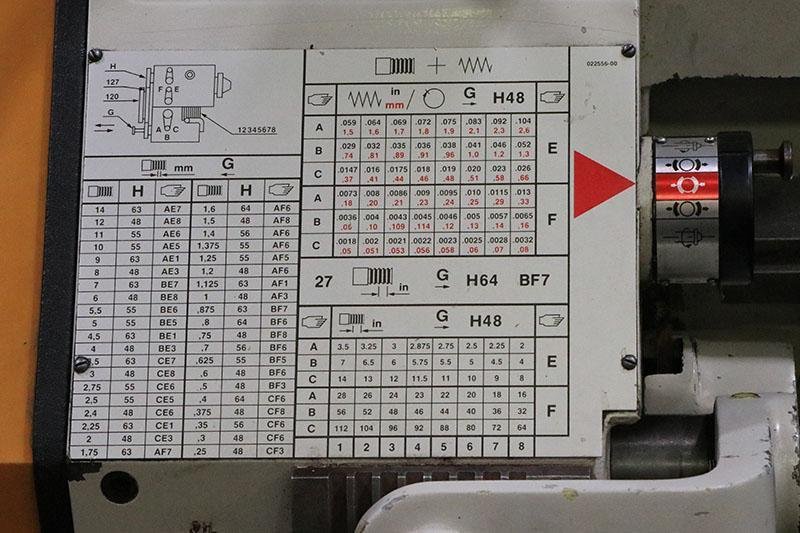

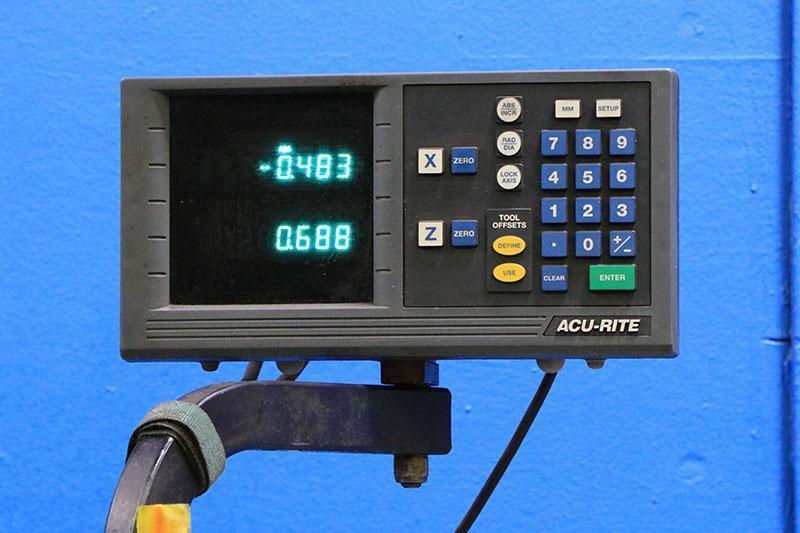

Max Swing Over Ways: 15.5" Max Swing Over Cross Slide: 9.5" Max Center Distance: 54" Spindle Speeds: (12) 45-1,800 RPM Hole Thru Spindle: 2-17/64" Spindle Mount: L1 Threaded Nose Tailstock Quill Travel: 5" Tailstock Quill Taper: #4 MT Feed Rates: (48) .0018 - .104 IPR Threading Capacities: Inch (48) 2-112 TPI / Metric (40).25 - 14mm Drive Motor: 7.5 HP Equipped With: Servo Shift Speed Control, Inch & Metric Threading, Acu-Rite 2-Axis Digital Readout, Taper Attachment, 10" 3-Jaw Buck Chuck, 12" 4-Jaw Buck Chuck, Jacobs Rubber Flex Collet Chuckw Collets, Roller Type Steady Rest, Tailstock, Tailstock Center, Threading Dial, Micrometer Carriage Stop, Coolant System with Removable Chip Pan, Hardened & Ground Replaceable Ways, 7.5 HP Drive Motor Electrics: 3 Phase |
