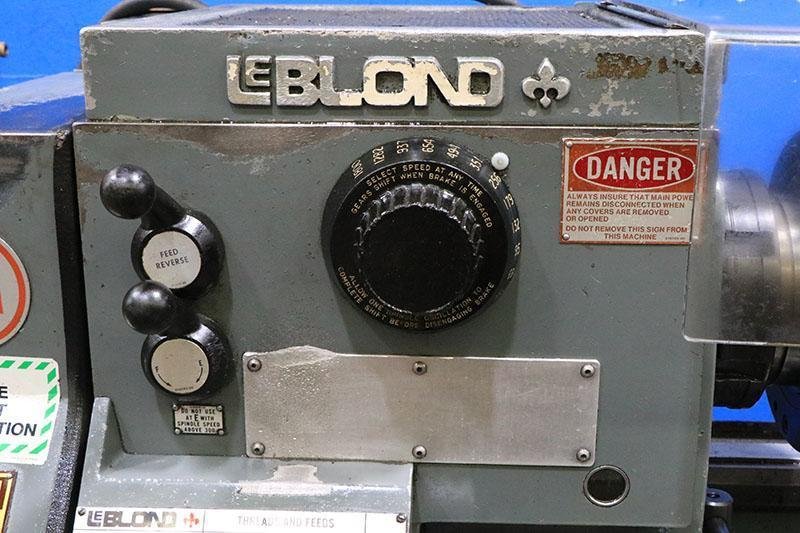

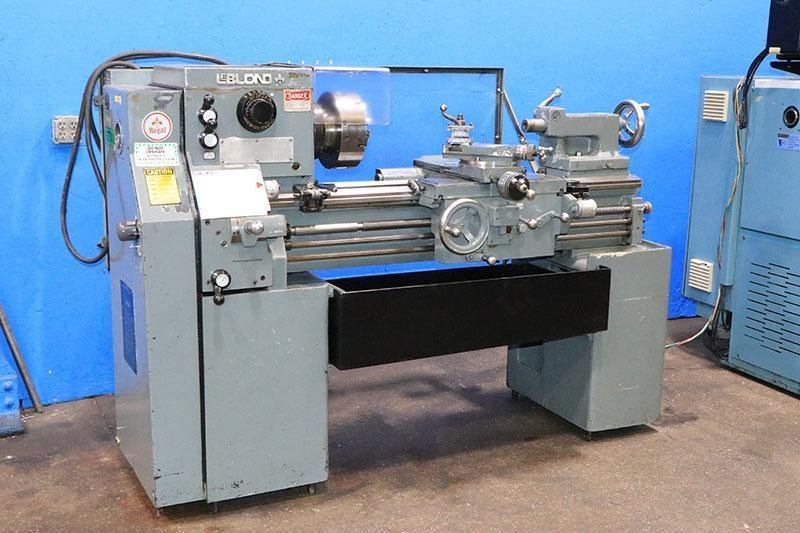

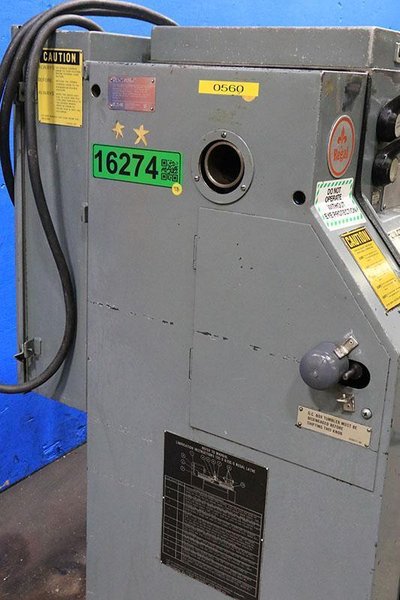

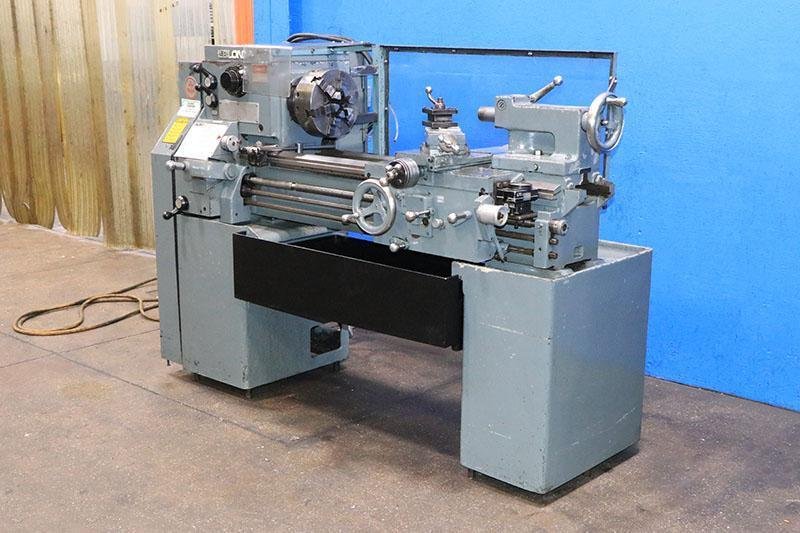

15" x 30" LEBLOND SERVO SHIFT ENGINE LATHE, MODEL 15" REGAL
Brand
Category
Type
Model
15" Regal
Stock #
5021
Year
1980
Condition
Used
Location
New Jersey
|

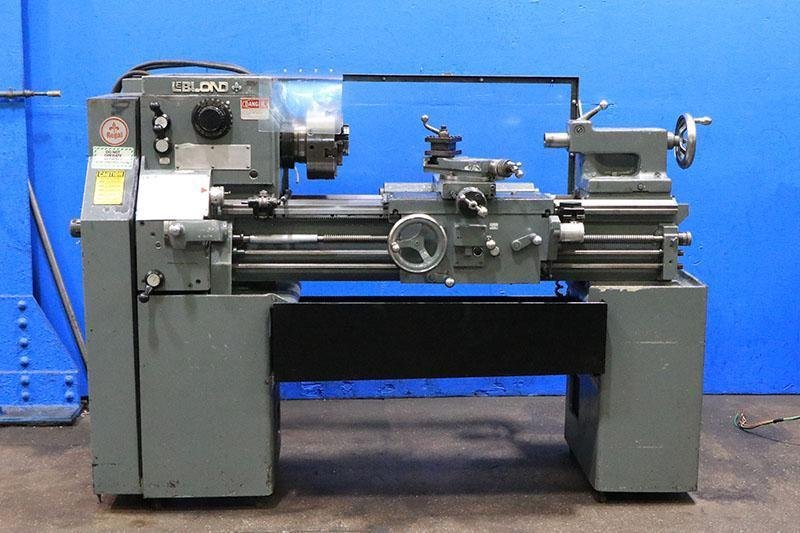

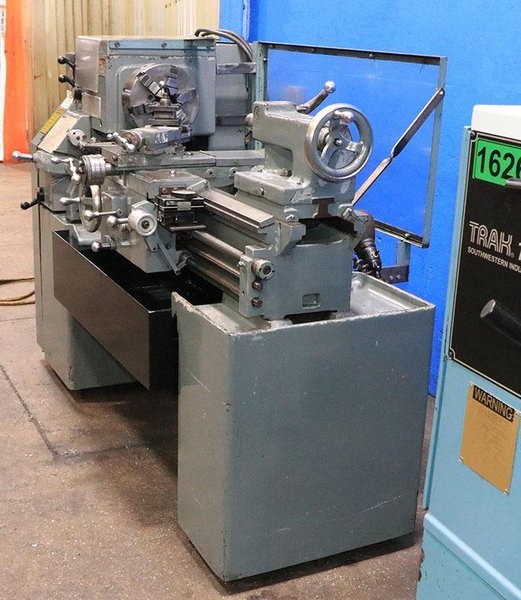

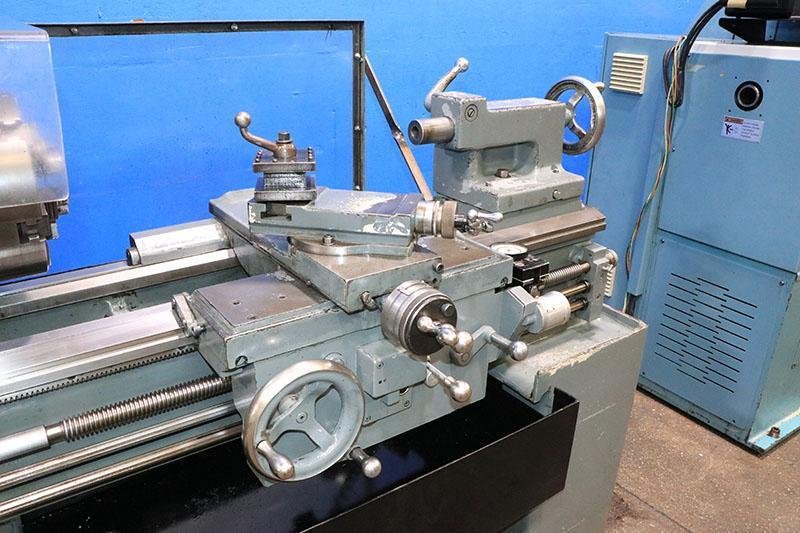

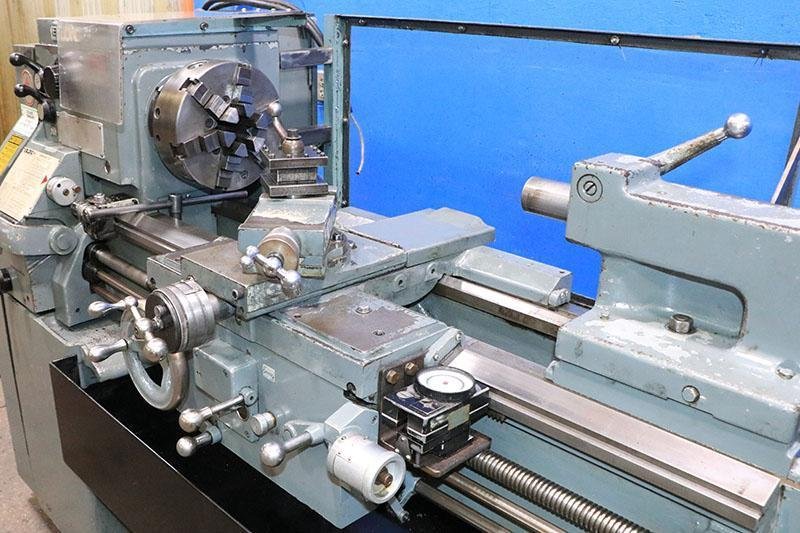

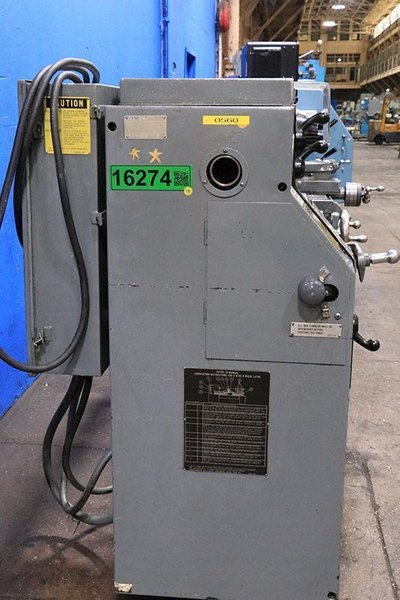

15" x 30" LEBLOND SERVO SHIFT ENGINE LATHE
MODEL: 15" REGAL
NEW 1980 SPECIFICATIONS:
SWING OVER BED .................... 15-1/2"
SWING OVER CROSS SLIDE ............ 9-1/2"
DISTANCE BETWEEN CENTERS .......... 30"
SPINDLE NOSE ...................... L1
HOLE THRU SPINDLE ................. 2-17/64"
SPINDLE SPEED RANGE (12) .......... 45 - 1,800 RPM
LONGITUDINAL FEED RANGE (48) ...... .0018" - .104" IPR
CROSS FEEDS HALF THE VALUES OF LONGITUDINAL

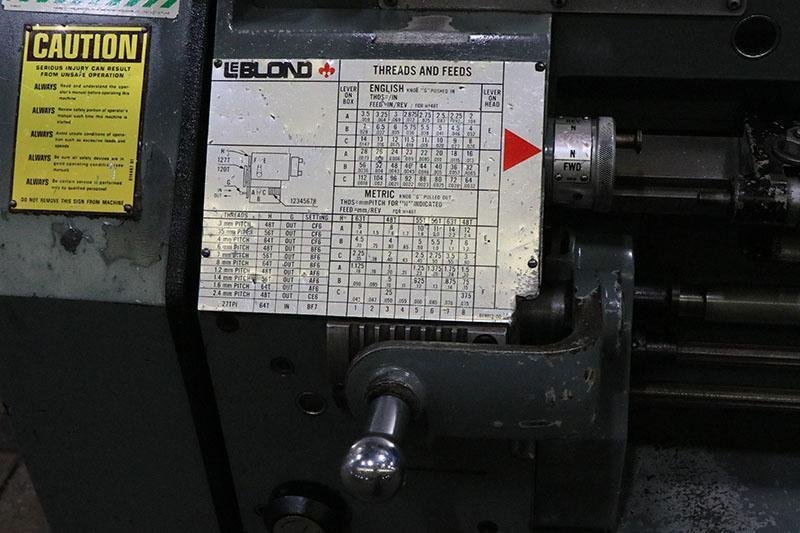

THREADING RANGE ENGLISH (48) ...... 2 - 112 TPI

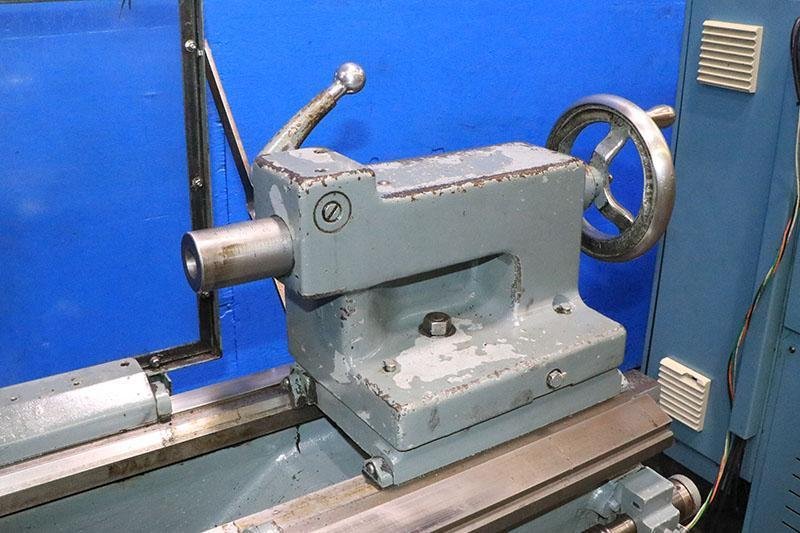

TAILSTOCK SPINDLE TRAVEL .......... 5"
TAILSTOCK SPINDLE TAPER ........... #4 MT
APPROX WEIGHT ..................... 3,300 LBS
APPROX DIMENSIONS ................. 80"L x 40"W x 51"H
EQUIPPED WITH:

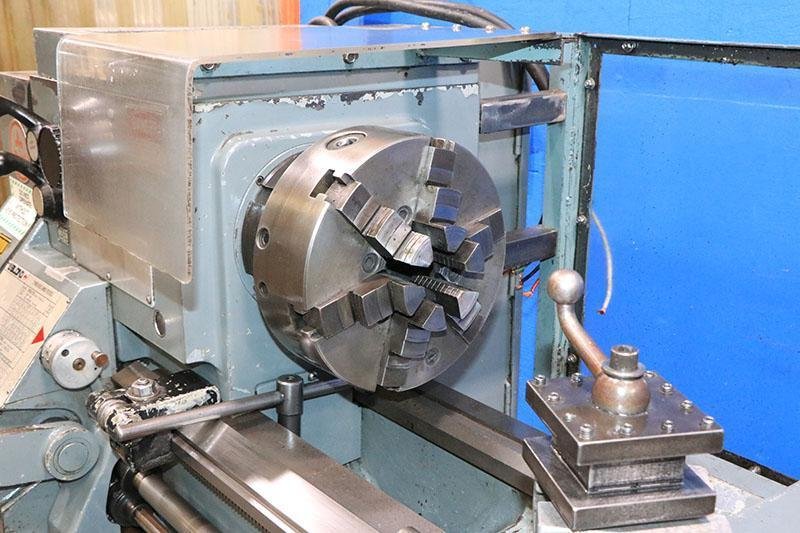

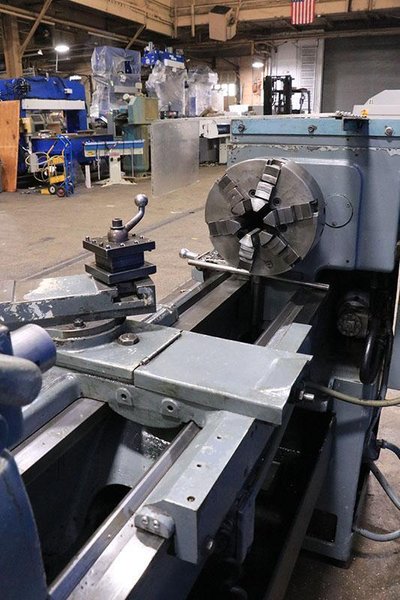

10" 6-JAW BUCK CHUCK
THREAD DIAL INDICATOR
JACOBS DRILL CHUCK

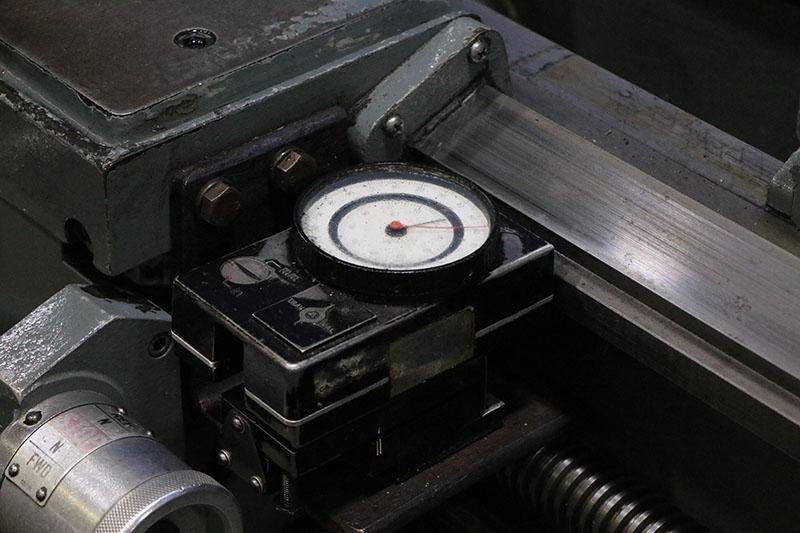

TRAV-A-DIAL FOR LONGITUDINAL CARRIAGE TRAVEL
MICROMETER CARRIAGE STOP
COOLANT SYTEM WITH REMOVEABLE CHIP PAN
5 HORSE-POWER MAIN MOTOR
FOB: ORIGIN |
