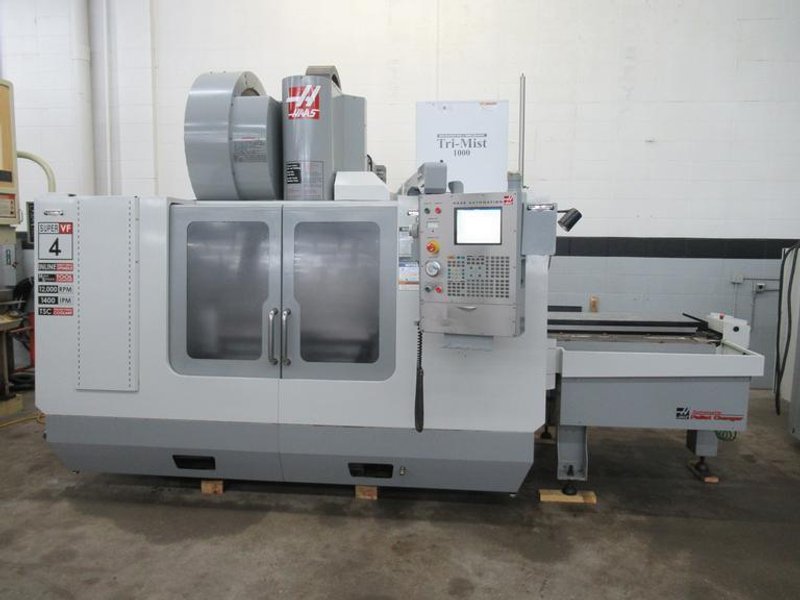

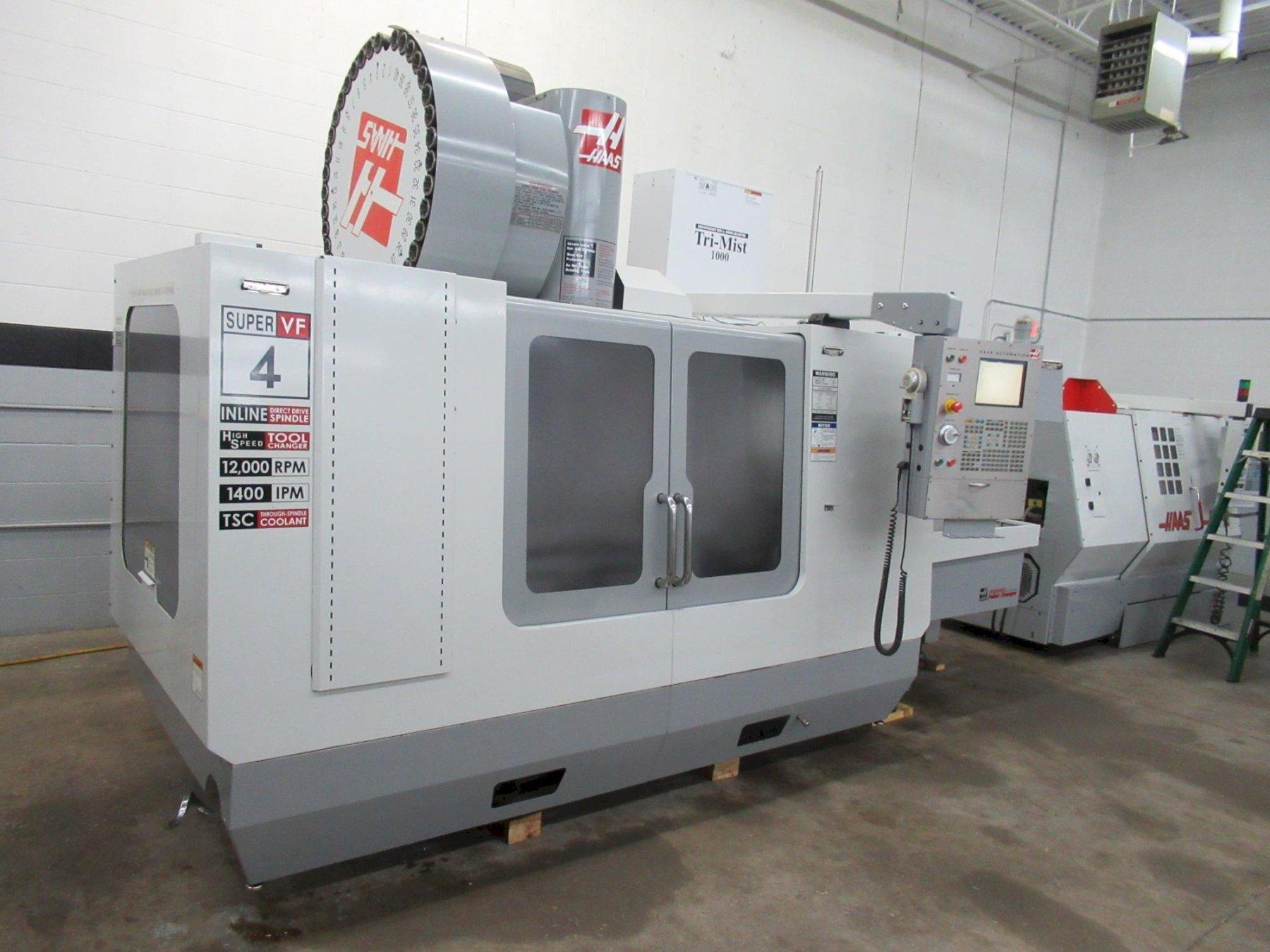

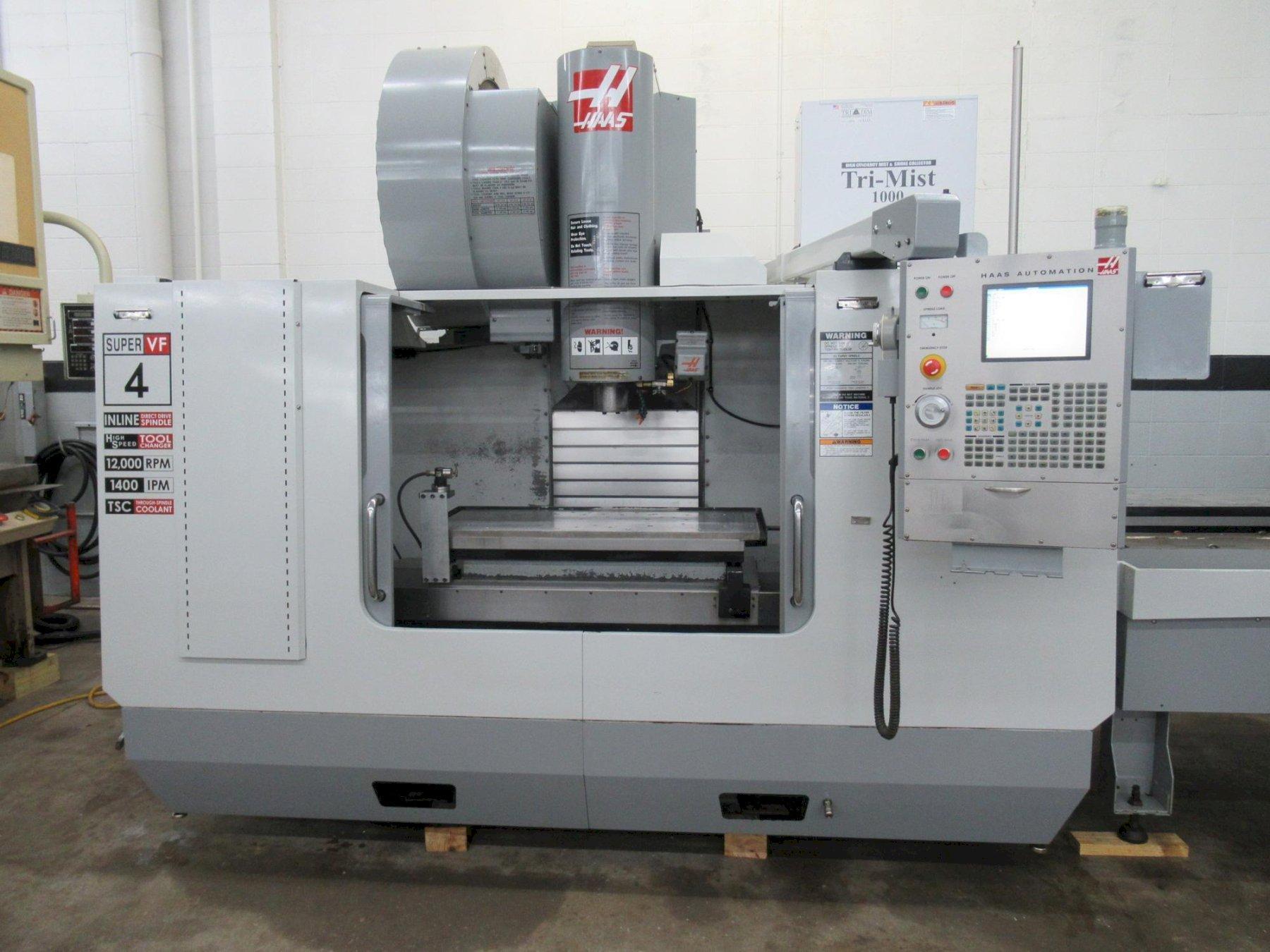

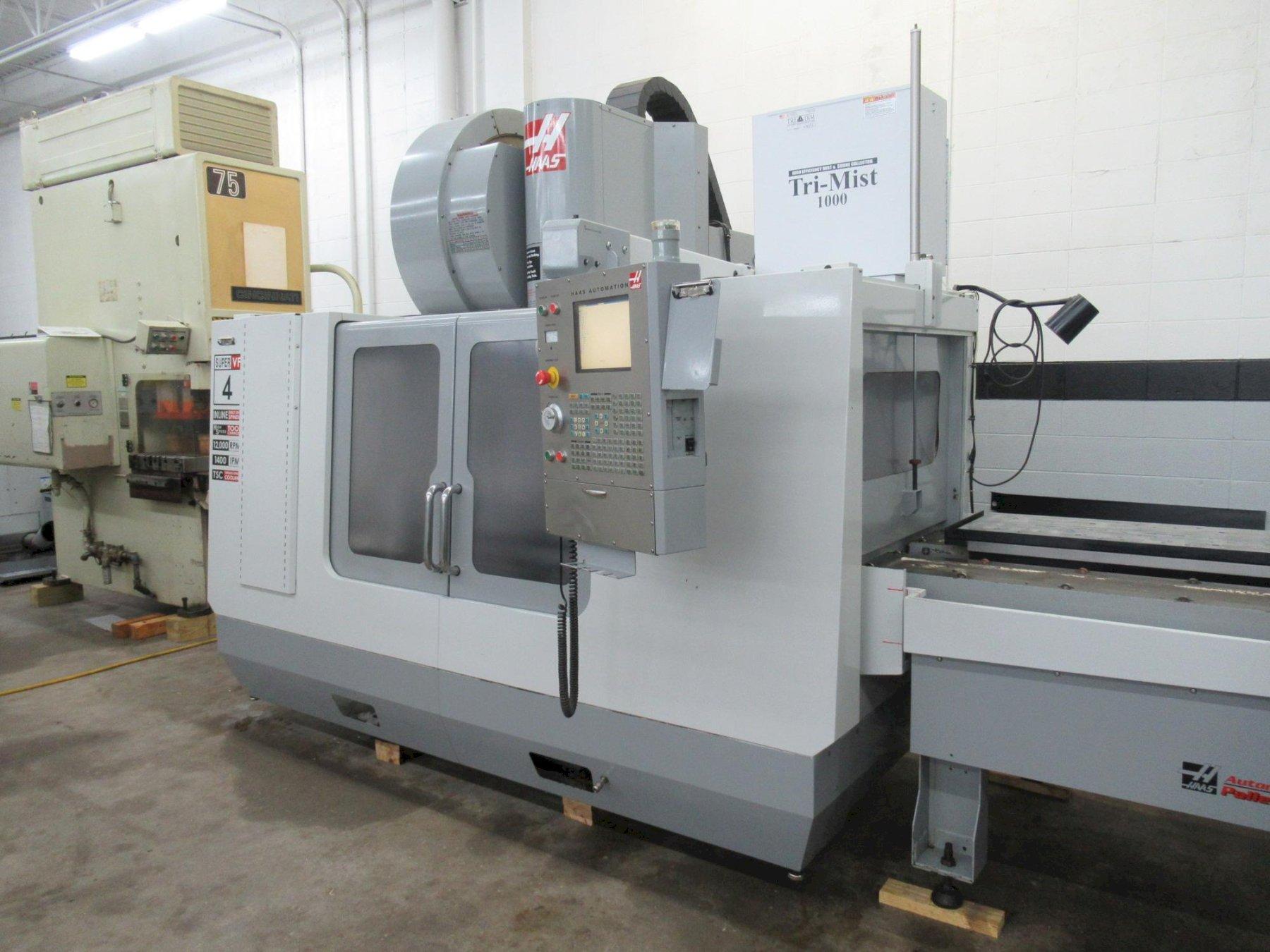

Haas VF-4SS APC CNC Vertical Machining Center, Automatic Pallet Changer, 4th Axis, Probing, TS Coolant, 40-ATC

Brand
Model
VF-4SS-APC
Stock #
7332
Year
2005
Condition
Not specified

Location

Not specified

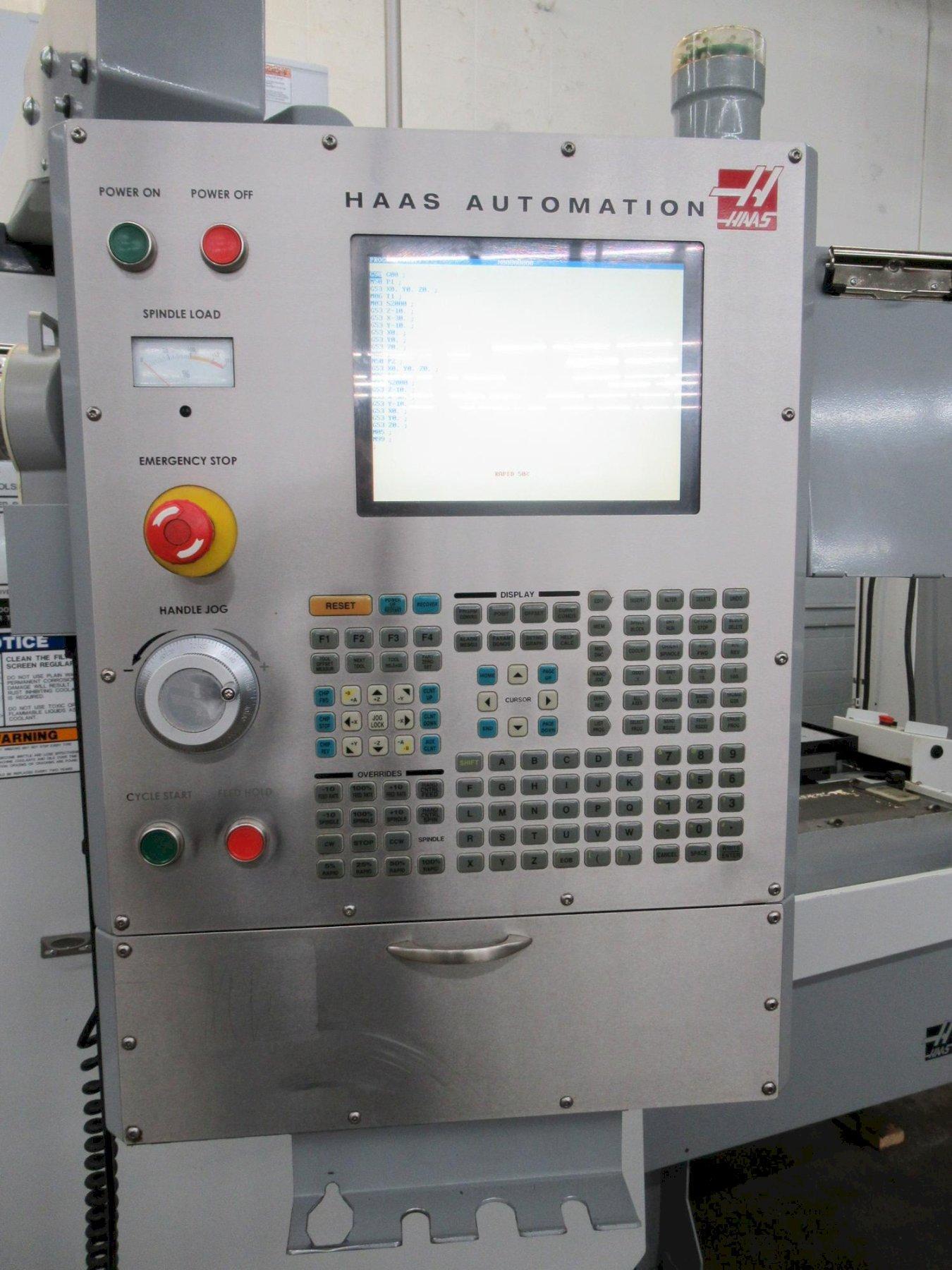

Control: Haas 32 Bit CNC or Haas CNC w Coldfire

Machine Travels (X/Y/Z): 50" x 20" x 25"

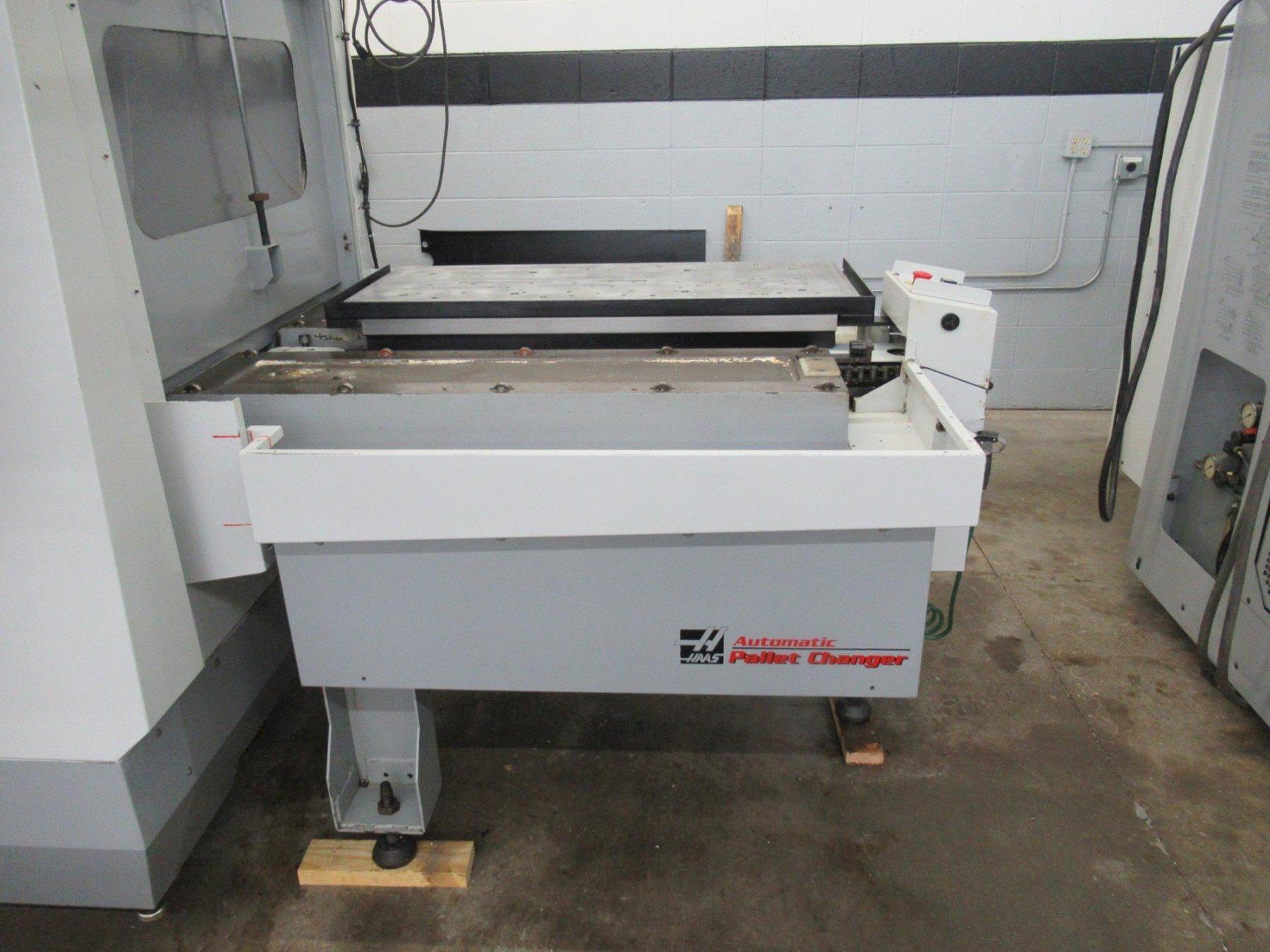

Number of Pallets: 2

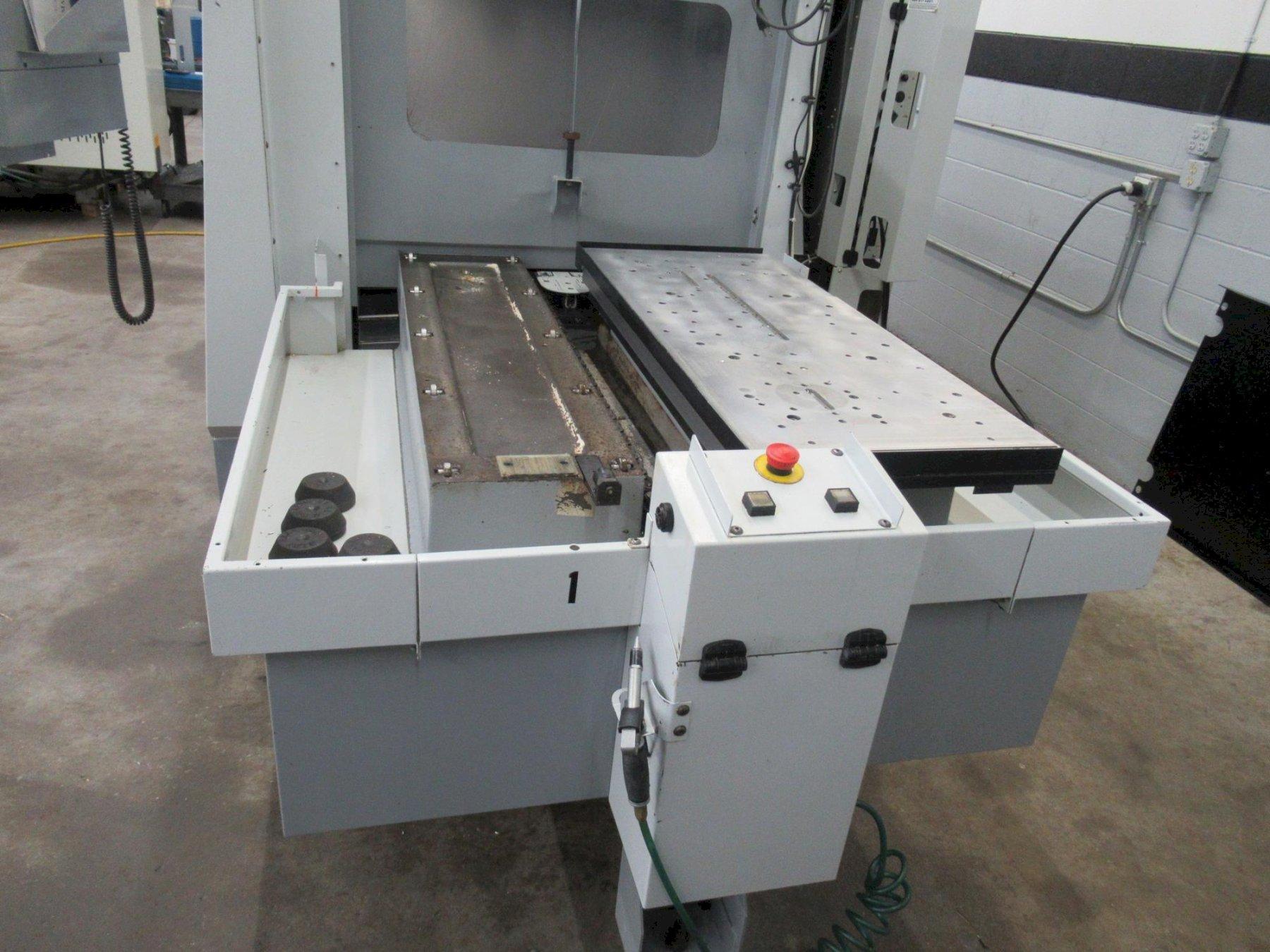

Pallet Change Style: Side Address Shuttle-Style

Max Distance Spindle To Pallet Surface: 26"

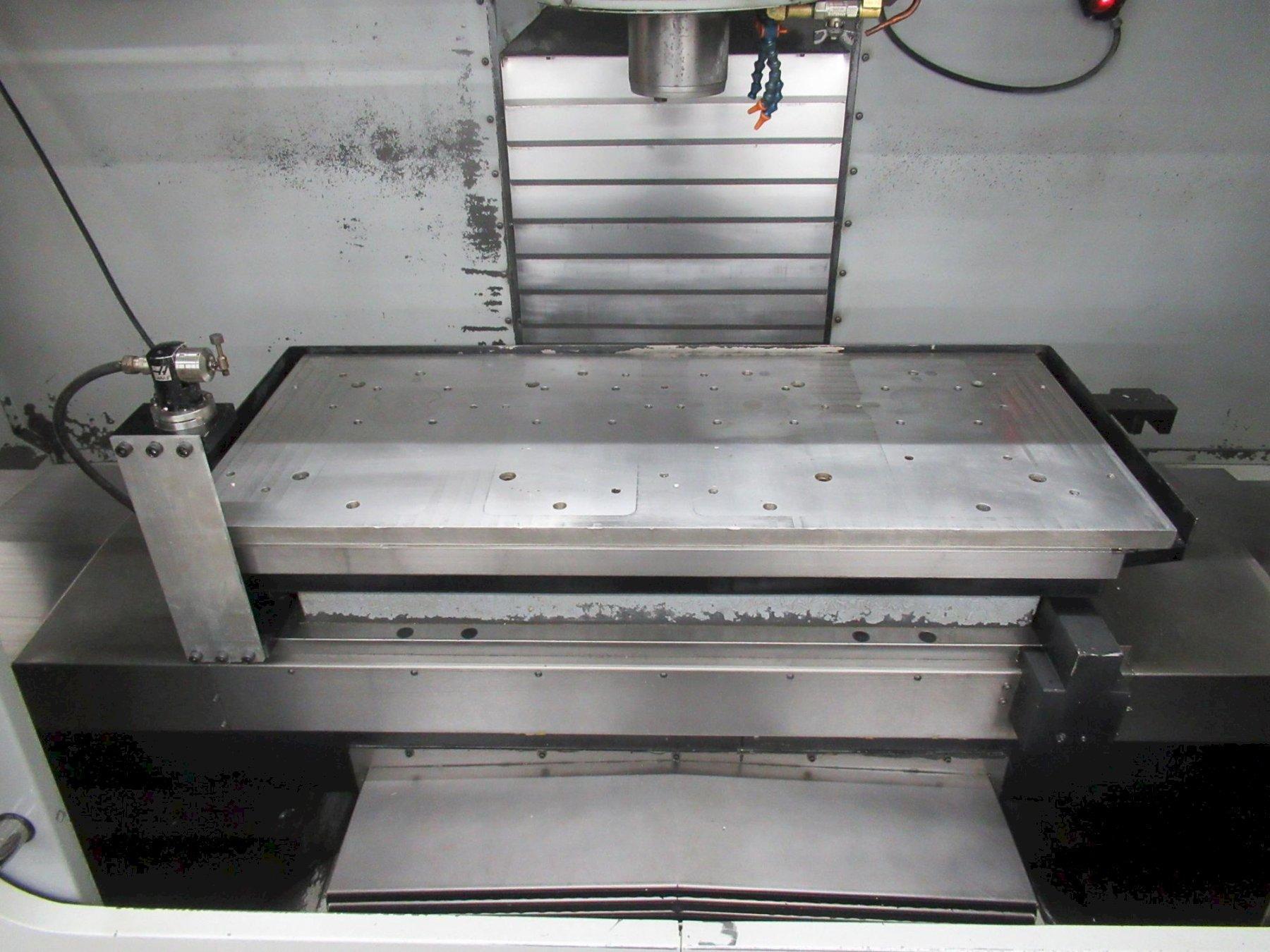

Pallet Size: 40" x 19"

Spindle Taper: Cat 40 Taper

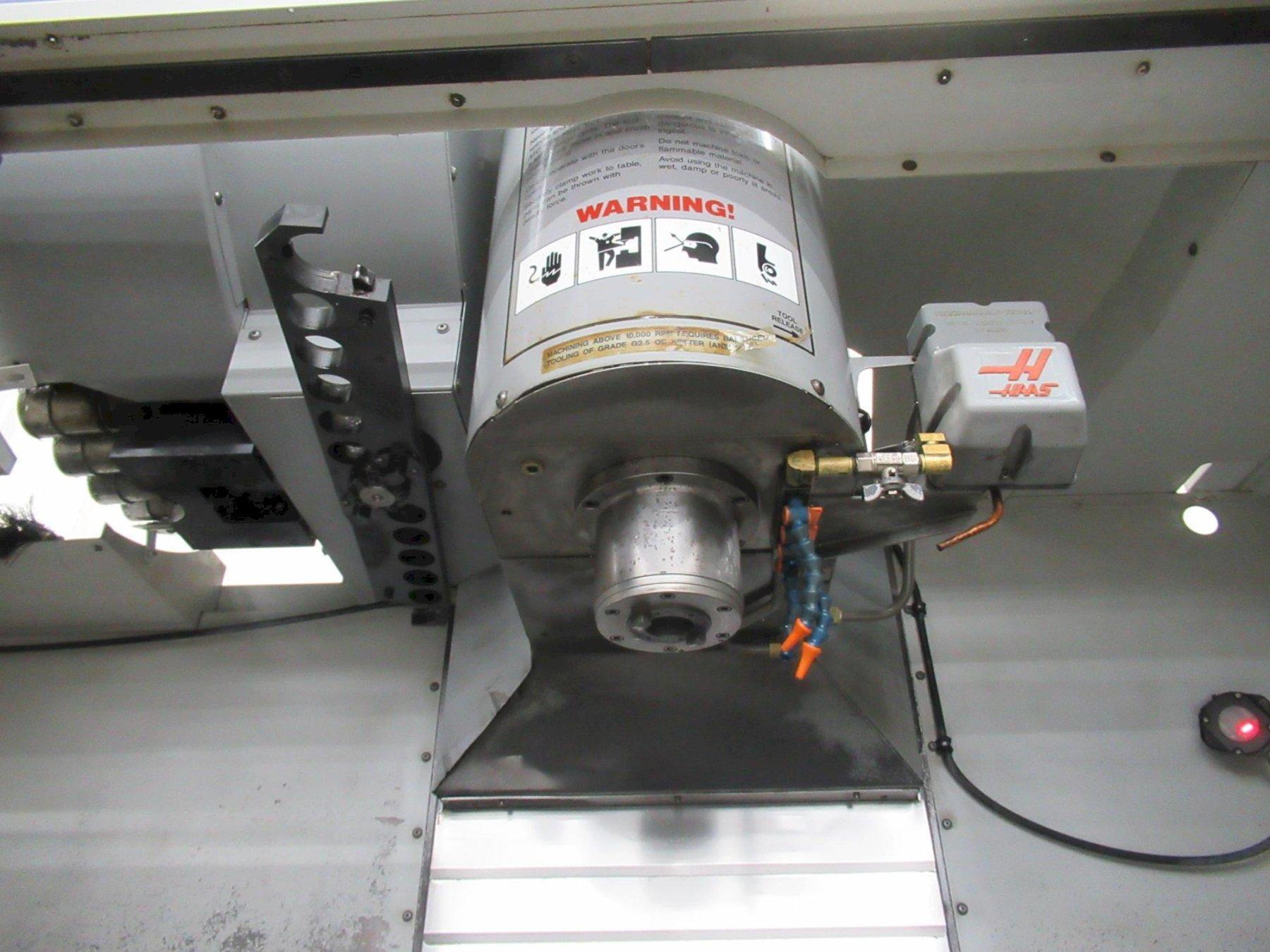

Spindle Speeds: 12,000 Max RPM

Max Part Height Thru Pallet Door: 20"

Spindle Drive: 30 HP Vector Drive

Rapid Traverse (X/Y/Z): 1,400 IPM

Toolchanger Capcity: 40 Stations

Max Tool Weight: 12 Lbs.

Toolchanger Style: Side-Mount Twin-Arm

Tool Change Time: 2.8 Seconds Tool to Tool

Max Pallet Load: 1,000 Lbs.

Description:

The Haas VF‑4SS APC CNC Vertical Machining Center is a high‑performance VMC engineered for speed, accuracy, and increased throughput in demanding production environments. As part of Haas Automation’s Super Speed (SS) lineup, the VF‑4SS combines fast rapids, high spindle speeds, and aggressive acceleration with the added efficiency of an Automatic Pallet Changer (APC). Equipped with a high‑speed inline direct‑drive spindle, the VF‑4SS APC delivers excellent surface finishes and rapid cycle times for complex milling operations. The integrated pallet changer allows machining on one pallet while parts are loaded and unloaded on the other, significantly reducing idle time and maximizing spindle utilization. Built on a rigid cast‑iron structure with linear guideways, the VF‑4SS APC provides consistent accuracy and repeatability for high‑volume and tight‑tolerance machining. This machine is widely used in aerospace, automotive, medical, and general manufacturing operations where speed and productivity are critical. The Haas control system offers intuitive programming, reliable performance, and broad industry support, making the VF‑4SS APC a popular choice for shops seeking scalable, high‑speed CNC milling capability.
MachinesUsed.com regularly offers Haas CNC vertical machining centers including the VF‑4SS APC through direct sales, consignment, and online industrial auctions.

Equipped With:

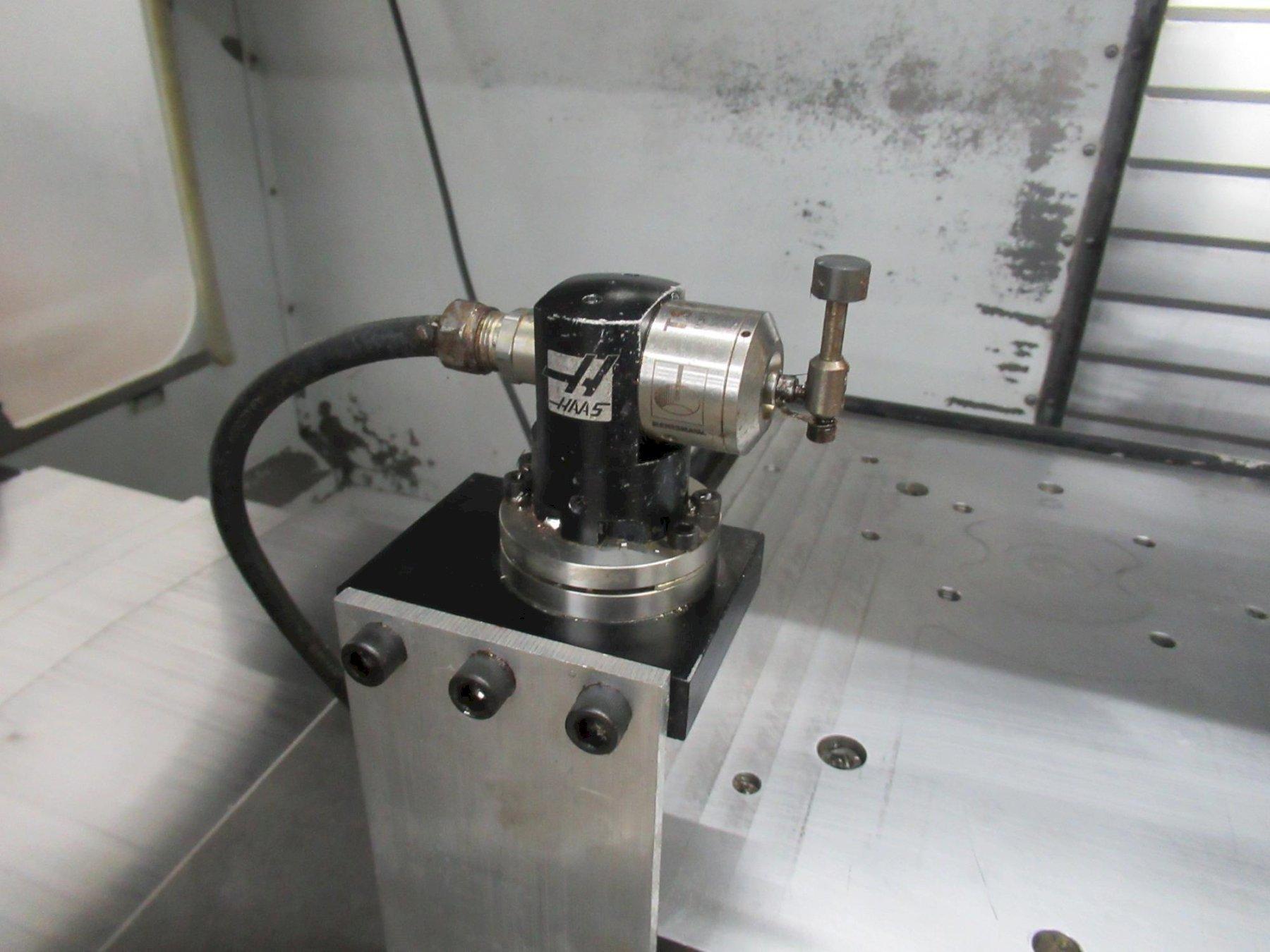

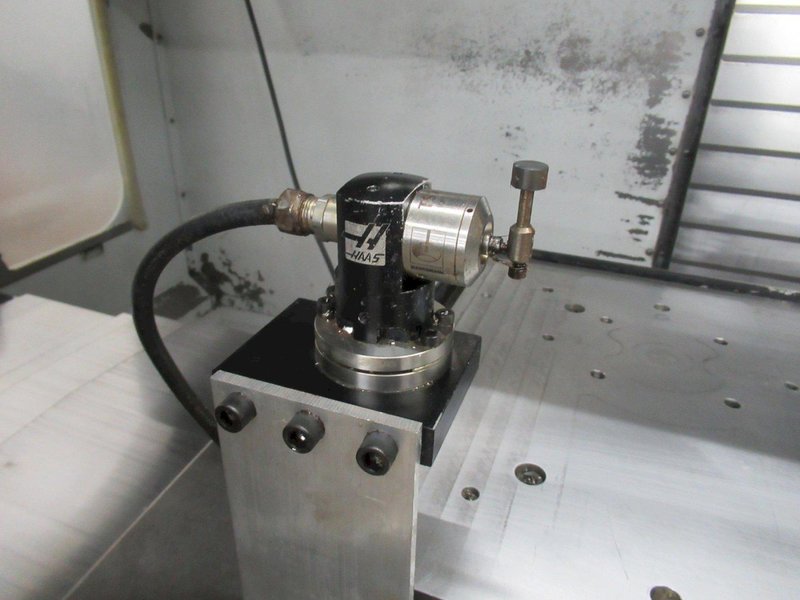

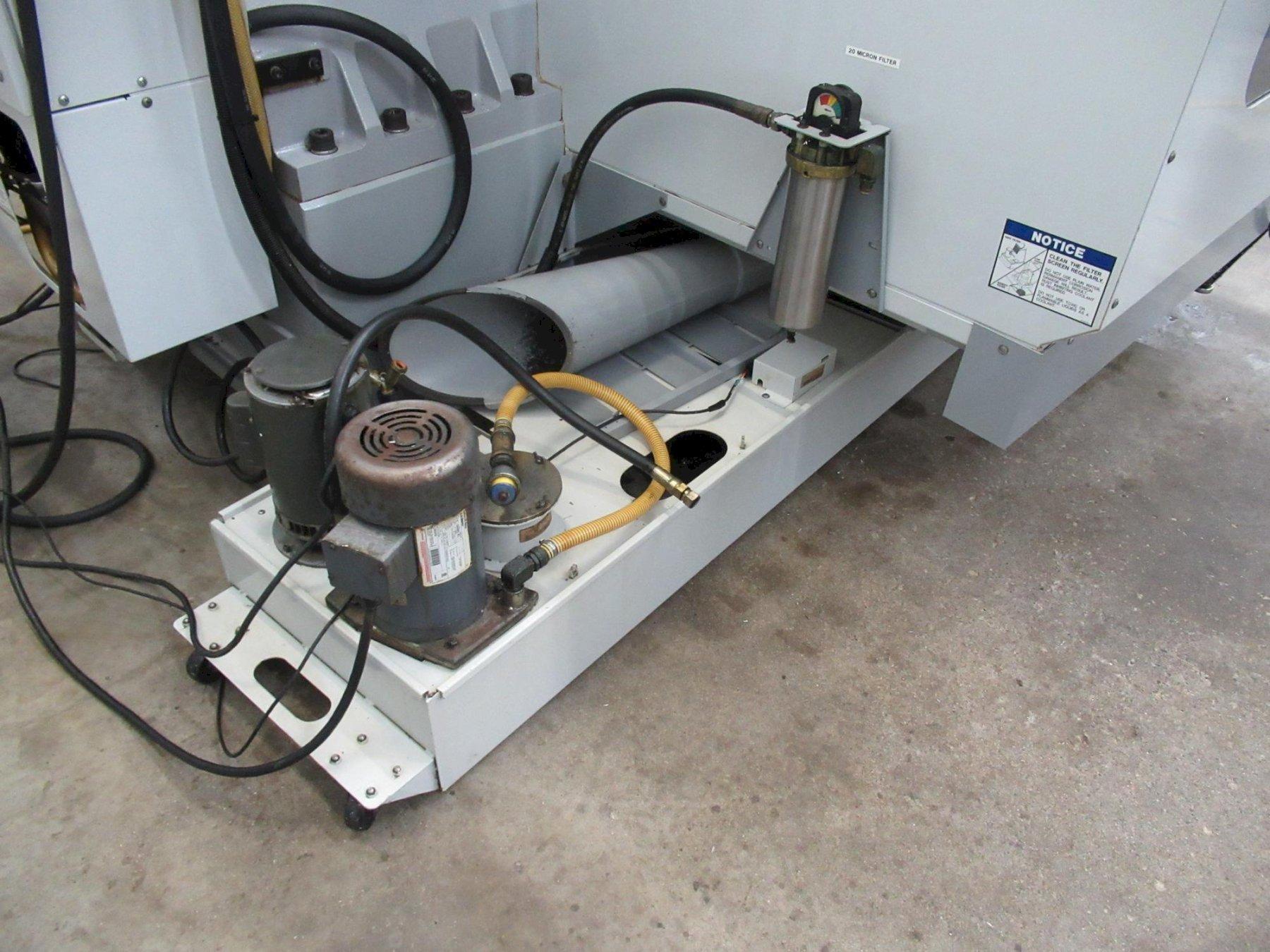

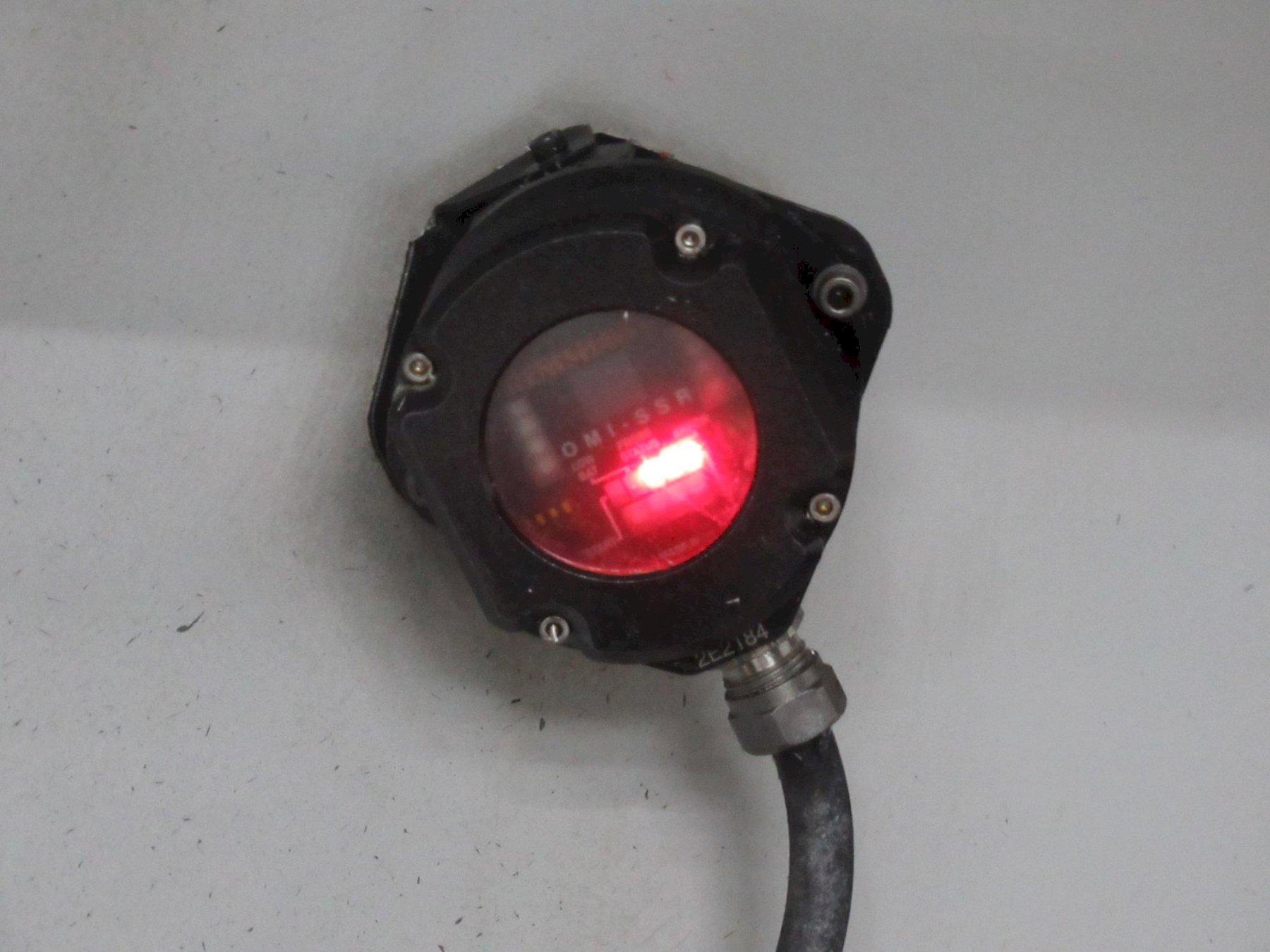

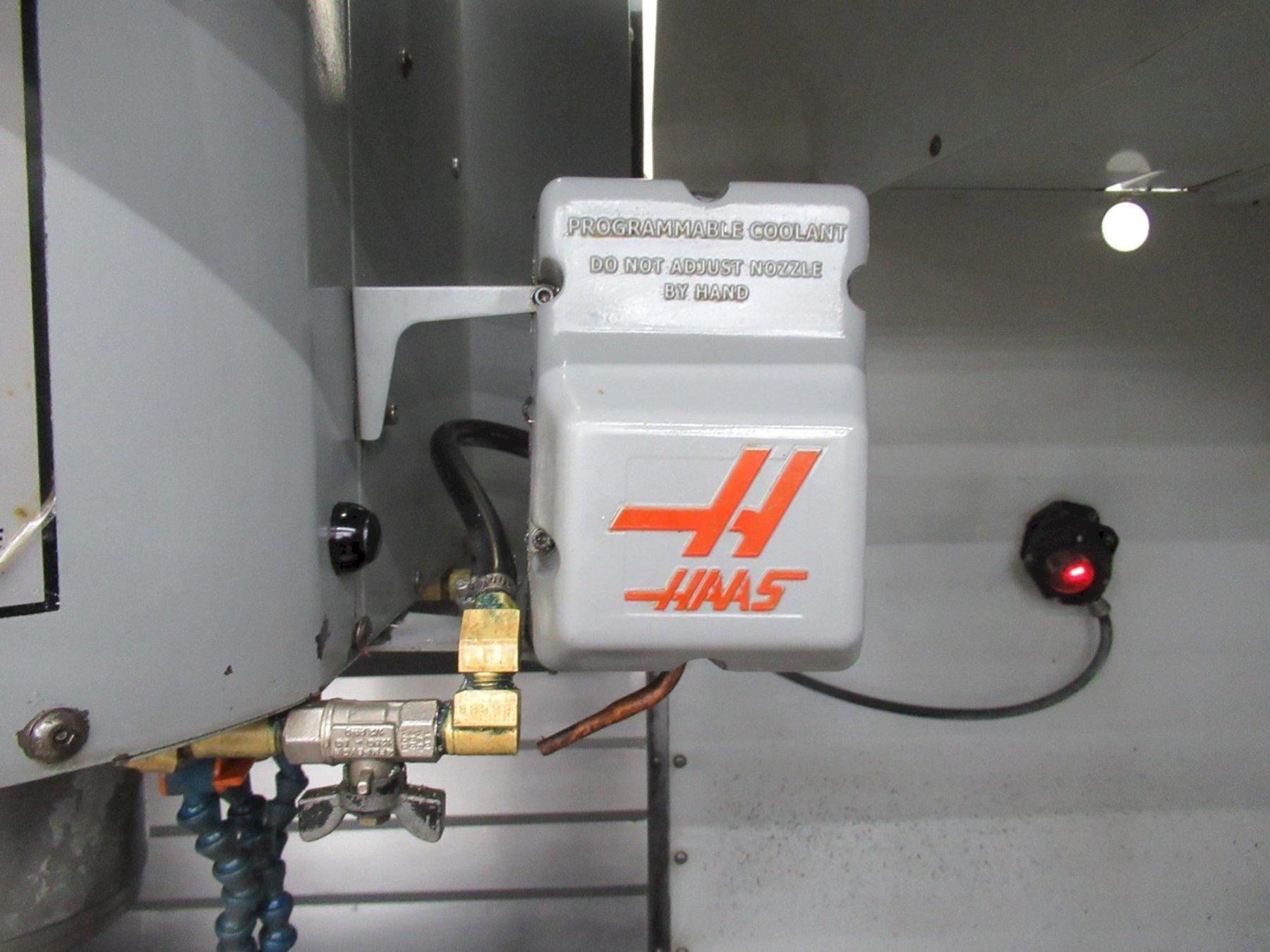

Haas 32-Bit CNC Control, Haas Automatic Pallet Changer, Brushless 4th Axis Drive, Renishaw Probing System with Part & Tool Probes, Thru Spindle Coolant, Programmable Coolant, High Speed Machining, Remote Jog Handle, 40-Station Side Mount Twin Arm Automatic Tool Changer (1-Tool Pot Missing), Chip Auger, Coolant Tank, Keys, Visual Quick Code Programming System, Macros, Coordinate Rotation & Scaling, Spindle Orientation, Rigid Tapping, Manuals and Documentation.

Electrics:

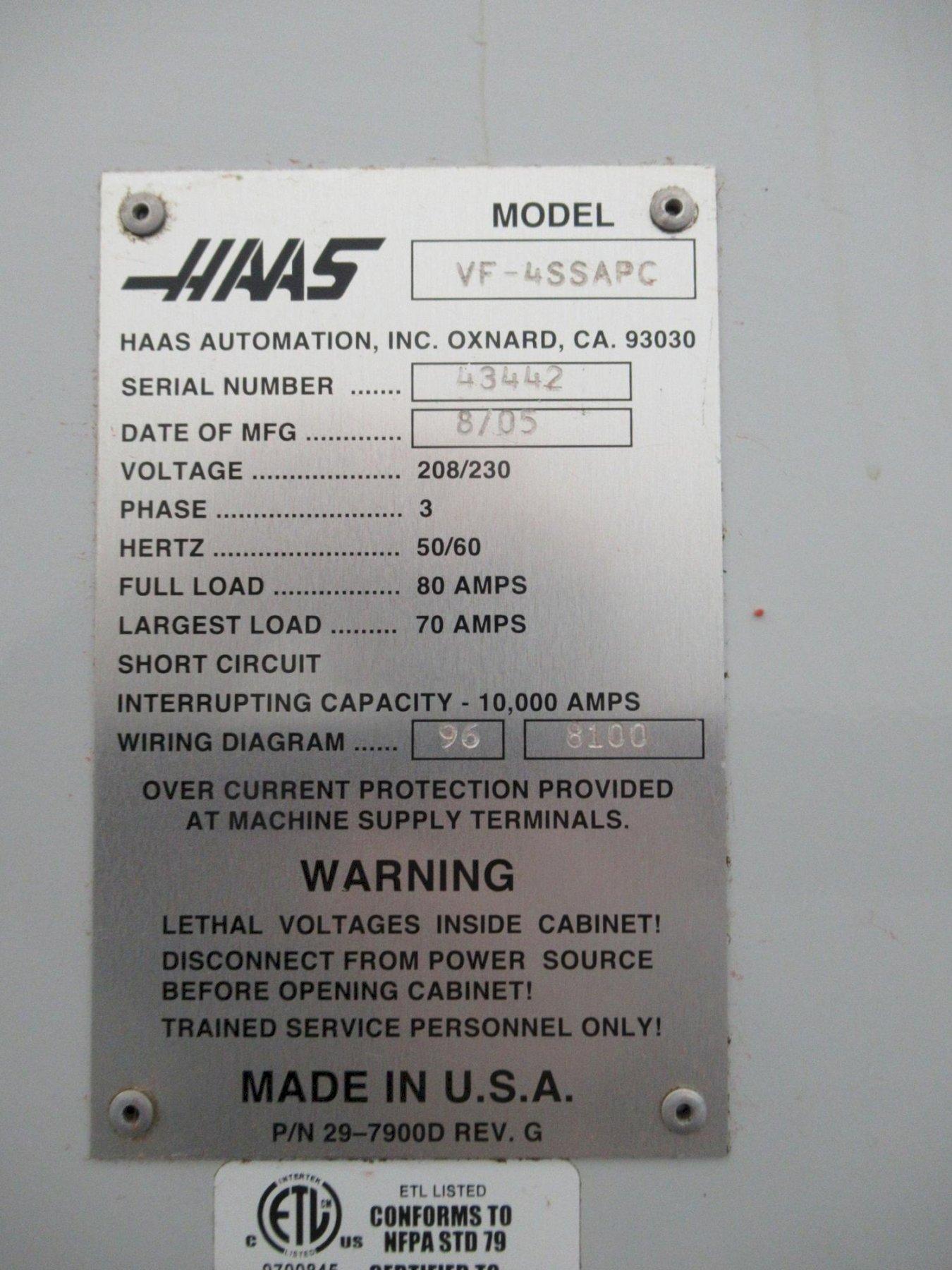

208/230 Volt, 3 Phase
