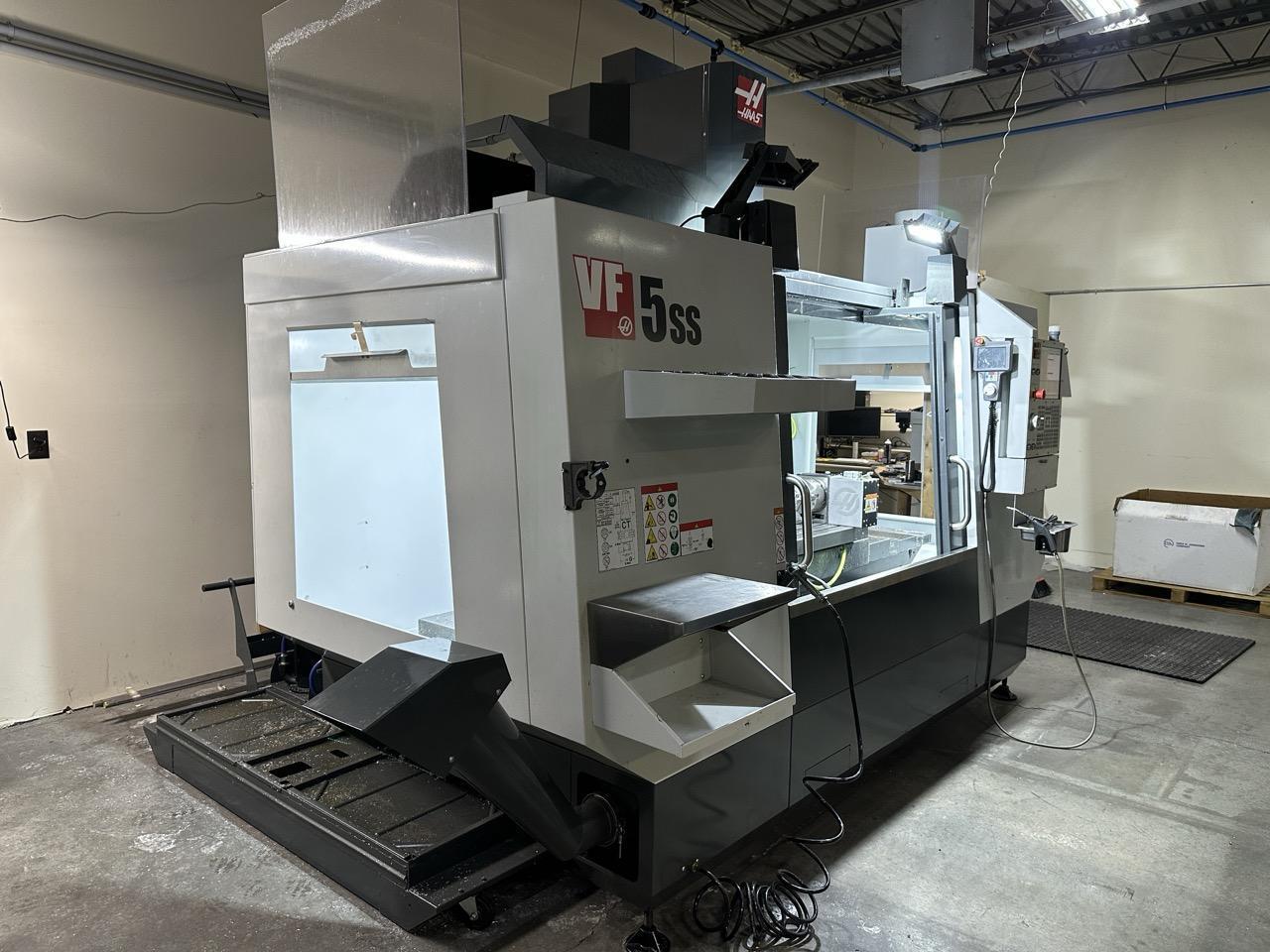

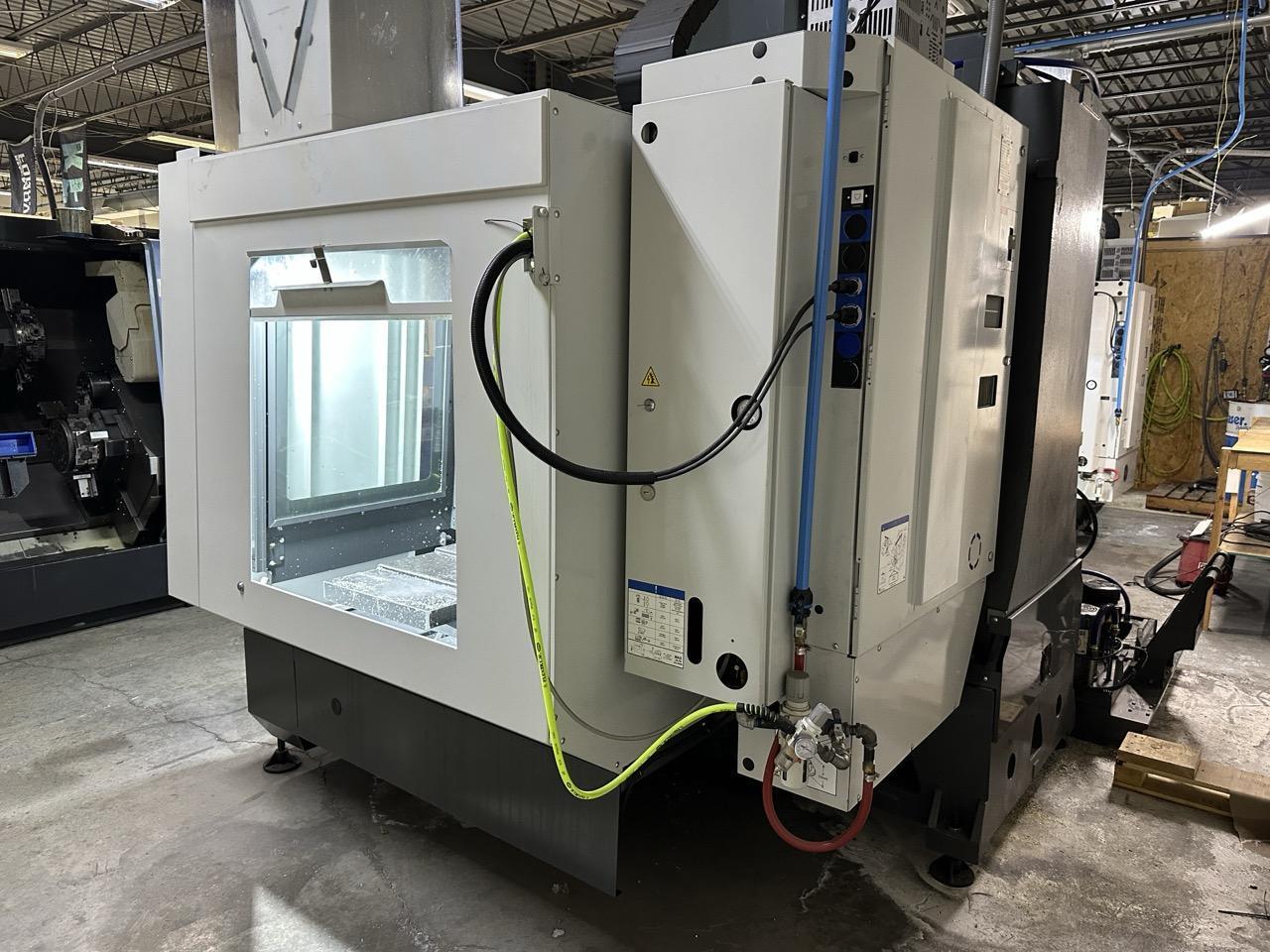

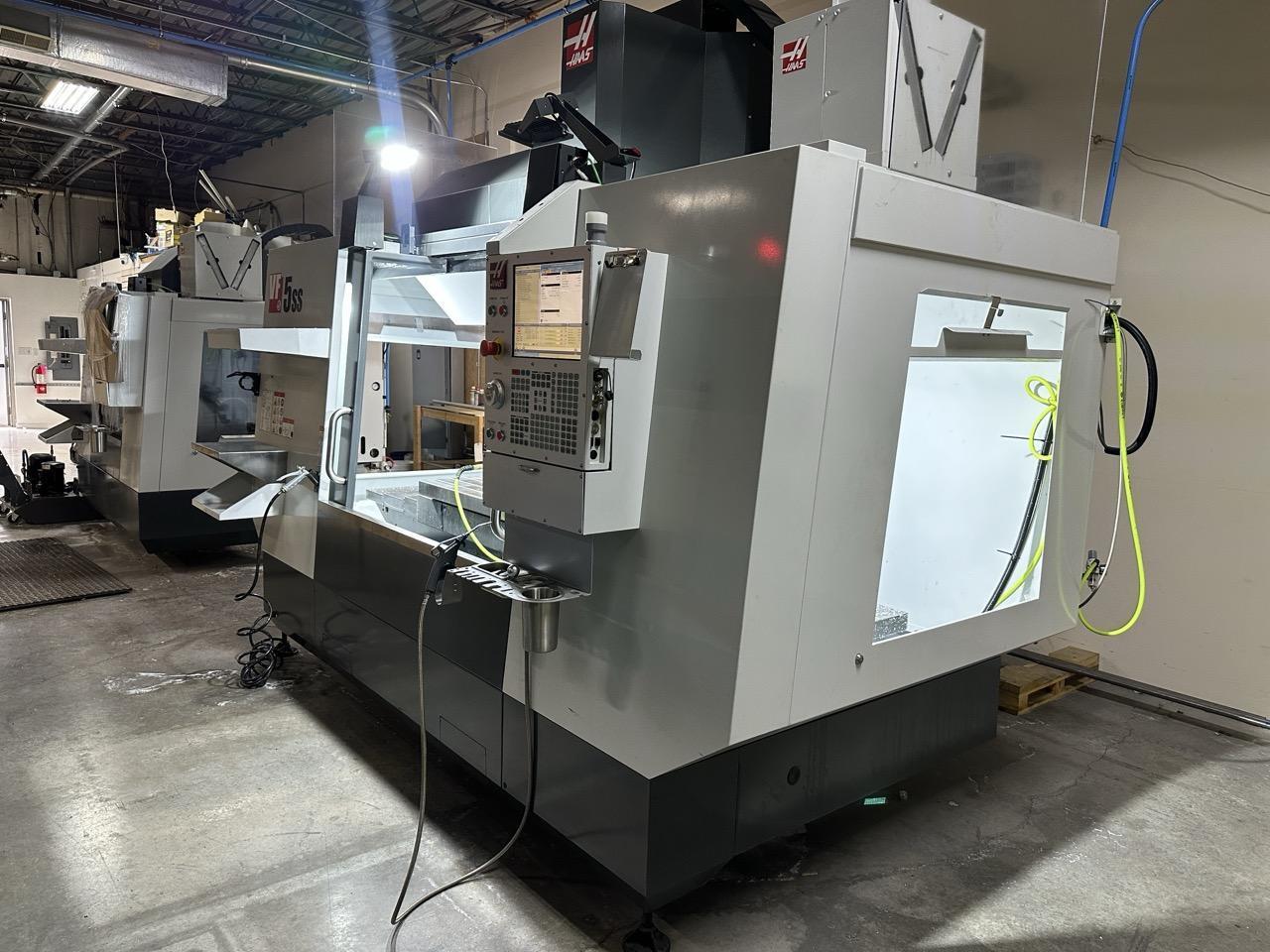

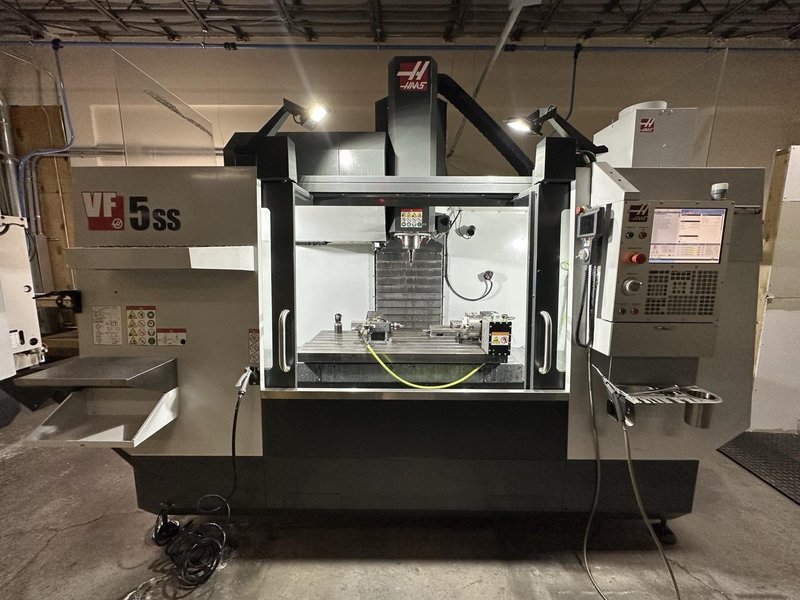

Haas VF-5SS 5 Axis VMC, 2021 – WIPS, Haas Rotary
Brand
Category
Model
VF-5SS
Stock #
750198
Year
2021
Condition
Not specified
Location
Not specified
|
Specifications:
X-axis travel: 50″
Y-axis travel: 26″
X-axis travel: 25″
Rapid rate x-axis: 1,200 ipm
Rapid rate y-axis: 1,200 ipm
Rapid rate z-axis: 1,200 ipm
Max table load: 1,750 lbs

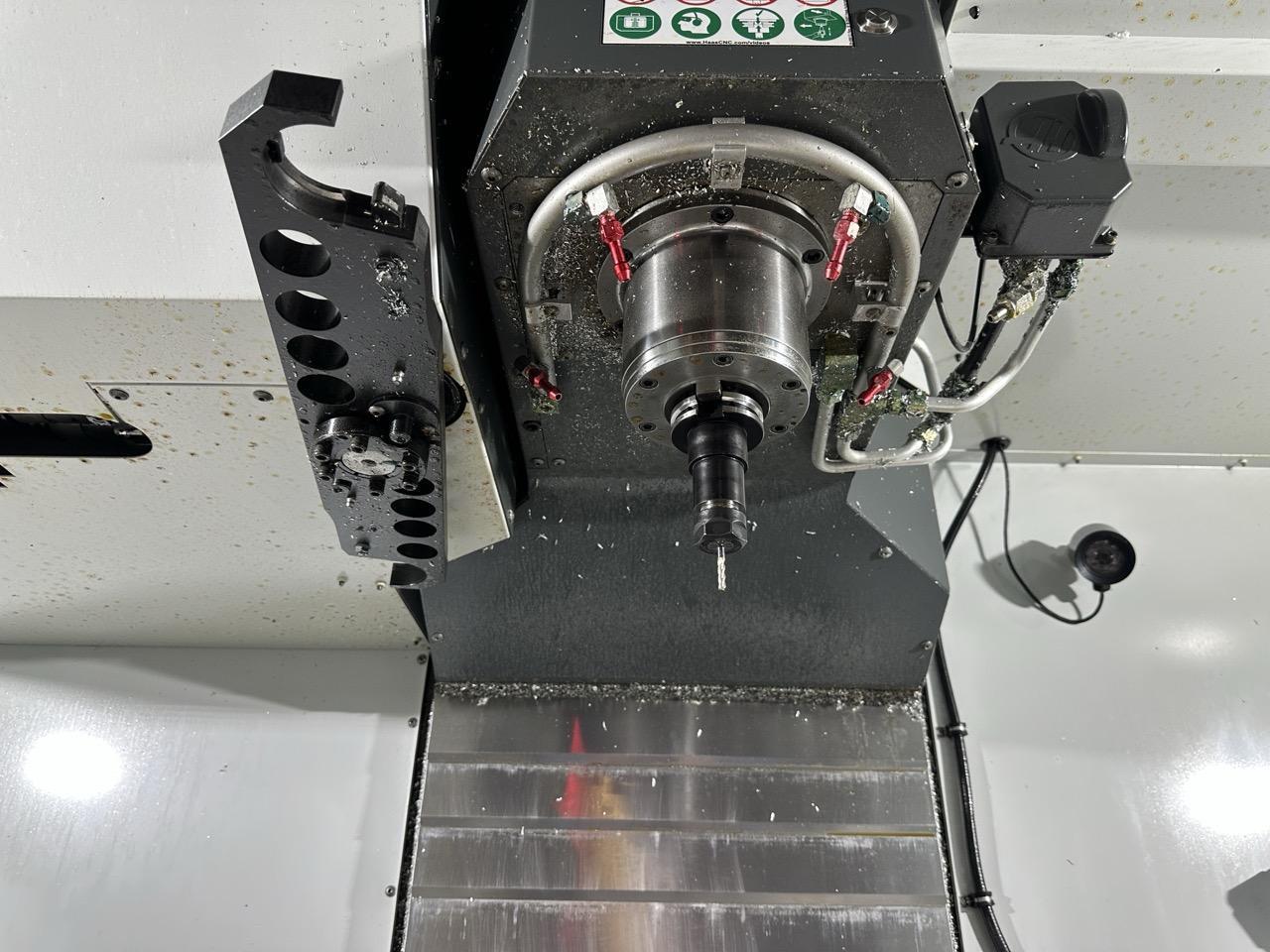

Spindle motor: 30 hp
Spindle speed: 12,000 rpm
Spindle taper: 40
Tool changer: 30 atc
Spindle nose to table: 4.2″ – 29.2″
Max cutting: 833 ipm

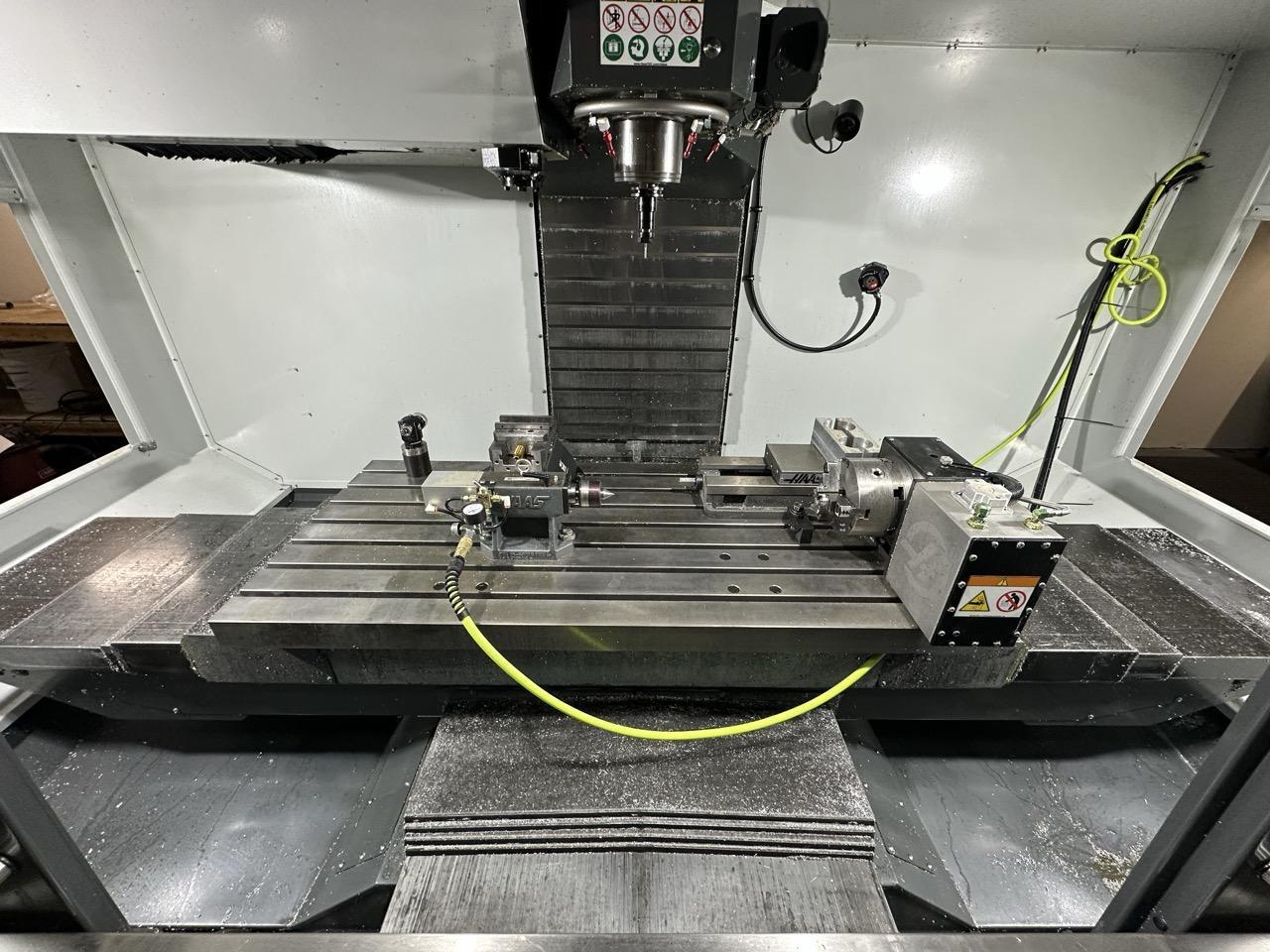

Table size: 52″ x 23″

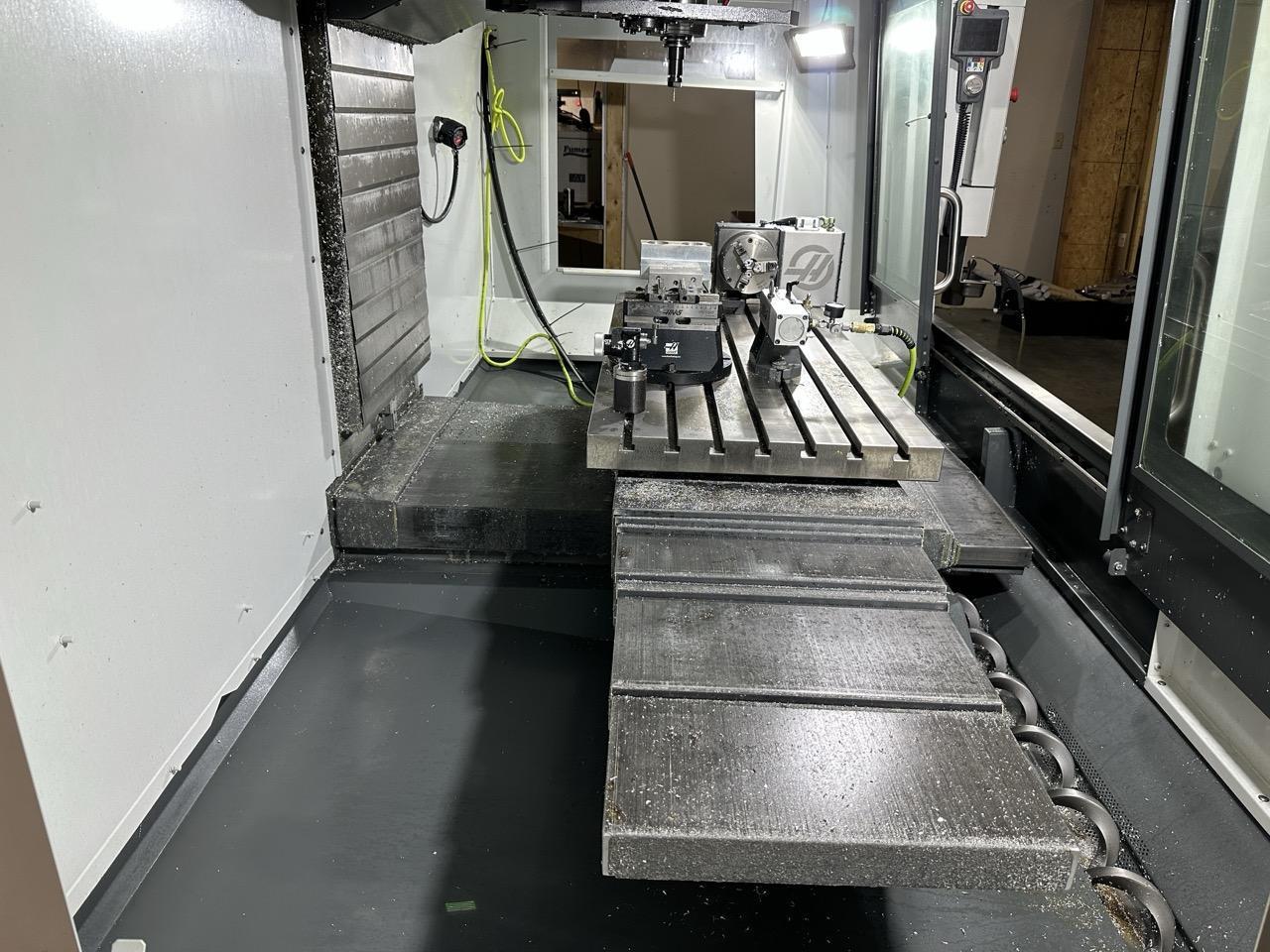

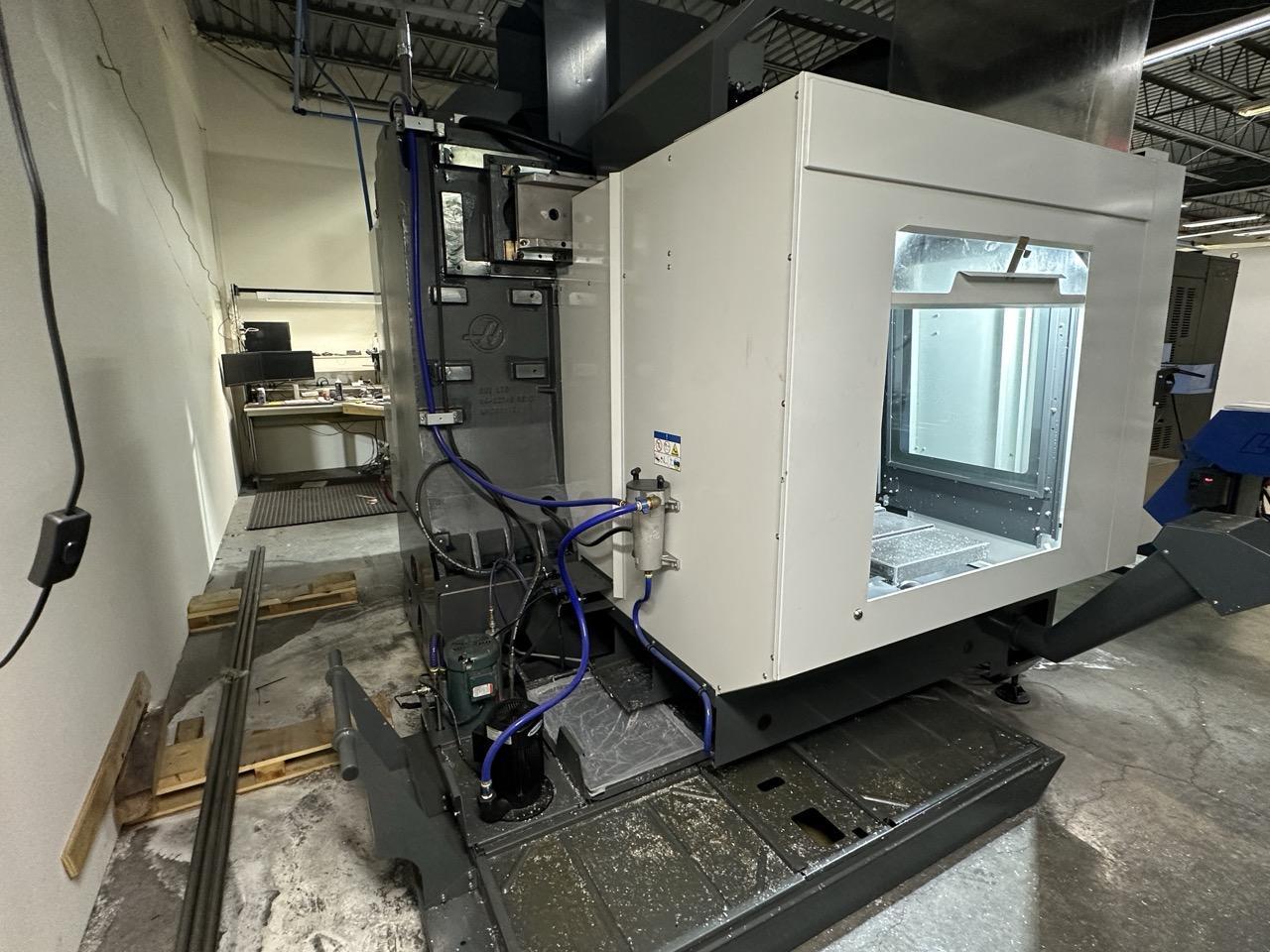

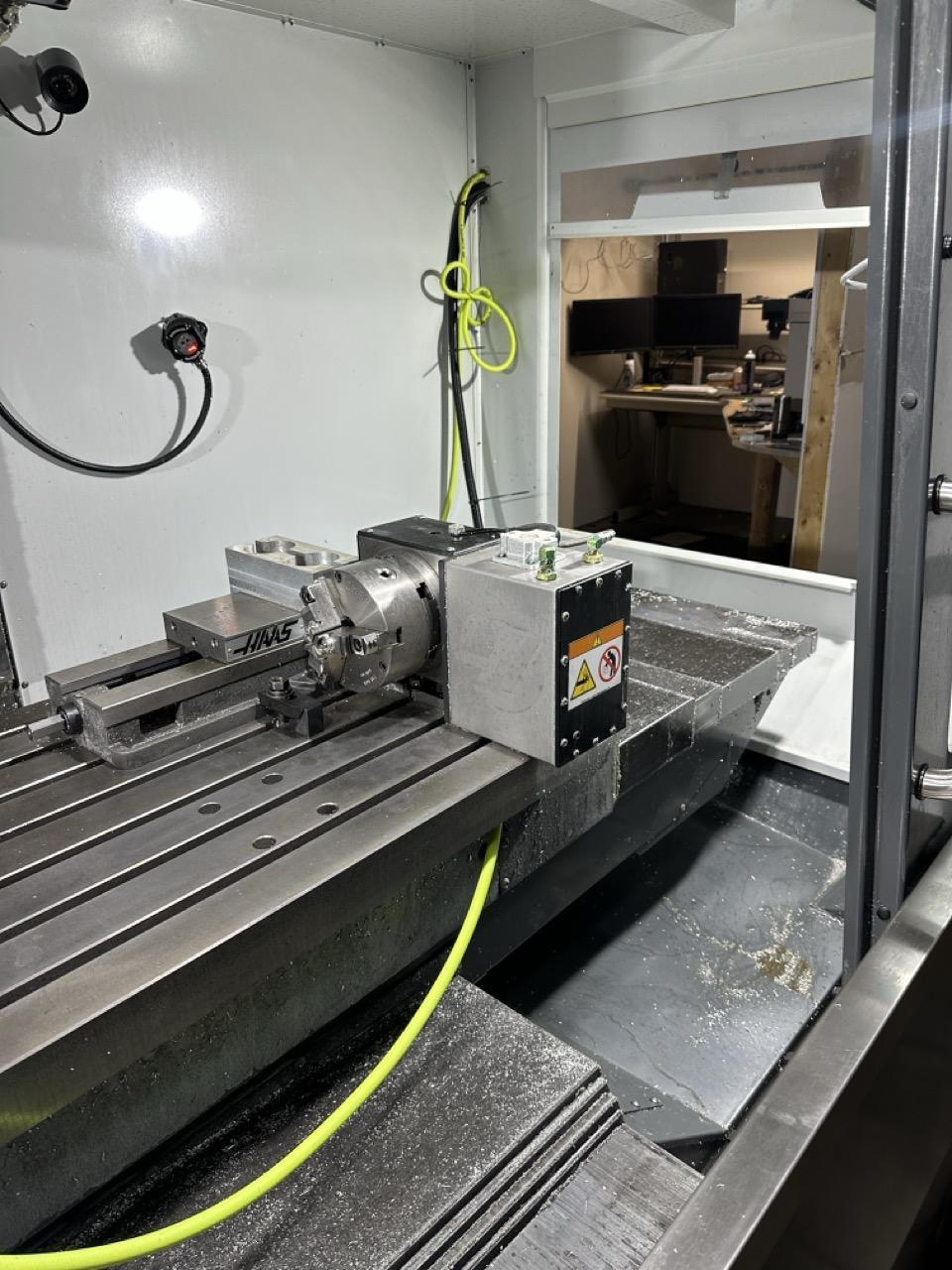

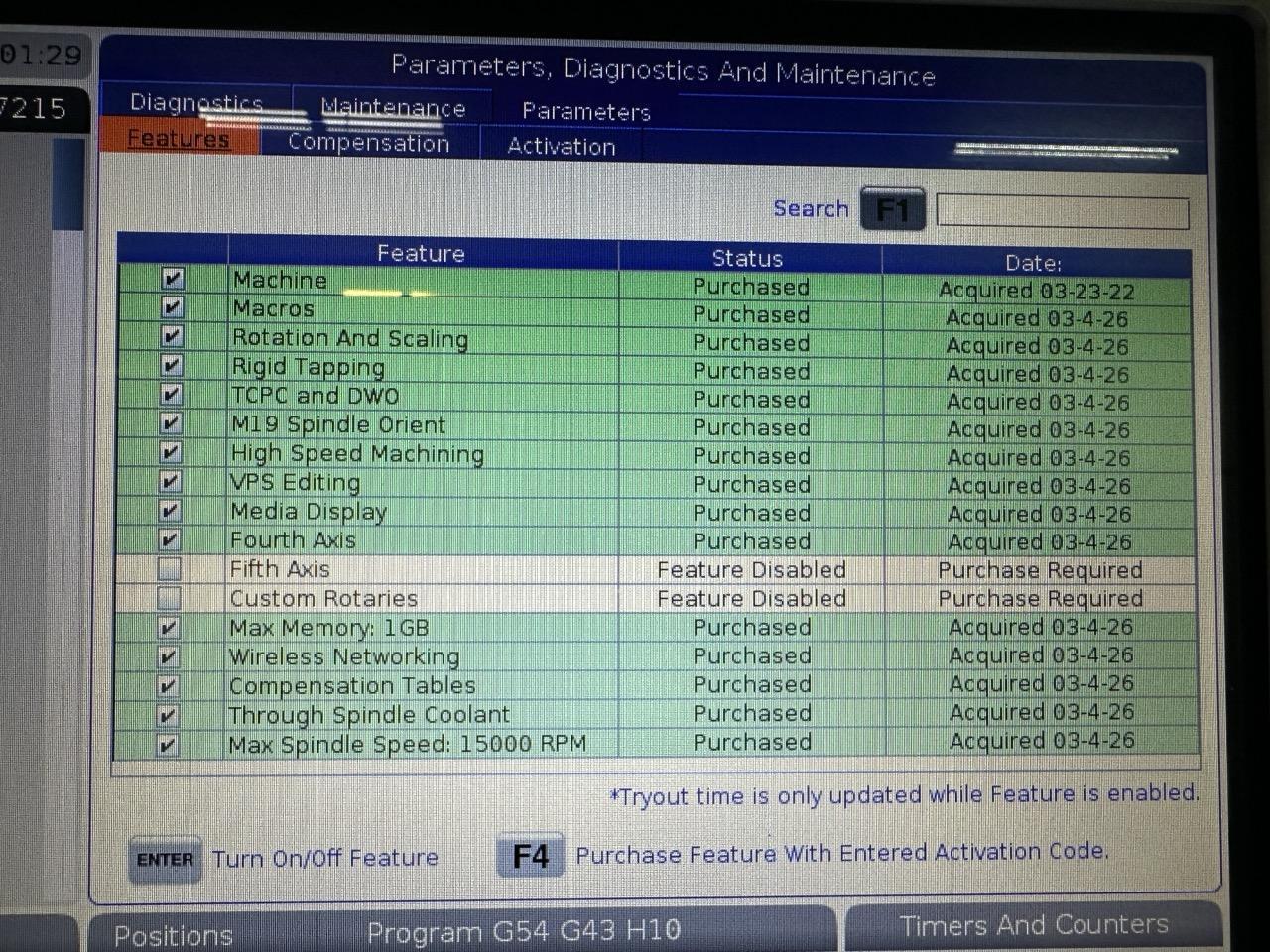

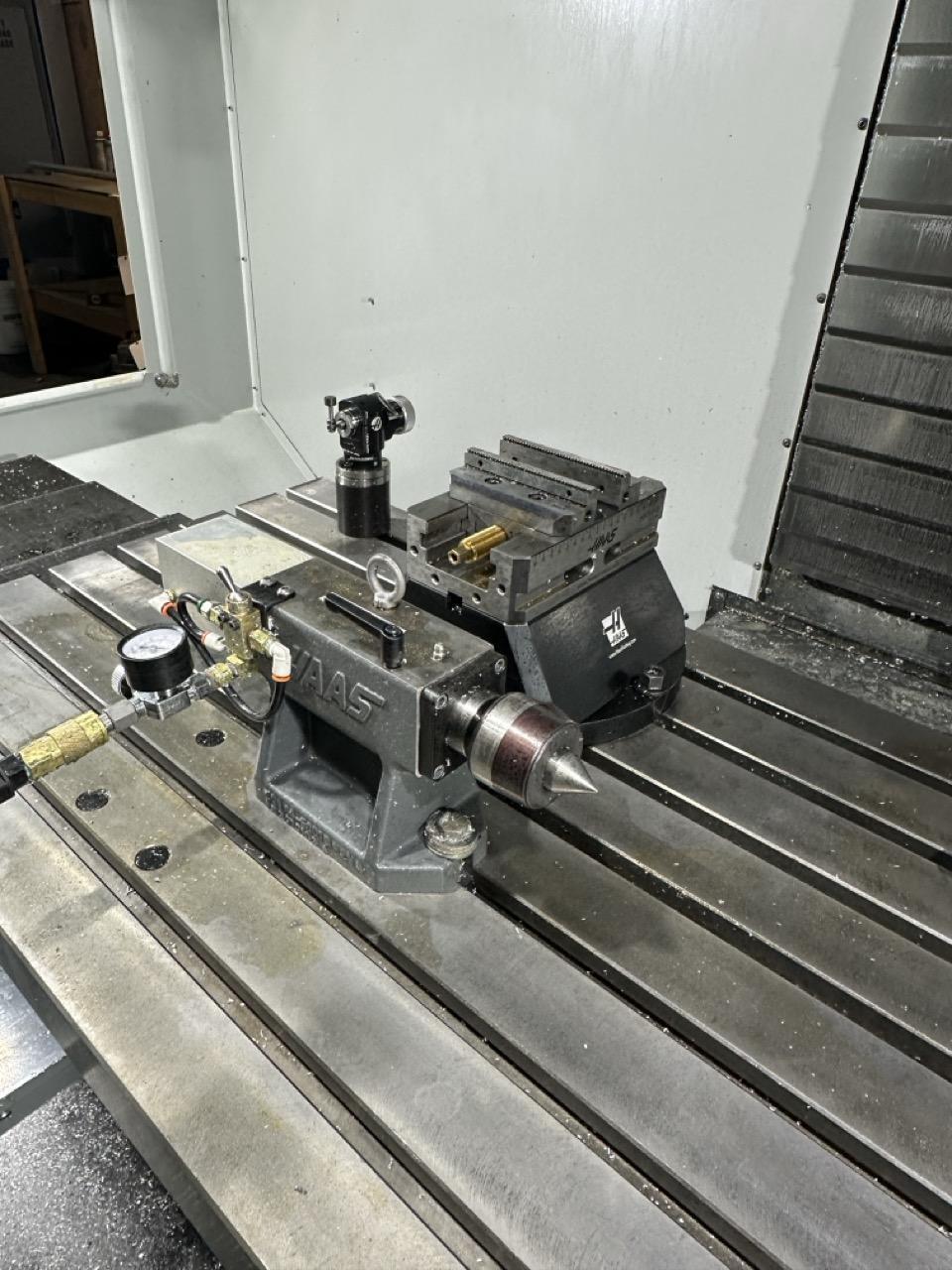

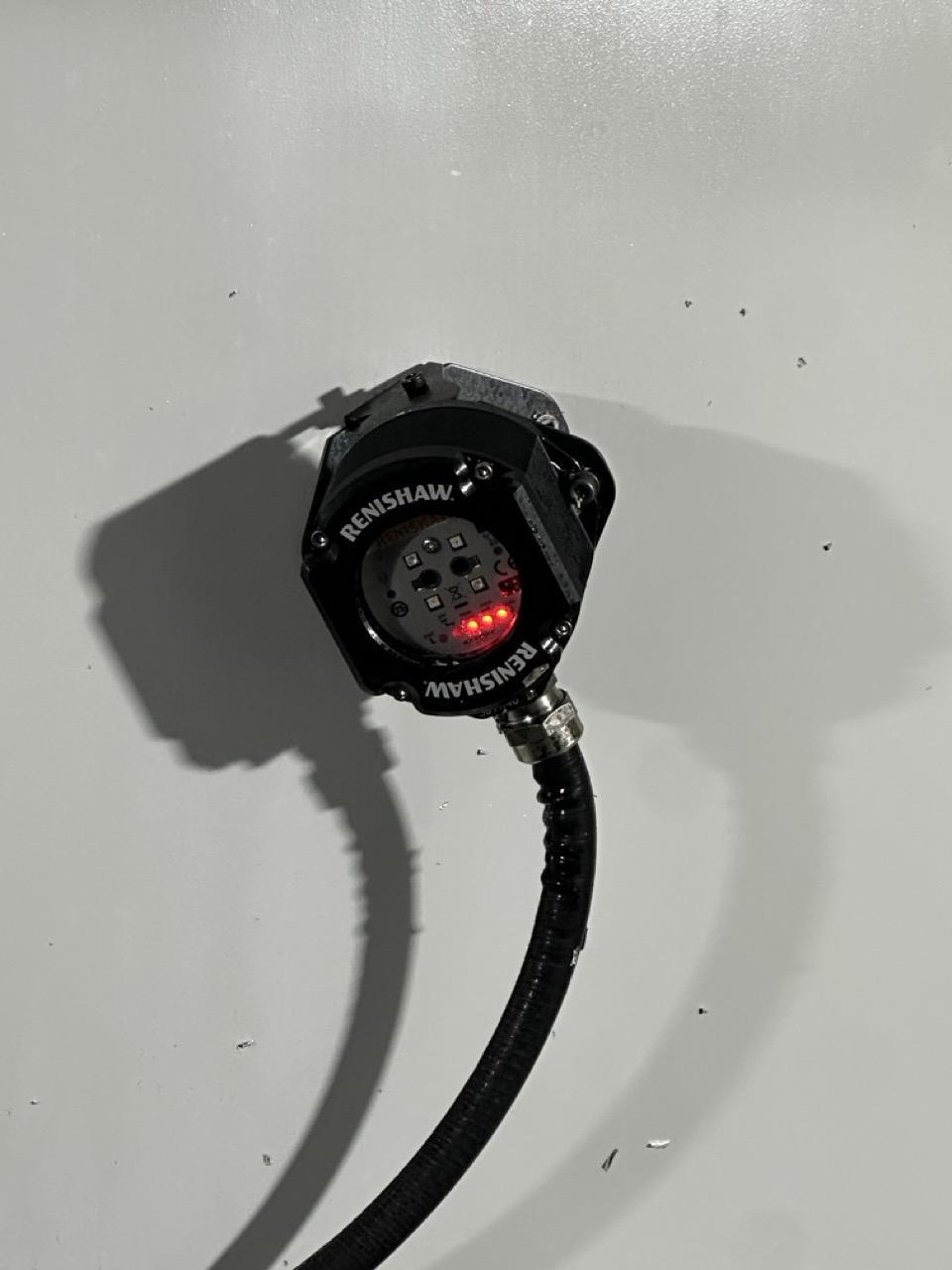

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: Haas HRT-160 Rotary Table WIPS Programmable Coolant Chip Auger Mist Collection 4th-Axis Drive and Wiring 5th-Axis Drive and Wiring Large Remote Jog Handle with Touchscreen Display Visual Part Programming System Spindle Orientation User-Definable Macros Coordinate Rotation and Scaling Tool holders included (may vary from photos) All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
