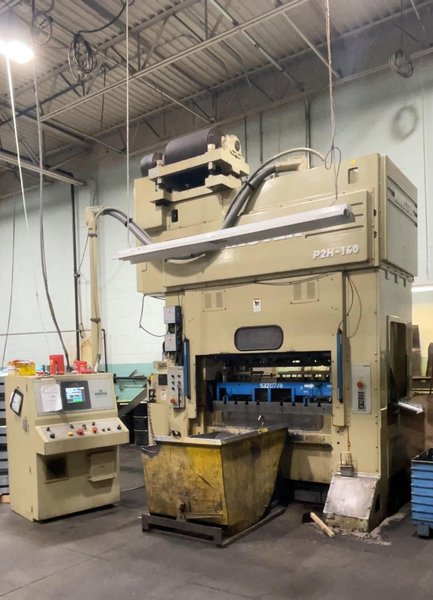

Factory Certified Used Minster P2H-160-63-Fw
Brand
Category
Model
P2H-160-63-33-FW
Stock #
030114
Year
2002
Condition
Certified
Location
Ohio
| Tonnage | 180 tons |
| Stroke | 5.91 inches |
| Shut Height | 17.72 inches |
| SPM | 200 |
| Vari Speed (Yes/No) | yes |
| Bed W | 33.5 inches |
| Bed L | 63 inches |
| Crank (Single/Double) | double |
| Air Clutch (Yes/No) | no |
| CNC Control | yes |
| Type Of CNC Control | PMC |
| Dimensions | 173T x 133W x 80D |
| Weight | 67000 pounds |
|
SPECIFICATIONS
Press Specifications Model Number........................................................ P2H-160-63×33.5-FW Force × Distance off Bottom.................................. 180 ton × 0.118 in Crankshaft Extension Location............................... Opposite Drive Side Drive Arrangement.................................................. Flywheel with an Auxiliary Flywheel Lube Unit Location................................................. Left Hand ide
Press Slide Specifications Stroke Length, Speed Range................................... 5.91 in, / 200spm Shutheight Adjustment........................................... 3.94 in Quick Access Slide Range...................................... 0.50 - 4.50 in Area of Slide, R-L × F-B........................................ 63.0 × 33.5 in Slide Face Machining........................... 3/4" T-Slots on 6" centers starting on center.
Press Bolster Specifications Bolster Plate Material.............................................. Steel Bolster Plate Thickness........................................... 4.92 in Area of Bolster, R-L × F-B..................................... 63.0 × 33.5 in Opening in Bolster, R-L × F-B............................... 51.2 × 9.8 in Bolster Plate Machining........................ 1" T-Slots on 6" centers starting on center.
Press Frame Specifications Upright Passline Opening, F-B............................... 24.8 in Area of Bed, R-L × F-B.......................................... 63.0 × 33.5 in Opening in Bed, R-L × F-B.................................... 51.2 × 14.6 in Bed Deflection at 67% of Die Area........................ 0.0012 in/ft Shutheight, Maximum (SDAU).............................. 17.72 in, on Bolster Approx Clearance, Mount to Bottom of Bed......... 11.8 in Approx. Distance Mount to Top of Bolster............ 46.4 in Approx. Distance Mount to Top of Bed................. 41.5 in |
|
