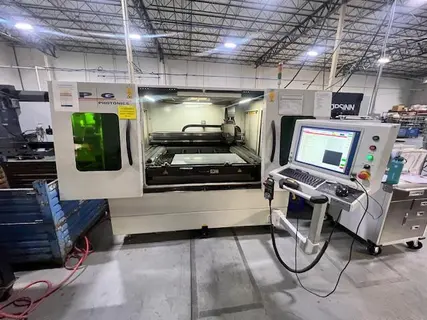

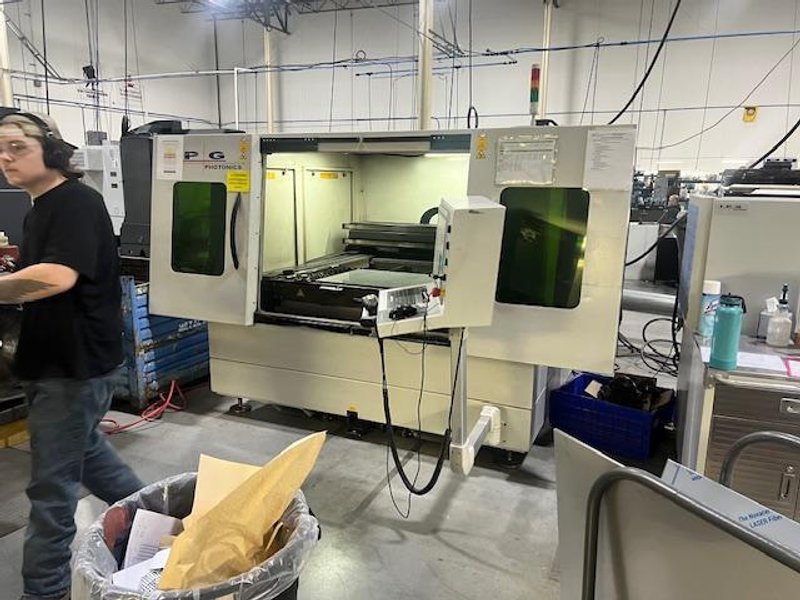

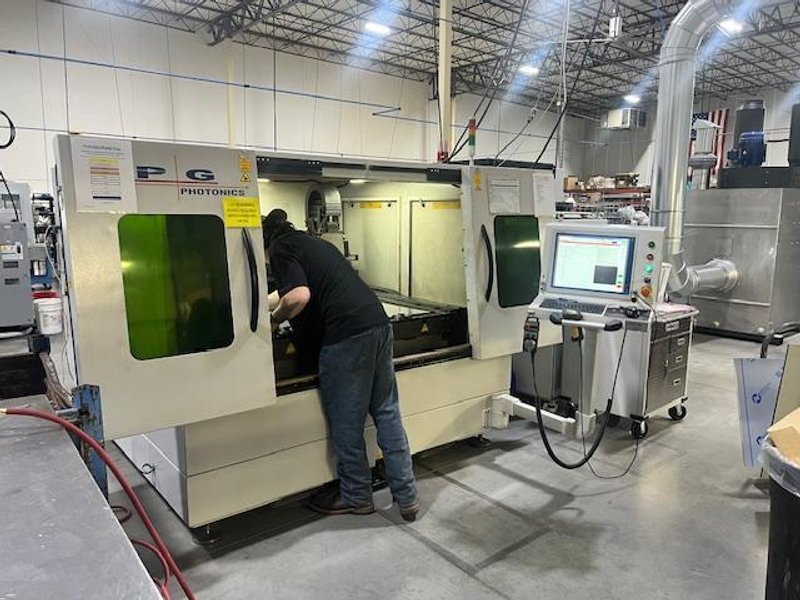

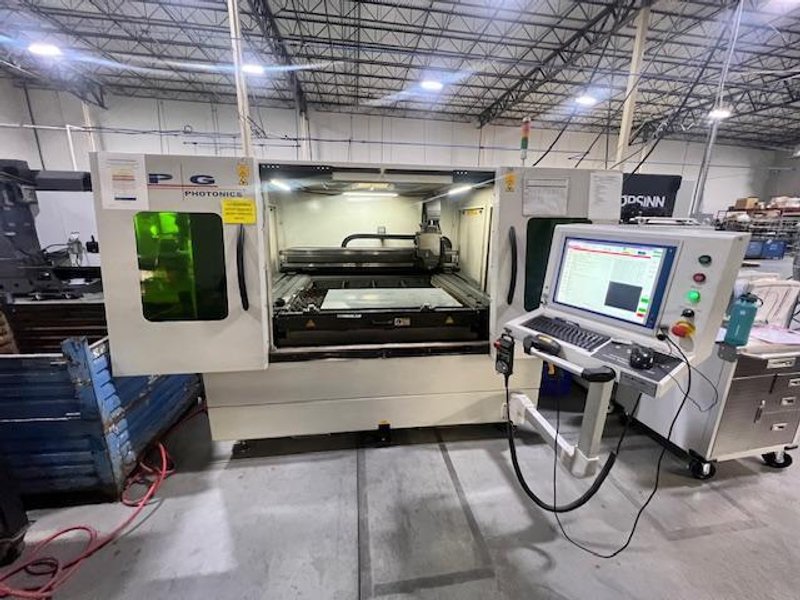

12,000 Watt IPG Cube Laser, 2021
Brand
Category
Type
Model
YLS-12 kW SYSLC0000000033U
Stock #
421603
Year
2021
Condition
Not specified
Location
Not specified
|
Nominal Output Power: 12,000 W (12 kW)
Wavelength Range: 1068–1080 nm (Central: 1070 ±5 nm)
Operation Mode: Continuous Wave (CW) or Modulated
Power Tunability: 10% to 105% of nominal power
Modulation Frequency: Up to 5 kHz
Beam Parameter Product (BPP):
3.5–4.2 mm·mrad (100 µm fiber).
5.5–6.5 mm·mrad (150 µm fiber).
6.5–8.5 mm·mrad (200 µm fiber).
All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Operating Voltage: 3Ph, 208-230 V, 50/60 Hz Approx. Power Consumption: 34.5 kW at full 12 kW output Wall-Plug Efficiency: >40% Approx. Dimensions (W x D x H): 39.5″ x 32.1″ x 31.7″ Approx. Weight: 1000 lbs All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
