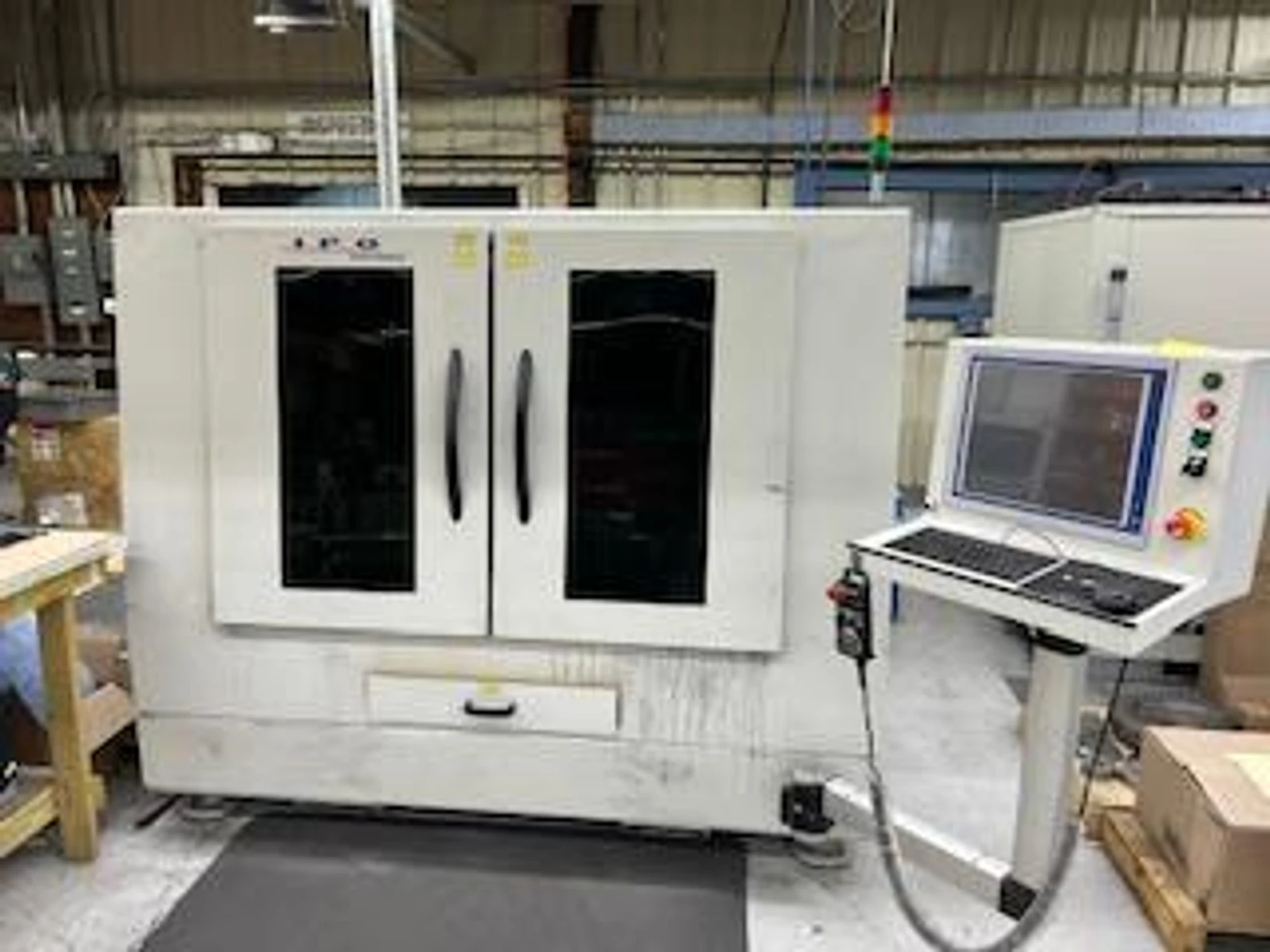

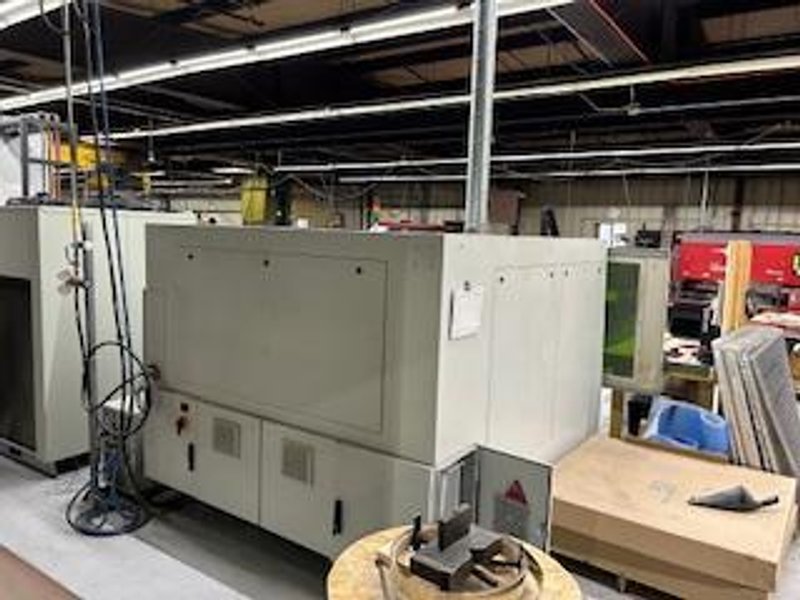

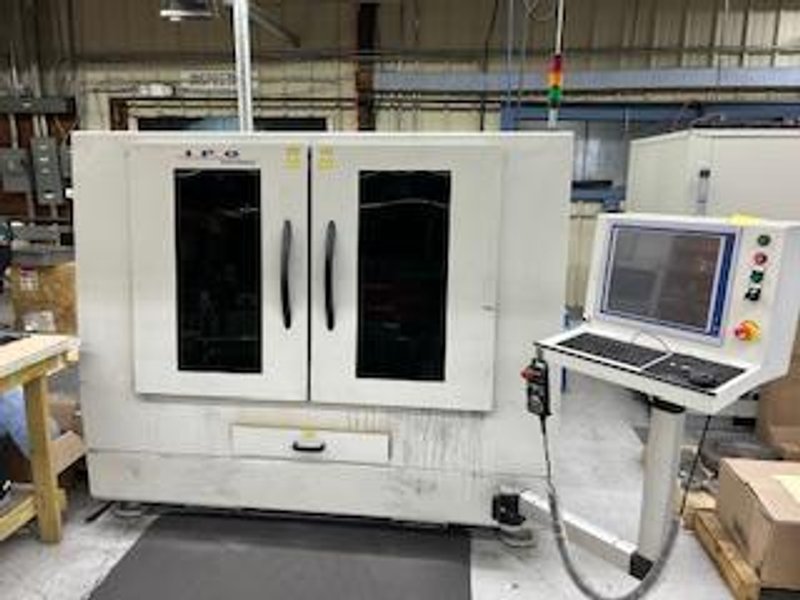

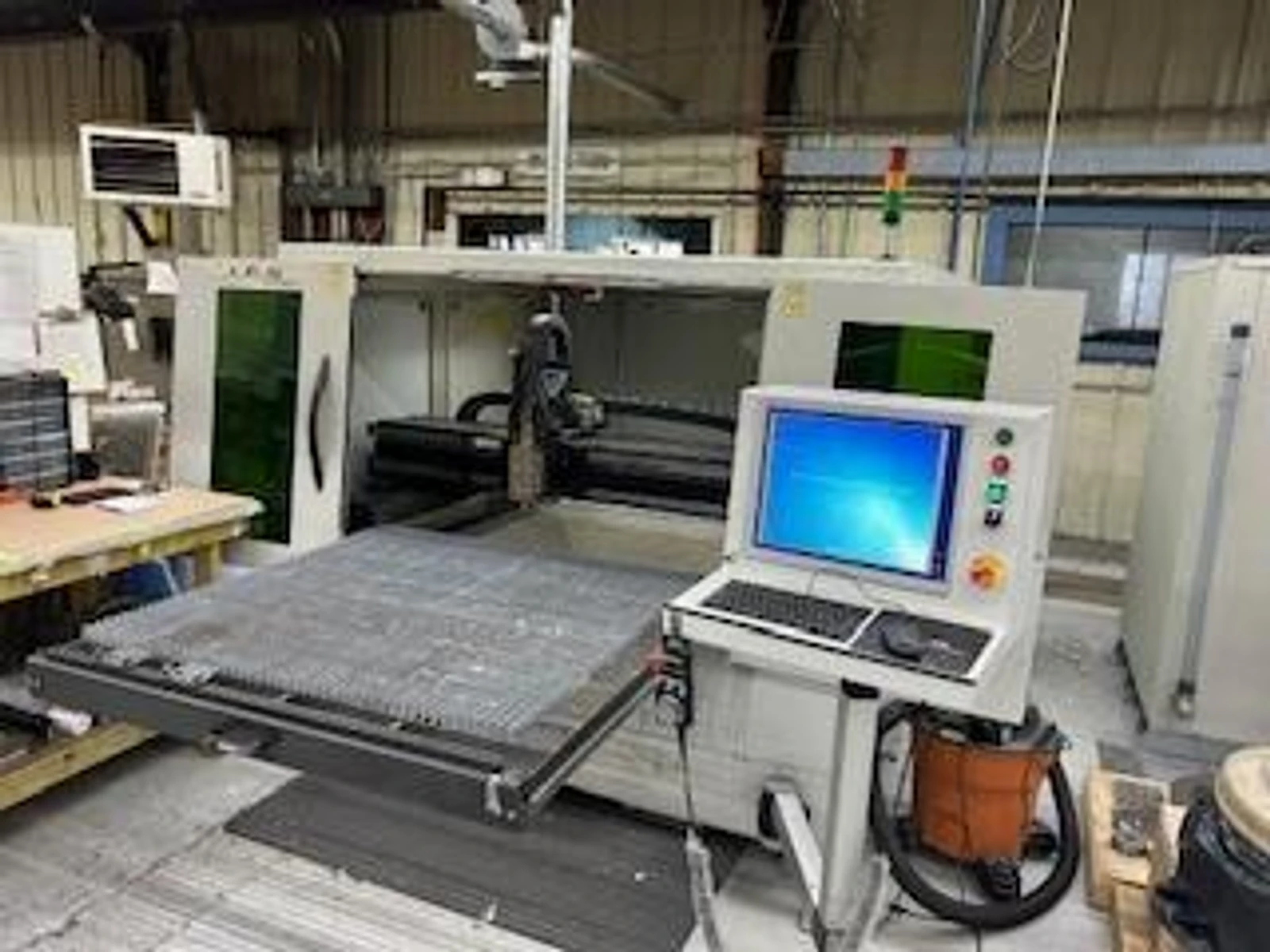

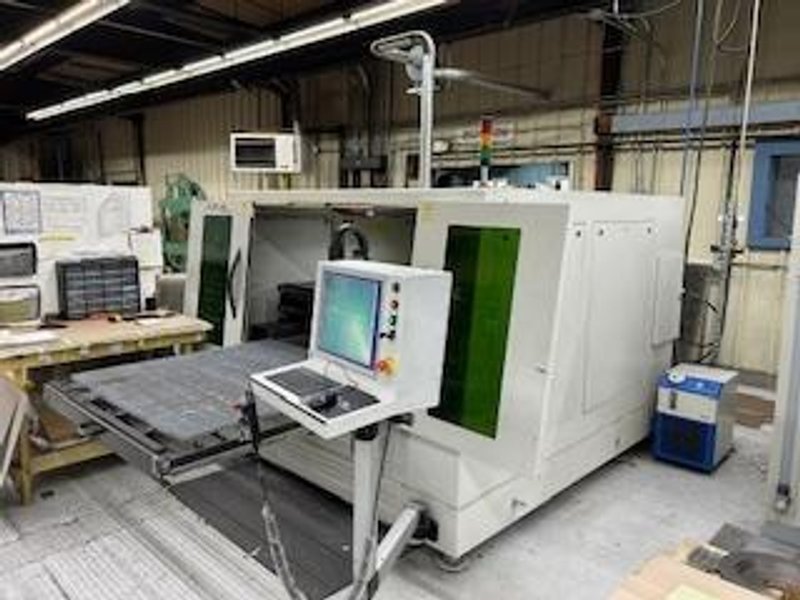

1,000 Watt 4′ x 4′ IPG Laser Cube CNC Fiber Laser, 2014

Laser Power, W CW: 1,000W

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,FLC-30 Cutting Head Automatic Capacitive Height Sensing Replaceable Cover Window Integrated Coaxial Cutting Assist Gas

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Work Envelope X: 1225 mm (48.2 in) Y: 1225 mm (48.2 in) Z: 75 mm (2.9 in)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Maximum Speed: Cutting 1000 mm/sec 2362 in/min

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Accuracy: Positioning Repeatability ±25 μm (0.001 in) Positioning Accuracy < 10 μm (0.0004 in) Repeatability

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Motion Platform X-Y Linear Stage High-Force Direct-Drive Linear Motors 1.0 μm Resolution Linear Encoders Motion System Air Purged to Reduce Contamination

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Materials Stainless/ Mild Steel, Aluminum, Brass, Copper, Laminated Foils Controls/Interface

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Industrial Motion Controller, Full Look-Ahead Contouring Capability Laser Power Proportional to Velocity, Windows-based CNC Graphical Interface G-code Programming, Editable Materials and Laser Parameter Database Optional CAD/ CAM Packages Single Part Program Grid Nesting at the Controller

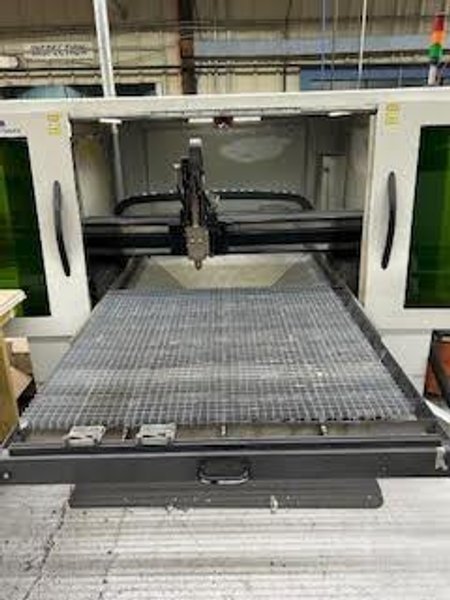

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Process Gas Programmable Assist Gas Regulator – Up to 3 Gas Inputs Cutting Surface Telescoping Drawer with Metal Cutting Bed, Which Can Convert to Honeycomb Inserts Removable Debris Collection Bins

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Safety CDRH Class 1 Laser System Exhaust 250 mm (10 in) Plenum Dimensions, L×W×H: 86 × 103 × 73

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Weight: 7987
