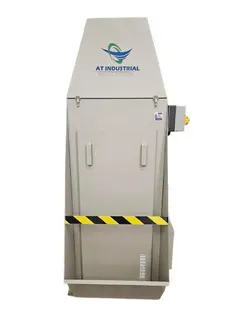

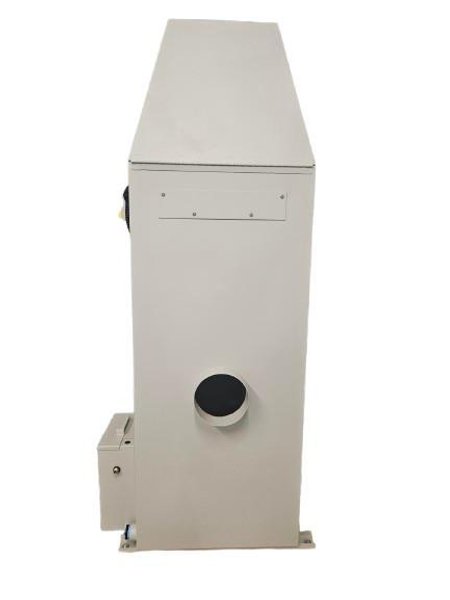

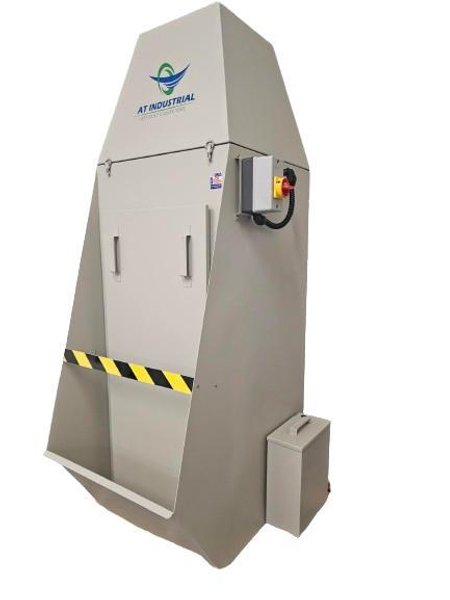

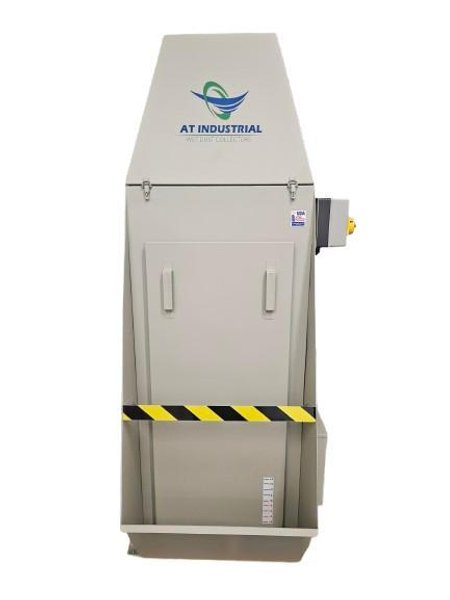

AT Industrial C5-2500 Wet Dust Collector, New

Equipment Specifications DIMENSIONS – 32” W x 38” D x 81” H CABINET – 304 seam welded stainless steel, US certified MAINTENANCE DOOR – easily removed for maintenance & cleaning MOTOR – 5 HP, T.E.F.C. 208-230/460 volt, 3-phase, 60 Hz (other voltages also available) INLET – 8” diameter, 2500 CFM, tested at the inlet without duct attached ELECTRICAL CONTROL – dial type starter with thermal overloads IMPELLER – standard, precision balanced, direct coupled to the motor for maximum CFM with minimum vibration (also stainless steel) FILTRATION – a system of internal baffles separates and removes dust particles from the water. HOOD – removable with latches and foam sound suppression panels on all four inner walls Approx: 78dB AUTOMATIC WATER LEVEL CONTROL – allows for user’s connection to a water supply line for automatic maintenance of proper operating water level. GALLON CAPACITY – 42 CLEANING TOOL – made of stainless steel and provided for the easy removal of grinding dust from the water tank.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Available Options; NFPA/OSHA Compliant Package $5,939.00 Provides start from a closed contact at the process machinery or interrupts the circuit if the water level is too high or low. Includes: programmed ultrasonic water level sensor and solenoid valve, LED stack light w/audible alarm and hazardous gas vent. NEMA 12 panel box, motor disconnect, PLC, transformer and 24V power supply. This option does not include labor and materials required to tie into processing equipment.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Extended Sump, Cover and 10” Flage $2,930.00 Moves inlet from a vertical position on the back of the wet collector to a vertical position eliminating the 45° or 90° elbow typically used immediately off the back and allows for a straight duct run into the machine. Includes stainless steel cover and 10” flange. Increases gallon capacity from 42 gallons to 60 gallons. Adds 12” to back of machine.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Explosion Proof Motor $2,000.00

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,F55- Portable Sludge Vacuum $3,315.00 50 gallon capacity vacuum filtration system Pumps water, swarf and sludge out of wet dust collector sump, filters then pumps the water back to the sump. Includes air powered pump system, drum, filter, spare filter, air regulator, vacuum hose and wand and system dolly. Requires 19cfm @ 80

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
