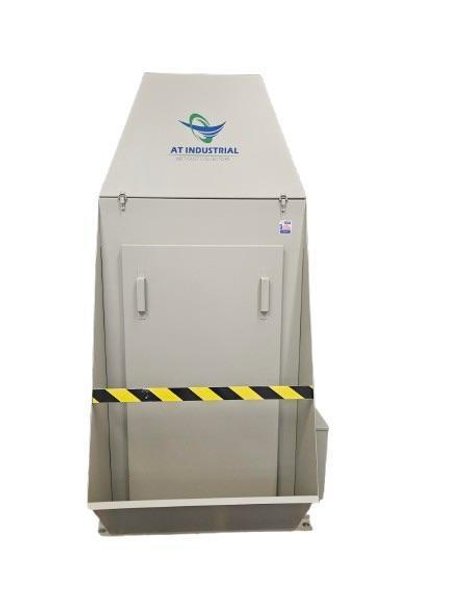

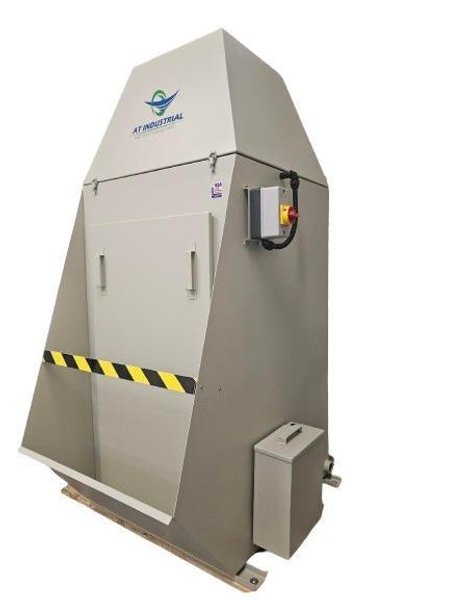

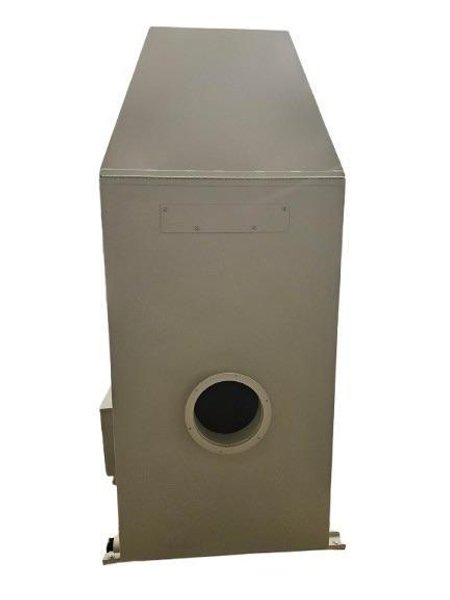

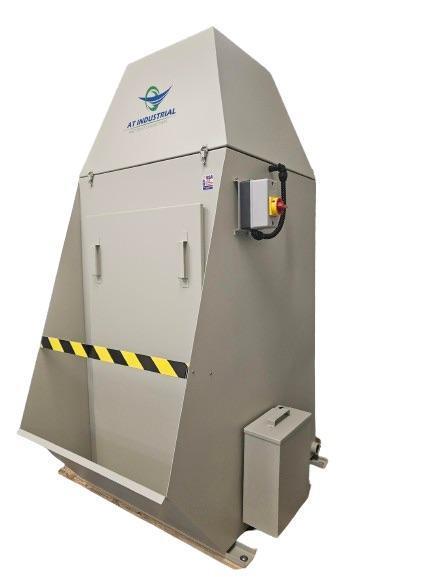

AT Industrial C7-3000 Wet Dust Collector, New

DIMENSIONS – 40” W x 49″ D x 81” H CABINET – seam welded, 304 stainless steel, U.S. certified MAINTENANCE DOOR – easily removed for maintenance & cleaning MOTOR – 7.5 HP, T.E.F.C. 208-230/460 volt, 3-phase, 60 Hz (other voltages also available) INLET – 10” diameter, 3000 CFM, reading taken at the inlet with no ducting attached ELECTRICAL CONTROL – dial type manual motor starter with thermal overloads IMPELLER – standard, precision balanced, direct coupled to the motor for maximum CFM with minimum vibration (also 304 U.S. certified stainless steel) FILTRATION – a system of internal baffles separates and removes dust particles from the water. HOOD – Hinged with latches and foam sound suppression panels on all four inner walls. Approx: 78dB AUTOMATIC WATER LEVEL CONTROL – allows for user’s connection to a water supply line for automatic maintenance of proper operating water level. GALLON CAPACITY – 90 CLEANING TOOL – made of stainless steel and provided for the removal of sludge from bottom of the wet collector.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Options Available; NFPA/OSHA Compliant Package………………………..…..$ 5,939.00 Provides start from a closed contact at the process machinery and interrupts the circuit if the water level is too high or low. Includes; programmed PLC and ultrasonic water level sensor, solenoid, LED Stack light w/audible alarm, hazardous gas vent, NEMA 12 panel, motor disconnect, transformer and 24V power supply; This option does not include labor and material required to tie into the processing equipment.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Extended Sump, Cover and 10” Flange…….……………..$ 3,490.00 Moves inlet from a vertical position on the back of the wet collector to a vertical position eliminating the 45° or 90° elbow typically used immediately off the back and allows for a straight duct run into the machine. Includes stainless steel cover and 12” flange. Increases gallon capacity from 90 gallons to 130 gallons. Adds 12” to back of machine.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Explosion Proof Motor …………………….……..…………….$ 2,800.00

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,F110-Portable Sludge Vacuum …………………………..….$ 5,235.00 110 gallon capacity vacuum filtration system Pumps water, swarf and sludge out of wet dust collector sump, filters then pumps the water back to the sump. Includes air powered pump system, drum, filter, spare filter, air regulator, vacuum hose and wand and system dolly. Requires 19cfm @ 80 psi.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
