USED MITUTOYO CRYSTA-APEX V122010 CMM / SCANNER

USED MITUTOYO CRYSTA-APEX V122010 CMM / SCANNER

Name: USED MITUTOYO CRYSTA-APEX V122010 CMM / SCANNER
Brand: MITUTOYO
SKU: 11262
Availability: PreOrder

Brand

MITUTOYO

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Overview

Type:

Coordinate Measuring Machines (Equipt)

Manufacturer:

MITUTOYO

Model:

Crysta Apex V122010

Year:

2021

Stock #:

11262

Status:

For Sale

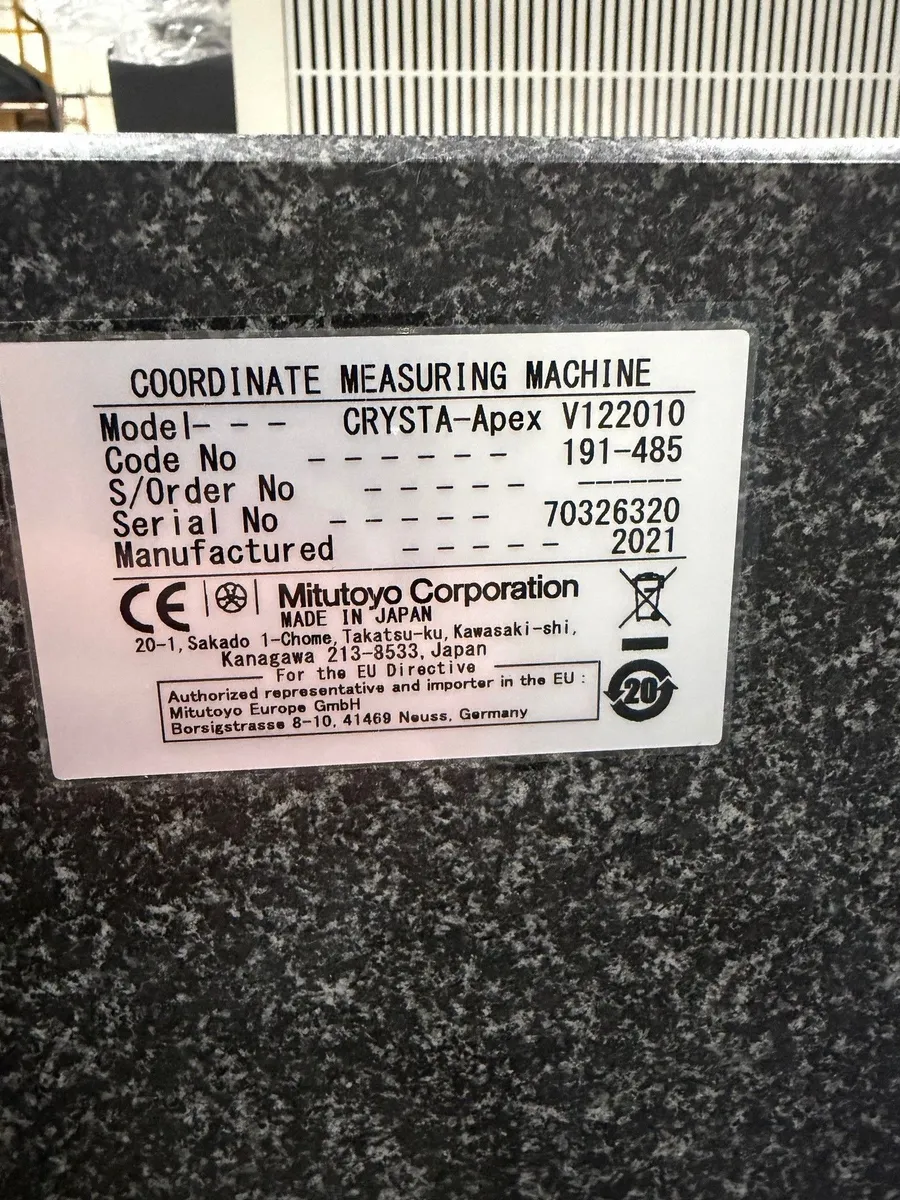

Serial #:

70326320

Description

Used 2021 Mitutoyo Crysta-Apex V122010 CMM/Scanner offers precise measurement with a Renishaw-equipped setup. Features include 47.2"x78.7"x39.3" travel, 5,511 lbs loading capacity, and air bearings. Comes with MCOSMOS-3 V5.0 software.

ImperialMetric

X-Axis	47.2"	1,198.9 mm
Y-Axis	78.7"	1,999 mm
Z-Axis	39.3"	998.22 mm

Brand: Mitutoyo
Model: Crysta-Apex V122010

Specifications:
X-axis travel: 47.2" (1200mm)
Y-axis travel: 78.7" (2000mm)
Z-axis travel: 39.3" (1000mm)
Table size: 55" x 116.7" (1400mm x 2965mm)
Max workpiece height: 47.2" (1200mm)
Max drive speed: 27.2 IPS 3-axis (693mm/s)
Driving acceleration: 39 IPS each axis (1000mm/s)
Loading weight: 5,511 Lbs. (2500kg)
Loading height: 39.3" (1000mm)
Measuring method: Linear encoder

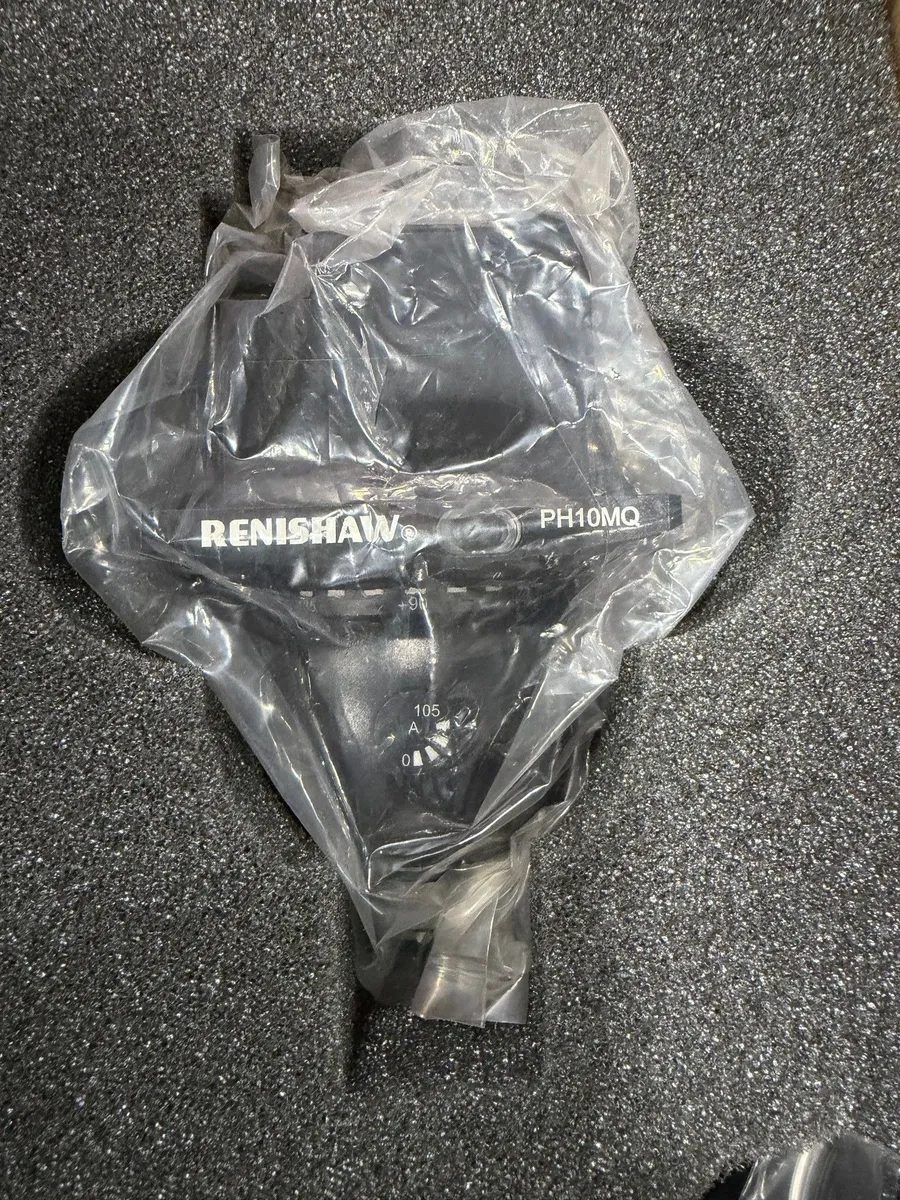

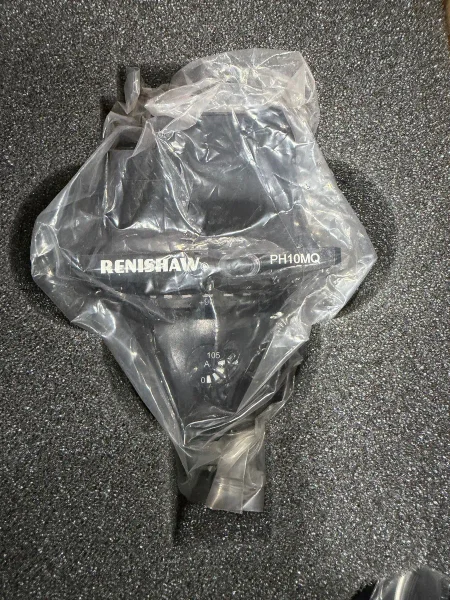

Renishaw PH10MQ Plus probe head

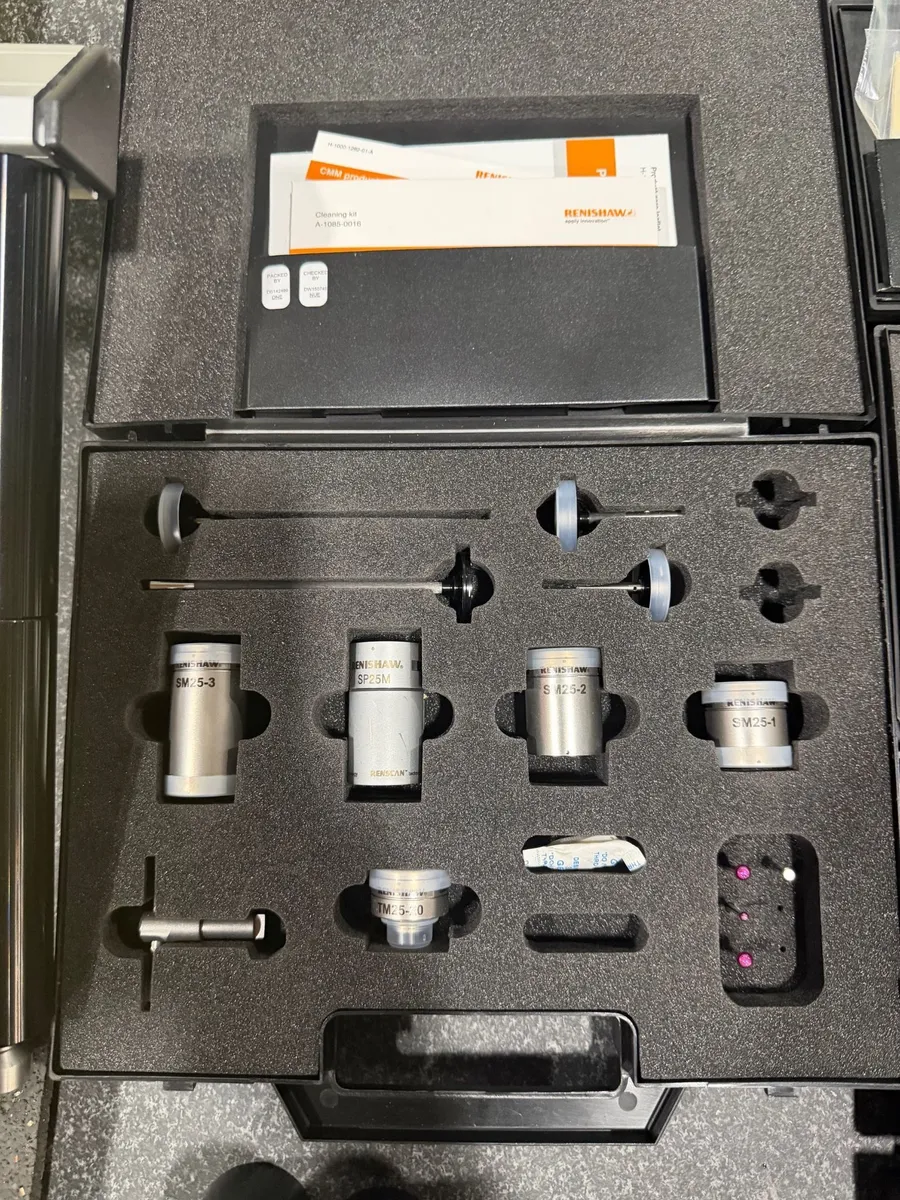

Renishaw SM25-3 scanning module
Renishaw SM25-2 scanning module
Renishaw SM25-1 scanning module

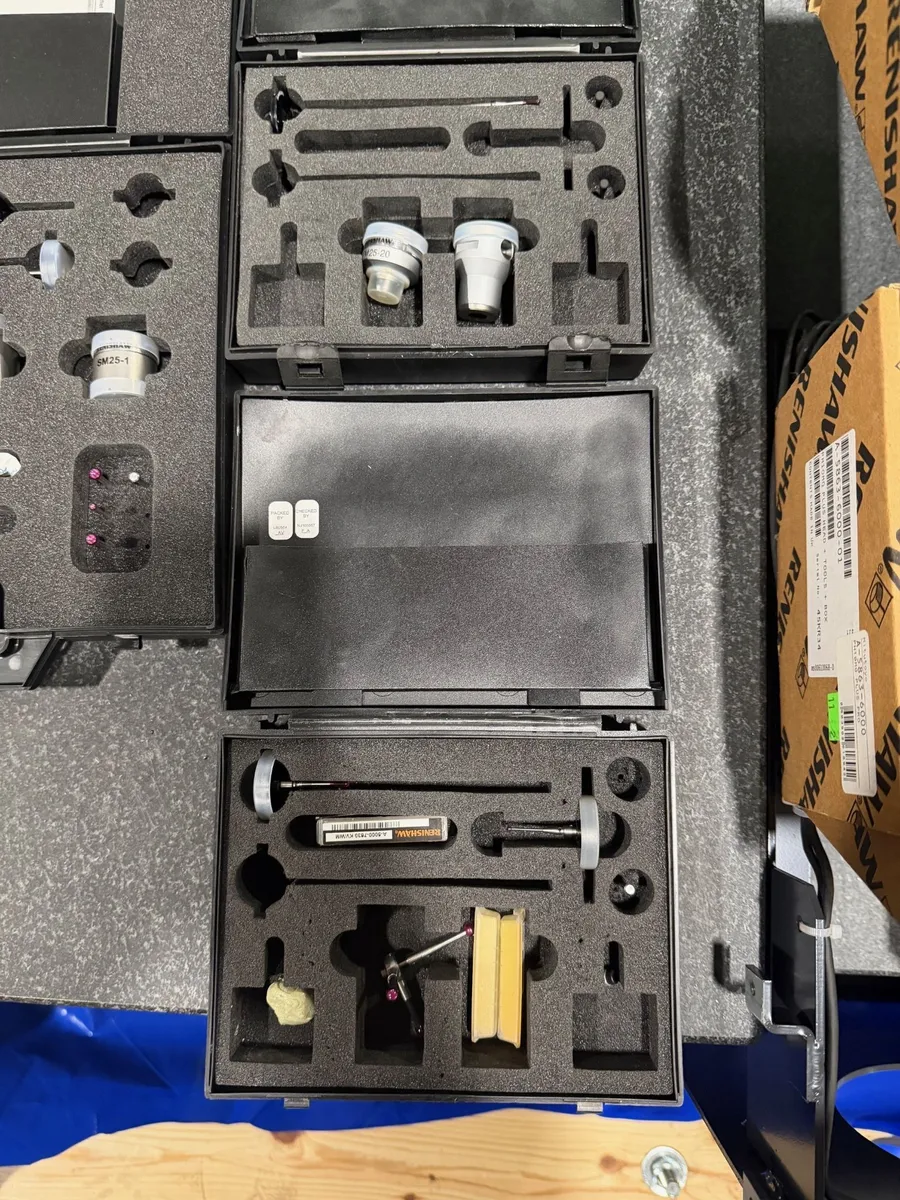

Renishaw SP25M scanning probe kit
Renishaw TM25-20 touch-trigger probe module

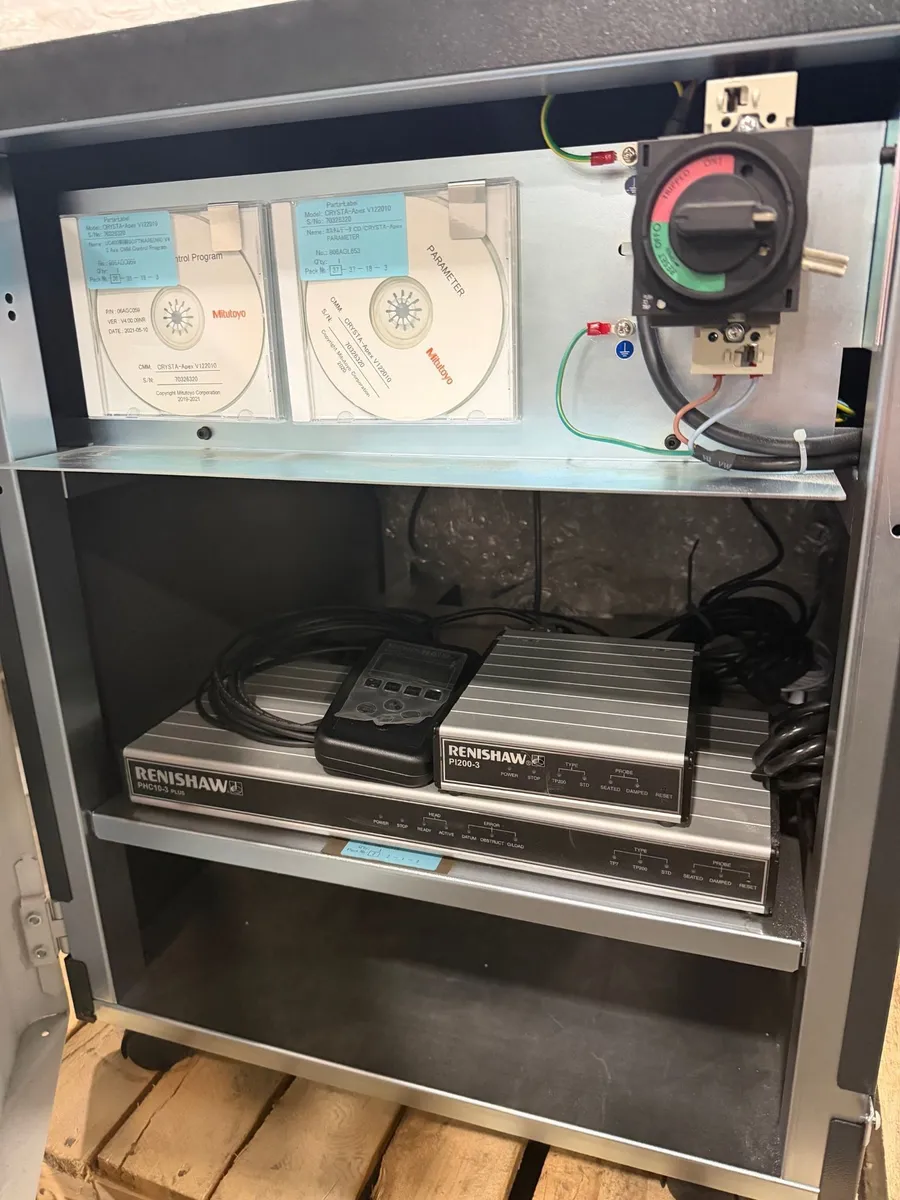

Renishaw PHC 10-3 plus probe head controller
Renishaw PI200-3 probe head controller

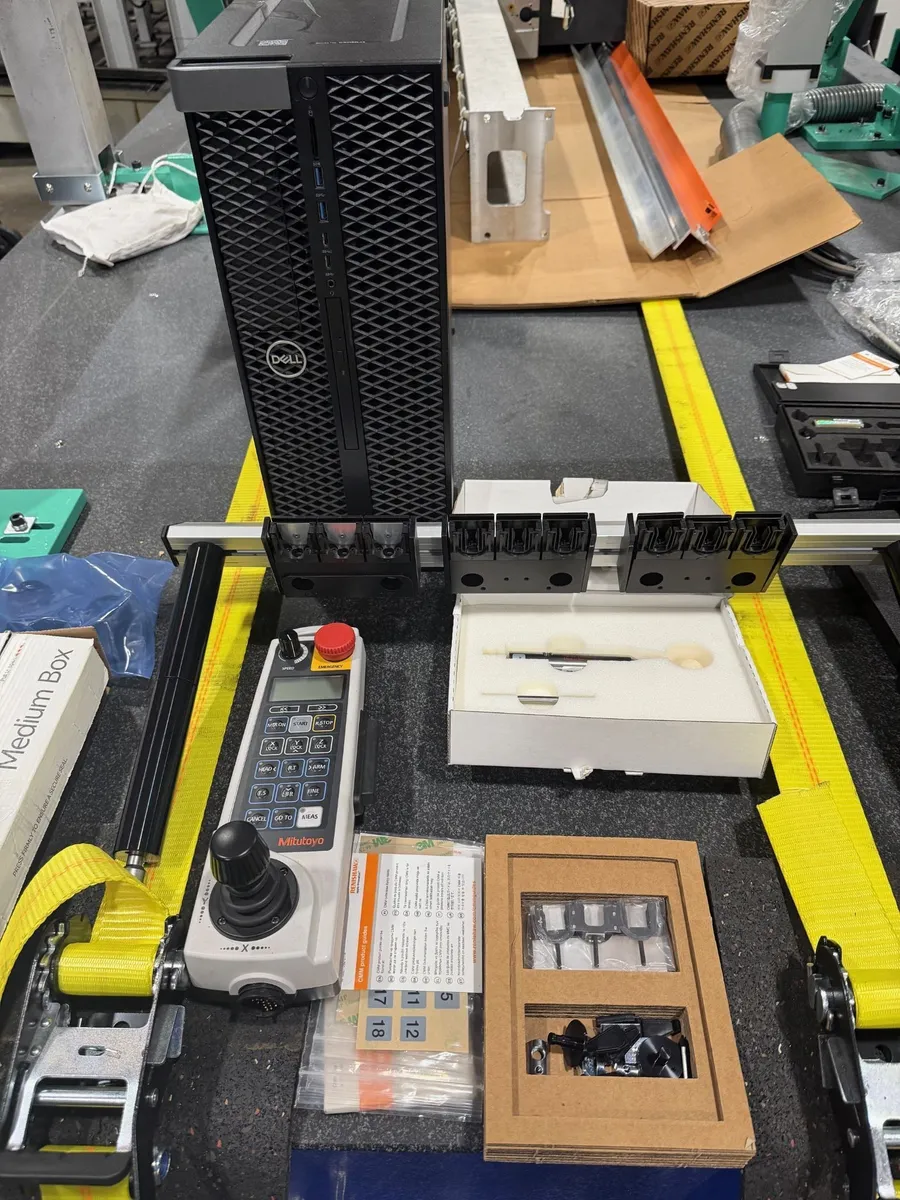

Mitutoyo JSBOXV2-V pendent controller with joystick
Mitutoyo 20mm calibration ball

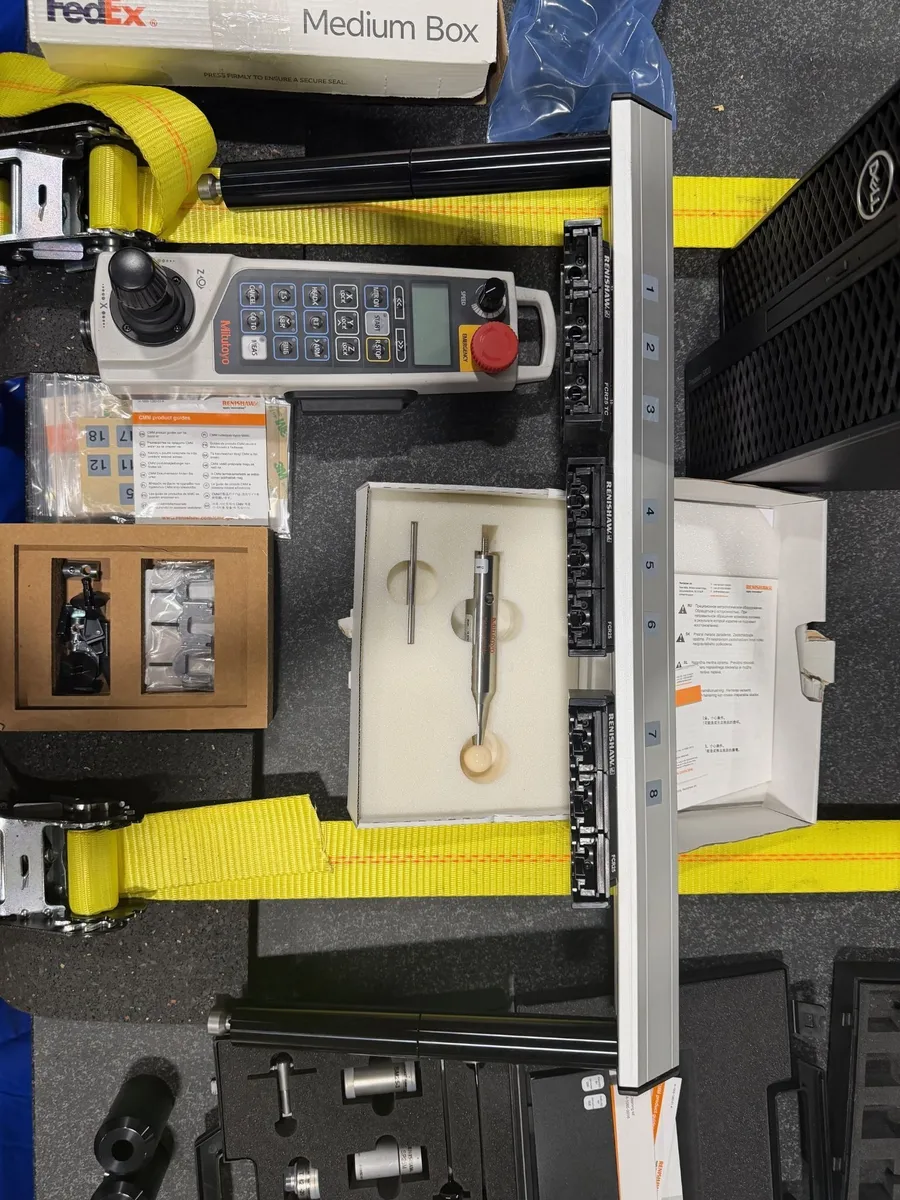

Renishaw FCR25 flexible change rack unit
Ametek Powervar 12 power conditioner

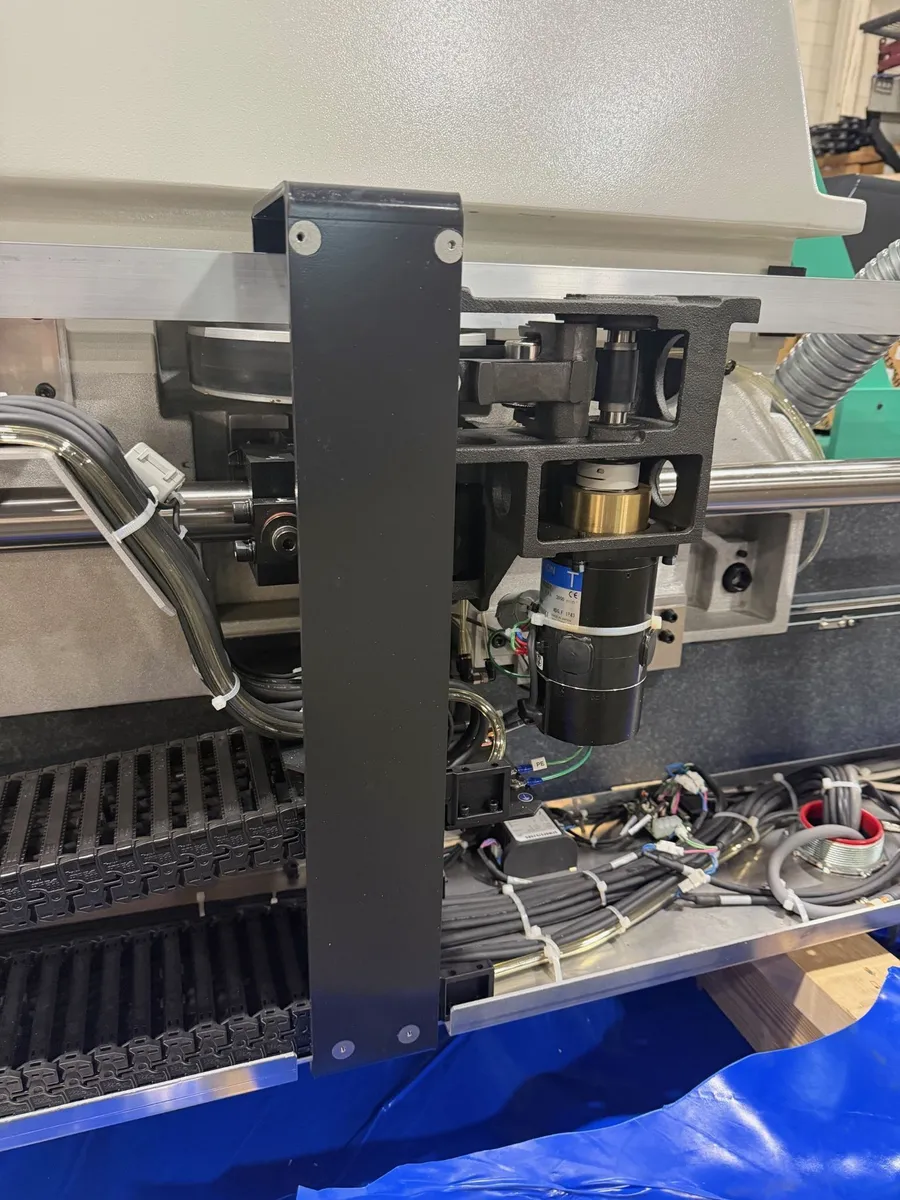

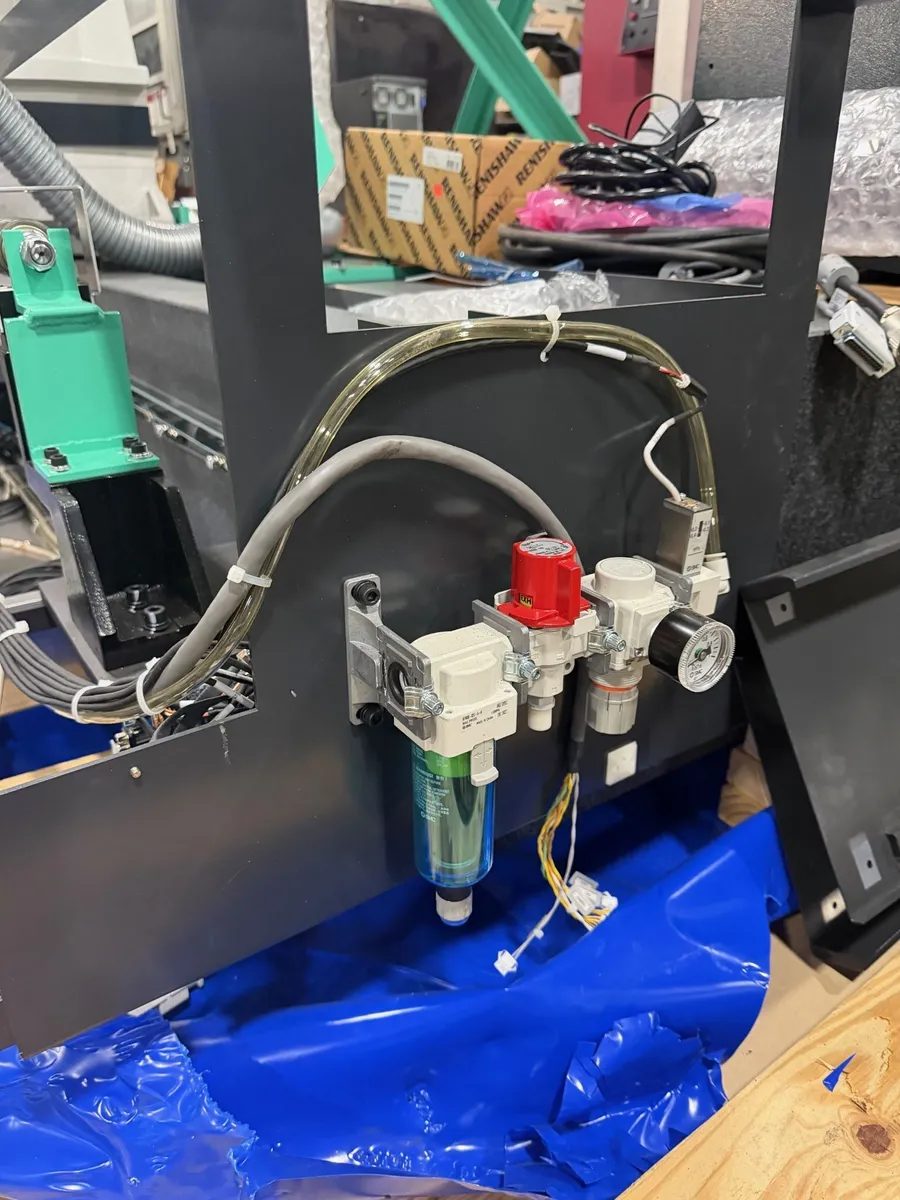

All 3-axis ride on air bearings
PC with MCOSMOS-3 V5.0 software
Last calibrated 10/3/2024

Machine is "like new". Unit was used to measure two seats for an electric vehicle project that was cancelled.

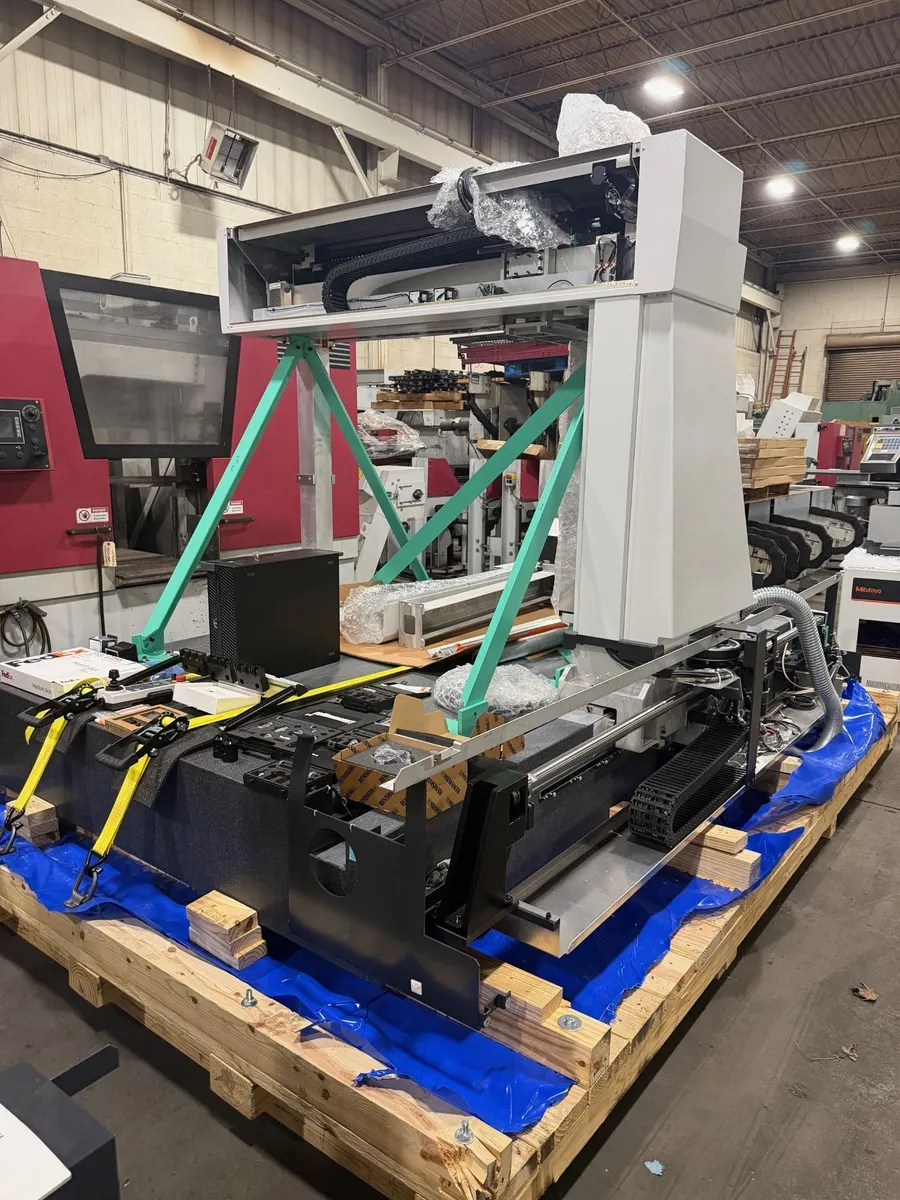

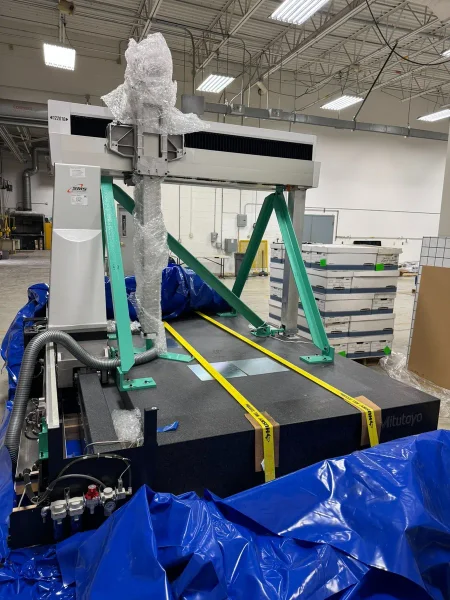

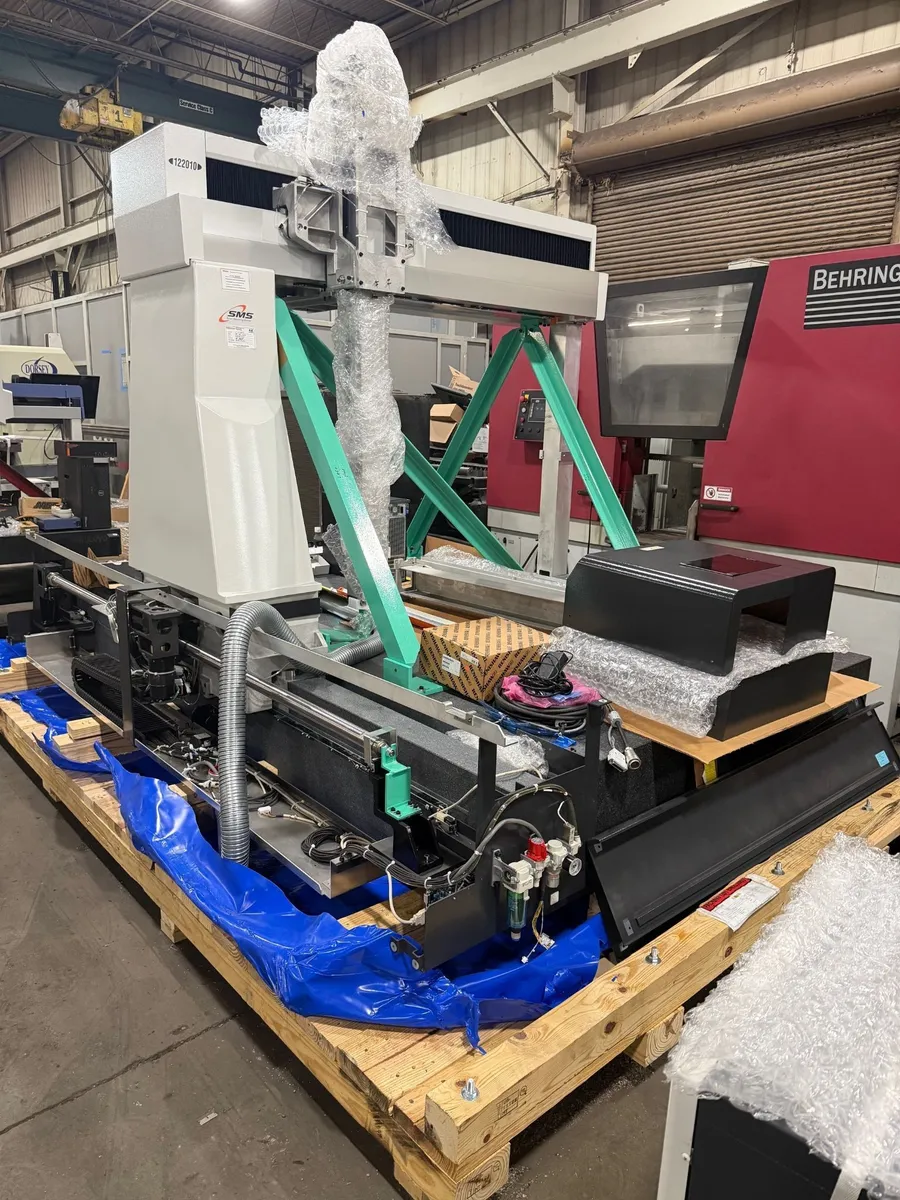

Machine was decommissioned and packaged by Mitutoyo
