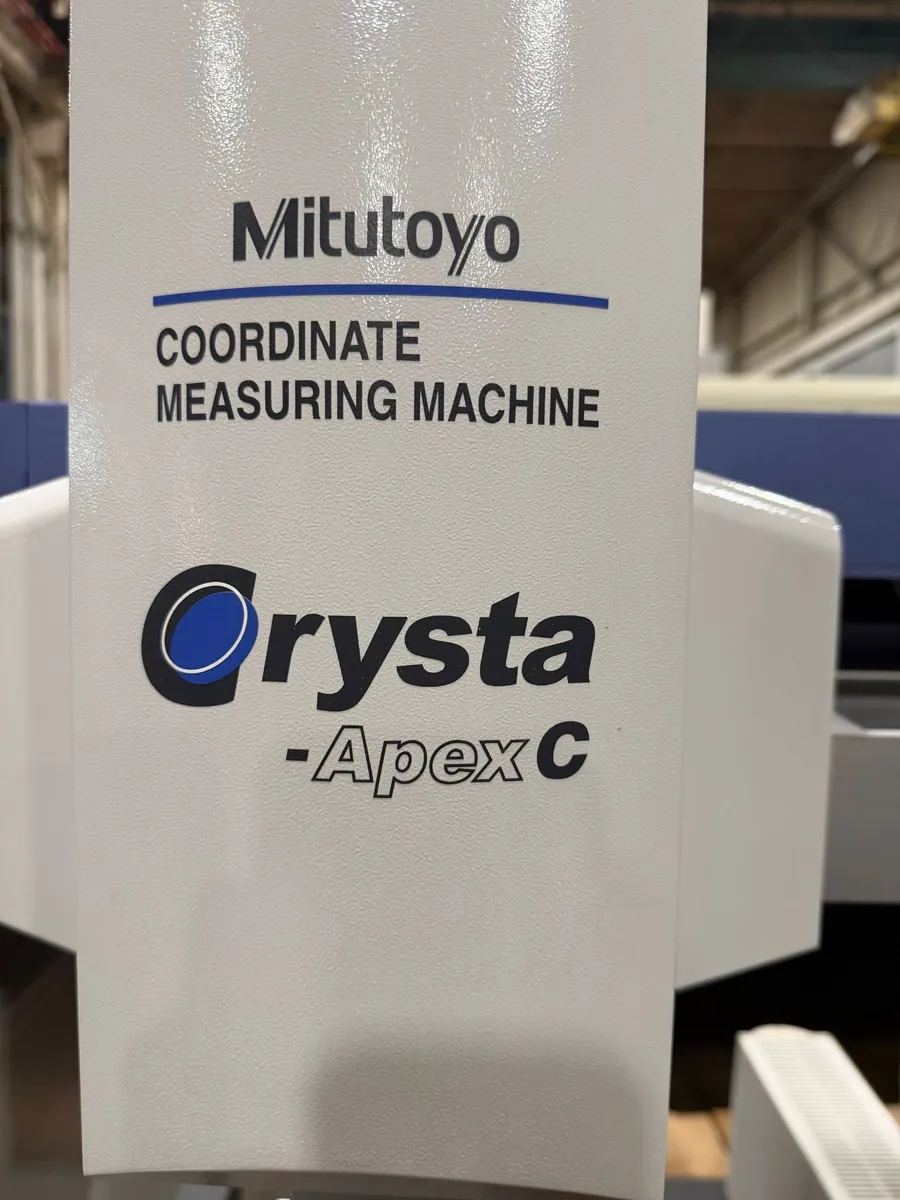

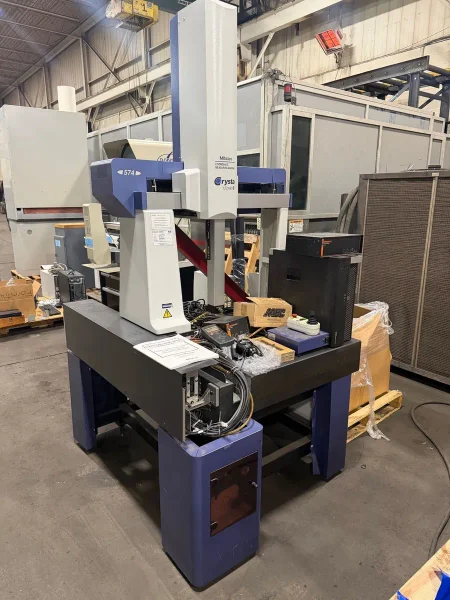

USED MITUTOYO CRYSTA-APEX C574 20" X 28" CMM

USED MITUTOYO CRYSTA-APEX C574 20" X 28" CMM

Name: USED MITUTOYO CRYSTA-APEX C574 20" X 28" CMM
Brand: MITUTOYO
SKU: 11263
Availability: PreOrder

Brand

MITUTOYO

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Overview

Type:

Coordinate Measuring Machines (Equipt)

Manufacturer:

MITUTOYO

Model:

Crysta Apex C574

Year:

2005

Stock #:

11263

Status:

For Sale

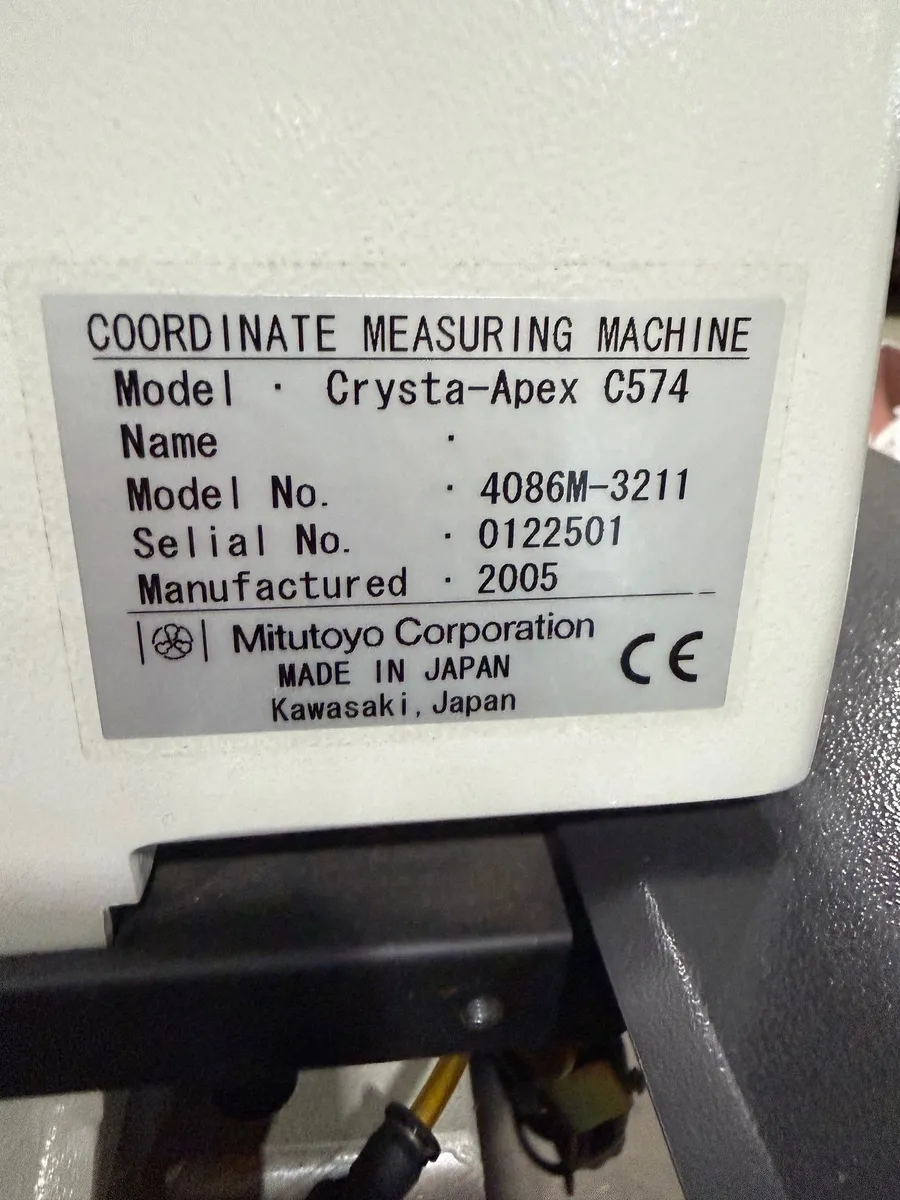

Serial #:

0122501

Description

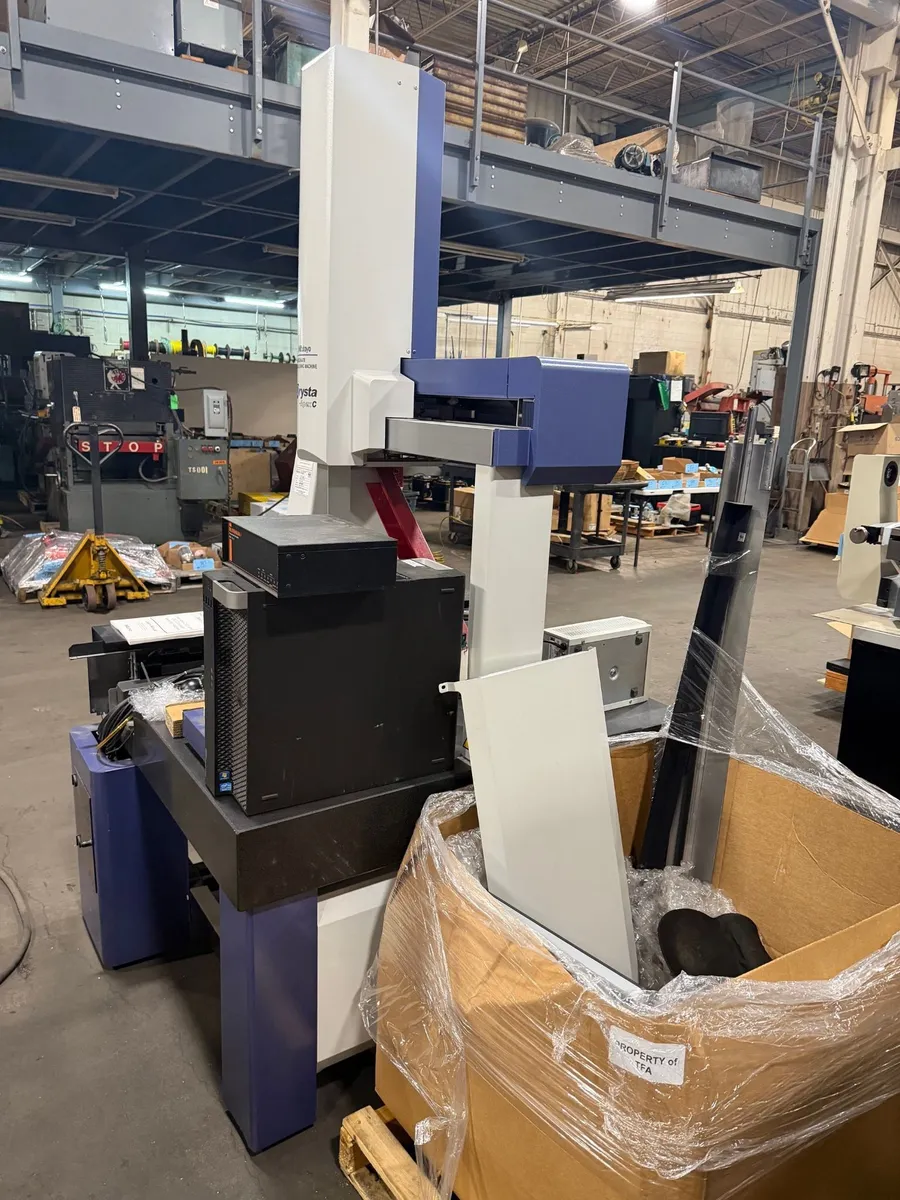

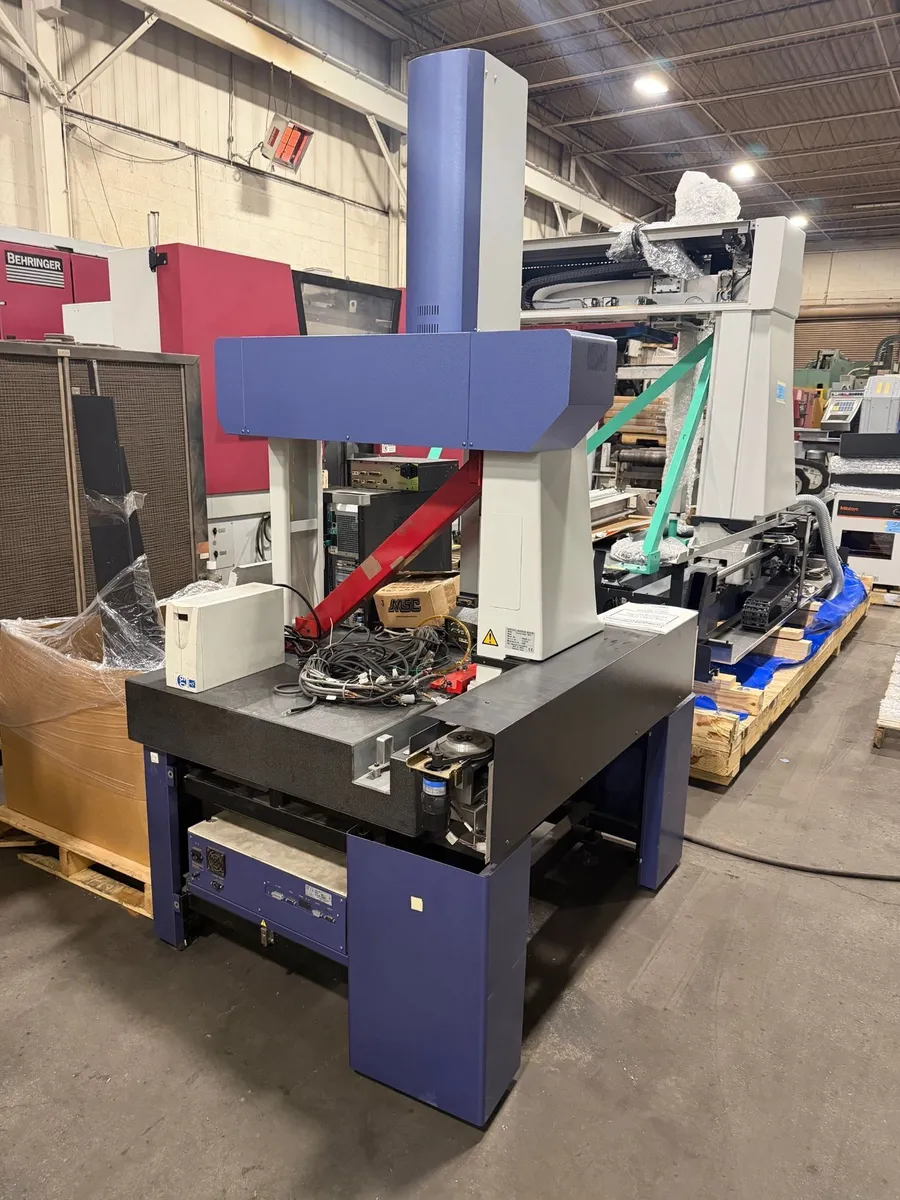

2005 Mitutoyo Crysta-Apex C574 used CMM available, offering a 20"x28" measuring range. Features include a Renishaw PH10M probe head and joystick control. Measures 44"x43"x86", weighing 1,158 lbs. Advanced CNC and joystick capabilities.

ImperialMetric

X-Axis	19.88"	504.95 mm
Y-Axis	27.75"	704.85 mm
Z-Axis	15.94"	404.88 mm
Dimensions	44" x 42" x 86"	44" x 42" x 86"
Weight	1,158 Lbs.	1,158 Lbs.

Brand: Mitutoyo
Model: Crysta-Apex C574

Specifications:
Measuring table: 25.12" x 29.46" (638mm x 1160mm)
Max workpiece height: 21.46" (545mm)
CNC drive speed: .31-11.81 IPS 3-axis (8-300mm/s) each axis, 20.43 IPS (519mm/s) maximum composite speed
Joystick moving speed: 0-3.15 IPS (0-80mm/s)
Joystick measuring speed: 0-.12 IPS (0-3mm/s)
Maximum driving acceleration: 50.16 IPS (1274mm/s) each axis, 88.74 IPS (2254mm/s) composite acceleration
Loading weight: 397 lbs. (180kg)
Measuring method: Linear encoder
Air supply: 50 L/min.
Dimensions: 44.17" x 42.6" x 86.02"
Machine weight: 1,158 Lbs

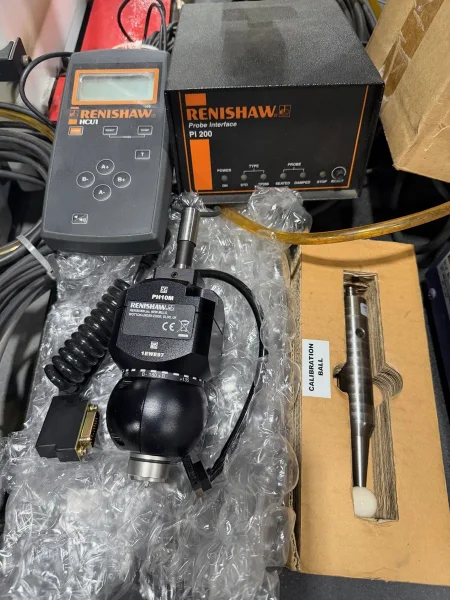

Renishaw PH10M probe head
Renishaw HCUI hand head control

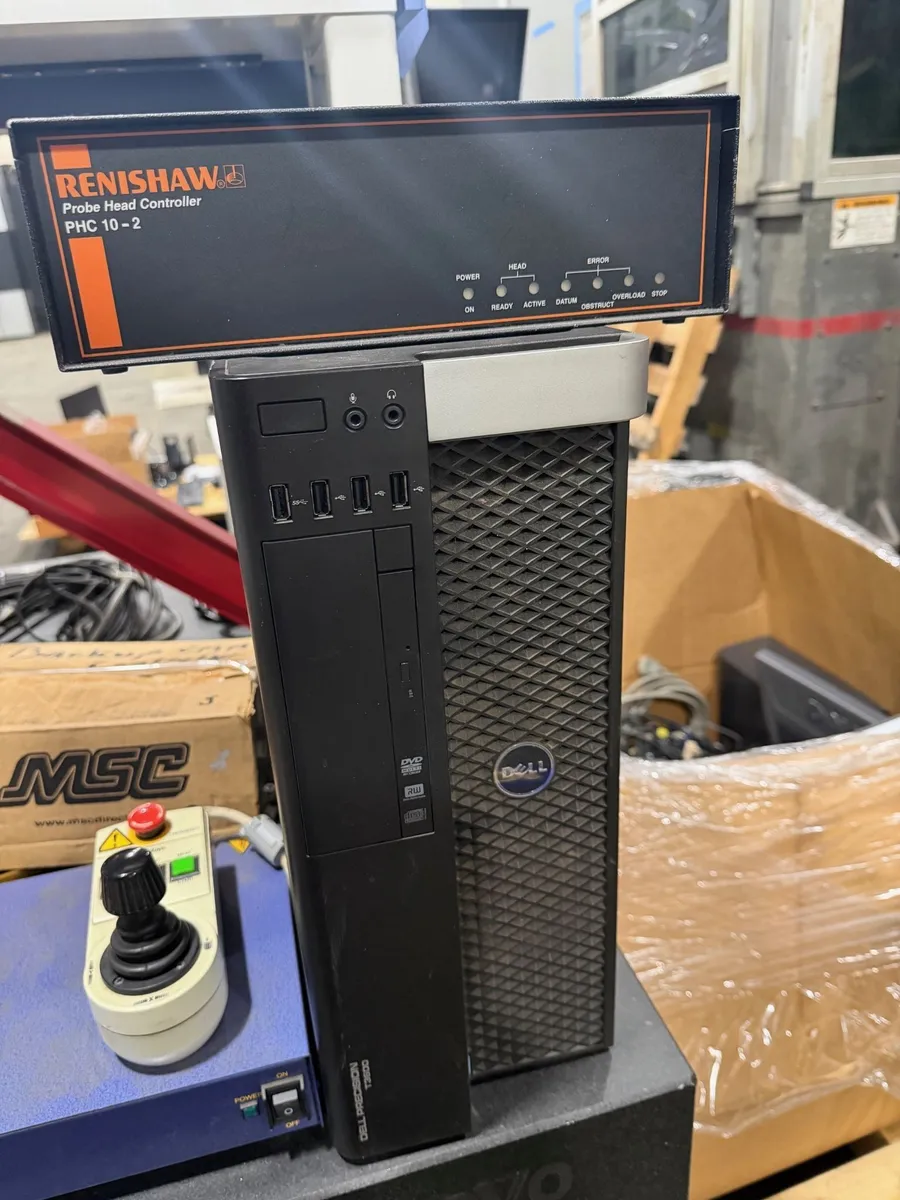

Renishaw PHC 10-2 probe head controller
Renishaw PI 200 probe head interface
Mitutoyo TEMP IF-UC3 power supply

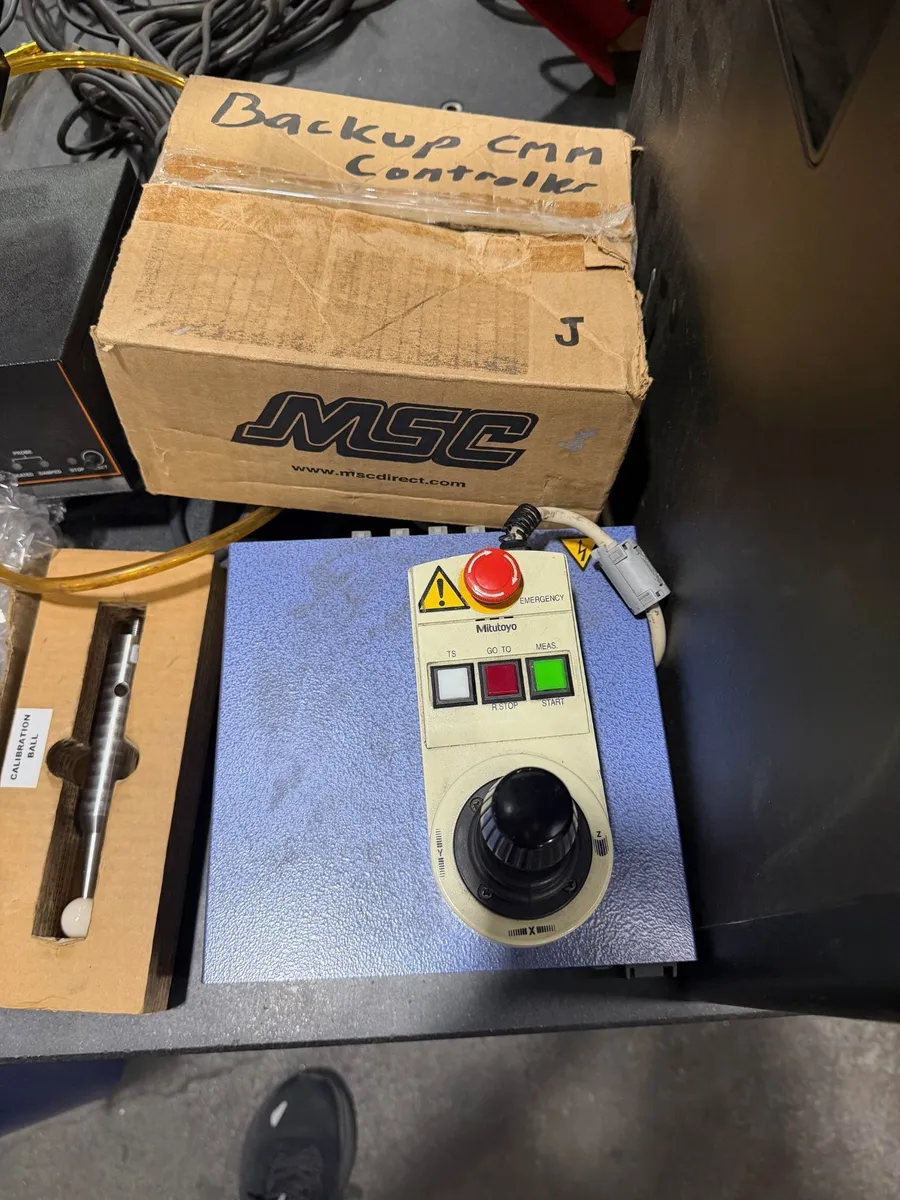

Mitutoyo JS-boxuc joystick pendent control
20mm calibration ball

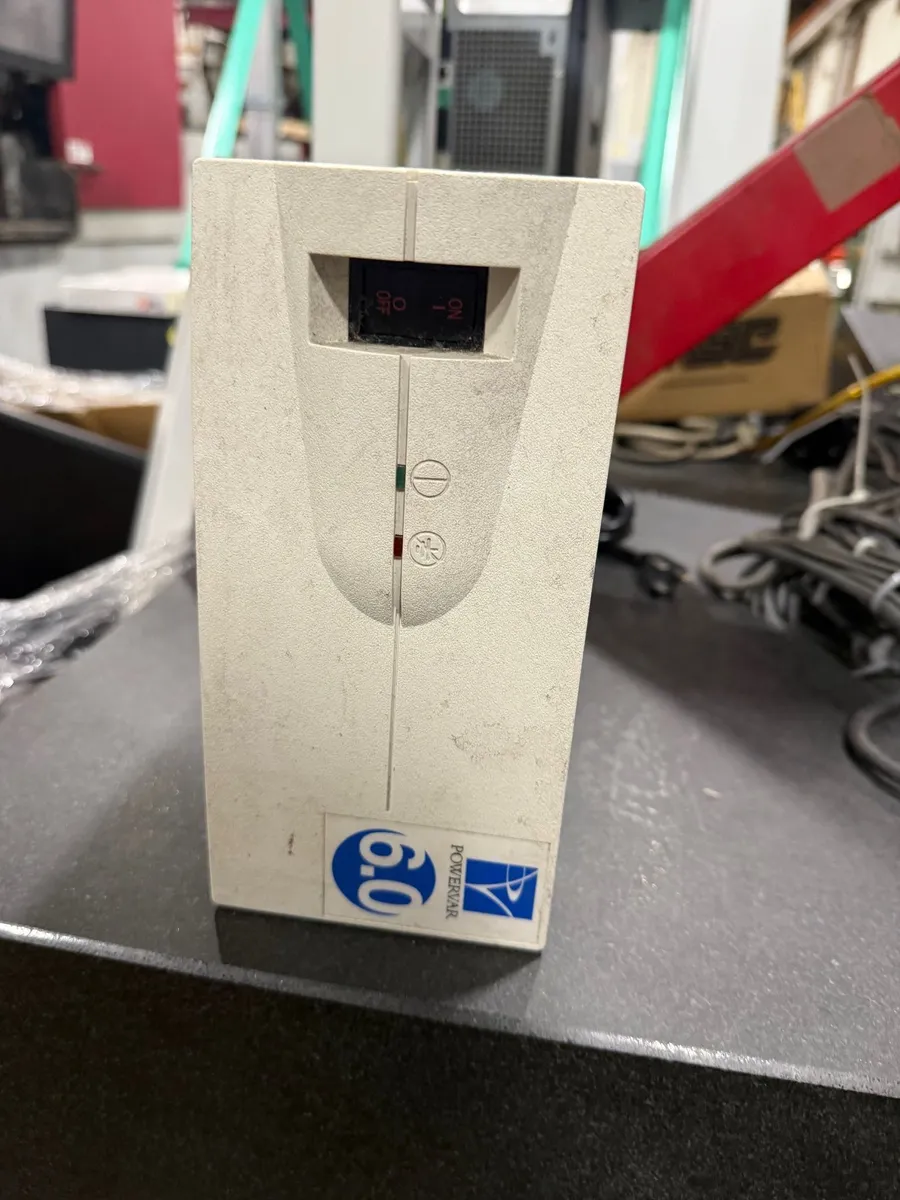

Powervar 6.0 power conditioner

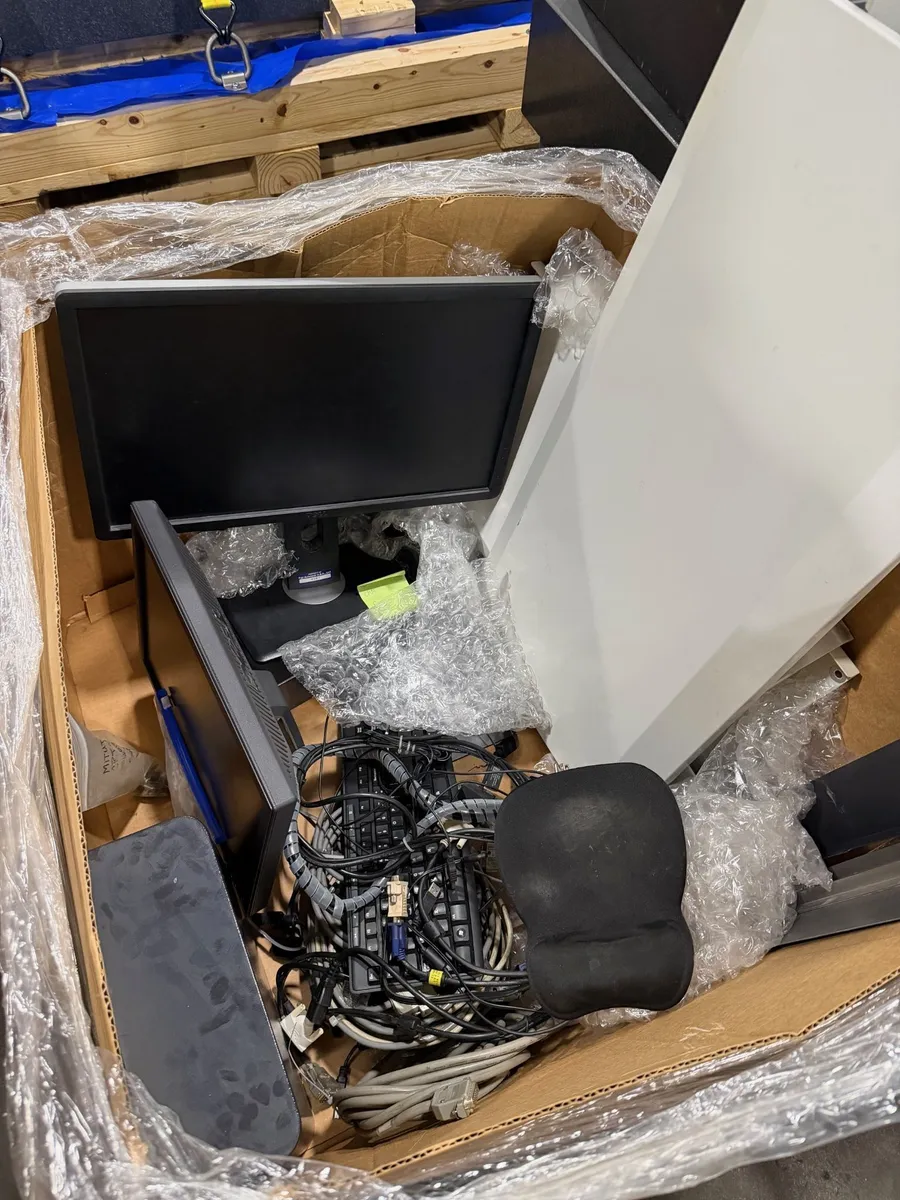

PC with MCOSMOS v3.4 software

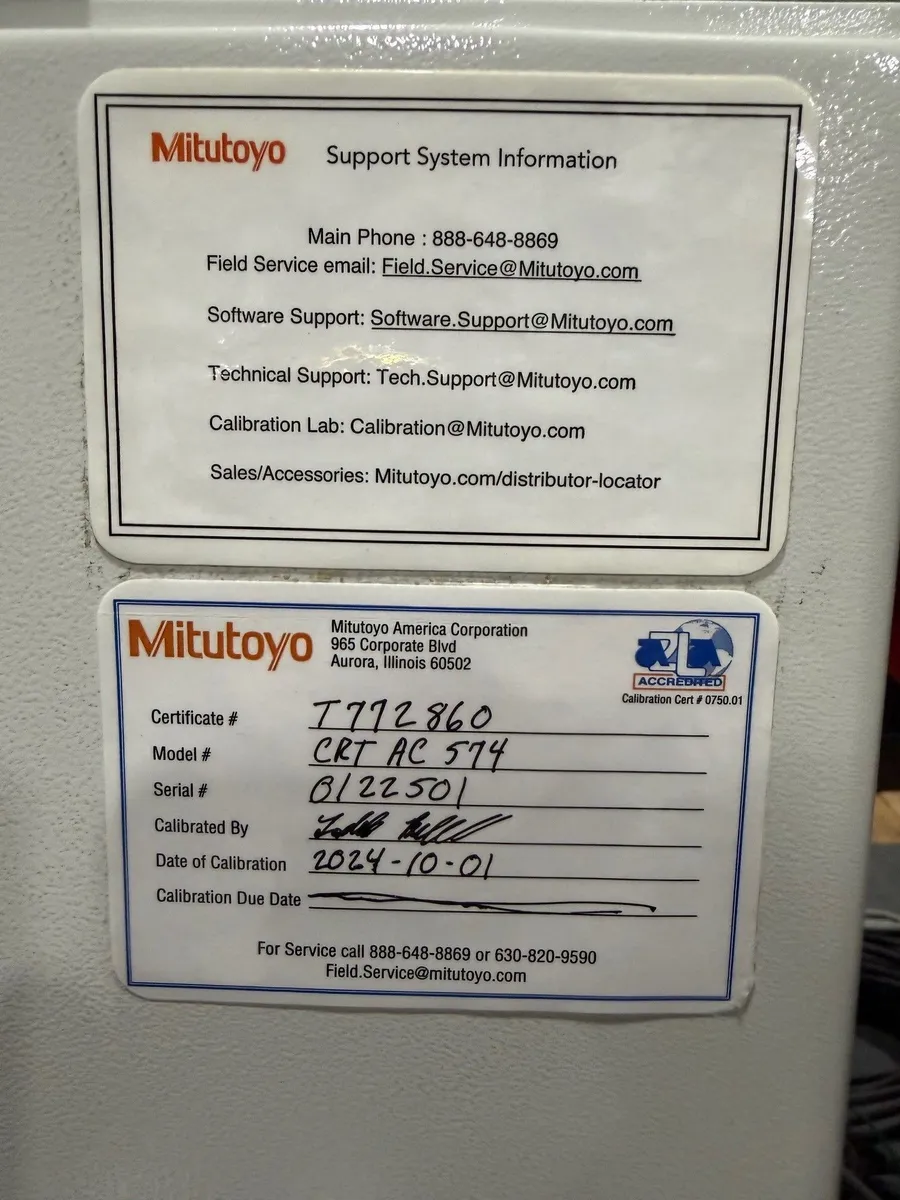

Last calibrated on 10/1/2024
