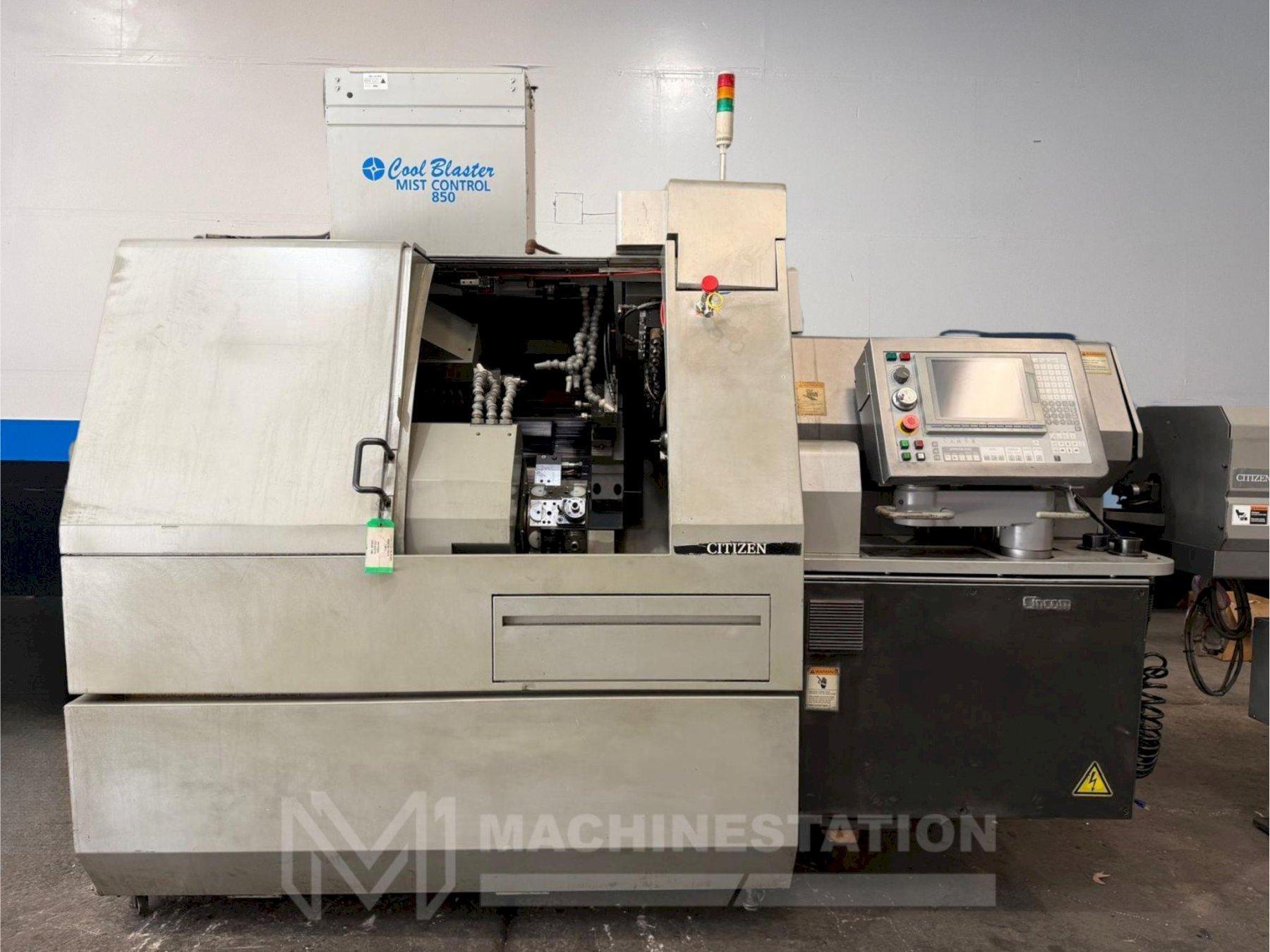

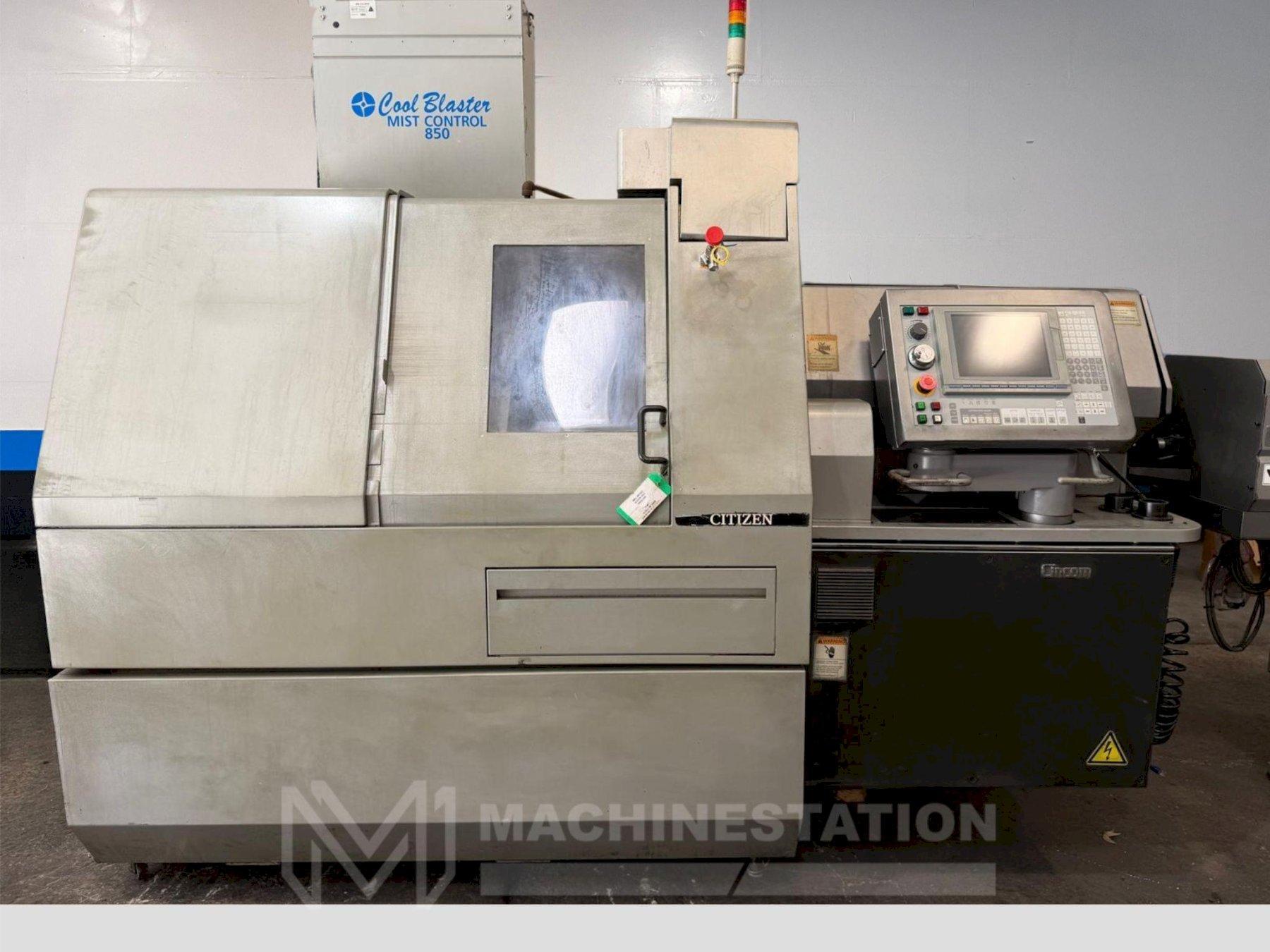

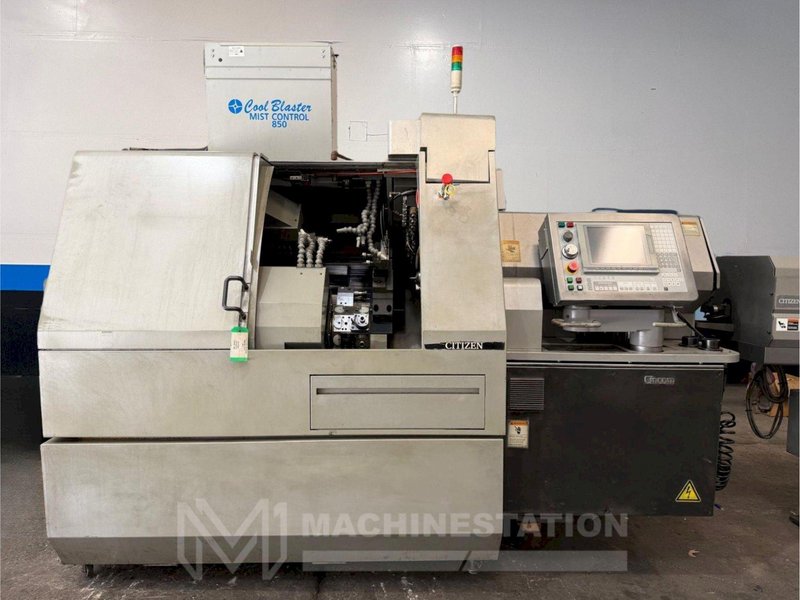

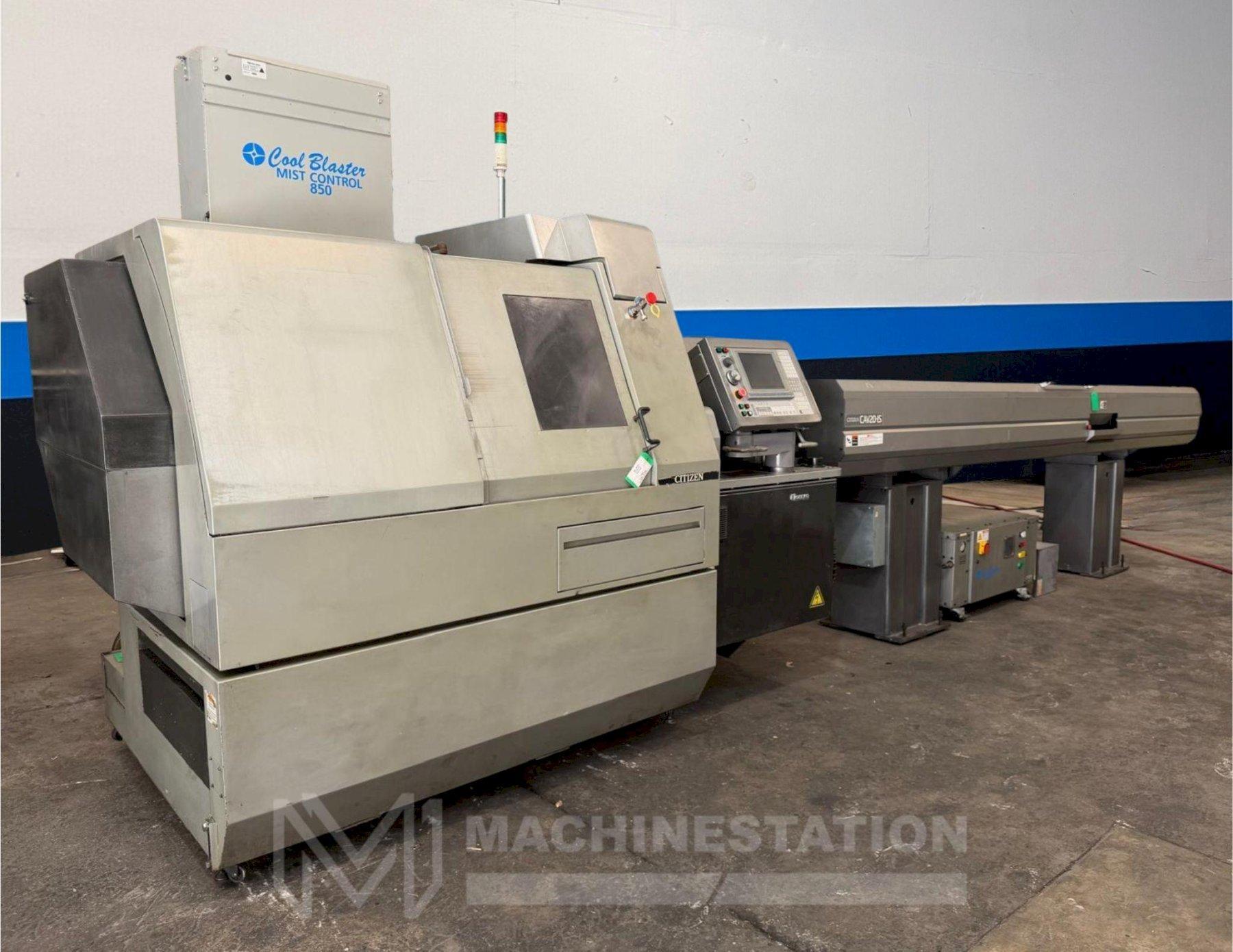

Name: Citizen Cincom M20V CNC Swiss Type Automatic Lathe – Bar Feeder
Brand: CITIZEN
SKU: 113540
Availability: PreOrder

Brand

CITIZEN

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

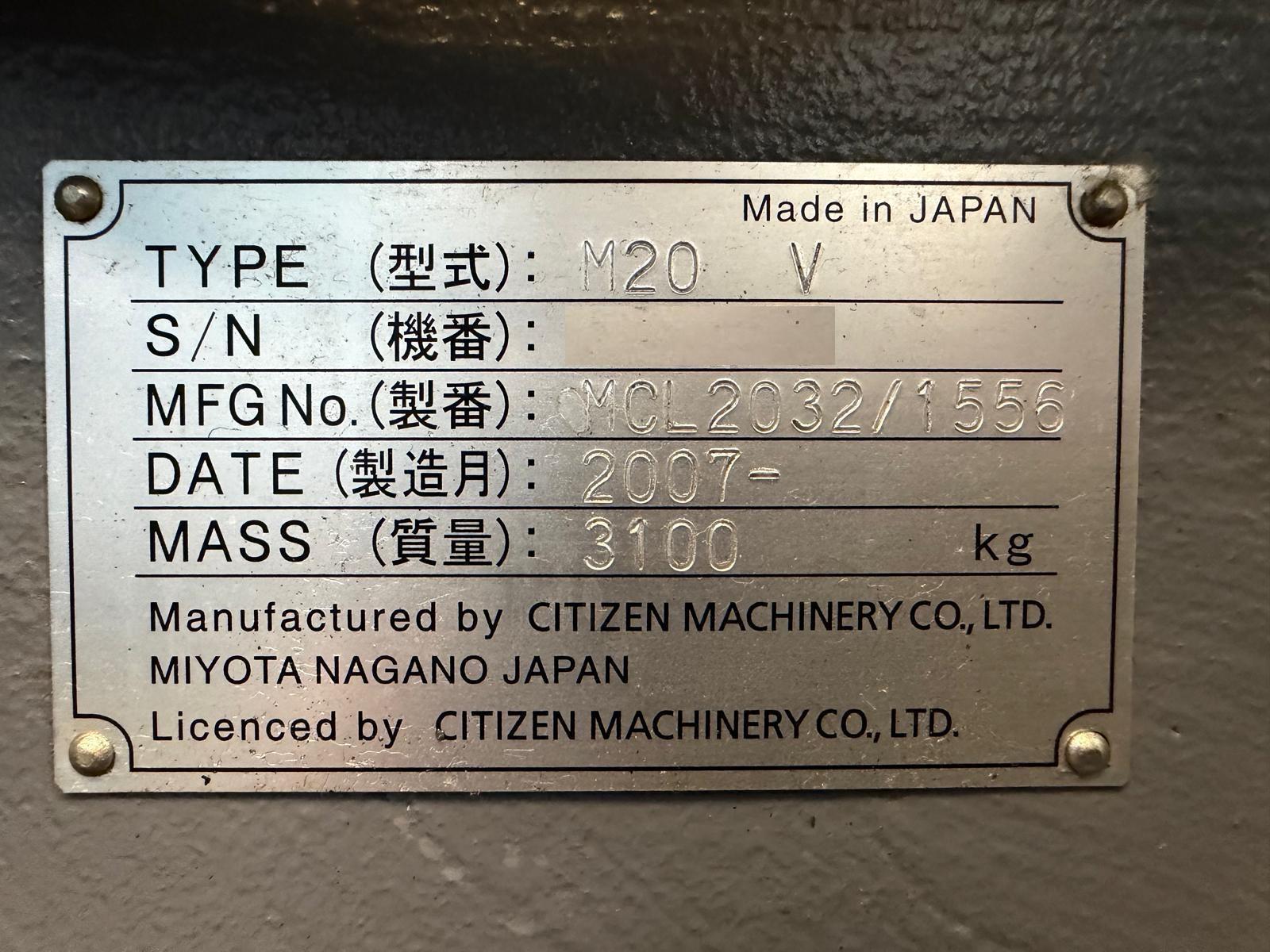

Make:	Citizen Cincom
Model:	M20V
Year:	2007
Condition:	Used – Good

Equipped With:

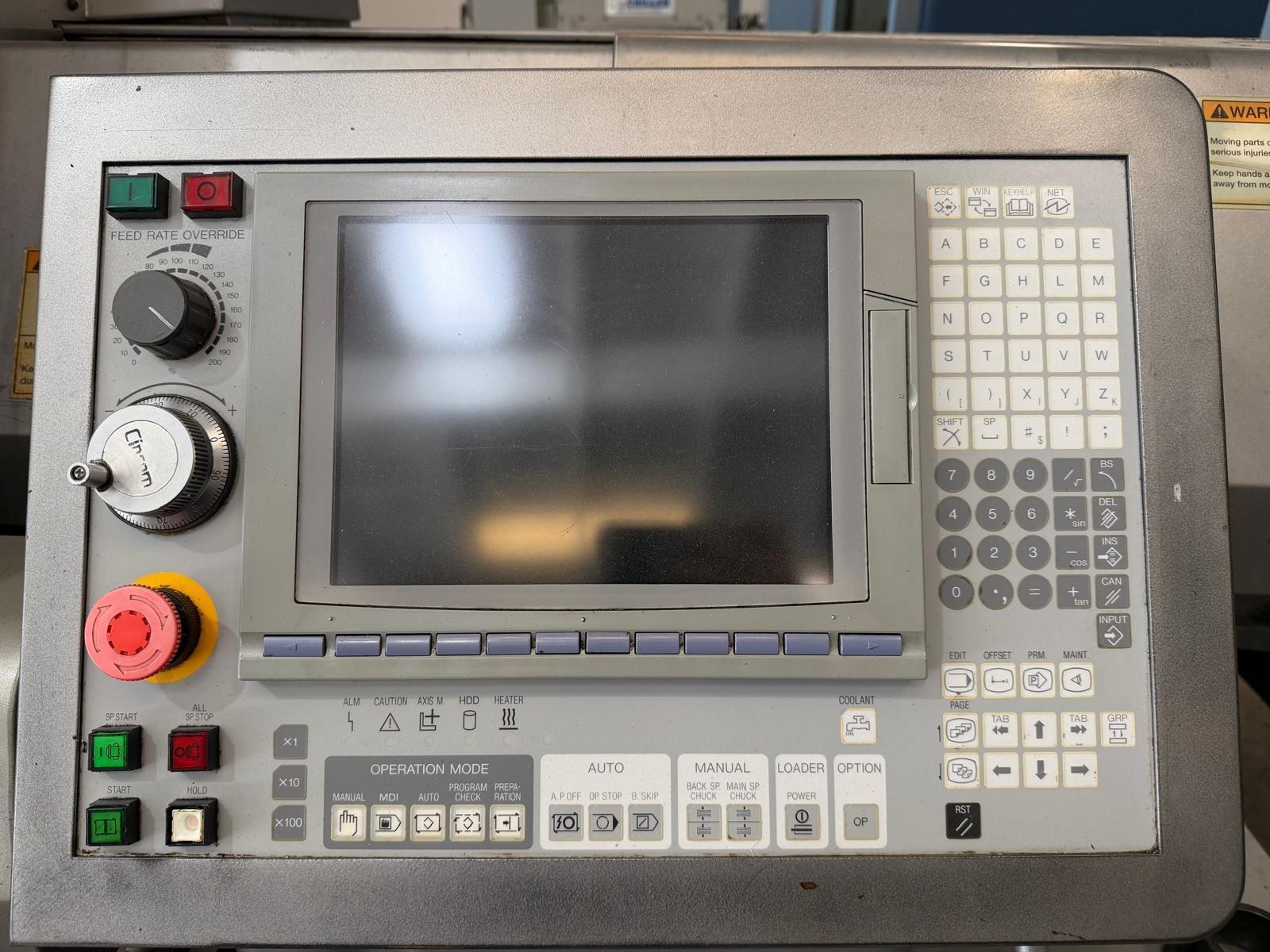

Citizen Cincom CNC Control
Controlled Axes (Liner Axes) X1, X2, X3, Y1, Z1, Z2, Z3

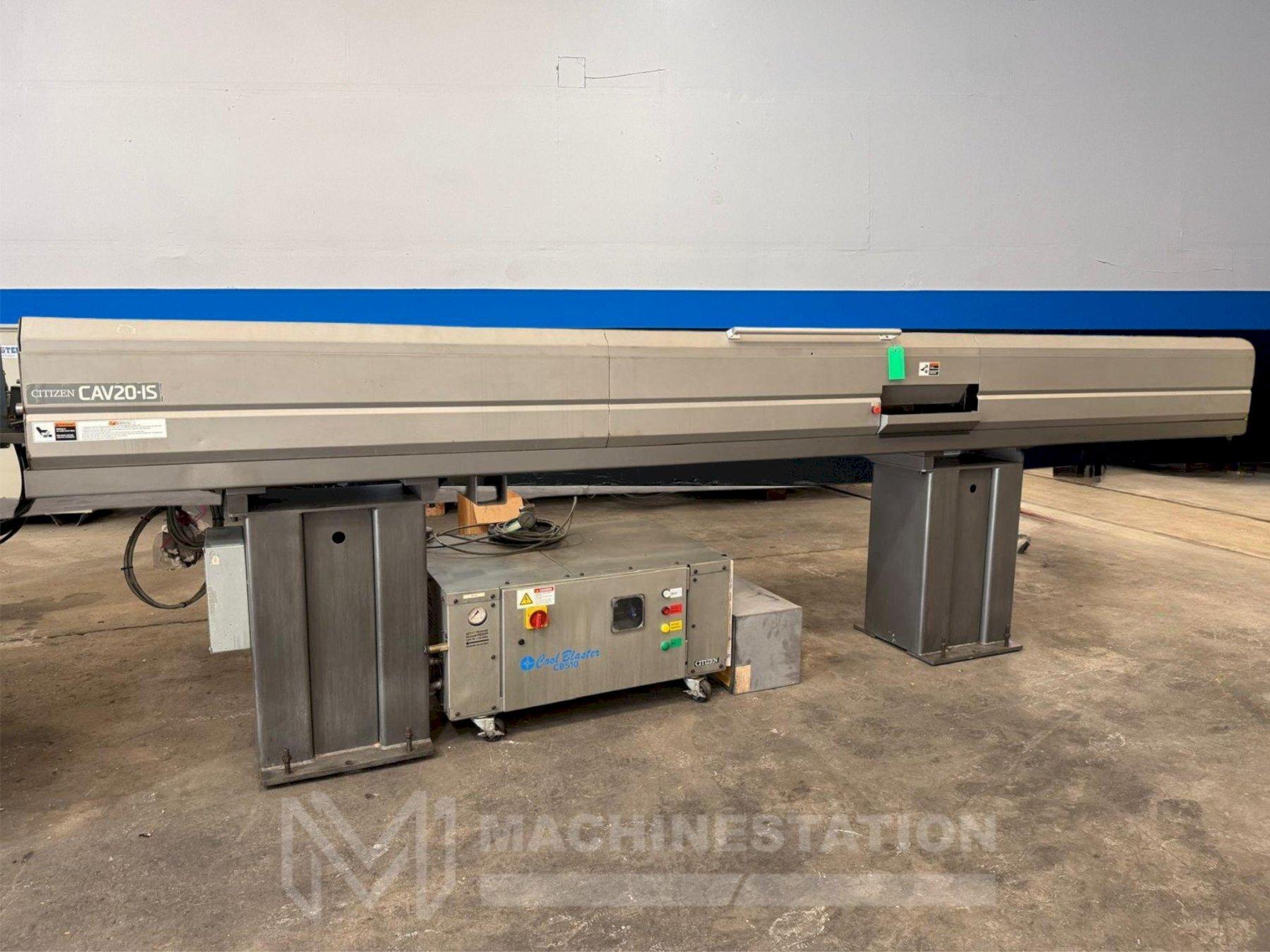

Comes with Citizen CAV20-IS Bar Feeder

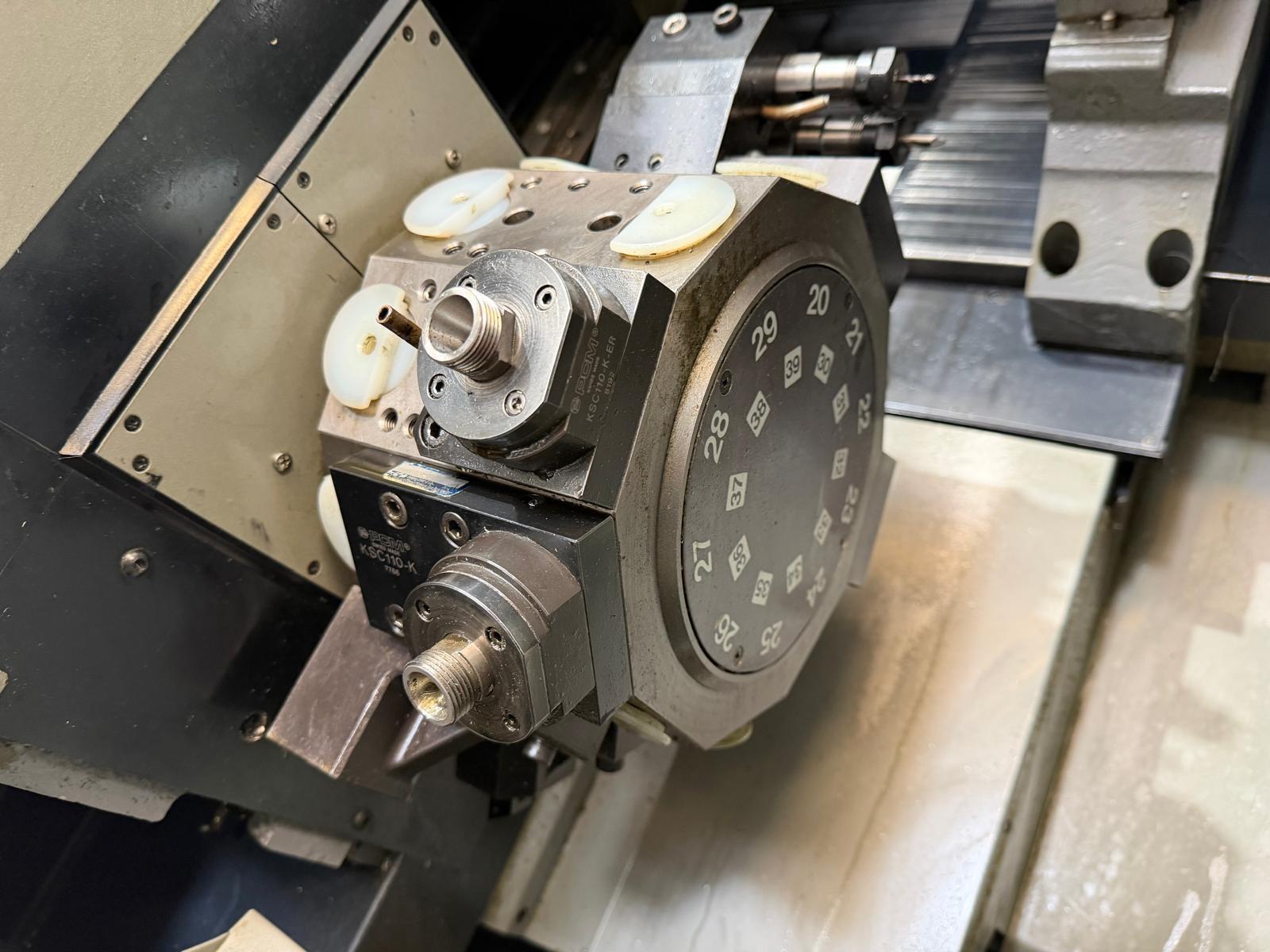

10 Station (20 Positions) Live Tool Automatic Turret
Back Spindle
C & Y Axis Capable
Live Tools Capable
Long Parts Capable
MPG Control
Main & Back Spindle Synchronization
Automatic Lubrication System
Cool Blaster Mist Control 850 Unit

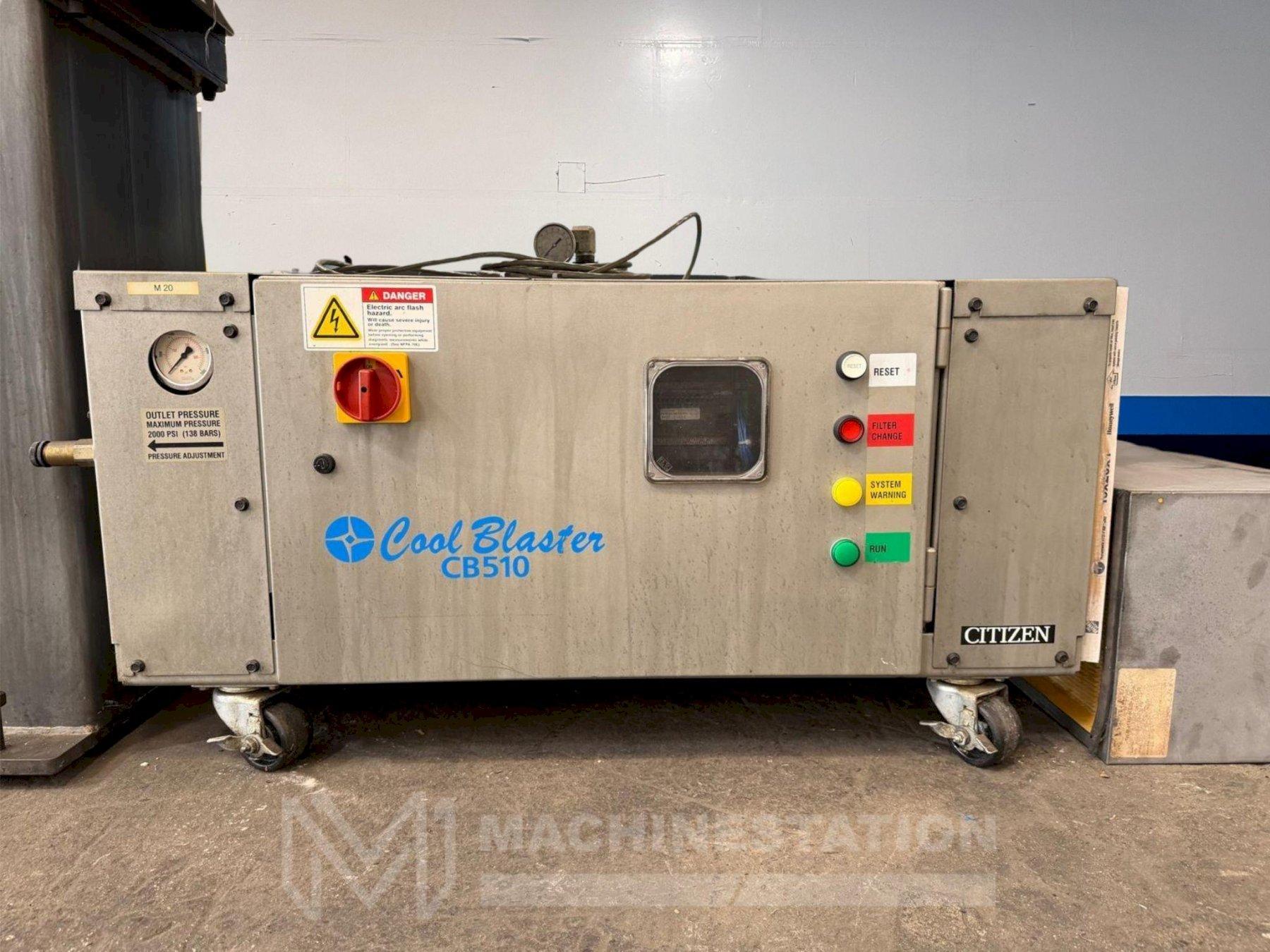

Cool Blast CB510 Unit
Coolant System

Capacity:
Max Turning Diameter: 0.79″ (20 mm)
Max Turning Length: 12.59″ (320 mm)
Max Bar Capacity: 0.79″ (20 mm)

Spindle:
Main Spindle Indexing: 360° (Full C-Axis)
Main Spindle Bore: 0.79″ (20 mm)
Main Spindle Speed: 200 – 10,000 RPM
Main Spindle Motor: 5 HP

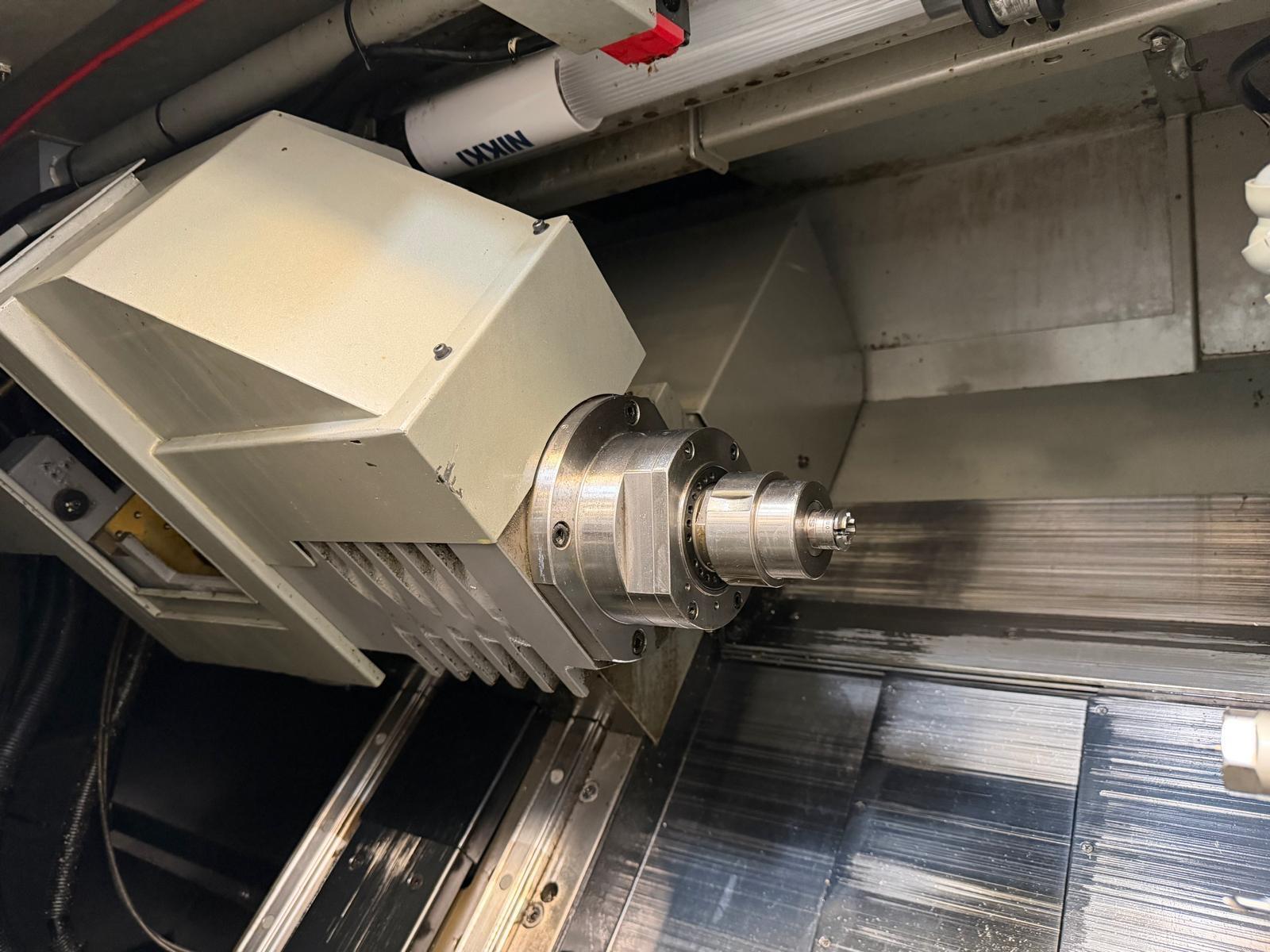

Back Spindle Indexing: 360° (Full C-Axis)
Back Spindle Speed: 200 – 8,000 RPM
Back Spindle Motor: 3 HP

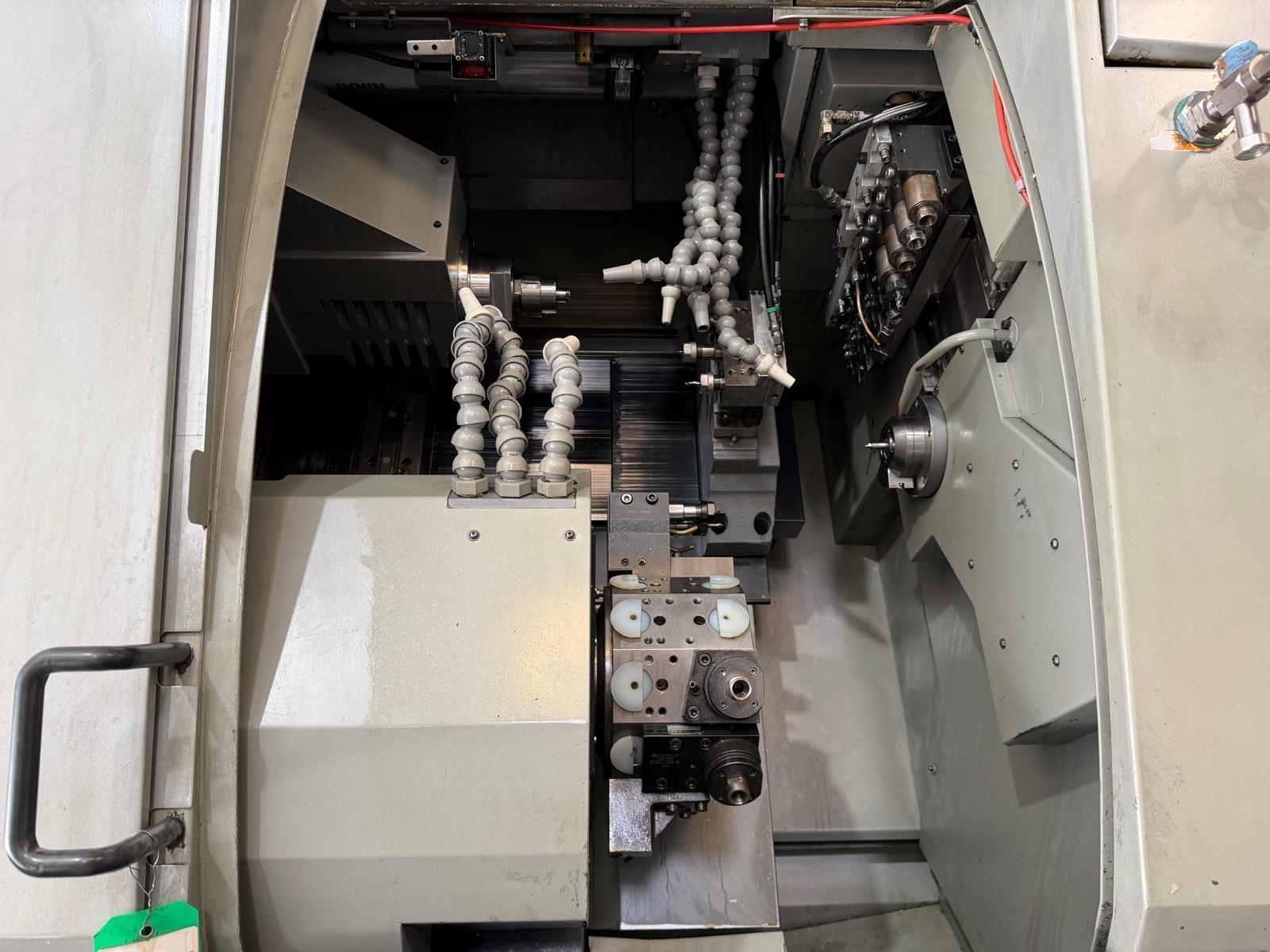

Turret & Gang Tooling:
Turret Tools: 10 Station (20 Positions)

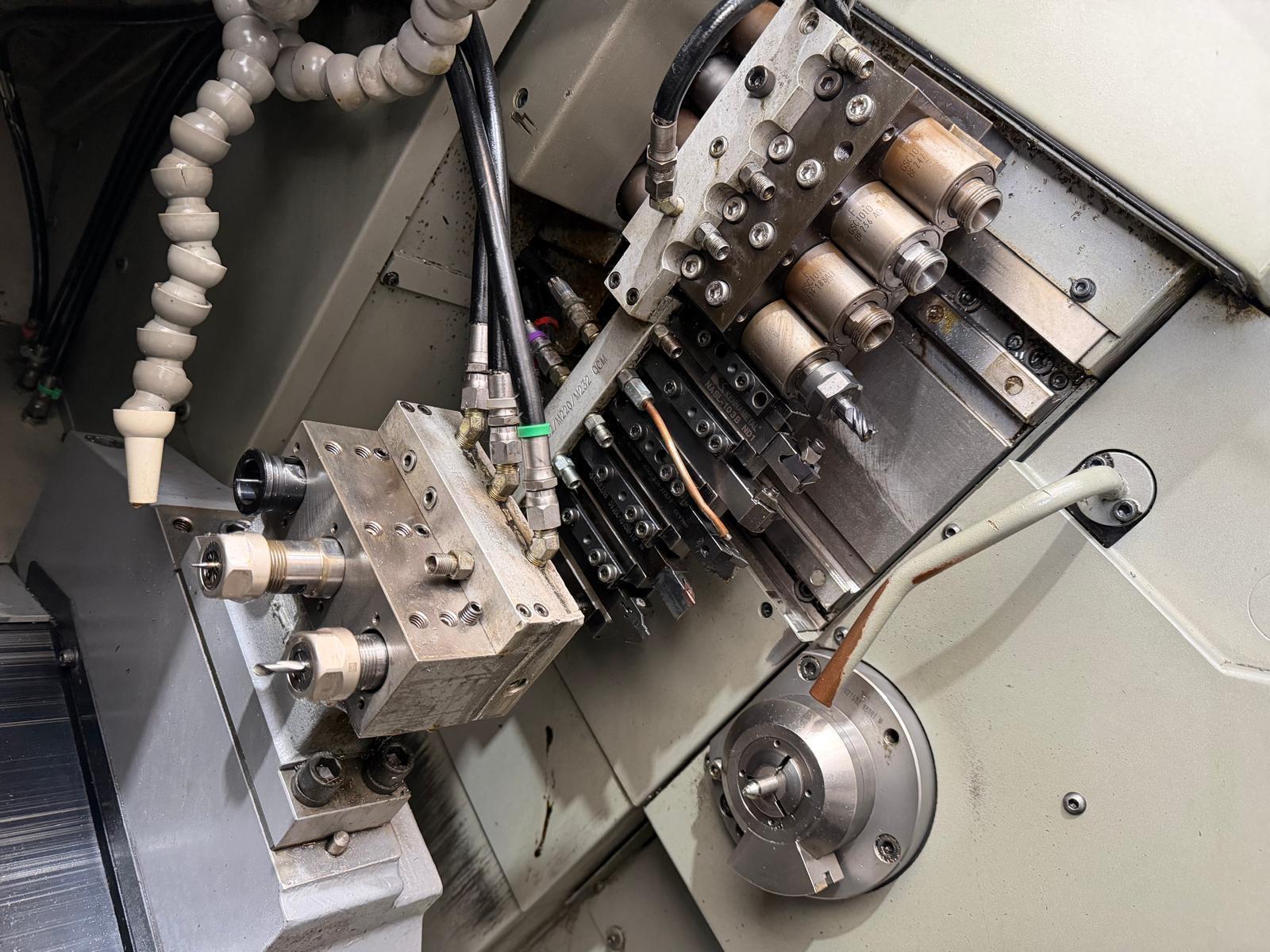

Gang Tools: 5 Turning + 4 Rotary
Back Working Tool Post: 3 (+ Rear Facing Tools On Turret)
Rotary Tool Speed: 200 – 5000 RPM
Rotary Tool Motor: 2 HP
