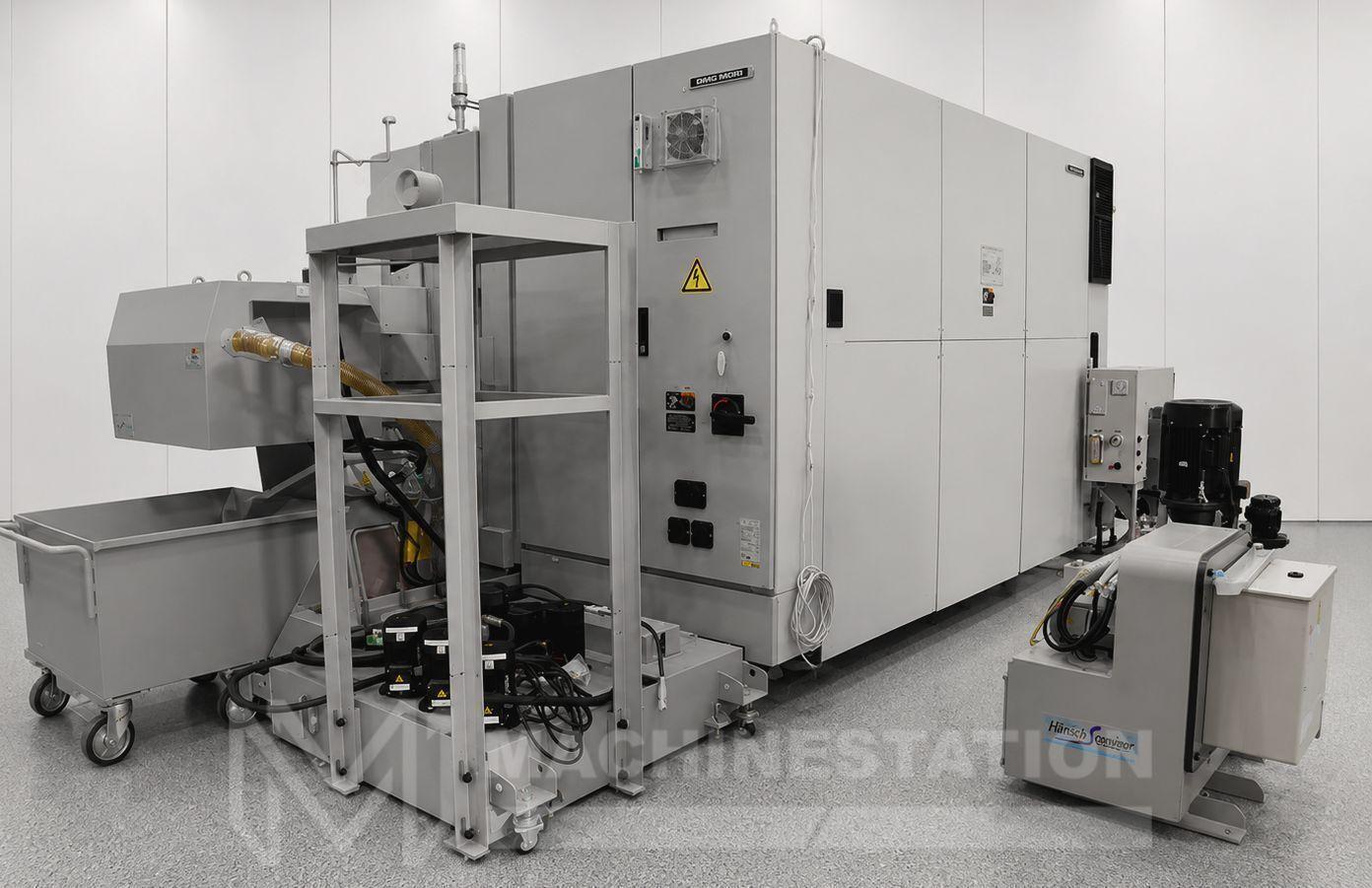

DMG Mori Seiki NTX2000/1500S Multi-Axis CNC Lathe with Milling Spindle, Lower Turret.

Brand
DMG MORI
Category
Lathes & Turning Machines
Type
Turning Centers
Model
NTX2000/1500S
Stock #
115148
Year
Not specified
Condition
Not specified

Location

Not specified

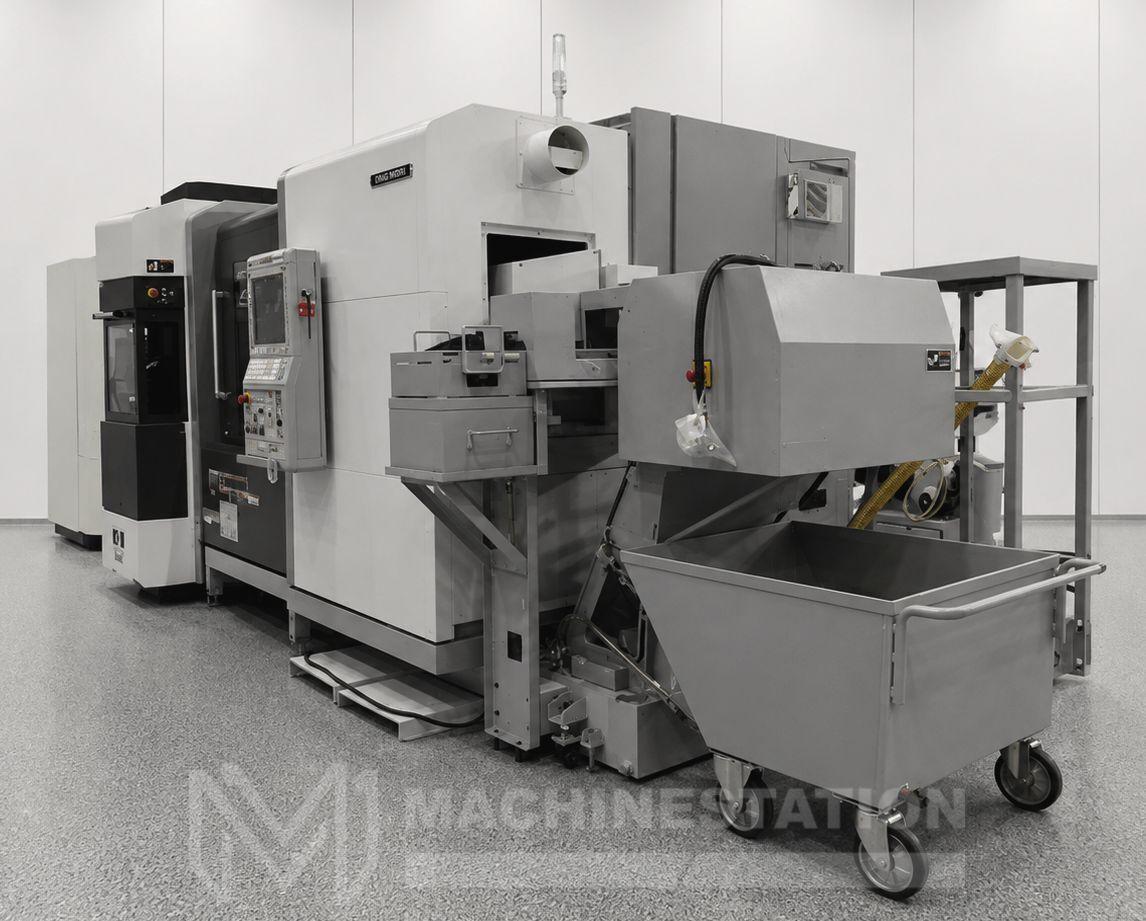

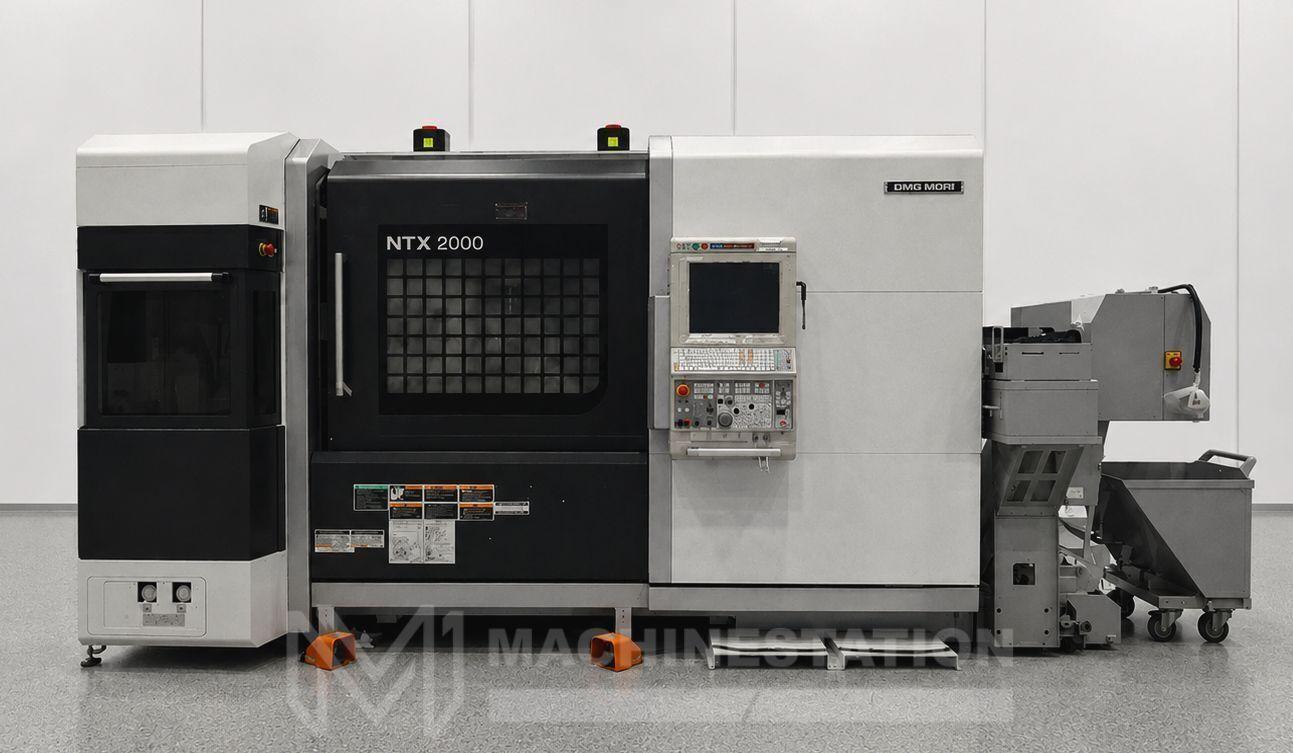

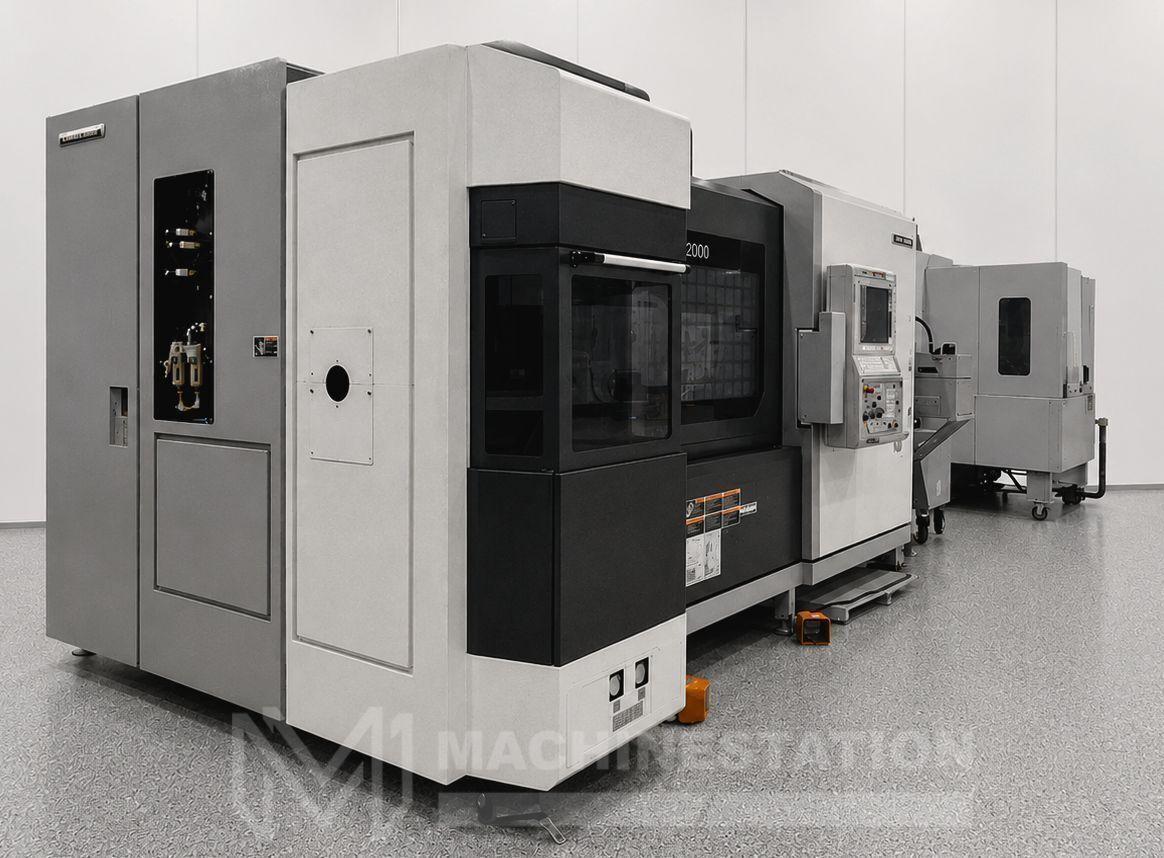

2014 DMG Mori Seiki NTX2000/1500S Multi-Axis CNC Lathe featuring 7-axis, 12,000 RPM spindle, and 76-tool changer. Includes dual 8 inch chucks, high-pressure coolant, and chip conveyor. Ideal for high-precision tasks requiring Y-axis and full C-axis on both spindles.

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Make: DMG Mori Seiki
Model No.: NTX 2000/1500S
Year: 2014
Equipped With:

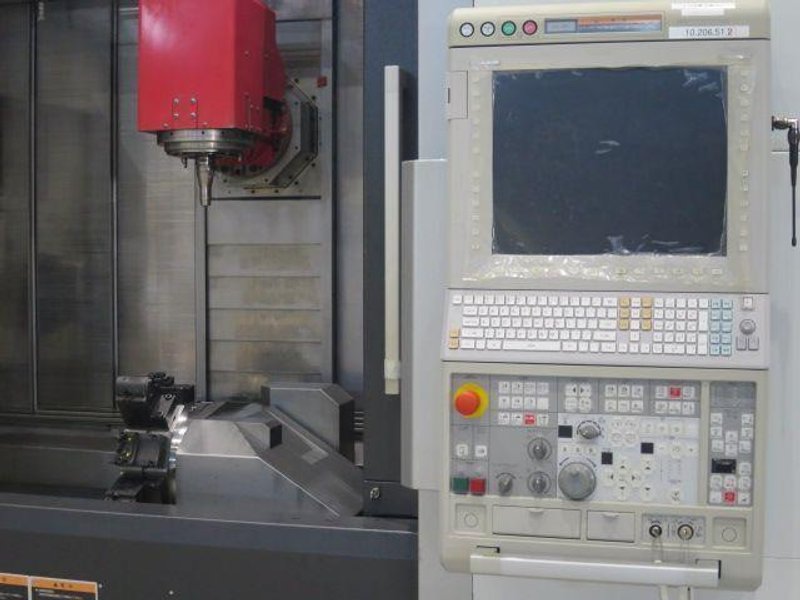

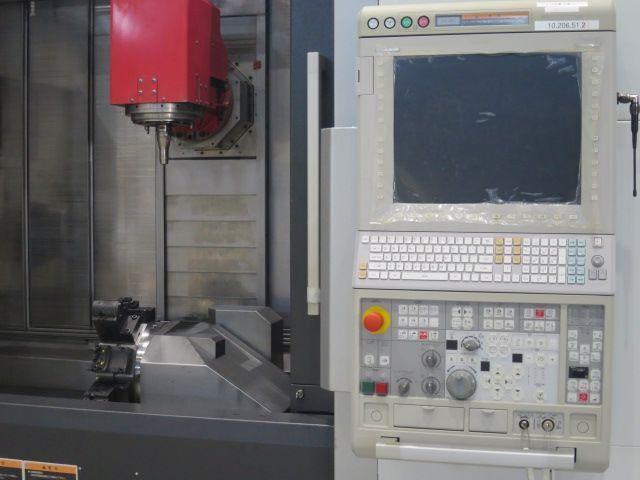

FANUC 31i-B5 CNC Control

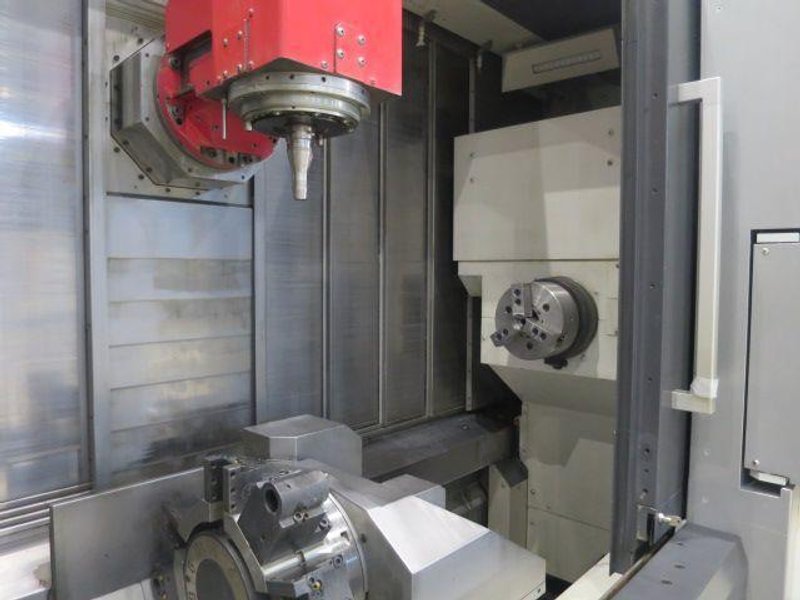

12,000 RPM Pendulum Milling Head
76-Station Tool Magazine

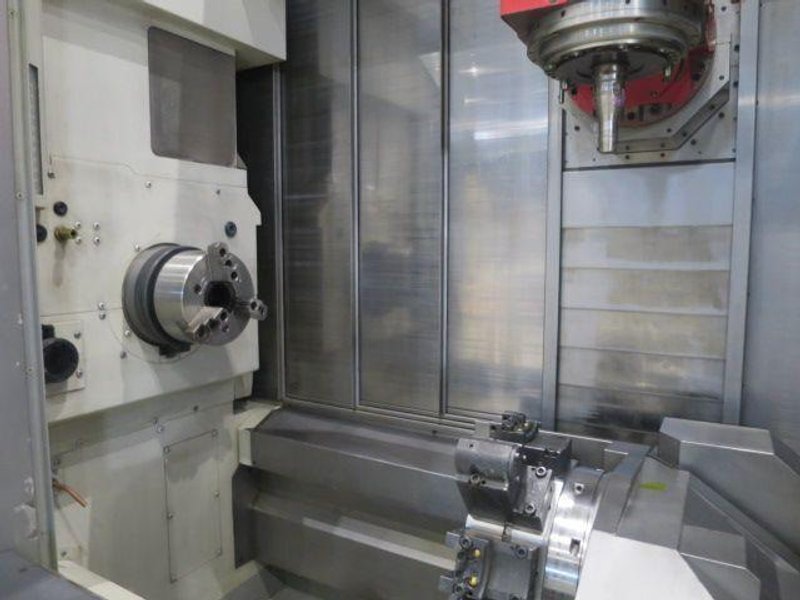

8 inch 3-Jaw Kitagawa B208 Chuck on Main Spindle
8 inch 3-Jaw Kitagawa B208 Chuck on Second Spindle
Full C-Axis on Main and Sub Spindles
Sub Spindle
Y-Axis Capability
10-Station Turret
Tool Presetter

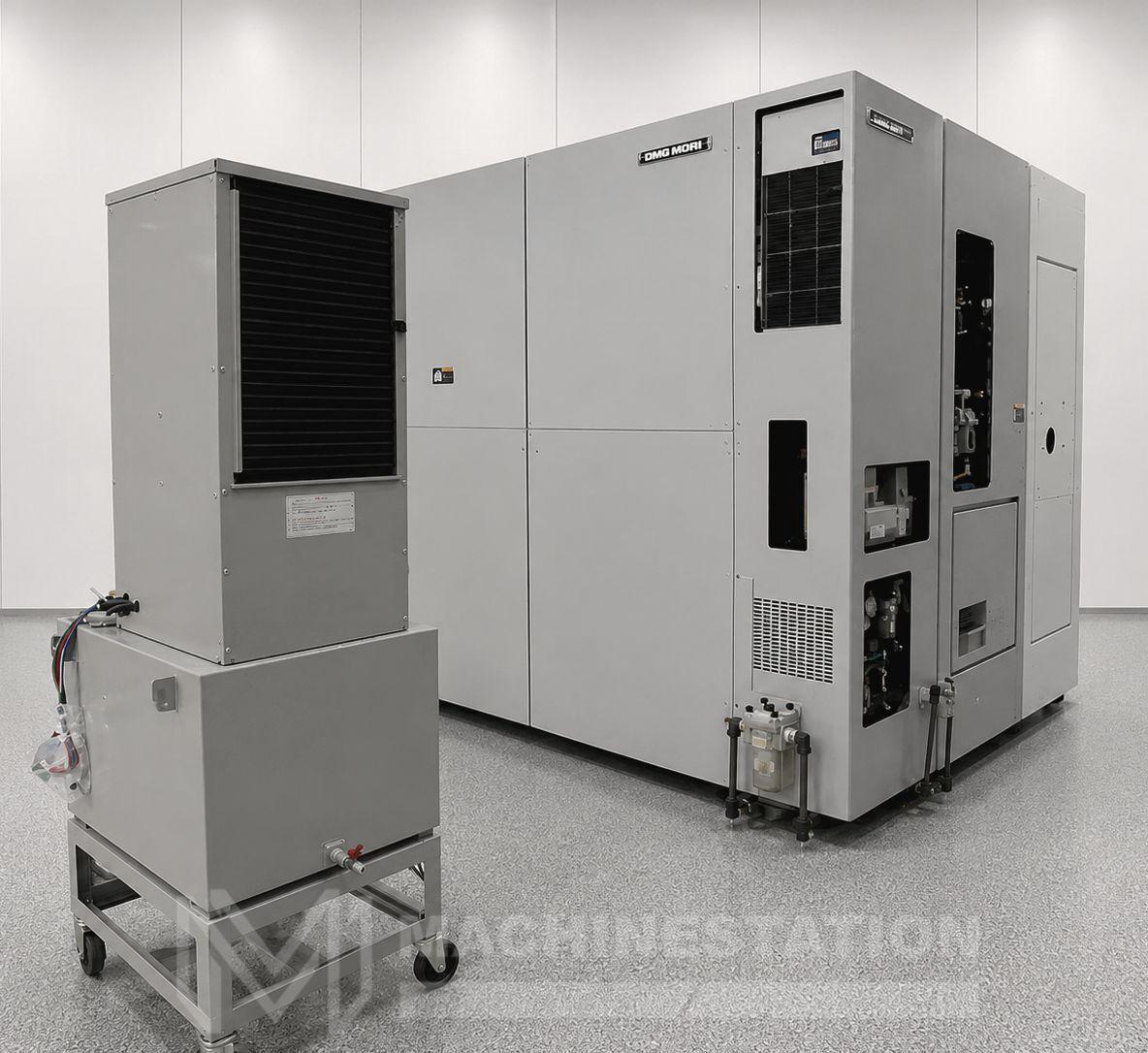

Spindle Chiller Unit
High-Pressure Coolant
Coolant Tank
Chip Conveyor
Capacity:
Maximum Workpiece Swing: 25.9 inch
Maximum Turning Diameter: 24.0 inch
Maximum Turning Length: 60.6 inch
Maximum Bar Capacity: 2.5 inch
Travels:
X-Axis Travel: 19.5 inch
Y-Axis Travel: ±4.9 inch
Z-Axis Travel: 61.4 inch
B-Axis Travel: ±120°
C-Axis Indexing: 0.0001°
Main Spindle:
Spindle Nose: A2-6
Maximum Spindle Speed: 5,000 RPM
Spindle Bore: 2.9 inch
Sub Spindle:
Spindle Nose: A2-6
Maximum Spindle Speed: 5,000 RPM
Spindle Bore: 2.9 inch
Milling / Tool Spindle:
Maximum Milling Spindle Speed: 12,000 RPM
B-Axis Swivel: ±120°
B-Axis Indexing: 0.0001°
Tool Interface: Capto C6 Standard
Automatic Tool Changer Capacity: 76 Tools
Spindle Power: 25 HP
Tool-to-Tool Change Time: 1.25 Seconds
General:
Power Source: AC 200V / 3-Phase / 60 Hz
Power Requirement: 72.1 kVA
Overall Dimensions: 160.6 inch x 117.3 inch x 103.2 inch High Approx.
Machine Weight: 31,944 lbs Approx.
